instrument panel CHEVROLET TRACKER 1995 Owners Manual

The person keeps going until stopped by something.
In a real vehicle, it could
be the windshield ...
or the instrument panel ...
ProCarManuals.com

G - D Section 2 Features and Controls
Here you can learn about the many standard and optional
features
on your Geo, and information on starting, shifting
and braking.
Also explained are the instrument panel and
the warning systems that tell
you if everything is working
properly
-- and what to do if you have a problem.
Keys
I
2-1 ProCarManuals.com

Front Seat Side Pockets Coinholder and Bin
On the outside
of each front seat is a storage pocket.
Instrument Panel Bins
On the top center of the instrument panel is a storage
bin.
II
Your console has a coinholder and a small storage bin.
Cupholder
Two cupholders are on the center console next to the
parking brake lever.
ProCarManuals.com

Ignition Switch
I n 1 With the key in the
ignition switch, you
can turn the switch to
four positions:
I I
LOCK (A): The only position in which you can remove
the key. This locks your steering wheel, ignition and
automatic transmission. Press in the ignition switch as
you turn the top
of it toward you.
If you have an automatic transmission, the ignition
switch can't be turned
to LOCK unless the shift lever is
in the
PARK (P) position.
ACC (B): The position that you can operate your
electrical power accessories.
It unlocks the steering
wheel and ignition. Use this position if
your vehicle
must be pushed
or towed.
ON (C): The position that the switch returns to after you
start your engine and release the switch. The switch
stays in the
ON position when the engine is running. But
even when the engine is not running, you can use
ON to
operate your electrical power accessories and to display
some instrument panel warning and indicator lights.
START (D): The position that starts the engine. When
the engine starts, release the key. The ignition switch
will return to
ON for normal driving.
When the engine is not running,
ACC and ON allow you
to operate your electrical accessories, such as the radio
and ventilation fan.
A warning chime will sound if you open the driver's
door when the ignition is in
ACC or LOCK and the key
is in the ignition.
ProCarManuals.com

4
L
A green arrow on the instrument panel will flash in the
direction of the turn or lane change.
To signal a lane change, just raise or lower the lever
until the green arrow starts
to flash. Hold it there until
you complete your lane change. The lever will return by
itself when you release it.
As you signal a turn or a lane change, if the arrows don’t
flash but just stay on, a signal bulb may be burned out
and other drivers won’t see your turn signal.
If a bulb is burned out, replace it to help avoid an
accident.
If the green arrows don’t go on at all when you
signal
a turn, check the fuse (see “Fuses and Circuit
Breakers’’ in the Index) and
for burned-out bulbs.
0
0
Turn the outside part of the lever to control the lamps.
There are three positions for the lamp switch.
OFF: All lamps are off.
0
-loo: : The parking lamps, taillamps, license plate
lamp and the instrument panel lighting come on. The
headlamps
are off.
-:g- : The headlamps and all other operating lamps
come on.
ProCarManuals.com

Lamps On Reminder Windshield Wipermasher Lever
If you turn the ignition off, remove the key, open the
door and leave the lamps on, a chime will remind you to
turn
off your lamps.
Headlamp High/Low Beam
First, you must have the
headlamps on. For high
beams, push the turn signal
lever away from you. When
the high beams are
on, a
blue light on the instrument
panel also will be on.
It will
go
off when you switch to
low beam.
To switch back to low beams, pull the lever toward you.
Passing Signal
With the lever in the low beam position, pull the lever
toward you to momentarily switch to high beam (to
~ signal that you are going to pass). When you release the
lever, the headlamps will return to low beam operation. The lever
on the right side
of the steering column
controls the windshield wipers
and washers.
Move the wiper switch to the position you want:
OFF: The wipers are off.
INT: Intermittent wiper operation. In light rain or snow,
you might want
to use this position rather than
continuous wiping.
LO: The wipers will run continuously at low speed.
2-30
ProCarManuals.com

Interior Lamps
Dome Lamp
The dome lamp has a
three position switch.
1.
2.
3.
This position is to the left when sitting in the driver's
seat. The dome lamp turns on and stays
on whether
or not
a door is open.
This is the center position. The lamp comes on when
a door is opened.
This position is to the right when sitting in the
driver's seat. The lamp stays off
even when a door is
open.
Brightness Control
I 1 I/
ff
This knob controls
brightness
of your the
instrument panel lights.
Turn the knob to the right to
brighten the lights or to the
left
to dim them.
ProCarManuals.com

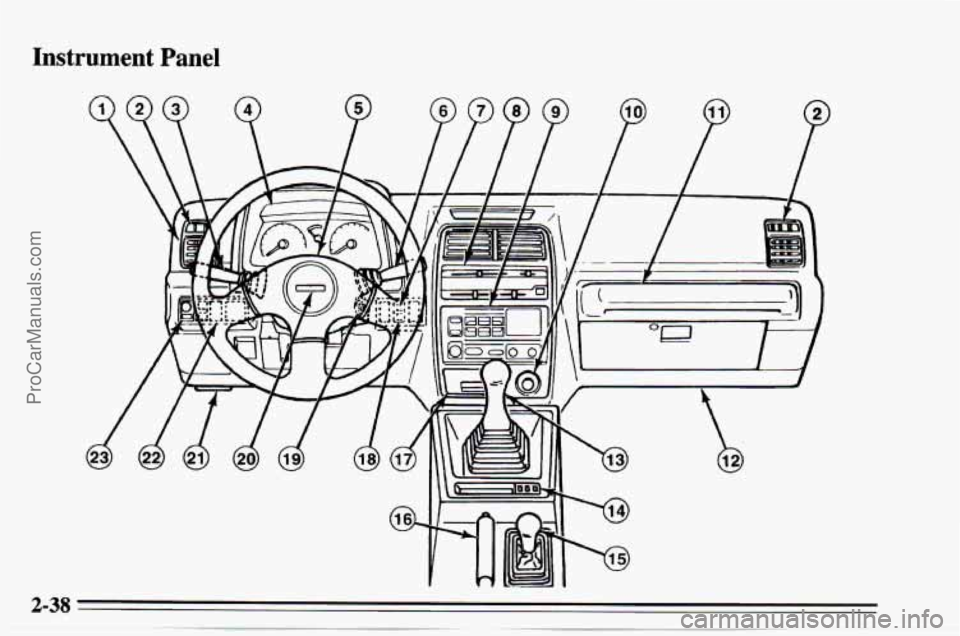

Instrument Panel
ProCarManuals.com

Optional Cluster
x1 000
If you have the optional cluster, your instrument panel
gives you additional information. The
cluster includes a tachometer.
ProCarManuals.com

Daytime Running Lamps (DRL) Indicator
Light (Canada)
If your vehicle was first sold, when new, in Canada, you
will have this light on the instrument panel. It goes on
whenever the Daytime Running Lamps are
on.
Convertible Top (Option)
Your convertible top features a sunroof, a removable
rear window, removable side windows and a removable
canvas top.
NOTICE:
0
0
0 Never raise or lower the top while the
vehicle is moving, or drive with any part of
the top unfastened or partially removed.
The wind could get under it and cause
damage.
Do not take your vehicle through an
automatic car wash.
It could damage your
convertible top.
Don’t
try to lower or raise the convertible
top or tap or beat on the plastic windows if
your vehicle is out in cold weather,
41°F
(5OC) or below. The cold can cause cracks
and other damage to the windows and to
the top as it is being lowered or raised.
NOTICE: (Continued)
