engine CHEVROLET TRACKER 1998 1.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine At Least Twice a Year
Restraint System Check
Make sure the safety belt reminder light and all your
belts, buckles, latch plates, retractors and anchorages are working properly. Look for any other loose or damaged
safety belt system parts. If you see anything that might
keep a safety belt system from doing its job, have it
repaired. Have any torn or frayed safety belts replaced.
Also look for any opened or broken air bag coverings,
and have them repaired or replaced. (The air bag system
does not need regular maintenance.)
Wiper Blade Check
Inspect wiper blades for wear or cracking. Replace blade
inserts that appear worn or damaged or that streak or
miss areas of the windshield. Also
see “Wiper Blades,
Cleaning” in the Index.
Fluid Level Check
Check the transfer case, axle differential(s) and
automatic
or manual transmission fluid levels and add
as needed. See “Transfer Case,” “Axle, Rear,” “Axle,
Front” and “Automatic Transmission” or “Manual
Transmission” in the Index. Check for leaks.
A fluid loss
in these systems could indicate a problem. Have the
system inspected and repaired at once.
Automatic Transmission Check
Check the transmission fluid level; add if needed. See
“Automatic Transmission” in the Index. A fluid
loss
may indicate a problem. Check the system and repair
if needed.
At Least Once a Year
Key Lock Cylinders Service
Lubricate the key lock cylinders with the lubricant specified in Part
D.
Body Lubrication Service
Lubricate all body door hinges. Also lubricate all
hinges and latches, including those for the hood, rear
compartment, glove box door, console door and any
folding seat hardware.
Part D tells you what to use.
More frequent lubrication may be required when
exposed to a corrosive environment.
7-48

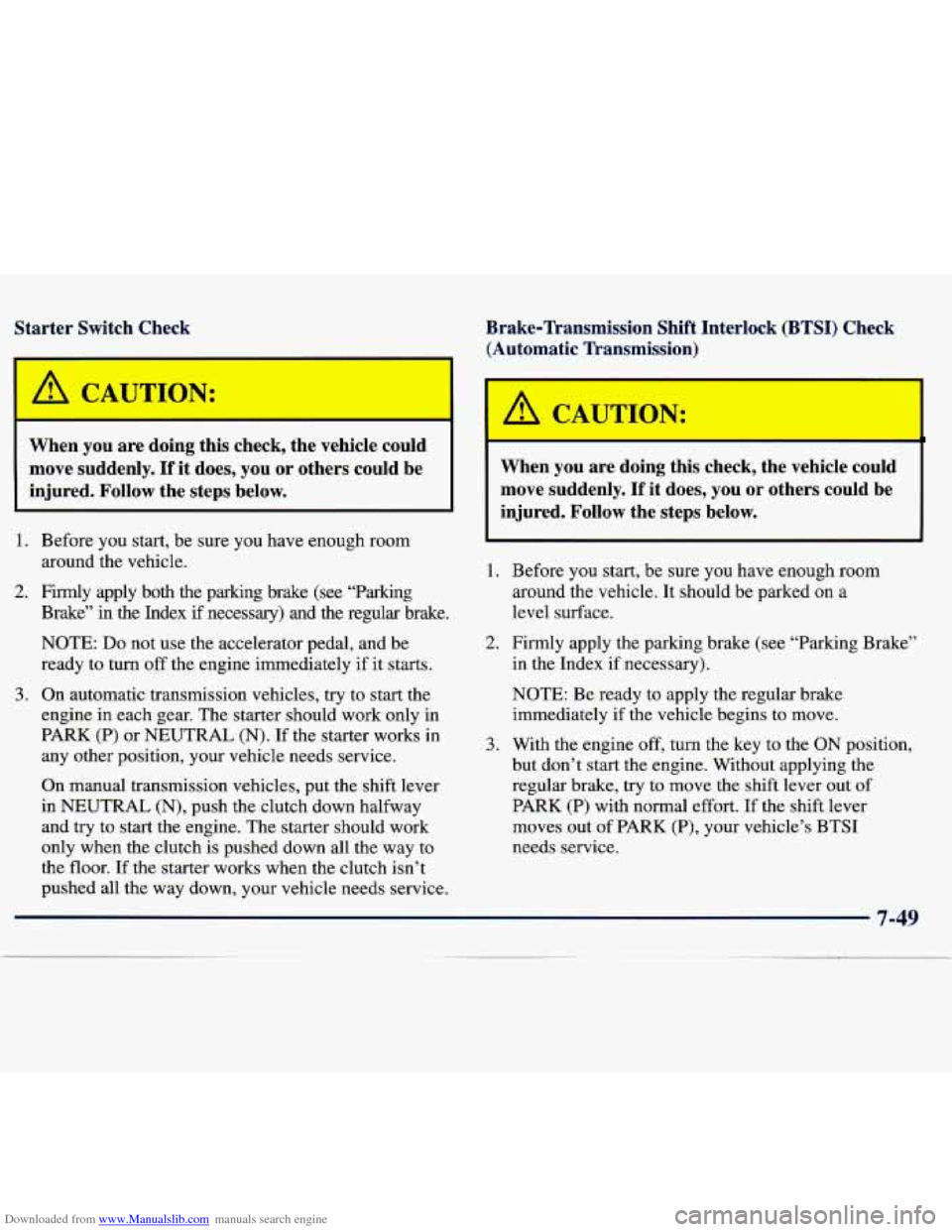

Downloaded from www.Manualslib.com manuals search engine Starter Switch Check Brake-Transmission Shift Interlock (BTSI) Check
(Automatic Transmission)
’ A CAUTION: I
When you are doing this check, the vehicle could
move suddenly. If it does, you
or others could be
injured. Follow the
steps below.
1. Before you start, be sure you have enough room
around the vehicle.
2. Firmly apply both the parking brake (see “Parking
Brake” in the Index if necessary) and the regular brake.
NOTE:
Do not use the accelerator pedal, and be
ready to turn
off the engine immediately if it starts.
3. On automatic transmission vehicles, try to start the
engine
in each gear. The starter should work only in
PARK
(P) or NEUTRAL (N). If the starter works in
any other position, your vehicle needs service.
On manual transmission vehicles, put the shift
lever
in NEUTRAL (N), push the clutch down halfway
and try to start the engine. The starter should work
only when the clutch is pushed down all the way to
the floor.
If the starter works when the clutch isn’t
pushed all the way down, your vehicle needs service.
A CAUTION:
When you are doing this check, theqehicle could
I
move suddenly. If it does, you or others could be
injured. Follow the steps below.
I
1. Before you start, be sure you have enough room around the vehicle. It should be parked on a
level surface.
2. Firmly apply the parking brake (see “Parking Brake”
in the Index
if necessary).
NOTE: Be ready to apply the regular brake
immediately if the vehicle begins to move.
3. With the engine off, turn the key to the
ON position,
but don’t start the engine. Without applying the
regular brake, try to move the shift lever out of
PARK (P) with normal effort. If the shift lever
moves out of PARK (P), your vehicle’s BTSI
needs service.
7-49
-

Downloaded from www.Manualslib.com manuals search engine Ignition Transmission Lock Check
While parked, and with the parking brake set, try to turn
the ignition key to
LOCK in each shift lever position.
With an automatic transmission, the key should turn
to LOCK only when the shift lever is in PARK (P).
0 With a manual transmission, the key should turn to
LOCK only if you push the key in farther, while
turning it towards LOCK.
On vehicles with a key release lever,
try to turn the key
to LOCK without pressing the lever. The key should
turn to
LOCK only when you press the key lever.
On all vehicles, the key should come out only in LOCK.
Parking Brake and Automatic Transmission
PARK (P) Mechanism Check
A C [TION:
I
When you are doing this check, your vehicle
could begin to move. You or others could be
injured and property could be damaged. Make
sure there is room in front
of your vehicle in case
it begins to roll.
Be ready to apply the regular
brake at once should the vehicle begin to move.
Park on a fairly steep hill, with the vehicle facing
downhill. Keeping your foot on the regular brake, set
the parking brake.
0
0
To check the parking brake’s holding ability:
With the engine running and transmission in
NEUTRAL (N), slowly remove foot pressure
from the regular brake pedal.
Do this until the
vehicle is held by the parking brake only.
To check the PARK (P) mechanism’s holding ability:
With the engine running, shift to PARK
(P).
Then release all brakes. If your vehicle is
four-wheel drive, be sure the transfer case is
not in NEUTRAL
(N).
Underbody Flushing Service
At least every spring, use plain water to flush any
corrosive materials from the underbody. Take care
to clean thoroughly any areas where mud and other
debris can collect.
7-50

Downloaded from www.Manualslib.com manuals search engine Part C: Periodic
Maintenance Inspections
Listed below are inspections and services which should
be performed at least twice a year (for instance, each
spring and fall).
You should let your dealer’s service
department or other qualified service center do these
jobs. Make sure any necessary repairs are completed
at once.
7xhaust Syste:-- p- 1sy::A’on
inspect the complete exhaust system. Inspect the body
near the exhaust system. Look for broken, damaged,
missing or out-of-position parts as well as open seams,
holes, loose connections or other conditions which
could cause a heat build-up in the floor pan or could
let exhaust fumes into the vehicle. See “Engine
Exhaust” in the Index.
Proper procedures to perform these services may be found in a service manual. See “Service and Owner
Publications” in the Index.
Steering, Suspension and Front Drive
Axle Boot and Seal Inspection
Inspect the front and rear suspension and steering
system for damaged, loose or missing
parts, signs of
wear or lack of lubrication. Inspect the power steering
lines and hoses for proper hook-up, binding, leaks,
cracks, chafing, etc. Clean and then inspect
the drive
axle boot seals for damage, tears or leakage. Replace
seals if necessary.
Engine Cooling System Inspection
Inspect the hoses and have them replaced if they are
cracked, swollen or deteriorated. Inspect all pipes, fittings
and clamps; replace as needed. Clean the outside
of the
radiator and air conditioning condenser.
To help ensure
proper operation, a pressure test of the cooling system
and pressure cap is recommended at least once a year.
7-5 1

Downloaded from www.Manualslib.com manuals search engine Throttle System Inspection
Inspect the throttle system for interference or binding,
and for damaged
or missing parts. Replace parts as
needed. Replace any components that have high effort
or excessive wear. Do not lubricate accelerator and
cruise control cables.
Rear Axle (All) and Front Axle
(Four-wheel Drive) Service
Check the gear lubricant level and add if needed. See
“Rear Axle” and “Four-wheel Drive” in the Index. A
fluid loss may indicate a problem. Check the system(s),
and repair the system(s) if needed. Refer to “Scheduled
Maintenance Services,” earlier
in this section, to
determine when to change the lubricant.
Brake System Inspection
Inspect the complete system. Inspect brake lines and
hoses for proper hook-up, binding, leaks, cracks,
chafing, etc. Inspect disc brake pads for wear and rotors
for surface condition. Also inspect drum brake linings
for wear and cracks. Inspect other brake parts, including
drums, wheel cylinders, calipers, parking brake, etc.
Check parking brake adjustment.
You may need to have
your brakes inspected more often if your driving habits
or conditions result in frequent braking.
Clutch System Service
Check clutch pedal free travel and adjust as necessary.
See “Clutch Adjustment” in the Index.
7-52

Downloaded from www.Manualslib.com manuals search engine Part D: Recommended Fluids
and Lubricants
NOTE: Fluids and lubricants identified below by name,
part number or specification may be obtained from
your dealer.
FLUIDLUBRICANT
Engine Oil with the American
Petroleum Institute Certified
For Gasoline Engines “Starburst” symbol of the
proper viscosity. To determine the preferred viscosity for your
vehicle’s engine, see “Engine
Oil” in the Index.
50/50 mixture of clean water
(preferably distilled) and good
quality Ethylene Glycol Base
Coolant (GM Part
No. 1052753
or equivalent) conforming to
GM Specification 1825M or
approved recycled coolant
conforming to GM
Specification 1825M. See
“Engine Coolant” in the Index.
USAGE
Hydraulic Brake
System
Parking Brake Cable
Guides
Power Steering System
Manual
Transmission (All) and Transfer Case
(Four-Wheel-Drive)
Automatic
Transmission
~
Key Lock Cylinders
FLUIDLUBRICANT
Delco Supreme 11@ Brake
Fluid (GM Part No. 12377967
or equivalent DOT-3 Brake
Fluid).
Chassis Lubricant (GM Part
No. 12377985 or equivalent) or
lubricant meeting requirements
of NLGI
# 2, Category LB
or GC-LB.
DEXRON@-I11 Automatic
Transmission Fluid.
GM Goodwrench Synthetic
Manual Transmission Gear Oil
quart) or equivalent SAE
75W-90
GL-4 Gear Oil.
DEXRON@-I11 Automatic
Transmission Fluid.
Multi-Pu ose Lubricant,
Superlube
% (GM Part
No. 12346241 or equivalent).
(GM Part
NO. 12346190 - 1

Downloaded from www.Manualslib.com manuals search engine USAGE
Manual
Transmission Shift Linkage
Clutch Linkage
Pivot Points
Floor Shift Linkage
Chassis Lubrication
FLUIDLUBRICANT
Chassis Lubricant (GM Part
No. 12377985 or equivalent) or
lubricant meeting requirements
of NLGI # 2, Category LB or
I Chassis Lubricant (GM Part
No. 12377985 or equivalent) or
lubricant meeting requirements
of NLGI # 2, Category LB or
Lubriplate@ Lubricant Aerosol (GM Part
No. 12346293 or
equivalent)
or lubricant
meeting requirements
of NLGI
# 2 Category LB or GC-LB.
Chassis Lubricant (GM Part
No. 12377985 or equivalent) or
lubricant meeting requirements
of NLGI # 2, Category LB or
GC-LB.
i GC-LB.
GC-LB.
USAGE
Front Wheel
FLUIDLUBRICANT
meeting requirements of NLGI
Bearings Wheel Bearing Lubricant
# 2, Category GC or GC-LB
(GM Part No. 1051344
or equivalent).
Rear Axle (All) and
GM Optikleen@ Washer Windshield Washer
8OW-90
GL-5 Gear Lubricant.
(Four-wheel Drive) No. 12345977) or SAE Front Axle
Axle Lubricant (GM Part
Solvent Solvent (GM Part No. 105 15
1 5) or equivalent.
Hood Latch Lubriplate@ Lubricant Aerosol
Assembly, Secondary (GM Part No. 12346293 or
Latch, Pivots, equivalent) or lubricant Spring Anchor and meeting requirements
of NLGI
Release Pawl
# 2, Category LB or GC-LB.
Hood and Door Multi-Pu ose Lubricant,
Hinges Superlube
% (GM Part
No. 12346241 or equivalent).
Weatherstrip (GM Part
No. 12345579
Conditioning Dielectric Silicone Grease
or equivalent).

Downloaded from www.Manualslib.com manuals search engine Part E: Maintenance Record Any additional information from “Owner Checks and
Services” or “Periodic Maintenance” can be added on
After the scheduled services are performed, record the the following record pages. Also, you should retain all
date, odometer reading and who performed the service maintenance recei\
pts. Your owner information portfolio
in the boxes provided after the maintenance interval. is a convenient place to store them.
Maintenance Record
ODOMETER
DATE MAINTENANCE PERFORMED
SERVICED
BY READING
~~~
7-55

Downloaded from www.Manualslib.com manuals search engine Maintenance Record
ODOMETER
DATE READING SERVICED
BY MAINTENANCE PERFORMED
7-56

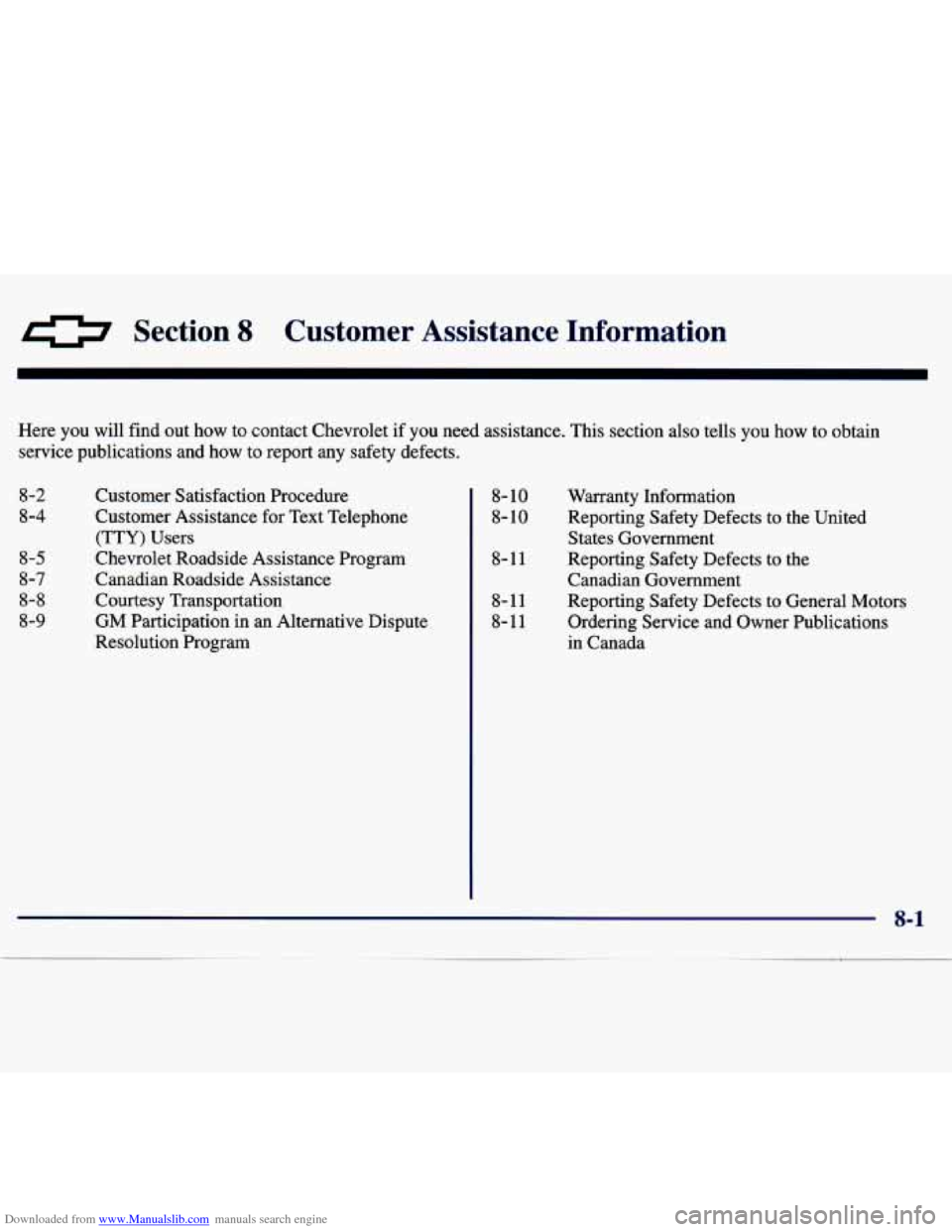

Downloaded from www.Manualslib.com manuals search engine Section 8 Customer Assistance Information
Here you will find out how to contact Chevrolet if you need assistance. This section \
also tells you how to obtain
service publications and how to report any safety defects.
8-2
8 -4
8-5
8-7
8-8
8-9 Customer Satisfaction Procedure
Customer Assistance
for Text Telephone
(TTY) Users
Chevrolet Roadside Assistance Program
Canadian Roadside Assistance
Courtesy Transportation GM Participation in an Alternative Dispute
Resolution Program 8-11
8-11 8-
10 Warranty Information
8-10 Reporting Safety Defects to the United
States Government
Canadian Government
Reporting Safety Defects to General Motors
Ordering Service and Owner Publications
in Canada
8-11 Reporting Safety Defects
to the
