air filter CHEVROLET TRACKER 2001 2.G Owners Manual

Table of Contents (cont'd)
Maintenance Schedule Service and Appearance Care
Section
7
Section
6
Scheduled Maintenance
Owner Checks and Services
Periodic Maintenance InspectionsRecommended Fluids and Lubricants
Maintenance Records Tires and Wheels
Appearance Care
Electrical System/Fuses and Circuit Breakers
Capacities and Specifications
Normal Maintenance Replacement Parts Fuel
Checking Fluids and Lubricants
Engine Air Cleaner/Filter
Passenger Compartment Air Filter (If Equipped)
Brakes
Bulb Replacement
iv

6-
6-1
Section 6 Service and Appearance Care
Here you will find information about the care of your vehicle. This section begins with service and fuel information,
and then it shows how to check important fluid and lubricant levels. There is also technical information about your
vehicle, and a part devoted to its appearance care.
6
-2 Service
6
-3 Fuel
6
-5 Fuels in Foreign Countries
6
-6 Filling Your Tank
6
-8 Filling a Portable Fuel Container
6
-9 Checking Things Under the Hood
6
-14 Engine Oil
6
-20 Engine Air Cleaner/Filter
6
-22 Passenger Compartment Air Filter
(If Equipped)
6
-24 Automatic Transmission Fluid
6
-27 Manual Transmission Fluid
6
-32 Engine Coolant
6
-35 Radiator Pressure Cap
6
-35 Power Steering Fluid
6
-36 Windshield Washer Fluid
6
-37 Brakes
6
-41 Battery
6
-42 Bulb Replacement6
-46 Tires
6
-54 Appearance Care
6
-55 Cleaning the Inside of Your Vehicle
6
-57 Cleaning the Outside of the Windshield,
Backglass and Wiper Blades
6
-58 Cleaning the Outside of Your Vehicle
6
-60 Special Care for Canvas Top and Plastic
Windows
6
-61 Cleaning Aluminum Wheels (If Equipped)
6
-61 Cleaning Tires
6
-62 Finish Damage
6
-62 Underbody Maintenance
6
-63 GM Vehicle Care/Appearance Materials
6
-64 Vehicle Identification Number (VIN)
6
-65 Electrical System
6
-68 Replacement Bulbs
6
-69 Capacities and Specifications
6
-71 Normal Maintenance Replacement Parts

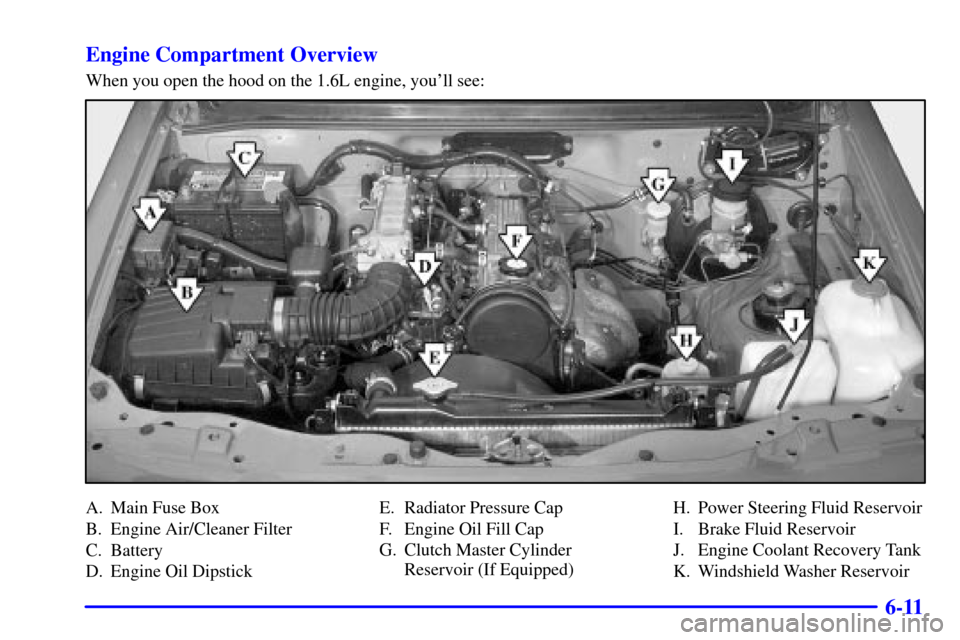

6-11 Engine Compartment Overview
When you open the hood on the 1.6L engine, you'll see:
A. Main Fuse Box
B. Engine Air/Cleaner Filter
C. Battery
D. Engine Oil DipstickE. Radiator Pressure Cap
F. Engine Oil Fill Cap
G. Clutch Master Cylinder
Reservoir (If Equipped)H. Power Steering Fluid Reservoir
I. Brake Fluid Reservoir
J. Engine Coolant Recovery Tank
K. Windshield Washer Reservoir

6-12

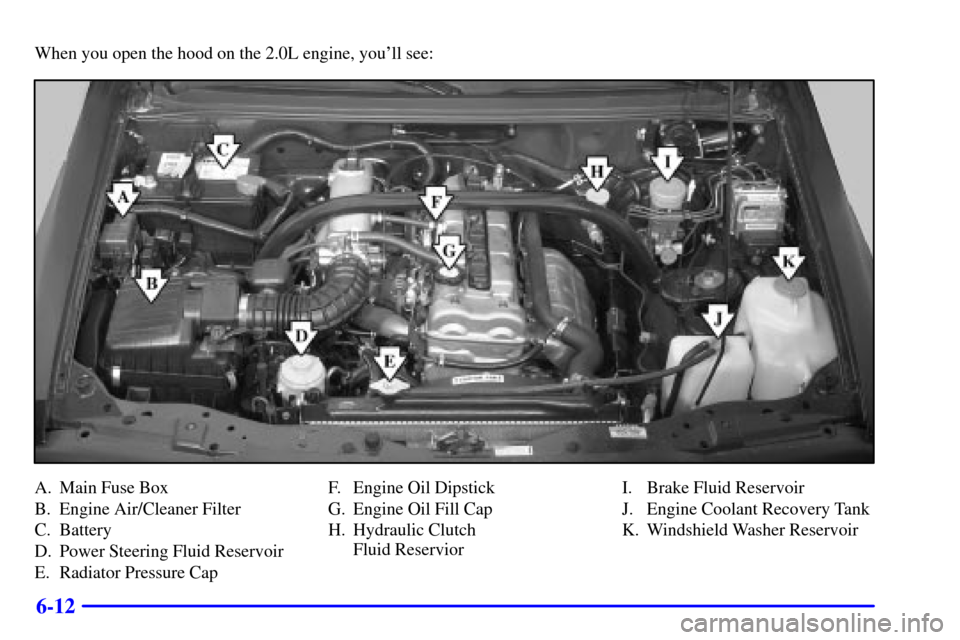

When you open the hood on the 2.0L engine, you'll see:
A. Main Fuse Box
B. Engine Air/Cleaner Filter
C. Battery
D. Power Steering Fluid Reservoir
E. Radiator Pressure CapF. Engine Oil Dipstick
G. Engine Oil Fill Cap
H. Hydraulic Clutch
Fluid ReserviorI. Brake Fluid Reservoir
J. Engine Coolant Recovery Tank
K. Windshield Washer Reservoir

6-13

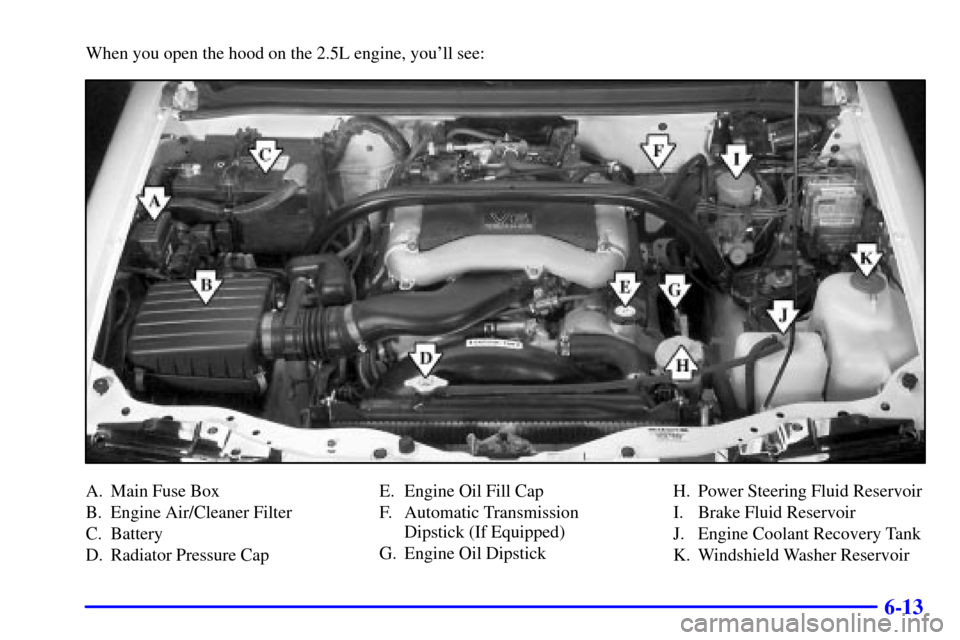

When you open the hood on the 2.5L engine, you'll see:
A. Main Fuse Box
B. Engine Air/Cleaner Filter
C. Battery
D. Radiator Pressure CapE. Engine Oil Fill Cap
F. Automatic Transmission
Dipstick (If Equipped)
G. Engine Oil DipstickH. Power Steering Fluid Reservoir
I. Brake Fluid Reservoir
J. Engine Coolant Recovery Tank
K. Windshield Washer Reservoir

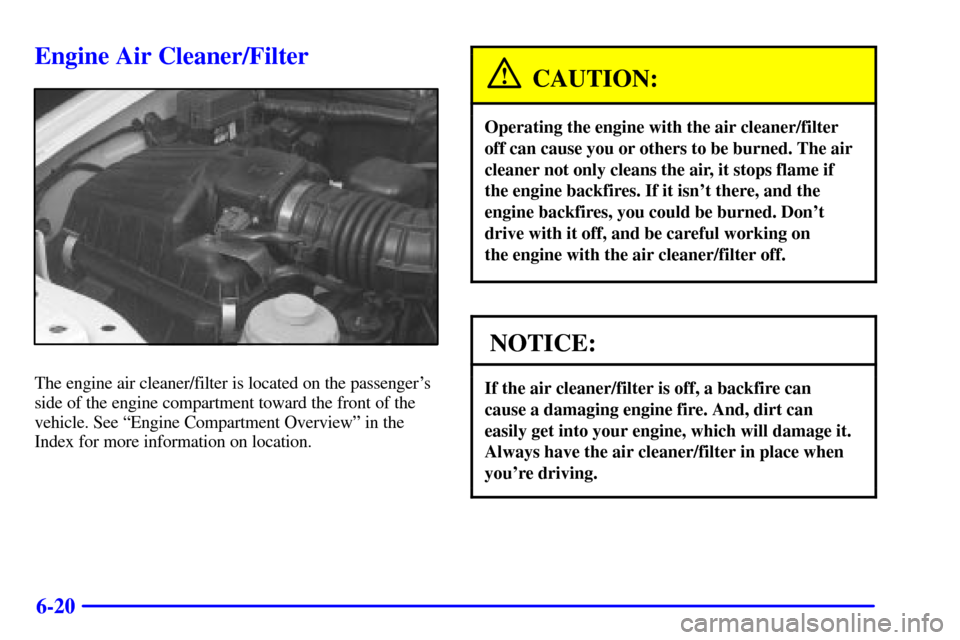

6-20
Engine Air Cleaner/Filter
The engine air cleaner/filter is located on the passenger's
side of the engine compartment toward the front of the
vehicle. See ªEngine Compartment Overviewº in the
Index for more information on location.
CAUTION:
Operating the engine with the air cleaner/filter
off can cause you or others to be burned. The air
cleaner not only cleans the air, it stops flame if
the engine backfires. If it isn't there, and the
engine backfires, you could be burned. Don't
drive with it off, and be careful working on
the engine with the air cleaner/filter off.
NOTICE:
If the air cleaner/filter is off, a backfire can
cause a damaging engine fire. And, dirt can
easily get into your engine, which will damage it.
Always have the air cleaner/filter in place when
you're driving.

6-21 Engine Air Cleaner/Filter Replacement
To check or replace the filter do the following:
1. Release the four clips on
the cover.
2. Lift the cover up.
3. Pull out the engine air cleaner/filter and check or
replace it.
4. Reinstall the cover and fasten the clips.

6-22
Passenger Compartment Air Filter
(If Equipped)
Passenger compartment air, both outside and
recirculated air, is routed through a passenger
compartment air filter. The filter removes certain
contaminants from the air, including pollen and dust
particles. Reductions in airflow, which may occur
more quickly in dusty areas, indicate that the filter
needs to be replaced early. For how often to change
the air filter, see ªMaintenance Scheduleº in the Index.The access panel for the air filter is in the glove box.
To replace the filter, follow these steps:
1. Lower the glove box door to the second detent
position. Push in the sides of the glove box
to completely lower the door to allow access
to the filters.
2. Remove the filter cover by lifting the top tab on
the cover.

6-23
3. Remove the top air filter, then lift out the lower filter.4. Reverse the steps to install the new filters.
Once you remove your filter, if you choose not
to replace it, it will not damage your vehicle.
However, the air will no longer be filtered.

6-69
Capacities and Specifications
The following approximate capacities are given in
English and metric conversions.
Air ConditioningSee the refrigerant . . . . . . . . . . . . .
information label under the hood.
Cooling System
1.6L Engine 5.8 quarts (5.5 L). . . . . . . . . . . . . . . . .
2.0L Engine 6.9 quarts (6.5 L). . . . . . . . . . . . . . . . .
2.5L Engine 8.5 quarts (8.0 L). . . . . . . . . . . . . . . . .
Crankcase with Filter
1.6L Engine 4.4 quarts (4.2 L)**. . . . . . . . . . . . . . .
2.0L Engine 5.5 quarts (5.2 L)**. . . . . . . . . . . . . . .
2.5L Engine 5.8 quarts (5.5 L)**. . . . . . . . . . . . . . .
Fuel Tank
Tw o
-Door Convertible 14.8 U.S. gallons (56 L). . .
Four
-Door Hardtop 17.4 U.S. gallons (66 L). . . . . . Automatic Transmission
Drain and Refill 2.6 quarts (2.5 L)*. . . . . . . . . . . . .
Manual Transmission
Four
-Wheel Drive 1.6 quarts (1.5 L)*. . . . . . . . . . .
Tw o
-Wheel Drive 2.0 quarts (1.9 L)*. . . . . . . . . . .
Differential
Front 1.1 quarts (1.0 L)*. . . . . . . . . . . . . . . . . . . . .
Rear 2.3 quarts (2.2 L)*. . . . . . . . . . . . . . . . . . . . . .
Transfer Case1.8 quarts (1.7 L) . . . . . . . . . . . . . . . .
*Recheck fluid level after filling. See ªAutomatic
Transmission Fluidº or ªManual Transmission Fluidº in
the Index.
**When changing the oil filter, additional oil may be
needed. Recheck the oil level after filling. See ªEngine
Oilº in the Index.
