bulb CHEVROLET TRACKER 2001 2.G Owners Manual

Table of Contents (cont'd)
Maintenance Schedule Service and Appearance Care
Section
7
Section
6
Scheduled Maintenance
Owner Checks and Services
Periodic Maintenance InspectionsRecommended Fluids and Lubricants
Maintenance Records Tires and Wheels
Appearance Care
Electrical System/Fuses and Circuit Breakers
Capacities and Specifications
Normal Maintenance Replacement Parts Fuel
Checking Fluids and Lubricants
Engine Air Cleaner/Filter
Passenger Compartment Air Filter (If Equipped)
Brakes
Bulb Replacement
iv

2-35
Turn Signal/Multifunction Lever
The lever on the left side of the steering column
includes the following:

Turn and Lane Change Signals

Headlamp High/Low
-Beam Changer

Flash
-to-Pass
Turn Signal and Lane Change Indicator
The turn signal has an upward (for right) and a
downward (for left) position. These positions allow
you to signal a turn or a lane change.
To signal a turn, move the lever all the way up or down.
When the turn is finished, the lever will return automatically.
An arrow on the instrument
panel cluster will flash in
the direction of the turn or
lane change.
To signal a lane change, just raise or lower the lever
until the arrow starts to flash. Hold it there until you
complete your lane change. The lever will return by
itself when you release it.
As you signal a turn or a lane change, if the arrows don't
flash but just stay on, a signal bulb may be burned out
and other drivers won't see your turn signal.
If a bulb is burned out, replace it to help avoid an
accident. If the arrows don't go on at all when you
signal a turn, check the fuse (see ªFuses and Circuit
Breakersº in the Index) and for burned
-out bulbs.

2-75 Oil Pressure Light
If you have a problem
with your oil, this light may
stay on after you start your
engine, or come on when
you are driving.
This indicates that there is not enough pressure to keep
your engine properly lubricated and cool. The engine
could be low on oil, or have some other oil related
problem. Have it fixed right away.
The oil light could also come on in three other situations.

When the ignition is on but the engine is not running,
the light will come on as a test to show you it is
working, but the light will go out when you turn
the engine to START. If it doesn't come on with
the ignition on, you may have a problem with the
fuse or bulb. Have it fixed right away.

Sometimes when the engine is idling at a stop, the
light may blink on and off. This is normal.

If you make a hard stop, the light may come on
for a moment. This is normal.CAUTION:
Don't keep driving if the oil pressure is low.
If you do, your engine can become so hot that
it catches fire. You or others could be burned.
Check your oil as soon as possible and have your
vehicle serviced.
NOTICE:
Damage to your engine from neglected oil
problems can be costly and is not covered by
your warranty.

4-54 Making Turns
NOTICE:
Making very sharp turns while trailering could
cause the trailer to come in contact with the
vehicle. Your vehicle could be damaged. Avoid
making very sharp turns while trailering.
When you're turning with a trailer, make wider turns than
normal. Do this so your trailer won't strike soft shoulders,
curbs, road signs, trees or other objects. Avoid jerky or
sudden maneuvers. Signal well in advance.
Turn Signals When Towing a Trailer
When you tow a trailer, your vehicle has to have extra
wiring (included in the optional trailering package).
The arrows on your instrument panel will flash
whenever you signal a turn or lane change. Properly
hooked up, the trailer lamps will also flash, telling other
drivers you're about to turn, change lanes or stop.When towing a trailer, the arrows on your instrument
panel will flash for turns even if the bulbs on the trailer
are burned out. Thus, you may think drivers behind you
are seeing your signal when they are not. It's important
to check occasionally to be sure the trailer bulbs are
still working.
Driving On Grades
Reduce speed and shift to a lower gear before you start
down a long or steep downgrade. If you don't shift
down, you might have to use your brakes so much that
they would get hot and no longer work well.
If you are towing a trailer and you have a manual
transmission with FIFTH (5) gear, you may prefer not to
use FIFTH (5). Just drive in FOURTH (4) (or, as you
need to, a lower gear).

6-
6-1
Section 6 Service and Appearance Care
Here you will find information about the care of your vehicle. This section begins with service and fuel information,
and then it shows how to check important fluid and lubricant levels. There is also technical information about your
vehicle, and a part devoted to its appearance care.
6
-2 Service
6
-3 Fuel
6
-5 Fuels in Foreign Countries
6
-6 Filling Your Tank
6
-8 Filling a Portable Fuel Container
6
-9 Checking Things Under the Hood
6
-14 Engine Oil
6
-20 Engine Air Cleaner/Filter
6
-22 Passenger Compartment Air Filter
(If Equipped)
6
-24 Automatic Transmission Fluid
6
-27 Manual Transmission Fluid
6
-32 Engine Coolant
6
-35 Radiator Pressure Cap
6
-35 Power Steering Fluid
6
-36 Windshield Washer Fluid
6
-37 Brakes
6
-41 Battery
6
-42 Bulb Replacement6
-46 Tires
6
-54 Appearance Care
6
-55 Cleaning the Inside of Your Vehicle
6
-57 Cleaning the Outside of the Windshield,
Backglass and Wiper Blades
6
-58 Cleaning the Outside of Your Vehicle
6
-60 Special Care for Canvas Top and Plastic
Windows
6
-61 Cleaning Aluminum Wheels (If Equipped)
6
-61 Cleaning Tires
6
-62 Finish Damage
6
-62 Underbody Maintenance
6
-63 GM Vehicle Care/Appearance Materials
6
-64 Vehicle Identification Number (VIN)
6
-65 Electrical System
6
-68 Replacement Bulbs
6
-69 Capacities and Specifications
6
-71 Normal Maintenance Replacement Parts

6-42
Contact your dealer to learn how to prepare your vehicle
for longer storage periods.

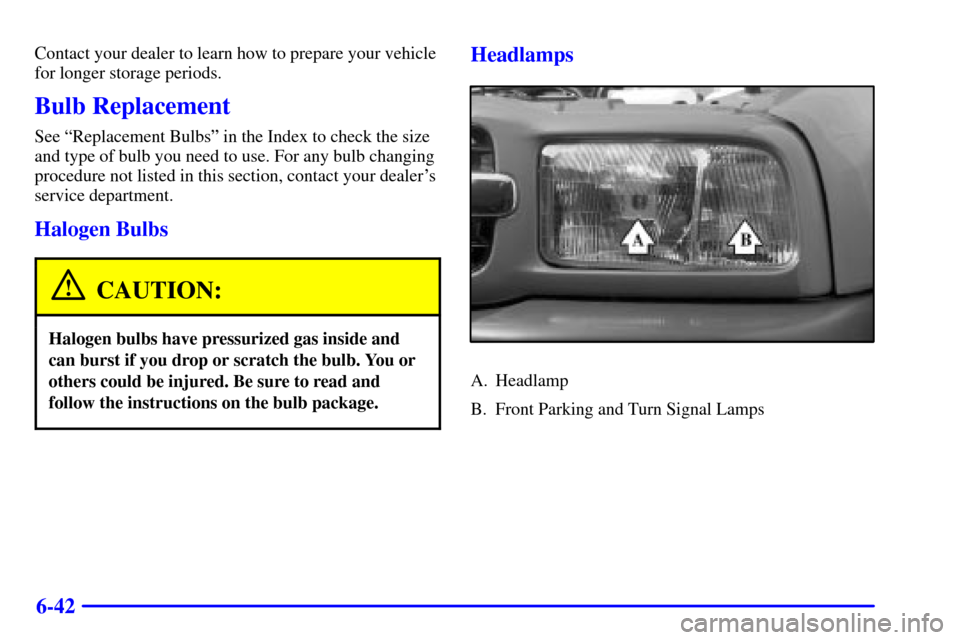

Bulb Replacement
See ªReplacement Bulbsº in the Index to check the size
and type of bulb you need to use. For any bulb changing
procedure not listed in this section, contact your dealer's
service department.
Halogen Bulbs
CAUTION:
Halogen bulbs have pressurized gas inside and
can burst if you drop or scratch the bulb. You or
others could be injured. Be sure to read and
follow the instructions on the bulb package.
Headlamps
A. Headlamp
B. Front Parking and Turn Signal Lamps

6-43
To replace a headlamp bulb, do the following:
1. Open the hood.
2. Remove the rubber
cover and socket from
the headlamp.
3. Release the retainer clip holding the bulb by pressing
down and moving the metal retainer away from you.
4. Pull the bulb out of the fixture.
5. Reverse the steps to install a new bulb.

6-44 Front Parking and Turn Signal Lamps
To replace the parking and turn signal bulb,
do the following:
1. Open the hood and locate the turn signal bulb.
2. Turn the bulb socket counterclockwise and pull it out
of the lamp housing.
3. Push the bulb in, turn it counterclockwise and pull
the bulb straight out of the socket.
4. Reverse the steps to install a new bulb.
Sidemarker Lamps
To replace the sidemarker bulb:
1. Remove the two screws
holding the sidemarker
lamp assembly using
a screwdriver. The
assembly should pull
away from the vehicle.
2. Turn the socket counterclockwise and pull it out
of the housing.
3. Pull the bulb out of the socket.
4. Reverse the steps to install a new bulb.

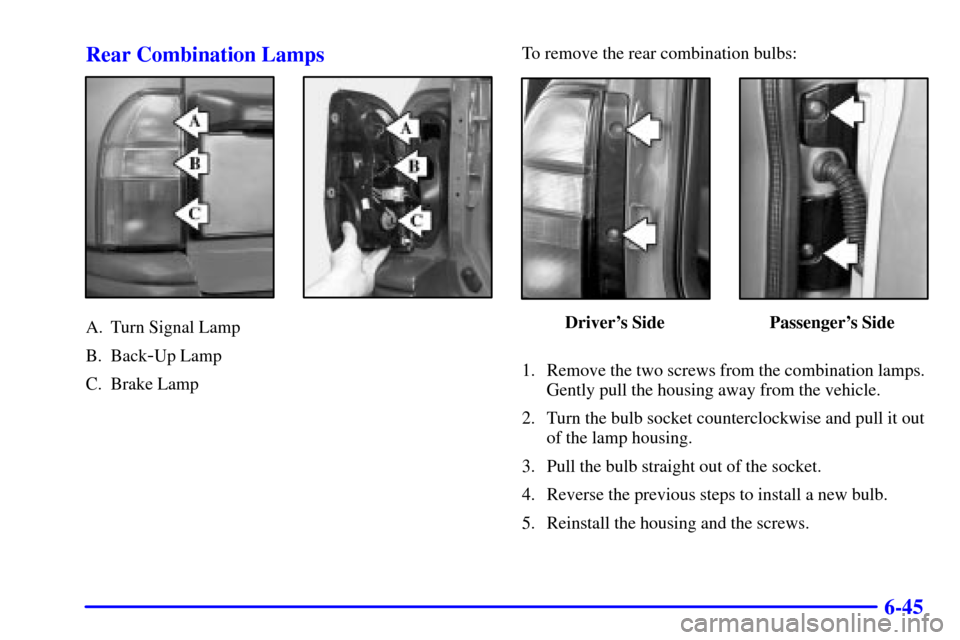

6-45 Rear Combination Lamps
A. Turn Signal Lamp
B. Back
-Up Lamp
C. Brake LampTo remove the rear combination bulbs:
Driver's Side Passenger's Side
1. Remove the two screws from the combination lamps.
Gently pull the housing away from the vehicle.
2. Turn the bulb socket counterclockwise and pull it out
of the lamp housing.
3. Pull the bulb straight out of the socket.
4. Reverse the previous steps to install a new bulb.
5. Reinstall the housing and the screws.

6-46 Dome Lamp
1. Gently pry the dome lamp lens from the lamp
assembly using a screwdriver.
2. Remove the bulb by gently opening the retaining clip
and sliding the bulb out.
3. Insert a new bulb. Make sure that it is
seated properly.
4. Snap the dome lamp lens back into the dome
lamp assembly.
Tires
Your new vehicle comes with high-quality tires made by
a leading tire manufacturer. If you ever have questions
about your tire warranty and where to obtain service,
see your Chevrolet Warranty booklet for details.
CAUTION:
Poorly maintained and improperly used tires
are dangerous.

Overloading your tires can cause
overheating as a result of too much friction.
You could have an air
-out and a serious
accident. See ªLoading Your Vehicleº in
the Index.

Underinflated tires pose the same danger
as overloaded tires. The resulting accident
could cause serious injury. Check all tires
frequently to maintain the recommended
pressure. Tire pressure should be checked
when your tires are cold.

Overinflated tires are more likely to be
cut, punctured or broken by a sudden
impact
-- such as when you hit a pothole.
Keep tires at the recommended pressure.

Worn, old tires can cause accidents. If your
tread is badly worn, or if your tires have
been damaged, replace them.
