Page 11 of 372
Head Restraints
Adjust your head restraint so that the top of the restraint
is closest to the top of your head. This position reduces
the chance of a neck injury in a crash.
The head restraint can be adjusted to four positions.
To raise the restraint, pull up on the restraint. To lower
the restraint, push in the release button while you
push down on the restraint.

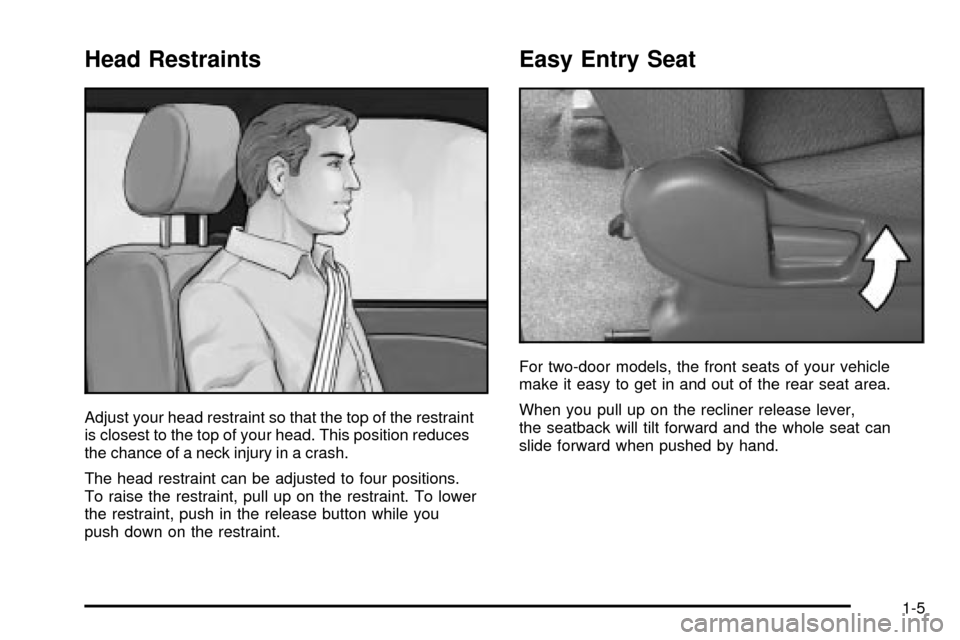

Easy Entry Seat
For two-door models, the front seats of your vehicle
make it easy to get in and out of the rear seat area.
When you pull up on the recliner release lever,
the seatback will tilt forward and the whole seat can
slide forward when pushed by hand.
1-5
Page 12 of 372
After someone gets into the rear seat area, move the
seat rearward until it locks. Then move the seatback to
its original position.
{CAUTION:
If any easy entry seat isn't locked, it can move.
In a sudden stop or crash, the person sitting
there could be injured. And, even if there is no
crash or sudden stop, a driver sitting in an
unlocked easy entry seat could be startled by
the sudden movement and hit the wrong
control or pedal, causing an accident. After
you've used it, be sure to push rearward on
any easy entry seat to be sure it is locked.To get out of the rear seat area, push the release pedal
on the rear of the front passenger's side front seat.
Then tilt the seatback forward, and slide the whole seat
forward.
1-6
Page 13 of 372
Rear Seats
Rear Seat Operation
{CAUTION:
If a head restraint is not installed on the
seatback or stored in the vehicle properly,
it could be thrown about the vehicle in a crash
or sudden maneuver. People in the vehicle
could be injured. Remove the head restraints
only when you need to fold the seat, and be
sure that the head restraints are stored
securely in their proper storage location.
When the seat is returned to the passenger
position, be sure the head restraints are
installed properly.
Folding the Seatback
The rear seat in your vehicle folds to provide more
cargo space. To fold the rear seats do the following:
1. Fold the safety belt buckles and center safety belt
(if equipped) into the pocket of the rear seatback.
1-7
Page 14 of 372
2. Pull the release straps located near the center of
the vehicle to release the seat cushion. Fold the
seat cushion forward.3. Remove the head restraint from the seatback by
raising the head restraint fully. Press the release
button and remove the head restraint from the
seatback.
1-8
Page 15 of 372

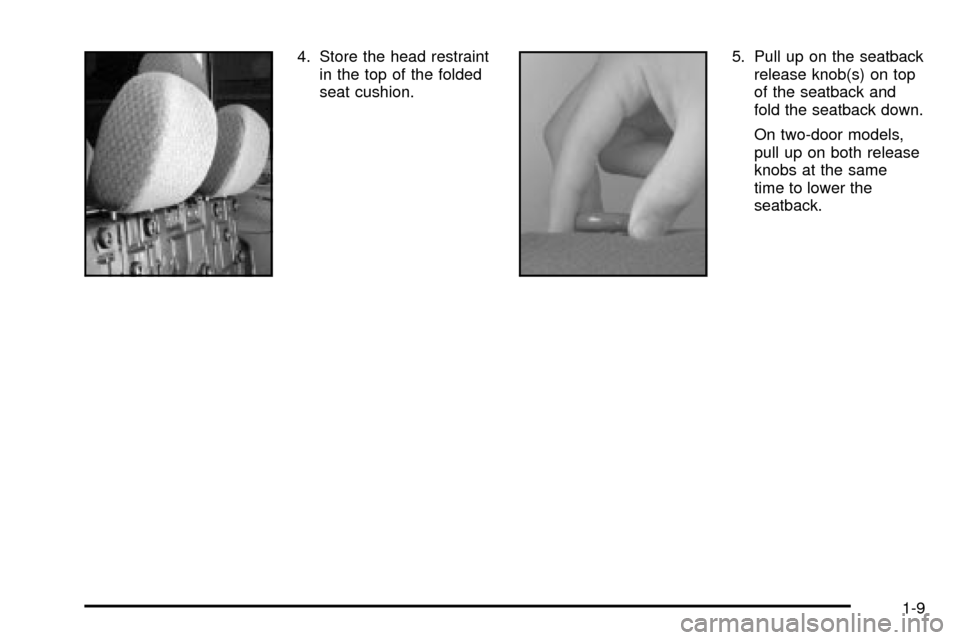

4. Store the head restraint
in the top of the folded
seat cushion.5. Pull up on the seatback
release knob(s) on top
of the seatback and
fold the seatback down.
On two-door models,
pull up on both release
knobs at the same
time to lower the
seatback.
1-9
Page 16 of 372
6. Secure the two black
straps attached to the
back of the folded
seat cushion by
hooking them onto the
knobs on the back
of the seatback when
folded down.To raise the rear seat do the following:
1. Unhook the two black straps from the buttons on
the seatback.
2. Fold the rear seatback up. Push and pull on the
seatback to ensure it's locked in position.
3. Reinstall the head restraints by inserting them into
the seatback. Make sure the head restraints are
secure in the seatback.
4. Insert the plates of the two black straps into their
storage slots on the bottom of the seat cushion.
5. Fold the seat cushion back and make sure it is
locked into position.
6. Remove the safety belt buckles and center safety
belt (if equipped) from the seatback pocket.
1-10
Page 17 of 372
Safety Belts
Safety Belts: They Are for Everyone
This part of the manual tells you how to use safety
belts properly. It also tells you some things you should
not do with safety belts.
{CAUTION:
Don't let anyone ride where he or she can't
wear a safety belt properly. If you are in a
crash and you're not wearing a safety belt,
your injuries can be much worse. You can hit
things inside the vehicle or be ejected from it.
You can be seriously injured or killed. In the
same crash, you might not be, if you are
buckled up. Always fasten your safety belt,
and check that your passengers' belts are
fastened properly too.
{CAUTION:
It is extremely dangerous to ride in a cargo
area, inside or outside of a vehicle. In a
collision, people riding in these areas are more
likely to be seriously injured or killed. Do not
allow people to ride in any area of your vehicle
that is not equipped with seats and safety
belts. Be sure everyone in your vehicle is in a
seat and using a safety belt properly.
Your vehicle has a light
that comes on as a
reminder to buckle up.
See
Safety Belt Reminder
Light on page 3-26.
1-11
Page 18 of 372
In most states and in all Canadian provinces, the law
says to wear safety belts. Here's why:They work.
You never know if you'll be in a crash. If you do have a
crash, you don't know if it will be a bad one.
A few crashes are mild, and some crashes can be so
serious that even buckled up, a person wouldn't survive.
But most crashes are in between. In many of them,
people who buckle up can survive and sometimes walk
away. Without belts they could have been badly hurt
or killed.
After more than 30 years of safety belts in vehicles,
the facts are clear. In most crashes buckling up
does matter... a lot!Why Safety Belts Work
When you ride in or on anything, you go as fast as
it goes.

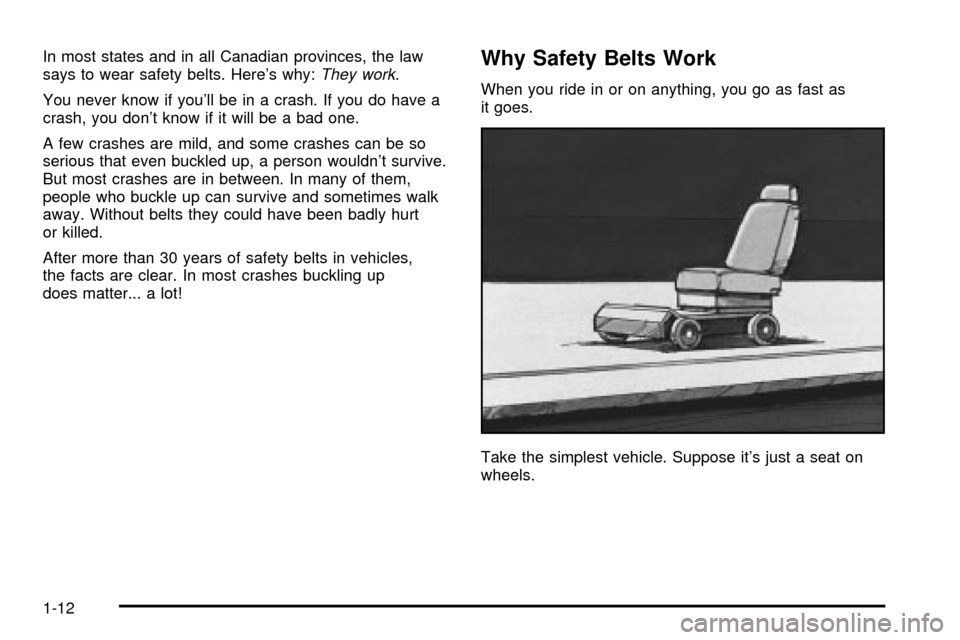

Take the simplest vehicle. Suppose it's just a seat on
wheels.
1-12
Page 19 of 372

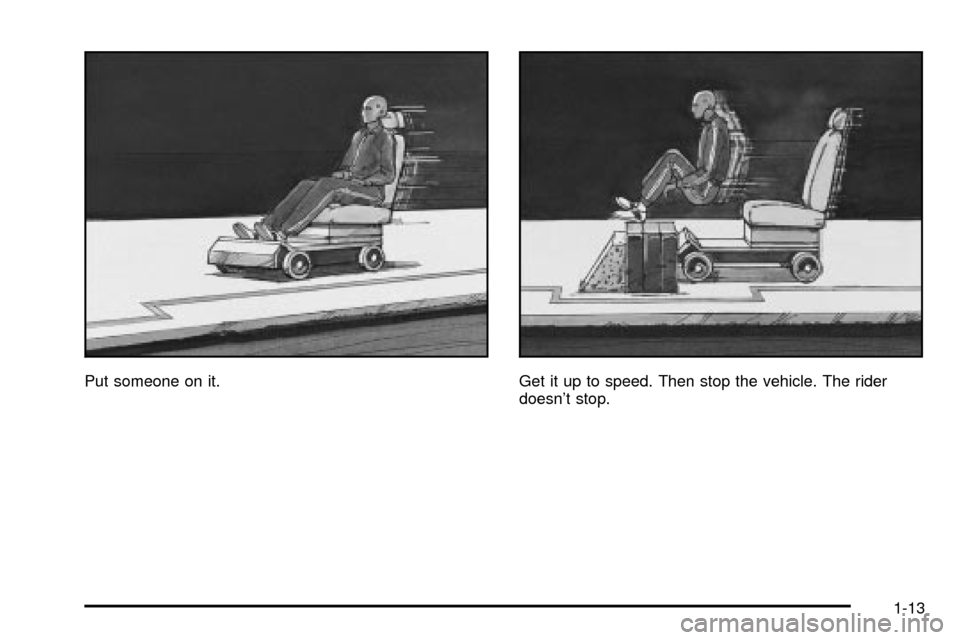

Put someone on it. Get it up to speed. Then stop the vehicle. The rider
doesn't stop.
1-13
Page 20 of 372
The person keeps going until stopped by something.
In a real vehicle, it could be the windshield...or the instrument panel...
1-14
