Page 129 of 372
Accessory Power Outlets
If your vehicle has an accessory power outlet, you can
plug in auxiliary electrical equipment.
The accessory power outlet is located in the center
console near the parking brake.
To use the outlet, open the cover. When not using it,
always cover the outlet with the protective cap.
These circuits are protected by a fuse and have
maximum current levels.
Notice:Leaving electrical equipment on for
extended periods will drain the battery. Always turn
off electrical equipment when not in use and do
not plug in equipment that exceeds the maximum
amperage rating.
Certain power accessory plugs may not be compatible
to the power accessory outlet and could result in
blown vehicle or adapter fuses.
If you experience a problem see your dealer for
additional information on the power accessory plugs.
When adding electrical equipment, be sure to follow the
proper installation instructions included with the
equipment.
Notice:Adding any electrical equipment to your
vehicle may damage it or keep other components
from working as they should. The repairs would not
be covered by your warranty. Check with your
dealer before adding electrical equipment.
Notice:Improper use of the power outlet can cause
damage not covered by your warranty. Do not
hang any type of accessory or accessory bracket
from the plug because the power outlets are
designed for accessory power plugs only.
Ashtrays and Cigarette Lighter
To use the lighter, if equipped, the ignition key must be
in ON or ACC. Push the lighter in all the way and let
go. When it's ready, it will pop back out by itself.
Pull the door to open the ashtray. To remove it, press
down on the tab and pull the ashtray out. To reinstall the
ashtray, push it in until the tab latches.
The rear ashtray, if equipped, is on the back of the
center console. Push on the left side of the ashtray.
The ashtray will turn clockwise for usage. To remove the
rear ashtray, press down on the tab and pull it out.
Notice:If you put papers or other ¯ammable items
in the ashtray, hot cigarettes or other smoking
materials could ignite them and possibly damage
your vehicle. Never put ¯ammable items in the
ashtray.
3-17
Page 168 of 372
Steering in Emergencies
There are times when steering can be more effective
than braking. For example, you come over a hill and ®nd
a truck stopped in your lane, or a car suddenly pulls
out from nowhere, or a child darts out from between
parked cars and stops right in front of you. You
can avoid these problems by braking Ð if you can stop
in time. But sometimes you can not; there is not
room. That is the time for evasive action Ð steering
around the problem.
Your vehicle can perform very well in emergencies like
these. First apply your brakes Ð but, unless you
have anti-lock, not enough to lock your wheels.
See
Braking on page 4-7. It is better to remove as much
speed as you can from a possible collision. Then
steer around the problem, to the left or right depending
on the space available.An emergency like this requires close attention and a
quick decision. If you are holding the steering wheel at
the recommended 9 and 3 o'clock positions, you
can turn it a full 180 degrees very quickly without
removing either hand. But you have to act fast, steer
quickly, and just as quickly straighten the wheel
once you have avoided the object.
The fact that such emergency situations are always
possible is a good reason to practice defensive driving
at all times and wear safety belts properly.
4-12
Page 178 of 372
Q:What should I do if my vehicle stalls, or is
about to stall, and I can't make it up the hill?
A:If this happens, there are some things you should
do, and there are some things you must not do.
First here's what you
shoulddo:
·Push the brake pedal to stop the vehicle and keep it
from rolling backwards. Also, apply the parking brake.
·If your engine is still running, shift the transmission to
REVERSE (R), release the parking brake, and slowly
back down the hill in REVERSE (R)
·If your engine has stopped running, you'll need to
restart it. With the brake pedal pressed and the
parking brake still applied, shift the transmission to
PARK (P) (or, shift to neutral if your vehicle has a
manual transmission) and restart the engine.
Then, shift to REVERSE (R), release the parking
brake, and slowly back down the ®ll as straight as
possible in REVERSE (R).
·As you are backing down the hill, put your left hand
on the steering wheel at the 12 o'clock position.
This way, you'll be able to tell if your wheels are
straight and maneuver as you back down.
It's best that you back down the hill with your wheels
straight rather than in the left or right direction.
Turning the wheel too far to the left or right will
increase the possibility of a rollover.Here are some things you
must notdo if you stall, or
are about to stall, when going up a hill.
·Never attempt to prevent a stall by shifting into
NEUTRAL (N) (or pressing the clutch, if you have a
manual transmission) to ªrev-upº the engine and
regain forward momentum. This won't work.
Your vehicle will roll backwards very quickly and
you could go out of control.
Instead, apply the regular brake to stop the vehicle.
Then apply the parking brake. Shift to
REVERSE (R), release the parking brake, and slowly
back straight down.
·Never attempt to turn around if you are about to stall
when going up a hill. If the hill is steep enough to stall
your vehicle, it's steep enough to cause you to roll
over if you turn around. If you can't make it up the hill,
you must back straight down the hill.
4-22
Page 223 of 372

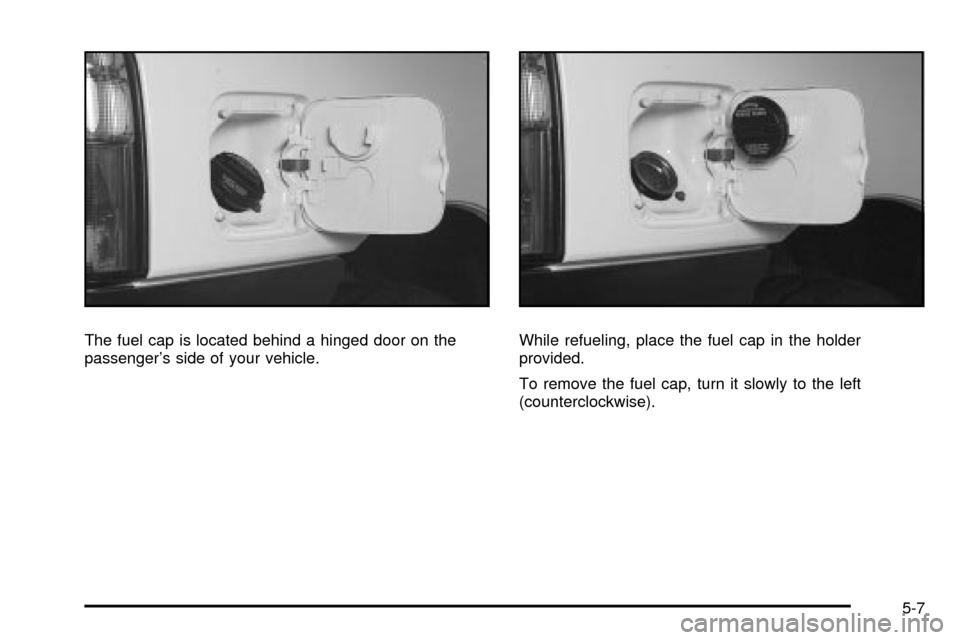

The fuel cap is located behind a hinged door on the
passenger's side of your vehicle.While refueling, place the fuel cap in the holder
provided.
To remove the fuel cap, turn it slowly to the left
(counterclockwise).
5-7
Page 224 of 372
{CAUTION:
If you get fuel on yourself and then something
ignites it, you could be badly burned. Fuel can
spray out on you if you open the fuel cap too
quickly. This spray can happen if your tank is
nearly full, and is more likely in hot weather.
Open the fuel cap slowly and wait for any
ªhissº noise to stop. Then unscrew the cap
all the way.
Be careful not to spill fuel. Clean fuel from painted
surfaces as soon as possible. See
Cleaning the Outside
of Your Vehicle on page 5-82. When ®lling the tank
do not over®ll by squeezing in much more fuel after the
pump shuts off.When you put the fuel cap back on, turn it to the right
(clockwise) until you hear a clicking sound. Make sure
you fully install the cap. The diagnostic system can
determine if the fuel cap has been left off or improperly
installed. This would allow fuel to evaporate into the
atmosphere. See
Malfunction Indicator Lamp on
page 3-31.
Notice:If you need a new fuel cap, be sure to get
the right type. Your dealer can get one for you.
If you get the wrong type, it may not ®t properly.
This may cause your malfunction indicator lamp to
light and may damage your fuel tank and emissions
system. See ªMalfunction Indicator Lampº in the
Index.
5-8
Page 253 of 372
CAUTION: (Continued)
Never turn the cap when the cooling system,
including the radiator pressure cap, is hot.
Wait for the cooling system and radiator
pressure cap to cool if you ever have to turn
the pressure cap.
How to Add Coolant to the Radiator
1. You can remove the radiator pressure cap when
the cooling system, including the radiator pressure
cap and upper radiator hose, is no longer hot.
Turn the pressure cap slowly counterclockwise until
it ®rst stops. (Don't press down while turning the
pressure cap.)
If you hear a hiss, wait for that to stop. A hiss
means there is still some pressure left.
5-37
Page 273 of 372
Front Turn Signal and Parking Lamps
To replace the parking and turn signal bulb, do the
following:
1. See ªHeadlampsº for location.
2. Locate the turn signal bulb.
3. Turn the bulb socket counterclockwise and pull it
out of the lamp housing.
4. Push the bulb in, turn it counterclockwise and pull
the bulb straight out of the socket.
5. Reverse the steps to install a new bulb.
Sidemarker Lamps
To replace the sidemarker bulb, do the following:
1. Remove the two screws
holding the sidemarker
lamp assembly.
The assembly should
pull away from the
vehicle.
2. Turn the socket counterclockwise and pull it out
of the housing.
3. Pull the bulb out of the socket.
4. Reverse the steps to install a new bulb.
5-57
Page 274 of 372

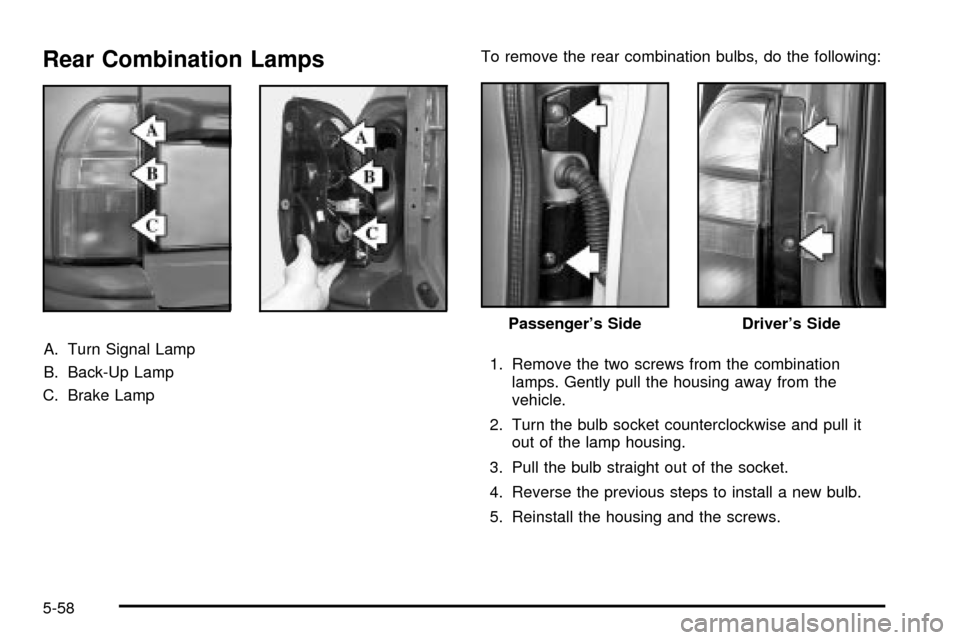

Rear Combination Lamps
A. Turn Signal Lamp
B. Back-Up Lamp
C. Brake LampTo remove the rear combination bulbs, do the following:
1. Remove the two screws from the combination
lamps. Gently pull the housing away from the
vehicle.
2. Turn the bulb socket counterclockwise and pull it
out of the lamp housing.
3. Pull the bulb straight out of the socket.
4. Reverse the previous steps to install a new bulb.
5. Reinstall the housing and the screws.
Driver's SidePassenger's Side
5-58
Page 284 of 372
Removing the Spare Tire and Tools
The jack, wheel wrench and jack handle are stowed in
the rear left corner of the luggage compartment.1. To open the jacking tool storage compartment, turn
the knob counterclockwise. Open the cover two
inches and pull the entire cover towards the front of
the vehicle.
2. Turn the jack screw to
remove the jack from
the clamps. If the screw
is too tight, use the jack
handle to loosen it.
5-68
Page 287 of 372
7. Remove the remaining wheel nuts with the wheel
wrench.
8. Remove the spare tire from the mounting bracket
and place it near your ¯at tire.
Removing the Flat Tire and Installing
the Spare Tire
1. If your vehicle has wheel nut caps, remove them
by turning the wheel wrench counterclockwise.
5-71
