Heated Seats
Your vehicle may have
heated front seats. The
buttons used to control
this feature are located
on the front door armrests.
The engine must be
running for the heated
seat feature to work.
To heat the entire seat, press the horizontal button with
the heated seat and seatback symbol. Press the button to
cycle through the temperature settings of high, medium,
and low and to turn the heated seat off. The indicator
lights above the button will come on to designate the level
of heat selected: three for high, two for medium, and
one for low.The low setting warms the seatback and
seat cushion until the seat temperature is near body
temperature. The medium and high settings heat the
seatback and seat cushion to a slightly higher
temperature. You will be able to feel heat in about
two minutes.
To heat only the seatback, press the vertical button with
the heated seatback symbol. An indicator light on the
button will come on to designate that only the seatback
is being heated. Additional presses will cycle through
the heat levels for the seatback only.
The feature will shut off automatically when the ignition
is turned off.
1-5

Reclining Seatbacks
Manual Reclining Seatbacks
{CAUTION:
You can lose control of the vehicle if you try to
adjust a manual driver’s seat while the vehicle
is moving. The sudden movement could startle
and confuse you, or make you push a pedal
when you do not want to. Adjust the driver’s
seat only when the vehicle is not moving.
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it is
locked.If the seats have manual reclining seatbacks, the lever
used to operate them is located on the outboard
side of the seats(s).
To recline the seatback, do the following:
1. Lift the recline lever.
2. Move the seatback to the desired position, then
release the lever to lock the seatback in place.
3. Push and pull on the seatback to make sure it is
locked.
1-6

To return the seatback to an upright position, do the
following:
1. Lift the lever fully without applying pressure to the
seatback and the seatback will return to the upright
position.
2. Push and pull on the seatback to make sure it is
locked.Power Reclining Seatbacks
If your seats have power
reclining seatbacks, use
the vertical power seat
control located on
the outboard side of the
seat(s).
To recline the seatback, press the control toward
the rear of the vehicle.
To raise the seatback, press the control toward the
front of the vehicle.
1-7

{CAUTION:
Sitting in a reclined position when your vehicle
is in motion can be dangerous. Even if you
buckle up, your safety belts cannot do their
job when you are reclined like this.
The shoulder belt cannot do its job. In a crash,
you could go into it, receiving neck or other
injuries.
The lap belt cannot do its job either. In a crash
the belt could go up over your abdomen. The
belt forces would be there, not at your pelvic
bones. This could cause serious internal
injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit
well back in the seat and wear your safety belt
properly.
Do not have a seatback reclined if your vehicle is
moving.
1-8

Head Restraints
Adjust the head restraint so that the top of the restraint
is at the same height as the top of the occupant’s
head. This position reduces the chance of a neck injury
in a crash.Pull the head restraint up
to raise it. To lower the
head restraint, press
the button, located on the
top of the seatback,
and push the head
restraint down.
1-9

Rear Seats
Rear Seat Operation
Flip and Fold Second Row Seats
(Five-Passenger)
Your vehicle may have ip and fold second row seats
which provide additional cargo space.
To ip and fold the seat(s), do the following:
1. Pull up on the loop located where the seat cushion
meets the seatback and ip the seat cushion
forward.Notice:Folding a rear seat with the safety belts
still fastened may cause damage to the seat or the
safety belts. Always unbuckle the safety belts
and return them to their normal stowed position
before folding a rear seat.
2. Lift the lever, located on the outboard side of the
seatback, and fold the seatback forward. The head
restraint will automatically fold out of the way as
the seatback is folded down.
1-10

To return the seat(s) to the original position, do the
following:
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it is
locked.
1. Lift the seatback until it locks into the upright
position. Push and pull on the seatback to
make sure it is locked.2. Return the head restraints to the upright position by
reaching behind the seat and pulling it forward until
it locks into place. Push and pull on the head
restraint to make sure that it is locked.
3. Flip the seat cushion back into place.
1-11

Fold and Tumble Second Row Seats
(Seven-Passenger)
Your vehicle may have a second row 65/35 split bench
seat which may be folded and tumbled for access to
the third row seats.
To fold and tumble the seat(s), do the following:
1. Push the head restraints down fully.
Notice:Folding a rear seat with the safety belts
still fastened may cause damage to the seat or the
safety belts. Always unbuckle the safety belts
and return them to their normal stowed position
before folding a rear seat.2. Fold the seatback at
on the seat by pulling
up on the front part
of the lever, located on
the outboard side of
the seat, and indicated
as 1 on the handle
and side cover.
3. Pull up on the rear part of the lever indicated as 2
on the handle and side cover to release the rear set
of seat hooks from the oor pins.
4. Tumble the seat forward.
1-12

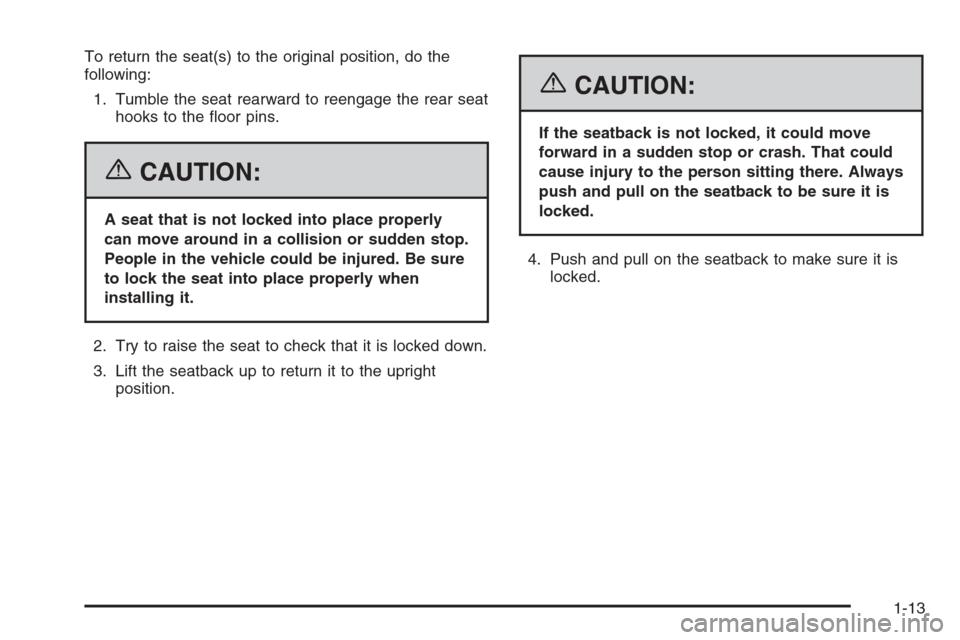

To return the seat(s) to the original position, do the
following:
1. Tumble the seat rearward to reengage the rear seat
hooks to the oor pins.
{CAUTION:
A seat that is not locked into place properly
can move around in a collision or sudden stop.
People in the vehicle could be injured. Be sure
to lock the seat into place properly when
installing it.
2. Try to raise the seat to check that it is locked down.
3. Lift the seatback up to return it to the upright
position.
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it is
locked.
4. Push and pull on the seatback to make sure it is
locked.
1-13

Third Row Seat (Seven-Passenger)
{CAUTION:
Be sure to return the seat to the passenger
seating position when nished. Push and pull
on the seat to make sure it is locked in place.
Never use the third row seating position while
the second row is folded or folded and
tumbled. This could cause injury in a sudden
stop or crash.
To enter the third row seat, you must fold and tumble
the second row seat following the instructions given
previously.If you are exiting the third row with no assistance, do
the following:
1. Pull the handle, located on the center of the second
row seatback, up to release the seatback and fold
the seatback forward.
2. Pull the back of the
seat lever, located on
the outboard side
of the seat and
indicated with the
number 2, to tumble
the seat forward.
To fold the third row seat, do the following:
1. Pull up on the handle located on the bottom of the
seat cushion to release the seat cushion.
2. Lift up the seat, and then pull it forward.
3. Fold the seatback forward until it is at.
4. If the second row seat is also folded, unhook the
elastic loop, if equipped, on the back of the seatback.
5. Fold the panel, if equipped, located on the back of
the seatback, to make a continuous surface to the
second row folded seat.
1-14
