CHEVROLET TRAIL BLAZER 2007 1.G Owners Manual

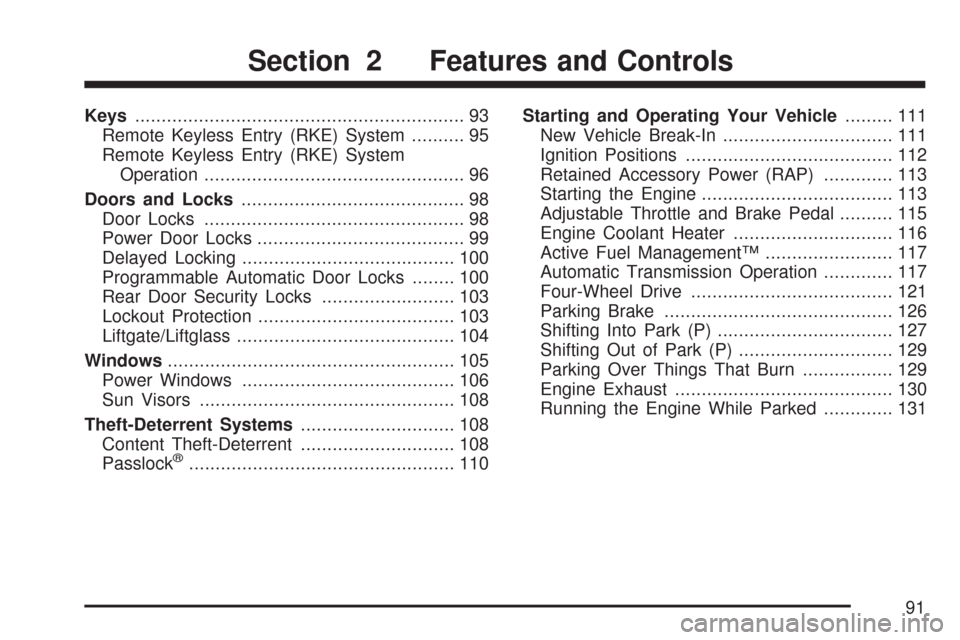

Keys.............................................................. 93
Remote Keyless Entry (RKE) System.......... 95
Remote Keyless Entry (RKE) System
Operation................................................. 96
Doors and Locks.......................................... 98
Door Locks................................................. 98
Power Door Locks....................................... 99
Delayed Locking........................................ 100
Programmable Automatic Door Locks........ 100
Rear Door Security Locks......................... 103
Lockout Protection..................................... 103
Liftgate/Liftglass......................................... 104
Windows...................................................... 105
Power Windows........................................ 106
Sun Visors................................................ 108
Theft-Deterrent Systems............................. 108
Content Theft-Deterrent............................. 108
Passlock
®.................................................. 110Starting and Operating Your Vehicle......... 111
New Vehicle Break-In................................ 111
Ignition Positions....................................... 112
Retained Accessory Power (RAP)............. 113
Starting the Engine.................................... 113
Adjustable Throttle and Brake Pedal.......... 115
Engine Coolant Heater.............................. 116
Active Fuel Management™........................ 117
Automatic Transmission Operation............. 117
Four-Wheel Drive...................................... 121
Parking Brake........................................... 126
Shifting Into Park (P)................................. 127
Shifting Out of Park (P)............................. 129
Parking Over Things That Burn................. 129
Engine Exhaust......................................... 130
Running the Engine While Parked............. 131
Section 2 Features and Controls
91

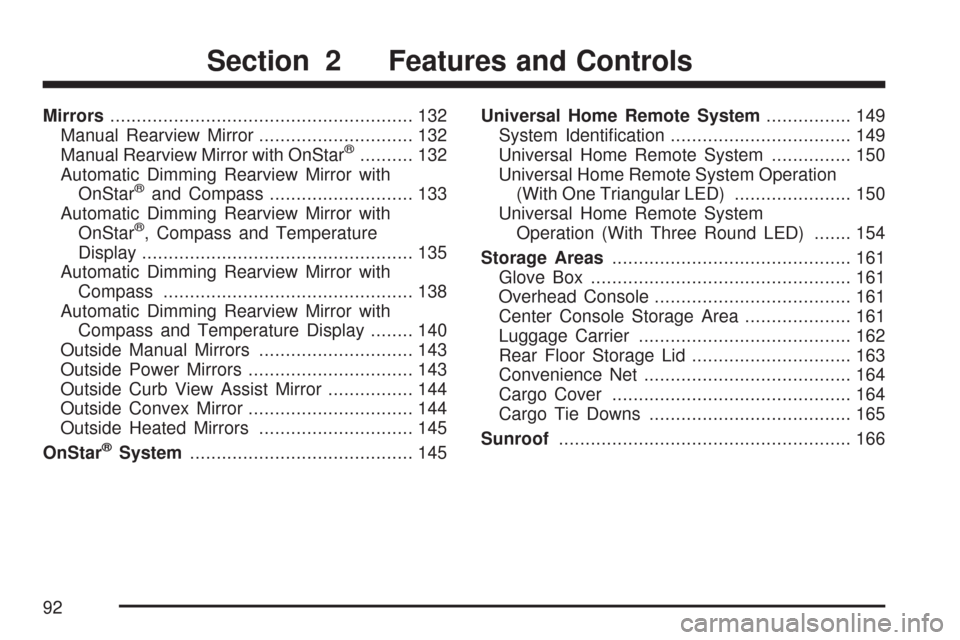

Mirrors......................................................... 132
Manual Rearview Mirror............................. 132
Manual Rearview Mirror with OnStar
®.......... 132
Automatic Dimming Rearview Mirror with
OnStar
®and Compass........................... 133
Automatic Dimming Rearview Mirror with
OnStar
®, Compass and Temperature
Display................................................... 135
Automatic Dimming Rearview Mirror with
Compass............................................... 138
Automatic Dimming Rearview Mirror with
Compass and Temperature Display........ 140
Outside Manual Mirrors............................. 143
Outside Power Mirrors............................... 143
Outside Curb View Assist Mirror................ 144
Outside Convex Mirror............................... 144
Outside Heated Mirrors............................. 145
OnStar
®System.......................................... 145Universal Home Remote System................ 149
System Identication.................................. 149
Universal Home Remote System............... 150
Universal Home Remote System Operation
(With One Triangular LED)...................... 150
Universal Home Remote System
Operation (With Three Round LED)....... 154
Storage Areas............................................. 161
Glove Box................................................. 161
Overhead Console..................................... 161
Center Console Storage Area.................... 161
Luggage Carrier........................................ 162
Rear Floor Storage Lid.............................. 163
Convenience Net....................................... 164
Cargo Cover............................................. 164
Cargo Tie Downs...................................... 165
Sunroof....................................................... 166
Section 2 Features and Controls
92

Keys
{CAUTION:
Leaving children in a vehicle with the
ignition key is dangerous for many
reasons, children or others could be badly
injured or even killed. They could operate
the power windows or other controls or
even make the vehicle move. The windows
will function with the keys in the ignition
and they could be seriously injured or
killed if caught in the path of a closing
window. Do not leave the keys in a vehicle
with children.
93

This vehicle has keys
that can be used for the
ignition and door lock
that will t with
either side up.
When a new vehicle is delivered, the dealer
provides the owner with a pair of identical keys
and a key code number.The key code number tells your dealer or a
qualied locksmith how to make extra keys. Keep
this number in a safe place. If you lose your
keys, you will be able to have new ones made
easily using this number. Your selling dealer
should also have this number.
Notice:If you ever lock your keys in your
vehicle, you may have to damage the vehicle
to get in. Be sure you have spare keys.
If you ever do get locked out of your vehicle,
call the GM Roadside Assistance Center.
SeeRoadside Assistance Program on page 544.
94

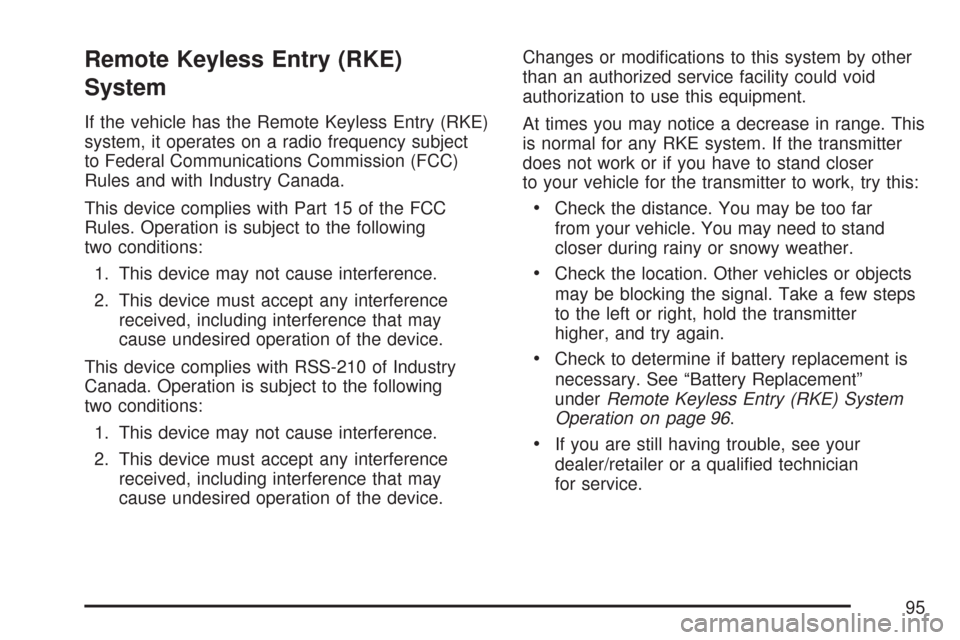

Remote Keyless Entry (RKE)
System
If the vehicle has the Remote Keyless Entry (RKE)
system, it operates on a radio frequency subject
to Federal Communications Commission (FCC)
Rules and with Industry Canada.
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions:
1. This device may not cause interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation of the device.
This device complies with RSS-210 of Industry
Canada. Operation is subject to the following
two conditions:
1. This device may not cause interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation of the device.Changes or modications to this system by other
than an authorized service facility could void
authorization to use this equipment.
At times you may notice a decrease in range. This
is normal for any RKE system. If the transmitter
does not work or if you have to stand closer
to your vehicle for the transmitter to work, try this:
Check the distance. You may be too far
from your vehicle. You may need to stand
closer during rainy or snowy weather.
Check the location. Other vehicles or objects
may be blocking the signal. Take a few steps
to the left or right, hold the transmitter
higher, and try again.
Check to determine if battery replacement is
necessary. See “Battery Replacement”
underRemote Keyless Entry (RKE) System
Operation on page 96.
If you are still having trouble, see your
dealer/retailer or a qualied technician
for service.
95

Remote Keyless Entry (RKE)
System Operation
If your vehicle has this feature, you can lock and
unlock your doors from about 3 feet (1 m) up
to 30 feet (9 m) away using the RKE transmitter
supplied with your vehicle.
K(Unlock):Press
unlock for the driver’s
door to unlock
automatically, the
parking lamps to ash
and the interior lights to
go on. Press the unlock
button a second time
within three seconds to
unlock all the doors.
You can program different feedback settings
through the Driver Information Center (DIC).
For more information seeDriver Information
Center (DIC) on page 220.
Q(Lock):Press lock to lock all the doors.
Press lock again within three seconds and the
horn will chirp.
L(Panic):Press the horn symbol to make the
horn sound. The headlamps and taillamps
will ash for up to 30 seconds. This can be turned
off by pressing the horn button again, by waiting
for 30 seconds, or by starting the vehicle.
Matching Transmitter(s) to Your
Vehicle
Each RKE transmitter is coded to prevent another
transmitter from unlocking your vehicle. If a
transmitter is lost or stolen, a replacement can be
purchased through your dealer. Remember to
bring any remaining transmitters with you when
you go to your dealer. When the dealer matches
the replacement transmitter to your vehicle,
any remaining transmitters must also be matched.
Once your dealer has coded the new transmitter,
the lost transmitter will not unlock your vehicle.
Each vehicle can have a maximum of four
transmitters matched to it.
96

Battery Replacement
Under normal use, the battery in your RKE
transmitter should last about two years.
the battery is weak if the transmitter does not work
at the normal range in any location. If you have
to get close to your vehicle before the transmitter
works, it is probably time to change the battery.
The Driver Information Center (DIC) will display a
KEY FOB # BATTERY LOW message when
the transmitter battery is low.
Notice:When replacing the battery, use care
not to touch any of the circuitry. Static
from your body transferred to these surfaces
may damage the transmitter.To replace the battery in the RKE transmitter do
the following:
1. Insert a thin coin in the slot between the
covers of the transmitter housing. Gently
pry the transmitter apart.
2. Remove and replace the battery with a
three-volt CR2032 or equivalent battery.
3. Align the covers and snap them together.
4. Check the operation of the transmitter.
97

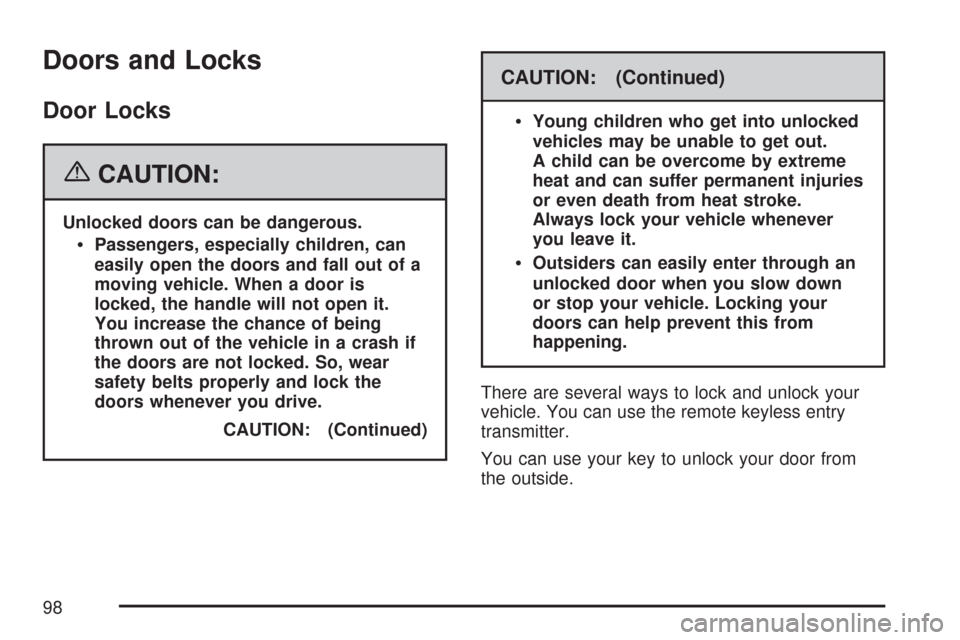

Doors and Locks
Door Locks
{CAUTION:
Unlocked doors can be dangerous.
Passengers, especially children, can
easily open the doors and fall out of a
moving vehicle. When a door is
locked, the handle will not open it.
You increase the chance of being
thrown out of the vehicle in a crash if
the doors are not locked. So, wear
safety belts properly and lock the
doors whenever you drive.
CAUTION: (Continued)
CAUTION: (Continued)

Young children who get into unlocked
vehicles may be unable to get out.
A child can be overcome by extreme
heat and can suffer permanent injuries
or even death from heat stroke.
Always lock your vehicle whenever
you leave it.
Outsiders can easily enter through an
unlocked door when you slow down
or stop your vehicle. Locking your
doors can help prevent this from
happening.
There are several ways to lock and unlock your
vehicle. You can use the remote keyless entry
transmitter.
You can use your key to unlock your door from
the outside.
98

You can lock or unlock
the door from the inside
by sliding the manual
lever forward or
rearward.
When the door is unlocked, you can see a red
area on the lever.
The manual lever on each door works only that
door’s lock.Power Door Locks
The power door lock
switches are located on
the driver’s and front
passenger’s door
armrests.
Press the lock symbol to lock all of the doors.
To unlock the doors, press the other side of
the switch.
99

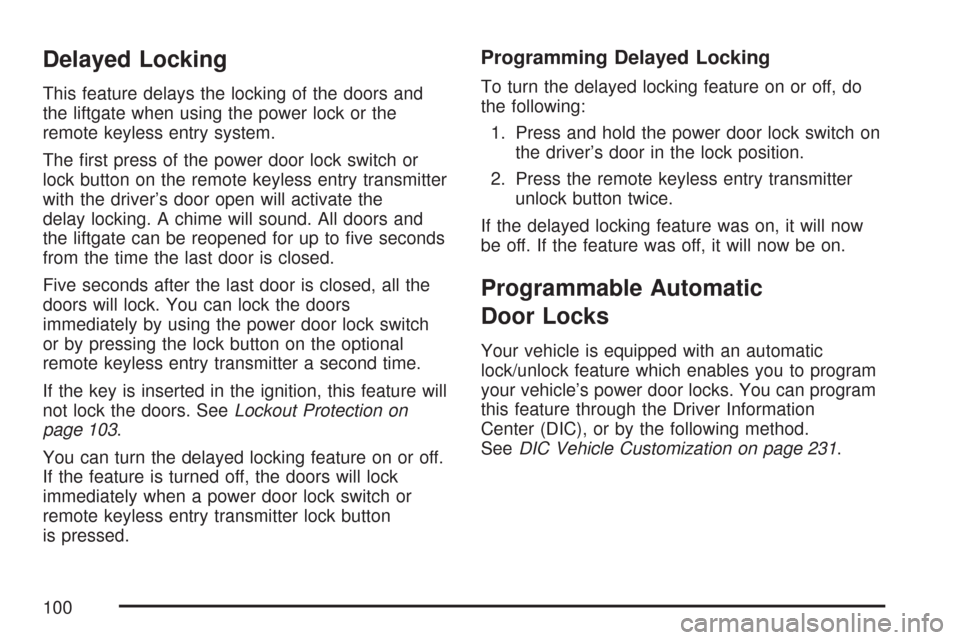

Delayed Locking
This feature delays the locking of the doors and
the liftgate when using the power lock or the
remote keyless entry system.
The rst press of the power door lock switch or
lock button on the remote keyless entry transmitter
with the driver’s door open will activate the
delay locking. A chime will sound. All doors and
the liftgate can be reopened for up to ve seconds
from the time the last door is closed.
Five seconds after the last door is closed, all the
doors will lock. You can lock the doors
immediately by using the power door lock switch
or by pressing the lock button on the optional
remote keyless entry transmitter a second time.
If the key is inserted in the ignition, this feature will
not lock the doors. SeeLockout Protection on
page 103.
You can turn the delayed locking feature on or off.
If the feature is turned off, the doors will lock
immediately when a power door lock switch or
remote keyless entry transmitter lock button
is pressed.
Programming Delayed Locking
To turn the delayed locking feature on or off, do
the following:
1. Press and hold the power door lock switch on
the driver’s door in the lock position.
2. Press the remote keyless entry transmitter
unlock button twice.
If the delayed locking feature was on, it will now
be off. If the feature was off, it will now be on.
Programmable Automatic
Door Locks
Your vehicle is equipped with an automatic
lock/unlock feature which enables you to program
your vehicle’s power door locks. You can program
this feature through the Driver Information
Center (DIC), or by the following method.
SeeDIC Vehicle Customization on page 231.
100
