Chevrolet Trailblazer Owner Manual (GMNA-Localizing-U.S./Canada-
14400528) - 2021 - CRC - 11/7/19

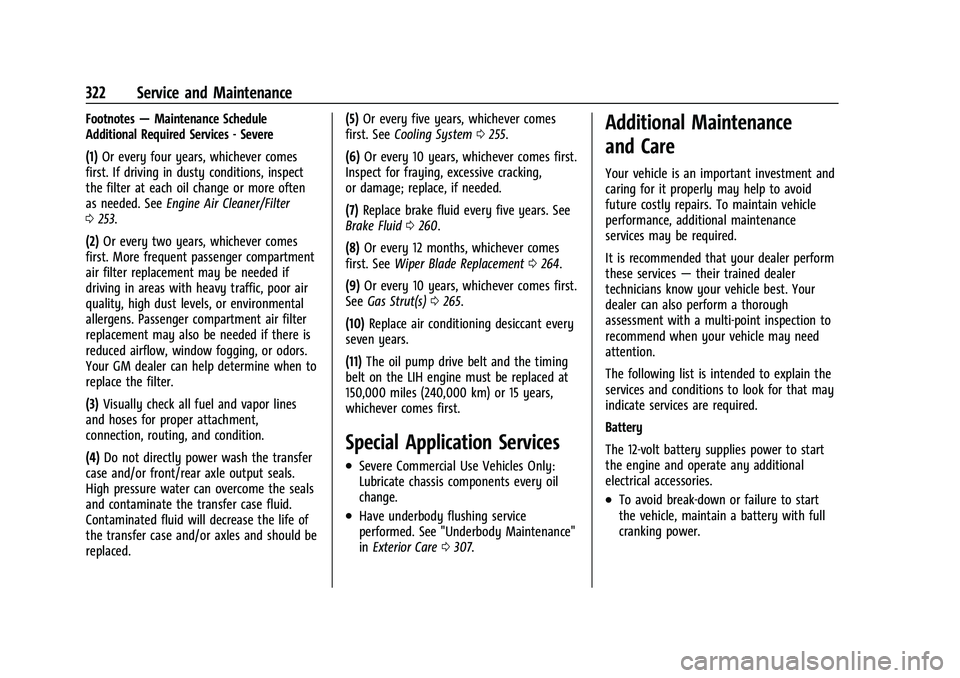

322 Service and Maintenance
Footnotes—Maintenance Schedule
Additional Required Services - Severe
(1) Or every four years, whichever comes
first. If driving in dusty conditions, inspect
the filter at each oil change or more often
as needed. See Engine Air Cleaner/Filter
0 253.
(2) Or every two years, whichever comes
first. More frequent passenger compartment
air filter replacement may be needed if
driving in areas with heavy traffic, poor air
quality, high dust levels, or environmental
allergens. Passenger compartment air filter
replacement may also be needed if there is
reduced airflow, window fogging, or odors.
Your GM dealer can help determine when to
replace the filter.
(3) Visually check all fuel and vapor lines
and hoses for proper attachment,
connection, routing, and condition.
(4) Do not directly power wash the transfer
case and/or front/rear axle output seals.
High pressure water can overcome the seals
and contaminate the transfer case fluid.
Contaminated fluid will decrease the life of
the transfer case and/or axles and should be
replaced. (5)
Or every five years, whichever comes
first. See Cooling System 0255.
(6) Or every 10 years, whichever comes first.
Inspect for fraying, excessive cracking,
or damage; replace, if needed.
(7) Replace brake fluid every five years. See
Brake Fluid 0260.
(8) Or every 12 months, whichever comes
first. See Wiper Blade Replacement 0264.
(9) Or every 10 years, whichever comes first.
See Gas Strut(s) 0265.
(10) Replace air conditioning desiccant every
seven years.
(11) The oil pump drive belt and the timing
belt on the LIH engine must be replaced at
150,000 miles (240,000 km) or 15 years,
whichever comes first.
Special Application Services
.Severe Commercial Use Vehicles Only:
Lubricate chassis components every oil
change.
.Have underbody flushing service
performed. See "Underbody Maintenance"
in Exterior Care 0307.
Additional Maintenance
and Care
Your vehicle is an important investment and
caring for it properly may help to avoid
future costly repairs. To maintain vehicle
performance, additional maintenance
services may be required.
It is recommended that your dealer perform
these services —their trained dealer
technicians know your vehicle best. Your
dealer can also perform a thorough
assessment with a multi-point inspection to
recommend when your vehicle may need
attention.
The following list is intended to explain the
services and conditions to look for that may
indicate services are required.
Battery
The 12-volt battery supplies power to start
the engine and operate any additional
electrical accessories.
.To avoid break-down or failure to start
the vehicle, maintain a battery with full
cranking power.

Chevrolet Trailblazer Owner Manual (GMNA-Localizing-U.S./Canada-
14400528) - 2021 - CRC - 11/7/19

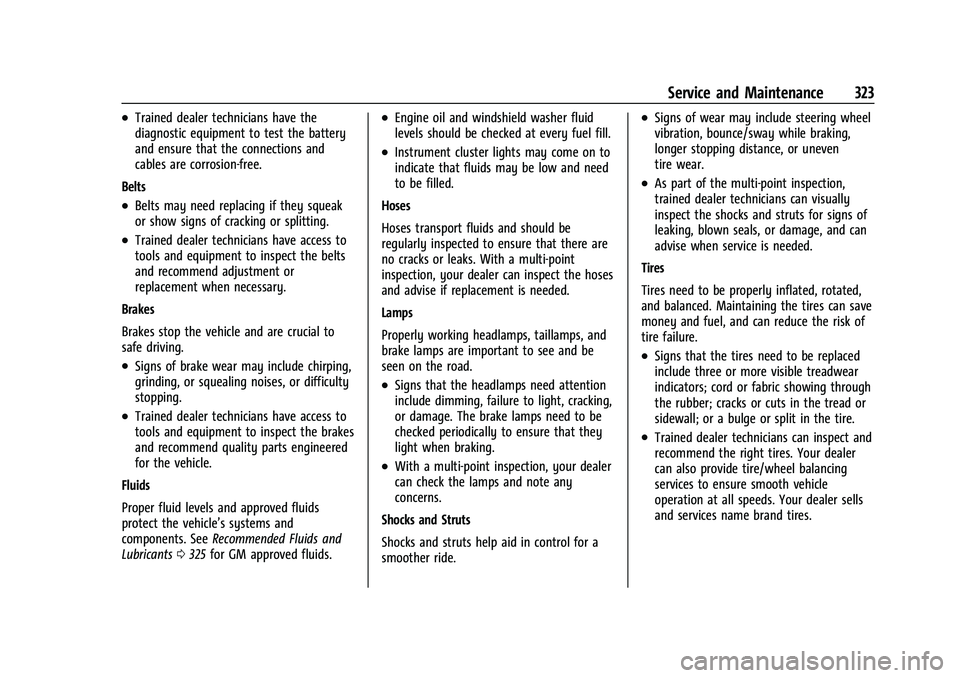

Service and Maintenance 323
.Trained dealer technicians have the
diagnostic equipment to test the battery
and ensure that the connections and
cables are corrosion-free.
Belts
.Belts may need replacing if they squeak
or show signs of cracking or splitting.
.Trained dealer technicians have access to
tools and equipment to inspect the belts
and recommend adjustment or
replacement when necessary.
Brakes
Brakes stop the vehicle and are crucial to
safe driving.
.Signs of brake wear may include chirping,
grinding, or squealing noises, or difficulty
stopping.
.Trained dealer technicians have access to
tools and equipment to inspect the brakes
and recommend quality parts engineered
for the vehicle.
Fluids
Proper fluid levels and approved fluids
protect the vehicle’s systems and
components. See Recommended Fluids and
Lubricants 0325 for GM approved fluids.
.Engine oil and windshield washer fluid
levels should be checked at every fuel fill.
.Instrument cluster lights may come on to
indicate that fluids may be low and need
to be filled.
Hoses
Hoses transport fluids and should be
regularly inspected to ensure that there are
no cracks or leaks. With a multi-point
inspection, your dealer can inspect the hoses
and advise if replacement is needed.
Lamps
Properly working headlamps, taillamps, and
brake lamps are important to see and be
seen on the road.
.Signs that the headlamps need attention
include dimming, failure to light, cracking,
or damage. The brake lamps need to be
checked periodically to ensure that they
light when braking.
.With a multi-point inspection, your dealer
can check the lamps and note any
concerns.
Shocks and Struts
Shocks and struts help aid in control for a
smoother ride.
.Signs of wear may include steering wheel
vibration, bounce/sway while braking,
longer stopping distance, or uneven
tire wear.
.As part of the multi-point inspection,
trained dealer technicians can visually
inspect the shocks and struts for signs of
leaking, blown seals, or damage, and can
advise when service is needed.
Tires
Tires need to be properly inflated, rotated,
and balanced. Maintaining the tires can save
money and fuel, and can reduce the risk of
tire failure.
.Signs that the tires need to be replaced
include three or more visible treadwear
indicators; cord or fabric showing through
the rubber; cracks or cuts in the tread or
sidewall; or a bulge or split in the tire.
.Trained dealer technicians can inspect and
recommend the right tires. Your dealer
can also provide tire/wheel balancing
services to ensure smooth vehicle
operation at all speeds. Your dealer sells
and services name brand tires.

Chevrolet Trailblazer Owner Manual (GMNA-Localizing-U.S./Canada-
14400528) - 2021 - CRC - 11/7/19
330 Technical Data
ApplicationCapacities
Metric English
All capacities are approximate. When adding, be sure to fill to the approximate level, as recommended in this manual. Recheck fluid level
after filling.
*Engine cooling system capacity values are based on the entire cooling system and its components.
Engine Specifications
Engine VIN CodeTransmission Spark Plug Gap
1.2L L3 Gas Engine (LIH) 2Automatic 0.6 - 0.7 mm
1.3L L3 Gas Engine (L3T) LAutomatic 0.65 - 0.75 mm
Spark plug gaps are preset by the manufacturer. Re-gapping the spark plug is not recommended and can damage the spark plug.

Chevrolet Trailblazer Owner Manual (GMNA-Localizing-U.S./Canada-
14400528) - 2021 - CRC - 11/7/19

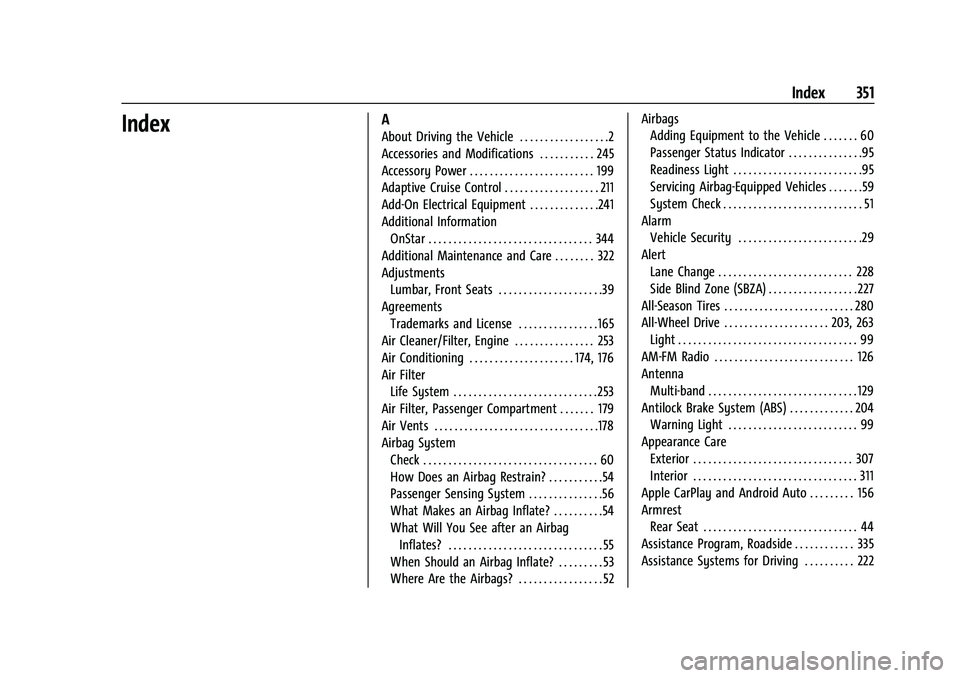

Index 351
IndexA
About Driving the Vehicle . . . . . . . . . . . . . . . . . .2
Accessories and Modifications . . . . . . . . . . . 245
Accessory Power . . . . . . . . . . . . . . . . . . . . . . . . . 199
Adaptive Cruise Control . . . . . . . . . . . . . . . . . . . 211
Add-On Electrical Equipment . . . . . . . . . . . . . .241
Additional InformationOnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 344
Additional Maintenance and Care . . . . . . . . 322
Adjustments Lumbar, Front Seats . . . . . . . . . . . . . . . . . . . . .39
Agreements Trademarks and License . . . . . . . . . . . . . . . . 165
Air Cleaner/Filter, Engine . . . . . . . . . . . . . . . . 253
Air Conditioning . . . . . . . . . . . . . . . . . . . . . 174, 176
Air Filter
Life System . . . . . . . . . . . . . . . . . . . . . . . . . . . . .253
Air Filter, Passenger Compartment . . . . . . . 179
Air Vents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .178
Airbag System Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
How Does an Airbag Restrain? . . . . . . . . . . .54
Passenger Sensing System . . . . . . . . . . . . . . .56
What Makes an Airbag Inflate? . . . . . . . . . .54
What Will You See after an AirbagInflates? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
When Should an Airbag Inflate? . . . . . . . . . 53
Where Are the Airbags? . . . . . . . . . . . . . . . . . 52 Airbags
Adding Equipment to the Vehicle . . . . . . . 60
Passenger Status Indicator . . . . . . . . . . . . . . .95
Readiness Light . . . . . . . . . . . . . . . . . . . . . . . . . .95
Servicing Airbag-Equipped Vehicles . . . . . . .59
System Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Alarm
Vehicle Security . . . . . . . . . . . . . . . . . . . . . . . . .29
Alert Lane Change . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
Side Blind Zone (SBZA) . . . . . . . . . . . . . . . . . . 227
All-Season Tires . . . . . . . . . . . . . . . . . . . . . . . . . . 280
All-Wheel Drive . . . . . . . . . . . . . . . . . . . . . 203, 263 Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
AM-FM Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Antenna Multi-band . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Antilock Brake System (ABS) . . . . . . . . . . . . . 204 Warning Light . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Appearance Care Exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 307
Interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 311
Apple CarPlay and Android Auto . . . . . . . . . 156
Armrest Rear Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Assistance Program, Roadside . . . . . . . . . . . . 335
Assistance Systems for Driving . . . . . . . . . . 222

Chevrolet Trailblazer Owner Manual (GMNA-Localizing-U.S./Canada-
14400528) - 2021 - CRC - 11/7/19
352 Index
Assistance Systems for Parking andBacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Audio Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
Auto Stop Stop/Start System . . . . . . . . . . . . . . . . . . . . . . 195
Automatic
Climate Control System . . . . . . . . . . . . . . . . . 176
Door Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Emergency Braking (AEB) . . . . . . . . . . . . . . 224
Headlamp System . . . . . . . . . . . . . . . . . . . . . . 116
Transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . .201
Transmission Fluid . . . . . . . . . . . . . . . . . . . . . .252
Automatic Transmission Manual Mode . . . . . . . . . . . . . . . . . . . . . . . . . 203
Shift Lock Control Function Check . . . . . . 263
Auxiliary Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
Avoiding Untrusted Media Devices . . . . . . . 130
B
Battery Exterior Lighting Battery Saver . . . . . . . . .120
Load Management . . . . . . . . . . . . . . . . . . . . . . 119
Power Protection . . . . . . . . . . . . . . . . . . . . . . .120
Battery - North America . . . . . . . . . . . . .261, 302
Blade Replacement, Wiper . . . . . . . . . . . . . . . 264
Bluetooth Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . 151, 152 Bluetooth Audio . . . . . . . . . . . . . . . . . . . . . . . . . . 133
Brake
Electric Boost . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Parking, Electric . . . . . . . . . . . . . . . . . . . . . . . . 205
System Warning Light . . . . . . . . . . . . . . . . . . 98
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260 Antilock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206
Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260
Braking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .183 Automatic Emergency (AEB) . . . . . . . . . . . 224
Braking System Front Pedestrian (FPB) . . . . . . . . . . . . . . . . . 226
Break-In, New Vehicle . . . . . . . . . . . . . . . . . . . . 190
Bulb Replacement Fog Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 269
Halogen Bulbs . . . . . . . . . . . . . . . . . . . . . . . . . 267
Headlamp Aiming . . . . . . . . . . . . . . . . . . . . . . 266
Headlamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . 266
Headlamps, Front Turn Signal,Sidemarker, and Parking
Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . 267, 268
Taillamps, Turn Signal, Sidemarker, Stoplamps, and
Backup Lamps . . . . . . . . . . . . . . . . . . . . 269, 271
Buying New Tires . . . . . . . . . . . . . . . . . . . . . . . . 292
C
Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
California Perchlorate Materials Requirements . . . 244
California Proposition
65 Warning . . . . . . . . . . . . . . . . . . .244, 261, 302, Back Cover
Canadian Vehicle Owners . . . . . . . . . . . . . . . . . . . 1
Capacities and Specifications . . . . . . . . . . . . . 329
Carbon Monoxide Engine Exhaust . . . . . . . . . . . . . . . . . . . . . . . . 200
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Winter Driving . . . . . . . . . . . . . . . . . . . . . . . . . .186
Cargo
Management System . . . . . . . . . . . . . . . . . . . 80
Tie-Downs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79
Caution, Danger, and Warning . . . . . . . . . . . . . .2
Center Console Storage . . . . . . . . . . . . . . . . . . . 79
Chains, Tire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 295
Charging Wireless . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Charging System Light . . . . . . . . . . . . . . . . . . . . 96
Check Engine Light (Malfunction Indicator) . . . . 96
Child Restraints Infants and Young Children . . . . . . . . . . . . . .62
Lower Anchors and Tethers forChildren . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67

Chevrolet Trailblazer Owner Manual (GMNA-Localizing-U.S./Canada-
14400528) - 2021 - CRC - 11/7/19

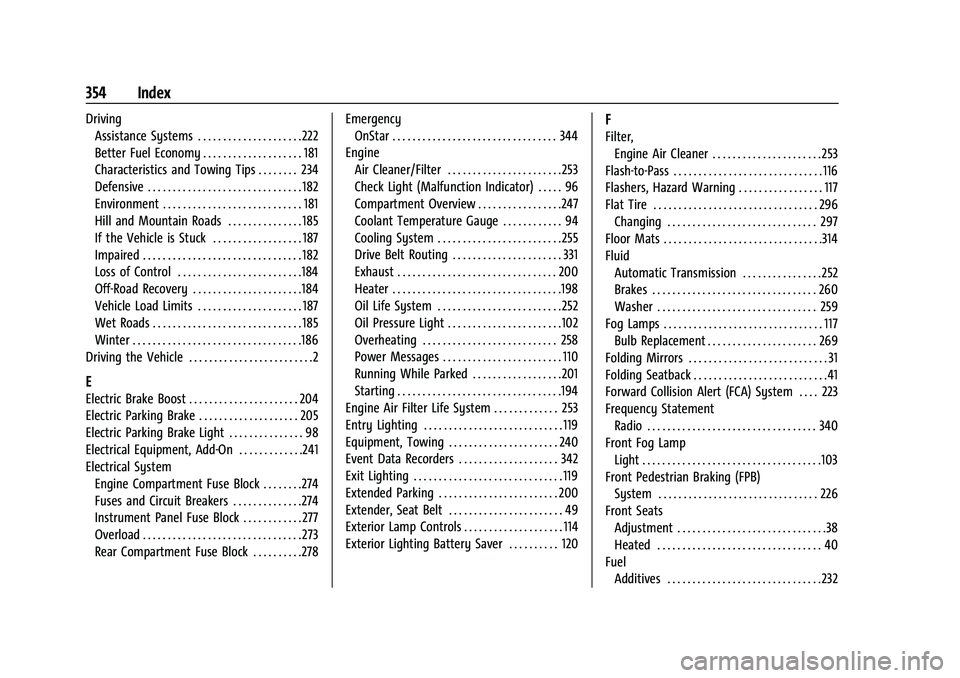

354 Index
DrivingAssistance Systems . . . . . . . . . . . . . . . . . . . . .222
Better Fuel Economy . . . . . . . . . . . . . . . . . . . . 181
Characteristics and Towing Tips . . . . . . . . 234
Defensive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
Hill and Mountain Roads . . . . . . . . . . . . . . . 185
If the Vehicle is Stuck . . . . . . . . . . . . . . . . . . 187
Impaired . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
Loss of Control . . . . . . . . . . . . . . . . . . . . . . . . .184
Off-Road Recovery . . . . . . . . . . . . . . . . . . . . . .184
Vehicle Load Limits . . . . . . . . . . . . . . . . . . . . . 187
Wet Roads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
Winter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .186
Driving the Vehicle . . . . . . . . . . . . . . . . . . . . . . . . .2
E
Electric Brake Boost . . . . . . . . . . . . . . . . . . . . . . 204
Electric Parking Brake . . . . . . . . . . . . . . . . . . . . 205
Electric Parking Brake Light . . . . . . . . . . . . . . . 98
Electrical Equipment, Add-On . . . . . . . . . . . . .241
Electrical System Engine Compartment Fuse Block . . . . . . . .274
Fuses and Circuit Breakers . . . . . . . . . . . . . .274
Instrument Panel Fuse Block . . . . . . . . . . . . 277
Overload . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 273
Rear Compartment Fuse Block . . . . . . . . . .278 Emergency
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 344
Engine Air Cleaner/Filter . . . . . . . . . . . . . . . . . . . . . . .253
Check Light (Malfunction Indicator) . . . . . 96
Compartment Overview . . . . . . . . . . . . . . . . .247
Coolant Temperature Gauge . . . . . . . . . . . . 94
Cooling System . . . . . . . . . . . . . . . . . . . . . . . . .255
Drive Belt Routing . . . . . . . . . . . . . . . . . . . . . . 331
Exhaust . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Heater . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .198
Oil Life System . . . . . . . . . . . . . . . . . . . . . . . . .252
Oil Pressure Light . . . . . . . . . . . . . . . . . . . . . . .102
Overheating . . . . . . . . . . . . . . . . . . . . . . . . . . . 258
Power Messages . . . . . . . . . . . . . . . . . . . . . . . . 110
Running While Parked . . . . . . . . . . . . . . . . . .201
Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .194
Engine Air Filter Life System . . . . . . . . . . . . . 253
Entry Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Equipment, Towing . . . . . . . . . . . . . . . . . . . . . . 240
Event Data Recorders . . . . . . . . . . . . . . . . . . . . 342
Exit Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Extended Parking . . . . . . . . . . . . . . . . . . . . . . . . 200
Extender, Seat Belt . . . . . . . . . . . . . . . . . . . . . . . 49
Exterior Lamp Controls . . . . . . . . . . . . . . . . . . . . 114
Exterior Lighting Battery Saver . . . . . . . . . . 120
F
Filter, Engine Air Cleaner . . . . . . . . . . . . . . . . . . . . . .253
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Flashers, Hazard Warning . . . . . . . . . . . . . . . . . 117
Flat Tire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 296 Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 297
Floor Mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .314
Fluid Automatic Transmission . . . . . . . . . . . . . . . .252
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260
Washer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 259
Fog Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117 Bulb Replacement . . . . . . . . . . . . . . . . . . . . . . 269
Folding Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Folding Seatback . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Forward Collision Alert (FCA) System . . . . 223
Frequency Statement Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 340
Front Fog Lamp Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .103
Front Pedestrian Braking (FPB) System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Front Seats
Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
Heated . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Fuel Additives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .232

Chevrolet Trailblazer Owner Manual (GMNA-Localizing-U.S./Canada-
14400528) - 2021 - CRC - 11/7/19

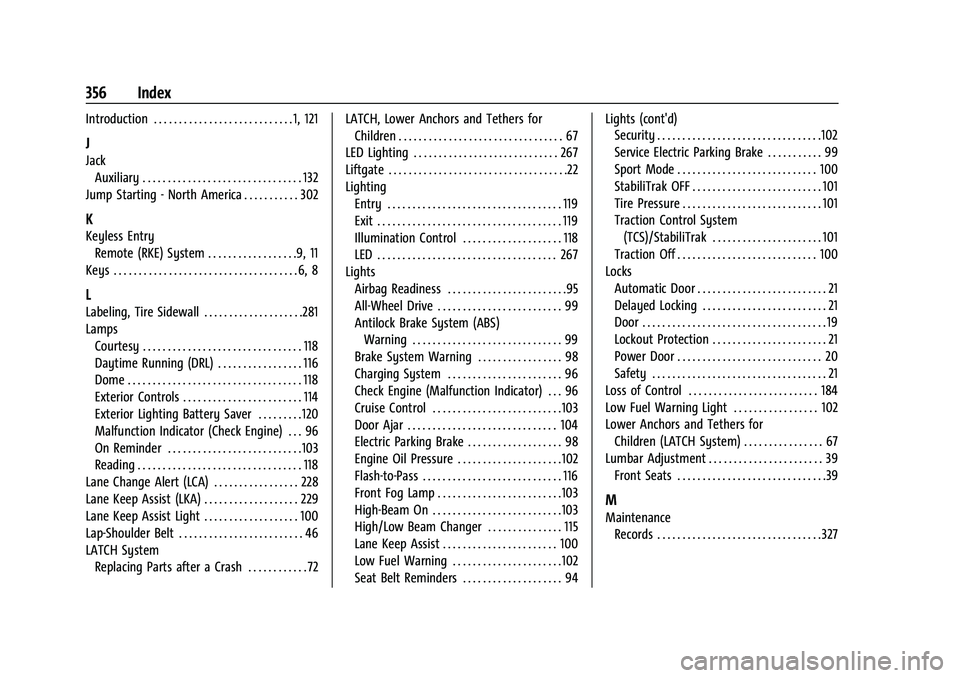

356 Index
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1, 121
J
JackAuxiliary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
Jump Starting - North America . . . . . . . . . . . 302
K
Keyless Entry Remote (RKE) System . . . . . . . . . . . . . . . . . .9, 11
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6, 8
L
Labeling, Tire Sidewall . . . . . . . . . . . . . . . . . . . .281
Lamps Courtesy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Daytime Running (DRL) . . . . . . . . . . . . . . . . . 116
Dome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Exterior Controls . . . . . . . . . . . . . . . . . . . . . . . . 114
Exterior Lighting Battery Saver . . . . . . . . .120
Malfunction Indicator (Check Engine) . . . 96
On Reminder . . . . . . . . . . . . . . . . . . . . . . . . . . .103
Reading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Lane Change Alert (LCA) . . . . . . . . . . . . . . . . . 228
Lane Keep Assist (LKA) . . . . . . . . . . . . . . . . . . . 229
Lane Keep Assist Light . . . . . . . . . . . . . . . . . . . 100
Lap-Shoulder Belt . . . . . . . . . . . . . . . . . . . . . . . . . 46
LATCH System Replacing Parts after a Crash . . . . . . . . . . . . 72 LATCH, Lower Anchors and Tethers for
Children . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
LED Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 267
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Lighting Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Illumination Control . . . . . . . . . . . . . . . . . . . . 118
LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 267
Lights Airbag Readiness . . . . . . . . . . . . . . . . . . . . . . . .95
All-Wheel Drive . . . . . . . . . . . . . . . . . . . . . . . . . 99
Antilock Brake System (ABS)
Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Brake System Warning . . . . . . . . . . . . . . . . . 98
Charging System . . . . . . . . . . . . . . . . . . . . . . . 96
Check Engine (Malfunction Indicator) . . . 96
Cruise Control . . . . . . . . . . . . . . . . . . . . . . . . . .103
Door Ajar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Electric Parking Brake . . . . . . . . . . . . . . . . . . . 98
Engine Oil Pressure . . . . . . . . . . . . . . . . . . . . .102
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Front Fog Lamp . . . . . . . . . . . . . . . . . . . . . . . . .103
High-Beam On . . . . . . . . . . . . . . . . . . . . . . . . . .103
High/Low Beam Changer . . . . . . . . . . . . . . . 115
Lane Keep Assist . . . . . . . . . . . . . . . . . . . . . . . 100
Low Fuel Warning . . . . . . . . . . . . . . . . . . . . . .102
Seat Belt Reminders . . . . . . . . . . . . . . . . . . . . 94 Lights (cont'd)
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .102
Service Electric Parking Brake . . . . . . . . . . . 99
Sport Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
StabiliTrak OFF . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Tire Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Traction Control System
(TCS)/StabiliTrak . . . . . . . . . . . . . . . . . . . . . . 101
Traction Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Locks Automatic Door . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Delayed Locking . . . . . . . . . . . . . . . . . . . . . . . . . 21
Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Lockout Protection . . . . . . . . . . . . . . . . . . . . . . . 21
Power Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Loss of Control . . . . . . . . . . . . . . . . . . . . . . . . . . 184
Low Fuel Warning Light . . . . . . . . . . . . . . . . . 102
Lower Anchors and Tethers for Children (LATCH System) . . . . . . . . . . . . . . . . 67
Lumbar Adjustment . . . . . . . . . . . . . . . . . . . . . . . 39
Front Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
M
MaintenanceRecords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 327

Chevrolet Trailblazer Owner Manual (GMNA-Localizing-U.S./Canada-
14400528) - 2021 - CRC - 11/7/19

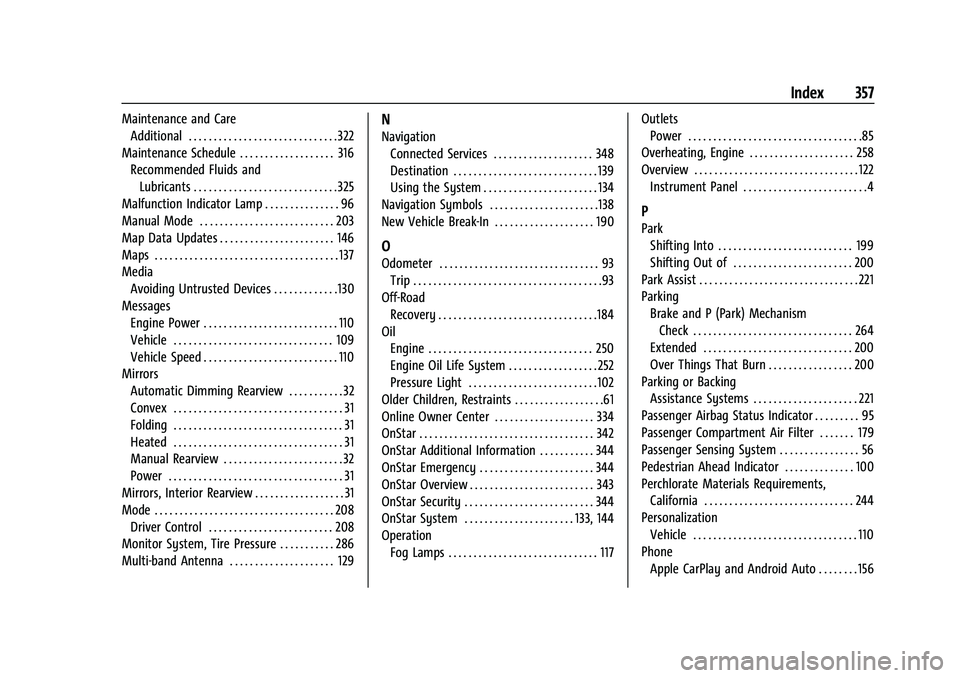

Index 357
Maintenance and CareAdditional . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .322
Maintenance Schedule . . . . . . . . . . . . . . . . . . . 316 Recommended Fluids andLubricants . . . . . . . . . . . . . . . . . . . . . . . . . . . . .325
Malfunction Indicator Lamp . . . . . . . . . . . . . . . 96
Manual Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
Map Data Updates . . . . . . . . . . . . . . . . . . . . . . . 146
Maps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Media Avoiding Untrusted Devices . . . . . . . . . . . . .130
Messages Engine Power . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Vehicle Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Mirrors
Automatic Dimming Rearview . . . . . . . . . . . 32
Convex . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Folding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Heated . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Manual Rearview . . . . . . . . . . . . . . . . . . . . . . . . 32
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Mirrors, Interior Rearview . . . . . . . . . . . . . . . . . . 31
Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208 Driver Control . . . . . . . . . . . . . . . . . . . . . . . . . 208
Monitor System, Tire Pressure . . . . . . . . . . . 286
Multi-band Antenna . . . . . . . . . . . . . . . . . . . . . 129N
Navigation Connected Services . . . . . . . . . . . . . . . . . . . . 348
Destination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Using the System . . . . . . . . . . . . . . . . . . . . . . . 134
Navigation Symbols . . . . . . . . . . . . . . . . . . . . . .138
New Vehicle Break-In . . . . . . . . . . . . . . . . . . . . 190
O
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93 Trip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93
Off-Road Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .184
Oil Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250
Engine Oil Life System . . . . . . . . . . . . . . . . . .252
Pressure Light . . . . . . . . . . . . . . . . . . . . . . . . . .102
Older Children, Restraints . . . . . . . . . . . . . . . . . .61
Online Owner Center . . . . . . . . . . . . . . . . . . . . 334
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 342
OnStar Additional Information . . . . . . . . . . . 344
OnStar Emergency . . . . . . . . . . . . . . . . . . . . . . . 344
OnStar Overview . . . . . . . . . . . . . . . . . . . . . . . . . 343
OnStar Security . . . . . . . . . . . . . . . . . . . . . . . . . . 344
OnStar System . . . . . . . . . . . . . . . . . . . . . . 133, 144
Operation Fog Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117 Outlets
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85
Overheating, Engine . . . . . . . . . . . . . . . . . . . . . 258
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122 Instrument Panel . . . . . . . . . . . . . . . . . . . . . . . . .4
P
ParkShifting Into . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
Shifting Out of . . . . . . . . . . . . . . . . . . . . . . . . 200
Park Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Parking Brake and P (Park) MechanismCheck . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 264
Extended . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Over Things That Burn . . . . . . . . . . . . . . . . . 200
Parking or Backing
Assistance Systems . . . . . . . . . . . . . . . . . . . . . 221
Passenger Airbag Status Indicator . . . . . . . . . 95
Passenger Compartment Air Filter . . . . . . . 179
Passenger Sensing System . . . . . . . . . . . . . . . . 56
Pedestrian Ahead Indicator . . . . . . . . . . . . . . 100
Perchlorate Materials Requirements, California . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 244
Personalization Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Phone Apple CarPlay and Android Auto . . . . . . . . 156

Chevrolet Trailblazer Owner Manual (GMNA-Localizing-U.S./Canada-
14400528) - 2021 - CRC - 11/7/19

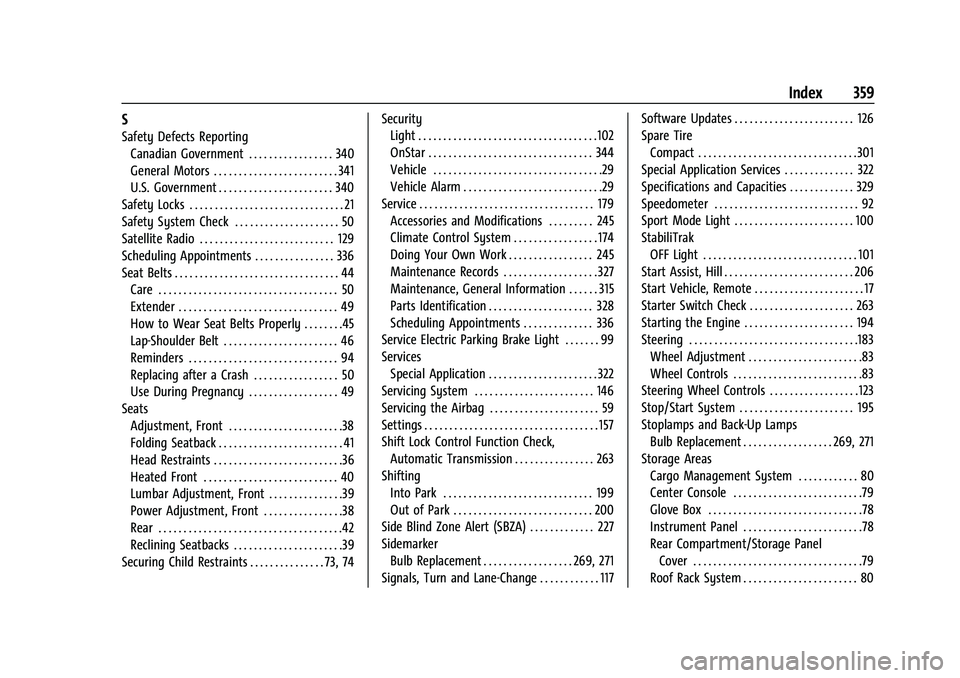

Index 359
S
Safety Defects ReportingCanadian Government . . . . . . . . . . . . . . . . . 340
General Motors . . . . . . . . . . . . . . . . . . . . . . . . . 341
U.S. Government . . . . . . . . . . . . . . . . . . . . . . . 340
Safety Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Safety System Check . . . . . . . . . . . . . . . . . . . . . 50
Satellite Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Scheduling Appointments . . . . . . . . . . . . . . . . 336
Seat Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Extender . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
How to Wear Seat Belts Properly . . . . . . . .45
Lap-Shoulder Belt . . . . . . . . . . . . . . . . . . . . . . . 46
Reminders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Replacing after a Crash . . . . . . . . . . . . . . . . . 50
Use During Pregnancy . . . . . . . . . . . . . . . . . . 49
Seats Adjustment, Front . . . . . . . . . . . . . . . . . . . . . . .38
Folding Seatback . . . . . . . . . . . . . . . . . . . . . . . . . 41
Head Restraints . . . . . . . . . . . . . . . . . . . . . . . . . .36
Heated Front . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Lumbar Adjustment, Front . . . . . . . . . . . . . . .39
Power Adjustment, Front . . . . . . . . . . . . . . . .38
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Reclining Seatbacks . . . . . . . . . . . . . . . . . . . . . .39
Securing Child Restraints . . . . . . . . . . . . . . . 73, 74 Security
Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .102
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 344
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Vehicle Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179 Accessories and Modifications . . . . . . . . . 245
Climate Control System . . . . . . . . . . . . . . . . . 174
Doing Your Own Work . . . . . . . . . . . . . . . . . 245
Maintenance Records . . . . . . . . . . . . . . . . . . . 327
Maintenance, General Information . . . . . . 315
Parts Identification . . . . . . . . . . . . . . . . . . . . . 328
Scheduling Appointments . . . . . . . . . . . . . . 336
Service Electric Parking Brake Light . . . . . . . 99
Services Special Application . . . . . . . . . . . . . . . . . . . . . .322
Servicing System . . . . . . . . . . . . . . . . . . . . . . . . 146
Servicing the Airbag . . . . . . . . . . . . . . . . . . . . . . 59
Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Shift Lock Control Function Check, Automatic Transmission . . . . . . . . . . . . . . . . 263
Shifting Into Park . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
Out of Park . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Side Blind Zone Alert (SBZA) . . . . . . . . . . . . . 227
Sidemarker
Bulb Replacement . . . . . . . . . . . . . . . . . . 269, 271
Signals, Turn and Lane-Change . . . . . . . . . . . . 117 Software Updates . . . . . . . . . . . . . . . . . . . . . . . . 126
Spare Tire
Compact . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .301
Special Application Services . . . . . . . . . . . . . . 322
Specifications and Capacities . . . . . . . . . . . . . 329
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Sport Mode Light . . . . . . . . . . . . . . . . . . . . . . . . 100
StabiliTrak OFF Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Start Assist, Hill . . . . . . . . . . . . . . . . . . . . . . . . . . 206
Start Vehicle, Remote . . . . . . . . . . . . . . . . . . . . . . 17
Starter Switch Check . . . . . . . . . . . . . . . . . . . . . 263
Starting the Engine . . . . . . . . . . . . . . . . . . . . . . 194
Steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .183 Wheel Adjustment . . . . . . . . . . . . . . . . . . . . . . .83
Wheel Controls . . . . . . . . . . . . . . . . . . . . . . . . . .83
Steering Wheel Controls . . . . . . . . . . . . . . . . . . 123
Stop/Start System . . . . . . . . . . . . . . . . . . . . . . . 195
Stoplamps and Back-Up Lamps Bulb Replacement . . . . . . . . . . . . . . . . . . 269, 271
Storage Areas
Cargo Management System . . . . . . . . . . . . 80
Center Console . . . . . . . . . . . . . . . . . . . . . . . . . .79
Glove Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78
Instrument Panel . . . . . . . . . . . . . . . . . . . . . . . .78
Rear Compartment/Storage PanelCover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79
Roof Rack System . . . . . . . . . . . . . . . . . . . . . . . 80
