engine coolant CHEVROLET TRAVERSE 2020 User Guide

Chevrolet Traverse Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13527526) - 2020 - CRC - 9/5/19
Vehicle Care 263
If the overheat warning is displayed
with no sign of steam:1. Turn the air conditioning off.
2. Turn the heater on to the highest temperature and to the
highest fan speed. Open the
windows as necessary.
3. When it is safe to do so, pull off the road, shift to P (Park) or
N (Neutral), and let the
engine idle.
If the engine coolant temperature
gauge is no longer in the
overheated area, the vehicle can be
driven. Continue to drive the vehicle
slowly for about 10 minutes. Keep a
safe distance from the vehicle in
front. If the warning does not come
back on, continue to drive normally
and have the cooling system
checked for proper fill and function.
If the warning continues, pull over,
stop, and park the vehicle
right away. If there is no sign of steam, idle the
engine for three minutes while
parked. If the warning is still
displayed, turn off the engine until it
cools down.
Washer Fluid
What to Use
When windshield washer fluid is
needed, be sure to read the
manufacturer's instructions before
use. If operating the vehicle in an
area where the temperature may fall
below freezing, use a fluid that has
sufficient protection against
freezing.
Adding Washer Fluid
Open the cap with the washer
symbol on it. Add washer fluid until
the tank is full. See
Engine
Compartment Overview 0252 for
reservoir location.
Caution
. Do not use washer fluid that
contains any type of water
repellent coating. This can
cause the wiper blades to
chatter or skip.
. Do not use engine coolant
(antifreeze) in the
windshield washer. It can
damage the windshield
washer system and paint.
. Do not mix water with
ready-to-use washer fluid.
Water can cause the
solution to freeze and
damage the washer fluid
tank and other parts of the
washer system.
(Continued)

Chevrolet Traverse Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13527526) - 2020 - CRC - 9/5/19
Vehicle Care 277
FusesUsage
F49 Interior rearview mirror
F50 Fuel system control module
F51 Heated steering wheel
F52 Folding seats switch
F53 –
F54 Coolant pump
F55 Air conditioning clutch
F56 Integrated chassis control module
F57 Engine control module/Ignition
F58 Transmission control module/
Ignition
F59 Engine control module battery
F60 Engine control module–even Fuses
Usage
F61 O2 sensor 1/ Air flow
F62 –
F63 O2 sensor 2/ Canister/Engine oil/
Turbo
F64 Aeroshutter
F65 Engine control module
powertrain 1
F66 Engine control module
powertrain 2
F67 Engine control module–odd
F68 –
F69 –
F70 –
F71 –
F72 –
F73 –
F74 – Fuses
Usage
F75 –
F76 –
F77 –
Relays Usage
K1 Starter 1
K2 Run/Crank
K3 Vacuum pump
K4 –
K5 Air conditioning
K6 Coolant pump
K7 Engine control module
K8 Folding seats
K9 –
K10 Starter 2

Chevrolet Traverse Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13527526) - 2020 - CRC - 9/5/19
330 Service and Maintenance
.Check engine coolant level. See
Cooling System 0258.
. Check windshield washer fluid
level. See Washer Fluid 0263.
. Check tire inflation pressures.
See Tire Pressure 0290.
. Inspect tire wear. See Tire
Inspection 0296.
. Visually check for fluid leaks.
. Inspect brake system. See
Exterior Care 0318.
. Visually inspect steering,
suspension, and chassis
components for damage,
including cracks or tears in the
rubber boots, loose or missing
parts, or signs of wear at least
once a year. See Exterior Care
0 318.
. Inspect power steering for
proper electrical connections,
binding, cracks, chafing, etc.
. Visually inspect halfshafts and
drive shafts for excessive wear,
lubricant leaks, and/or damage
including: tube dents or cracks,
constant velocity joint or universal joint looseness,
cracked or missing boots, loose
or missing boot clamps, center
bearing excessive looseness,
loose or missing fasteners, and
axle seal leaks.
. Check restraint system
components. See Safety System
Check 063.
. Visually inspect fuel system for
damage or leaks.
. Visually inspect exhaust system
and nearby heat shields for
loose or damaged parts.
. Lubricate body components. See
Exterior Care 0318.
. Check starter switch. See Starter
Switch Check 0267.
. Check automatic transmission
shift lock control function. See
Automatic Transmission Shift
Lock Control Function Check
0267. .
Check parking brake and
automatic transmission park
mechanism. See Park Brake and
P (Park) Mechanism Check
0 267.
. Check accelerator pedal for
damage, high effort, or binding.
Replace if needed.
. Visually inspect gas strut for
signs of wear, cracks, or other
damage. Check the hold open
ability of the strut. If the hold
open ability is low, service the
gas strut. See Gas Strut(s)
0 269.
. Inspect sunroof track and seal,
if equipped. See Sunroof037.

Chevrolet Traverse Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13527526) - 2020 - CRC - 9/5/19
338 Service and Maintenance

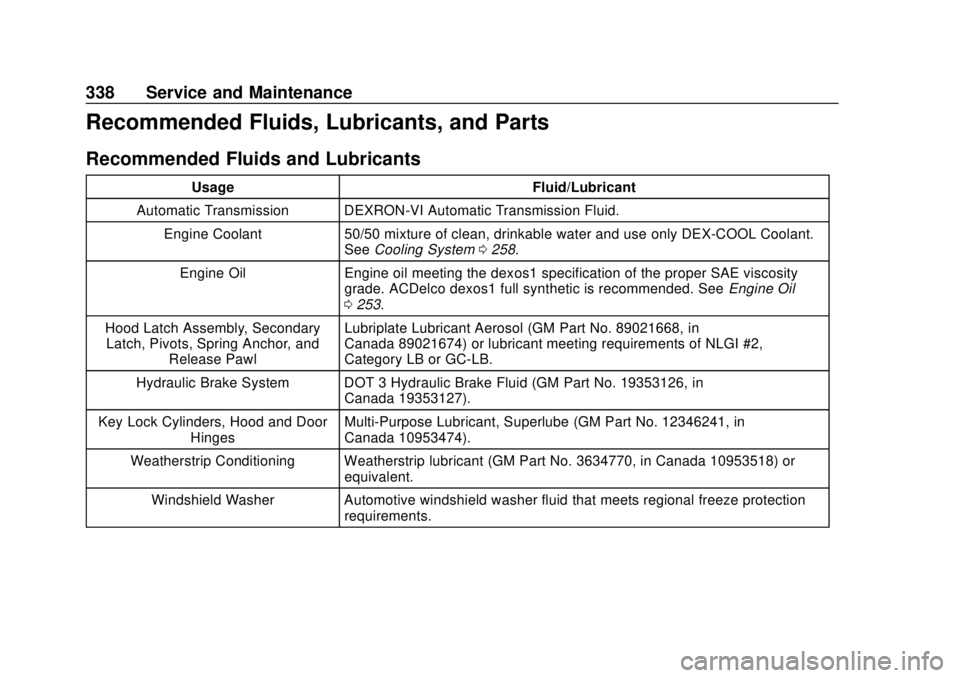

Recommended Fluids, Lubricants, and Parts
Recommended Fluids and Lubricants
UsageFluid/Lubricant
Automatic Transmission DEXRON-VI Automatic Transmission Fluid. Engine Coolant 50/50 mixture of clean, drinkable water and use only DEX-COOL Coolant.
See Cooling System 0258.
Engine Oil Engine oil meeting the dexos1 specification of the proper SAE viscosity
grade. ACDelco dexos1 full synthetic is recommended. See Engine Oil
0 253.
Hood Latch Assembly, Secondary Latch, Pivots, Spring Anchor, and
Release Pawl Lubriplate Lubricant Aerosol (GM Part No. 89021668, in
Canada 89021674) or lubricant meeting requirements of NLGI #2,
Category LB or GC-LB.
Hydraulic Brake System DOT 3 Hydraulic Brake Fluid (GM Part No. 19353126, in Canada 19353127).
Key Lock Cylinders, Hood and Door Hinges Multi-Purpose Lubricant, Superlube (GM Part No. 12346241, in
Canada 10953474).
Weatherstrip Conditioning Weatherstrip lubricant (GM Part No. 3634770, in Canada 10953518) or equivalent.
Windshield Washer Automotive windshield washer fluid that meets regional freeze protection requirements.

Chevrolet Traverse Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13527526) - 2020 - CRC - 9/5/19
372 Index
Child Restraints (cont'd)Lower Anchors and Tethers
for Children . . . . . . . . . . . . . . . . . . . 84
Older Children . . . . . . . . . . . . . . . . . . 77
Securing . . . . . . . . . . . . . . . . . . . . 94, 96
Systems . . . . . . . . . . . . . . . . . . . . . . . . 81
Circuit Breakers . . . . . . . . . . . . . . . . 274
Cleaning Exterior Care . . . . . . . . . . . . . . . . . 318
Interior Care . . . . . . . . . . . . . . . . . . 323
Climate Control Systems Dual Automatic . . . . . . . . . . . . . . . 157
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Cluster, Instrument . . . . . . . . 115, 118
Collision Damage Repair . . . . . . . 352
Compact Spare Tire . . . . . . . . . . . . 311
Compartments
Storage . . . . . . . . . . . . . . . . . . . . . . . 100
Compass . . . . . . . . . . . . . . . . . . . . . . . 109
Connected Services Connections . . . . . . . . . . . . . . . . . . 368
Diagnostics . . . . . . . . . . . . . . . . . . . 369
Navigation . . . . . . . . . . . . . . . . . . . . 367
Connections Connected Services . . . . . . . . . . 368 Control
Traction and Electronic
Stability . . . . . . . . . . . . . . . . . . . . . 198
Control of a Vehicle . . . . . . . . . . . . . 168
Convex Mirrors . . . . . . . . . . . . . . . . . . 31
Coolant Engine Temperature Gauge . . 122
Cooling . . . . . . . . . . . . . . . . . . . . 157, 161
Cooling System . . . . . . . . . . . . . . . . . 258
Courtesy Lamps . . . . . . . . . . . . . . . . 152
Courtesy Transportation Program . . . . . . . . . . . . . . . . . . . . . . . 351
Cruise Control . . . . . . . . . . . . . . . . . . 203 Light . . . . . . . . . . . . . . . . . . . . . . . . . . 133
Cruise Control, Adaptive . . . . . . . . 205
Customer Assistance . . . . . . . . . . . 348 Offices . . . . . . . . . . . . . . . . . . . . . . . . 347
Text Telephone (TTY)Users . . . . . . . . . . . . . . . . . . . . . . . 348
Customer Information Publications Ordering
Information . . . . . . . . . . . . . . . . . . 354
Customer Satisfaction Procedure . . . . . . . . . . . . . . . . . . . . . 345
Cybersecurity . . . . . . . . . . . . . . . . . . . 357D
Damage Repair, Collision . . . . . . . 352
Danger, Warning, and Caution . . . . 2
Data Collection Infotainment System . . . . . . . . . . 358
OnStar . . . . . . . . . . . . . . . . . . . . . . . 358
Data Recorders, Event . . . . . . . . . 357
Daytime Running Lamps (DRL) . . . . . . . . . . . . . . . . . . 149
Defensive Driving . . . . . . . . . . . . . . . 167
Delayed Locking . . . . . . . . . . . . . . . . . 20
Diagnostics
Connected Services . . . . . . . . . . 369
Distracted Driving . . . . . . . . . . . . . . . 166
Dome Lamps . . . . . . . . . . . . . . . . . . . 152
Door
Ajar Light . . . . . . . . . . . . . . . . . . . . . 133
Delayed Locking . . . . . . . . . . . . . . . . 20
Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Power Locks . . . . . . . . . . . . . . . . . . . . 20
Drive Belt Routing, Engine . . . . . . 344
Drive Systems All-Wheel Drive . . . . . . . . . . 194, 267
Driver Assistance Systems . . . . . 213
Driver Information
Center (DIC) . . . . . . . . . . . . . . . . . . 134
Driver Mode Control . . . . . . . . . . . . 200

Chevrolet Traverse Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13527526) - 2020 - CRC - 9/5/19
Index 373
DrivingAssistance Systems . . . . . . . . . . 219
Better Fuel Economy . . . . . . . . . 166
Characteristics and
Towing Tips . . . . . . . . . . . . . . . . . 233
Defensive . . . . . . . . . . . . . . . . . . . . . 167
Drunk . . . . . . . . . . . . . . . . . . . . . . . . . 167
Hill and Mountain Roads . . . . . . 175
If the Vehicle is Stuck . . . . . . . . . 177
Loss of Control . . . . . . . . . . . . . . . 169
Off-Road . . . . . . . . . . . . . . . . . . . . . 170
Off-Road Recovery . . . . . . . . . . . 169
Vehicle Load Limits . . . . . . . . . . . 178
Wet Roads . . . . . . . . . . . . . . . . . . . 174
Winter . . . . . . . . . . . . . . . . . . . . . . . . 176
Dual Automatic Climate
Control System . . . . . . . . . . . . . . . . 157
E
Electric Parking Brake . . . . . . . . . . 196
Electric Parking Brake Light . . . . 127
Electrical Equipment,Add-On . . . . . . . . . . . . . . . . . . . . . . . 246
Electrical System Engine Compartment FuseBlock . . . . . . . . . . . . . . . . . . . . . . . . 274
Fuses and Circuit Breakers . . . 274 Electrical System (cont'd)
Instrument Panel Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . 278
Overload . . . . . . . . . . . . . . . . . . . . . 273
Rear Compartment Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . 280
Emergency OnStar . . . . . . . . . . . . . . . . . . . . . . . 360
Engine
Air Cleaner/Filter . . . . . . . . . . . . . 257
Check Light (MalfunctionIndicator) . . . . . . . . . . . . . . . . . . . . 125
Compartment Overview . . . . . . . 252
Coolant Temperature Gauge . . . . . . . . . . . . . . . . . . . . . . 122
Cooling System . . . . . . . . . . . . . . . 258
Drive Belt Routing . . . . . . . . . . . . 344
Exhaust . . . . . . . . . . . . . . . . . . . . . . 190
Heater . . . . . . . . . . . . . . . . . . . . . . . . 186
Oil Life System . . . . . . . . . . . . . . . 255
Oil Pressure Light . . . . . . . . . . . . 131
Overheating . . . . . . . . . . . . . . . . . . 262
Power Messages . . . . . . . . . . . . . 137
Running While Parked . . . . . . . . 190
Starting . . . . . . . . . . . . . . . . . . . . . . . 184
Engine Air Filter Life System . . . . 257
Entry Lighting . . . . . . . . . . . . . . . . . . . 154
Equipment, Towing . . . . . . . . . . . . . 241 Event Data Recorders . . . . . . . . . . 357
Exit Lighting . . . . . . . . . . . . . . . . . . . . 154
Extended Parking . . . . . . . . . . . . . . . 189
Extender, Seat Belt . . . . . . . . . . . . . . 63
Exterior Lamp Controls . . . . . . . . . 147
Exterior Lighting Battery
Saver . . . . . . . . . . . . . . . . . . . . . . . . . 155
F
Filter,
Engine Air Cleaner . . . . . . . . . . . 257
Flash-to-Pass . . . . . . . . . . . . . . . . . . . 149
Flashers, Hazard Warning . . . . . . 151
Flat Tire . . . . . . . . . . . . . . . . . . . . . . . . 303
Changing . . . . . . . . . . . . . . . . . . . . . 305
Floor Mats . . . . . . . . . . . . . . . . . . . . . . 326
Fluid Automatic Transmission . . . . . . 256
Brakes . . . . . . . . . . . . . . . . . . . . . . . . 265
Washer . . . . . . . . . . . . . . . . . . . . . . . 263
Fog Lamps . . . . . . . . . . . . . . . . . . . . . 151
Folding Mirrors . . . . . . . . . . . . . . . . . . 31
Forward Collision Alert
(FCA) System . . . . . . . . . . . . . . . . . 219
Frequency Statement Radio . . . . . . . . . . . . . . . . . . . . . . . . . 355
Front Fog Lamp Light . . . . . . . . . . . . . . . . . . . . . . . . . . 132

Chevrolet Traverse Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13527526) - 2020 - CRC - 9/5/19
374 Index
Front Pedestrian Braking(FPB) System . . . . . . . . . . . . . . . . . 223
Front Seats Adjustment . . . . . . . . . . . . . . . . . . . . . 42
Heated and Ventilated . . . . . . . . . . 48
Fuel Additives . . . . . . . . . . . . . . . . . . . . . 230
Economy, Driving for Better . . . 166
Filling a Portable Fuel
Container . . . . . . . . . . . . . . . . . . . 232
Filling the Tank . . . . . . . . . . . . . . . 231
Foreign Countries . . . . . . . . . . . . 230
Gauge . . . . . . . . . . . . . . . . . . . . . . . . 121
Low Fuel Warning
Light . . . . . . . . . . . . . . . . . . . 131, 132
Prohibited Fuels . . . . . . . . . . . . . . 230
Recommended . . . . . . . . . . . . . . . 230
Top Tier . . . . . . . . . . . . . . . . . . . . . . 229
Fuses Engine Compartment FuseBlock . . . . . . . . . . . . . . . . . . . . . . . . 274
Fuses and Circuit Breakers . . . 274
Instrument Panel Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 278
Rear Compartment Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . 280G
Garage Door Opener . . . . . . . . . . . 143Programming . . . . . . . . . . . . . . . . . 143
Gas Strut(s) . . . . . . . . . . . . . . . . . . . . 269
Gauges Engine CoolantTemperature . . . . . . . . . . . . . . . . 122
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Odometer . . . . . . . . . . . . . . . . . . . . . 120
Speedometer . . . . . . . . . . . . . . . . . 120
Tachometer . . . . . . . . . . . . . . . . . . . 120
Trip Odometer . . . . . . . . . . . . . . . . 120
Warning Lights and Indicators . . . . . . . . . . . . . . . . . . . .114
General Information Service and Maintenance . . . . . 327
Towing . . . . . . . . . . . . . . . . . . . . . . . . 233
Vehicle Care . . . . . . . . . . . . . . . . . . 248
Glove Box . . . . . . . . . . . . . . . . . . . . . . 100
GM Mobility Reimbursement
Program . . . . . . . . . . . . . . . . . . . . . . . 349
H
Hazard Warning Flashers . . . . . . . 151
Head Restraints . . . . . . . . . . . . . . . . . 40
HeadlampsAiming . . . . . . . . . . . . . . . . . . . . . . . . 271
Automatic . . . . . . . . . . . . . . . . . . . . . 150 Headlamps (cont'd)
Bulb Replacement . . . . . . . . . . . . 271
Daytime Running
Lamps (DRL) . . . . . . . . . . . . . . . . 149
Flash-to-Pass . . . . . . . . . . . . . . . . . 149
High Intensity Discharge (HID) Lighting . . . . . . . . . . . . . . . 271
High-Beam On Light . . . . . . . . . . 132
High/Low Beam Changer . . . . . 149
Lamps On Reminder . . . . . . . . . 133
Heated Rear Seats . . . . . . . . . . . . . . . . . . . . . 52
Steering Wheel . . . . . . . . . . . . . . . 106
Heated and Ventilated Front
Seats . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Heated Mirrors . . . . . . . . . . . . . . . . . . . 32
Heater Engine . . . . . . . . . . . . . . . . . . . . . . . . 186
Heating . . . . . . . . . . . . . . . . . . . . 157, 161
High Voltage Devices and Wiring . . . . . . . . . . . . . . . . . . . . . . . . . 273
High-Beam On Light . . . . . . . . . . . . 132
High-Speed Operation . . . . . . . . . . 291
Hill and Mountain Roads . . . . . . . . 175
Hill Start Assist (HSA) . . . . . . . . . . 197
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . 250
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
