immobilizer CHEVROLET TRAVERSE 2021 Owner's Manual

Chevrolet Traverse Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
14637844) - 2021 - CRC - 3/26/21
6 Keys, Doors, and Windows
Keys, Doors, and
Windows
Keys and Locks
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Remote Keyless Entry (RKE) System . . . . . 7
Remote Keyless Entry (RKE) SystemOperation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Remote Vehicle Start . . . . . . . . . . . . . . . . . . . 13
Door Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Power Door Locks . . . . . . . . . . . . . . . . . . . . . . . 17
Delayed Locking . . . . . . . . . . . . . . . . . . . . . . . . 17
Automatic Door Locks . . . . . . . . . . . . . . . . . . . 17
Lockout Protection . . . . . . . . . . . . . . . . . . . . . . 17
Safety Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Doors
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Vehicle Security
Vehicle Security . . . . . . . . . . . . . . . . . . . . . . . . 25
Vehicle Alarm System . . . . . . . . . . . . . . . . . . 25
Immobilizer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Immobilizer Operation . . . . . . . . . . . . . . . . . . 26
Exterior Mirrors
Convex Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . 26
Power Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Folding Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . 27
Heated Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . 27 Automatic Dimming Mirror . . . . . . . . . . . . . 27
Reverse Tilt Mirrors . . . . . . . . . . . . . . . . . . . . . 27
Interior Mirrors
Interior Rearview Mirrors . . . . . . . . . . . . . . . 28
Manual Rearview Mirror . . . . . . . . . . . . . . . . 28
Automatic Dimming Rearview Mirror . . . 28
Rear Camera Mirror . . . . . . . . . . . . . . . . . . . . 28
Windows
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Power Windows . . . . . . . . . . . . . . . . . . . . . . . . 30
Sun Visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Roof
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Keys and Locks
Keys
{Warning
Leaving children in a vehicle with a
Remote Keyless Entry (RKE) transmitter is
dangerous and children or others could
be seriously injured or killed. They could
operate the power windows or other
controls or make the vehicle move. The
windows will function with the RKE
transmitter in the vehicle, and children or
others could be caught in the path of a
closing window. Do not leave children in
a vehicle with an RKE transmitter.

Chevrolet Traverse Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
14637844) - 2021 - CRC - 3/26/21
26 Keys, Doors, and Windows
How to Detect a Tamper Condition
IfKis pressed and the horn chirps and the
lights flash three times, the alarm was
activated while the alarm system was
armed.
If the alarm system has been activated, a
message will appear on the Driver
Information Center (DIC).
Immobilizer
See Radio Frequency Statement 0346.
Immobilizer Operation
This vehicle has a passive theft-deterrent
system.
The system does not have to be manually
armed or disarmed.
The vehicle is automatically immobilized
when the transmitter leaves the vehicle.
The immobilization system is disarmed
when the ignition is turned on or in ACC/
ACCESSORY and a valid Remote Keyless
Entry (RKE) transmitter is in the vehicle.
The security light, in the instrument cluster,
comes on if there is a problem with arming
or disarming the theft-deterrent system.
The system has one or more RKE
transmitters matched to an immobilizer
control unit in your vehicle. Only a correctly
matched RKE transmitter will start the
vehicle. If the transmitter is ever damaged,
you may not be able to start your vehicle.
When trying to start the vehicle, the
security light may come on briefly when the
ignition is turned on.
If the engine does not start and the security
light stays on, there is a problem with the
system. Turn the ignition off and try again.
If the vehicle will not change ignition modes
(ACC/ACCESSORY, on, off), and the RKE
transmitter appears to be undamaged, try
another transmitter. Or, you may try placing
the transmitter in the transmitter pocket in
the center console. See Remote Keyless Entry
(RKE) System Operation 07. If the ignition mode will not change with
the other transmitter, or with the
transmitter in the transmitter pocket, your
vehicle needs service. If the ignition does
change modes, the first transmitter may be
faulty. See your dealer who can service the
theft-deterrent system and have a new RKE
transmitter programmed to the vehicle.
It is possible for the immobilizer system to
learn new or replacement RKE transmitters.
Up to eight transmitters can be
programmed to the vehicle. To program
additional transmitters, see
“Programming
Transmitters to the Vehicle” underRemote
Keyless Entry (RKE) System Operation 07.
Do not leave the key or device that disarms
or deactivates the theft-deterrent system in
the vehicle.
Exterior Mirrors
Convex Mirrors
{Warning
A convex mirror can make things, like
other vehicles, look farther away than
they really are. If you cut too sharply (Continued)

Chevrolet Traverse Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
14637844) - 2021 - CRC - 3/26/21
110 Instruments and Controls
Low Fuel Warning Light (Base
Level)
Metric Shown, English Similar
This light comes on for a few seconds when
the ignition is turned on as a check to
indicate it is working. If it does not come
on, have it fixed.
The low fuel warning light comes on and a
chime sounds when the vehicle is low on
fuel. The light turns off when fuel is added
to the fuel tank.
Low Fuel Warning Light (Uplevel)
This light is near the fuel gauge and comes
on briefly when the ignition is turned on as
a check to show it is working.
It also comes on when the fuel tank is low
on fuel. The light turns off when fuel is
added. If it does not, have the vehicle
serviced.
Security Light
The security light should come on briefly as
the engine is started. If it does not come on,
have the vehicle serviced by your dealer.
If the system is working normally, the
indicator light turns off. If the light stays on and the engine does
not start, there could be a problem with the
theft-deterrent system. See
Immobilizer
Operation 026.
High-Beam On Light
This light comes on when the high-beam
headlamps are in use. See Headlamp High/
Low-Beam Changer 0123.
IntelliBeam Light
This light comes on when the IntelliBeam
system, if equipped, is enabled. See Exterior
Lamp Controls 0122.

Chevrolet Traverse Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
14637844) - 2021 - CRC - 3/26/21
Index 361
Garage Door Opener (cont'd)Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Gas Strut(s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 273
Gauges Engine Coolant Temperature . . . . . . . . . . . 102
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Trip Odometer . . . . . . . . . . . . . . . . . . . . . . . . . 101
Warning Lights and Indicators . . . . . . . . . . 96
General Information
Service and Maintenance . . . . . . . . . . . . . . 322
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 243
Vehicle Care . . . . . . . . . . . . . . . . . . . . . . . . . . . 256
Global Positioning System (GPS) . . . . . . . . . . 153
Glove Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
GM Mobility Reimbursement
Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .341
Guidance Problems with the Route . . . . . . . . . . . . . . 153
H
Hazard Warning Flashers . . . . . . . . . . . . . . . . . 125
Head Restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Headlamps
Aiming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 274
Automatic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124 Headlamps (cont'd)
Bulb Replacement . . . . . . . . . . . . . . . . . . . . . . 274
Daytime Running Lamps (DRL) . . . . . . . . . 124
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
High Intensity Discharge (HID)
Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 274
High-Beam On Light . . . . . . . . . . . . . . . . . . . 110
High/Low Beam Changer . . . . . . . . . . . . . . 123
Lamps On Reminder . . . . . . . . . . . . . . . . . . . . 111
Heated Rear Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Steering Wheel . . . . . . . . . . . . . . . . . . . . . . . . . 90
Heated and Ventilated Front Seats . . . . . . . .41
Heated Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Heater Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182, 186
High Voltage Devices and Wiring . . . . . . . . 275
High-Beam On Light . . . . . . . . . . . . . . . . . . . . . .110
High-Speed Operation . . . . . . . . . . . . . . . . . . . 291
Hill and Mountain Roads . . . . . . . . . . . . . . . . 196
Hill Start Assist (HSA) . . . . . . . . . . . . . . . . . . . . . 213
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 257
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .91
How to Wear Seat Belts Properly . . . . . . . . . 49
HVAC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182, 186
I
If the System Needs Service . . . . . . . . . . . . . .154
Ignition Positions . . . . . . . . . . . . . . . . . . . . . . . . 201
Immobilizer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Indicator Pedestrian Ahead . . . . . . . . . . . . . . . . . . . . . . 108
Vehicle Ahead . . . . . . . . . . . . . . . . . . . . . . . . . 107
Infants and Young Children, Restraints . . . . 67
Information Publication Ordering . . . . . . . . . . . . . . . . . . . 345
Infotainment System . . . . . . . . . . . . . . . . . . . . 348
Instrument Cluster . . . . . . . . . . . . . . . . . . . . 97, 99
Instrument Panel Storage Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Instrument Panel Overview . . . . . . . . . . . . . . . . 4
Interior Rearview Mirrors . . . . . . . . . . . . . . . . . 28
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . 1, 129
J
Jack Auxiliary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Jump Starting - North America . . . . . . . . . . . 309
K
Keyless Entry Remote (RKE) System . . . . . . . . . . . . . . . . . . . . 7
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Chevrolet Traverse Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
14637844) - 2021 - CRC - 3/26/21

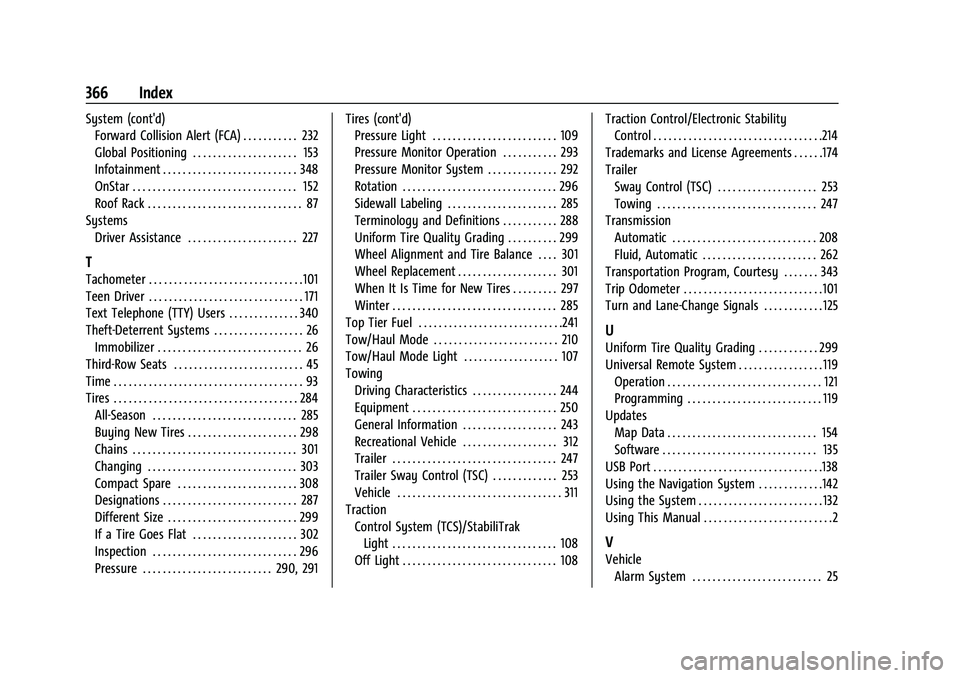

366 Index
System (cont'd)Forward Collision Alert (FCA) . . . . . . . . . . . 232
Global Positioning . . . . . . . . . . . . . . . . . . . . . 153
Infotainment . . . . . . . . . . . . . . . . . . . . . . . . . . . 348
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
Roof Rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Systems
Driver Assistance . . . . . . . . . . . . . . . . . . . . . . 227
T
Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .101
Teen Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Text Telephone (TTY) Users . . . . . . . . . . . . . . 340
Theft-Deterrent Systems . . . . . . . . . . . . . . . . . . 26Immobilizer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Third-Row Seats . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 284 All-Season . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 285
Buying New Tires . . . . . . . . . . . . . . . . . . . . . . 298
Chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 301
Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 303
Compact Spare . . . . . . . . . . . . . . . . . . . . . . . . 308
Designations . . . . . . . . . . . . . . . . . . . . . . . . . . . 287
Different Size . . . . . . . . . . . . . . . . . . . . . . . . . . 299
If a Tire Goes Flat . . . . . . . . . . . . . . . . . . . . . 302
Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 296
Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . 290, 291 Tires (cont'd)
Pressure Light . . . . . . . . . . . . . . . . . . . . . . . . . 109
Pressure Monitor Operation . . . . . . . . . . . 293
Pressure Monitor System . . . . . . . . . . . . . . 292
Rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 296
Sidewall Labeling . . . . . . . . . . . . . . . . . . . . . . 285
Terminology and Definitions . . . . . . . . . . . 288
Uniform Tire Quality Grading . . . . . . . . . . 299
Wheel Alignment and Tire Balance . . . . 301
Wheel Replacement . . . . . . . . . . . . . . . . . . . . 301
When It Is Time for New Tires . . . . . . . . . 297
Winter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 285
Top Tier Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . .241
Tow/Haul Mode . . . . . . . . . . . . . . . . . . . . . . . . . 210
Tow/Haul Mode Light . . . . . . . . . . . . . . . . . . . 107
Towing Driving Characteristics . . . . . . . . . . . . . . . . . 244
Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250
General Information . . . . . . . . . . . . . . . . . . . 243
Recreational Vehicle . . . . . . . . . . . . . . . . . . . 312
Trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247
Trailer Sway Control (TSC) . . . . . . . . . . . . . 253
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 311
Traction Control System (TCS)/StabiliTrakLight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Off Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108 Traction Control/Electronic Stability
Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .214
Trademarks and License Agreements . . . . . .174
Trailer Sway Control (TSC) . . . . . . . . . . . . . . . . . . . . 253
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247
Transmission
Automatic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
Fluid, Automatic . . . . . . . . . . . . . . . . . . . . . . . 262
Transportation Program, Courtesy . . . . . . . 343
Trip Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . .101
Turn and Lane-Change Signals . . . . . . . . . . . . 125
U
Uniform Tire Quality Grading . . . . . . . . . . . . 299
Universal Remote System . . . . . . . . . . . . . . . . . 119 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Updates Map Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
USB Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .138
Using the Navigation System . . . . . . . . . . . . .142
Using the System . . . . . . . . . . . . . . . . . . . . . . . . . 132
Using This Manual . . . . . . . . . . . . . . . . . . . . . . . . . .2
V
Vehicle Alarm System . . . . . . . . . . . . . . . . . . . . . . . . . . 25
