Vehicle Care 287

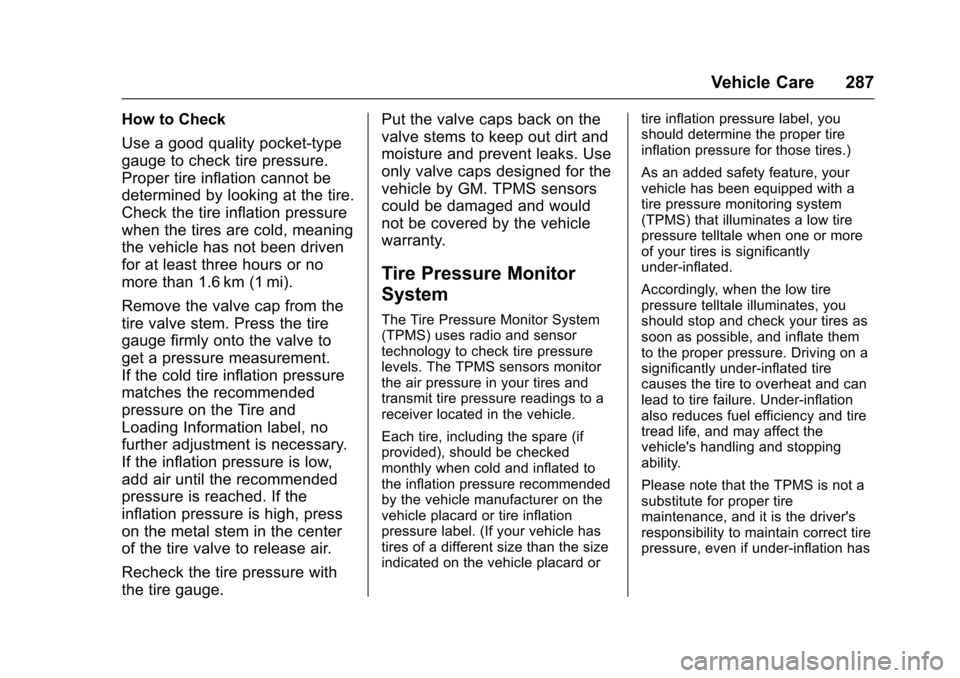

How to Check
Use a good quality pocket-type
gauge to check tire pressure.
Proper tire inflation cannot be
determined by looking at the tire.
Check the tire inflation pressure
when the tires are cold, meaning
the vehicle has not been driven
for at least three hours or no
more than 1.6 km (1 mi).
Remove the valve cap from the
tire valve stem. Press the tire
gauge firmly onto the valve to
get a pressure measurement.
If the cold tire inflation pressure
matches the recommended
pressure on the Tire and
Loading Information label, no
further adjustment is necessary.
If the inflation pressure is low,
add air until the recommended
pressure is reached. If the
inflation pressure is high, press
on the metal stem in the center
of the tire valve to release air.
Recheck the tire pressure with
the tire gauge.Put the valve caps back on the
valve stems to keep out dirt and
moisture and prevent leaks. Use
only valve caps designed for the
vehicle by GM. TPMS sensors
could be damaged and would
not be covered by the vehicle
warranty.
Tire Pressure Monitor
System
The Tire Pressure Monitor System
(TPMS) uses radio and sensor
technology to check tire pressure
levels. The TPMS sensors monitor
the air pressure in your tires and
transmit tire pressure readings to a
receiver located in the vehicle.
Each tire, including the spare (if
provided), should be checked
monthly when cold and inflated to
the inflation pressure recommended
by the vehicle manufacturer on the
vehicle placard or tire inflation
pressure label. (If your vehicle has
tires of a different size than the size
indicated on the vehicle placard or tire inflation pressure label, you
should determine the proper tire
inflation pressure for those tires.)
As an added safety feature, your
vehicle has been equipped with a
tire pressure monitoring system
(TPMS) that illuminates a low tire
pressure telltale when one or more
of your tires is significantly
under-inflated.
Accordingly, when the low tire
pressure telltale illuminates, you
should stop and check your tires as
soon as possible, and inflate them
to the proper pressure. Driving on a
significantly under-inflated tire
causes the tire to overheat and can
lead to tire failure. Under-inflation
also reduces fuel efficiency and tire
tread life, and may affect the
vehicle's handling and stopping
ability.
Please note that the TPMS is not a
substitute for proper tire
maintenance, and it is the driver's
responsibility to maintain correct tire
pressure, even if under-inflation has

Chevrolet TRAX Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
10122735) - 2017 - crc - 7/12/16
288 Vehicle Care

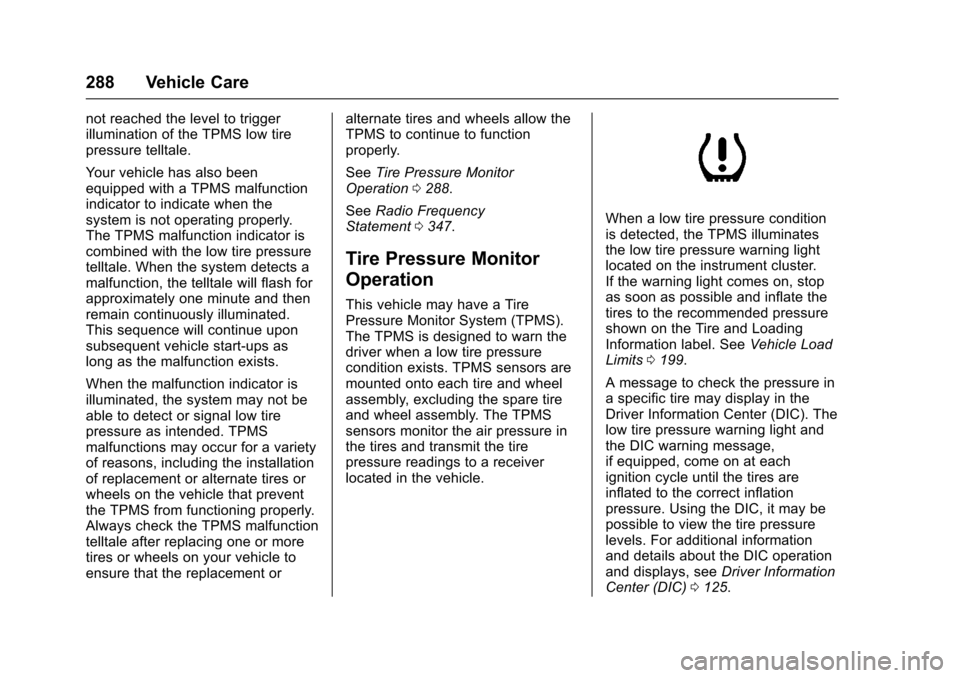

not reached the level to trigger
illumination of the TPMS low tire
pressure telltale.
Your vehicle has also been
equipped with a TPMS malfunction
indicator to indicate when the
system is not operating properly.
The TPMS malfunction indicator is
combined with the low tire pressure
telltale. When the system detects a
malfunction, the telltale will flash for
approximately one minute and then
remain continuously illuminated.
This sequence will continue upon
subsequent vehicle start-ups as
long as the malfunction exists.
When the malfunction indicator is
illuminated, the system may not be
able to detect or signal low tire
pressure as intended. TPMS
malfunctions may occur for a variety
of reasons, including the installation
of replacement or alternate tires or
wheels on the vehicle that prevent
the TPMS from functioning properly.
Always check the TPMS malfunction
telltale after replacing one or more
tires or wheels on your vehicle to
ensure that the replacement oralternate tires and wheels allow the
TPMS to continue to function
properly.
See
Tire Pressure Monitor
Operation 0288.
See Radio Frequency
Statement 0347.
Tire Pressure Monitor
Operation
This vehicle may have a Tire
Pressure Monitor System (TPMS).
The TPMS is designed to warn the
driver when a low tire pressure
condition exists. TPMS sensors are
mounted onto each tire and wheel
assembly, excluding the spare tire
and wheel assembly. The TPMS
sensors monitor the air pressure in
the tires and transmit the tire
pressure readings to a receiver
located in the vehicle.
When a low tire pressure condition
is detected, the TPMS illuminates
the low tire pressure warning light
located on the instrument cluster.
If the warning light comes on, stop
as soon as possible and inflate the
tires to the recommended pressure
shown on the Tire and Loading
Information label. See Vehicle Load
Limits 0199.
A message to check the pressure in
a specific tire may display in the
Driver Information Center (DIC). The
low tire pressure warning light and
the DIC warning message,
if equipped, come on at each
ignition cycle until the tires are
inflated to the correct inflation
pressure. Using the DIC, it may be
possible to view the tire pressure
levels. For additional information
and details about the DIC operation
and displays, see Driver Information
Center (DIC) 0125.

Chevrolet TRAX Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
10122735) - 2017 - crc - 7/12/16
Vehicle Care 289
The low tire pressure warning light
may come on in cool weather when
the vehicle is first started, and then
turn off as the vehicle is driven. This
could be an early indicator that the
air pressure is getting low and
needs to be inflated to the proper
pressure.
A Tire and Loading Information label
shows the size of the original
equipment tires and the correct
inflation pressure for the tires when
they are cold. SeeVehicle Load
Limits 0199, for an example of the
Tire and Loading Information label
and its location. Also see Tire
Pressure 0286.
The TPMS can warn about a low
tire pressure condition, but it does
not replace normal tire
maintenance. See Tire Inspection
0 291, Tire Rotation 0291, and
Tires 0279.Caution
Tire sealant materials are not all
the same. A non-approved tire
sealant could damage the TPMS
sensors. TPMS sensor damage
caused by using an incorrect tire
sealant is not covered by the
vehicle warranty. Always use only
the GM approved tire sealant
available through your dealer or
included in the vehicle.
TPMS Malfunction Light and
Message
The TPMS will not function properly
if one or more of the TPMS sensors
are missing or inoperable. When the
system detects a malfunction, the
low tire pressure warning light,
defined above, flashes for about
one minute and then stays on for
the remainder of the ignition cycle.
A DIC warning message may also
display. The malfunction light and
DIC warning message, if equipped,
come on at each ignition cycle until the problem is corrected. Some of
the conditions that can cause these
to come on are:
.
One of the road tires has been
replaced with the spare tire. The
spare tire does not have a
TPMS sensor. The malfunction
light and the DIC message,
if equipped, should go off after
the road tire is replaced and the
sensor matching process is
performed successfully. See
"TPMS Sensor Matching
Process" later in this section.
. The TPMS sensor matching
process was not done or not
completed successfully after
rotating the tires. The
malfunction light and the DIC
message, if equipped, should go
off after successfully completing
the sensor matching process.
See "TPMS Sensor Matching
Process" later in this section.
. One or more TPMS sensors are
missing or damaged. The
malfunction light and the DIC
message, if equipped, should go
off when the TPMS sensors are

Chevrolet TRAX Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
10122735) - 2017 - crc - 7/12/16
290 Vehicle Care
installed and the sensor
matching process is performed
successfully. See your dealer for
service.
. Replacement tires or wheels do
not match the original equipment
tires or wheels. Tires and wheels
other than those recommended
could prevent the TPMS from
functioning properly. See Buying
New Tires 0293.
. Operating electronic devices or
being near facilities using radio
wave frequencies similar to the
TPMS could cause the TPMS
sensors to malfunction.
If the TPMS is not functioning
properly, it cannot detect or signal a
low tire condition. See your dealer
for service if the TPMS malfunction
light and DIC message, if equipped,
come on and stay on.
TPMS Sensor Matching
Process
Each TPMS sensor has a unique
identification code. The identification
code needs to be matched to a new
tire/wheel position after rotating the vehicle’s tires or replacing one or
more of the TPMS sensors. Also,
the TPMS sensor matching process
should be performed after replacing
a spare tire with a road tire
containing the TPMS sensor. The
malfunction light and the DIC
message, if equipped, should go off
at the next ignition cycle. The
sensors are matched to the tire/
wheel positions, using a TPMS
relearn tool, in the following order:
driver side front tire, passenger side
front tire, passenger side rear tire,
and driver side rear. See your
dealer for service or to purchase a
relearn tool. A TPMS relearn tool
can also be purchased. See Tire
Pressure Monitor Sensor Activation
Tool at
www.gmtoolsandequipment.com or
call 1-800-GM TOOLS
(1-800-468-6657).
There are two minutes to match the
first tire/wheel position, and
five minutes overall to match all four
tire/wheel positions. If it takes
longer, the matching process stops
and must be restarted.
The TPMS sensor matching
process is:
1. Set the parking brake.
2. Turn the ignition to ON/RUN with the engine off or place the
vehicle power mode in ON/
RUN/START. See Ignition
Positions (Key Access) 0203
or Ignition Positions (Keyless
Access) 0205.
3. Use the MENU button to select the Vehicle Information Menu
(Menu 2) in the Driver
Information Center (DIC). See
Driver Information Center
(DIC) 0125.
4. Use the thumbwheel (or up and down arrows) to scroll to the
Tire Pressure Menu Item
screen.
5. Press and hold the SET/CLR button to begin the sensor
matching process.
A message requesting
acceptance of the process may
display.

Chevrolet TRAX Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
10122735) - 2017 - crc - 7/12/16
Vehicle Care 291
6. If requested, press the SET/CLR button again to confirm
the selection.
The horn sounds twice to
signal the receiver is in relearn
mode and the TIRE LEARN or
TIRE LEARNING ACTIVE
message displays on the DIC
screen.
7. Start with the driver side front tire.
8. Place the relearn tool against the tire sidewall, near the valve
stem. Then press the button to
activate the TPMS sensor.
A horn chirp confirms that the
sensor identification code has
been matched to this tire and
wheel position.
9. Proceed to the passenger side front tire, and repeat the
procedure in Step 8.
10. Proceed to the passenger side rear tire, and repeat the
procedure in Step 8.
11. Proceed to the driver side rear tire, and repeat the procedure
in Step 8. The horn sounds two times to indicate the sensor
identification code has been
matched to the driver side rear
tire, and the TPMS sensor
matching process is no longer
active. The TIRE LEARN or
TIRE LEARNING ACTIVE
message on the DIC display
screen goes off.
12. Turn the ignition to LOCK/OFF.
13. Set all four tires to the recommended air pressure
level as indicated on the Tire
and Loading Information label.
Tire Inspection
We recommend that the tires,
including the spare tire, if the
vehicle has one, be inspected
for signs of wear or damage at
least once a month.
Replace the tire if:
.The indicators at three or
more places around the tire
can be seen.
.There is cord or fabric
showing through the tire's
rubber.
.The tread or sidewall is
cracked, cut, or snagged
deep enough to show cord or
fabric.
.The tire has a bump, bulge,
or split.
.The tire has a puncture, cut,
or other damage that cannot
be repaired well because of
the size or location of the
damage.
Tire Rotation
Tires should be rotated every
12 000 km (7,500 mi). See
Maintenance Schedule 0322.
Tires are rotated to achieve a
more uniform wear for all tires.
The first rotation is the most
important.

Chevrolet TRAX Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
10122735) - 2017 - crc - 7/12/16
Vehicle Care 297
Wheel Alignment and Tire
Balance
The tires and wheels were aligned
and balanced at the factory to
provide the longest tire life and best
overall performance. Adjustments to
wheel alignment and tire balancing
are not necessary on a regular
basis. Consider an alignment check
if there is unusual tire wear or the
vehicle is significantly pulling to one
side or the other. Some slight pull to
the left or right, depending on the
crown of the road and/or other road
surface variations such as troughs
or ruts, is normal. If the vehicle is
vibrating when driving on a smooth
road, the tires and wheels may need
to be rebalanced. See your dealer
for proper diagnosis.
Wheel Replacement
Replace any wheel that is bent,
cracked, or badly rusted or
corroded. If wheel nuts keep coming
loose, the wheel, wheel bolts, and
wheel nuts should be replaced.
If the wheel leaks air, replace it.Some aluminum wheels can be
repaired. See your dealer if any of
these conditions exist.
Your dealer will know the kind of
wheel that is needed.
Each new wheel should have the
same load-carrying capacity,
diameter, width, offset, and be
mounted the same way as the one it
replaces.
Replace wheels, wheel bolts, wheel
nuts, or Tire Pressure Monitor
System (TPMS) sensors with new
GM original equipment parts.
{Warning
Using the wrong replacement
wheels, wheel bolts, or wheel
nuts can be dangerous. It could
affect the braking and handling of
the vehicle. Tires can lose air,
and cause loss of control, causing
a crash. Always use the correct
wheel, wheel bolts, and wheel
nuts for replacement.
Caution
The wrong wheel can also cause
problems with bearing life, brake
cooling, speedometer or
odometer calibration, headlamp
aim, bumper height, vehicle
ground clearance, and tire or tire
chain clearance to the body and
chassis.
Used Replacement Wheels
{Warning
Replacing a wheel with a used
one is dangerous. How it has
been used or how far it has been
driven may be unknown. It could
fail suddenly and cause a crash.
When replacing wheels, use a
new GM original equipment
wheel.

Chevrolet TRAX Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
10122735) - 2017 - crc - 7/12/16
352 OnStar
.Obtain and customize the Wi-Fi®
hotspot name or SSID and
password, if equipped.
Press
Qto connect to an
Advisor to:
. Verify account information or
update contact information.
. Get driving directions.
. Receive a Diagnostic check of
the vehicle's key operating
systems.
. Receive Roadside Assistance.
. Manage Wi-Fi Settings,
if equipped.
Press
>to get a priority connection
to an OnStar Advisor available
24/7 to:
. Get help for an emergency.
. Be a Good Samaritan or
respond to an AMBER Alert.
. Get assistance in severe
weather or other crisis situations
and find evacuation routes.
OnStar Services
Emergency
Emergency Services require an
active, OnStar service plan
(excludes Basic Plan). With
Automatic Crash Response, built-in
sensors can automatically alert a
specially trained OnStar Advisor
who is immediately connected in to
the vehicle to help.
Press
>for a priority connection to
an OnStar Advisor who can contact
emergency service providers, direct
them to your exact location, and
relay important information.
With OnStar Crisis Assist, specially
trained Advisors are available
24 hours a day, 7 days a week, to
provide a central point of contact,
assistance, and information during a
crisis.
With Roadside Assistance, Advisors
can locate a nearby service provider
to help with a flat tire, a battery
jump, or an empty gas tank.
Security
If equipped, OnStar provides these
services:
. With Stolen Vehicle Assistance,
OnStar Advisors can use GPS to
pinpoint the vehicle and help
authorities quickly recover it.
. With Remote Ignition Block™,
if equipped, OnStar can block
the engine from being restarted.
. With Stolen Vehicle Slowdown
®,
if equipped, OnStar can work
with law enforcement to
gradually slow the vehicle down.
Theft Alarm Notification
If equipped, if the doors are locked
and the vehicle alarm sounds, a
notification by text, e-mail, or phone
call will be sent. If the vehicle is
stolen, an OnStar Advisor can work
with authorities to recover the
vehicle.
Navigation
OnStar navigation requires a
specific OnStar service plan.

Chevrolet TRAX Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
10122735) - 2017 - crc - 7/12/16
366 Index
Interior Rearview Mirrors . . . . . . . . . 46
Introduction . . . . . . . . . . . . . . . . . . . . . . . 2
J
Jump Starting - NorthAmerica . . . . . . . . . . . . . . . . . . . . . . . 305
K
Key and Lock Messages . . . . . . . . 133
Keyless EntryRemote (RKE) System . . . . . 28, 31
Keys . . . . . . . . . . . . . . . . . . . . . . . . . 25, 27
L
Labeling, Tire Sidewall . . . . . . . . . . 281
Lamps Courtesy . . . . . . . . . . . . . . . . . . . . . . 149
Daytime Running (DRL) . . . . . . 147
Dome . . . . . . . . . . . . . . . . . . . . . . . . . 149
Exterior Controls . . . . . . . . . . . . . . 146
Front Fog . . . . . . . . . . . . . . . . . . . . . 148
Headlamps, Front TurnSignal, and Parking
Lamps . . . . . . . . . . . . . . . . . . . . . . 265
License Plate . . . . . . . . . . . . . . . . . 270
Malfunction Indicator . . . . . . . . . .116
Messages . . . . . . . . . . . . . . . . . . . . 133
On Reminder . . . . . . . . . . . . . . . . . 124 Lamps (cont'd)
Reading . . . . . . . . . . . . . . . . . . . . . . 150
Lane Departure Warning (LDW) . . . . . . . . . . . . . . . . 231
Lane Departure Warning Light . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Lap-Shoulder Belt . . . . . . . . . . . . . . . 63
LATCH System Replacing Parts after a
Crash . . . . . . . . . . . . . . . . . . . . . . . . . 93
LATCH, Lower Anchors and Tethers for Children . . . . . . . . . . . . 86
LED Lighting . . . . . . . . . . . . . . . . . . . . 264
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Lighting Entry . . . . . . . . . . . . . . . . . . . . . . . . . 150
Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Illumination Control . . . . . . . . . . . 149
LED . . . . . . . . . . . . . . . . . . . . . . . . . . 264
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . 120 Airbag Readiness . . . . . . . . . . . . . .114
Antilock Brake System(ABS) Warning . . . . . . . . . . . . . . .119
Brake System Warning . . . . . . . .118
Charging System . . . . . . . . . . . . . .116
Cruise Control . . . . . . . . . . . . . . . . 124
Door Ajar . . . . . . . . . . . . . . . . . . . . . 124 Lights (cont'd)
Engine Coolant
Temperature Warning . . . . . . . 121
Engine Oil Pressure . . . . . . . . . . 122
Flash-to-Pass . . . . . . . . . . . . . . . . . 147
Front Fog Lamp . . . . . . . . . . . . . . 124
High-Beam On . . . . . . . . . . . . . . . . 124
High/Low Beam Changer . . . . . 146
Immobilizer . . . . . . . . . . . . . . . . . . . 123
Lane Departure Warning . . . . . . 120
Low Fuel Warning . . . . . . . . . . . . 123
Operate Pedal . . . . . . . . . . . . . . . . .119
Reduced Engine Power . . . . . . 123
Safety Belt Reminders . . . . . . . . .114
Service Vehicle Soon . . . . . . . . . .118
StabiliTrak
®OFF . . . . . . . . . . . . . 121
Tire Pressure . . . . . . . . . . . . . . . . . 122
Traction Control System (TCS)/StabiliTrak
®. . . . . . . . . . 121
Traction Off . . . . . . . . . . . . . . . . . . . 120
Ultrasonic Parking Sensor . . . . 120
Up-Shift . . . . . . . . . . . . . . . . . . . . . . .119
Warning, Power Steering . . . . . .119
Locks Automatic Door . . . . . . . . . . . . . . . . . 39
Delayed Locking . . . . . . . . . . . . . . . . 38
Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Lockout Protection . . . . . . . . . . . . . . 39

Chevrolet TRAX Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
10122735) - 2017 - crc - 7/12/16
368 Index
OnStar®Emergency . . . . . . . . . . . . 352
OnStar®Navigation . . . . . . . . . . . . . 352
OnStar®Overview . . . . . . . . . . . . . . 351
OnStar®Security . . . . . . . . . . . . . . . 352
Operate Pedal Light . . . . . . . . . . . . 119
Operation Infotainment System . . . . . . . . . . 157
Ordering Service Publications . . . . . . . . . . 346
Outlets Power . . . . . . . . . . . . . . . . . . . . . . . . 109
Overheating, Engine . . . . . . . . . . . . 255
Overview . . . . . . . . . . . . . . . . . . . . . . . 154
Owner Manual Indicator . . . . . . . . 118
P
Park Shifting Into . . . . . . . . . . . . . . . . . . . 210
Shifting Out of . . . . . . . . . . . . . . . . .211
Parking . . . . . . . . . . . . . . . . . . . . . . . . . 212 Brake . . . . . . . . . . . . . . . . . . . . . . . . . 219
Brake and P (Park)
Mechanism Check . . . . . . . . . . 262
Over Things That Burn . . . . . . . 212
Ultrasonic Sensor Light . . . . . . . 120
Parking Assist . . . . . . . . . . . . . . . . . . 227
Passenger Airbag Status
Indicator . . . . . . . . . . . . . . . . . . . . . . 115 Passenger Compartment Air
Filter . . . . . . . . . . . . . . . . . . . . . . . . . . 189
Passenger Sensing System . . . . . 74
Perchlorate Materials Requirements, California . . . . . . 239
Personalization Vehicle . . . . . . . . . . . . . . . . . . . . . . . 137
Phone Apple CarPlay andAndroid Auto . . . . . . . . . . . . . . . . 181
Bluetooth . . . . . . . . . . . 171, 173, 177
Hands-Free . . . . . . . . . . . . . . . . . . . 182
Port USB . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Power Door Locks . . . . . . . . . . . . . . . . . . . . . 38
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Outlets . . . . . . . . . . . . . . . . . . . . . . . 109
Protection, Battery . . . . . . . . . . . . 151
Reduced Engine Light . . . . . . . . 123
Retained Accessory (RAP) . . . 210
Seat Adjustment . . . . . . . . . . . . . . . . 54
Steering Fluid . . . . . . . . . . . . . . . . . 257
Windows . . . . . . . . . . . . . . . . . . . . . . . 47
Power Steering Warning
Lights . . . . . . . . . . . . . . . . . . . . . . . . . 119
Pregnancy, Using Safety Belts . . . 66 Privacy
Vehicle Data Recording . . . . . . . 348
Program Courtesy Transportation . . . . . . 343
Proposition 65 Warning,
California . . . . . . . . . . . .239, 260, 305
R
Radio Frequency Statement . . . . 347
Radio Reception . . . . . . . . . . . . . . . . 164
RadiosAM-FM Radio . . . . . . . . . . . . . . . . . 160
Satellite . . . . . . . . . . . . . . . . . . . . . . . 163
Reading Lamps . . . . . . . . . . . . . . . . . 150
Rear Seat Armrest . . . . . . . . . . . . . . . 61
Rear Seats . . . . . . . . . . . . . . . . . . . . . . 58
Rear Vision Camera (RVC) . . . . . 225
Rear Window Washer/Wiper . . . . 106
Rearview Mirrors . . . . . . . . . . . . . . . . 46 Automatic Dimming . . . . . . . . . . . . . 46
Reclining Seatbacks . . . . . . . . . . . . . 55
Recommended Fluids and Lubricants . . . . . . . . . . . . . . . . . . . . . 330
Records Maintenance . . . . . . . . . . . . . . . . . . 332
Recreational Vehicle Towing . . . . 308
Reduced Engine Power Light . . . 123

Chevrolet TRAX Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
10122735) - 2017 - crc - 7/12/16
Index 371
Tires (cont'd)Wheel Alignment and Tire
Balance . . . . . . . . . . . . . . . . . . . . . 297
Wheel Replacement . . . . . . . . . . 297
When It Is Time for New
Tires . . . . . . . . . . . . . . . . . . . . . . . . 292
Winter . . . . . . . . . . . . . . . . . . . . . . . . 280
Towing General Information . . . . . . . . . . 236
Recreational Vehicle . . . . . . . . . . 308
Vehicle . . . . . . . . . . . . . . . . . . . . . . . 308
Traction Control System (TCS)/StabiliTrak
®Light . . . . . . . . . . . . 121
Off Light . . . . . . . . . . . . . . . . . . . . . . 120
Traction Control/Electronic Stability Control . . . . . . . . . . . . . . . 221
Trademarks and License
Agreements . . . . . . . . . . . . . . . . . . . 184
Transmission Automatic . . . . . . . . . . . . . . . . . . . . . 214
Fluid, Automatic . . . . . . . . . . . . . . 249
Fluid, Manual . . . . . . . . . . . . . . . . . 250
Messages . . . . . . . . . . . . . . . . . . . . 136
Transportation Program, Courtesy . . . . . . . . . . . . . . . . . . . . . . 343
Triangle, Warning . . . . . . . . . . . . . . . 101
Trip Odometer . . . . . . . . . . . . . . . . . . 113 Turn and Lane-Change
Signals . . . . . . . . . . . . . . . . . . . . . . . . 148
Turn Signal Bulb Replacement . . . . . . . . . . . . 268
U
Ultrasonic Parking SensorLight . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Underseat Storage . . . . . . . . . . . . . 100
Uniform Tire Quality Grading . . . 295
Up-Shift Light . . . . . . . . . . . . . . . . . . . 119
USB Port . . . . . . . . . . . . . . . . . . . . . . . 165
Using This Manual . . . . . . . . . . . . . . . . 2
V
Vehicle Alarm System . . . . . . . . . . . . . . . . . . 42
Canadian Owners . . . . . . . . . . . . . . . 2
Control . . . . . . . . . . . . . . . . . . . . . . . 193
Design . . . . . . . . . . . . . . . . . . . . . . . . 192
Identification Number (VIN) . . . 333
Load Limits . . . . . . . . . . . . . . . . . . . 199
Messages . . . . . . . . . . . . . . . 129, 130
Personalization . . . . . . . . . . . . . . . 137
Reminder Messages . . . . . . . . . . 136
Remote Start . . . . . . . . . . . . . . . . . . . 36
Security . . . . . . . . . . . . . . . . . . . . . . . . 42
Service Soon Light . . . . . . . . . . . .118 Vehicle (cont'd)
Towing . . . . . . . . . . . . . . . . . . . . . . . . 308
Vehicle Ahead Indicator . . . . . . . . 120
Vehicle Care Tire Pressure . . . . . . . . . . . . . . . . . 286
Vehicle Data Recording and Privacy . . . . . . . . . . . . . . . . . . . . . . . . 348
Ventilation, Air . . . . . . . . . . . . . . . . . . 188
Visors . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
W
Warning Brake System Light . . . . . . . . . . . .118
Caution and Danger . . . . . . . . . . . . . 3
Lane Departure (LDW) . . . . . . . 231
Warning Lights, Gauges, and Indicators . . . . . . . . . . . . . . . . . . . . . 110
Warning Triangle . . . . . . . . . . . . . . . 101
Warnings Hazard Flashers . . . . . . . . . . . . . . 148
Washer Fluid . . . . . . . . . . . . . . . . . . . 257
Wheels Alignment and Tire Balance . . 297
Different Size . . . . . . . . . . . . . . . . . 295
Replacement . . . . . . . . . . . . . . . . . 297
When It Is Time for New Tires . . . . . . . . . . . . . . . . . . . . . . . . . . 292
Where to Put the Restraint . . . . . . 85
Wi-Fi . . . . . . . . . . . . . . . . . . . . . . . . . . . 353
