Chevrolet TRAX Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11354406) - 2018 - crc - 10/12/17
288 Vehicle Care
Warning (Continued)
tire service center repair or
replace the flat tire as soon as
possible.
{Warning
Lifting a vehicle and getting under
it to do maintenance or repairs is
dangerous without the
appropriate safety equipment and
training. If a jack is provided with
the vehicle, it is designed only for
changing a flat tire. If it is used for
anything else, you or others could
be badly injured or killed if the
vehicle slips off the jack. If a jack
is provided with the vehicle, only
use it for changing a flat tire.
If a tire goes flat, avoid further tire
and wheel damage by driving slowly
to a level place, well off the road,
if possible. Turn on the hazard
warning flashers. See Hazard
Warning Flashers 0140.
{Warning
Changing a tire can be
dangerous. The vehicle can slip
off the jack and roll over or fall
causing injury or death. Find a
level place to change the tire. To
help prevent the vehicle from
moving:
1. Set the parking brake firmly.
2. Put an automatictransmission in P (Park) or a
manual transmission in
1 (First) or R (Reverse).
3. Turn off the engine and do not restart while the vehicle
is raised.
4. Do not allow passengers to remain in the vehicle.
5. Place wheel blocks, if equipped, on both sides of
the tire at the opposite
corner of the tire being
changed. When the vehicle has a flat tire (2),
use the following example as a
guide to assist in the placement of
the wheel blocks (1), if equipped.
1. Wheel Block (If Equipped)
2. Flat Tire
The following information explains
how to repair or change a tire.
Tire Changing
Removing the Spare Tire and
Tools
The spare tire and tools are located
in the storage compartment in the
rear of the vehicle.

Chevrolet TRAX Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11354406) - 2018 - crc - 10/12/17
296 Vehicle Care
Caution
If the other vehicle does not have
a 12-volt system with a negative
ground, both vehicles can be
damaged. Only use a vehicle that
has a 12-volt system with a
negative ground for jump starting.
2. Position the two vehicles so that they are not touching.
3. Set the parking brake firmly and put the shift lever in
P (Park) with an automatic
transmission, or Neutral with a
manual transmission. See
Shifting Into Park 0196 with an
automatic transmission,
or Parking 0198 with a manual
transmission.
Caution
If any accessories are left on or
plugged in during the jump
starting procedure, they could be
(Continued)
Caution (Continued)
damaged. The repairs would not
be covered by the vehicle
warranty. Whenever possible, turn
off or unplug all accessories on
either vehicle when jump starting.
4. Turn the ignition off. Turn off all lights and accessories in both
vehicles, except the hazard
warning flashers if needed.
{Warning
An electric fan can start up even
when the engine is not running
and can injure you. Keep hands,
clothing, and tools away from any
underhood electric fan.
{Warning
Using a match near a battery can
cause battery gas to explode.
People have been hurt doing this,
and some have been blinded.
Use a flashlight if you need more
light.
Battery fluid contains acid that
can burn you. Do not get it on
you. If you accidentally get it in
your eyes or on your skin, flush
the place with water and get
medical help immediately.
{Warning
Fans or other moving engine
parts can injure you badly. Keep
your hands away from moving
parts once the engine is running.
5. Connect one end of the red positive (+) cable to the
positive (+) terminal on the
discharged battery.

Chevrolet TRAX Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11354406) - 2018 - crc - 10/12/17
300 Vehicle Care

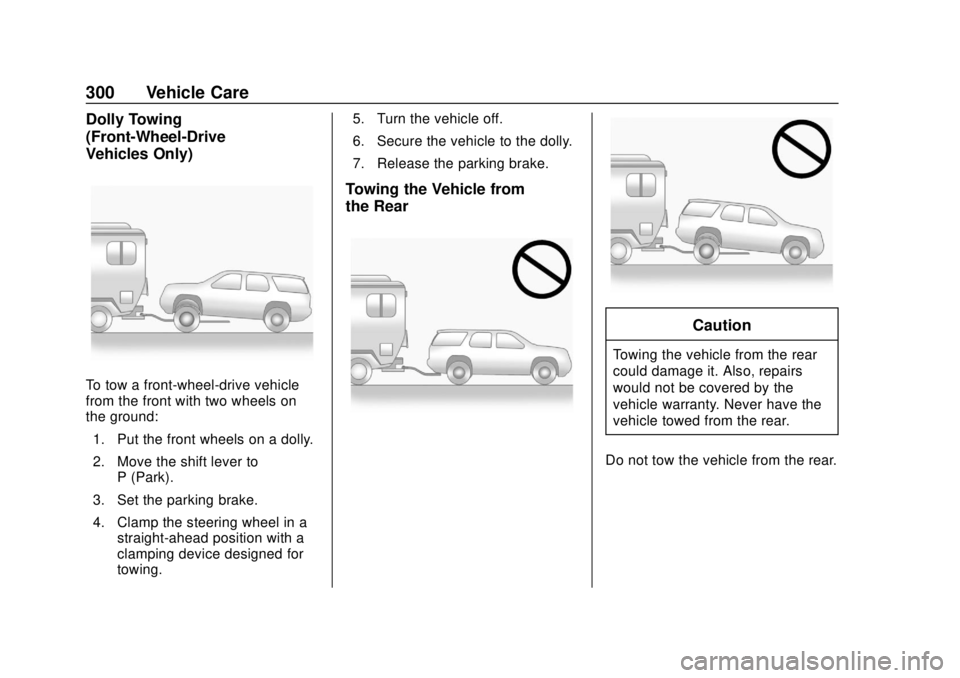

Dolly Towing
(Front-Wheel-Drive
Vehicles Only)
To tow a front-wheel-drive vehicle
from the front with two wheels on
the ground:1. Put the front wheels on a dolly.
2. Move the shift lever to P (Park).
3. Set the parking brake.
4. Clamp the steering wheel in a straight-ahead position with a
clamping device designed for
towing. 5. Turn the vehicle off.
6. Secure the vehicle to the dolly.
7. Release the parking brake.
Towing the Vehicle from
the Rear
Caution
Towing the vehicle from the rear
could damage it. Also, repairs
would not be covered by the
vehicle warranty. Never have the
vehicle towed from the rear.
Do not tow the vehicle from the rear.

Chevrolet TRAX Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11354406) - 2018 - crc - 10/12/17
Service and Maintenance 313
.Check restraint system
components. See Safety System
Check 071.
. Visually inspect fuel system for
damage or leaks.
. Visually inspect exhaust system
and nearby heat shields for
loose or damaged parts.
. Lubricate body components. See
Exterior Care 0301.
. Check starter switch. See Starter
Switch Check 0250.
. Check automatic transmission
shift lock control function. See
Automatic Transmission Shift
Lock Control Function Check
0250.
. Check ignition transmission lock.
See Ignition Transmission Lock
Check 0250.
. Check parking brake and
automatic transmission park
mechanism. See Park Brake and
P (Park) Mechanism Check
0 251. .
Check accelerator pedal for
damage, high effort, or binding.
Replace if needed.
. Visually inspect gas strut for
signs of wear, cracks, or other
damage. Check the hold open
ability of the strut. If the hold
open is low, service the gas
strut. See Gas Strut(s) 0253.
. Inspect sunroof track and seal,
if equipped. See Sunroof053.

Chevrolet TRAX Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11354406) - 2018 - crc - 10/12/17
354 Index
Appearance CareExterior . . . . . . . . . . . . . . . . . . . . . . . 301
Interior . . . . . . . . . . . . . . . . . . . . . . . . 305
Apple CarPlay and Android Auto . . . . . . . . . . . . . . . . . . 164
Armrest Front Seat . . . . . . . . . . . . . . . . . . . . . . 60
Rear Seat . . . . . . . . . . . . . . . . . . . . . . 65
Assistance Program, Roadside . . . . . . . . . . . . . . . . . . . . . . 331
Audio
Bluetooth . . . . . . . . . . . . . . . . . . . . . 157
Automatic Door Locks . . . . . . . . . . . . . . . . . . . . . 42
Headlamp System . . . . . . . . . . . . 140
Transmission . . . . . . . . . . . . . . . . . 200
Transmission Fluid . . . . . . . . . . . 238
Automatic Transmission Manual Mode . . . . . . . . . . . . . . . . . 201
Shift Lock Control FunctionCheck . . . . . . . . . . . . . . . . . . . . . . . 250
Auxiliary Jack . . . . . . . . . . . . . . . . . . . 156
Avoiding Untrusted Media Devices . . . . . . . . . . . . . . . . . . . . . . . 153B
Backglass Antenna . . . . . . . . . . . . . 152
BatteryExterior Lighting BatterySaver . . . . . . . . . . . . . . . . . . . . . . . 144
Load Management . . . . . . . . . . . . 143
Power Protection . . . . . . . . . . . . . 144
Battery - North America . . . . 249, 294
Blade Replacement, Wiper . . . . . 251
Bluetooth Overview . . . . . . . . . . . . . . . . 159, 160
Bluetooth Audio . . . . . . . . . . . . . . . . 157
Brake System Warning Light . . . . . . . . 121
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . 247 Antilock . . . . . . . . . . . . . . . . . . . . . . . 206
Assist . . . . . . . . . . . . . . . . . . . . . . . . . 207
Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . 247
Parking . . . . . . . . . . . . . . . . . . . . . . . 206
Braking . . . . . . . . . . . . . . . . . . . . . . . . . 179
Break-In, New Vehicle . . . . . . . . . . 188
Bulb Replacement Halogen Bulbs . . . . . . . . . . . . . . . . 254
Headlamp Aiming . . . . . . . . . . . . . 254
Headlamps . . . . . . . . . . . . . . . . . . . 254 Bulb Replacement (cont'd)
Headlamps, Front Turn
Signal, and Parking
Lamps . . . . . . . . . . . . . . . . . . . . . . 255
License Plate Lamps . . . . . . . . . 260
Taillamps, Turn Signal, Sidemarker, Stoplamps,
and Backup Lamps . . . . . . . . . . 257
Buying New Tires . . . . . . . . . . . . . . . 282
C
Calibration . . . . . . . . . . . . . . . . . . . . . . 110
California Perchlorate Materials
Requirements . . . . . . . . . . . . . . . 228
California Proposition
65 Warning . . . . . . . . . .227, 249, 294, Back Cover
Camera Rear Vision (RVC) . . . . . . . . . . . . 212
Canadian Vehicle Owners . . . . . . . . 2
Capacities and Specifications . . . . . . . . . . . . . . . . . 325
Carbon Monoxide Engine Exhaust . . . . . . . . . . . . . . . 199
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . 44
Winter Driving . . . . . . . . . . . . . . . . 183

Chevrolet TRAX Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11354406) - 2018 - crc - 10/12/17
356 Index
Drive Belt Routing, Engine . . . . . . 326
Drive SystemsAll-Wheel Drive . . . . . . . . . . 205, 249
Driver Behavior . . . . . . . . . . . . . . . . . 177
Driver Information Center (DIC) . . . . . . . . . . . . . . . . . . 127
Driving
Defensive . . . . . . . . . . . . . . . . . . . . . 178
Drunk . . . . . . . . . . . . . . . . . . . . . . . . . 178
Environment . . . . . . . . . . . . . . . . . . 177
For Better Fuel Economy . . . . . . . 26
Hill and Mountain Roads . . . . . . 182
If the Vehicle is Stuck . . . . . . . . . 184
Loss of Control . . . . . . . . . . . . . . . 180
Off-Road Recovery . . . . . . . . . . . 180
Vehicle Load Limits . . . . . . . . . . . 184
Wet Roads . . . . . . . . . . . . . . . . . . . 181
Winter . . . . . . . . . . . . . . . . . . . . . . . . 183
Driving the Vehicle . . . . . . . . . . . . . . . . 2
E
Electrical Equipment, Add-On . . . . . . . . . . . . . . . . . . . . . . . 224
Electrical System Engine Compartment FuseBlock . . . . . . . . . . . . . . . . . . . . . . . . 261
Fuses and Circuit Breakers . . . 261 Electrical System (cont'd)
Instrument Panel Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . 265
Overload . . . . . . . . . . . . . . . . . . . . . 260
Rear Compartment Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . 267
Emergency OnStar . . . . . . . . . . . . . . . . . . . . . . . 342
Engine
Air Cleaner/Filter . . . . . . . . . . . . . 238
Check Light (MalfunctionIndicator) . . . . . . . . . . . . . . . . . . . . .118
Compartment Overview . . . . . . . 231
Coolant Temperature Warning Light . . . . . . . . . . . . . . . 124
Cooling System . . . . . . . . . . . . . . . 240
Drive Belt Routing . . . . . . . . . . . . 326
Exhaust . . . . . . . . . . . . . . . . . . . . . . 199
Heater . . . . . . . . . . . . . . . . . . . . . . . . 194
Oil Life System . . . . . . . . . . . . . . . 236
Oil Pressure Light . . . . . . . . . . . . 125
Overheating . . . . . . . . . . . . . . . . . . 244
Power Messages . . . . . . . . . . . . . 134
Reduced Power Light . . . . . . . . . 126
Running While Parked . . . . . . . . 199
Starting . . . . . . . . . . . . . . . . . . . . . . . 192
Entry Lighting . . . . . . . . . . . . . . . . . . . 143
Event Data Recorders . . . . . . . . . . 339 Exit Lighting . . . . . . . . . . . . . . . . . . . . 143
Extended Parking . . . . . . . . . . . . . . . 198
Extender, Seat Belt . . . . . . . . . . . . . . 70
Exterior Lamp Controls . . . . . . . . . 138
Exterior Lighting Battery
Saver . . . . . . . . . . . . . . . . . . . . . . . . . 144
F
Filter,Engine Air Cleaner . . . . . . . . . . . 238
Flash-to-Pass . . . . . . . . . . . . . . . . . . . 139
Flashers, Hazard Warning . . . . . . 140
Flat Tire . . . . . . . . . . . . . . . . . . . . . . . . 287 Changing . . . . . . . . . . . . . . . . . . . . . 288
Floor Mats . . . . . . . . . . . . . . . . . . . . . . 308
Fluid Automatic Transmission . . . . . . 238
Brakes . . . . . . . . . . . . . . . . . . . . . . . . 247
Power Steering . . . . . . . . . . . . . . . 245
Washer . . . . . . . . . . . . . . . . . . . . . . . 246
Fog Lamps
Front . . . . . . . . . . . . . . . . . . . . . . . . . 141
Folding Mirrors . . . . . . . . . . . . . . . . . . 49
Folding Seatback . . . . . . . . . . . . . . . . 61
Forward Collision Alert (FCA) System . . . . . . . . . . . . . . . . . 216
Frequency Statement Radio . . . . . . . . . . . . . . . . . . . . . . . . . 337

Chevrolet TRAX Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11354406) - 2018 - crc - 10/12/17
358 Index
Instrument Cluster . . . . . . . . . . . . . . 113
Instrument PanelStorage Area . . . . . . . . . . . . . . . . . 103
Interior Rearview Mirrors . . . . . . . . . 50
Introduction . . . . . . . . . . . . . . . . . . 2, 145
J
Jack Auxiliary . . . . . . . . . . . . . . . . . . . . . . 156
Jump Starting - North America . . . . . . . . . . . . . . . . . . . . . . . 294
K
Keyless EntryRemote (RKE) System . . . . . 31, 34
Keys . . . . . . . . . . . . . . . . . . . . . . . . . 28, 29
L
Labeling, Tire Sidewall . . . . . . . . . . 270
Lamps Courtesy . . . . . . . . . . . . . . . . . . . . . . 142
Daytime Running (DRL) . . . . . . 139
Dome . . . . . . . . . . . . . . . . . . . . . . . . . 142
Exterior Controls . . . . . . . . . . . . . . 138
Exterior Lighting BatterySaver . . . . . . . . . . . . . . . . . . . . . . . 144
Front Fog . . . . . . . . . . . . . . . . . . . . . 141 Lamps (cont'd)
Headlamps, Front Turn
Signal, and Parking
Lamps . . . . . . . . . . . . . . . . . . . . . . 255
License Plate . . . . . . . . . . . . . . . . . 260
Malfunction Indicator (Check Engine) . . . . . . . . . . . . . .118
On Reminder . . . . . . . . . . . . . . . . . 127
Reading . . . . . . . . . . . . . . . . . . . . . . 142
Lane Departure Warning (LDW) . . . . . . . . . . . . . . . . 219
Lane Departure Warning Light . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Lap-Shoulder Belt . . . . . . . . . . . . . . . 67
LATCH System
Replacing Parts after aCrash . . . . . . . . . . . . . . . . . . . . . . . . . 97
LATCH, Lower Anchors and
Tethers for Children . . . . . . . . . . . . 90
LED Lighting . . . . . . . . . . . . . . . . . . . . 254
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Lighting Entry . . . . . . . . . . . . . . . . . . . . . . . . . 143
Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Illumination Control . . . . . . . . . . . 141
LED . . . . . . . . . . . . . . . . . . . . . . . . . . 254
Lights Airbag Readiness . . . . . . . . . . . . . .117 Lights (cont'd)
Antilock Brake System
(ABS) Warning . . . . . . . . . . . . . . 121
Brake System Warning . . . . . . . 121
Charging System . . . . . . . . . . . . . .118
Check Engine (Malfunction
Indicator) . . . . . . . . . . . . . . . . . . . . .118
Cruise Control . . . . . . . . . . . . . . . . 127
Door Ajar . . . . . . . . . . . . . . . . . . . . . 127
Engine Coolant Temperature Warning . . . . . . . 124
Engine Oil Pressure . . . . . . . . . . 125
Flash-to-Pass . . . . . . . . . . . . . . . . . 139
Front Fog Lamp . . . . . . . . . . . . . . 126
High-Beam On . . . . . . . . . . . . . . . . 126
High/Low Beam Changer . . . . . 139
Immobilizer . . . . . . . . . . . . . . . . . . . 126
Lane Departure Warning . . . . . . 122
Low Fuel Warning . . . . . . . . . . . . 125
Operate Pedal . . . . . . . . . . . . . . . . 122
Reduced Engine Power . . . . . . 126
Seat Belt Reminders . . . . . . . . . . .116
Service Vehicle Soon . . . . . . . . . 120
StabiliTrak OFF . . . . . . . . . . . . . . . 123
Tire Pressure . . . . . . . . . . . . . . . . . 124
Traction Control System (TCS)/StabiliTrak . . . . . . . . . . . . 124
Traction Off . . . . . . . . . . . . . . . . . . . 123

Chevrolet TRAX Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11354406) - 2018 - crc - 10/12/17
360 Index
Overheating, Engine . . . . . . . . . . . . 244
Overview . . . . . . . . . . . . . . . . . . . . . . . 146
Owner Manual Indicator . . . . . . . . 120
P
ParkShifting Into . . . . . . . . . . . . . . . . . . . 196
Shifting Out of . . . . . . . . . . . . . . . . 197
Parking . . . . . . . . . . . . . . . . . . . . . . . . . 198 Brake . . . . . . . . . . . . . . . . . . . . . . . . . 206
Brake and P (Park)Mechanism Check . . . . . . . . . . 251
Extended . . . . . . . . . . . . . . . . . . . . . 198
Over Things That Burn . . . . . . . 198
Ultrasonic Sensor Light . . . . . . . 123
Parking Assist . . . . . . . . . . . . . . . . . . 215
Passenger Airbag Status Indicator . . . . . . . . . . . . . . . . . . . . . . 117
Passenger Compartment Air Filter . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Passenger Sensing System . . . . . 78
Perchlorate Materials
Requirements, California . . . . . . 228
Personalization Vehicle . . . . . . . . . . . . . . . . . . . . . . . 134
Phone
Apple CarPlay andAndroid Auto . . . . . . . . . . . . . . . . 164 Phone (cont'd)
Bluetooth . . . . . . . . . . . . . . . . 159, 160
Port USB . . . . . . . . . . . . . . . . . . . . . . . . . . 153
Power Door Locks . . . . . . . . . . . . . . . . . . . . . 42
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Outlets . . . . . . . . . . . . . . . . . . . . . . . . 111
Protection, Battery . . . . . . . . . . . . 144
Reduced Engine Light . . . . . . . . 126
Retained Accessory (RAP) . . . 195
Seat Adjustment . . . . . . . . . . . . . . . . 58
Steering Fluid . . . . . . . . . . . . . . . . . 245
Windows . . . . . . . . . . . . . . . . . . . . . . . 51
Power Steering Warning Lights . . . . . . . . . . . . . . . . . . . . . . . . . 122
Pregnancy, Using Seat Belts . . . . 70
Privacy Vehicle Data Recording . . . . . . . 339
Program Courtesy Transportation . . . . . . 333
Proposition 65 Warning,
California . . . . . . . . . . . .227, 249, 294,
Back Cover
R
RadioAM-FM . . . . . . . . . . . . . . . . . . . . . . . 150
Satellite . . . . . . . . . . . . . . . . . . . . . . . 152
Radio Frequency Statement . . . . 337
Radio Reception . . . . . . . . . . . . . . . . 152
Reading Lamps . . . . . . . . . . . . . . . . . 142
Rear Seat Armrest . . . . . . . . . . . . . . . 65
Rear Seats . . . . . . . . . . . . . . . . . . . . . . 62
Rear Vision Camera (RVC) . . . . . 212
Rear Window Washer/Wiper . . . . 110
Rearview Mirrors . . . . . . . . . . . . . . . . 50
Automatic Dimming . . . . . . . . . . . . . 50
Reclining Seatbacks . . . . . . . . . . . . . 59
Recommended Fluids and
Lubricants . . . . . . . . . . . . . . . . . . . . . 321
Records Maintenance . . . . . . . . . . . . . . . . . . 323
Recreational Vehicle Towing . . . . 298
Reduced Engine Power Light . . . 126
Reimbursement Program,
GM Mobility . . . . . . . . . . . . . . . . . . . 331
Remote Keyless Entry (RKE) System . . . . . . . . . . . . . . 31, 34
Remote Vehicle Start . . . . . . . . . . . . 39
Replacement Parts Airbags . . . . . . . . . . . . . . . . . . . . . . . . . 83
Maintenance . . . . . . . . . . . . . . . . . . 322

Chevrolet TRAX Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11354406) - 2018 - crc - 10/12/17
Index 363
Tires (cont'd)Wheel Alignment and Tire
Balance . . . . . . . . . . . . . . . . . . . . . 286
Wheel Replacement . . . . . . . . . . 286
When It Is Time for New
Tires . . . . . . . . . . . . . . . . . . . . . . . . 282
Winter . . . . . . . . . . . . . . . . . . . . . . . . 269
Towing General Information . . . . . . . . . . 224
Recreational Vehicle . . . . . . . . . . 298
Vehicle . . . . . . . . . . . . . . . . . . . . . . . 297
Traction Control System (TCS)/StabiliTrak Light . . . . . . . . . . . . . 124
Off Light . . . . . . . . . . . . . . . . . . . . . . 123
Traction Control/Electronic Stability Control . . . . . . . . . . . . . . . 208
Trademarks and License
Agreements . . . . . . . . . . . . . . . . . . . 169
Transmission Automatic . . . . . . . . . . . . . . . . . . . . . 200
Fluid, Automatic . . . . . . . . . . . . . . 238
Fluid, Manual . . . . . . . . . . . . . . . . . 238
Transportation Program, Courtesy . . . . . . . . . . . . . . . . . . . . . . 333
Trip Odometer . . . . . . . . . . . . . . . . . . 115 Turn and Lane-Change
Signals . . . . . . . . . . . . . . . . . . . . . . . . 141
Turn Signal Bulb Replacement . . . . . . . . . . . . 257
U
Ultrasonic Parking SensorLight . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Underseat Storage . . . . . . . . . . . . . 104
Uniform Tire Quality Grading . . . 284
Up-Shift Light . . . . . . . . . . . . . . . . . . . 122
USB Port . . . . . . . . . . . . . . . . . . . . . . . 153
Using the System . . . . . . . . . . . . . . . 148
Using This Manual . . . . . . . . . . . . . . . . 2
V
Vehicle Alarm System . . . . . . . . . . . . . . . . . . 46
Canadian Owners . . . . . . . . . . . . . . . 2
Control . . . . . . . . . . . . . . . . . . . . . . . 179
Design . . . . . . . . . . . . . . . . . . . . . . . . 177
Identification Number (VIN) . . . 324
Load Limits . . . . . . . . . . . . . . . . . . . 184
Messages . . . . . . . . . . . . . . . 132, 133
Personalization . . . . . . . . . . . . . . . 134
Remote Start . . . . . . . . . . . . . . . . . . . 39
Security . . . . . . . . . . . . . . . . . . . . . . . . 46
Service Soon Light . . . . . . . . . . . 120 Vehicle (cont'd)
Speed Messages . . . . . . . . . . . . . 134
Towing . . . . . . . . . . . . . . . . . . . . . . . . 297
Vehicle Ahead Indicator . . . . . . . . 123
Vehicle Care
Tire Pressure . . . . . . . . . . . . . . . . . 275
Vehicle Data Recording and Privacy . . . . . . . . . . . . . . . . . . . . . . . . 339
Ventilation, Air . . . . . . . . . . . . . . . . . . 173
Visors . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
W
Warning Brake System Light . . . . . . . . . . . 121
Caution and Danger . . . . . . . . . . . . . 3
Lane Departure (LDW) . . . . . . . 219
Warning Lights, Gauges, and Indicators . . . . . . . . . . . . . . . . . . . . . 112
Warnings
Hazard Flashers . . . . . . . . . . . . . . 140
Washer Fluid . . . . . . . . . . . . . . . . . . . 246
Wheels Alignment and Tire Balance . . 286
Different Size . . . . . . . . . . . . . . . . . 284
Replacement . . . . . . . . . . . . . . . . . 286
When It Is Time for New Tires . . . . . . . . . . . . . . . . . . . . . . . . . . 282
Where to Put the Restraint . . . . . . 89
