driver seat adjustment CHEVROLET TRAX 2023 Owners Manual

Chevrolet TRAX Owner Manual (GMNA-Localizing-U.S./Canada-15498927) -
2022 - CRC - 5/27/21

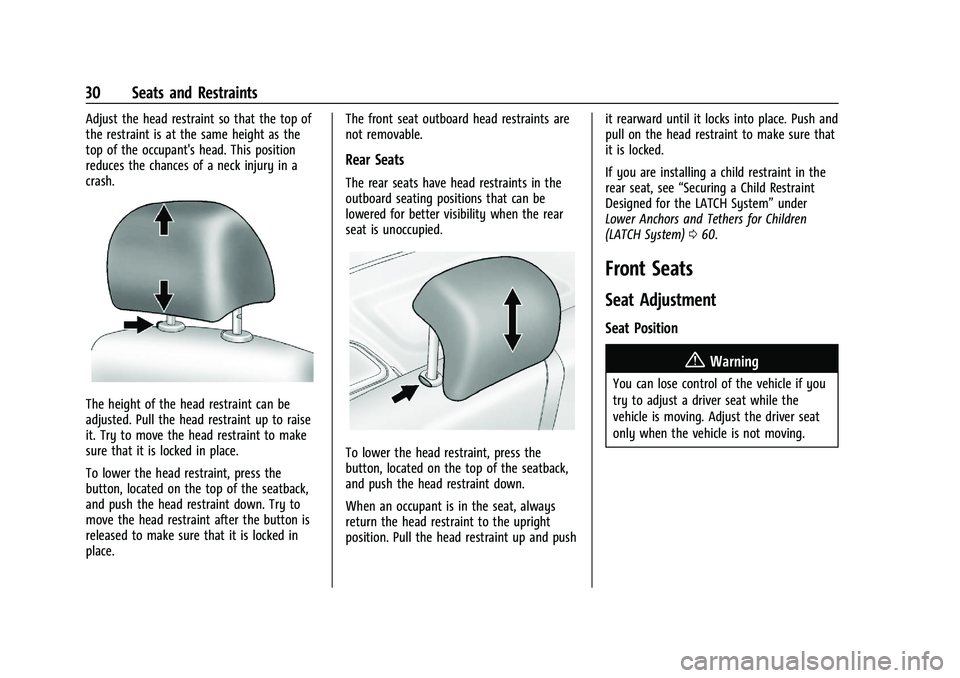

30 Seats and Restraints
Adjust the head restraint so that the top of
the restraint is at the same height as the
top of the occupant's head. This position
reduces the chances of a neck injury in a
crash.
The height of the head restraint can be
adjusted. Pull the head restraint up to raise
it. Try to move the head restraint to make
sure that it is locked in place.
To lower the head restraint, press the
button, located on the top of the seatback,
and push the head restraint down. Try to
move the head restraint after the button is
released to make sure that it is locked in
place.The front seat outboard head restraints are
not removable.
Rear Seats
The rear seats have head restraints in the
outboard seating positions that can be
lowered for better visibility when the rear
seat is unoccupied.
To lower the head restraint, press the
button, located on the top of the seatback,
and push the head restraint down.
When an occupant is in the seat, always
return the head restraint to the upright
position. Pull the head restraint up and push
it rearward until it locks into place. Push and
pull on the head restraint to make sure that
it is locked.
If you are installing a child restraint in the
rear seat, see
“Securing a Child Restraint
Designed for the LATCH System” under
Lower Anchors and Tethers for Children
(LATCH System) 060.
Front Seats
Seat Adjustment
Seat Position
{Warning
You can lose control of the vehicle if you
try to adjust a driver seat while the
vehicle is moving. Adjust the driver seat
only when the vehicle is not moving.

Chevrolet TRAX Owner Manual (GMNA-Localizing-U.S./Canada-15498927) -
2022 - CRC - 5/27/21

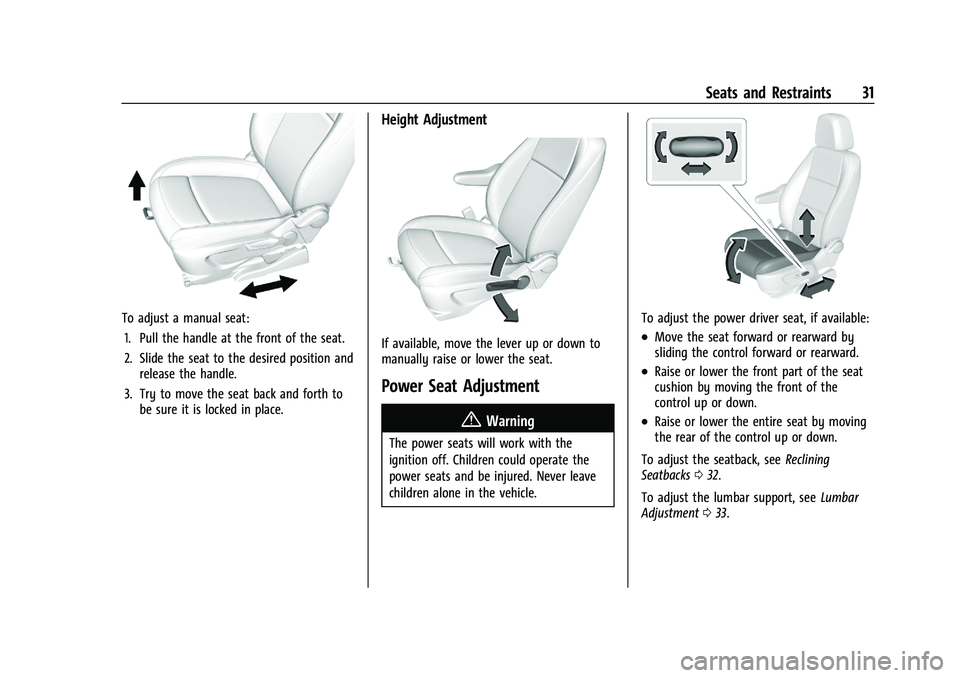

Seats and Restraints 31
To adjust a manual seat:1. Pull the handle at the front of the seat.
2. Slide the seat to the desired position and release the handle.
3. Try to move the seat back and forth to be sure it is locked in place.
Height Adjustment
If available, move the lever up or down to
manually raise or lower the seat.
Power Seat Adjustment
{Warning
The power seats will work with the
ignition off. Children could operate the
power seats and be injured. Never leave
children alone in the vehicle.
To adjust the power driver seat, if available:
.Move the seat forward or rearward by
sliding the control forward or rearward.
.Raise or lower the front part of the seat
cushion by moving the front of the
control up or down.
.Raise or lower the entire seat by moving
the rear of the control up or down.
To adjust the seatback, see Reclining
Seatbacks 032.
To adjust the lumbar support, see Lumbar
Adjustment 033.

Chevrolet TRAX Owner Manual (GMNA-Localizing-U.S./Canada-15498927) -
2022 - CRC - 5/27/21

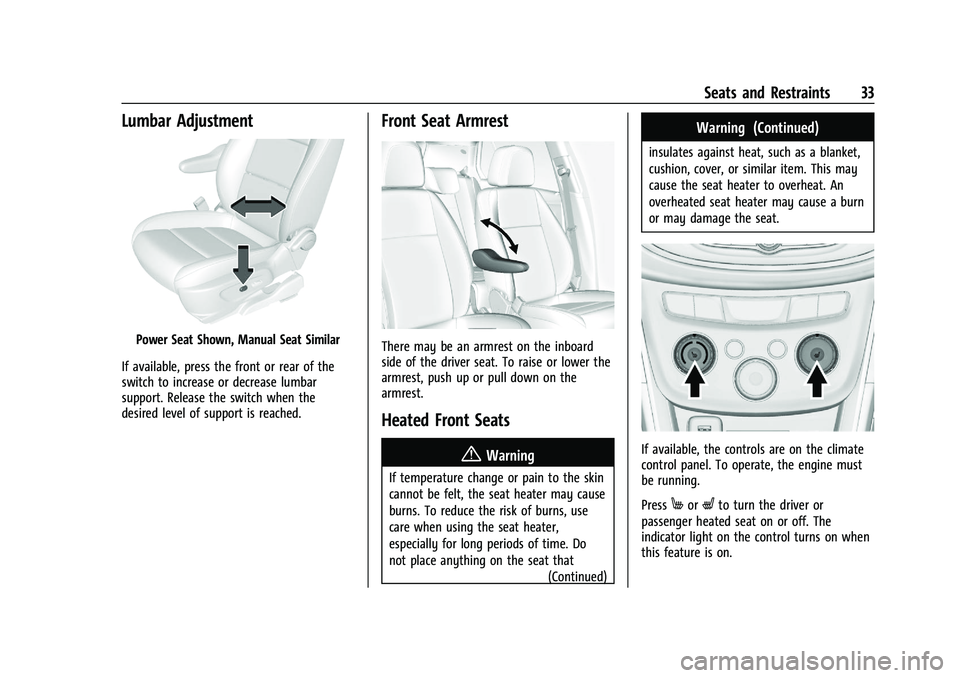

Seats and Restraints 33
Lumbar Adjustment
Power Seat Shown, Manual Seat Similar
If available, press the front or rear of the
switch to increase or decrease lumbar
support. Release the switch when the
desired level of support is reached.
Front Seat Armrest
There may be an armrest on the inboard
side of the driver seat. To raise or lower the
armrest, push up or pull down on the
armrest.
Heated Front Seats
{Warning
If temperature change or pain to the skin
cannot be felt, the seat heater may cause
burns. To reduce the risk of burns, use
care when using the seat heater,
especially for long periods of time. Do
not place anything on the seat that (Continued)
Warning (Continued)
insulates against heat, such as a blanket,
cushion, cover, or similar item. This may
cause the seat heater to overheat. An
overheated seat heater may cause a burn
or may damage the seat.
If available, the controls are on the climate
control panel. To operate, the engine must
be running.
Press
MorLto turn the driver or
passenger heated seat on or off. The
indicator light on the control turns on when
this feature is on.

Chevrolet TRAX Owner Manual (GMNA-Localizing-U.S./Canada-15498927) -
2022 - CRC - 5/27/21

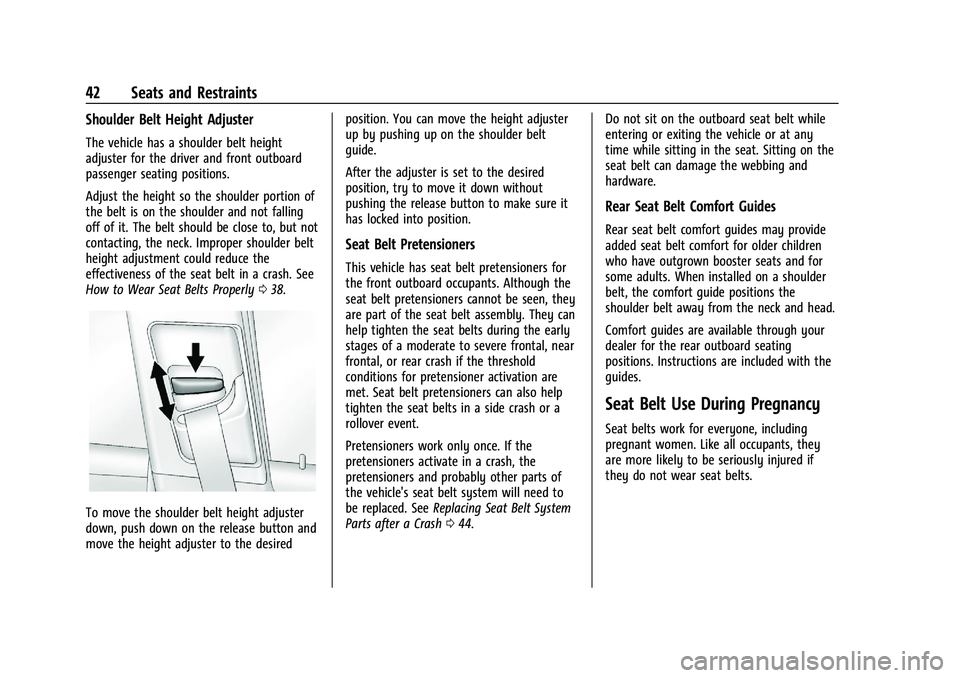

42 Seats and Restraints
Shoulder Belt Height Adjuster
The vehicle has a shoulder belt height
adjuster for the driver and front outboard
passenger seating positions.
Adjust the height so the shoulder portion of
the belt is on the shoulder and not falling
off of it. The belt should be close to, but not
contacting, the neck. Improper shoulder belt
height adjustment could reduce the
effectiveness of the seat belt in a crash. See
How to Wear Seat Belts Properly038.
To move the shoulder belt height adjuster
down, push down on the release button and
move the height adjuster to the desired position. You can move the height adjuster
up by pushing up on the shoulder belt
guide.
After the adjuster is set to the desired
position, try to move it down without
pushing the release button to make sure it
has locked into position.
Seat Belt Pretensioners
This vehicle has seat belt pretensioners for
the front outboard occupants. Although the
seat belt pretensioners cannot be seen, they
are part of the seat belt assembly. They can
help tighten the seat belts during the early
stages of a moderate to severe frontal, near
frontal, or rear crash if the threshold
conditions for pretensioner activation are
met. Seat belt pretensioners can also help
tighten the seat belts in a side crash or a
rollover event.
Pretensioners work only once. If the
pretensioners activate in a crash, the
pretensioners and probably other parts of
the vehicle's seat belt system will need to
be replaced. See
Replacing Seat Belt System
Parts after a Crash 044. Do not sit on the outboard seat belt while
entering or exiting the vehicle or at any
time while sitting in the seat. Sitting on the
seat belt can damage the webbing and
hardware.
Rear Seat Belt Comfort Guides
Rear seat belt comfort guides may provide
added seat belt comfort for older children
who have outgrown booster seats and for
some adults. When installed on a shoulder
belt, the comfort guide positions the
shoulder belt away from the neck and head.
Comfort guides are available through your
dealer for the rear outboard seating
positions. Instructions are included with the
guides.
Seat Belt Use During Pregnancy
Seat belts work for everyone, including
pregnant women. Like all occupants, they
are more likely to be seriously injured if
they do not wear seat belts.

Chevrolet TRAX Owner Manual (GMNA-Localizing-U.S./Canada-15498927) -
2022 - CRC - 5/27/21

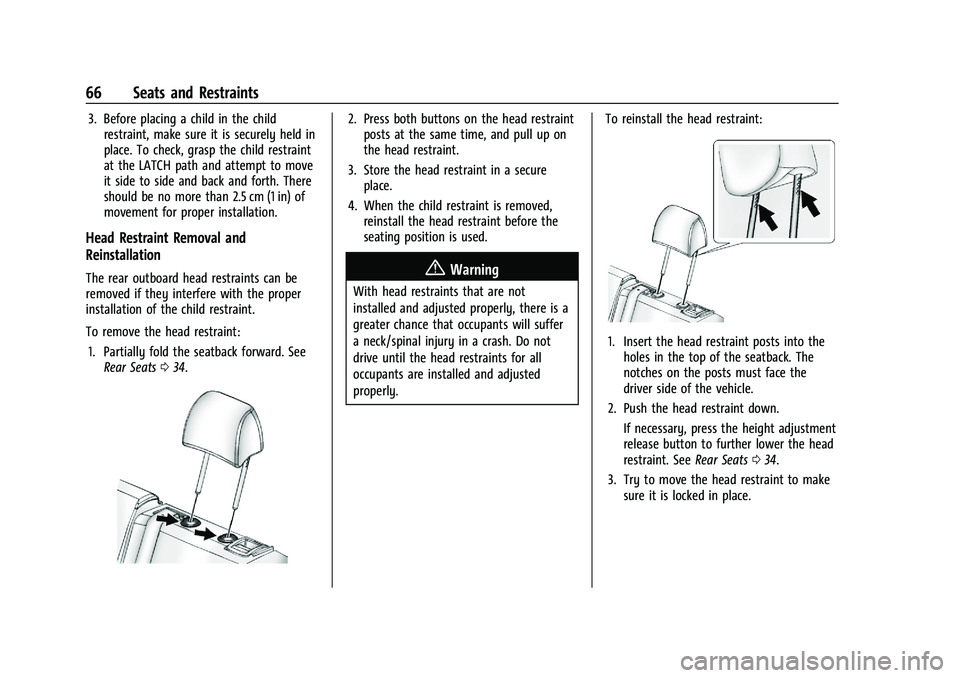

66 Seats and Restraints
3. Before placing a child in the childrestraint, make sure it is securely held in
place. To check, grasp the child restraint
at the LATCH path and attempt to move
it side to side and back and forth. There
should be no more than 2.5 cm (1 in) of
movement for proper installation.
Head Restraint Removal and
Reinstallation
The rear outboard head restraints can be
removed if they interfere with the proper
installation of the child restraint.
To remove the head restraint:
1. Partially fold the seatback forward. See Rear Seats 034.
2. Press both buttons on the head restraint
posts at the same time, and pull up on
the head restraint.
3. Store the head restraint in a secure place.
4. When the child restraint is removed, reinstall the head restraint before the
seating position is used.
{Warning
With head restraints that are not
installed and adjusted properly, there is a
greater chance that occupants will suffer
a neck/spinal injury in a crash. Do not
drive until the head restraints for all
occupants are installed and adjusted
properly. To reinstall the head restraint:
1. Insert the head restraint posts into the
holes in the top of the seatback. The
notches on the posts must face the
driver side of the vehicle.
2. Push the head restraint down. If necessary, press the height adjustment
release button to further lower the head
restraint. See Rear Seats034.
3. Try to move the head restraint to make sure it is locked in place.

Chevrolet TRAX Owner Manual (GMNA-Localizing-U.S./Canada-15498927) -
2022 - CRC - 5/27/21
Instruments and Controls 75
Instruments and Controls
Controls
Steering Wheel Adjustment . . . . . . . . . . . . . 75
Steering Wheel Controls . . . . . . . . . . . . . . . . 76
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Windshield Wiper/Washer . . . . . . . . . . . . . . 76
Rear Window Wiper/Washer . . . . . . . . . . . 77
Compass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Power Outlets . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Warning Lights, Gauges, and Indicators
Warning Lights, Gauges, andIndicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Instrument Cluster . . . . . . . . . . . . . . . . . . . . . 80
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Trip Odometer . . . . . . . . . . . . . . . . . . . . . . . . . 80
Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Fuel Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Seat Belt Reminders . . . . . . . . . . . . . . . . . . . . 81
Airbag Readiness Light . . . . . . . . . . . . . . . . . 82
Passenger Airbag Status Indicator . . . . . . 82
Charging System Light . . . . . . . . . . . . . . . . . 83
Malfunction Indicator Lamp (Check Engine Light) . . . . . . . . . . . . . . . . . . . . . . . . . 83
Service Vehicle Soon Light . . . . . . . . . . . . . . 85
Owner Manual Indicator . . . . . . . . . . . . . . . . 85
Brake System Warning Light . . . . . . . . . . . 85 Antilock Brake System (ABS) Warning
Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Power Steering Warning Light . . . . . . . . . . 86
Ultrasonic Parking Sensor Light . . . . . . . . . 86
Traction Off Light . . . . . . . . . . . . . . . . . . . . . . 86
StabiliTrak OFF Light . . . . . . . . . . . . . . . . . . . 86
Traction Control System (TCS)/StabiliTrak Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Engine Coolant Temperature Warning Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Tire Pressure Light . . . . . . . . . . . . . . . . . . . . . . 87
Engine Oil Pressure Light . . . . . . . . . . . . . . . 88
Low Fuel Warning Light . . . . . . . . . . . . . . . . 88
Immobilizer Light . . . . . . . . . . . . . . . . . . . . . . . 88
Reduced Engine Power Light . . . . . . . . . . . 89
High-Beam On Light . . . . . . . . . . . . . . . . . . . . 89
Lamps On Reminder . . . . . . . . . . . . . . . . . . . . 89
Cruise Control Light . . . . . . . . . . . . . . . . . . . . 89
Door Ajar Light . . . . . . . . . . . . . . . . . . . . . . . . . 89
Information Displays
Driver Information Center (DIC) . . . . . . . . 90
Vehicle Messages
Vehicle Messages . . . . . . . . . . . . . . . . . . . . . . . 92
Engine Power Messages . . . . . . . . . . . . . . . . 92
Vehicle Speed Messages . . . . . . . . . . . . . . . . 92
Vehicle Personalization
Vehicle Personalization . . . . . . . . . . . . . . . . . 92
Controls
Steering Wheel Adjustment
To adjust the steering wheel:
1. Pull the lever down.
2. Move the steering wheel up, down, forward, and backward.
3. Pull the lever up to lock the steering wheel in place.
Do not adjust the steering wheel while
driving.

Chevrolet TRAX Owner Manual (GMNA-Localizing-U.S./Canada-15498927) -
2022 - CRC - 5/27/21
Index 277
Special Application Services . . . . . . . . . . . . . . 240
Specifications and Capacities . . . . . . . . . . . . . 247
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
StabiliTrakOFF Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Start Assist, Hill . . . . . . . . . . . . . . . . . . . . . . . . . . .154
Start Vehicle, Remote . . . . . . . . . . . . . . . . . . . . . .18
Starter Switch Check . . . . . . . . . . . . . . . . . . . . . .183
Starting the Engine . . . . . . . . . . . . . . . . . . . . . . .143
Steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132 Power, Warning Lights . . . . . . . . . . . . . . . . . . 86
Wheel Adjustment . . . . . . . . . . . . . . . . . . . . . . 75
Wheel Controls . . . . . . . . . . . . . . . . . . . . . . . . . 76
Steering Column Lock . . . . . . . . . . . . . . . . . . . . . .23
Steering Wheel Controls . . . . . . . . . . . . . . . . . 104
Stoplamps and Back-Up Lamps Bulb Replacement . . . . . . . . . . . . . . . . . . . . . . 189
Storage Areas Cargo Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Cargo Management System . . . . . . . . . . . . 73
Glove Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Instrument Panel . . . . . . . . . . . . . . . . . . . . . . . 72
Roof Rack System . . . . . . . . . . . . . . . . . . . . . . . 74
Underseat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Storage Compartments . . . . . . . . . . . . . . . . . . . .72
Struts
Gas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
Stuck Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136 Sun Visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
System
Roof Rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Systems Driver Assistance . . . . . . . . . . . . . . . . . . . . . . 158
T
Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
TaillampsBulb Replacement . . . . . . . . . . . . . . . . . . . . . . 189
Teen Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Text Telephone (TTY) Users . . . . . . . . . . . . . . 252
Theft-Deterrent Systems . . . . . . . . . . . . . . . . . . 24
Immobilizer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199 All-Season . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Buying New Tires . . . . . . . . . . . . . . . . . . . . . . . 211
Chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214
Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216
Compact Spare . . . . . . . . . . . . . . . . . . . . . . . . 220
Designations . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Different Size . . . . . . . . . . . . . . . . . . . . . . . . . . 212
If a Tire Goes Flat . . . . . . . . . . . . . . . . . . . . . 215
Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205
Pressure Light . . . . . . . . . . . . . . . . . . . . . . . . . . 87 Tires (cont'd)
Pressure Monitor Operation . . . . . . . . . . . 206
Pressure Monitor System . . . . . . . . . . . . . . 206
Rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
Sidewall Labeling . . . . . . . . . . . . . . . . . . . . . . 200
Terminology and Definitions . . . . . . . . . . . 203
Uniform Tire Quality Grading . . . . . . . . . . 212
Wheel Alignment and Tire Balance . . . . 214
Wheel Replacement . . . . . . . . . . . . . . . . . . . . 214
When It Is Time for New Tires . . . . . . . . . 210
Winter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Top Tier Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Towing
General Information . . . . . . . . . . . . . . . . . . . 165
Recreational Vehicle . . . . . . . . . . . . . . . . . . . 224
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 223
Traction Control System (TCS)/StabiliTrakLight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Off Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Traction Control/Electronic Stability
Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .154
Trademarks and License Agreements . . . . . . 123
Transmission Automatic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Fluid, Automatic . . . . . . . . . . . . . . . . . . . . . . . 174
Transportation Program, Courtesy . . . . . . . 254
Trip Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
