Chevrolet TRAX Owner Manual (GMNA-Localizing-U.S./Canada-15498927) -
2022 - CRC - 5/27/21

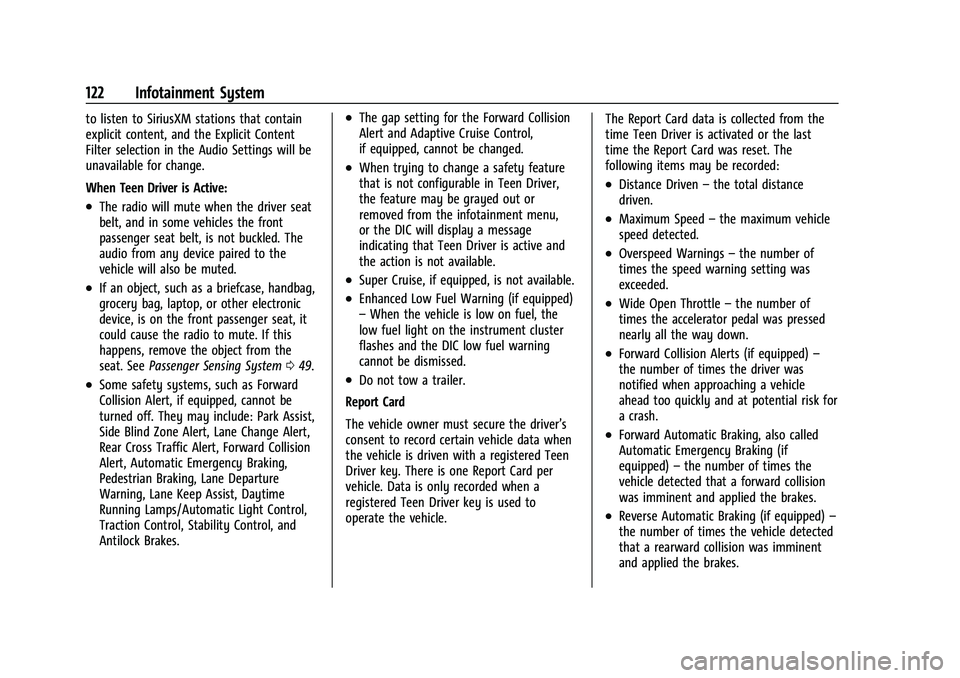

122 Infotainment System
to listen to SiriusXM stations that contain
explicit content, and the Explicit Content
Filter selection in the Audio Settings will be
unavailable for change.
When Teen Driver is Active:
.The radio will mute when the driver seat
belt, and in some vehicles the front
passenger seat belt, is not buckled. The
audio from any device paired to the
vehicle will also be muted.
.If an object, such as a briefcase, handbag,
grocery bag, laptop, or other electronic
device, is on the front passenger seat, it
could cause the radio to mute. If this
happens, remove the object from the
seat. SeePassenger Sensing System 049.
.Some safety systems, such as Forward
Collision Alert, if equipped, cannot be
turned off. They may include: Park Assist,
Side Blind Zone Alert, Lane Change Alert,
Rear Cross Traffic Alert, Forward Collision
Alert, Automatic Emergency Braking,
Pedestrian Braking, Lane Departure
Warning, Lane Keep Assist, Daytime
Running Lamps/Automatic Light Control,
Traction Control, Stability Control, and
Antilock Brakes.
.The gap setting for the Forward Collision
Alert and Adaptive Cruise Control,
if equipped, cannot be changed.
.When trying to change a safety feature
that is not configurable in Teen Driver,
the feature may be grayed out or
removed from the infotainment menu,
or the DIC will display a message
indicating that Teen Driver is active and
the action is not available.
.Super Cruise, if equipped, is not available.
.Enhanced Low Fuel Warning (if equipped)
–When the vehicle is low on fuel, the
low fuel light on the instrument cluster
flashes and the DIC low fuel warning
cannot be dismissed.
.Do not tow a trailer.
Report Card
The vehicle owner must secure the driver’s
consent to record certain vehicle data when
the vehicle is driven with a registered Teen
Driver key. There is one Report Card per
vehicle. Data is only recorded when a
registered Teen Driver key is used to
operate the vehicle. The Report Card data is collected from the
time Teen Driver is activated or the last
time the Report Card was reset. The
following items may be recorded:
.Distance Driven
–the total distance
driven.
.Maximum Speed –the maximum vehicle
speed detected.
.Overspeed Warnings –the number of
times the speed warning setting was
exceeded.
.Wide Open Throttle –the number of
times the accelerator pedal was pressed
nearly all the way down.
.Forward Collision Alerts (if equipped) –
the number of times the driver was
notified when approaching a vehicle
ahead too quickly and at potential risk for
a crash.
.Forward Automatic Braking, also called
Automatic Emergency Braking (if
equipped) –the number of times the
vehicle detected that a forward collision
was imminent and applied the brakes.
.Reverse Automatic Braking (if equipped) –
the number of times the vehicle detected
that a rearward collision was imminent
and applied the brakes.

Chevrolet TRAX Owner Manual (GMNA-Localizing-U.S./Canada-15498927) -
2022 - CRC - 5/27/21

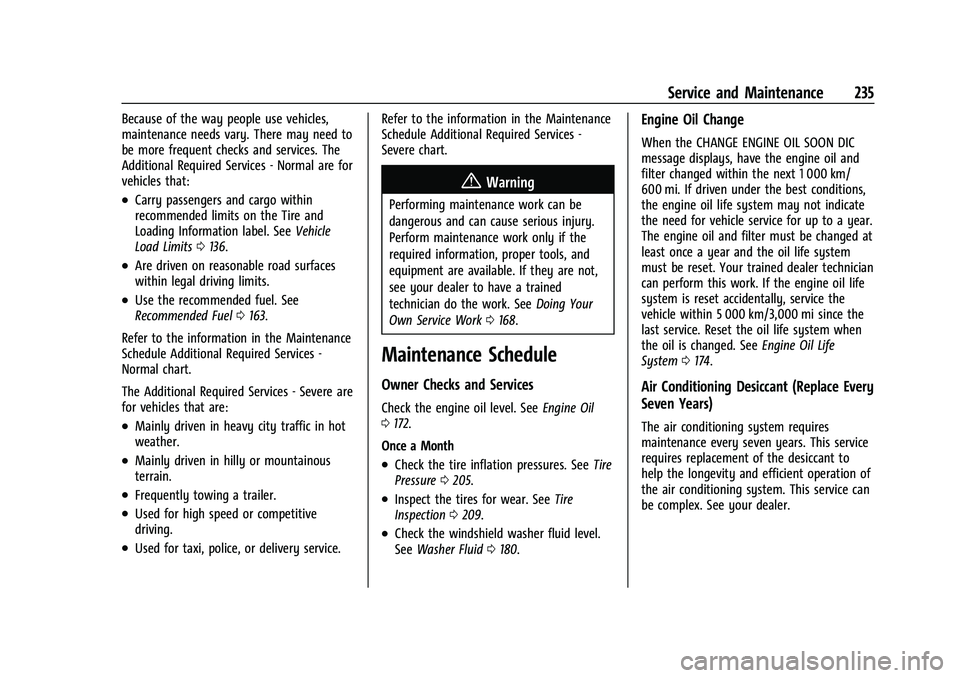

Service and Maintenance 235
Because of the way people use vehicles,
maintenance needs vary. There may need to
be more frequent checks and services. The
Additional Required Services - Normal are for
vehicles that:
.Carry passengers and cargo within
recommended limits on the Tire and
Loading Information label. SeeVehicle
Load Limits 0136.
.Are driven on reasonable road surfaces
within legal driving limits.
.Use the recommended fuel. See
Recommended Fuel 0163.
Refer to the information in the Maintenance
Schedule Additional Required Services -
Normal chart.
The Additional Required Services - Severe are
for vehicles that are:
.Mainly driven in heavy city traffic in hot
weather.
.Mainly driven in hilly or mountainous
terrain.
.Frequently towing a trailer.
.Used for high speed or competitive
driving.
.Used for taxi, police, or delivery service. Refer to the information in the Maintenance
Schedule Additional Required Services -
Severe chart.
{Warning
Performing maintenance work can be
dangerous and can cause serious injury.
Perform maintenance work only if the
required information, proper tools, and
equipment are available. If they are not,
see your dealer to have a trained
technician do the work. See
Doing Your
Own Service Work 0168.
Maintenance Schedule
Owner Checks and Services
Check the engine oil level. See Engine Oil
0 172.
Once a Month
.Check the tire inflation pressures. See Tire
Pressure 0205.
.Inspect the tires for wear. See Tire
Inspection 0209.
.Check the windshield washer fluid level.
See Washer Fluid 0180.
Engine Oil Change
When the CHANGE ENGINE OIL SOON DIC
message displays, have the engine oil and
filter changed within the next 1 000 km/
600 mi. If driven under the best conditions,
the engine oil life system may not indicate
the need for vehicle service for up to a year.
The engine oil and filter must be changed at
least once a year and the oil life system
must be reset. Your trained dealer technician
can perform this work. If the engine oil life
system is reset accidentally, service the
vehicle within 5 000 km/3,000 mi since the
last service. Reset the oil life system when
the oil is changed. See Engine Oil Life
System 0174.
Air Conditioning Desiccant (Replace Every
Seven Years)
The air conditioning system requires
maintenance every seven years. This service
requires replacement of the desiccant to
help the longevity and efficient operation of
the air conditioning system. This service can
be complex. See your dealer.

Chevrolet TRAX Owner Manual (GMNA-Localizing-U.S./Canada-15498927) -
2022 - CRC - 5/27/21
236 Service and Maintenance
Tire Rotation and Required Services
Every 12 000 km/7,500 mi
Rotate the tires, if recommended for the
vehicle, and perform the following services.
SeeTire Rotation 0209.
.Check engine oil level and oil
life percentage. If needed, change engine
oil and filter, and reset oil life system.
See Engine Oil 0172 and
Engine Oil Life System 0174.
.Inspect the engine air cleaner filter. See
Engine Air Cleaner/Filter 0175.
.Check engine coolant level. See Cooling
System 0176.
.Check windshield washer fluid level. See
Washer Fluid 0180.
.Check tire inflation pressures. See Tire
Pressure 0205.
.Inspect tire wear. See Tire Inspection
0 209.
.Visually check for fluid leaks.
.Inspect brake system. See Exterior Care
0 226.
.Visually inspect steering, suspension, and
chassis components for damage, including
cracks or tears in the rubber boots, loose
or missing parts, or signs of wear at least
once a year. See Exterior Care0226.
.Inspect power steering for proper
attachment, connections, binding, leaks,
cracks, chafing, etc.
.Visually inspect halfshafts and drive
shafts for excessive wear, lubricant leaks,
and/or damage including: tube dents or
cracks, constant velocity joint or universal
joint looseness, cracked or missing boots,
loose or missing boot clamps, center
bearing excessive looseness, loose or
missing fasteners, and axle seal leaks.
.Check restraint system components. See
Safety System Check 043.
.Visually inspect the fuel system including
the evaporative (EVAP) system for
damage or leaks. Visually check all fuel
pipes, vapor lines, and hoses for proper
attachment, connection, routing, and
condition.
.Visually inspect exhaust system and
nearby heat shields for loose or damaged
parts.
.Lubricate body components. See Exterior
Care 0226.
.Check automatic transmission shift lock
control function. See Automatic
Transmission Shift Lock Control Function
Check 0183.
.Check parking brake and automatic
transmission park mechanism. See Park
Brake and P (Park) Mechanism Check
0 183.
.Check accelerator pedal for damage, high
effort, or binding. Replace if needed.
.Visually inspect gas strut for signs of
wear, cracks, or other damage. Check the
hold open ability of the strut. If the hold
open is low, service the gas strut. See Gas
Strut(s) 0185.

Chevrolet TRAX Owner Manual (GMNA-Localizing-U.S./Canada-15498927) -
2022 - CRC - 5/27/21

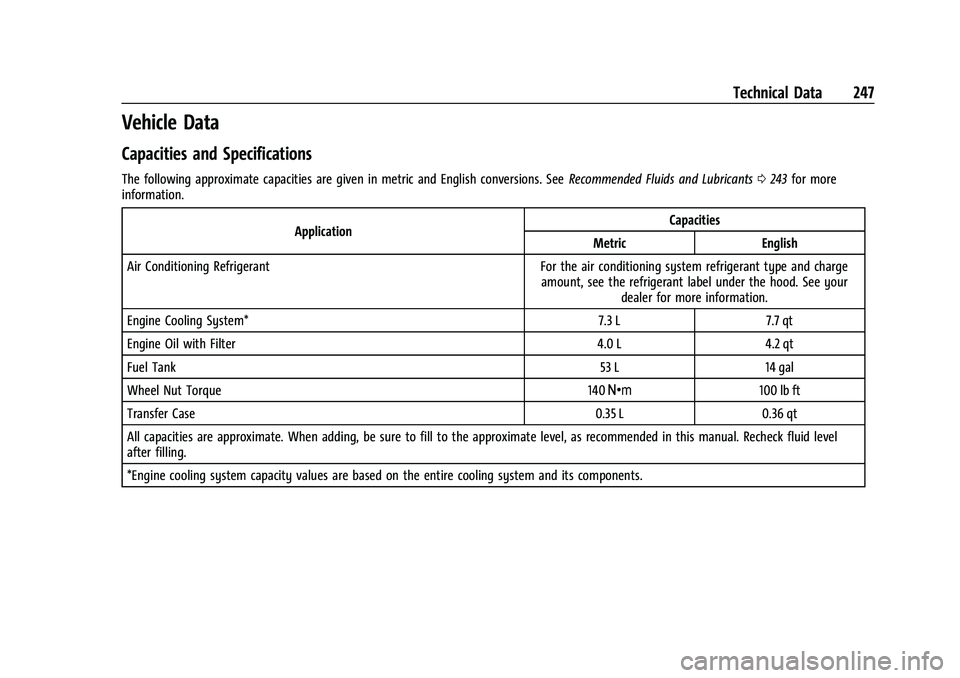

Technical Data 247
Vehicle Data
Capacities and Specifications
The following approximate capacities are given in metric and English conversions. SeeRecommended Fluids and Lubricants0243 for more
information.
Application Capacities
Metric English
Air Conditioning Refrigerant For the air conditioning system refrigerant type and charge amount, see the refrigerant label under the hood. See yourdealer for more information.
Engine Cooling System* 7.3 L 7.7 qt
Engine Oil with Filter 4.0 L 4.2 qt
Fuel Tank 53 L 14 gal
Wheel Nut Torque 140 Y100 lb ft
Transfer Case 0.35 L 0.36 qt
All capacities are approximate. When adding, be sure to fill to the approximate level, as recommended in this manual. Recheck fluid level
after filling.
*Engine cooling system capacity values are based on the entire cooling system and its components.

Chevrolet TRAX Owner Manual (GMNA-Localizing-U.S./Canada-15498927) -
2022 - CRC - 5/27/21
272 Index
EmergencyOnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 262
Engine Air Cleaner/Filter . . . . . . . . . . . . . . . . . . . . . . . 175
Check Light (Malfunction Indicator) . . . . . 83
Compartment Overview . . . . . . . . . . . . . . . . . 171
Coolant Temperature Warning Light . . . . 87
Cooling System . . . . . . . . . . . . . . . . . . . . . . . . 176
Drive Belt Routing . . . . . . . . . . . . . . . . . . . . . 249
Exhaust . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Heater . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
Oil Life System . . . . . . . . . . . . . . . . . . . . . . . . 174
Oil Pressure Light . . . . . . . . . . . . . . . . . . . . . . . 88
Overheating . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
Power Messages . . . . . . . . . . . . . . . . . . . . . . . . 92
Reduced Power Light . . . . . . . . . . . . . . . . . . . 89
Running While Parked . . . . . . . . . . . . . . . . . 150
Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Entry Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Event Data Recorders . . . . . . . . . . . . . . . . . . . . 259
Exit Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Extended Parking . . . . . . . . . . . . . . . . . . . . . . . . 149
Extender, Seat Belt . . . . . . . . . . . . . . . . . . . . . . . 43
Exterior Lamp Controls . . . . . . . . . . . . . . . . . . . . 96
Exterior Lighting Battery Saver . . . . . . . . . . .101F
Filter, Engine Air Cleaner . . . . . . . . . . . . . . . . . . . . . . 175
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Flashers, Hazard Warning . . . . . . . . . . . . . . . . . 98
Flat Tire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215 Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216
Floor Mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 233
Fluid Automatic Transmission . . . . . . . . . . . . . . . 174
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
Washer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Folding Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Frequency Statement Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 257
Front Seat Armrest . . . . . . . . . . . . . . . . . . . . . . . .33
Front Seats Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Heated . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Fuel Additives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Economy, Driving for Better . . . . . . . . . . . 130
Filling a Portable Fuel Container . . . . . . . 165
Filling the Tank . . . . . . . . . . . . . . . . . . . . . . . . 164
Foreign Countries . . . . . . . . . . . . . . . . . . . . . . 163
Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Low Fuel Warning Light . . . . . . . . . . . . . . . . 88
Prohibited Fuels . . . . . . . . . . . . . . . . . . . . . . . 163 Fuel (cont'd)
Recommended . . . . . . . . . . . . . . . . . . . . . . . . . 163
Top Tier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Fuses Engine Compartment Fuse Block . . . . . . . 193
Fuses and Circuit Breakers . . . . . . . . . . . . . 193
Instrument Panel Fuse Block . . . . . . . . . . . 196
Rear Compartment Fuse Block . . . . . . . . . 198
G
Gas Strut(s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .185
GaugesFuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Trip Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Warning Lights and Indicators . . . . . . . . . . 79
General Information Service and Maintenance . . . . . . . . . . . . . . 234
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Vehicle Care . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Glove Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72
GM Mobility Reimbursement Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252

Chevrolet TRAX Owner Manual (GMNA-Localizing-U.S./Canada-15498927) -
2022 - CRC - 5/27/21
Index 275
Oil (cont'd)Pressure Light . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Older Children, Restraints . . . . . . . . . . . . . . . . . 54
Online Owner Center . . . . . . . . . . . . . . . . . . . . 252
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260
OnStar Additional Information . . . . . . . . . . . 263
OnStar Emergency . . . . . . . . . . . . . . . . . . . . . . . 262
OnStar Overview . . . . . . . . . . . . . . . . . . . . . . . . . 261
OnStar Security . . . . . . . . . . . . . . . . . . . . . . . . . . 262
Outlets Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Overheating, Engine . . . . . . . . . . . . . . . . . . . . . 179
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Instrument Panel . . . . . . . . . . . . . . . . . . . . . . . . 4
Owner Manual Indicator . . . . . . . . . . . . . . . . . . 85
P
Park Shifting Into . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Shifting Out of . . . . . . . . . . . . . . . . . . . . . . . . 148
Park Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Parking Brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
Brake and P (Park) MechanismCheck . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
Extended . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Over Things That Burn . . . . . . . . . . . . . . . . . 149 Parking (cont'd)
Ultrasonic Sensor Light . . . . . . . . . . . . . . . . . 86
Passenger Airbag Status Indicator . . . . . . . . . 82
Passenger Compartment Air Filter . . . . . . . . 127
Passenger Sensing System . . . . . . . . . . . . . . . . 49
Perchlorate Materials Requirements, California . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Personalization Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Phone Apple CarPlay and Android Auto . . . . . . . . 117
Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Port USB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Power Door Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Outlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Protection, Battery . . . . . . . . . . . . . . . . . . . . . 101
Reduced Engine Light . . . . . . . . . . . . . . . . . . . 89
Retained Accessory (RAP) . . . . . . . . . . . . . . 147
Seat Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . 31
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Power Steering Warning Lights . . . . . . . . . . . 86
Pregnancy, Using Seat Belts . . . . . . . . . . . . . . 42
Privacy Vehicle Data Recording . . . . . . . . . . . . . . . . 259 Program
Courtesy Transportation . . . . . . . . . . . . . . . 254
Prohibited Fuels . . . . . . . . . . . . . . . . . . . . . . . . . 163
Proposition 65 Warning, California . . . . . . . . . . . . . . . . . . . . . . . . . .182, 220, Back Cover
Publication Ordering Information . . . . . . . . 257
R
Radio Frequency Statement . . . . . . . . . . . . . . 257
Radio Reception . . . . . . . . . . . . . . . . . . . . . . . . . 108
Radios
AM-FM Radio . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Satellite . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Reading Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Rear Seat Armrest . . . . . . . . . . . . . . . . . . . . . . . . .37
Rear Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Rear Vision Camera (RVC) . . . . . . . . . . . . . . . . 159
Rear Window Washer/Wiper . . . . . . . . . . . . . .77
Rearview Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . 26 Automatic Dimming . . . . . . . . . . . . . . . . . . . . 26
Reclining Seatbacks . . . . . . . . . . . . . . . . . . . . . . . .32
Recommended Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Recommended Fluids and Lubricants . . . . . 243
Records Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . 245
Recreational Vehicle Towing . . . . . . . . . . . . . 224
