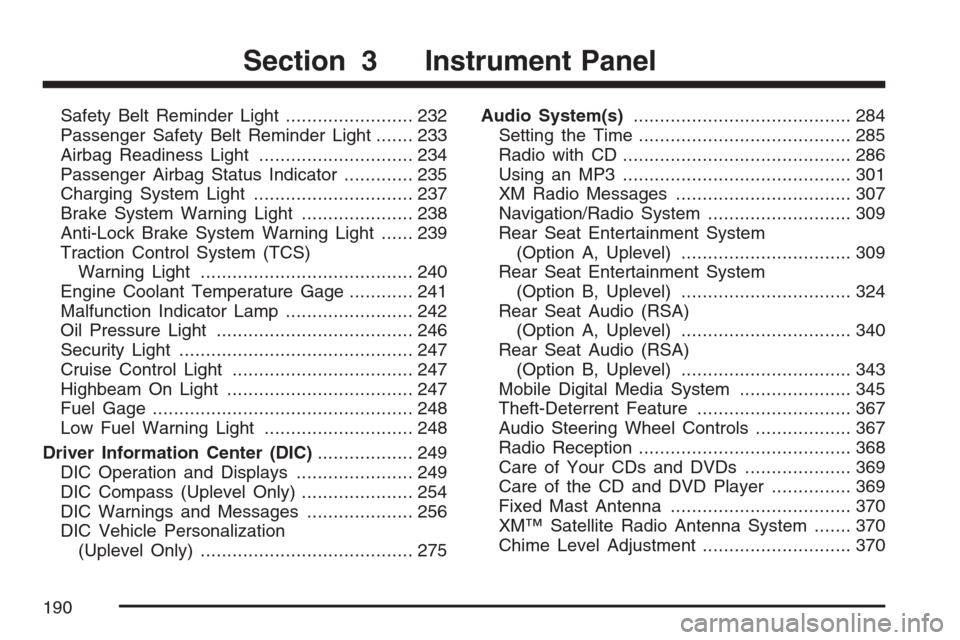

fuel pressure CHEVROLET UPLANDER 2007 1.G Owners Manual

Safety Belt Reminder Light........................ 232
Passenger Safety Belt Reminder Light....... 233
Airbag Readiness Light............................. 234
Passenger Airbag Status Indicator............. 235
Charging System Light.............................. 237
Brake System Warning Light..................... 238
Anti-Lock Brake System Warning Light...... 239
Traction Control System (TCS)
Warning Light........................................ 240
Engine Coolant Temperature Gage............ 241
Malfunction Indicator Lamp........................ 242
Oil Pressure Light..................................... 246
Security Light............................................ 247
Cruise Control Light.................................. 247
Highbeam On Light................................... 247
Fuel Gage................................................. 248
Low Fuel Warning Light............................ 248
Driver Information Center (DIC).................. 249
DIC Operation and Displays...................... 249
DIC Compass (Uplevel Only)..................... 254
DIC Warnings and Messages.................... 256
DIC Vehicle Personalization
(Uplevel Only)........................................ 275Audio System(s)......................................... 284
Setting the Time........................................ 285
Radio with CD........................................... 286
Using an MP3........................................... 301
XM Radio Messages................................. 307
Navigation/Radio System........................... 309
Rear Seat Entertainment System
(Option A, Uplevel)................................ 309
Rear Seat Entertainment System
(Option B, Uplevel)................................ 324
Rear Seat Audio (RSA)
(Option A, Uplevel)................................ 340
Rear Seat Audio (RSA)
(Option B, Uplevel)................................ 343
Mobile Digital Media System..................... 345
Theft-Deterrent Feature............................. 367
Audio Steering Wheel Controls.................. 367
Radio Reception........................................ 368
Care of Your CDs and DVDs.................... 369
Care of the CD and DVD Player............... 369
Fixed Mast Antenna.................................. 370
XM™ Satellite Radio Antenna System....... 370
Chime Level Adjustment............................ 370
Section 3 Instrument Panel
190

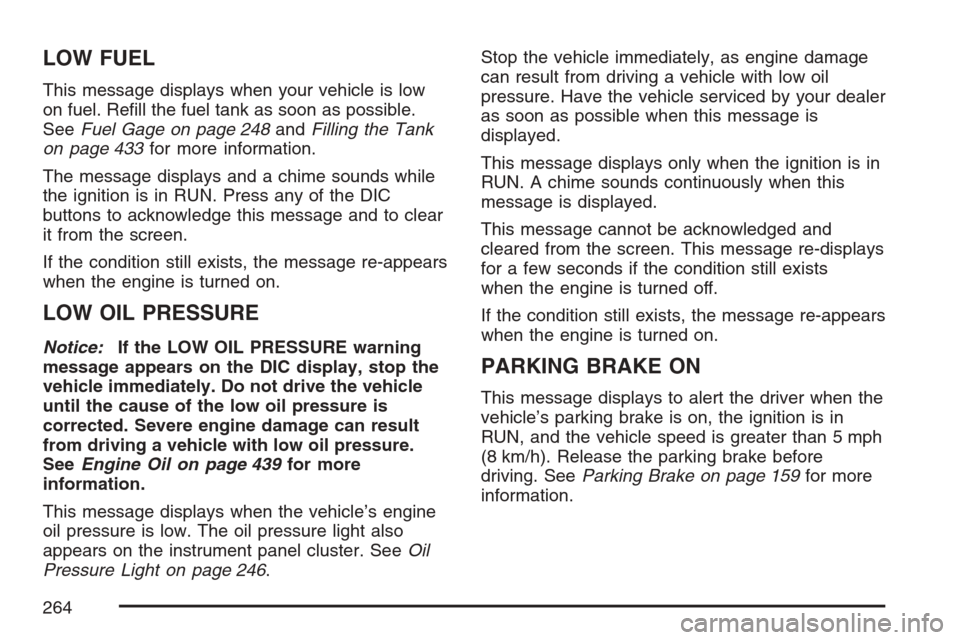

LOW FUEL
This message displays when your vehicle is low
on fuel. Rell the fuel tank as soon as possible.
SeeFuel Gage on page 248andFilling the Tank
on page 433for more information.
The message displays and a chime sounds while
the ignition is in RUN. Press any of the DIC
buttons to acknowledge this message and to clear
it from the screen.
If the condition still exists, the message re-appears
when the engine is turned on.
LOW OIL PRESSURE
Notice:If the LOW OIL PRESSURE warning
message appears on the DIC display, stop the
vehicle immediately. Do not drive the vehicle
until the cause of the low oil pressure is
corrected. Severe engine damage can result
from driving a vehicle with low oil pressure.
SeeEngine Oil on page 439for more
information.
This message displays when the vehicle’s engine
oil pressure is low. The oil pressure light also
appears on the instrument panel cluster. SeeOil
Pressure Light on page 246.Stop the vehicle immediately, as engine damage
can result from driving a vehicle with low oil
pressure. Have the vehicle serviced by your dealer
as soon as possible when this message is
displayed.
This message displays only when the ignition is in
RUN. A chime sounds continuously when this
message is displayed.
This message cannot be acknowledged and
cleared from the screen. This message re-displays
for a few seconds if the condition still exists
when the engine is turned off.
If the condition still exists, the message re-appears
when the engine is turned on.
PARKING BRAKE ON
This message displays to alert the driver when the
vehicle’s parking brake is on, the ignition is in
RUN, and the vehicle speed is greater than 5 mph
(8 km/h). Release the parking brake before
driving. SeeParking Brake on page 159for more
information.
264

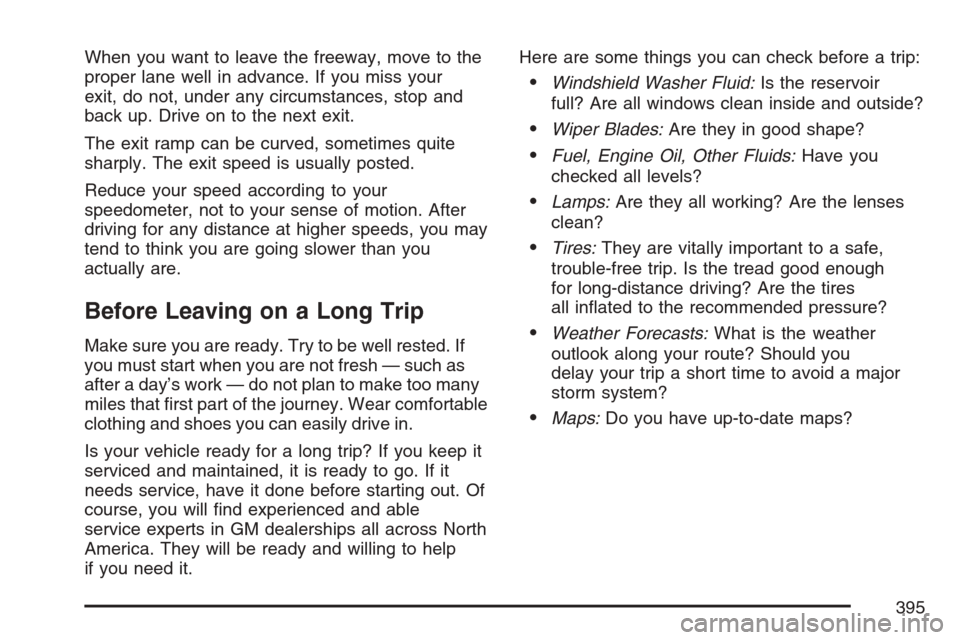

When you want to leave the freeway, move to the
proper lane well in advance. If you miss your
exit, do not, under any circumstances, stop and
back up. Drive on to the next exit.
The exit ramp can be curved, sometimes quite
sharply. The exit speed is usually posted.
Reduce your speed according to your
speedometer, not to your sense of motion. After
driving for any distance at higher speeds, you may
tend to think you are going slower than you
actually are.
Before Leaving on a Long Trip
Make sure you are ready. Try to be well rested. If
you must start when you are not fresh — such as
after a day’s work — do not plan to make too many
miles that rst part of the journey. Wear comfortable
clothing and shoes you can easily drive in.
Is your vehicle ready for a long trip? If you keep it
serviced and maintained, it is ready to go. If it
needs service, have it done before starting out. Of
course, you will nd experienced and able
service experts in GM dealerships all across North
America. They will be ready and willing to help
if you need it.Here are some things you can check before a trip:
Windshield Washer Fluid:Is the reservoir
full? Are all windows clean inside and outside?
Wiper Blades:Are they in good shape?
Fuel, Engine Oil, Other Fluids:Have you
checked all levels?
Lamps:Are they all working? Are the lenses
clean?
Tires:They are vitally important to a safe,
trouble-free trip. Is the tread good enough
for long-distance driving? Are the tires
all inated to the recommended pressure?
Weather Forecasts:What is the weather
outlook along your route? Should you
delay your trip a short time to avoid a major
storm system?
Maps:Do you have up-to-date maps?
395

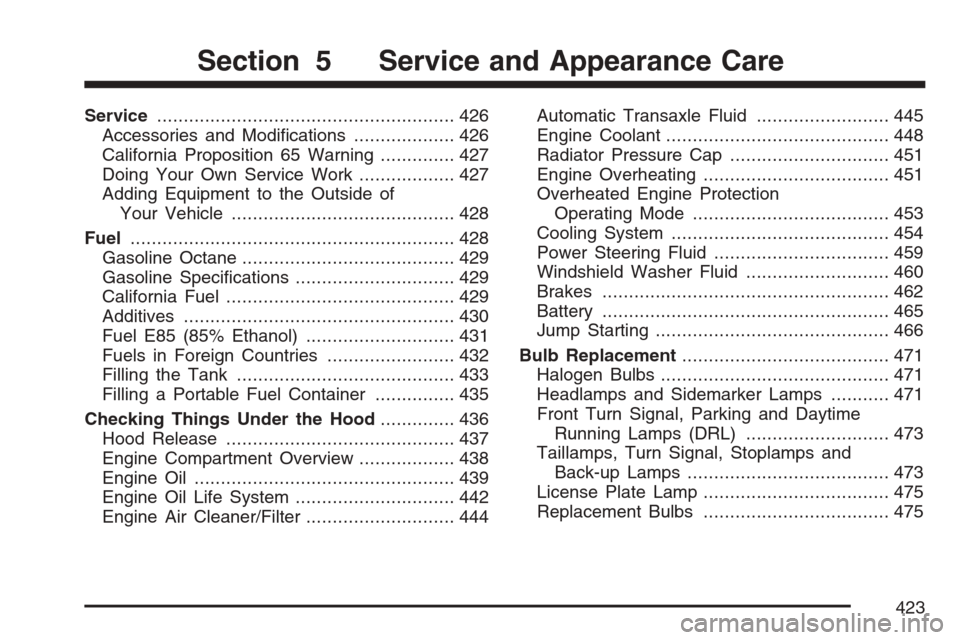

Service........................................................ 426
Accessories and Modications................... 426
California Proposition 65 Warning.............. 427
Doing Your Own Service Work.................. 427
Adding Equipment to the Outside of
Your Vehicle.......................................... 428
Fuel............................................................. 428
Gasoline Octane........................................ 429
Gasoline Specications.............................. 429
California Fuel........................................... 429
Additives................................................... 430
Fuel E85 (85% Ethanol)............................ 431
Fuels in Foreign Countries........................ 432
Filling the Tank......................................... 433
Filling a Portable Fuel Container............... 435
Checking Things Under the Hood.............. 436
Hood Release........................................... 437
Engine Compartment Overview.................. 438
Engine Oil................................................. 439
Engine Oil Life System.............................. 442
Engine Air Cleaner/Filter............................ 444Automatic Transaxle Fluid......................... 445
Engine Coolant.......................................... 448
Radiator Pressure Cap.............................. 451
Engine Overheating................................... 451
Overheated Engine Protection
Operating Mode..................................... 453
Cooling System......................................... 454
Power Steering Fluid ................................. 459
Windshield Washer Fluid........................... 460
Brakes...................................................... 462
Battery...................................................... 465
Jump Starting............................................ 466
Bulb Replacement....................................... 471
Halogen Bulbs........................................... 471
Headlamps and Sidemarker Lamps........... 471
Front Turn Signal, Parking and Daytime
Running Lamps (DRL)........................... 473
Taillamps, Turn Signal, Stoplamps and
Back-up Lamps...................................... 473
License Plate Lamp................................... 475
Replacement Bulbs................................... 475
Section 5 Service and Appearance Care
423

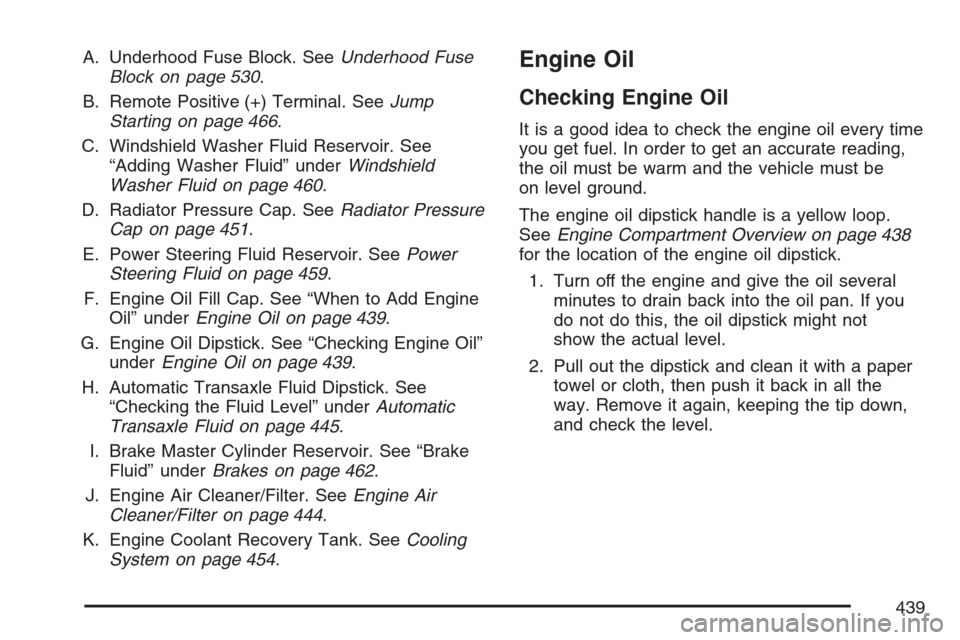

A. Underhood Fuse Block. SeeUnderhood Fuse
Block on page 530.
B. Remote Positive (+) Terminal. SeeJump
Starting on page 466.
C. Windshield Washer Fluid Reservoir. See
“Adding Washer Fluid” underWindshield
Washer Fluid on page 460.
D. Radiator Pressure Cap. SeeRadiator Pressure
Cap on page 451.
E. Power Steering Fluid Reservoir. SeePower
Steering Fluid on page 459.
F. Engine Oil Fill Cap. See “When to Add Engine
Oil” underEngine Oil on page 439.
G. Engine Oil Dipstick. See “Checking Engine Oil”
underEngine Oil on page 439.
H. Automatic Transaxle Fluid Dipstick. See
“Checking the Fluid Level” underAutomatic
Transaxle Fluid on page 445.
I. Brake Master Cylinder Reservoir. See “Brake
Fluid” underBrakes on page 462.
J. Engine Air Cleaner/Filter. SeeEngine Air
Cleaner/Filter on page 444.
K. Engine Coolant Recovery Tank. SeeCooling
System on page 454.Engine Oil
Checking Engine Oil
It is a good idea to check the engine oil every time
you get fuel. In order to get an accurate reading,
the oil must be warm and the vehicle must be
on level ground.
The engine oil dipstick handle is a yellow loop.
SeeEngine Compartment Overview on page 438
for the location of the engine oil dipstick.
1. Turn off the engine and give the oil several
minutes to drain back into the oil pan. If you
do not do this, the oil dipstick might not
show the actual level.
2. Pull out the dipstick and clean it with a paper
towel or cloth, then push it back in all the
way. Remove it again, keeping the tip down,
and check the level.
439

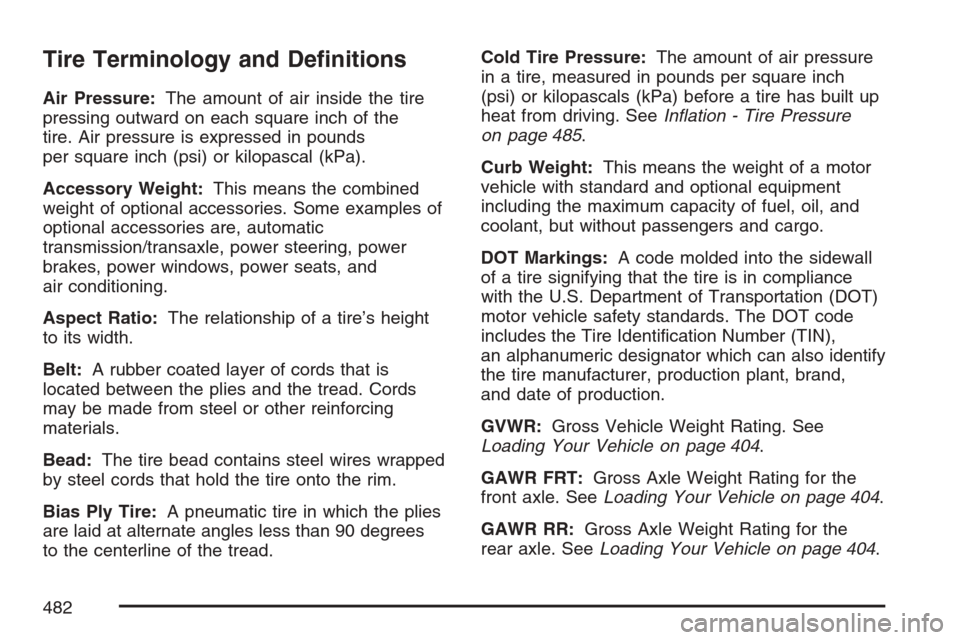

Tire Terminology and Denitions
Air Pressure:The amount of air inside the tire
pressing outward on each square inch of the
tire. Air pressure is expressed in pounds
per square inch (psi) or kilopascal (kPa).
Accessory Weight:This means the combined
weight of optional accessories. Some examples of
optional accessories are, automatic
transmission/transaxle, power steering, power
brakes, power windows, power seats, and
air conditioning.
Aspect Ratio:The relationship of a tire’s height
to its width.
Belt:A rubber coated layer of cords that is
located between the plies and the tread. Cords
may be made from steel or other reinforcing
materials.
Bead:The tire bead contains steel wires wrapped
by steel cords that hold the tire onto the rim.
Bias Ply Tire:A pneumatic tire in which the plies
are laid at alternate angles less than 90 degrees
to the centerline of the tread.Cold Tire Pressure:The amount of air pressure
in a tire, measured in pounds per square inch
(psi) or kilopascals (kPa) before a tire has built up
heat from driving. SeeInation - Tire Pressure
on page 485.
Curb Weight:This means the weight of a motor
vehicle with standard and optional equipment
including the maximum capacity of fuel, oil, and
coolant, but without passengers and cargo.
DOT Markings:A code molded into the sidewall
of a tire signifying that the tire is in compliance
with the U.S. Department of Transportation (DOT)
motor vehicle safety standards. The DOT code
includes the Tire Identication Number (TIN),
an alphanumeric designator which can also identify
the tire manufacturer, production plant, brand,
and date of production.
GVWR:Gross Vehicle Weight Rating. See
Loading Your Vehicle on page 404.
GAWR FRT:Gross Axle Weight Rating for the
front axle. SeeLoading Your Vehicle on page 404.
GAWR RR:Gross Axle Weight Rating for the
rear axle. SeeLoading Your Vehicle on page 404.
482

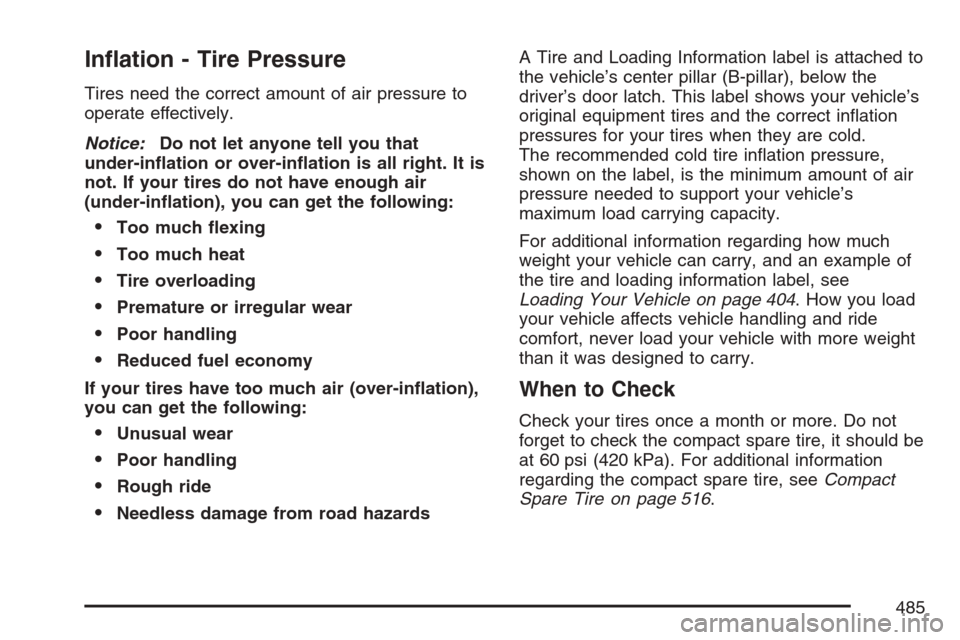

Ination - Tire Pressure
Tires need the correct amount of air pressure to
operate effectively.
Notice:Do not let anyone tell you that
under-ination or over-ination is all right. It is
not. If your tires do not have enough air
(under-ination), you can get the following:
Too much exing
Too much heat
Tire overloading
Premature or irregular wear
Poor handling
Reduced fuel economy
If your tires have too much air (over-ination),
you can get the following:
Unusual wear
Poor handling
Rough ride
Needless damage from road hazardsA Tire and Loading Information label is attached to
the vehicle’s center pillar (B-pillar), below the
driver’s door latch. This label shows your vehicle’s
original equipment tires and the correct ination
pressures for your tires when they are cold.
The recommended cold tire ination pressure,
shown on the label, is the minimum amount of air
pressure needed to support your vehicle’s
maximum load carrying capacity.
For additional information regarding how much
weight your vehicle can carry, and an example of
the tire and loading information label, see
Loading Your Vehicle on page 404. How you load
your vehicle affects vehicle handling and ride
comfort, never load your vehicle with more weight
than it was designed to carry.
When to Check
Check your tires once a month or more. Do not
forget to check the compact spare tire, it should be
at 60 psi (420 kPa). For additional information
regarding the compact spare tire, seeCompact
Spare Tire on page 516.
485

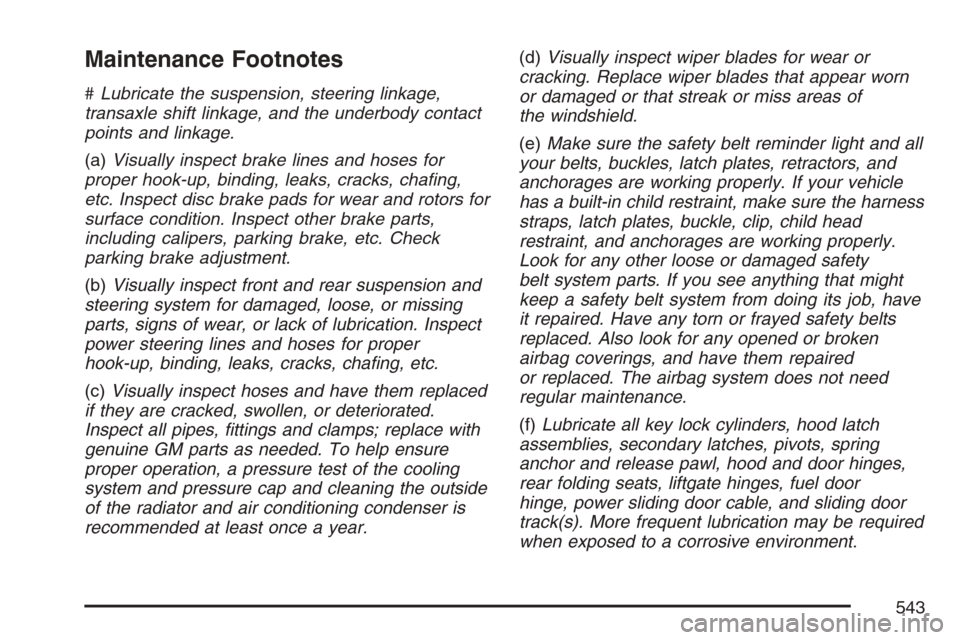

Maintenance Footnotes
#Lubricate the suspension, steering linkage,
transaxle shift linkage, and the underbody contact
points and linkage.
(a)Visually inspect brake lines and hoses for
proper hook-up, binding, leaks, cracks, chang,
etc. Inspect disc brake pads for wear and rotors for
surface condition. Inspect other brake parts,
including calipers, parking brake, etc. Check
parking brake adjustment.
(b)Visually inspect front and rear suspension and
steering system for damaged, loose, or missing
parts, signs of wear, or lack of lubrication. Inspect
power steering lines and hoses for proper
hook-up, binding, leaks, cracks, chang, etc.
(c)Visually inspect hoses and have them replaced
if they are cracked, swollen, or deteriorated.
Inspect all pipes, ttings and clamps; replace with
genuine GM parts as needed. To help ensure
proper operation, a pressure test of the cooling
system and pressure cap and cleaning the outside
of the radiator and air conditioning condenser is
recommended at least once a year.(d)Visually inspect wiper blades for wear or
cracking. Replace wiper blades that appear worn
or damaged or that streak or miss areas of
the windshield.
(e)Make sure the safety belt reminder light and all
your belts, buckles, latch plates, retractors, and
anchorages are working properly. If your vehicle
has a built-in child restraint, make sure the harness
straps, latch plates, buckle, clip, child head
restraint, and anchorages are working properly.
Look for any other loose or damaged safety
belt system parts. If you see anything that might
keep a safety belt system from doing its job, have
it repaired. Have any torn or frayed safety belts
replaced. Also look for any opened or broken
airbag coverings, and have them repaired
or replaced. The airbag system does not need
regular maintenance.
(f)Lubricate all key lock cylinders, hood latch
assemblies, secondary latches, pivots, spring
anchor and release pawl, hood and door hinges,
rear folding seats, liftgate hinges, fuel door
hinge, power sliding door cable, and sliding door
track(s). More frequent lubrication may be required
when exposed to a corrosive environment.
543

Be sure any necessary repairs are completed at
once. Whenever any uids or lubricants are added
to your vehicle, make sure they are the proper
ones, as shown inRecommended Fluids and
Lubricants on page 548.

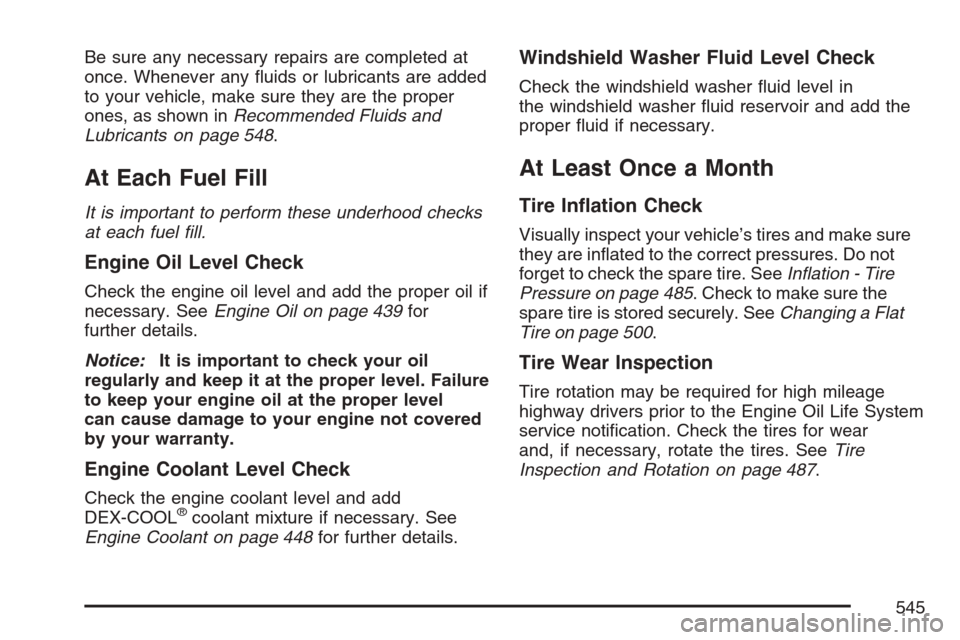

At Each Fuel Fill
It is important to perform these underhood checks
at each fuel ll.
Engine Oil Level Check
Check the engine oil level and add the proper oil if
necessary. SeeEngine Oil on page 439for
further details.
Notice:It is important to check your oil
regularly and keep it at the proper level. Failure
to keep your engine oil at the proper level
can cause damage to your engine not covered
by your warranty.
Engine Coolant Level Check
Check the engine coolant level and add
DEX-COOL®coolant mixture if necessary. See
Engine Coolant on page 448for further details.
Windshield Washer Fluid Level Check
Check the windshield washer uid level in
the windshield washer uid reservoir and add the
proper uid if necessary.
At Least Once a Month
Tire Ination Check
Visually inspect your vehicle’s tires and make sure
they are inated to the correct pressures. Do not
forget to check the spare tire. SeeInation - Tire
Pressure on page 485. Check to make sure the
spare tire is stored securely. SeeChanging a Flat
Tire on page 500.
Tire Wear Inspection
Tire rotation may be required for high mileage
highway drivers prior to the Engine Oil Life System
service notication. Check the tires for wear
and, if necessary, rotate the tires. SeeTire
Inspection and Rotation on page 487.
545

Light (cont.)
Cruise Control.......................................... 247
Highbeam On.......................................... 247
Low Fuel Warning.................................... 248
Malfunction Indicator................................ 242
Oil Pressure............................................. 246
Passenger Airbag Status Indicator............ 235
Passenger Safety Belt Reminder.............. 233
Safety Belt Reminder............................... 232
Security................................................... 247
TCS Warning Light.................................. 240
Traction Control System (TCS) Warning..... 240
Lighting
Delayed................................................... 208
Entry........................................................ 208
Exit.......................................................... 209
Loading Your Vehicle................................... 404
Lockout Protection....................................... 131
Locks
Automatic Door Lock................................ 131
Delayed Locking...................................... 130
Door........................................................ 128
Lockout Protection................................... 131
Power Door............................................. 129
Programmable Automatic Door Unlock..... 131
Loss of Control........................................... 387
Low Fuel Warning Light............................... 248
Luggage Carrier.......................................... 184M
Maintenance Schedule
Additional Required Services.................... 542
At Each Fuel Fill...................................... 545
At Least Once a Month............................ 545
At Least Once a Year .............................. 546
Introduction.............................................. 536
Maintenance Footnotes............................ 543
Maintenance Record................................ 552
Maintenance Requirements...................... 536
Normal Maintenance Replacement Parts.... 550
Owner Checks and Services.................... 544
Recommended Fluids and Lubricants....... 548
Scheduled Maintenance........................... 539
Using....................................................... 537
Your Vehicle and the Environment............ 536
Malfunction Indicator Light........................... 242
Manual Rear Quarter Windows.................... 144
Manual Seats.................................................. 9
Message
DIC Warnings and Messages................... 256
Mirrors
Manual Rearview Mirror........................... 165
Outside Convex Mirror............................. 166
Outside Heated Mirrors............................ 166
Outside Power Mirrors............................. 165
585
