Bucket Seats
The vehicle may have bucket seats in the second row.
These seats can be adjusted several different ways.
Fold and Tumble Feature
{CAUTION:
Using the third row seating position while the
second row is folded, or folded and tumbled, could
cause injury in a sudden stop or crash. Be sure to
return the seat to the passenger seating position.
Push and pull on the seat to make sure it is
locked into place.The second row bucket seats can be folded and tumbled
forward. Use this feature for exiting and entering third row
seats, if the vehicle has them.
1. Make sure the adjustable head restraints are in the
fully lowered position.
Notice:Folding a rear seat with the safety belts still
fastened may cause damage to the seat or the safety
belts. Always unbuckle the safety belts and return
them to their normal stowed position before folding a
rear seat.
2. Fold the seatback at
on the seat.
You can do this by either pulling on the nylon strap,
located on the rear right hand side of the seat, or
by lifting the recline lever, located on the front right
hand side of the seatback.
1-7

3. Slide the seat all the way back in this position.
4. Release the rear set of
seat hooks from the
oor pins by pulling the
nylon strap, located at
the base of the seat.
Use the strap to guide
the seat forward.
To return the seat to the original position:
1. Align the seat so that the rear hooks on the seat
are over the rear oor pins. Push down rmly on
the rear of the seat so that the rear hooks attach to
the rear oor pins.2. Try to raise the seat to check that it is locked to
the oor.
3. Pull the nylon strap, located on the rear right hand
side of the seat, or lift the recline lever, located
on the front right hand side of the seatback, to raise
the seatback to the upright position.
{CAUTION:
If the seatback is not locked, it could move forward
in a sudden stop or crash. That could cause injury
to the person sitting there. Always push and pull on
the seatback to be sure it is locked.
4. Push and pull on the seatback to check that it is
locked.
One of the bucket seats may be equipped with a built-in
child restraint. SeeBuilt-In Child Restraint on page 1-67.
1-8

Adjusting the Bucket Seats Forward
and Rearward
There are two adjustment levers on the second row
bucket seats that enable them to move forward or
rearward.
One is located below the front of the seat.The other lever is located
on the rear of the seat.
To adjust the second row bucket seats forward or
rearward:
1. Lift up either lever and slide the seat forward or
rearward.
2. Release the lever when the seat is in the desired
position.
3. Push and pull on the seat to make sure it is locked.
1-9

Folding or Reclining the Seatbacks
The seatback on a bucket seat can either be folded
forward or reclined using the nylon strap or the recline
lever.
To fold the seatback forward:
1. Pull the nylon strap, located on the rear right hand
side of the seat, or lift the recline lever, located on
the front right hand side of the seatback to
release the seatback.Notice:Folding a rear seat with the safety belts still
fastened may cause damage to the seat or the safety
belts. Always unbuckle the safety belts and return
them to their normal stowed position before folding a
rear seat.
2. Fold the seatback forward.
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it is
locked.
To raise the seatback to the upright position from a
reclined position:
1. Pull the nylon strap or lift the recline lever while
raising the seatback until it locks to the upright
position.
2. Push and pull on the seatback to check that it is
locked. Nylon Strap
Recline Lever
1-10

To recline the seatback:
1. Pull the nylon strap or lift the recline lever.
2. Press back on the seatback until it is in the desired
position
3. Let go of the strap or lever.
Removing the Bucket Seats
To remove the bucket seats:
1. Make sure the head restraint is in the fully lowered
position.
Notice:Folding a rear seat with the safety belts
still fastened may cause damage to the seat or the
safety belts. Always unbuckle the safety belts
and return them to their normal stowed position
before folding a rear seat.
2. Fold the seatback at on the seat, by either pulling
on the nylon strap, located on the rear right hand
side of the seat, or by lifting the recline lever,
located on the front right hand side of the seatback.
3. Lift either one of the adjuster levers and slide the
seat to the most rearward position. See “Adjusting
the Bucket Seats Forward and Rearward” earlier
in this section.4. Release the rear set of hooks from the oor pins by
pulling the nylon strap, located at the base of the
seat. Use the strap to guide the seat forward.
1-11

5. To release the front seat hooks from the oor pins,
squeeze the angled bar, located beneath the seat
toward the straight crossbar.
6. Remove the seat by rocking it slightly forward, then
toward the rear of the vehicle while pulling it out.
This should be done in one motion.
Reinstalling the Bucket Seats
{CAUTION:
A safety belt that is improperly routed, not properly
attached, or twisted will not provide the protection
needed in a crash. The person wearing the belt
could be seriously injured. After installing the seat,
always check to be sure that the safety belts are
properly routed and attached, and are not twisted.
Do not install the seat facing the rear of the vehicle, as
it will not lock into place. If more storage room is
needed behind the seat, slide the seat forward.
1-12

Make sure the seat is in the full rear position before
beginning this procedure.
To reinstall the bucket seats:
1. With the seat folded, squeeze the angled bar
beneath the seat toward the straight crossbar, while
placing the front hooks of the seat into the front
two oor pins.
2. Make sure the seat is
angled so that the front
seat hooks clear the
oor pins. If the front
hooks are not attached
correctly, the seat’s rear
hooks will not attach
to the rear set of
oor pins.
If the front hooks are not attaching correctly, check
that the seat is in the full rear position.3. Firmly push the rear seat hooks into the rear oor
pins by pushing down the rear of the seat.
{CAUTION:
A seat that is not locked into place properly can
move around in a collision or sudden stop. People
in the vehicle could be injured. Be sure to lock the
seat into place properly when installing it.
4. Check that the seat is locked by trying to raise
the seat.
1-13

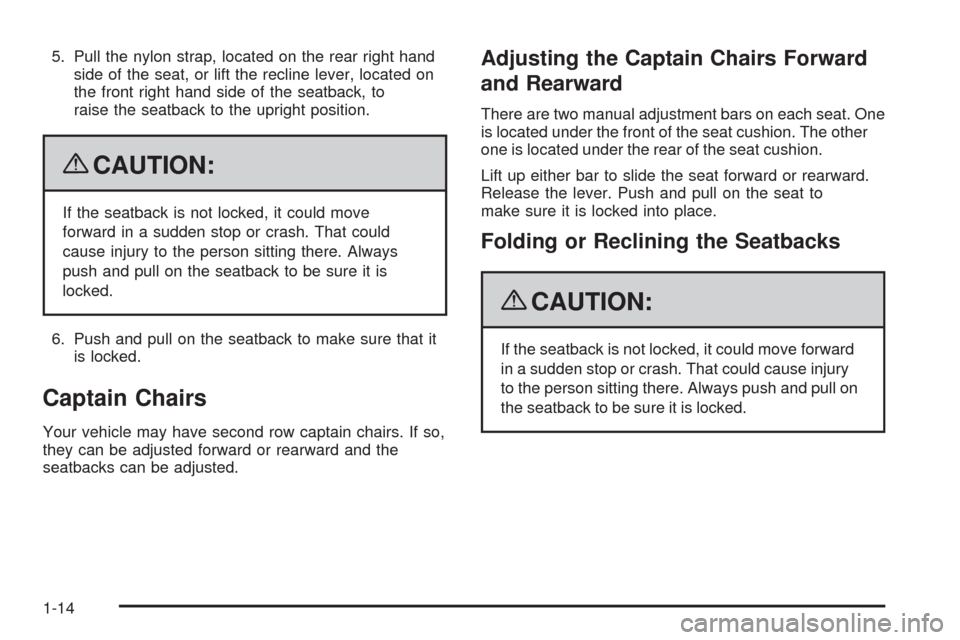

5. Pull the nylon strap, located on the rear right hand
side of the seat, or lift the recline lever, located on
the front right hand side of the seatback, to
raise the seatback to the upright position.
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it is
locked.
6. Push and pull on the seatback to make sure that it
is locked.
Captain Chairs
Your vehicle may have second row captain chairs. If so,
they can be adjusted forward or rearward and the
seatbacks can be adjusted.
Adjusting the Captain Chairs Forward
and Rearward
There are two manual adjustment bars on each seat. One
is located under the front of the seat cushion. The other
one is located under the rear of the seat cushion.
Lift up either bar to slide the seat forward or rearward.
Release the lever. Push and pull on the seat to
make sure it is locked into place.
Folding or Reclining the Seatbacks
{CAUTION:
If the seatback is not locked, it could move forward
in a sudden stop or crash. That could cause injury
to the person sitting there. Always push and pull on
the seatback to be sure it is locked.
1-14

To recline the seatback, lift up on the recliner lever
located on the outboard side of the seat, then move the
seatback to the desired position.
To raise the seatback, lift up on the recliner lever
without applying pressure to the seatback. Push and
pull on the seatback to make sure it is locked in place.Notice:Folding a rear seat with the safety belts
still fastened may cause damage to the seat or the
safety belts. Always unbuckle the safety belts
and return them to their normal stowed position
before folding a rear seat.
To fold the seatback forward, lift up fully on the recliner
lever. Push the seatback forward until it is at.
The armrests can be lowered or raised for easier entry
or exit of the vehicle. If your vehicle has captain
chairs with side impact airbags, they will have one
armrest on the inboard side.
Captain Chair (with a Side Impact
Airbag)
If your vehicle has captain chairs with side impact
airbags, the seats cannot be removed. SeeWhere Are
the Airbags? on page 1-80for more information.
1-15

Removing a Captain Chair
(without a Side Impact Airbag)
To remove a captain chair, do the following:
1. Pull the nylon strap behind the seat to release the
rear hooks from the oor pins.2. The seat can then be lifted off the front oor pins
and removed from the vehicle.
