CHEVROLET VENTURE 1998 Owner's Manual

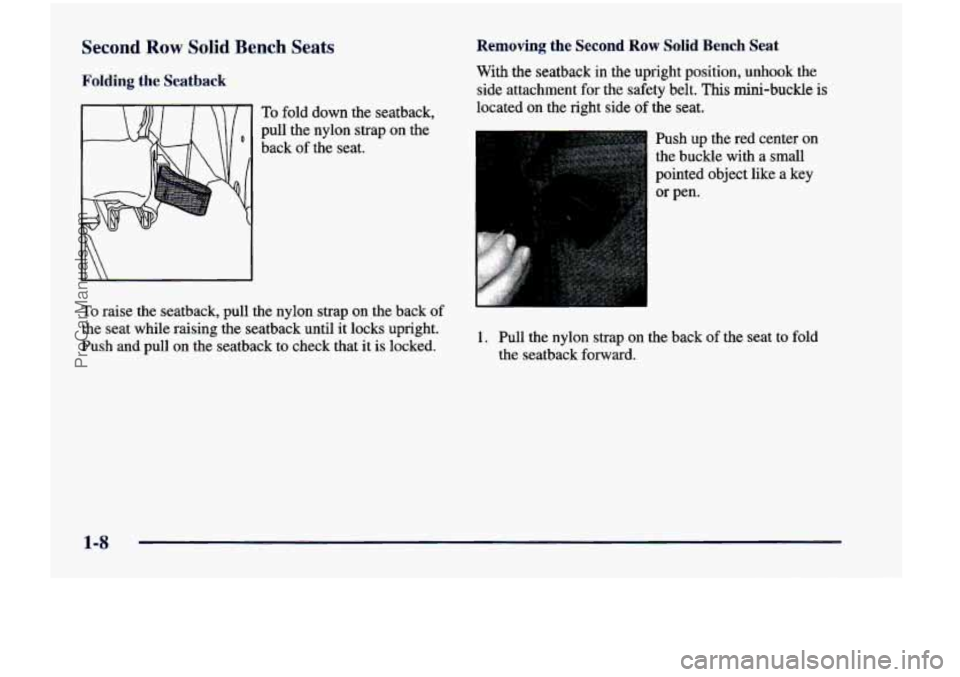

Second Row Solid Bench Seats
Folding the Seatback
To fold down the seatback,
pull the nylon strap on the
back of the seat.
Removing the Second Row Solid Bench Seat
With the seatback in the upright position, unhook the
side attachment for the safety belt.
This mini-buckle is
located on the right side
of the seat.
Push up the red center on
the buckle with a small
pointed object like a key
or pen.
To raise the seatback, pull the nylon strap on the back of
the seat while raising the seatback until it locks upright.
Push and pull on the seatback to check that it is locked. 1. Pull the nylon strap on the back of the seat to fold
the seatback forward.
ProCarManuals.com

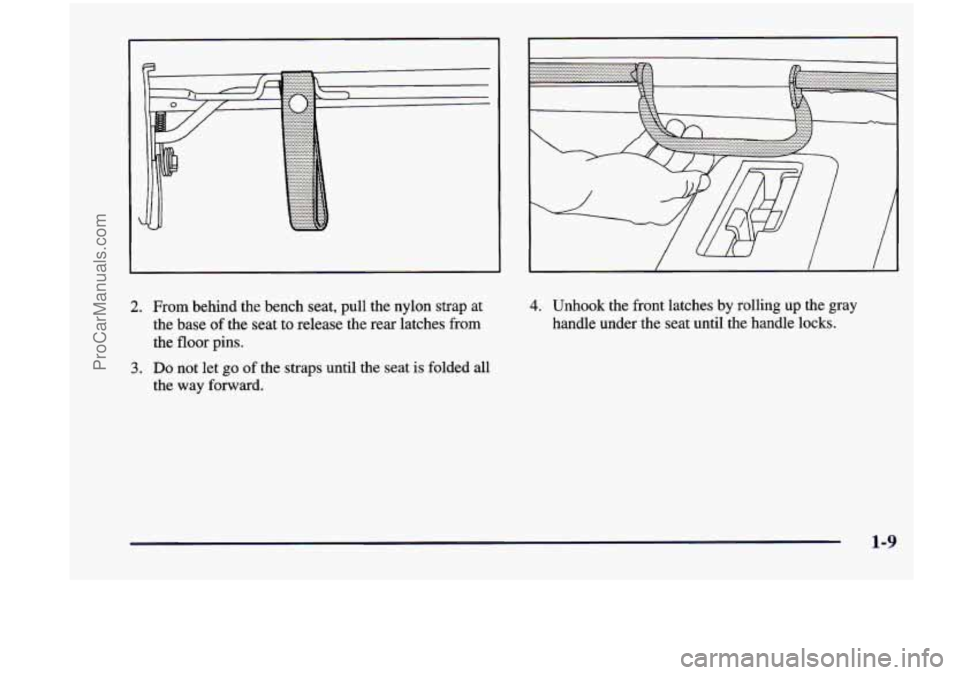

2. From behind the bench seat, pull the nylon strap at
the base
of the seat to release the rear latches from
the floor pins.
the way forward.
3. Do not let go of the straps until the seat is folded all
4. Unhook the front latches by rolling up the gray
handle under the seat until
the handle locks.
1-9
ProCarManuals.com

t

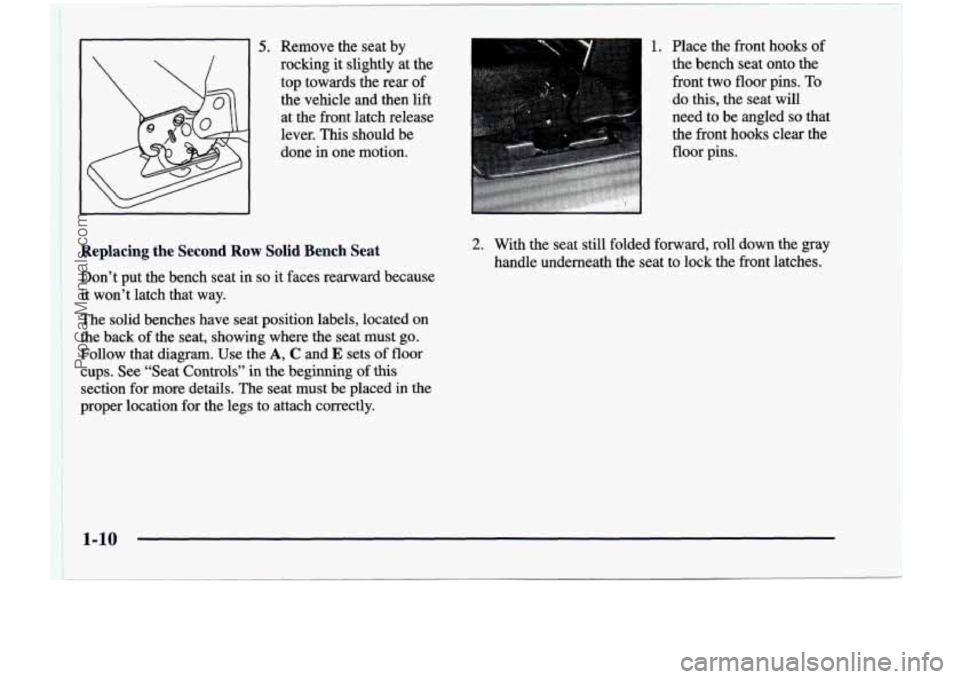

5. Remove the seat by
rocking it slightly at the
top towards the rear
of
the vehicle and then lift
at the front latch release
lever. This should be
done
in one motion.
I 1. Place the front hooks of
the bench seat onto the
front two floor pins. To
do this, the seat will
need to be angled so that
the front hooks clear the
floor pins.
Replacing the Second Row Solid Bench Seat 2. With the seat still folded forward, roll down the gray
handle underneath the seat to lock the front latches.
Don’t put the bench seat
in so it faces rearward because
it won’t latch that way.
The solid benches have seat position labels, located on
the back of the seat, showing where the seat must
go.
Follow that diagram. Use the A, C and E sets of floor
cups.
See “Seat Controls” in the beginning of this
section for more details. The seat must be placed
in the
proper location for the legs to attach correctly.
1
1-10
ProCarManuals.com

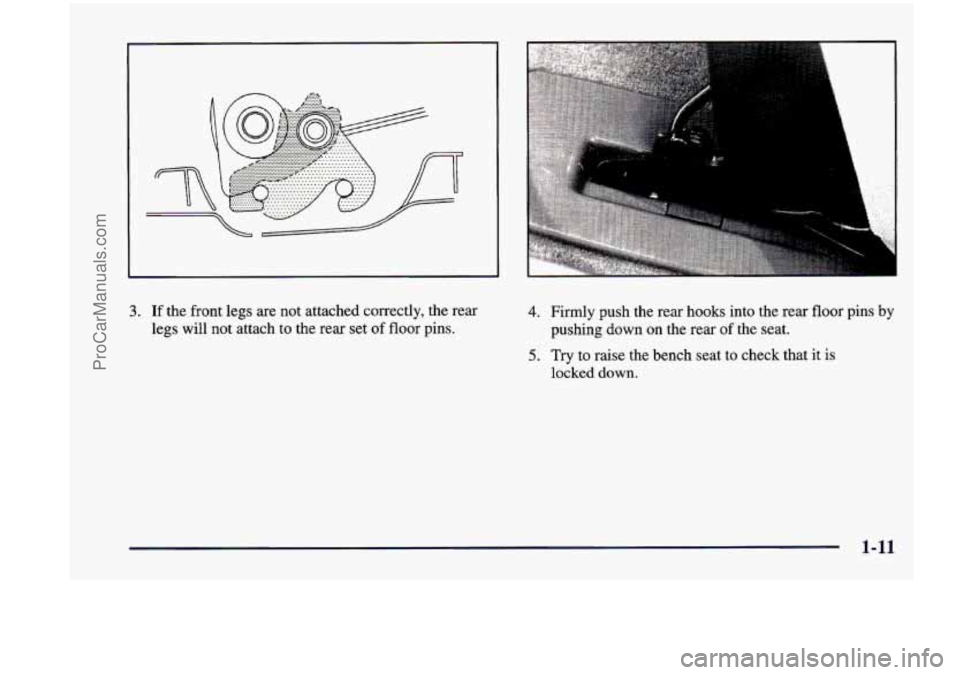

3. If the front legs are not attached correctly, the rear
legs will not attach to the rear set
of floor pins.
4. Firmly push the rear hooks into the rear floor pins by
5. Try to raise the bench seat to check that it is
pushing down on the rear of the seat.
locked down.
1-11
.. __
ProCarManuals.com

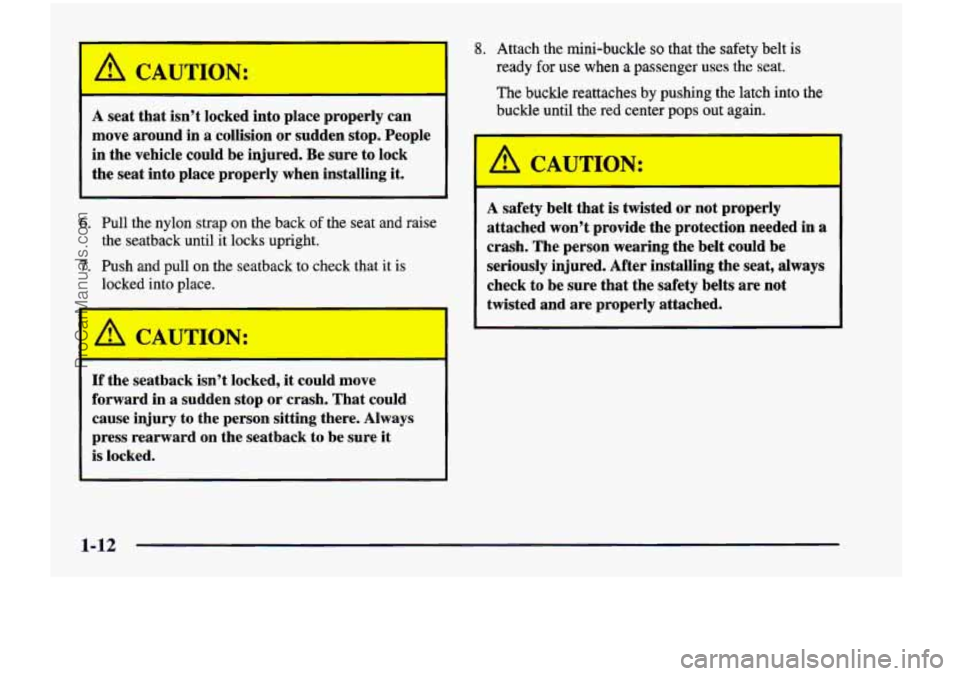

/1 CAUTION:
A seat that isn’t locked into place properly can
move around in a collision or sudden stop. People
in the vehicle could be injured. Be sure to lock
the seat into place properly when installing
it.
6. Pull the nylon strap on the back of the seat and raise
7. Push and pull on the seatback to check that it is
the seatback until it locks upright.
locked into place.
A CAUTION:
If the seatback isn’t locked, it could move
forward in
a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback
to be sure it
is locked.
1 8. Attach the mini-buckle so that the safety belt is
ready for use when a passenger uses the seat.
The buckle reattaches
by pushing the latch into the
buckle until the red center
pops out again.
-
A safety belt that is twisted or not properly
attached won’t provide the protection needed in
a
crash. The person wearing the belt could be
seriously injured. After installing the seat, always
check to be sure that the safety belts
are not
twisted and
are properly attached.
1-12
ProCarManuals.com

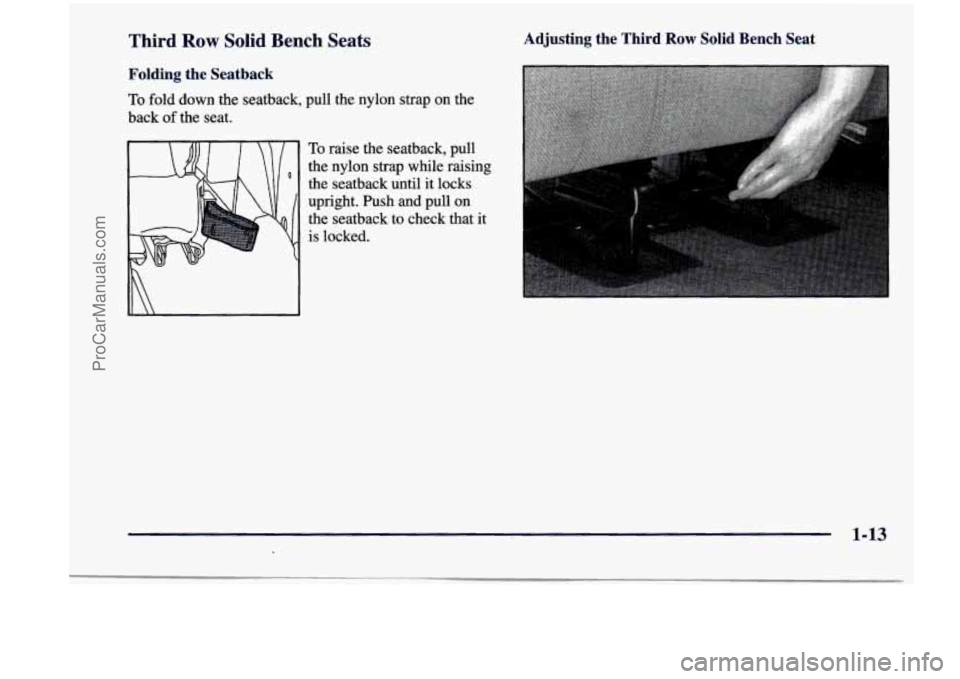

Third Row Solid Bench Seats Adjusting the Third Row Solid Bench Seat
Folding the Seatback
To
fold down the seatback, pull the nylon strap on the
back of the seat.
To raise the seatback, pull
the nylon strap while raising
the seatback until it locks
upright. Push and pull on
the seatback to check that it
is locked.
1-13
ProCarManuals.com

I__________) 1. Pull the nylon strap on the back of the seat to fold

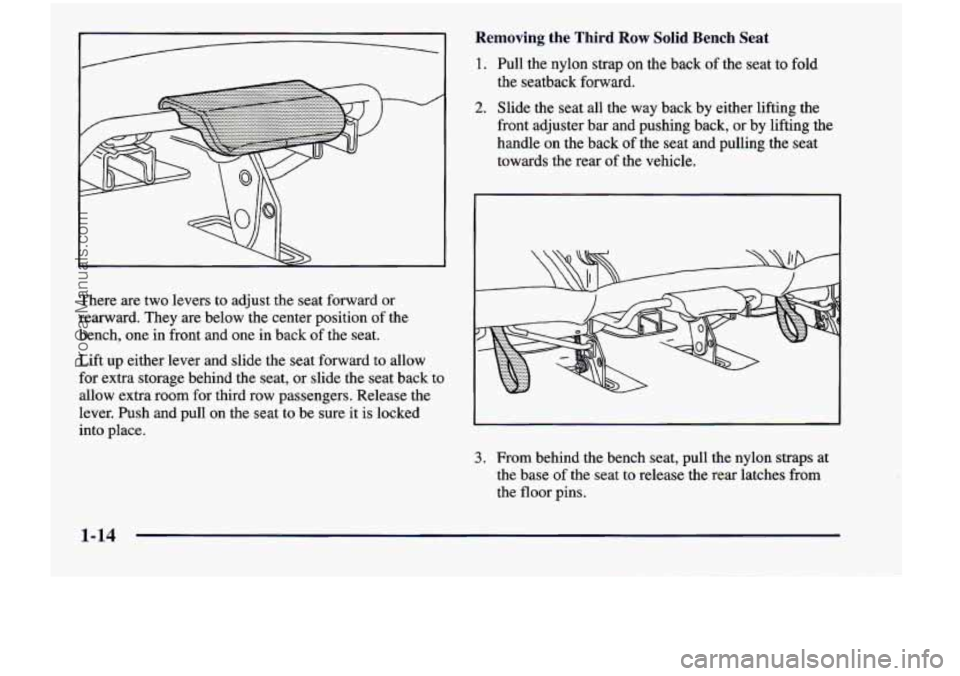

Removing the Third Row Solid Bench Seat
There are two levers to adjust the seat forward or
rearward. They are below the center position of the
bench, one in front and one in back
of the seat.
Lift up either
lever and slide the seat forward to allow
for extra storage behind the seat, or slide the seat back to
allow extra room for third row passengers. Release the
lever. Push and pull
on the seat to be sure it is locked
into place. the seatback forward.
2. Slide
the seat all the way back by either lifting the
front adjuster bar and pushing back,
or by lifting the
handle on the back of the seat and pulling the seat
towards the rear of the vehicle.
3. From behind the bench seat, pull the nylon straps at
the base of the seat to release the rear latches
from
the floor pins.
1-14
ProCarManuals.com

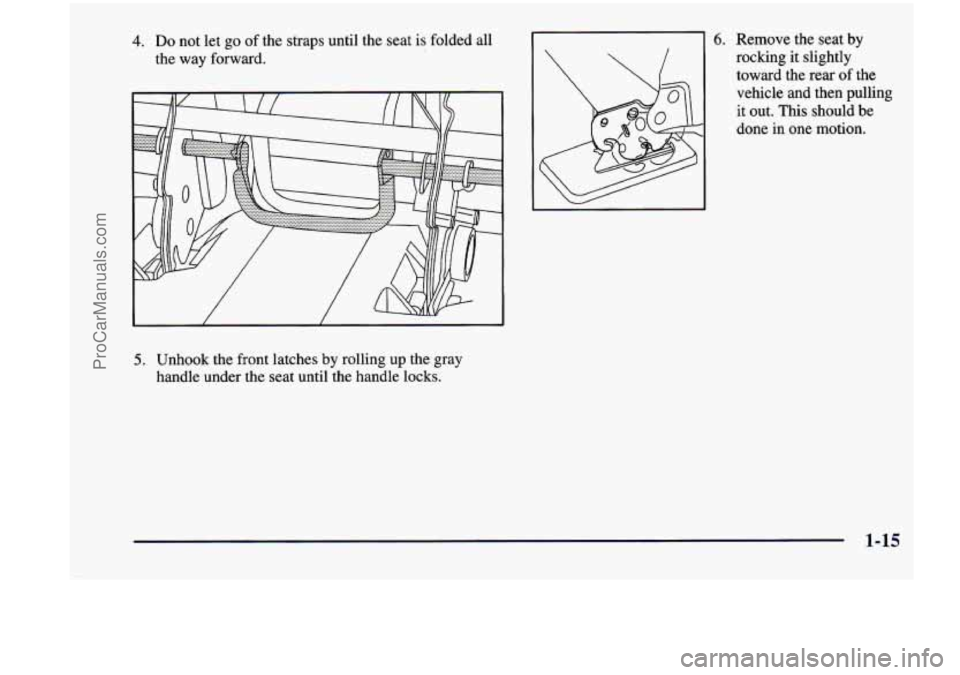

4. Do not let go of the straps until the seat is folded all
the way forward.
, ;q. ......... . . . . . . . . fi
5. Unhook the front latches by rolling up the gray
handle under the seat until the handle
locks.
6. Remove the seat by
rocking it slightly
toward the rear of the
vehicle and then pulling
it out. This should be
done in one motion.
1-15
ProCarManuals.com

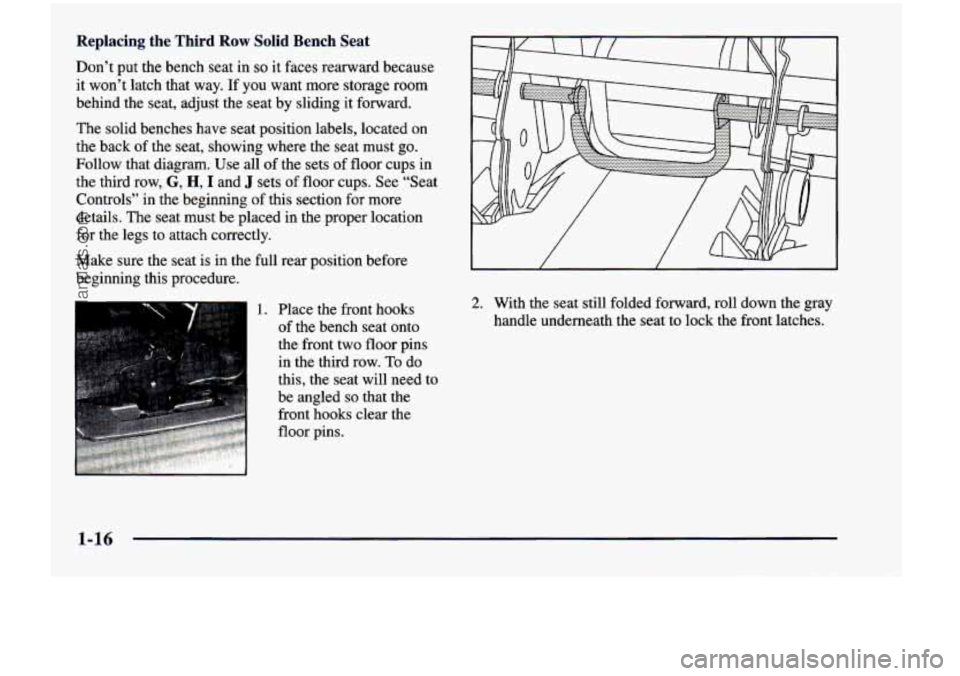

Replacing the Third Row Solid Bench Seat
Don’t put the bench seat in so it faces rearward because
it won’t latch that way. If you want more storage room
behind the seat, adjust
the seat by sliding it forward.
The solid benches have seat position labels, located on
the back of the seat, showing where the seat must
go.
Follow that diagram. Use all of the sets of floor cups in
the third row,
G, H, I and J sets of floor cups. See “Seat
Controls” in the beginning of this section for more
details. The seat must be placed in the proper location
for the legs to attach correctly.
Make sure the seat is
in the full rear position before
beginning this procedure.
1. Place the front hooks of the bench seat onto
the front two floor pins
in the third row.
To do
this, the seat will need to
be angled
so that the
front
hooks clear the
floor pins.
2. With the seat still folded forward, roll down the gray
handle underneath the seat to lock the front latches.
1-16
ProCarManuals.com

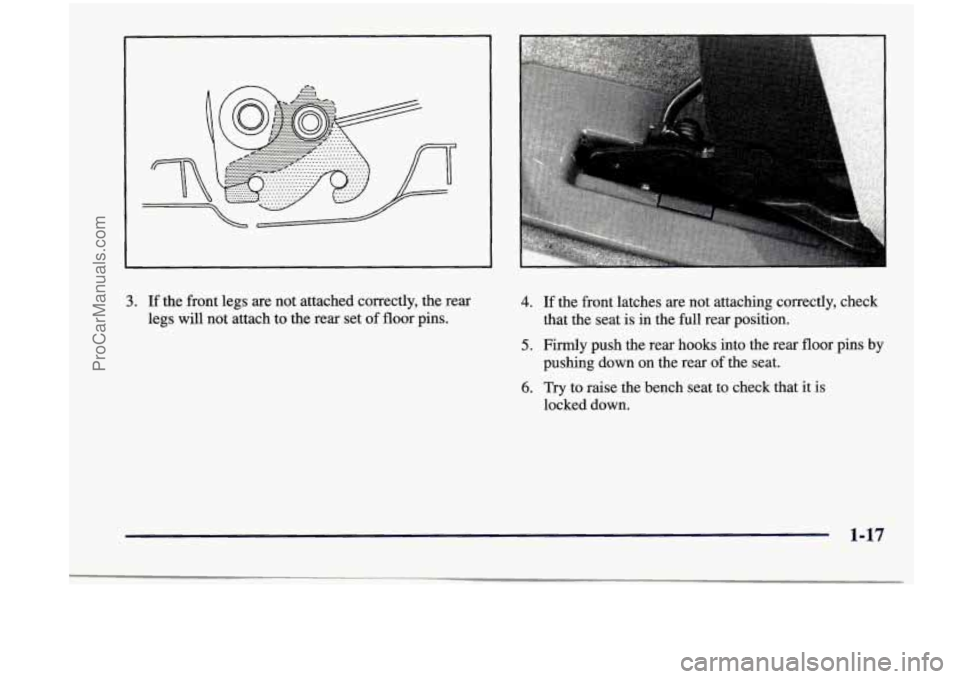

3. If the front legs are not attached correctly, the rear
legs will not attach to the rear set
of floor pins.
4. If the front latches are not attaching correctly, check
that the seat is
in the full rear position.
5. Firmly push the rear hooks into the rear floor pins by
6. Try to raise the bench seat to check that it is
pushing down on the rear
of the seat.
locked down.
1-17
