hood release CHEVROLET VENTURE 1999 1.G Owners Manual

yellowblue
2-85
The main components of the instrument panel are:
A. Side Vents
B. Front Vents
C. Turn Signal/Multifunction Lever
D. Hazard Warning Flashers Switch
E. Instrument Panel Cluster
F. Center Vents
G. Audio System
H. Side Vents
I. Lamp Switch
J. Hood Release
K. HornL. Ignition Switch
M. Climate Controls
N. Rear Fan Controls (Option)
O. Accessory Power Outlet
P. Storage Bin
Q. Remote CD Player (Option)
R. Instrument Panel Switchbank
S. Ashtray and Cigarette Lighter
T. Glove Box
U. Front Vents
V. Instrument Panel Fuse Block

yellowblue
6-8

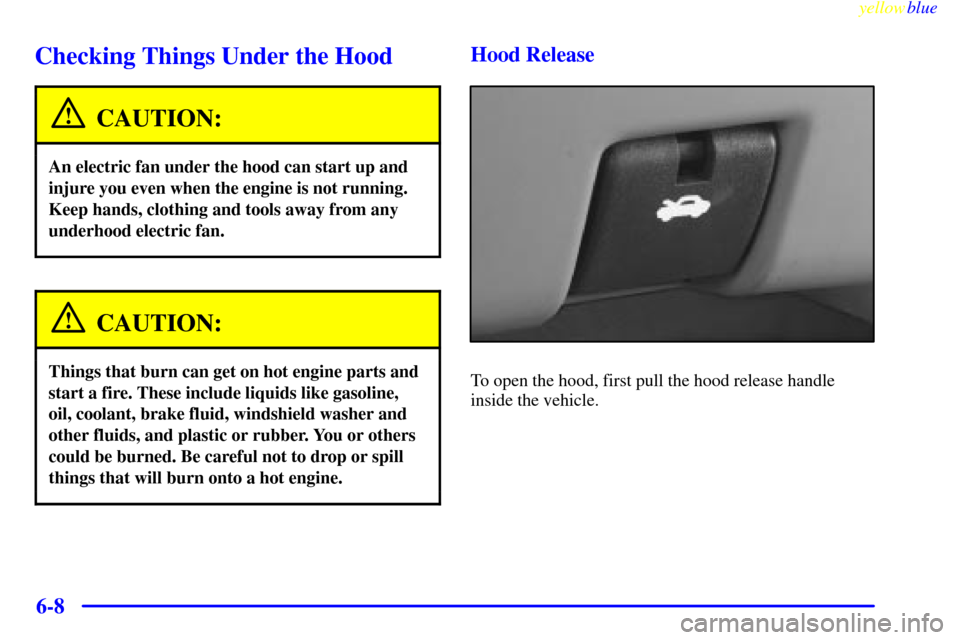

Checking Things Under the Hood
CAUTION:
An electric fan under the hood can start up and
injure you even when the engine is not running.
Keep hands, clothing and tools away from any
underhood electric fan.
CAUTION:
Things that burn can get on hot engine parts and
start a fire. These include liquids like gasoline,
oil, coolant, brake fluid, windshield washer and
other fluids, and plastic or rubber. You or others
could be burned. Be careful not to drop or spill
things that will burn onto a hot engine.
Hood Release
To open the hood, first pull the hood release handle
inside the vehicle.

yellowblue
6-9

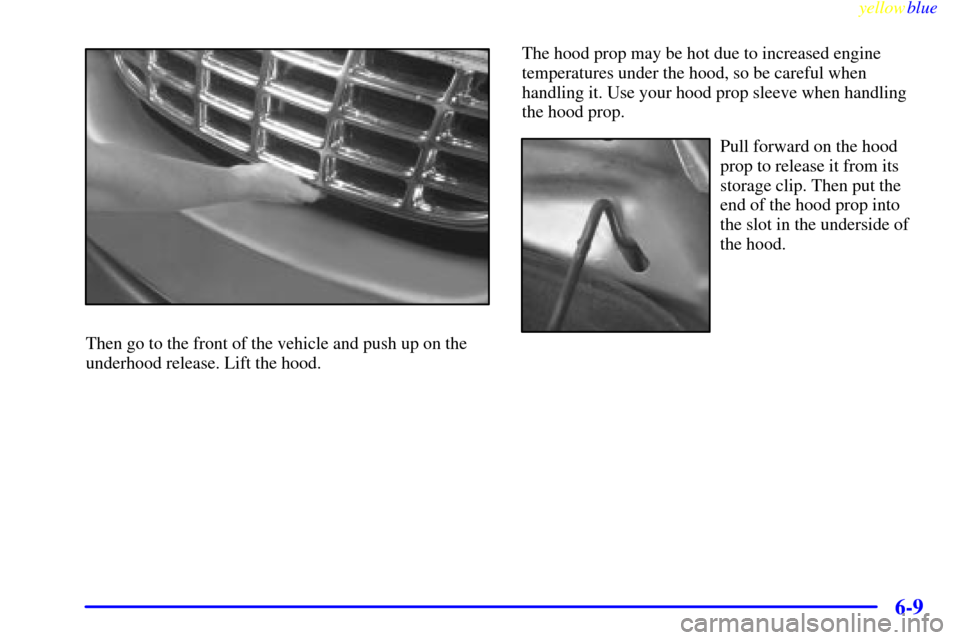

Then go to the front of the vehicle and push up on the
underhood release. Lift the hood.The hood prop may be hot due to increased engine
temperatures under the hood, so be careful when
handling it. Use your hood prop sleeve when handling
the hood prop.
Pull forward on the hood
prop to release it from its
storage clip. Then put the
end of the hood prop into
the slot in the underside of
the hood.

yellowblue
7-36
USAGEFLUID/LUBRICANT
Chassis
LubricationChassis Lubricant (GM Part
No. 12377985 or equivalent) or
lubricant meeting requirements of
NLGI # 2, Category LB or
GC
-LB.
Hood Latch
Assembly,
Secondary Latch,
Pivots, Spring
Anchor and
Release PawlLubriplate
Lubricant Aerosol
(GM Part No. 12346293 or
equivalent) or lubricant meeting
requirements of NLGI # 2,
Category LB or GC
-LB.
Hood and
Door HingesMulti-Purpose Lubricant,
Superlube
(GM Part
No. 12346241 or equivalent).
USAGEFLUID/LUBRICANT
Rear Folding
Seat, Fuel Door
Hinge, Liftgate
Hinges, Power
Sliding Door
CableMulti-Purpose Lubricant,
Superlube
(GM Part
No. 12346241 or equivalent).
Sliding Door
TrackLubriplate
Lubricant Aerosol
(GM Part No. 12346293 or
equivalent) or lubricant meeting
requirements of NLGI # 2,
Category LB or GC
-LB.
Weatherstrip
ConditioningDielectric Silicone Grease (GM
Part No. 12345579 or equivalent).

yellowblue
9-5
Flip and Fold Feature 1-7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fluid Capacities 6-64 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fluids and Lubricants 7-35 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Folding Seatbacks 1-6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Foreign Countries, Fuel 6-5 . . . . . . . . . . . . . . . . . . . . . . . . . . .
French Language Manual ii. . . . . . . . . . . . . . . . . . . . . . . . . . .
Front Seat Storage
Bin 2
-72 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Net 2-74 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front Sidemarker Lamp Bulb Replacement 6-36 . . . . . . . . . . .
Front Turn Signal/Parking Lamp Bulb Replacement 6-34 . . . .
Fuel 6-3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Filling Your Tank 6-5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Gage 2-100 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
In Foreign Countries 6-5 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuses and Circuit Breakers 6-58 . . . . . . . . . . . . . . . . . . . . . . .
Gages
Engine Coolant Temperature 2-94 . . . . . . . . . . . . . . . . . . . .
Fuel 2-100 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Speedometer 2-87 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Garage Door Opener Compartment 2-69 . . . . . . . . . . . . . . . . .
GAWR 4-30 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Gear Positions, Automatic Transaxle 2-43 . . . . . . . . . . . . . . . .
Glove Box 2-68 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
GM Mobility Program for Persons with Disabilities 8-5 . . . . .
GM Vehicle Care/Appearance Materials 6-55 . . . . . . . . . . . . .
Gross Axle Weight Rating (GAWR) 4-30 . . . . . . . . . . . . . . . .
Gross Vehicle Weight Rating (GVWR) 4-30 . . . . . . . . . . . . . .
Guide en Fran†ais ii. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
GVWR 4
-30 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Halogen Bulbs 6-31 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hazard Warning Flashers 5-2 . . . . . . . . . . . . . . . . . . . . . . . . . .
Head Restraints 1-6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Headlamps 2-61 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bulb Replacement 6-31 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
High/Low Beam Changer 2-56 . . . . . . . . . . . . . . . . . . . . . .
On Reminder 2-62 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wiring 6-57 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hearing Impaired, Customer Assistance 8-4 . . . . . . . . . . . . . .
Heated Outside Mirrors 2-67 . . . . . . . . . . . . . . . . . . . . . . . . . .
Heating 3-4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
High-Beam Headlamps 2-56 . . . . . . . . . . . . . . . . . . . . . . . . . .
Highway Hypnosis 4-23 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hill and Mountain Roads 4-23 . . . . . . . . . . . . . . . . . . . . . . . . .
Hitches, Trailer 4-35 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hood
Checking Things Under 6
-8 . . . . . . . . . . . . . . . . . . . . . . . . .
Prop 6-9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Release 6-8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Horn 2-55 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hydroplaning 4-19 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ignition Positions 2-38 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ignition Transaxle Lock Check 7-33 . . . . . . . . . . . . . . . . . . . .
Illuminated Entry 2-64 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Inflation, Tire 6-40 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Inflator, Air 2-80 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Inside Day/Night Rearview Mirror 2-66 . . . . . . . . . . . . . . . . .
Inspections
Brake System 7
-34 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Exhaust Systems 7-34 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
