CHEVROLET VENTURE 2000 1.G Owners Manual

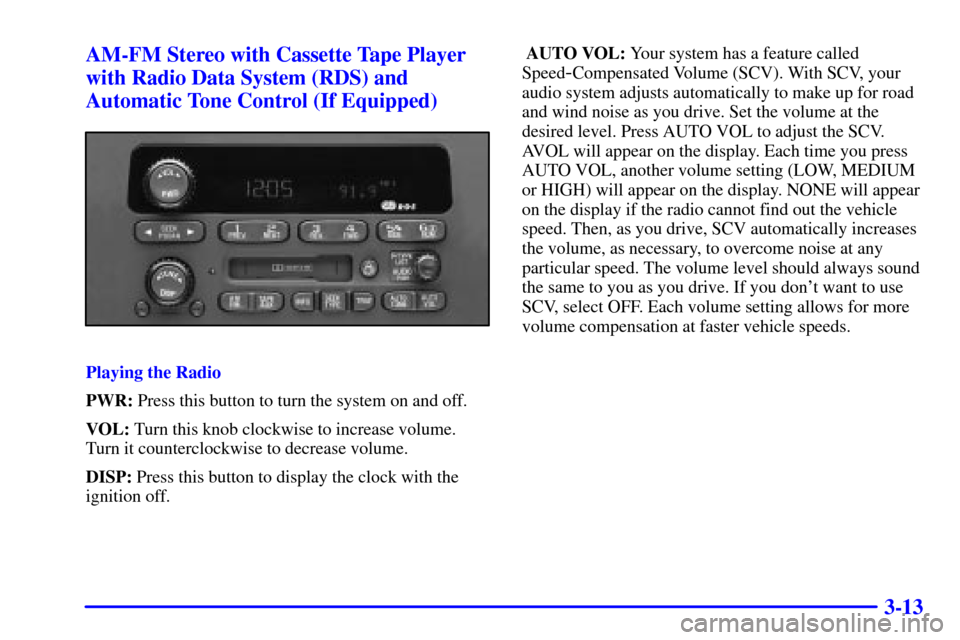

3-13 AM-FM Stereo with Cassette Tape Player
with Radio Data System (RDS) and
Automatic Tone Control (If Equipped)
Playing the Radio
PWR: Press this button to turn the system on and off.
VOL: Turn this knob clockwise to increase volume.
Turn it counterclockwise to decrease volume.
DISP: Press this button to display the clock with the
ignition off. AUTO VOL: Your system has a feature called
Speed
-Compensated Volume (SCV). With SCV, your
audio system adjusts automatically to make up for road
and wind noise as you drive. Set the volume at the
desired level. Press AUTO VOL to adjust the SCV.
AVOL will appear on the display. Each time you press
AUTO VOL, another volume setting (LOW, MEDIUM
or HIGH) will appear on the display. NONE will appear
on the display if the radio cannot find out the vehicle
speed. Then, as you drive, SCV automatically increases
the volume, as necessary, to overcome noise at any
particular speed. The volume level should always sound
the same to you as you drive. If you don't want to use
SCV, select OFF. Each volume setting allows for more
volume compensation at faster vehicle speeds.

3-14
Finding a Station
AM FM: Press this button to switch between AM, FM1
and FM2. The display shows your selection.
TUNE: Turn this knob to choose radio stations.
SEEK: Press the right arrow to tune to the next higher
station and the left arrow to tune to the next lower
station and stay there.
PUSHBUTTONS: The six numbered pushbuttons let
you return to your favorite stations. You can set up to
18 stations (six AM, six FM1 and six FM2). Just:
1. Turn the radio on.
2. Press AM FM to select the band.
3. Tune in the desired station.
4. Press AUTO TONE to select the equalization that
best suits the type of station selected.
5. Press and hold one of the six numbered buttons.
The radio will produce one beep. Whenever you
press that numbered button, the station you set will
return and the AUTO TONE equalization that you
selected will also be automatically selected for
that button.
6. Repeat the steps for each pushbutton.P SCAN: Press and hold one of the arrows for more
than two seconds. The radio will produce one beep.
Use P SCAN to listen to each of your favorite stations
stored on your pushbuttons for a few seconds. The radio
will scan through each of the stations stored on your
pushbuttons, except those stations with weak reception.
The AUTO TONE setting stored for that pushbutton will
be automatically chosen. Press P SCAN or one of the
pushbuttons again to stop scanning. SCAN will be
displayed whenever the tuner is in the P SCAN mode.
The channel number (P1
-P6) will appear with the
frequency. In FM mode, this function will scan through
the current band such as FM1 or FM2.
Setting the Tone
BASS: Press and release the P
-TYPE LIST/AUDIO
knob until BASS appears on the display. Then turn the
knob clockwise to increase bass and counterclockwise to
decrease bass. The display will show the bass level.
When you use this control, the radio's AUTO TONE
setting will switch to manual and the AUTO TONE
display will go blank. To set the tone and speaker
controls to the middle position, press and hold the
P
-TYPE LIST/AUDIO knob when no tone or
speaker control is active. The radio will produce one
beep and display ALL with the level display in the
middle position.

3-15
TREB: Press and release the P-TYPE LIST/AUDIO
knob until TREB appears on the display. Turn the knob
clockwise to increase treble and counterclockwise to
decrease treble. The display will show the treble level.
When you use this control, the radio's AUTO TONE
setting will switch to manual and the AUTO TONE
display will go blank. If a station is weak or noisy,
you may want to decrease the treble.
AUTO TONE: This feature allows you to choose preset
bass and treble equalization settings designed for
ROCK, NEWS, POP, JAZZ, CLASSIC and COUNTRY
stations. TONE and the preset equalization setting will
appear on the display when you press AUTO TONE.
Each time you press it, another setting will appear on the
display. The manual setting allows tone control to return
to the BASS and TREB controls. Use PUSHBUTTONS
and AUTO TONE button to program AUTO TONE for
station presets.Adjusting the Speakers
BAL: Press and release the P
-TYPE LIST/AUDIO
knob until BAL appears on the display. Turn the knob
clockwise to move the sound to the right speakers and
counterclockwise to move the sound to the left speakers.
The middle position balances the sound between the
speakers. The display will show the speaker balance.
To set the control to the middle position, select the
control and press and hold the P
-TYPE LIST/AUDIO
button. The radio will produce one beep and set the
display level to the middle position.
FADE: Press and release the P
-TYPE LIST/AUDIO
knob until FADE appears on the display. Turn the knob
clockwise to move the sound to the front speakers and
counterclockwise to move the sound to the rear
speakers. The middle position balances the sound
between the speakers. The display will show the
speaker balance.

3-16
Using RDS Mode
Your audio system is equipped with a Radio Data
System (RDS). RDS mode gives you many useful new
features. With RDS, the radio can:

Seek only to stations with the types of programs you
want to listen to,

seek to stations with traffic announcements,

receive announcements concerning local and
national emergencies, and

receive and display messages from radio stations.
RDS features are only available for use on FM stations
which broadcast RDS information. The RDS features of
your radio rely upon receiving specific RDS information
from these stations. These features will only work when
the RDS information is available. In rare cases, a radio
station may broadcast incorrect information that will
cause the radio features to work improperly. If this
happens, please contact the radio station.
When you are tuned to an RDS station, the station name
will appear on the display, instead of the frequency.
Most RDS stations provide their station name,
the time of day and a Program Type (PTY) for their
current programming.Accessing RDS Mode:
1. Push the SEEK TYPE button or rotate the P
-TYPE
LIST/AUDIO knob to display the program type list.
2. Turn the knob either clockwise or counterclockwise
to select a program type. The list is alphabetical.
3. Push SEEK TYPE button to activate search.
VOL: Turn this knob clockwise to increase volume
when RDS interrupts regular play. Turn it
counterclockwise to decrease volume.
DISP: Press this knob to recall the RDS station
being played.
TRAF: Press this button to receive traffic
announcements. If the current tuned station does not
broadcast traffic announcements, the radio will seek to a
station that does. The TRAF icon will flash on the
display. When the radio finds a station that broadcasts
traffic announcements, it will stop. If no station is found,
NO TRAF will appear on the display.

3-17
When a traffic announcement comes on the tuned radio
station, you will hear it, even if the volume is muted
or a cassette tape is playing. The TRAF icon and
TRAFFIC will appear on the display while the traffic
announcement plays. If the cassette tape was being used,
the tape will stay in the player and resume play at the
point where it stopped.
INFO: If the current station has a message, the INFO
icon will appear on the display. Press this button to see
the message. If the whole message does not appear on
the display, each time you press this button, the next part
of the message will appear on the display until the
message is completed. Press this button again to see the
message again. Once the complete message has been
displayed, the INFO icon will disappear from the
display until another new message is received.
P
-TYPE LIST/AUDIO: Turn this knob clockwise or
counterclockwise to select the Program Type (PTY) you
want to listen to. TYPE and a PTY will appear on the
display. See ªRadio Data System (RDS) Program
Type (PTY) Selectionsº in the Index.SEEK TYPE: Press this button to go to a station with
the last selected PTY. TYPE and the last selected PTY
will appear on the display, if it is not already showing.
If a station with the selected PTY is not found, the radio
will return to the original station and display NONE.
If both SEEK TYPE and TRAF are on, the radio will
search for stations with traffic announcements and the
selected PTY.
ALERT!: This type of announcement warns of national
or local emergencies. You will not be able to turn off
alert announcements. ALERT! appears on the display
when an alert announcement plays. When an alert
announcement comes on the tuned radio station, you
will hear it, even if the volume is muted or a cassette
tape or compact disc is playing. If the cassette tape or
compact disc player is playing, play will stop for the
announcement and resume when the announcement
is finished.

3-18
Playing a Cassette Tape
Your tape player is built to work best with tapes that are
up to 30 to 45 minutes long on each side. Tapes longer
than that are so thin they may not work well in this player.
The longer side with the tape visible should face to the
right. If the ignition is on, but the radio is off, the tape can
be inserted and will begin playing. A tape symbol is
shown on the display whenever a tape is inserted. If you
hear nothing but a garbled sound, the tape may not be in
squarely. Press EJT to remove the tape and start over.
While the tape is playing, use the VOL, FADE, BAL,
TREB, BASS, and SEEK controls just as you do for the
radio. The display will show TAPE and an arrow
showing which side of the tape is playing.
If you want to insert a tape when the ignition is off,
first press EJT or DISP.
PREV (1): Press this button to go to the beginning of
the current selection. If the PREV button is pressed
and the current selection has been playing from 3 to
13 seconds, it will go to the beginning of the previous
selection. If you press the button more than once, the
player will continue moving back through the tape.
SEEK and a negative number will appear on the display.
Your tape must have at least three seconds of silence
between each selection for PREV to work. The sound
will mute while seeking.NEXT (2): Press this button to go to the next selection
on the tape. If you press the button more than once,
the player will continue moving forward through the
tape. SEEK and a positive number will appear on the
display. Your tape must have at least three seconds of
silence between each selection for NEXT to work.
The sound will mute while seeking.
REV (3): Press this button to reverse the tape rapidly.
Press it again to return to playing speed. The radio will
play the last selected station while the tape reverses.
You may select stations during REV operation by using
TUNE, SEEK and P SCAN controls.
FWD (4): Press this button to advance quickly to
another part of the tape. Press the button again to return
to playing speed. The radio will play the last selected
station while the tape advances. You may select stations
during FWD operation by using TUNE, SEEK and
P SCAN controls.
SIDE (5): Press this button to play the other side of
the tape.
SEEK: Seek


is the same as NEXT, and  SEEK
is the same as PREV. If the button is held or pressed
more than once, the player will continue moving
forward or backward through the tape. SEEK and a
positive or negative number will appear on the display.

3-19

(6): Press this button to reduce background noise.
NR ON will appear on the display. Press it again to turn
Dolby off. NR OFF will appear on the display.
Dolby Noise Reduction is manufactured under a license
from Dolby Laboratories Licensing Corporation. Dolby
and the double
-D symbol are trademarks of Dolby
Laboratories Licensing Corporation.
AM FM: Press this button to play the radio when a
tape is in the player. The tape will stop but remain in
the player.
TAPE: With a cassette tape in the player and the radio
playing, press this button to play a cassette tape. Press
AM FM to return to the radio when a cassette tape is
playing. The inactive tape will remain safely inside the
radio for future listening.
TAPE AUX: With a cassette tape in the player and the
radio playing, press this button to play a cassette tape.
Press AM FM to return to the radio when a cassette tape
is playing. Press TAPE AUX to switch between the tape
and compact disc if both are loaded. The inactive tape
will remain safely inside the radio for future listening.EJT: Press this button to remove a tape. The radio will
play. EJT may be activated with the radio off. Cassette
tapes may be loaded with the radio off if this button is
pressed first.
CLEAN: If this message appears on the display, the
cassette tape player needs to be cleaned. It will still play
tapes, but you should clean it as soon as possible to
prevent damage to the tapes and player. See ªCare of
Your Cassette Tape Playerº in the Index. After you clean
the player, press and hold the eject button for five
seconds to reset the CLEAN indicator. The radio will
display CLEANED to show the indicator was reset.
Tight/Loose Tape Sensor Defeat
With the radio off and the ignition on, press and hold the
TAPE AUX button to disable the tight/loose tape
sensing feature to enable play of some tape head
cleaners and portable CD adapters. The radio will
display READY and flash the cassette icon. The
tight/loose tape sensing feature will then be disabled
until the next cassette eject.

3-20
CD Adapter Kits
It is possible to use a portable CD player adapter kit
with your cassette tape player after activating the bypass
feature on your tape player.
To activate the bypass feature, use the following steps:
1. Turn the ignition to RUN or ACCESSORY.
2. Turn the radio off.
3. Press and hold the TAPE AUX button for five
seconds. READY will appear on the display for five
seconds, indicating the feature is active.
4. Insert the adapter into the cassette slot. It will power
up the radio and begin playing.
This override routine will remain active until EJT
is pressed.AM-FM Stereo with Compact Disc Player
with Radio Data System (RDS) and
Automatic Tone Control (If Equipped)
Playing the Radio
PWR: Press this button to turn the system on and off.
VOL: Turn this knob clockwise to increase volume.
Turn it counterclockwise to decrease volume.
DISP: Press this button to display the clock with the
ignition off.

3-21
AUTO VOL: Your system has a feature called
Speed
-Compensated Volume (SCV). With SCV, your
audio system adjusts automatically to make up for road
and wind noise as you drive. Set the volume at the
desired level. Press AUTO VOL to adjust the SCV.
AVOL will appear on the display. Each time you press
AUTO VOL, another volume setting (LOW, MEDIUM
or HIGH) will appear on the display. NONE will appear
on the display if the radio cannot find out the vehicle
speed. Then, as you drive, SCV automatically increases
the volume, as necessary, to overcome noise at any
particular speed. The volume level should always sound
the same to you as you drive. If you don't want to use
SCV, select OFF. Each volume setting allows for more
volume compensation at faster vehicle speeds.
Finding a Station
AM FM: Press this button to switch between AM, FM1
and FM2. The display shows your selection.
TUNE: Turn this knob to choose radio stations.
SEEK: Press the right arrow to tune to the next higher
station and the left arrow to tune to the next lower
station and stay there.PUSHBUTTONS: The six numbered pushbuttons let
you return to your favorite stations. You can set up to
18 stations (six AM, six FM1 and six FM2). Just:
1. Turn the radio on.
2. Press AM FM to select the band.
3. Tune in the desired station.
4. Press AUTO TONE to select the equalization that
best suits the type of station selected.
5. Press and hold one of the six numbered buttons.
The radio will produce one beep. Whenever you
press that numbered button, the station you set will
return and the AUTO TONE equalization that you
selected will also be automatically selected for
that button.
6. Repeat the steps for each pushbutton.

3-22
P SCAN: Press and hold one of the arrows for more
than two seconds. The radio will produce one beep.
Use P SCAN to listen to each of your favorite stations
stored on your pushbuttons for a few seconds. The radio
will scan through each of the stations stored on your
pushbuttons, except those stations with weak reception.
The AUTO TONE setting stored for that pushbutton will
be automatically chosen. Press P SCAN or one of the
pushbuttons again to stop scanning. SCAN will be
displayed whenever the tuner is in the P SCAN mode.
The channel number (P1
-P6) will appear with the
frequency. In FM mode, this function will scan through
the current band such as FM1 or FM2.
Setting the Tone
BASS: Press and release the P
-TYPE LIST/AUDIO
knob until BASS appears on the display. Then turn the
knob clockwise to increase bass and counterclockwise to
decrease bass. The display will show the bass level.
When you use this control, the radio's AUTO TONE
setting will switch to manual and the AUTO TONE
display will go blank. To set the tone and speaker
controls to the middle position, press and hold the
P
-TYPE LIST/AUDIO knob when no tone or
speaker control is active. The radio will produce one
beep and display ALL with the level display in the
middle position.TREB: Press and release the P
-TYPE LIST/AUDIO
knob until TREB appears on the display. Turn the knob
clockwise to increase treble and counterclockwise to
decrease treble. The display will show the treble level.
When you use this control, the radio's AUTO TONE
setting will switch to manual and the AUTO TONE
display will go blank. If a station is weak or noisy,
you may want to decrease the treble.
AUTO TONE: This feature allows you to choose preset
bass and treble equalization settings designed for
ROCK, NEWS, POP, JAZZ, CLASSIC and COUNTRY
stations. TONE and the preset equalization setting will
appear on the display when you press AUTO TONE.
Each time you press it, another setting will appear on the
display. The manual setting allows tone control to return
to the BASS and TREB controls. Use PUSHBUTTONS
and AUTO TONE button to program AUTO TONE for
station presets.
