CHEVROLET VENTURE 2000 1.G Owners Manual

5-21
Changing a Flat Tire
If a tire goes flat, avoid further tire and wheel damage
by driving slowly to a level place. Turn on your hazard
warning flashers.
CAUTION:
Changing a tire can cause an injury. The vehicle
can slip off the jack and roll over you or other
people. You and they could be badly injured.
Find a level place to change your tire. To help
prevent the vehicle from moving:
1. Set the parking brake firmly.
2. Put the shift lever in PARK (P).
3. Turn off the engine.
To be even more certain the vehicle won't move,
you can put blocks at the front and rear of the
tire farthest away from the one being changed.
That would be the tire on the other side of the
vehicle, at the opposite end.
The following steps will tell you how to use the jack and
change a tire.

5-22 Removing the Spare Tire and Tools
The equipment you'll need
is located in the storage
compartment at the rear of
the vehicle, on the
passenger's side.
1. Remove the side convenience net.
2. Open the jack storage compartment by lifting up the
tab and pulling the cover off.
A. Jack
B. Strap
C. BracketD. Wing Nut
E. Jacking Instructions
F. Bag and Tools
Remove the jack and jacking tools by loosening the
wing nut and bracket.
Separate the plastic pouch from the jack and remove the
jacking tools (folding wrench and extension) from
the pouch.

5-23
A. Hoist Shaft
B. Hoist Assembly
C. RetainerD. Spare Tire
E. Extension
(Chisel End)
F. Folding WrenchThe compact spare tire is located under the vehicle,
ahead of the rear bumper. (See ªCompact Spare Tireº
later in this section for more information about the
compact spare.) Attach the folding wrench to the
extension and insert the chisel end on an angle through
the hole in the rear bumper and into the hoist shaft.
Then, turn the folding wrench counterclockwise to
lower the spare tire to the ground. Continue to turn the
wrench so the spare tire can be pulled out from under
the vehicle.

5-24
Tilt the retainer at the end of the cable so it can be pulled
up through the wheel opening.

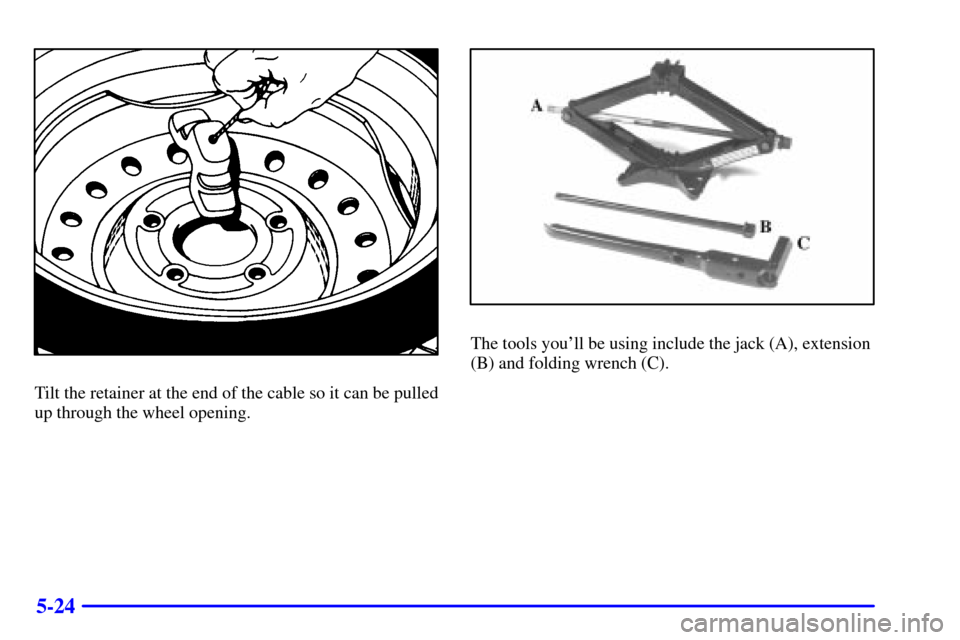

The tools you'll be using include the jack (A), extension
(B) and folding wrench (C).

5-25 Removing the Flat Tire and Installing
the Spare Tire
1. If your vehicle has
aluminum wheels,
use the handle of
the folding wrench
to pry the large
center cap.
Then, with the other end of the folding wrench,
loosen the nuts.
If your vehicle has the plastic ªbolt-onº wheel
covers, loosen them completely using the folding
wrench, and remove the wheel cover.

5-26
2. Loosen the wheel
nuts
-- but do not remove
them
-- using the folding
wrench. (Turn the handle
about 180 degrees, then
flip the handle back to
the starting position.
This avoids taking the
wrench off the lug nut for
each turn.)
For wheels with a wheel lock key, use the wheel lock
key between the lock nut and folding wrench. The key is
supplied in the front passenger's door pocket.NOTICE:
To help avoid damage to the lock nut or the wheel
lock key, do not use an impact wrench with
this key.

5-27
3. Near each wheel,
there is a notch in
the vehicle's body.
Position the jack
and raise the jack
head until it fits
firmly into the
notch in the
vehicle's frame
nearest the flat tire.
NOTICE:
Do not place the jack under the rear axle control
arms. Only use the areas shown for proper
jack location.
Do not raise the vehicle yet. Put the compact spare
tire near you.
CAUTION:
Getting under a vehicle when it is jacked up is
dangerous. If the vehicle slips off the jack, you
could be badly injured or killed. Never get under
a vehicle when it is supported only by a jack.
CAUTION:
Raising your vehicle with the jack improperly
positioned can damage the vehicle and even make
the vehicle fall. To help avoid personal injury and
vehicle damage, be sure to fit the jack lift head
into the proper location before raising
the vehicle.

5-28
4. Attach the folding
wrench to the jack, and
turn the wrench
clockwise to raise the
jack head a few inches.
5. Raise the vehicle by turning the folding wrench
clockwise in the jack. Raise the vehicle far enough
off the ground so there is enough room for the spare
tire to fit.
6. Remove all the wheel nuts and take off the flat tire.7. Remove any rust or dirt
from the wheel bolts,
mounting surfaces and
spare wheel.
CAUTION:
Rust or dirt on the wheel, or on the parts to
which it is fastened, can make the wheel nuts
become loose after a time. The wheel could come
off and cause an accident. When you change a
wheel, remove any rust or dirt from the places
where the wheel attaches to the vehicle. In an
emergency, you can use a cloth or a paper towel
to do this; but be sure to use a scraper or wire
brush later, if you need to, to get all the rust
or dirt off.

5-29
CAUTION:
Never use oil or grease on studs or nuts. If you
do, the nuts might come loose. Your wheel could
fall off, causing a serious accident.
8. Install the spare tire and put the wheel nuts back on
with the rounded end of the nuts toward the wheel.
Tighten each nut by hand until the wheel is held
against the hub.
9. Lower the vehicle by attaching the folding wheel
wrench to the jack and turning the wrench
counterclockwise. Lower the jack completely.

5-30
10. Tighten the wheel nuts
firmly in a crisscross
sequence, as shown.
CAUTION:
Incorrect wheel nuts or improperly tightened
wheel nuts can cause the wheel to become loose
and even come off. This could lead to an accident.
Be sure to use the correct wheel nuts. If you have
to replace them, be sure to get new GM original
equipment wheel nuts.
Stop somewhere as soon as you can and have
the nuts tightened with a torque wrench to
100 lb
-ft (140 N´m).
NOTICE:
Improperly tightened wheel nuts can lead to
brake pulsation and rotor damage. To avoid
expensive brake repairs, evenly tighten the wheel
nuts in the proper sequence and to the proper
torque specification.
11. Don't try to put a wheel cover on the compact spare
tire. It won't fit. Store the wheel cover securely in
the rear of the vehicle until you have the flat tire
repaired or replaced.
NOTICE:
Wheel covers won't fit on your compact spare.
If you try to put a wheel cover on your compact
spare, you could damage the cover or the spare.
