CHEVROLET VENTURE 2000 1.G Owners Manual

6-57

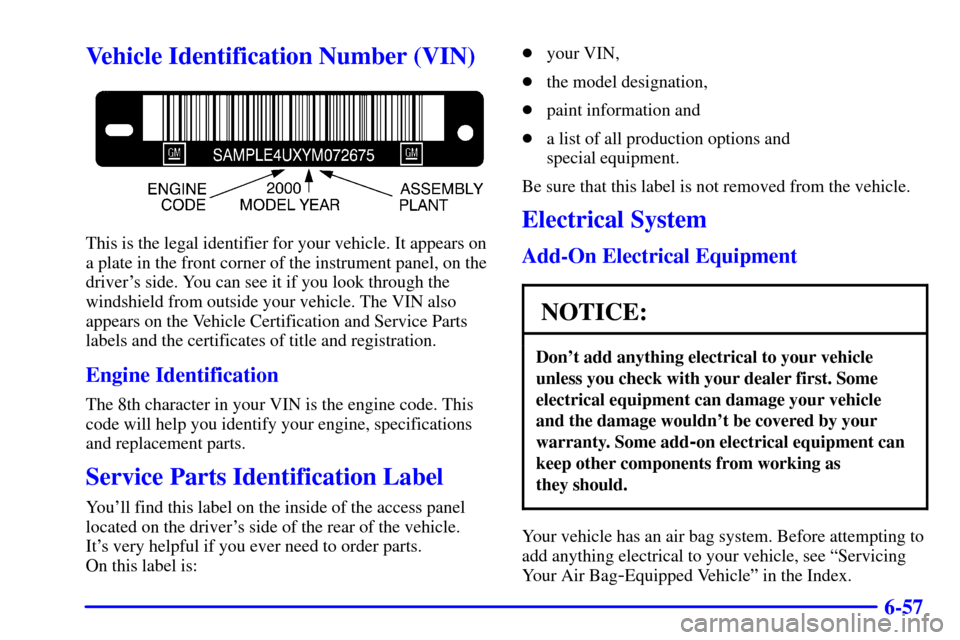

Vehicle Identification Number (VIN)
This is the legal identifier for your vehicle. It appears on
a plate in the front corner of the instrument panel, on the
driver's side. You can see it if you look through the
windshield from outside your vehicle. The VIN also
appears on the Vehicle Certification and Service Parts
labels and the certificates of title and registration.
Engine Identification
The 8th character in your VIN is the engine code. This
code will help you identify your engine, specifications
and replacement parts.
Service Parts Identification Label
You'll find this label on the inside of the access panel
located on the driver's side of the rear of the vehicle.
It's very helpful if you ever need to order parts.
On this label is:
your VIN,

the model designation,

paint information and

a list of all production options and
special equipment.
Be sure that this label is not removed from the vehicle.
Electrical System
Add-On Electrical Equipment
NOTICE:
Don't add anything electrical to your vehicle
unless you check with your dealer first. Some
electrical equipment can damage your vehicle
and the damage wouldn't be covered by your
warranty. Some add
-on electrical equipment can
keep other components from working as
they should.
Your vehicle has an air bag system. Before attempting to
add anything electrical to your vehicle, see ªServicing
Your Air Bag
-Equipped Vehicleº in the Index.

6-58 Headlamp Wiring
The headlamp wiring is protected by an internal circuit
breaker in the instrument panel fuse panel. An electrical
overload will cause the lamps to go on and off, or in
some cases to remain off. If this happens, have your
headlamp wiring checked right away.
Windshield Wipers
The windshield wiper motor is protected by an internal
circuit breaker and a fuse. If the motor overheats due to
heavy snow, etc., the wiper will stop until the motor
cools. If the overload is caused by some electrical
problem, be sure to get it fixed.
Power Windows and Other Power Options
Circuit breakers in the instrument panel fuse panel
protect the power windows and other power accessories.
When the current load is too heavy, the circuit breaker
opens and closes, protecting the circuit until the problem
is fixed.
Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected from
short circuits by a combination of fuses, circuit breakers
and fusible thermal links.
Look at the silver
-colored band inside the fuse. If the
band is broken or melted, replace the fuse. Be sure you
replace a bad fuse with a new one of the identical size
and rating.
If you ever have a problem on the road and don't have a
spare fuse, you can borrow one that has the same
amperage or use one of the spare fuses in the underhood
fuse and relay center. Just pick some feature of your
vehicle that you can get along without
-- like the radio
or cigarette lighter
-- and use its fuse, if it is the right
amperage. Replace it as soon as you can.
There are two fuse blocks in your vehicle: the
instrument panel fuse block and the underhood fuse
and relay center.

6-59
Instrument Panel Fuse Block
The instrument panel fuse
block is located to the right
of the glove box.
Pull the door open to access the instrument
panel fuse block.
Circuit
BreakersUsage
HEADLAMP DRL Control Module, Headlamp and
Instrument Panel Dimmer Switch
PWR WDO Front Power Windows
PWR HEATED
SEAT/PSD6
-Way Power Seat(s) and Rear Side
Door Actuator Motor
FRT HVAC/
HI BLWRBlower Motor Hi Speed
Relay Module

6-60
Fuses Usage
SWC
BACKLIGHTSteering Wheel Radio Control
Switches (Illumination)
PCM/PASS
KEY/CLUSTERInstrument Cluster to
PRNDL Indicators
PWR MIRROR Power Remote Control
Mirror Switch
CRUISE Cruise Control Module, Switch and
Release Switch
PCM/CRANK Power Control Module (PCM),
Ignition Crank
PASS KEY PASS
-Key III System
PWR LOCK Body Control Module (BCM)
HTD MIRROR Heated Mirrors
RH T/LP Not Used
RR FOG LP Not Used
CIGAR/DLC Cigarette Lighter and Data Link
Connector (DLC)
T/SIG Turn Signal Switch
PWR
QTR VENTInterior Lamp and Multifunction
Switch (Power Vent Switch)
FRT
WPR/WSHRWindshield Wiper/Washer
Motor and SwitchFuses Usage
HAZARD Turn Signal Switch
RR PWR SCKT Rear Electric Accessory
Plug Housing
DRL Daytime Running Lamps (DRL)
Control Module
LH T/LP Not Used
RR
DEFOG/HTD
MIRRORSRear Window Defogger Relay,
Heated Mirrors
FRT PWR SCKT Front Electric Accessory
Plug Housing
SIR Inflatable Restraint Control Module
HVAC
BLOWERHeater
-A/C Control
MALL/
CLUSTERInstrument Cluster, BCM,
Electronic Level Control (ELC)
Sensor and Relay
STOP LAMP Stoplamp Switch
CLUSTER
BATTModule/Electronic Brake Control
Module/Electronic Brake Traction
Control Module (EBCM/EBTCM)

6-61
Fuses Usage
CAN
VENT SOLEvaporative Emissions (EVAP)
Canister Vent Solonoid Valve
ELC/TRAILER Electronic Level Control (ELC)
Air Compressor and ELC Relay,
Trailer Harness
CTSY LAMP BCM
IGN 1 BCM, Electronic Brake Control
Indicator Lamp Driver Module,
Instrument Panel Cluster, Rear Side
Door Actuator Control Module,
Rear Windows
RR HVAC
TEMP CONTRear HVAC
-A/C Control
RR WPR/WSHR Rear Window Wiper Motor,
Rear Window Wiper/Washer
and Multifunction Switch (Rear
Window Wiper/Washer Switch)
LH
HEADLP LOWNot Used
LH
HEADLP HIGHNot UsedFuses Usage
RAP RELAY Retained Accessory
Power (RAP) Relay
HVAC/DIC/DRL
HEATED SEATAir Inlet Actuator, Driver
Information Display, DRL Control
Module, Heater
-A/C Control,
Temperature Door Actuator (Front)
and Rear Window Defogger Relay
BCM PRGRM BCM
RH
HEADLP LOWNot Used
RH
HEADLP HIGHNot Used
PCM/ABS IGN MAIN Relay and PCM,
Electronic Break Control Module

6-62
Underhood Fuse and Relay Center
This fuse and relay
center is located in the
engine compartment,
in front of the
windshield washer
fluid reservoir.
The fuses marked spare are available if a replacement
fuse is needed.
To remove the cover, turn the knob clockwise and lift up
on the remote positive (+) battery terminal cover.
Remove the cover.
Maxi Fuse Usage
1
-COOL FAN 2 Coolant Fans
2 Not Used
3
-HEADLAMPS Circuit Breakers: FRT HVAC HI
BLWR, and HEADLAMP Fuses
(Instrument Panel): HAZARD
and STOPLAMP
4
-BATT MAIN 2 Circuit Breaker: PWR
SEAT/PSD. Fuses (Instrument
Panel): ELC and RR DEFOG

6-63
Maxi Fuse Usage
5
-IGN MAIN 1 Ignition Switch to Fuses
(Instrument Panel): ABS/TCS
IGN, CRUISE, DRL, ELEC
PRNDL, IGN 1, PSD, SIR, T/SIG
and PCM [IGN MAIN Relay
(Underhood Electrical Center
Fuses: A/C CLU, ELEK IGN,
IGN 1
-U/H, INJ, TCC)]
6
-COOL FAN 1 Coolant Fans
7
-BATT MAIN 1 Fuses (Instrument Panel): ABS
MOD BATT, CIGAR/DLC,
CTSY LAMP, FRT PWR SCKT,
PWR LOCK, PWR MIRROR and
RR PWR SCKT
8
-IGN MAIN 2 Ignition Switch to Fuses (I/P):
BCM PRGRM, FRT HVAC
LOW/MED BLWR, FRT
WPR/WSHR, HVAC/DRL,
MALL/RADIO/DIC, PWR QRT
VENT, RR HVAC, RR
WPR/WSHR, SWC ACCY and
PWR WDO Circuit BreakerMini Relays Usage
9
-COOL FAN RH FAN 1, LH FAN 2
10
-COOL FAN 2 LH FAN 2
11
-IGN MAIN FUSES: A/C CLU, IGN 1-U/H,
INS, ELEK IGN, TCC
12
-COOL FAN 1 RH FAN 1, LH FAN 2
Micro Relays Usage
13
-A/C CLU A/C Clutch
14
-FUEL PUMP Fuel Pump
15
-F/PMP SPD
CONTNot Used
16
-HORN Horn
17
-FOG LAMP LH Fog Lamp, RH Fog Lamp,
Fog Lamp Indicator
Mini Fuse Usage
18
-INJ Fuel Injectors 1-6
19
-SPARE Not Used
20 Not Used

6-64
Mini Fuse Usage
21
-IGN1-UH Evaporative Emissions (EVAP)
Canister Purge Valve, Heated
Oxygen Sensors 1 and 2, Mass
Air Flow (MAF) Sensor
22
-SPARE Not Used
23
-SPARE Not Used
24
-SPARE Not Used
25
-ELEK IGN Ignition Control Module (ICM)
26
-SPARE Not Used
27
-B/U LAMP Transaxle Range Switch to
Back
-up Lamps
28
-A/C CLU A/C CLU Relay to A/C
Compressor Clutch Oil
29
-RADIO Driver Information Display,
Heater A/C Control, Radio, Rear
Side Door Actuator Control
Motor, Remote Control Door
Lock Receiver (RCDLR),
Security Indicator Lamp and
Theft
-Deterrent Shock Sensor
30
-ALT SENSE GeneratorMini Fuse Usage
31
-TCC Automatic Transaxle (Torque
Converter Clutch Solenoids)
Stoplamp Switch to PCM
32
-FUEL PUMP Fuel Pump Relay
33
-ECM SENSE Powertrain Control Module
(PCM)
34 Not Used
35
-FOG LP Fog Lamp Relay
36
-HORN Horn Relay
37
-PARK LP Daytime Running Lamps (DRL)
Control Module, Headlamps and
Instrument Panel Dimmer Switch
Theft
-Deterrent Relay to
Headlamps
38 Not Used
39
-SPARE Not Used
40 Mini Fuse Puller

6-65
Replacement Bulbs
Headlamps 9004-HBI . . . . . . . . . . . . . . . . . . . . . . . . .
Front Turn Signal/
Parking Lamps 3157NA or 3157 NAK. . . . . . . . . .
Front Sidemarker Lamps 194. . . . . . . . . . . . . . . . . . .
Stop/Taillamps (Top) 3057. . . . . . . . . . . . . . . . . . . . .
Signal Lamps (2nd from Top) 3156. . . . . . . . . . . . . .
Back
-up Lamps (3rd from Top) 3156. . . . . . . . . . . . .
Taillamps (Bottom) 3057. . . . . . . . . . . . . . . . . . . . . .
Capacities and Specifications
The following approximate capacities are given in
English and metric conversions.
Please refer to ªRecommended Fluids and Lubricantsº
in the Index for more information.
Automatic Transaxle
Pan Removal and Replacement 8.0 quarts (7.5 L). . .
Complete Overhaul 10.0 quarts (9.5 L). . . . . . . . . . .
Cooling System
With A/C 9.6 quarts (9.1 L). . . . . . . . . . . . . . . . . . . .
With Rear Climate Control 11.9 quarts (11.3 L). . . . . Engine Crankcase
- Oil
and Filter Change4.5 quarts (4.25 L) . . . . . . . . . .
Fuel Capacity
Standard/Regular 19.8 gallons (75.0 L). . . . . . . . . . . .
Optional/Extended 25.0 gallons (94.0 L). . . . . . . . . . .
Refrigerant,
Air ConditioningSee Refrigerant . . . . . . . . . . . . . .
Label under the hood.
Tire Pressures, SizesSee Certification/Tire . . . . . . . .
label on the rear edge of the driver's door.
Wheel Nut Torque100 lb
-ft (140 N´m) . . . . . . . . . .
Windshield Washer Fluid1.0 gallon (0.37 L) . . . . .
All capacities are approximate. When adding, be sure to fill
to the appropriate level, as recommended in this manual.
Engine Specifications
Engine VIN Code E. . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine Type V6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Firing Order 1
-2-3-4-5-6 . . . . . . . . . . . . . . . . . . . . . .
Horsepower 185. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Thermostat Temperature
Specification 195
F (91
C) . . . . . . . . . . . . . . . . . . .

6-66
Normal Maintenance
Replacement Parts
Air Cleaner Filter AC Type A-1208C . . . . . . . . . . . . .
Battery Replacement CCA=600. . . . . . . . . . . . . . . . .
Engine Oil Filter PF47. . . . . . . . . . . . . . . . . . . . . . . .
Passenger Compartment Air Filter (2) 52482929. . . .
Radiator Pressure Cap RC27. . . . . . . . . . . . . . . . . . . .
Spark Plugs AC Type 41
-940 . . . . . . . . . . . . . . . . . . .
Gap: 0.060 inches (1.5 mm)
Windshield Wiper Blades
Length 24.0 inches (60.0 cm). . . . . . . . . . . . . . . . . .
Type Sheperd's Hook. . . . . . . . . . . . . . . . . . . . . . . . .
Wiper Blade (Backglass)
Length 16.0 inches (40.6 cm). . . . . . . . . . . . . . . . . .
Type Sheperd's Hook. . . . . . . . . . . . . . . . . . . . . . . . .
Vehicle Dimensions - Regular Wheel Base
Length 186.9 inches (474.6 cm). . . . . . . . . . . . . . . . .
Width 72.0 inches (183.0 cm). . . . . . . . . . . . . . . . . . .
Height 67.4 inches (171.2 cm). . . . . . . . . . . . . . . . . . .
Wheelbase 112.0 inches. . . . . . . . . . . . . . . . . . . . . . .
(284.5 cm)
Front Tread Width 61.5 inches (156.2 cm). . . . . . . .
Rear Tread Width 63.3 inches (160.8 cm). . . . . . . .
Vehicle Dimensions - Extended Wheel Base
Length 200.9 inches (510.2 cm). . . . . . . . . . . . . . . . .
Width 72.0 inches (183.0 cm). . . . . . . . . . . . . . . . . . .
Height 68.1 inches (172.9 cm). . . . . . . . . . . . . . . . . . .
Wheelbase 120.0 inches. . . . . . . . . . . . . . . . . . . . . . .
(304.7 cm)
Front Tread Width 61.5 inches (156.2 cm). . . . . . . .
Rear Tread Width 63.3 inches (160.8 cm). . . . . . . .
