CHEVROLET VOLT 2016 2.G Owners Manual

Chevrolet VOLT Owner Manual (GMNA-Localizing-U.S/Canada/Mexico-
9159388) - 2016 - crc - 5/20/15
250 Vehicle Care
5. Install the new bulb in thesocket.
6. Install the bulb socket by turning it clockwise.
7. Install the cover in the back of the headlamp assembly by
turning it clockwise.

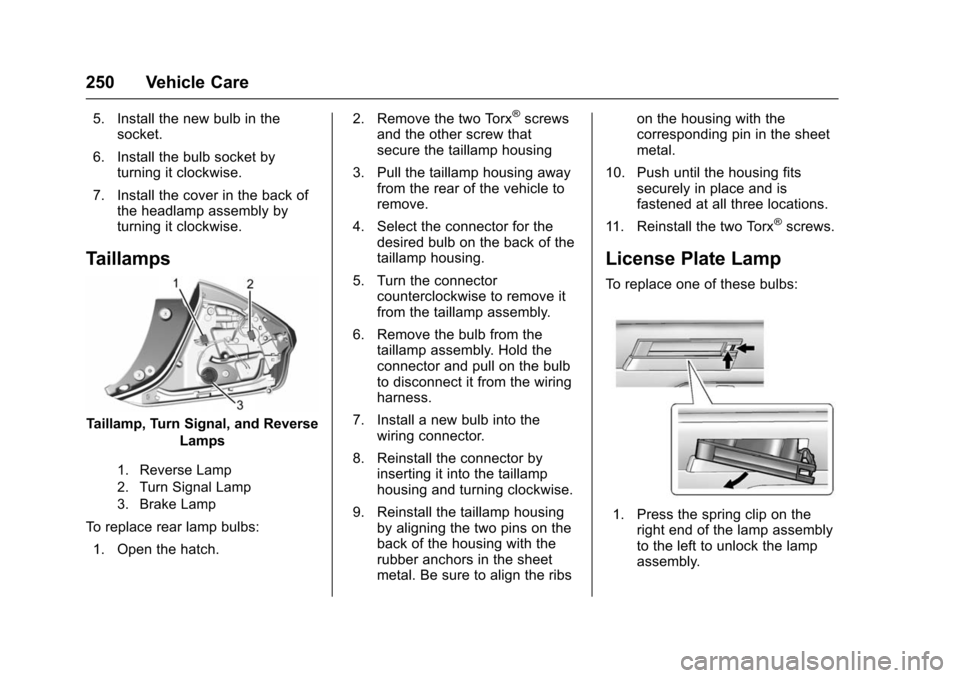

Taillamps
Taillamp, Turn Signal, and Reverse
Lamps
1. Reverse Lamp
2. Turn Signal Lamp
3. Brake Lamp
To replace rear lamp bulbs:
1. Open the hatch. 2. Remove the two Torx
®screws
and the other screw that
secure the taillamp housing
3. Pull the taillamp housing away from the rear of the vehicle to
remove.
4. Select the connector for the desired bulb on the back of the
taillamp housing.
5. Turn the connector counterclockwise to remove it
from the taillamp assembly.
6. Remove the bulb from the taillamp assembly. Hold the
connector and pull on the bulb
to disconnect it from the wiring
harness.
7. Install a new bulb into the wiring connector.
8. Reinstall the connector by inserting it into the taillamp
housing and turning clockwise.
9. Reinstall the taillamp housing by aligning the two pins on the
back of the housing with the
rubber anchors in the sheet
metal. Be sure to align the ribs on the housing with the
corresponding pin in the sheet
metal.
10. Push until the housing fits securely in place and is
fastened at all three locations.
11. Reinstall the two Torx
®screws.
License Plate Lamp
To replace one of these bulbs:
1. Press the spring clip on the right end of the lamp assembly
to the left to unlock the lamp
assembly.

Chevrolet VOLT Owner Manual (GMNA-Localizing-U.S/Canada/Mexico-
9159388) - 2016 - crc - 5/20/15
Vehicle Care 251
2. Pull down on the lampassembly to remove it from the
fascia.

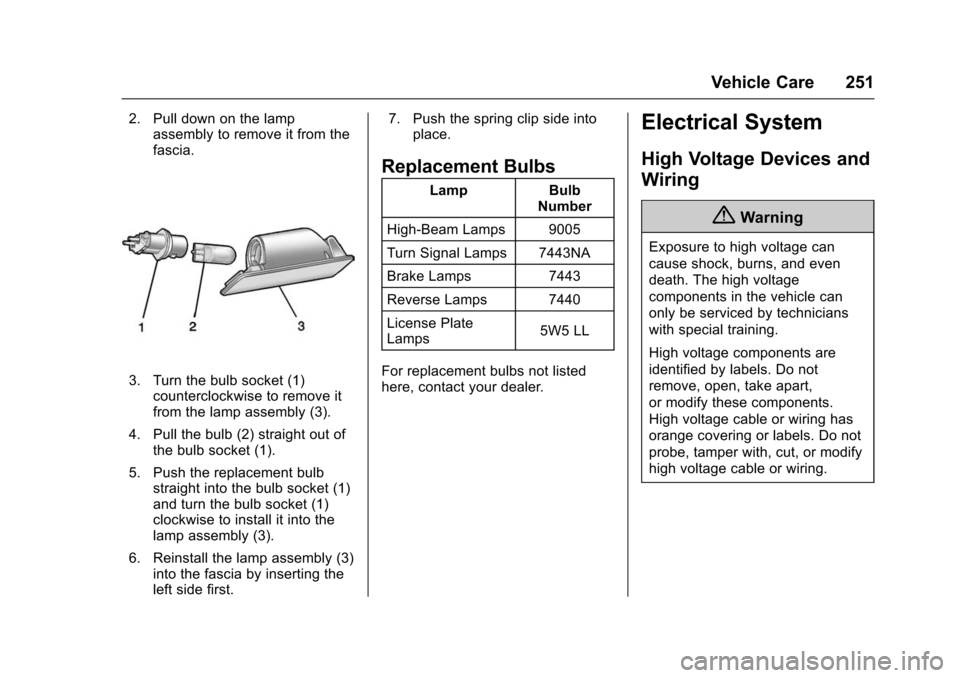

3. Turn the bulb socket (1)
counterclockwise to remove it
from the lamp assembly (3).
4. Pull the bulb (2) straight out of the bulb socket (1).
5. Push the replacement bulb straight into the bulb socket (1)
and turn the bulb socket (1)
clockwise to install it into the
lamp assembly (3).
6. Reinstall the lamp assembly (3) into the fascia by inserting the
left side first. 7. Push the spring clip side into
place.
Replacement Bulbs
Lamp Bulb
Number
High-Beam Lamps 9005
Turn Signal Lamps 7443NA
Brake Lamps 7443
Reverse Lamps 7440
License Plate
Lamps 5W5 LL
For replacement bulbs not listed
here, contact your dealer.
Electrical System
High Voltage Devices and
Wiring
{Warning
Exposure to high voltage can
cause shock, burns, and even
death. The high voltage
components in the vehicle can
only be serviced by technicians
with special training.
High voltage components are
identified by labels. Do not
remove, open, take apart,
or modify these components.
High voltage cable or wiring has
orange covering or labels. Do not
probe, tamper with, cut, or modify
high voltage cable or wiring.

Chevrolet VOLT Owner Manual (GMNA-Localizing-U.S/Canada/Mexico-
9159388) - 2016 - crc - 5/20/15
252 Vehicle Care

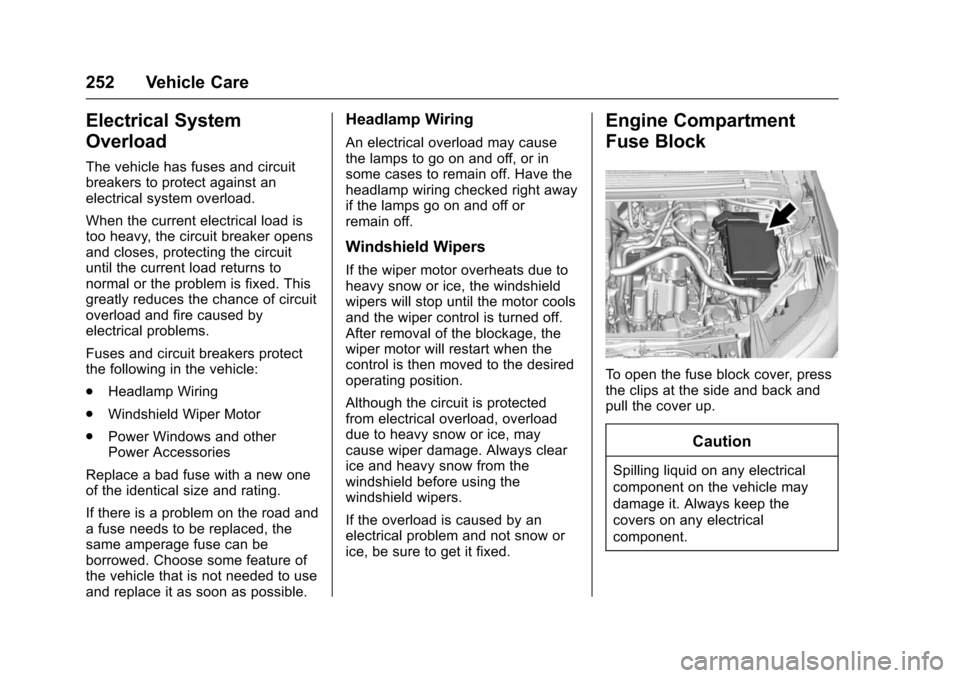

Electrical System
Overload
The vehicle has fuses and circuit
breakers to protect against an
electrical system overload.
When the current electrical load is
too heavy, the circuit breaker opens
and closes, protecting the circuit
until the current load returns to
normal or the problem is fixed. This
greatly reduces the chance of circuit
overload and fire caused by
electrical problems.
Fuses and circuit breakers protect
the following in the vehicle:
.Headlamp Wiring
. Windshield Wiper Motor
. Power Windows and other
Power Accessories
Replace a bad fuse with a new one
of the identical size and rating.
If there is a problem on the road and
a fuse needs to be replaced, the
same amperage fuse can be
borrowed. Choose some feature of
the vehicle that is not needed to use
and replace it as soon as possible.
Headlamp Wiring
An electrical overload may cause
the lamps to go on and off, or in
some cases to remain off. Have the
headlamp wiring checked right away
if the lamps go on and off or
remain off.
Windshield Wipers
If the wiper motor overheats due to
heavy snow or ice, the windshield
wipers will stop until the motor cools
and the wiper control is turned off.
After removal of the blockage, the
wiper motor will restart when the
control is then moved to the desired
operating position.
Although the circuit is protected
from electrical overload, overload
due to heavy snow or ice, may
cause wiper damage. Always clear
ice and heavy snow from the
windshield before using the
windshield wipers.
If the overload is caused by an
electrical problem and not snow or
ice, be sure to get it fixed.
Engine Compartment
Fuse Block
To open the fuse block cover, press
the clips at the side and back and
pull the cover up.
Caution
Spilling liquid on any electrical
component on the vehicle may
damage it. Always keep the
covers on any electrical
component.

Chevrolet VOLT Owner Manual (GMNA-Localizing-U.S/Canada/Mexico-
9159388) - 2016 - crc - 5/20/15
Vehicle Care 253

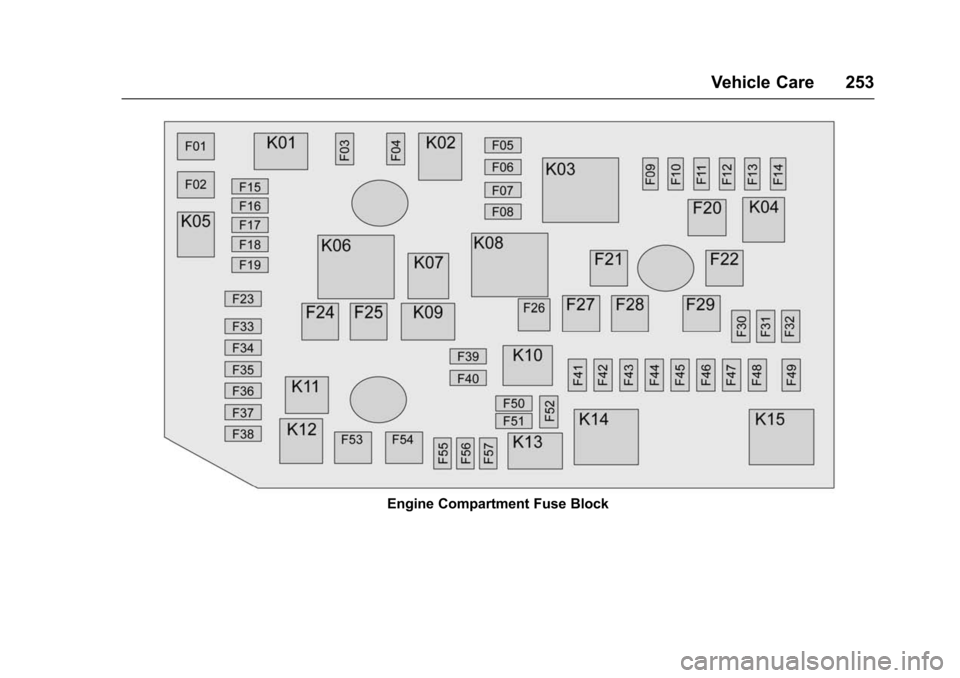

Engine Compartment Fuse Block

Chevrolet VOLT Owner Manual (GMNA-Localizing-U.S/Canada/Mexico-
9159388) - 2016 - crc - 5/20/15
254 Vehicle Care

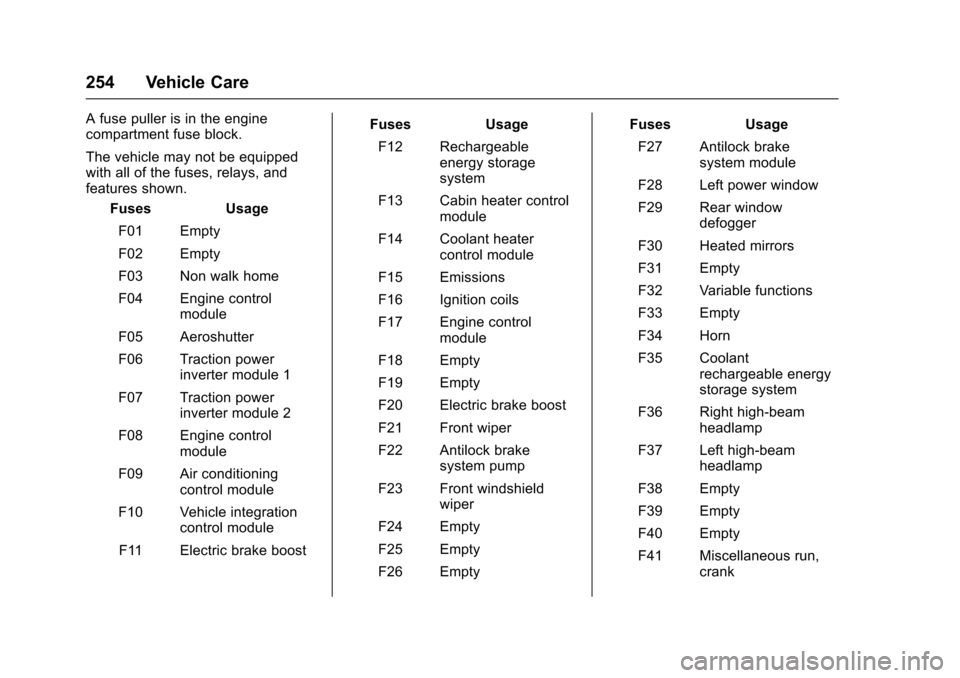

A fuse puller is in the engine
compartment fuse block.
The vehicle may not be equipped
with all of the fuses, relays, and
features shown.Fuses Usage
F01 Empty
F02 Empty
F03 Non walk home
F04 Engine control module
F05 Aeroshutter
F06 Traction power inverter module 1
F07 Traction power inverter module 2
F08 Engine control module
F09 Air conditioning control module
F10 Vehicle integration control module
F11 Electric brake boost Fuses
Usage
F12 Rechargeable energy storage
system
F13 Cabin heater control module
F14 Coolant heater control module
F15 Emissions
F16 Ignition coils
F17 Engine control module
F18 Empty
F19 Empty
F20 Electric brake boost
F21 Front wiper
F22 Antilock brake system pump
F23 Front windshield wiper
F24 Empty
F25 Empty
F26 Empty Fuses
Usage
F27 Antilock brake system module
F28 Left power window
F29 Rear window defogger
F30 Heated mirrors
F31 Empty
F32 Variable functions
F33 Empty
F34 Horn
F35 Coolant rechargeable energy
storage system
F36 Right high-beam headlamp
F37 Left high-beam headlamp
F38 Empty
F39 Empty
F40 Empty
F41 Miscellaneous run, crank

Chevrolet VOLT Owner Manual (GMNA-Localizing-U.S/Canada/Mexico-
9159388) - 2016 - crc - 5/20/15
Vehicle Care 255

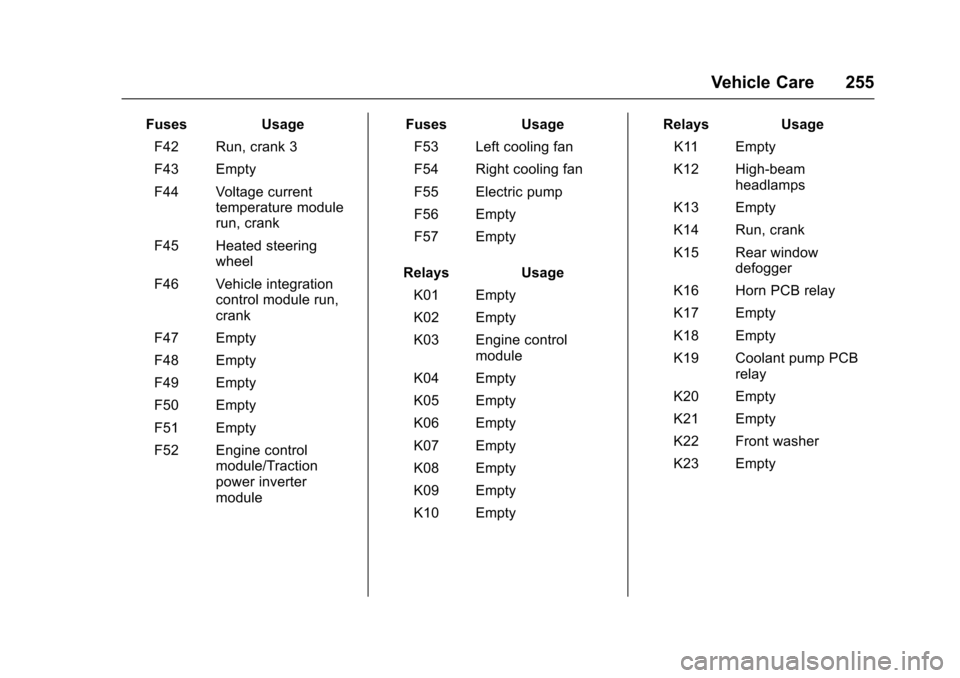

FusesUsage
F42 Run, crank 3
F43 Empty
F44 Voltage current temperature module
run, crank
F45 Heated steering wheel
F46 Vehicle integration control module run,
crank
F47 Empty
F48 Empty
F49 Empty
F50 Empty
F51 Empty
F52 Engine control module/Traction
power inverter
module Fuses
Usage
F53 Left cooling fan
F54 Right cooling fan
F55 Electric pump
F56 Empty
F57 Empty
Relays Usage
K01 Empty
K02 Empty
K03 Engine control module
K04 Empty
K05 Empty
K06 Empty
K07 Empty
K08 Empty
K09 Empty
K10 Empty Relays
Usage
K11 Empty
K12 High-beam headlamps
K13 Empty
K14 Run, crank
K15 Rear window defogger
K16 Horn PCB relay
K17 Empty
K18 Empty
K19 Coolant pump PCB relay
K20 Empty
K21 Empty
K22 Front washer
K23 Empty

Chevrolet VOLT Owner Manual (GMNA-Localizing-U.S/Canada/Mexico-
9159388) - 2016 - crc - 5/20/15
256 Vehicle Care

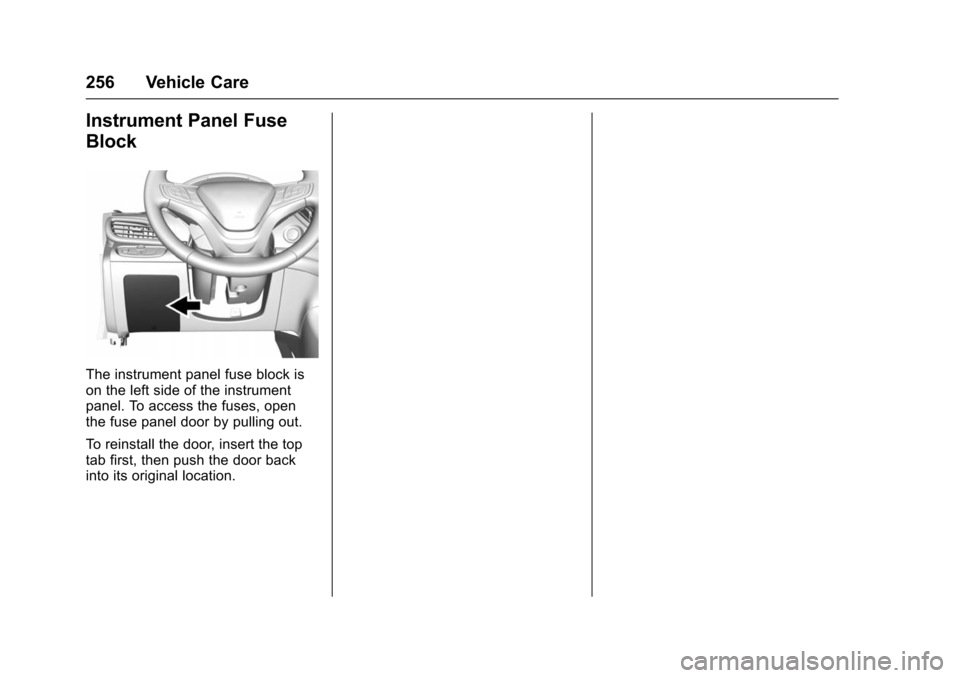

Instrument Panel Fuse
Block
The instrument panel fuse block is
on the left side of the instrument
panel. To access the fuses, open
the fuse panel door by pulling out.
To reinstall the door, insert the top
tab first, then push the door back
into its original location.

Chevrolet VOLT Owner Manual (GMNA-Localizing-U.S/Canada/Mexico-
9159388) - 2016 - crc - 5/20/15
Vehicle Care 257

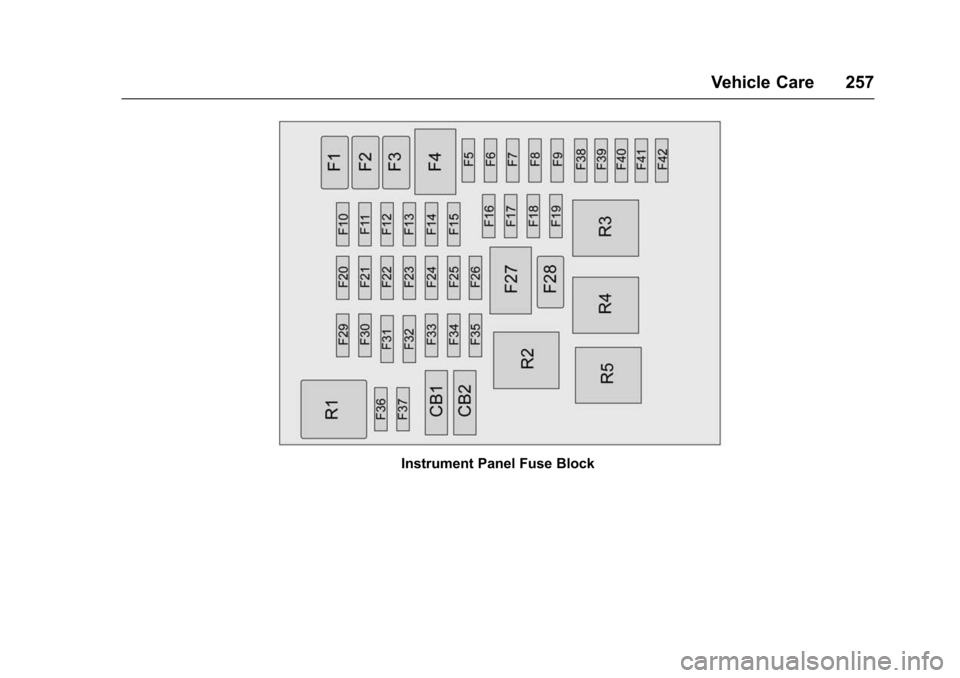

Instrument Panel Fuse Block

Chevrolet VOLT Owner Manual (GMNA-Localizing-U.S/Canada/Mexico-
9159388) - 2016 - crc - 5/20/15
258 Vehicle Care

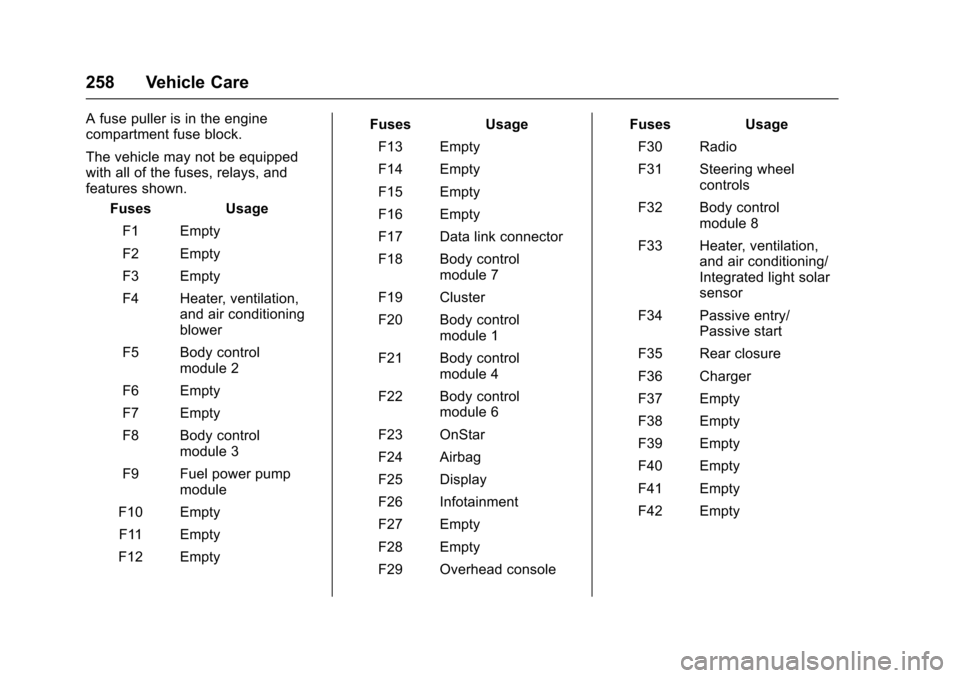

A fuse puller is in the engine
compartment fuse block.
The vehicle may not be equipped
with all of the fuses, relays, and
features shown.Fuses Usage
F1 Empty
F2 Empty
F3 Empty
F4 Heater, ventilation, and air conditioning
blower
F5 Body control module 2
F6 Empty
F7 Empty
F8 Body control module 3
F9 Fuel power pump module
F10 Empty F11 Empty
F12 Empty Fuses
Usage
F13 Empty
F14 Empty
F15 Empty
F16 Empty
F17 Data link connector
F18 Body control module 7
F19 Cluster
F20 Body control module 1
F21 Body control module 4
F22 Body control module 6
F23 OnStar
F24 Airbag
F25 Display
F26 Infotainment
F27 Empty
F28 Empty
F29 Overhead console Fuses
Usage
F30 Radio
F31 Steering wheel controls
F32 Body control module 8
F33 Heater, ventilation, and air conditioning/
Integrated light solar
sensor
F34 Passive entry/ Passive start
F35 Rear closure
F36 Charger
F37 Empty
F38 Empty
F39 Empty
F40 Empty
F41 Empty
F42 Empty

Chevrolet VOLT Owner Manual (GMNA-Localizing-U.S/Canada/Mexico-
9159388) - 2016 - crc - 5/20/15
Vehicle Care 259

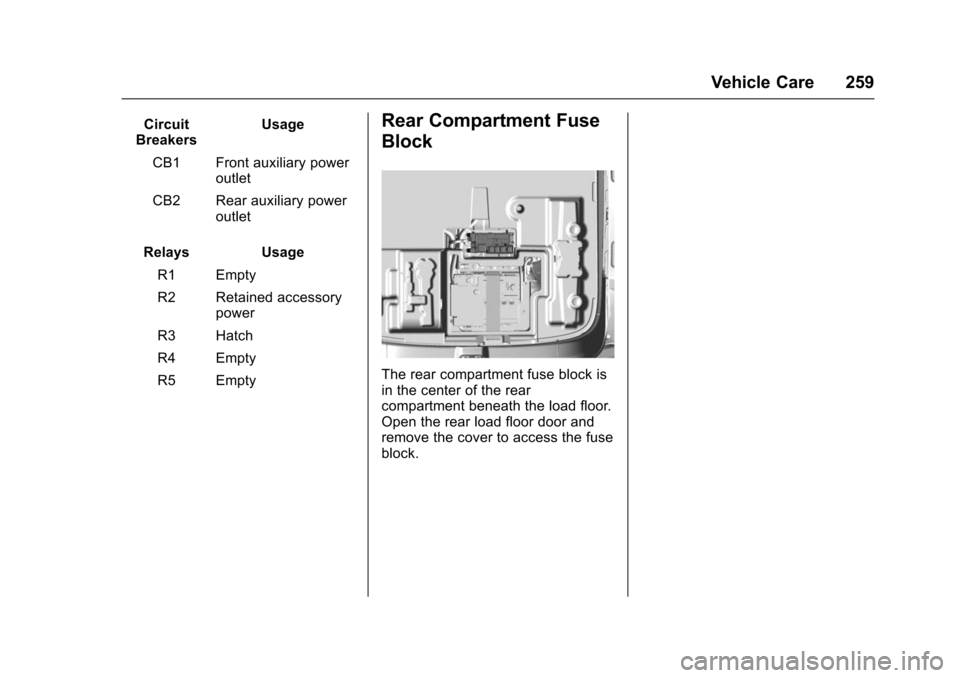

Circuit
Breakers Usage
CB1 Front auxiliary power outlet
CB2 Rear auxiliary power outlet
Relays Usage R1 Empty
R2 Retained accessory power
R3 Hatch
R4 Empty
R5 EmptyRear Compartment Fuse
Block
The rear compartment fuse block is
in the center of the rear
compartment beneath the load floor.
Open the rear load floor door and
remove the cover to access the fuse
block.
