CHEVROLET VOLT 2017 2.G Owners Manual

Chevrolet VOLT Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9807421) - 2017 - CRC - 11/18/15

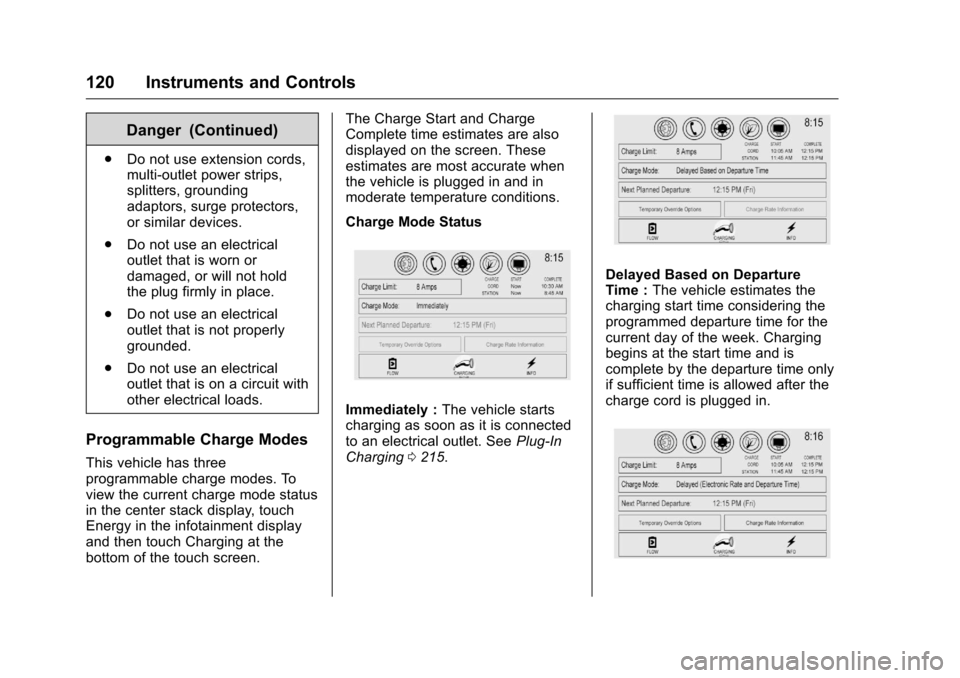

120 Instruments and Controls
Danger (Continued)
.Do not use extension cords,
multi-outlet power strips,
splitters, grounding
adaptors, surge protectors,
or similar devices.
. Do not use an electrical
outlet that is worn or
damaged, or will not hold
the plug firmly in place.
. Do not use an electrical
outlet that is not properly
grounded.
. Do not use an electrical
outlet that is on a circuit with
other electrical loads.
Programmable Charge Modes
This vehicle has three
programmable charge modes. To
view the current charge mode status
in the center stack display, touch
Energy in the infotainment display
and then touch Charging at the
bottom of the touch screen. The Charge Start and Charge
Complete time estimates are also
displayed on the screen. These
estimates are most accurate when
the vehicle is plugged in and in
moderate temperature conditions.
Charge Mode Status
Immediately :
The vehicle starts
charging as soon as it is connected
to an electrical outlet. See Plug-In
Charging 0215.
Delayed Based on Departure
Time : The vehicle estimates the
charging start time considering the
programmed departure time for the
current day of the week. Charging
begins at the start time and is
complete by the departure time only
if sufficient time is allowed after the
charge cord is plugged in.

Chevrolet VOLT Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9807421) - 2017 - CRC - 11/18/15

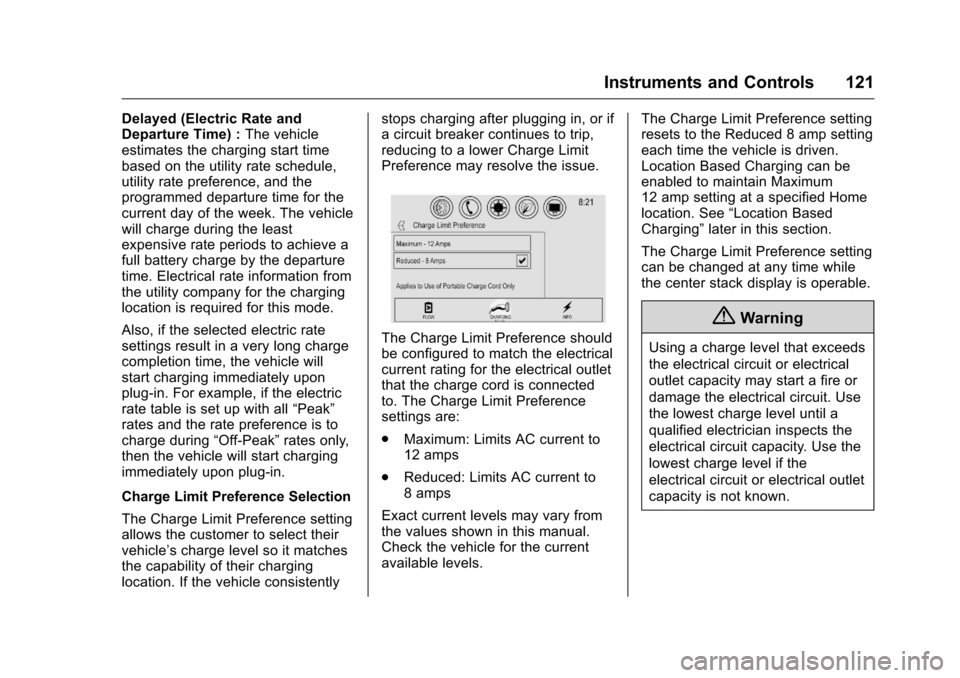

Instruments and Controls 121
Delayed (Electric Rate and
Departure Time) :The vehicle
estimates the charging start time
based on the utility rate schedule,
utility rate preference, and the
programmed departure time for the
current day of the week. The vehicle
will charge during the least
expensive rate periods to achieve a
full battery charge by the departure
time. Electrical rate information from
the utility company for the charging
location is required for this mode.
Also, if the selected electric rate
settings result in a very long charge
completion time, the vehicle will
start charging immediately upon
plug-in. For example, if the electric
rate table is set up with all “Peak”
rates and the rate preference is to
charge during “Off-Peak”rates only,
then the vehicle will start charging
immediately upon plug-in.
Charge Limit Preference Selection
The Charge Limit Preference setting
allows the customer to select their
vehicle’s charge level so it matches
the capability of their charging
location. If the vehicle consistently stops charging after plugging in, or if
a circuit breaker continues to trip,
reducing to a lower Charge Limit
Preference may resolve the issue.
The Charge Limit Preference should
be configured to match the electrical
current rating for the electrical outlet
that the charge cord is connected
to. The Charge Limit Preference
settings are:
.
Maximum: Limits AC current to
12 amps
. Reduced: Limits AC current to
8 amps
Exact current levels may vary from
the values shown in this manual.
Check the vehicle for the current
available levels. The Charge Limit Preference setting
resets to the Reduced 8 amp setting
each time the vehicle is driven.
Location Based Charging can be
enabled to maintain Maximum
12 amp setting at a specified Home
location. See
“Location Based
Charging” later in this section.
The Charge Limit Preference setting
can be changed at any time while
the center stack display is operable.
{Warning
Using a charge level that exceeds
the electrical circuit or electrical
outlet capacity may start a fire or
damage the electrical circuit. Use
the lowest charge level until a
qualified electrician inspects the
electrical circuit capacity. Use the
lowest charge level if the
electrical circuit or electrical outlet
capacity is not known.

Chevrolet VOLT Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9807421) - 2017 - CRC - 11/18/15

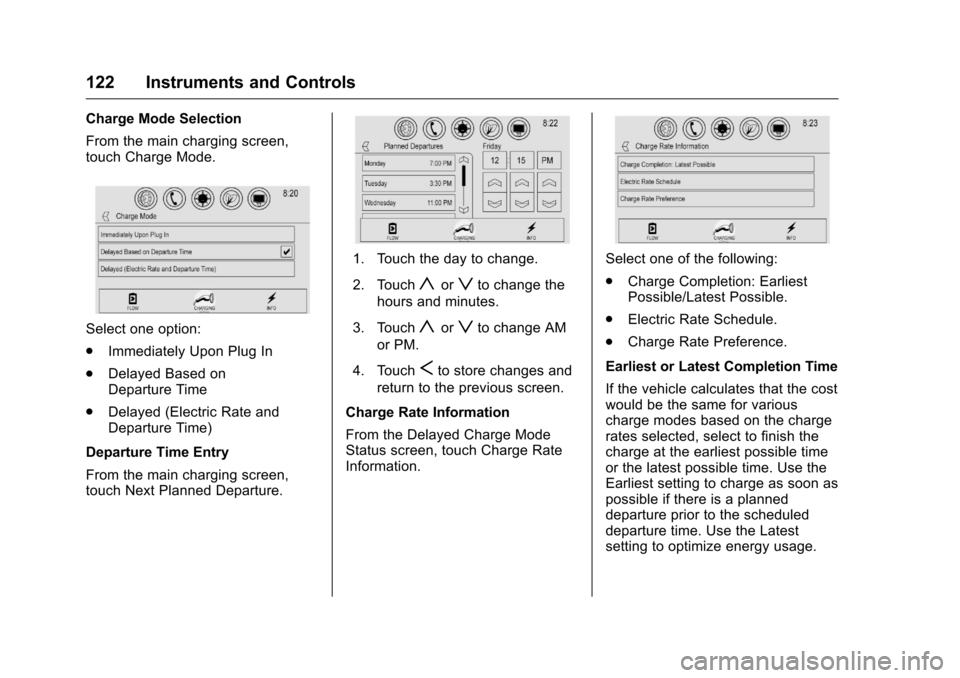

122 Instruments and Controls
Charge Mode Selection
From the main charging screen,
touch Charge Mode.
Select one option:
.Immediately Upon Plug In
. Delayed Based on
Departure Time
. Delayed (Electric Rate and
Departure Time)
Departure Time Entry
From the main charging screen,
touch Next Planned Departure.
1. Touch the day to change.
2. Touch
yorzto change the
hours and minutes.
3. Touch
yorzto change AM
or PM.
4. Touch
Sto store changes and
return to the previous screen.
Charge Rate Information
From the Delayed Charge Mode
Status screen, touch Charge Rate
Information.
Select one of the following:
. Charge Completion: Earliest
Possible/Latest Possible.
. Electric Rate Schedule.
. Charge Rate Preference.
Earliest or Latest Completion Time
If the vehicle calculates that the cost
would be the same for various
charge modes based on the charge
rates selected, select to finish the
charge at the earliest possible time
or the latest possible time. Use the
Earliest setting to charge as soon as
possible if there is a planned
departure prior to the scheduled
departure time. Use the Latest
setting to optimize energy usage.

Chevrolet VOLT Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9807421) - 2017 - CRC - 11/18/15

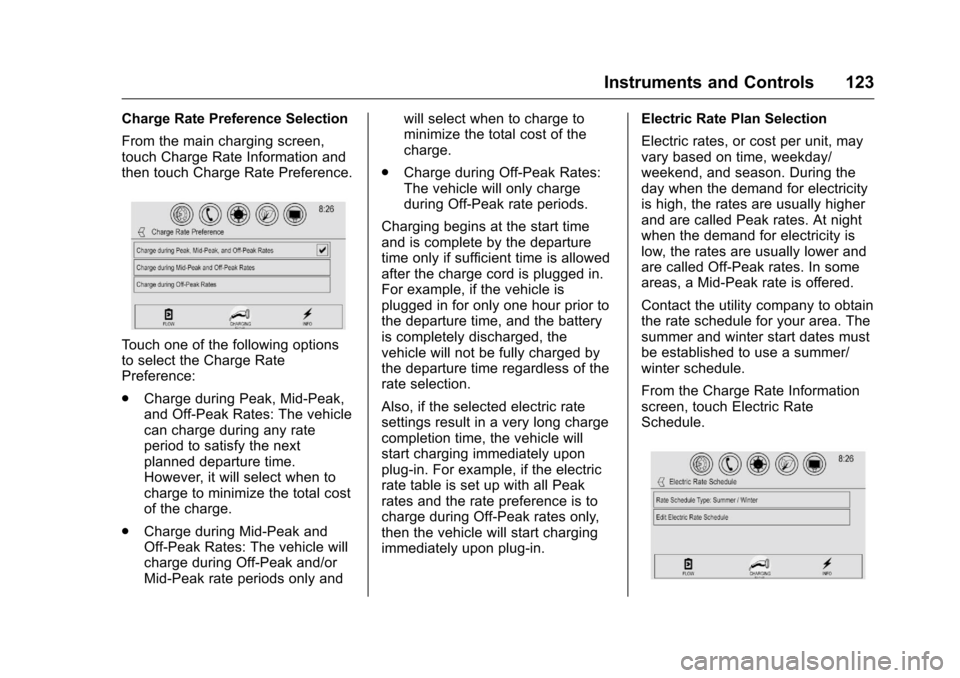

Instruments and Controls 123
Charge Rate Preference Selection
From the main charging screen,
touch Charge Rate Information and
then touch Charge Rate Preference.
Touch one of the following options
to select the Charge Rate
Preference:
.Charge during Peak, Mid-Peak,
and Off-Peak Rates: The vehicle
can charge during any rate
period to satisfy the next
planned departure time.
However, it will select when to
charge to minimize the total cost
of the charge.
. Charge during Mid-Peak and
Off-Peak Rates: The vehicle will
charge during Off-Peak and/or
Mid-Peak rate periods only and will select when to charge to
minimize the total cost of the
charge.
. Charge during Off-Peak Rates:
The vehicle will only charge
during Off-Peak rate periods.
Charging begins at the start time
and is complete by the departure
time only if sufficient time is allowed
after the charge cord is plugged in.
For example, if the vehicle is
plugged in for only one hour prior to
the departure time, and the battery
is completely discharged, the
vehicle will not be fully charged by
the departure time regardless of the
rate selection.
Also, if the selected electric rate
settings result in a very long charge
completion time, the vehicle will
start charging immediately upon
plug-in. For example, if the electric
rate table is set up with all Peak
rates and the rate preference is to
charge during Off-Peak rates only,
then the vehicle will start charging
immediately upon plug-in. Electric Rate Plan Selection
Electric rates, or cost per unit, may
vary based on time, weekday/
weekend, and season. During the
day when the demand for electricity
is high, the rates are usually higher
and are called Peak rates. At night
when the demand for electricity is
low, the rates are usually lower and
are called Off-Peak rates. In some
areas, a Mid-Peak rate is offered.
Contact the utility company to obtain
the rate schedule for your area. The
summer and winter start dates must
be established to use a summer/
winter schedule.
From the Charge Rate Information
screen, touch Electric Rate
Schedule.

Chevrolet VOLT Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9807421) - 2017 - CRC - 11/18/15

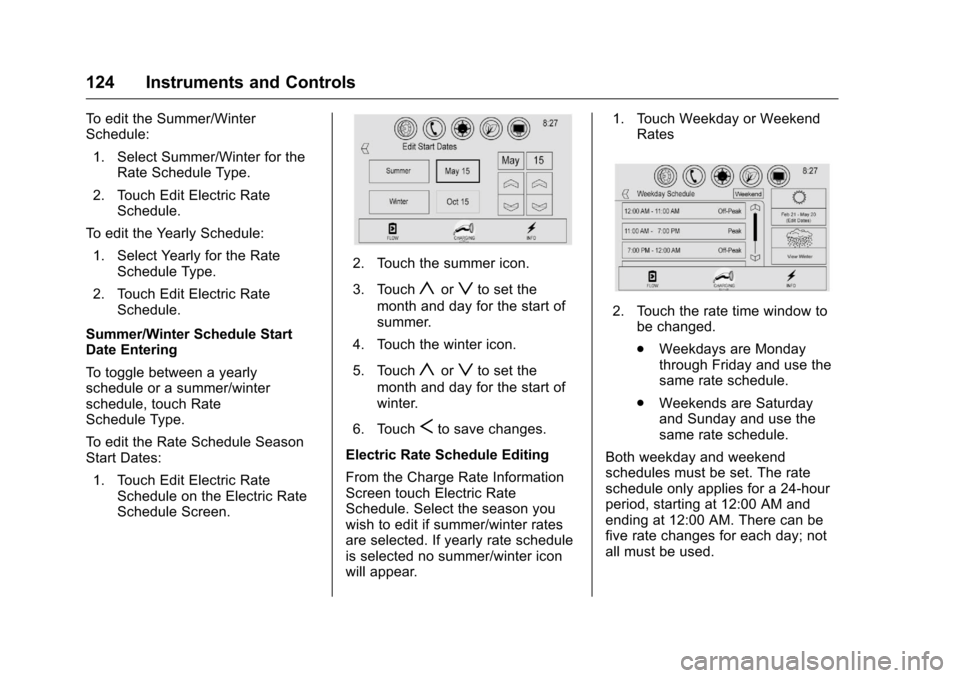

124 Instruments and Controls
To edit the Summer/Winter
Schedule:1. Select Summer/Winter for the Rate Schedule Type.
2. Touch Edit Electric Rate Schedule.
To edit the Yearly Schedule: 1. Select Yearly for the Rate Schedule Type.
2. Touch Edit Electric Rate Schedule.
Summer/Winter Schedule Start
Date Entering
To toggle between a yearly
schedule or a summer/winter
schedule, touch Rate
Schedule Type.
To edit the Rate Schedule Season
Start Dates: 1. Touch Edit Electric Rate Schedule on the Electric Rate
Schedule Screen.
2. Touch the summer icon.
3. Touch
yorzto set the
month and day for the start of
summer.
4. Touch the winter icon.
5. Touch
yorzto set the
month and day for the start of
winter.
6. Touch
Sto save changes.
Electric Rate Schedule Editing
From the Charge Rate Information
Screen touch Electric Rate
Schedule. Select the season you
wish to edit if summer/winter rates
are selected. If yearly rate schedule
is selected no summer/winter icon
will appear. 1. Touch Weekday or Weekend
Rates
2. Touch the rate time window tobe changed.
.Weekdays are Monday
through Friday and use the
same rate schedule.
. Weekends are Saturday
and Sunday and use the
same rate schedule.
Both weekday and weekend
schedules must be set. The rate
schedule only applies for a 24-hour
period, starting at 12:00 AM and
ending at 12:00 AM. There can be
five rate changes for each day; not
all must be used.

Chevrolet VOLT Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9807421) - 2017 - CRC - 11/18/15

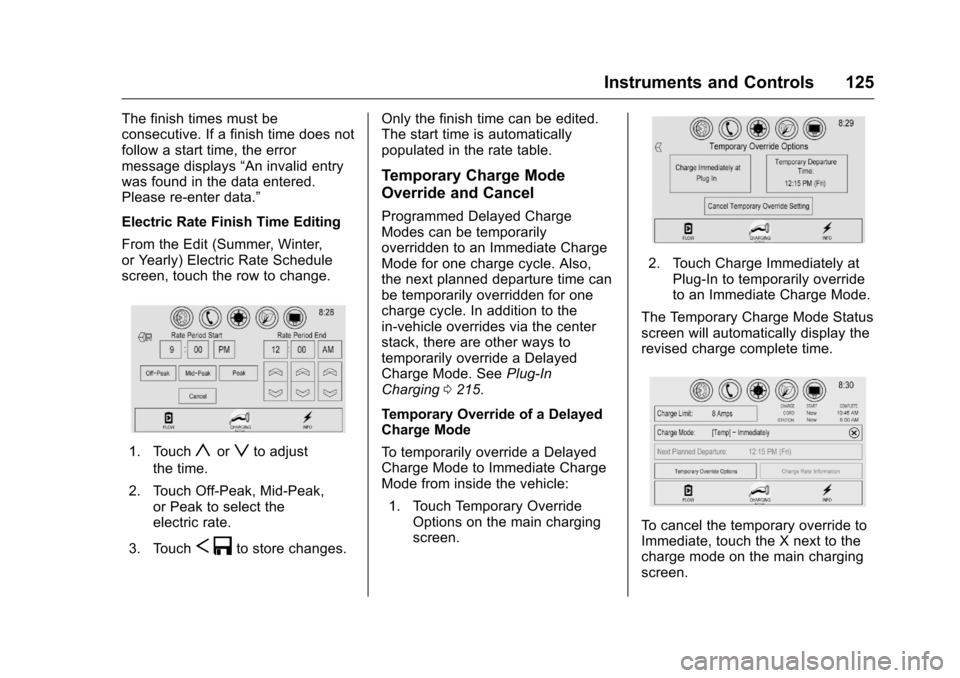

Instruments and Controls 125
The finish times must be
consecutive. If a finish time does not
follow a start time, the error
message displays“An invalid entry
was found in the data entered.
Please re-enter data.”
Electric Rate Finish Time Editing
From the Edit (Summer, Winter,
or Yearly) Electric Rate Schedule
screen, touch the row to change.
1. Touchyorzto adjust
the time.
2. Touch Off-Peak, Mid-Peak, or Peak to select the
electric rate.
3. Touch
S 3to store changes. Only the finish time can be edited.
The start time is automatically
populated in the rate table.
Temporary Charge Mode
Override and Cancel
Programmed Delayed Charge
Modes can be temporarily
overridden to an Immediate Charge
Mode for one charge cycle. Also,
the next planned departure time can
be temporarily overridden for one
charge cycle. In addition to the
in-vehicle overrides via the center
stack, there are other ways to
temporarily override a Delayed
Charge Mode. See
Plug-In
Charging 0215.
Temporary Override of a Delayed
Charge Mode
To temporarily override a Delayed
Charge Mode to Immediate Charge
Mode from inside the vehicle: 1. Touch Temporary Override Options on the main charging
screen.
2. Touch Charge Immediately atPlug-In to temporarily override
to an Immediate Charge Mode.
The Temporary Charge Mode Status
screen will automatically display the
revised charge complete time.
To cancel the temporary override to
Immediate, touch the X next to the
charge mode on the main charging
screen.

Chevrolet VOLT Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9807421) - 2017 - CRC - 11/18/15

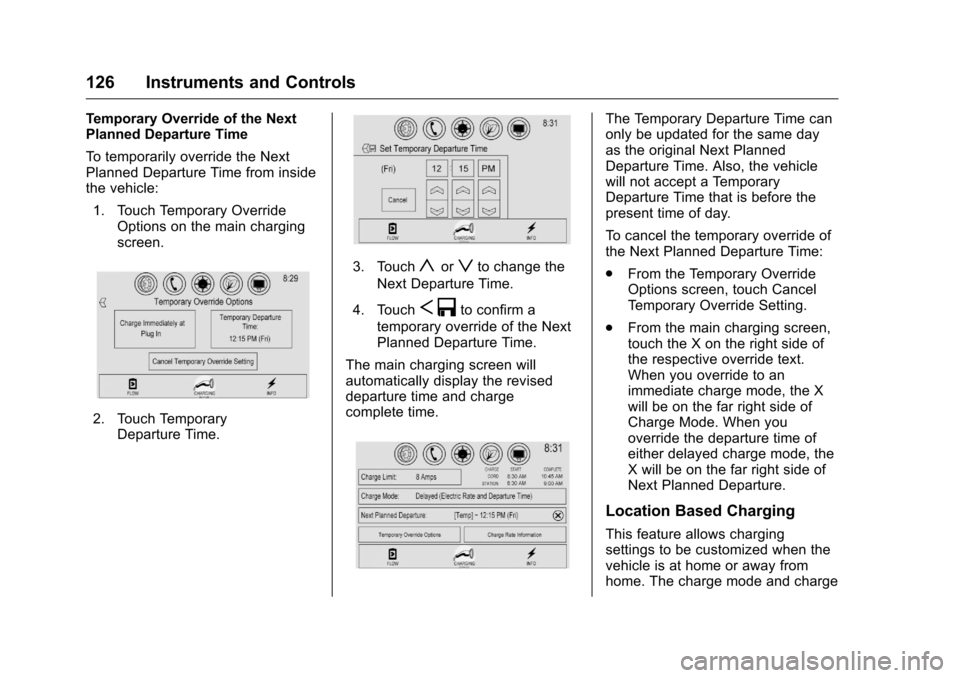

126 Instruments and Controls
Temporary Override of the Next
Planned Departure Time
To temporarily override the Next
Planned Departure Time from inside
the vehicle:1. Touch Temporary Override Options on the main charging
screen.
2. Touch TemporaryDeparture Time.
3. Touchyorzto change the
Next Departure Time.
4. Touch
S 3to confirm a
temporary override of the Next
Planned Departure Time.
The main charging screen will
automatically display the revised
departure time and charge
complete time.
The Temporary Departure Time can
only be updated for the same day
as the original Next Planned
Departure Time. Also, the vehicle
will not accept a Temporary
Departure Time that is before the
present time of day.
To cancel the temporary override of
the Next Planned Departure Time:
. From the Temporary Override
Options screen, touch Cancel
Temporary Override Setting.
. From the main charging screen,
touch the X on the right side of
the respective override text.
When you override to an
immediate charge mode, the X
will be on the far right side of
Charge Mode. When you
override the departure time of
either delayed charge mode, the
X will be on the far right side of
Next Planned Departure.
Location Based Charging
This feature allows charging
settings to be customized when the
vehicle is at home or away from
home. The charge mode and charge

Chevrolet VOLT Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9807421) - 2017 - CRC - 11/18/15

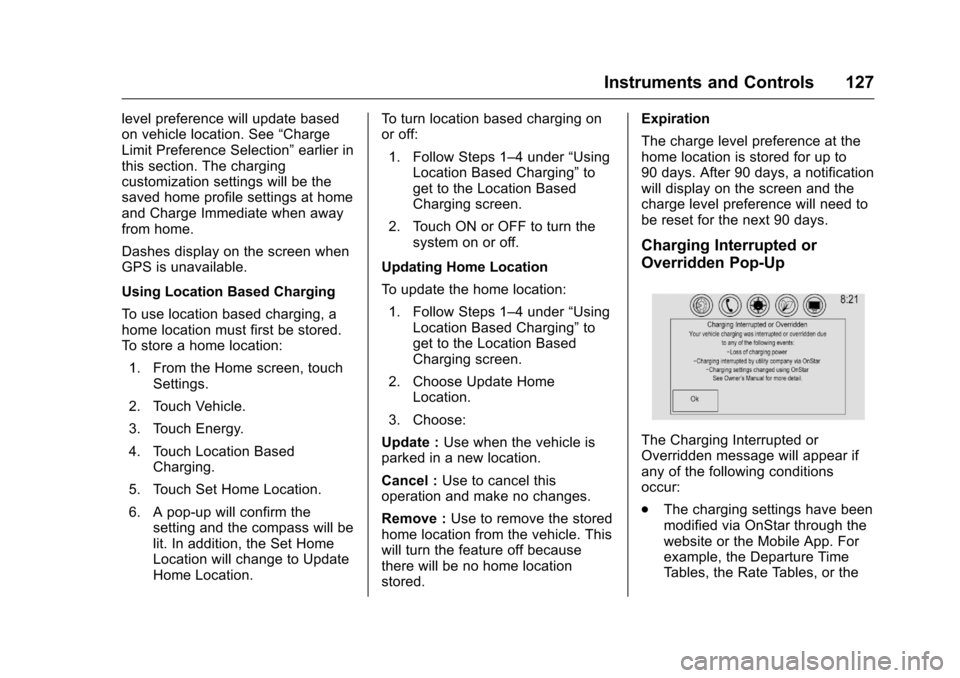

Instruments and Controls 127
level preference will update based
on vehicle location. See“Charge
Limit Preference Selection” earlier in
this section. The charging
customization settings will be the
saved home profile settings at home
and Charge Immediate when away
from home.
Dashes display on the screen when
GPS is unavailable.
Using Location Based Charging
To use location based charging, a
home location must first be stored.
To store a home location:
1. From the Home screen, touch Settings.
2. Touch Vehicle.
3. Touch Energy.
4. Touch Location Based Charging.
5. Touch Set Home Location.
6. A pop-up will confirm the setting and the compass will be
lit. In addition, the Set Home
Location will change to Update
Home Location. To turn location based charging on
or off:
1. Follow Steps 1–4 under “Using
Location Based Charging” to
get to the Location Based
Charging screen.
2. Touch ON or OFF to turn the system on or off.
Updating Home Location
To update the home location: 1. Follow Steps 1–4 under “Using
Location Based Charging” to
get to the Location Based
Charging screen.
2. Choose Update Home Location.
3. Choose:
Update : Use when the vehicle is
parked in a new location.
Cancel : Use to cancel this
operation and make no changes.
Remove : Use to remove the stored
home location from the vehicle. This
will turn the feature off because
there will be no home location
stored. Expiration
The charge level preference at the
home location is stored for up to
90 days. After 90 days, a notification
will display on the screen and the
charge level preference will need to
be reset for the next 90 days.
Charging Interrupted or
Overridden Pop-Up
The Charging Interrupted or
Overridden message will appear if
any of the following conditions
occur:
.
The charging settings have been
modified via OnStar through the
website or the Mobile App. For
example, the Departure Time
Tables, the Rate Tables, or the

Chevrolet VOLT Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9807421) - 2017 - CRC - 11/18/15
128 Instruments and Controls
Charge Mode were updated
using the customer website
(available in select regions).
. There was an unintended loss of
AC power during the plug-in
charge event. For example,
there was a power outage or the
charge cord was unplugged from
the wall.
. The charge process was
interrupted by the utility
company via OnStar as
authorized by the vehicle owner
(available in select regions).
See Utility Interruption of
Charging 0228.
Programmable Charging
Disabled
When the Programmable Charging
system is disabled, the main
charging screen will display “- -:- -”
for the Charge Complete Time. The
Programmable Charging system will
be disabled if the Charge Complete
Time cannot be confidently
estimated. If the Programmable
Charging system is consistently
disabled, see your dealer.
Energy Information
To view Energy Usage, Energy
Usage Score, and Energy Details,
touch Energy on the infotainment
display, touch INFO, then touch
hor
k. To reset the values, the high
voltage battery needs to be fully
recharged. Energy Usage
The Energy Usage screen displays
information for the total of all drive
cycles since the last time the high
voltage battery was fully charged.
This includes:
.
Distance traveled in
Electric Mode
. Distance traveled in Extended
Range Mode
. Total distance traveled
. Electric energy used from the
battery
. Total fuel used
. Average fuel economy

Chevrolet VOLT Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9807421) - 2017 - CRC - 11/18/15

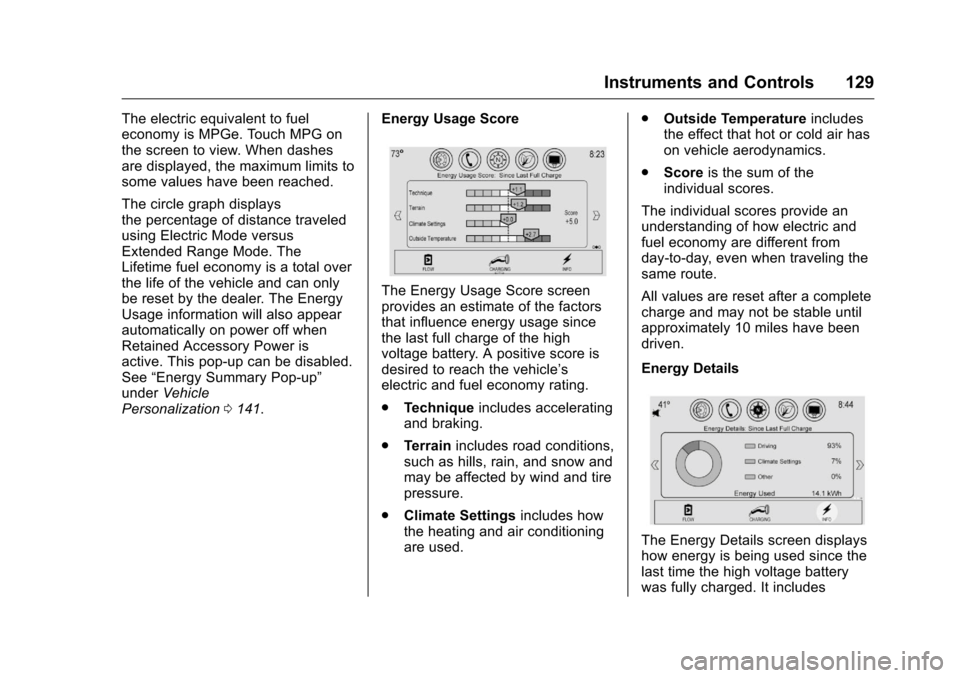

Instruments and Controls 129
The electric equivalent to fuel
economy is MPGe. Touch MPG on
the screen to view. When dashes
are displayed, the maximum limits to
some values have been reached.
The circle graph displays
the percentage of distance traveled
using Electric Mode versus
Extended Range Mode. The
Lifetime fuel economy is a total over
the life of the vehicle and can only
be reset by the dealer. The Energy
Usage information will also appear
automatically on power off when
Retained Accessory Power is
active. This pop-up can be disabled.
See“Energy Summary Pop-up”
under Vehicle
Personalization 0141. Energy Usage Score
The Energy Usage Score screen
provides an estimate of the factors
that influence energy usage since
the last full charge of the high
voltage battery. A positive score is
desired to reach the vehicle’s
electric and fuel economy rating.
.
Technique includes accelerating
and braking.
. Terrain includes road conditions,
such as hills, rain, and snow and
may be affected by wind and tire
pressure.
. Climate Settings includes how
the heating and air conditioning
are used. .
Outside Temperature includes
the effect that hot or cold air has
on vehicle aerodynamics.
. Score is the sum of the
individual scores.
The individual scores provide an
understanding of how electric and
fuel economy are different from
day-to-day, even when traveling the
same route.
All values are reset after a complete
charge and may not be stable until
approximately 10 miles have been
driven.
Energy Details
The Energy Details screen displays
how energy is being used since the
last time the high voltage battery
was fully charged. It includes
