Page 27 of 379
Chevrolet VOLT Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11349113) - 2018 - crc - 10/12/17
26 In Brief
.To turn off both TCS and
StabiliTrak, press and hold
g,
until
iandgcome on and stay
on in the instrument cluster a
DIC message may display.
. Press and release
gto turn on
both systems.
See Traction Control/Electronic
Stability Control 0189.
Tire Pressure Monitor
This vehicle may have a Tire
Pressure Monitor System (TPMS).
The low tire pressure warning light
alerts to a significant loss in
pressure of one of the vehicle's
tires. If the warning light comes on,
stop as soon as possible and inflate
the tires to the recommended
pressure shown on the Tire and Loading Information label. See
Vehicle Load Limits
0167. The
warning light will remain on until the
tire pressure is corrected.
The low tire pressure warning light
may come on in cool weather when
the vehicle is first started, and then
turn off as the vehicle is driven. This
may be an early indicator that the
tire pressures are getting low and
the tires need to be inflated to the
proper pressure.
The TPMS does not replace normal
monthly tire maintenance. Maintain
the correct tire pressures.
See Tire Pressure Monitor System
0 280.
Fuel
Regular Fuel
Use only unleaded gasoline rated
87 octane or higher in your vehicle.
Do not use gasoline with an octane
rating lower as it may result in
vehicle damage and lower fuel
economy. See Fuel0228.
E85 or FlexFuel
No E85 or FlexFuel
Gasoline-ethanol fuel blends greater
than E15 (15% ethanol by volume),
such as E85, cannot be used in this
vehicle.
Engine Oil Life System
The engine oil life system calculates
engine oil life based on vehicle use
and displays the CHANGE ENGINE
OIL SOON message when it is time
to change the engine oil and filter.
Page 154 of 379
Chevrolet VOLT Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11349113) - 2018 - crc - 10/12/17
Climate Controls 153
Climate Controls
Climate Control Systems
Automatic Climate ControlSystem . . . . . . . . . . . . . . . . . . . . . . 153
Air Vents
Air Vents . . . . . . . . . . . . . . . . . . . . . 158
Maintenance
Passenger Compartment AirFilter . . . . . . . . . . . . . . . . . . . . . . . . 159
Climate Control
Systems
Automatic Climate
Control System
The heating, cooling, and ventilation
for the vehicle can be controlled
with this system.
The vehicle may require the use of
an auxiliary heat source under
certain cold conditions. This
provides additional heating and
defrost capability obtained by
running the engine, even if the high
voltage battery is adequately
charged. Under these conditions,
the engine will start and use fuel.
Make sure there is fuel in the tank. Do not allow the vehicle to remain in
extreme temperatures for long
periods without being driven or
plugged in.
Page 328 of 379
Chevrolet VOLT Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11349113) - 2018 - crc - 10/12/17
Service and Maintenance 327
Maintenance
Schedule
Owner Checks and Services
At Each Fuel Stop
.Check the engine oil level. See
Engine Oil 0240.
Once a Month
. Check the tire inflation
pressures. See Tire Pressure
0 279.
. Inspect the tires for wear. See
Tire Inspection 0284.
. Check the windshield washer
fluid level. See Washer Fluid
0 250.
. Engine, power electronics, and
high voltage battery pack
coolant level checks.
See Cooling System (Engine)
0 245 orCooling System (High
Voltage Battery) 0248 or
Cooling System (Power
Electronics and Charger
Modules) 0249.
Engine Oil Change
Every 24 months or when the
CHANGE ENGINE OIL SOON
message displays, change the
engine oil and filter as soon as
possible, within the next 1 000 km/
600 mi. The engine oil and filter
must be changed at least once
every 24 months. After each oil and
filter change, the oil life system must
be reset. See Engine Oil Life
System 0242. More frequent
changes may be required when the
vehicle is exposed to a corrosive
environment, such as areas of high
humidity, along an ocean coast,
and/or areas that apply road salt
during winter.
Your trained dealer technician can
perform this work. If the engine oil
life system is reset accidentally,
service the vehicle within 5 000 km/
3,000 mi since the last service.
Reset the oil life system when the
oil is changed.
Tire Rotation and Required
Services Every 12 000 km/
7,500 mi
Rotate the tires, if recommended for
the vehicle, and perform the
following services. See Tire
Rotation 0284.
. Check engine oil level and oil
life percentage. If needed,
change engine oil and filter, and
reset oil life system.
See Engine Oil 0240 and
Engine Oil Life System 0242.
. Check engine coolant level.
See Cooling System (Engine)
0 245 orCooling System (High
Voltage Battery) 0248 or
Cooling System (Power
Electronics and Charger
Modules) 0249.
. Check windshield washer fluid
level. See Washer Fluid 0250.
. Visually inspect windshield wiper
blades for wear, cracking,
or contamination. See Exterior
Care 0315. Replace worn or
Page 329 of 379
Chevrolet VOLT Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11349113) - 2018 - crc - 10/12/17
328 Service and Maintenance
damaged wiper blades. See
Wiper Blade Replacement
0256.
. Check tire inflation pressures.
See Tire Pressure 0279.
. Inspect tire wear. See Tire
Inspection 0284.
. Visually check for fluid leaks.
. Inspect engine air cleaner filter.
See Engine Air Cleaner/Filter
0 243.
. Inspect brake system. See
Exterior Care 0315.
. Visually inspect steering,
suspension, and chassis
components for damaged, loose,
or missing parts or signs of
wear. See Exterior Care 0315.
. Check restraint system
components. See Safety System
Check 063.
. Visually inspect fuel system for
damage or leaks.
. Visually inspect exhaust system
and nearby heat shields for
loose or damaged parts. .
Lubricate body components. See
Exterior Care 0315.
. Check electric drive unit shift
lock control function. See
Electric Drive Unit Shift Lock
Control Function Check 0255.
. Check parking brake and electric
drive unit mechanism. See Park
Brake and P (Park) Mechanism
Check 0256.
. Check accelerator pedal for
damage, high effort, or binding.
Replace if needed.
. Visually inspect gas strut for
signs of wear, cracks, or other
damage. Check the hold open
ability of the strut. If the hold
open is low, service the gas
strut. See Gas Strut(s) 0257.
. Check tire sealant expiration
date, if equipped. See Tire
Sealant and Compressor Kit
0 292.
Page 331 of 379
Chevrolet VOLT Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11349113) - 2018 - crc - 10/12/17
330 Service and Maintenance

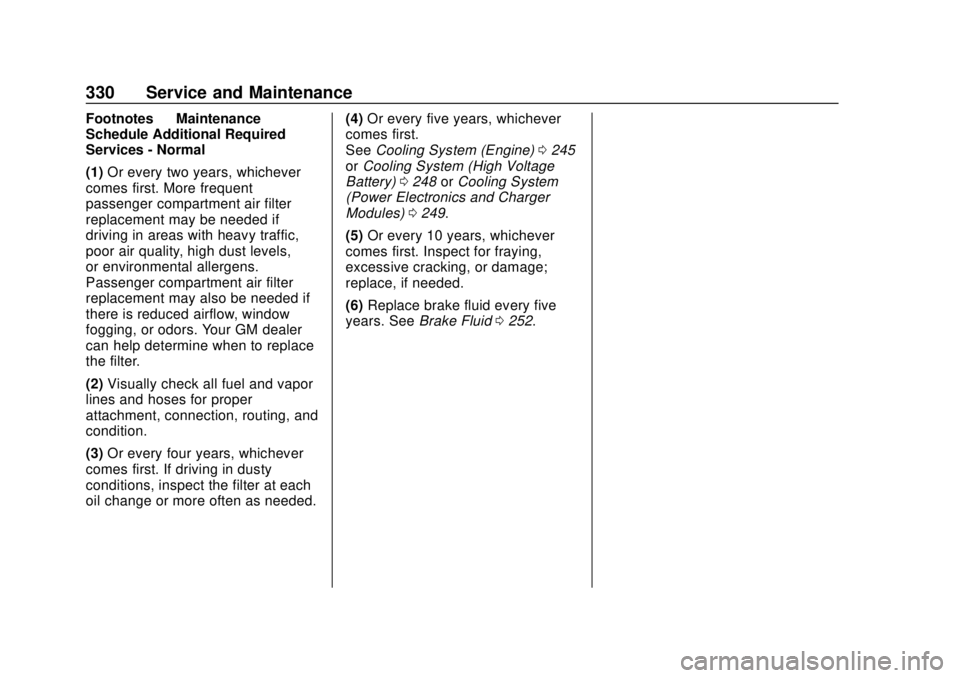

Footnotes—Maintenance
Schedule Additional Required
Services - Normal
(1) Or every two years, whichever
comes first. More frequent
passenger compartment air filter
replacement may be needed if
driving in areas with heavy traffic,
poor air quality, high dust levels,
or environmental allergens.
Passenger compartment air filter
replacement may also be needed if
there is reduced airflow, window
fogging, or odors. Your GM dealer
can help determine when to replace
the filter.
(2) Visually check all fuel and vapor
lines and hoses for proper
attachment, connection, routing, and
condition.
(3) Or every four years, whichever
comes first. If driving in dusty
conditions, inspect the filter at each
oil change or more often as needed. (4)
Or every five years, whichever
comes first.
See Cooling System (Engine) 0245
or Cooling System (High Voltage
Battery) 0248 orCooling System
(Power Electronics and Charger
Modules) 0249.
(5) Or every 10 years, whichever
comes first. Inspect for fraying,
excessive cracking, or damage;
replace, if needed.
(6) Replace brake fluid every five
years. See Brake Fluid 0252.
Page 332 of 379
Chevrolet VOLT Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11349113) - 2018 - crc - 10/12/17
Service and Maintenance 331

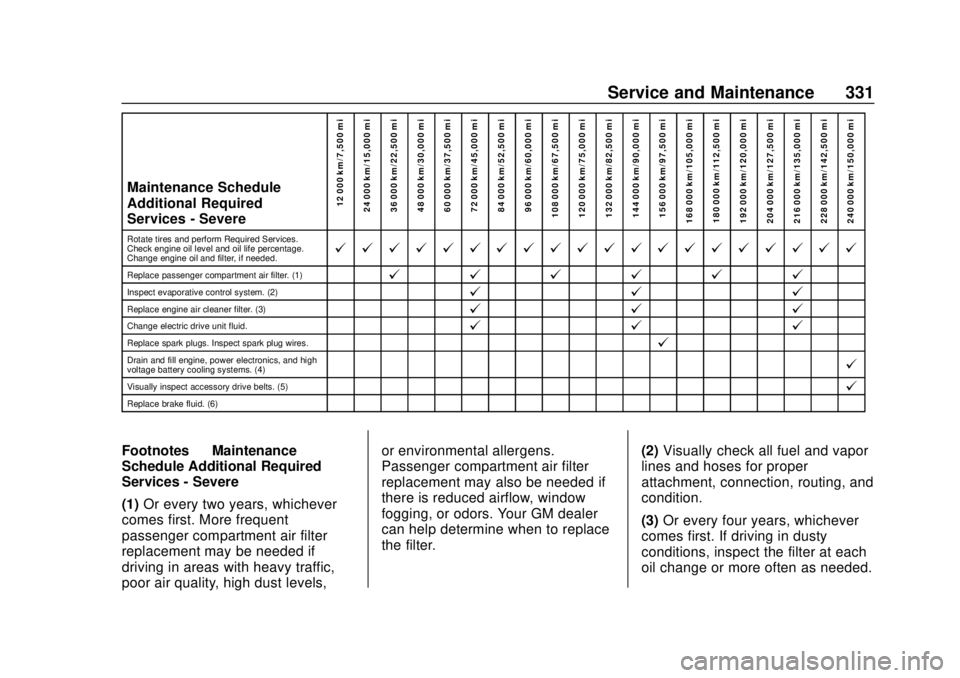

Maintenance Schedule
Additional Required
Services - Severe12 000 km/7,500 mi
24 000 km/15,000 mi
36 000 km/22,500 mi
48 000 km/30,000 mi
60 000 km/37,500 mi
72 000 km/45,000 mi
84 000 km/52,500 mi
96 000 km/60,000 mi
108 000 km/67,500 mi
120 000 km/75,000 mi
132 000 km/82,500 mi
144 000 km/90,000 mi
156 000 km/97,500 mi
168 000 km/105,000 mi 180 000 km/112,500 mi
192 000 km/120,000 mi
204 000 km/127,500 mi
216 000 km/135,000 mi
228 000 km/142,500 mi
240 000 km/150,000 mi
Rotate tires and perform Required Services.
Check engine oil level and oil life percentage.
Change engine oil and filter, if needed.@ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @
Replace passenger compartment air filter. (1)@ @@@@@
Inspect evaporative control system. (2)@ @@
Replace engine air cleaner filter. (3)@@@
Change electric drive unit fluid.@@@
Replace spark plugs. Inspect spark plug wires.@
Drain and fill engine, power electronics, and high
voltage battery cooling systems. (4)@
Visually inspect accessory drive belts. (5)@
Replace brake fluid. (6)
Footnotes—Maintenance
Schedule Additional Required
Services - Severe
(1) Or every two years, whichever
comes first. More frequent
passenger compartment air filter
replacement may be needed if
driving in areas with heavy traffic,
poor air quality, high dust levels, or environmental allergens.
Passenger compartment air filter
replacement may also be needed if
there is reduced airflow, window
fogging, or odors. Your GM dealer
can help determine when to replace
the filter.
(2)
Visually check all fuel and vapor
lines and hoses for proper
attachment, connection, routing, and
condition.
(3) Or every four years, whichever
comes first. If driving in dusty
conditions, inspect the filter at each
oil change or more often as needed.
Page 340 of 379
Chevrolet VOLT Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11349113) - 2018 - crc - 10/12/17
Technical Data 339

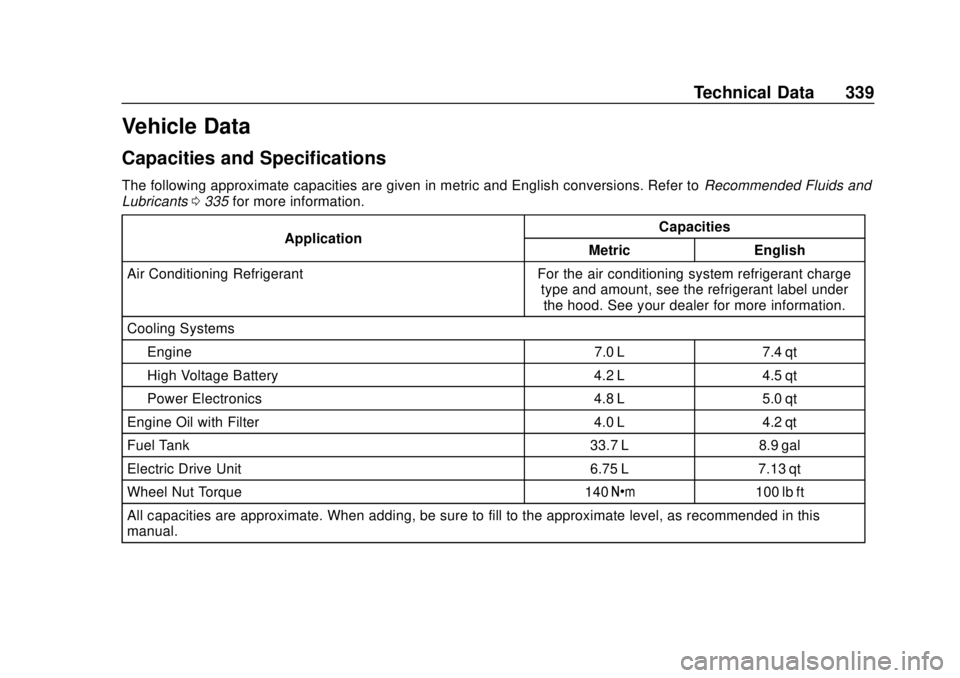

Vehicle Data
Capacities and Specifications
The following approximate capacities are given in metric and English conversions. Refer toRecommended Fluids and
Lubricants 0335 for more information.
Application Capacities
Metric English
Air Conditioning Refrigerant For the air conditioning system refrigerant charge type and amount, see the refrigerant label underthe hood. See your dealer for more information.
Cooling Systems Engine 7.0 L 7.4 qt
High Voltage Battery 4.2 L 4.5 qt
Power Electronics 4.8 L 5.0 qt
Engine Oil with Filter 4.0 L 4.2 qt
Fuel Tank 33.7 L 8.9 gal
Electric Drive Unit 6.75 L7.13 qt
Wheel Nut Torque 140Y 100 lb ft
All capacities are approximate. When adding, be sure to fill to the approximate level, as recommended in this
manual.
Page 371 of 379
Chevrolet VOLT Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11349113) - 2018 - crc - 10/12/17
370 Index
E
Electric Drive Unit . . . . . . . . . . . . . . 183
Electric Drive Unit Shift LockControl Function Check . . . . . . . 255
Electric Mode . . . . . . . . . . . . . . . . . . . 176
Electric Parking Brake . . . . . . . . . . 185
Electric Parking Brake Light . . . . 117
Electrical Equipment,
Add-On . . . . . . . . . . . . . . . . . . . . . . . 232
Electrical Requirements for
Battery Charging . . . . . . . . . . . . . . 227
Electrical System Engine Compartment FuseBlock . . . . . . . . . . . . . . . . . . . . . . . . 262
Fuses and Circuit Breakers . . . 262
Instrument Panel Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 266
Overload . . . . . . . . . . . . . . . . . . . . . 261
Rear Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 269
Emergency OnStar . . . . . . . . . . . . . . . . . . . . . . . 356
Energy Efficiency Driving . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Energy Information . . . . . . . . . . . . . 132
Engine Air Cleaner/Filter . . . . . . . . . . . . . 243 Engine (cont'd)
Check Light (Malfunction
Indicator) . . . . . . . . . . . . . . . . . . . . .114
Compartment Overview . . . . . . . 239
Coolant Temperature
Warning Light . . . . . . . . . . . . . . . 120
Cooling System . . . . . 245, 248, 249
Drive Belt Routing . . . . . . . . . . . . 340
Exhaust . . . . . . . . . . . . . . . . . . . . . . 182
Oil Life System . . . . . . . . . . . . . . . 242
Oil Pressure Light . . . . . . . . . . . . 120
Overheating . . . . . . . . . . . . . . . . . . 250
Running While Parked . . . . . . . . 183
Engine Unavailable
Out of Fuel . . . . . . . . . . . . . . . . . . . 180
Entry Lighting . . . . . . . . . . . . . . . . . . . 151
Event Data Recorders . . . . . . . . . . 353
Exit Lighting . . . . . . . . . . . . . . . . . . . . 151
Extended Parking . . . . . . . . . . . . . . . 176
Extended Range Mode . . . . . . . . . 177
Extender, Seat Belt . . . . . . . . . . . . . . 63
Exterior Lamp Controls . . . . . . . . . 145
F
Filter, Engine Air Cleaner . . . . . . . . . . . 243
Flash-to-Pass . . . . . . . . . . . . . . . . . . . 147
Flashers, Hazard Warning . . . . . . 148 Flat Tire . . . . . . . . . . . . . . . . . . . . . . . . 291
Changing . . . . . . . . . . . . . . . . . . . . . 299
Floor Mats . . . . . . . . . . . . . . . . . . . . . . 323
Fluid Brakes . . . . . . . . . . . . . . . . . . . . . . . . 252
Washer . . . . . . . . . . . . . . . . . . . . . . . 250
Folding Mirrors . . . . . . . . . . . . . . . . . . 48
Forward Automatic Braking . . . . . 207
Forward Collision Alert
(FCA) System . . . . . . . . . . . . . . . . . 205
Frequency Statement
Radio . . . . . . . . . . . . . . . . . . . . . . . . . 351
Front Seats Adjustment . . . . . . . . . . . . . . . . . . . . . 54
Heated . . . . . . . . . . . . . . . . . . . . . . . . . 56
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
Additives . . . . . . . . . . . . . . . . . . . . . 229
Filling a Portable FuelContainer . . . . . . . . . . . . . . . . . . . 231
Filling the Tank . . . . . . . . . . . . . . . 229
Foreign Countries . . . . . . . . . . . . 229
Gauge . . . . . . . . . . . . . . . . . . . . . . . . .110
Low Fuel Warning Light . . . . . . . 121
Requirements, California . . . . . 229
Function Check
Electric Drive Unit ShiftLock Control . . . . . . . . . . . . . . . . 255
Page 374 of 379
Chevrolet VOLT Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11349113) - 2018 - crc - 10/12/17
Index 373
Maintenance Schedule (cont'd)Recommended Fluids and
Lubricants . . . . . . . . . . . . . . . . . . . 335
Malfunction Indicator Lamp . . . . . 114
Messages
Propulsion Power . . . . . . . . . . . . . 136
Vehicle . . . . . . . . . . . . . . . . . . . . . . . 136
Vehicle Speed . . . . . . . . . . . . . . . . 137
Mirrors
Automatic DimmingRearview . . . . . . . . . . . . . . . . . . . . . . 49
Convex . . . . . . . . . . . . . . . . . . . . . . . . . 48
Folding . . . . . . . . . . . . . . . . . . . . . . . . . 48
Heated . . . . . . . . . . . . . . . . . . . . . . . . . 48
Manual Rearview . . . . . . . . . . . . . . . 49
Power . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Mirrors, Interior Rearview . . . . . . . . 49
Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 190 Driver Control . . . . . . . . . . . . . . . . . 190
Electric . . . . . . . . . . . . . . . . . . . . . . . 176
Extended Range . . . . . . . . . . . . . . 177
Hold Light . . . . . . . . . . . . . . . . . . . . .118
Modes
Driver Selected . . . . . . . . . . . . . . . 177
Maintenance . . . . . . . . . . . . . . . . . . 180
Monitor System, Tire Pressure . . . . . . . . . . . . . . . . . . . . . . 280
Mountain Mode Light . . . . . . . . . . . 118N
Navigation
OnStar . . . . . . . . . . . . . . . . . . . . . . . 357
New Vehicle Break-In . . . . . . . . . . . 171
O
Odometer . . . . . . . . . . . . . . . . . . . . . . . 110 Trip . . . . . . . . . . . . . . . . . . . . . . . . . . . .110
Off-Road Recovery . . . . . . . . . . . . . . . . . . . . . 163
Oil
Engine . . . . . . . . . . . . . . . . . . . . . . . . 240
Engine Oil Life System . . . . . . . 242
Pressure Light . . . . . . . . . . . . . . . . 120
Older Children, Restraints . . . . . . . 77
Online Owner Center . . . . . . . . . . . 344
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . 354
OnStar Additional
Information . . . . . . . . . . . . . . . . . . . . 361
OnStar Connections . . . . . . . . . . . . 358
OnStar Diagnostics . . . . . . . . . . . . . 360
OnStar Emergency . . . . . . . . . . . . . 356
OnStar Navigation . . . . . . . . . . . . . . 357
OnStar Overview . . . . . . . . . . . . . . . 355
OnStar Security . . . . . . . . . . . . . . . . 357
Ordering
Service Publications . . . . . . . . . . 351 Out of Fuel/Engine
Unavailable . . . . . . . . . . . . . . . . . . . 180
Outlets Power . . . . . . . . . . . . . . . . . . . . . . . . 103
Overheating, Engine . . . . . . . . . . . . 250P
Park Shifting Into . . . . . . . . . . . . . . . . . . . 174
Shifting Out of . . . . . . . . . . . . . . . . 175
Parking Brake and P (Park)
Mechanism Check . . . . . . . . . . 256
Extended . . . . . . . . . . . . . . . . . . . . . 176
Over Things That Burn . . . . . . . 175
Parking Assist . . . . . . . . . . . . . . . . . . 201
Parking or Backing Assistance Systems . . . . . . . . . . 201
Passenger Airbag Status Indicator . . . . . . . . . . . . . . . . . . . . . . 113
Passenger Compartment Air
Filter . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Passenger Sensing System . . . . . 71
Pedestrian Safety Signal . . . . . . . 100
Perchlorate Materials Requirements, California . . . . . . 236
Personalization Vehicle . . . . . . . . . . . . . . . . . . . . . . . 137
