Technical Data 333

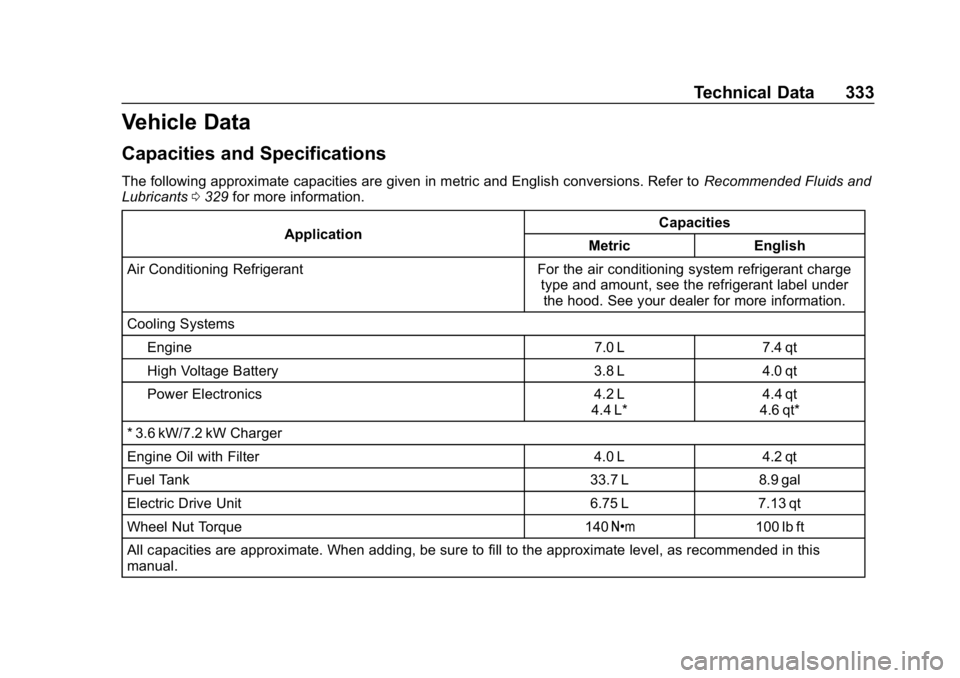

Vehicle Data
Capacities and Specifications
The following approximate capacities are given in metric and English conversions. Refer toRecommended Fluids and
Lubricants 0329 for more information.
Application Capacities
Metric English
Air Conditioning Refrigerant For the air conditioning system refrigerant charge type and amount, see the refrigerant label underthe hood. See your dealer for more information.
Cooling Systems Engine 7.0 L 7.4 qt
High Voltage Battery 3.8 L 4.0 qt
Power Electronics 4.2 L 4.4 L*4.4 qt
4.6 qt*
* 3.6 kW/7.2 kW Charger
Engine Oil with Filter 4.0 L 4.2 qt
Fuel Tank 33.7 L 8.9 gal
Electric Drive Unit 6.75 L 7.13 qt
Wheel Nut Torque 140 Y100 lb ft
All capacities are approximate. When adding, be sure to fill to the approximate level, as recommended in this
manual.
