Chevrolet BOLT EV Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13556250) - 2020 - CRC - 2/11/20
184 Driving and Operating
Starting and Stopping the
Vehicle
Starting Procedure
Press the P (Park) button on the
shift lever, or move the shift lever
into N (Neutral). The propulsion
system will not start in any other
position.
Caution
Do not try to shift to P (Park) if the
vehicle is moving or the electric
drive unit could be damaged.
Shift to P (Park) only when the
vehicle is stopped.
Caution
If you add electrical parts or
accessories, you could change
the way the vehicle operates. Any
resulting damage would not be
covered by the vehicle warranty.The Remote Keyless Entry (RKE)
transmitter must be in the vehicle.
Press the brake pedal, then press
and release POWER
O.
If the RKE transmitter is not in the
vehicle or something is interfering
with the transmitter, a message
displays in the Driver Information
Center (DIC).
If the vehicle will not start due to a
low RKE transmitter battery, the
vehicle can still be driven. See
Remote Keyless Entry (RKE)
System Operation 08.
A vehicle ready light displays in the
lower right corner of the instrument
cluster when the vehicle is ready to
be driven.
The instrument cluster also displays
an active battery gauge when the
vehicle is ready to be driven. Restarting Procedure
If the vehicle must be restarted
while it is still moving, move the shift
lever to N (Neutral) and press
POWER
Otwice without pressing
the brake pedal. The propulsion
system will not restart in any other
position.
A chime will sound if the driver door
is opened while the vehicle is on.
Always press POWER
Oto turn the
vehicle off before exiting.
Stopping Procedure
For information on how to turn the
vehicle off, see Power Button0182.
Retained Accessory
Power (RAP)
The following features will operate
for up to 10 minutes or until the
driver door is opened:
.
Audio System
. Accessory Power Outlets
. Power Windows

Chevrolet BOLT EV Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13556250) - 2020 - CRC - 2/11/20
Vehicle Care 243
A vehicle cover, which can reduce
sun loading on the vehicle and
improve high voltage battery life, is
available from your dealer.
Refer to the replacement number
shown on the original battery label
when a new 12-volt battery is
needed. The vehicle has an
Absorbed Glass Mat (AGM) 12-volt
battery. Installation of a standard
12-volt battery will result in reduced
12-volt battery life.
When using a 12-volt battery
charger on the 12-volt AGM battery,
some chargers have an AGM
battery setting on the charger.
If available, use the AGM setting on
the charger, to limit charge voltage
to 14.8 volts.
{Warning
WARNING:Battery posts,
terminals, and related
accessories contain lead and lead
compounds, chemicals known to
the State of California to cause
(Continued)
Warning (Continued)
cancer and birth defects or other
reproductive harm. Batteries also
contain other chemicals known to
the State of California to cause
cancer.WASH HANDS AFTER
HANDLING. For more information
go to www.P65Warnings.ca.gov/
passenger-vehicle.
See California Proposition
65 Warning 0233 and the back
cover.
Vehicle Storage
{Warning
Batteries have acid that can burn
you and gas that can explode.
You can be badly hurt if you are
not careful. See Jump Starting -
North America 0284 for tips on
working around a battery without
getting hurt. Up to Four Weeks
.
Plug in the charge cord.
Four Weeks to 12 Months
. Discharge the high voltage
battery until two or three bars
remain on the battery range
indicator (Battery symbol) on the
instrument cluster.
. Do not plug in the charge cord.
. Remove the black negative (−)
cable from the 12-volt battery
and attach a trickle charger to
the battery terminals or keep the
12-volt battery cables connected
and trickle charge from the
underhood remote positive (+)
and negative (−) terminals. See
Jump Starting - North America
0284 for the location of these
terminals.
Caution
The vehicle is equipped with an
AGM/VRLA 12-volt battery, which
can be damaged by using the
(Continued)

Chevrolet BOLT EV Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13556250) - 2020 - CRC - 2/11/20

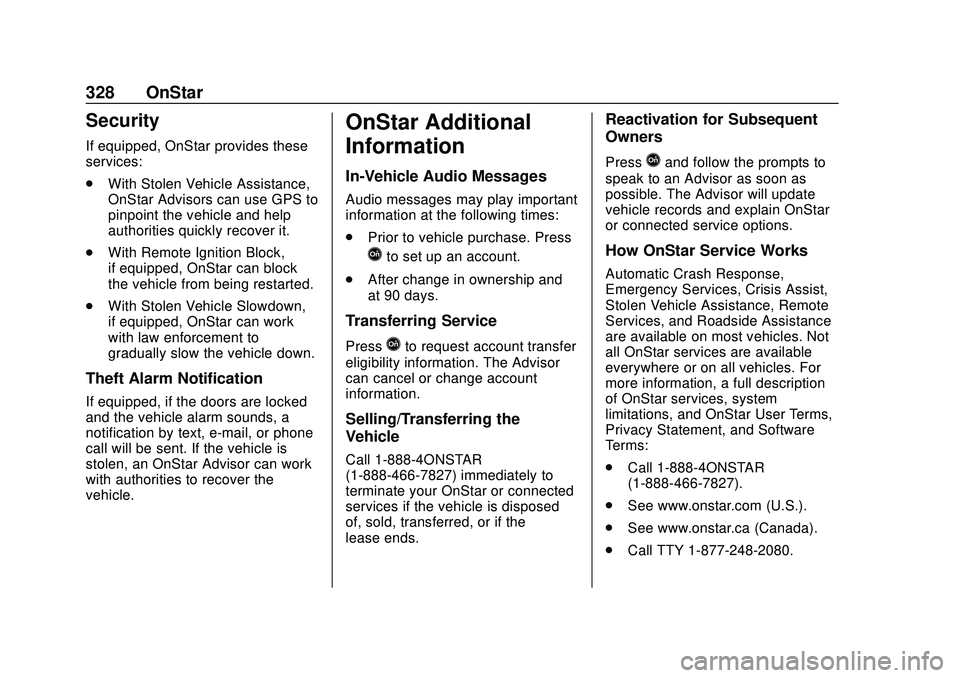

328 OnStar
Security
If equipped, OnStar provides these
services:
.With Stolen Vehicle Assistance,
OnStar Advisors can use GPS to
pinpoint the vehicle and help
authorities quickly recover it.
. With Remote Ignition Block,
if equipped, OnStar can block
the vehicle from being restarted.
. With Stolen Vehicle Slowdown,
if equipped, OnStar can work
with law enforcement to
gradually slow the vehicle down.
Theft Alarm Notification
If equipped, if the doors are locked
and the vehicle alarm sounds, a
notification by text, e-mail, or phone
call will be sent. If the vehicle is
stolen, an OnStar Advisor can work
with authorities to recover the
vehicle.
OnStar Additional
Information
In-Vehicle Audio Messages
Audio messages may play important
information at the following times:
.
Prior to vehicle purchase. Press
Qto set up an account.
. After change in ownership and
at 90 days.
Transferring Service
PressQto request account transfer
eligibility information. The Advisor
can cancel or change account
information.
Selling/Transferring the
Vehicle
Call 1-888-4ONSTAR
(1-888-466-7827) immediately to
terminate your OnStar or connected
services if the vehicle is disposed
of, sold, transferred, or if the
lease ends.
Reactivation for Subsequent
Owners
PressQand follow the prompts to
speak to an Advisor as soon as
possible. The Advisor will update
vehicle records and explain OnStar
or connected service options.
How OnStar Service Works
Automatic Crash Response,
Emergency Services, Crisis Assist,
Stolen Vehicle Assistance, Remote
Services, and Roadside Assistance
are available on most vehicles. Not
all OnStar services are available
everywhere or on all vehicles. For
more information, a full description
of OnStar services, system
limitations, and OnStar User Terms,
Privacy Statement, and Software
Terms:
. Call 1-888-4ONSTAR
(1-888-466-7827).
. See www.onstar.com (U.S.).
. See www.onstar.ca (Canada).
. Call TTY 1-877-248-2080.

Chevrolet BOLT EV Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13556250) - 2020 - CRC - 2/11/20

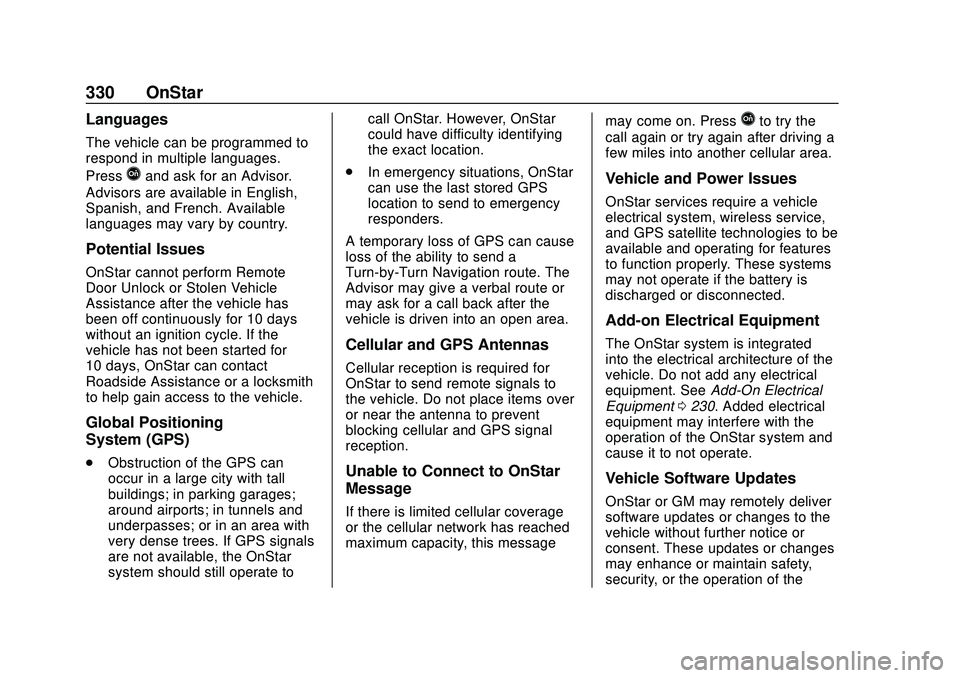

330 OnStar
Languages
The vehicle can be programmed to
respond in multiple languages.
Press
Qand ask for an Advisor.
Advisors are available in English,
Spanish, and French. Available
languages may vary by country.
Potential Issues
OnStar cannot perform Remote
Door Unlock or Stolen Vehicle
Assistance after the vehicle has
been off continuously for 10 days
without an ignition cycle. If the
vehicle has not been started for
10 days, OnStar can contact
Roadside Assistance or a locksmith
to help gain access to the vehicle.
Global Positioning
System (GPS)
. Obstruction of the GPS can
occur in a large city with tall
buildings; in parking garages;
around airports; in tunnels and
underpasses; or in an area with
very dense trees. If GPS signals
are not available, the OnStar
system should still operate to call OnStar. However, OnStar
could have difficulty identifying
the exact location.
. In emergency situations, OnStar
can use the last stored GPS
location to send to emergency
responders.
A temporary loss of GPS can cause
loss of the ability to send a
Turn-by-Turn Navigation route. The
Advisor may give a verbal route or
may ask for a call back after the
vehicle is driven into an open area.
Cellular and GPS Antennas
Cellular reception is required for
OnStar to send remote signals to
the vehicle. Do not place items over
or near the antenna to prevent
blocking cellular and GPS signal
reception.
Unable to Connect to OnStar
Message
If there is limited cellular coverage
or the cellular network has reached
maximum capacity, this message may come on. Press
Qto try the
call again or try again after driving a
few miles into another cellular area.
Vehicle and Power Issues
OnStar services require a vehicle
electrical system, wireless service,
and GPS satellite technologies to be
available and operating for features
to function properly. These systems
may not operate if the battery is
discharged or disconnected.
Add-on Electrical Equipment
The OnStar system is integrated
into the electrical architecture of the
vehicle. Do not add any electrical
equipment. See Add-On Electrical
Equipment 0230. Added electrical
equipment may interfere with the
operation of the OnStar system and
cause it to not operate.
Vehicle Software Updates
OnStar or GM may remotely deliver
software updates or changes to the
vehicle without further notice or
consent. These updates or changes
may enhance or maintain safety,
security, or the operation of the

Chevrolet BOLT EV Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13556250) - 2020 - CRC - 2/11/20
334 Connected Services
devices. Manage data usage by
turning Wi-Fi on or off on your
mobile device, using the
myChevrolet mobile app, or by
contacting an OnStar Advisor. On
some vehicles, Wi-Fi can also be
managed from the Wi-Fi
Hotspot menu.
myChevrolet Mobile App (If
Available)
Download the myChevrolet mobile
app to compatible Apple and
Android smartphones. Chevrolet
users can access the following
services from a smartphone:
.Remotely start/stop the vehicle,
if factory-equipped.
. Lock/unlock doors, if equipped
with automatic locks.
. Activate the horn and lamps.
. Check the vehicle’s energy level,
range or tire pressure,
if factory-equipped with the Tire
Pressure Monitor System.
. Send destinations to the vehicle.
. Locate the vehicle on a map
(U.S. market only). .
Turn the vehicle's Wi-Fi hotspot
on/off, manage settings, and
monitor data consumption,
if equipped.
. Locate a dealer and schedule
service.
. Request roadside assistance.
. Set a parking reminder with pin
drop, take a photo, make a note,
and set a timer.
. Connect with Chevrolet on social
media.
Features are subject to change. For
myChevrolet mobile app information
and compatibility, see
my.chevrolet.com.
An active OnStar or connected
service plan may be required.
A compatible device,
factory-installed remote start, and
power locks are required. Data rates
apply. See www.onstar.com for
details and system limitations.
Remote Services
Contact an OnStar Advisor to
unlock the doors or sound the horn
and flash the lamps.
Marketplace
OnStar Advisors can provide offers
from restaurants and retailers on
your route, help locate hotels,
or book a room. These services
vary by market.
Diagnostics
By monitoring and reporting on the
vehicle's key systems, OnStar
Advanced Diagnostics, if equipped,
provides a way to keep up on
maintenance. Capabilities vary by
model. See www.onstar.com for
details and system limitations.
Features are subject to change. For
updates on feature capabilities, see
my.chevrolet.com. Message and
data rates may apply.

Chevrolet BOLT EV Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13556250) - 2020 - CRC - 2/11/20
Index 339
Gauges (cont'd)Driver Efficiency . . . . . . . . . . . . . . . . 98
Odometer . . . . . . . . . . . . . . . . . . . . . . . 97
Power Indicator . . . . . . . . . . . . . . . . . 99
Speedometer . . . . . . . . . . . . . . . . . . . 97
Trip Odometer . . . . . . . . . . . . . . . . . . 97
Warning Lights and
Indicators . . . . . . . . . . . . . . . . . . . . . 94
General Information Service and Maintenance . . . . . 300
Towing . . . . . . . . . . . . . . . . . . . . . . . . 230
Vehicle Care . . . . . . . . . . . . . . . . . . 233
GM Mobility Reimbursement Program . . . . . . . . . . . . . . . . . . . . . . . 316
H
Halogen Bulbs . . . . . . . . . . . . . . . . . . 247
Hands-Free Phone . . . . . . . . . . . . . 155
Hazard Warning Flashers . . . . . . . 131
Head Restraints . . . . . . . . . . . . . . . . . 32
HeadlampsAiming . . . . . . . . . . . . . . . . . . . . . . . . 247
Automatic . . . . . . . . . . . . . . . . . . . . . 131
Bulb Replacement . . . . . . . . . . . . 247
Daytime RunningLamps (DRL) . . . . . . . . . . . . . . . . 130
Flash-to-Pass . . . . . . . . . . . . . . . . . 130 Headlamps (cont'd)
High Intensity Discharge
(HID) Lighting . . . . . . . . . . . . . . . 248
High-Beam On Light . . . . . . . . . . 106
High/Low Beam Changer . . . . . 130
Lamps On Reminder . . . . . . . . . 106
Heated
Rear Seats . . . . . . . . . . . . . . . . . . . . . 39
Steering Wheel . . . . . . . . . . . . . . . . . 86
Heated Front Seats . . . . . . . . . . . . . . 35
Heated Mirrors . . . . . . . . . . . . . . . . . . . 25
Heating . . . . . . . . . . . . . . . . . . . . . . . . . 163
High Voltage Battery Gauge . . . . . 98
High Voltage Devices and Wiring . . . . . . . . . . . . . . . . . . . . . . . . . 249
High-Beam On Light . . . . . . . . . . . . 106
Hill and Mountain Roads . . . . . . . . 176
Hill Start Assist (HSA) . . . . . . . . . . 193
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . 235
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
How to Wear Seat Belts
Properly . . . . . . . . . . . . . . . . . . . . . . . . 40
HVAC . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
I
Immobilizer . . . . . . . . . . . . . . . . . . . . . . 22
Indicator Pedestrian Ahead . . . . . . . . . . . . 104 Indicator (cont'd)
Vehicle Ahead . . . . . . . . . . . . . . . . 104
Infants and Young Children, Restraints . . . . . . . . . . . . . . . . . . . . . . 61
Information Energy . . . . . . . . . . . . . . . . . . . . . . . .115
Publication Ordering . . . . . . . . . . 321
Instrument Cluster . . . . . . . . . . . . . . . 94
Instrument Panel Storage Area . . . . . . . . . . . . . . . . . . . 81
Instrument Panel Overview . . . . . . . 5
Interior Rearview Mirrors . . . . . . . . . 25
Introduction . . . . . . . . . . . . . . . . . . 2, 135
J
Jump Starting - North America . . . . . . . . . . . . . . . . . . . . . . . 284
K
Keyless Entry
Remote (RKE) System . . . . . . . . . . 8
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
L
Labeling, Tire Sidewall . . . . . . . . . . 259
Lamps
Courtesy . . . . . . . . . . . . . . . . . . . . . . 132
Daytime Running (DRL) . . . . . . 130
Dome . . . . . . . . . . . . . . . . . . . . . . . . . 133

Chevrolet BOLT EV Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13556250) - 2020 - CRC - 2/11/20

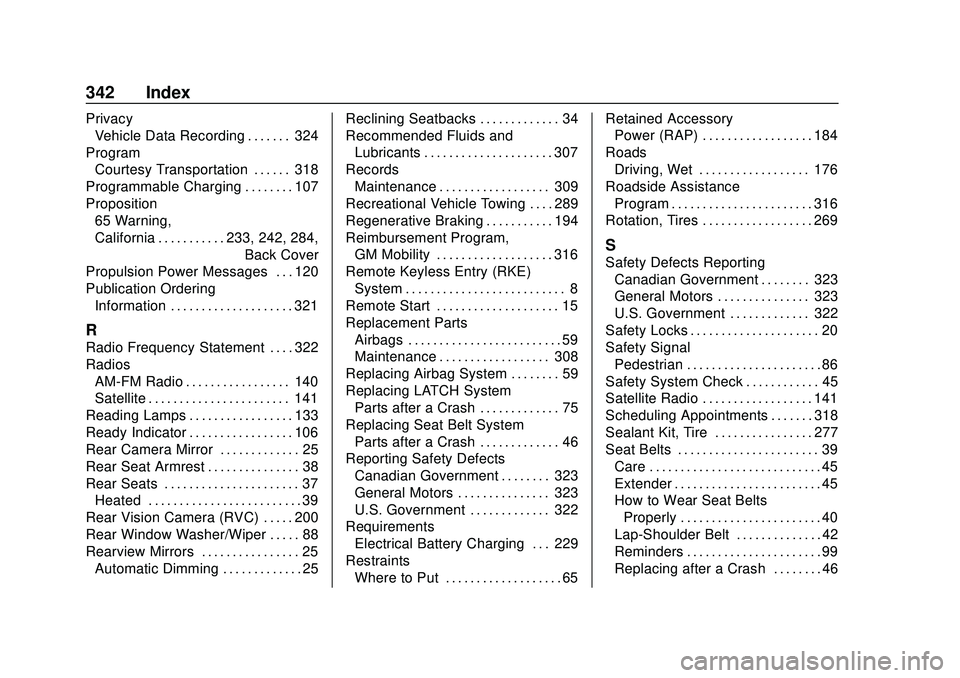

342 Index
PrivacyVehicle Data Recording . . . . . . . 324
Program Courtesy Transportation . . . . . . 318
Programmable Charging . . . . . . . . 107
Proposition 65 Warning,
California . . . . . . . . . . . .233, 242, 284,
Back Cover
Propulsion Power Messages . . . 120
Publication Ordering Information . . . . . . . . . . . . . . . . . . . . 321
R
Radio Frequency Statement . . . . 322
RadiosAM-FM Radio . . . . . . . . . . . . . . . . . 140
Satellite . . . . . . . . . . . . . . . . . . . . . . . 141
Reading Lamps . . . . . . . . . . . . . . . . . 133
Ready Indicator . . . . . . . . . . . . . . . . . 106
Rear Camera Mirror . . . . . . . . . . . . . 25
Rear Seat Armrest . . . . . . . . . . . . . . . 38
Rear Seats . . . . . . . . . . . . . . . . . . . . . . 37 Heated . . . . . . . . . . . . . . . . . . . . . . . . . 39
Rear Vision Camera (RVC) . . . . . 200
Rear Window Washer/Wiper . . . . . 88
Rearview Mirrors . . . . . . . . . . . . . . . . 25 Automatic Dimming . . . . . . . . . . . . . 25 Reclining Seatbacks . . . . . . . . . . . . . 34
Recommended Fluids and
Lubricants . . . . . . . . . . . . . . . . . . . . . 307
Records Maintenance . . . . . . . . . . . . . . . . . . 309
Recreational Vehicle Towing . . . . 289
Regenerative Braking . . . . . . . . . . . 194
Reimbursement Program, GM Mobility . . . . . . . . . . . . . . . . . . . 316
Remote Keyless Entry (RKE) System . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Remote Start . . . . . . . . . . . . . . . . . . . . 15
Replacement Parts Airbags . . . . . . . . . . . . . . . . . . . . . . . . . 59
Maintenance . . . . . . . . . . . . . . . . . . 308
Replacing Airbag System . . . . . . . . 59
Replacing LATCH System
Parts after a Crash . . . . . . . . . . . . . 75
Replacing Seat Belt System Parts after a Crash . . . . . . . . . . . . . 46
Reporting Safety Defects
Canadian Government . . . . . . . . 323
General Motors . . . . . . . . . . . . . . . 323
U.S. Government . . . . . . . . . . . . . 322
Requirements
Electrical Battery Charging . . . 229
Restraints Where to Put . . . . . . . . . . . . . . . . . . . 65 Retained Accessory
Power (RAP) . . . . . . . . . . . . . . . . . . 184
Roads Driving, Wet . . . . . . . . . . . . . . . . . . 176
Roadside Assistance Program . . . . . . . . . . . . . . . . . . . . . . . 316
Rotation, Tires . . . . . . . . . . . . . . . . . . 269
S
Safety Defects Reporting
Canadian Government . . . . . . . . 323
General Motors . . . . . . . . . . . . . . . 323
U.S. Government . . . . . . . . . . . . . 322
Safety Locks . . . . . . . . . . . . . . . . . . . . . 20
Safety Signal Pedestrian . . . . . . . . . . . . . . . . . . . . . . 86
Safety System Check . . . . . . . . . . . . 45
Satellite Radio . . . . . . . . . . . . . . . . . . 141
Scheduling Appointments . . . . . . . 318
Sealant Kit, Tire . . . . . . . . . . . . . . . . 277
Seat Belts . . . . . . . . . . . . . . . . . . . . . . . 39
Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Extender . . . . . . . . . . . . . . . . . . . . . . . . 45
How to Wear Seat BeltsProperly . . . . . . . . . . . . . . . . . . . . . . . 40
Lap-Shoulder Belt . . . . . . . . . . . . . . 42
Reminders . . . . . . . . . . . . . . . . . . . . . . 99
Replacing after a Crash . . . . . . . . 46

Chevrolet BOLT EV Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13556250) - 2020 - CRC - 2/11/20

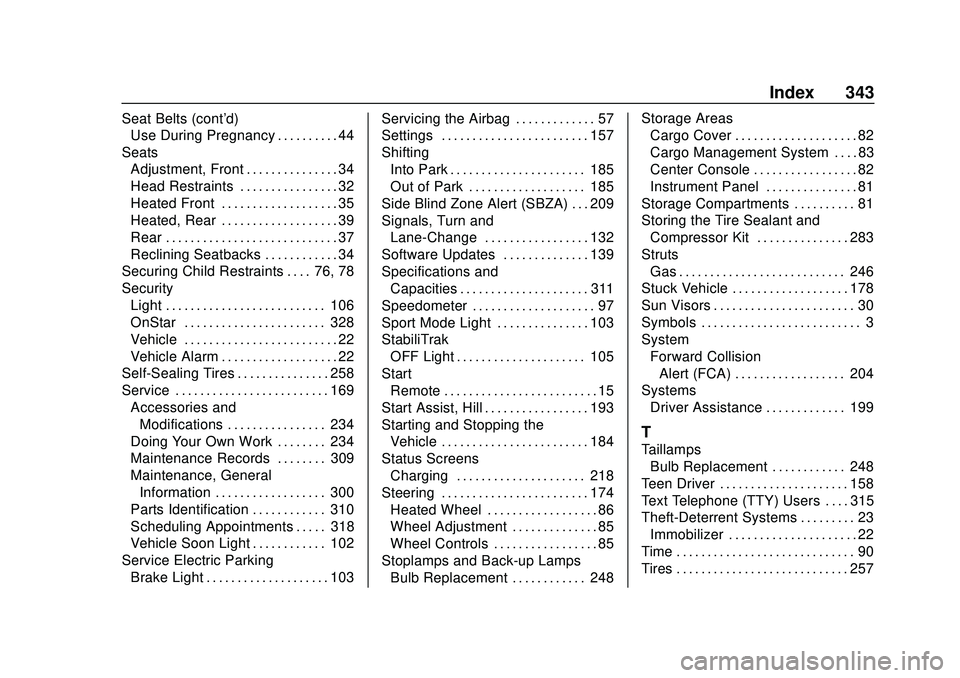

Index 343
Seat Belts (cont'd)Use During Pregnancy . . . . . . . . . . 44
Seats Adjustment, Front . . . . . . . . . . . . . . . 34
Head Restraints . . . . . . . . . . . . . . . . 32
Heated Front . . . . . . . . . . . . . . . . . . . 35
Heated, Rear . . . . . . . . . . . . . . . . . . . 39
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Reclining Seatbacks . . . . . . . . . . . . 34
Securing Child Restraints . . . . 76, 78
Security Light . . . . . . . . . . . . . . . . . . . . . . . . . . 106
OnStar . . . . . . . . . . . . . . . . . . . . . . . 328
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . 22
Vehicle Alarm . . . . . . . . . . . . . . . . . . . 22
Self-Sealing Tires . . . . . . . . . . . . . . . 258
Service . . . . . . . . . . . . . . . . . . . . . . . . . 169
Accessories andModifications . . . . . . . . . . . . . . . . 234
Doing Your Own Work . . . . . . . . 234
Maintenance Records . . . . . . . . 309
Maintenance, General Information . . . . . . . . . . . . . . . . . . 300
Parts Identification . . . . . . . . . . . . 310
Scheduling Appointments . . . . . 318
Vehicle Soon Light . . . . . . . . . . . . 102
Service Electric Parking Brake Light . . . . . . . . . . . . . . . . . . . . 103 Servicing the Airbag . . . . . . . . . . . . . 57
Settings . . . . . . . . . . . . . . . . . . . . . . . . 157
Shifting
Into Park . . . . . . . . . . . . . . . . . . . . . . 185
Out of Park . . . . . . . . . . . . . . . . . . . 185
Side Blind Zone Alert (SBZA) . . . 209
Signals, Turn and Lane-Change . . . . . . . . . . . . . . . . . 132
Software Updates . . . . . . . . . . . . . . 139
Specifications and Capacities . . . . . . . . . . . . . . . . . . . . . 311
Speedometer . . . . . . . . . . . . . . . . . . . . 97
Sport Mode Light . . . . . . . . . . . . . . . 103
StabiliTrak OFF Light . . . . . . . . . . . . . . . . . . . . . 105
Start
Remote . . . . . . . . . . . . . . . . . . . . . . . . . 15
Start Assist, Hill . . . . . . . . . . . . . . . . . 193
Starting and Stopping the Vehicle . . . . . . . . . . . . . . . . . . . . . . . . 184
Status Screens
Charging . . . . . . . . . . . . . . . . . . . . . 218
Steering . . . . . . . . . . . . . . . . . . . . . . . . 174 Heated Wheel . . . . . . . . . . . . . . . . . . 86
Wheel Adjustment . . . . . . . . . . . . . . 85
Wheel Controls . . . . . . . . . . . . . . . . . 85
Stoplamps and Back-up Lamps Bulb Replacement . . . . . . . . . . . . 248 Storage Areas
Cargo Cover . . . . . . . . . . . . . . . . . . . . 82
Cargo Management System . . . . 83
Center Console . . . . . . . . . . . . . . . . . 82
Instrument Panel . . . . . . . . . . . . . . . 81
Storage Compartments . . . . . . . . . . 81
Storing the Tire Sealant and Compressor Kit . . . . . . . . . . . . . . . 283
Struts Gas . . . . . . . . . . . . . . . . . . . . . . . . . . . 246
Stuck Vehicle . . . . . . . . . . . . . . . . . . . 178
Sun Visors . . . . . . . . . . . . . . . . . . . . . . . 30
Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . 3
System
Forward CollisionAlert (FCA) . . . . . . . . . . . . . . . . . . 204
Systems Driver Assistance . . . . . . . . . . . . . 199
T
TaillampsBulb Replacement . . . . . . . . . . . . 248
Teen Driver . . . . . . . . . . . . . . . . . . . . . 158
Text Telephone (TTY) Users . . . . 315
Theft-Deterrent Systems . . . . . . . . . 23 Immobilizer . . . . . . . . . . . . . . . . . . . . . 22
Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . 257
