interior lights CHRYSLER 200 2011 1.G Owners Manual

•This device must accept any interference that may be
received, including interference that may cause unde-
sired operation.
VEHICLE SECURITY ALARM — IF EQUIPPED
The Vehicle Security Alarm monitors the doors and trunk
for unauthorized entry and ignition switch for unauthor-
ized operation. While the Vehicle Security Alarm is
armed, interior switches for door locks and decklid
release are disabled.
If something triggers the alarm, the Vehicle Security
Alarm will signal for about 18 minutes. For the first three
minutes, the horn will sound intermittently and the
headlights, park lamps and/or turn signals will flash and
the Vehicle Security Light in the cluster will flash. Then
the exterior lights will flash for another 15 minutes.
Rearming The System
If something triggers the alarm, and no action is taken to
disarm it, the Vehicle Security Alarm will turn off the
horn after three minutes, turn off all of the visual signals
after 15 minutes, and then the Vehicle Security Alarm will
rearm itself.
To Arm The System
1. Remove the keys from the ignition switch and get out
of the vehicle.
2. Lock the door using either the power door lock switch
(one door must be open) or the LOCK button on the
Remote Keyless Entry (RKE) transmitter (doors can be
open or closed), and close all doors.
NOTE:The Vehicle Security Alarm will not arm if you
lock the doors with the manual door lock plungers.
3. The Vehicle Security Light in the instrument cluster
will flash for 16 seconds. This shows that the Vehicle
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

If the Vehicle Security Alarm is armed and the battery
becomes disconnected the Vehicle Security Alarm will
remain armed when the battery is reconnected. The
exterior lights will flash, and the horn will sound. If this
occurs, disarm the Vehicle Security Alarm.
Tamper Alert
If the alarm was triggered, but the warning signals have
timed out, the park and taillights flash three times, and
the horn will chirp three times, when unlocking the
vehicle with a valid RKE transmitter to alert the driver.
ILLUMINATED ENTRY — IF EQUIPPED
The courtesy lights will turn on when you press the
unlock button on the Remote Keyless Entry (RKE) trans-
mitter or open any door.
This feature also turns on the approach lighting in the
outside mirrors (if equipped). Refer to “Mirrors” in
“Understanding The Features Of Your Vehicle” for fur-
ther information.The interior lights will fade to off after approximately
30 seconds or they will immediately fade to off once the
ignition switch is turned to ON/RUN from the OFF
position..
NOTE:
•The front courtesy overhead console and door cour-
tesy lights do not turn on if the dimmer control is in
the
Dome ON position (extreme top position).
•The Illuminated Entry system will not operate if the
dimmer control is in the “Dome defeat” position
(extreme bottom position).
REMOTE KEYLESS ENTRY (RKE) — IF EQUIPPED
This system allows you to lock or unlock the doors, open
the trunk, lower both front windows (if equipped), or
activate the Panic Alarm from distances approximately
66 ft (20 m) using a Remote Keyless Entry (RKE) trans-
mitter. The RKE transmitter does not need to be pointed
at the vehicle to activate the system.
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

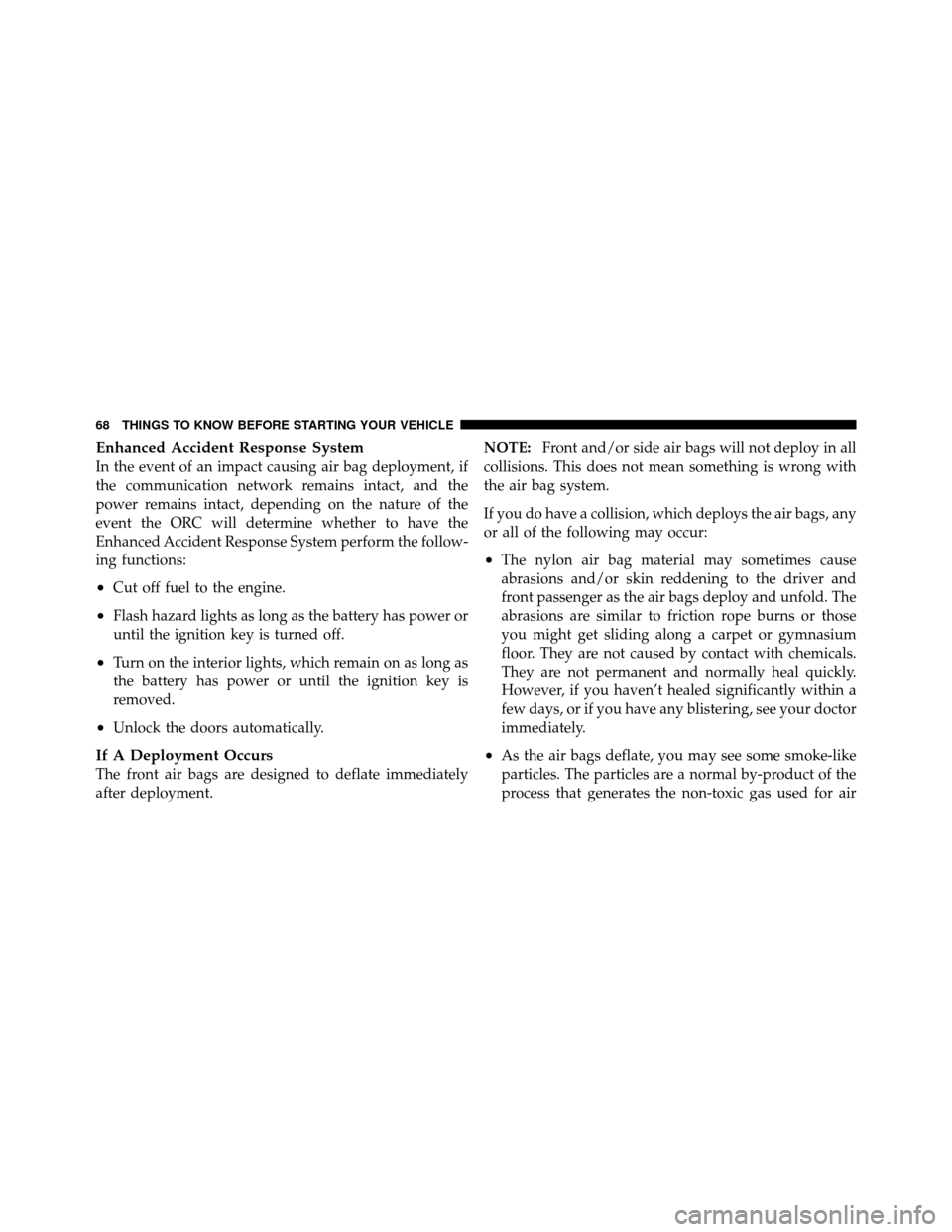

Enhanced Accident Response System
In the event of an impact causing air bag deployment, if
the communication network remains intact, and the
power remains intact, depending on the nature of the
event the ORC will determine whether to have the
Enhanced Accident Response System perform the follow-
ing functions:
•Cut off fuel to the engine.
•Flash hazard lights as long as the battery has power or
until the ignition key is turned off.
•Turn on the interior lights, which remain on as long as
the battery has power or until the ignition key is
removed.
•Unlock the doors automatically.
If A Deployment Occurs
The front air bags are designed to deflate immediately
after deployment.NOTE:
Front and/or side air bags will not deploy in all
collisions. This does not mean something is wrong with
the air bag system.
If you do have a collision, which deploys the air bags, any
or all of the following may occur:
•The nylon air bag material may sometimes cause
abrasions and/or skin reddening to the driver and
front passenger as the air bags deploy and unfold. The
abrasions are similar to friction rope burns or those
you might get sliding along a carpet or gymnasium
floor. They are not caused by contact with chemicals.
They are not permanent and normally heal quickly.
However, if you haven’t healed significantly within a
few days, or if you have any blistering, see your doctor
immediately.
•As the air bags deflate, you may see some smoke-like
particles. The particles are a normal by-product of the
process that generates the non-toxic gas used for air
68 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

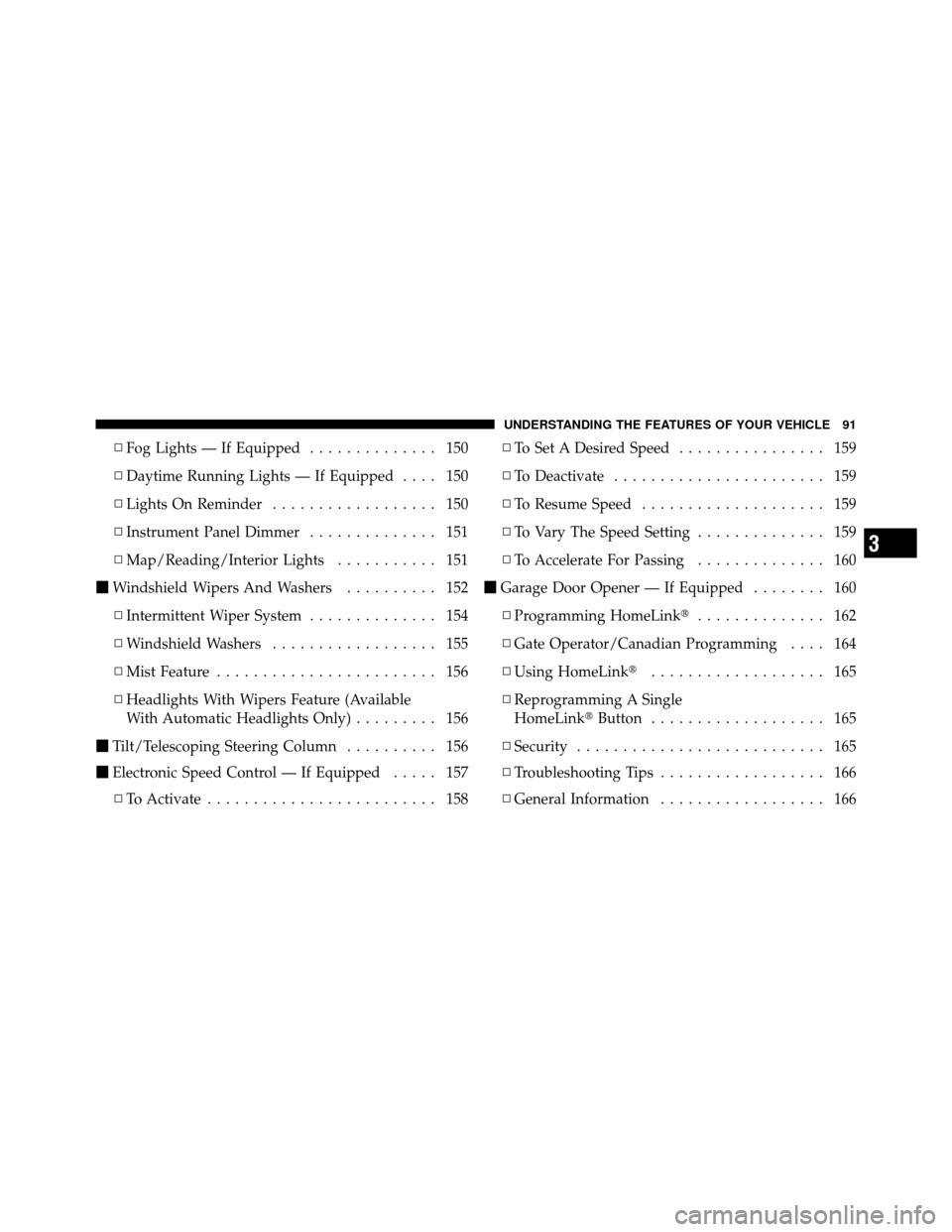

▫Fog Lights — If Equipped .............. 150
▫ Daytime Running Lights — If Equipped .... 150
▫ Lights On Reminder .................. 150
▫ Instrument Panel Dimmer .............. 151
▫ Map/Reading/Interior Lights ........... 151
 Windshield Wipers And Washers .......... 152
▫ Intermittent Wiper System .............. 154
▫ Windshield Washers .................. 155
▫ Mist Feature ........................ 156
▫ Headlights With Wipers Feature (Available
With Automatic Headlights Only) ......... 156
 Tilt/Telescoping Steering Column .......... 156
 Electronic Speed Control — If Equipped ..... 157
▫ To Activate ......................... 158 ▫
To Set A Desired Speed ................ 159
▫ To Deactivate ....................... 159
▫ To Resume Speed .................... 159
▫ To Vary The Speed Setting .............. 159
▫ To Accelerate For Passing .............. 160
 Garage Door Opener — If Equipped ........ 160
▫ Programming HomeLink .............. 162
▫ Gate Operator/Canadian Programming .... 164
▫ Using HomeLink ................... 165
▫ Reprogramming A Single
HomeLink Button................... 165
▫ Security ........................... 165
▫ Troubleshooting Tips .................. 166
▫ General Information .................. 166
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 91

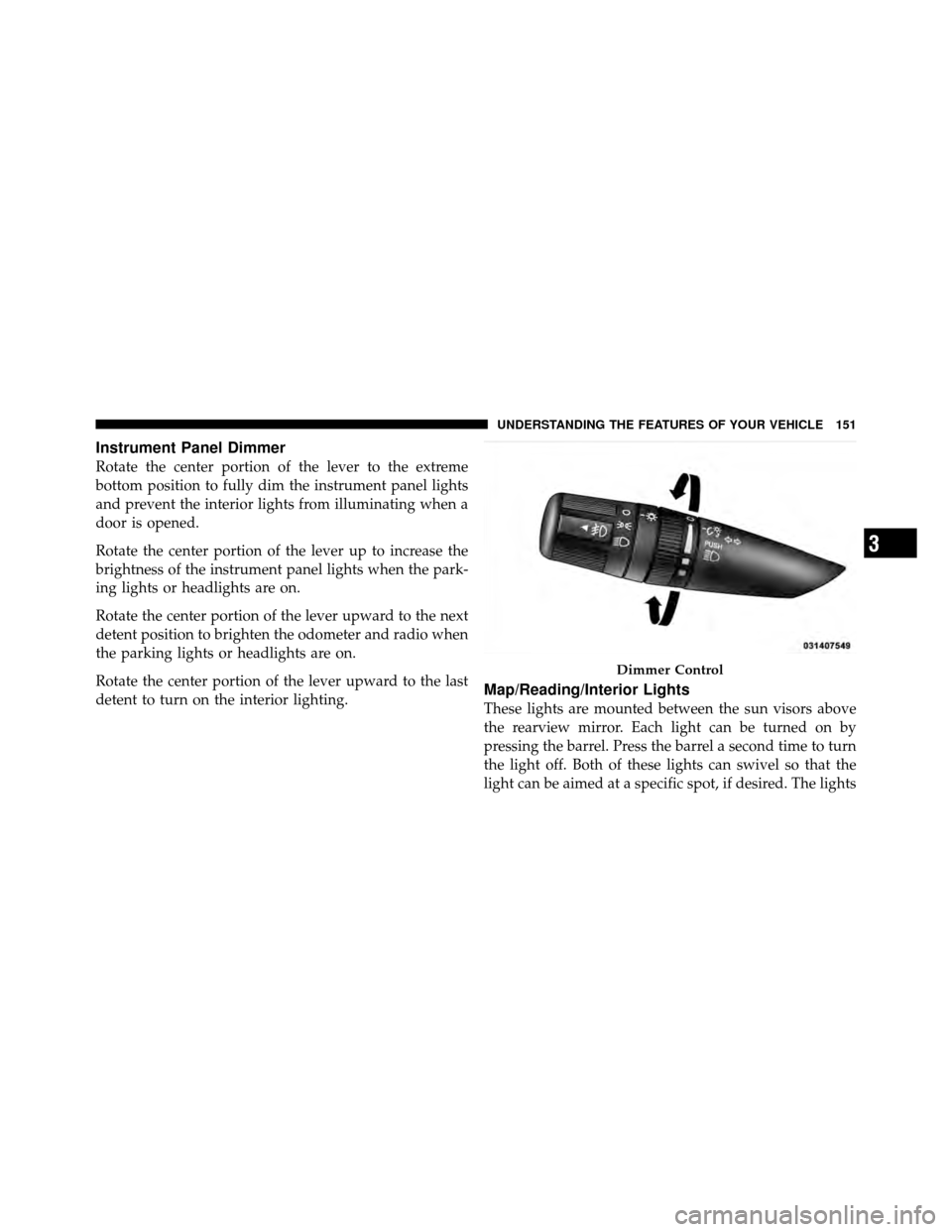

Instrument Panel Dimmer
Rotate the center portion of the lever to the extreme
bottom position to fully dim the instrument panel lights
and prevent the interior lights from illuminating when a
door is opened.
Rotate the center portion of the lever up to increase the
brightness of the instrument panel lights when the park-
ing lights or headlights are on.
Rotate the center portion of the lever upward to the next
detent position to brighten the odometer and radio when
the parking lights or headlights are on.
Rotate the center portion of the lever upward to the last
detent to turn on the interior lighting.
Map/Reading/Interior Lights
These lights are mounted between the sun visors above
the rearview mirror. Each light can be turned on by
pressing the barrel. Press the barrel a second time to turn
the light off. Both of these lights can swivel so that the
light can be aimed at a specific spot, if desired. The lights
Dimmer Control
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 151

will remain on until the switch is pressed a second time,
so be sure they have been turned off before leaving the
vehicle. They will not turn off automatically. Interior
lighting also comes on when a door is opened or the
dimmer control is turned fully upward, past the second
detent.There is a second light located midway back in the
headliner.
To protect the battery, the interior lights will turn off
automatically 10 minutes after the ignition switch is
moved to the LOCK position. This will occur if the
interior lights were switched on manually or are on
because a door is open. To restore interior light operation,
either turn the ignition switch ON or cycle the light
switch.
WINDSHIELD WIPERS AND WASHERS
The wipers and washers are operated by a switch
on the control lever. The lever is located on the
right side of the steering column.
Interior Dome Lamp
152 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

CavityCartridge
Fuse Mini
Fuse Description
9 40 Amp
Green Battery Feed – Power
Seats – If Equipped/
PZEV Air Pump – If
Equipped
10 — 20 Amp
Yellow Instrument Panel/
Power Locks/Interior
Lights
11 — 15 Amp
Lt Blue Selectable Power
Outlet (Inside Center
Arm Rest)
12 — 20 Amp
Yellow —
13 — 20 Amp
Yellow Ignition
14 — 10 Amp
Red Instrument PanelCavity Cartridge
Fuse Mini
Fuse Description
15 40 Amp
Green — Radiator Fan Relay
16 — 15 Amp
Lt. Blue Cigar Lighter/
Sunroof – If
Equipped
17 — 10 Amp
Red Wireless Control
Module (WCM)/
Clock/Steering Con-
trol Module (SCM)
18 40 Amp
Green —Auto Shutdown
(ASD) Relay
19 — 20 Amp
Yellow Audio Amplifier – If
Equipped
20 — 15 Amp
Lt. Blue Radio
21 — 10 Amp
Red Siren – If Equipped
430 MAINTAINING YOUR VEHICLE

HitchesTrailer Towing ....................... 361
HomeLink® (Garage Door Opener) Transmitter . . 160
Hood Prop ............................ 146
Hood Release .......................... 145
Ignition ............................... 12
Key ............................... 12
Lock .............................. 12
Ignition Key Removal ..................... 12
Illuminated Entry ........................ 20
Immobilizer (Sentry Key) ................... 15
Infant Restraint ........................ 72,73
Information Center, Vehicle ................. 203
Inside Rearview Mirror .................... 93
Instrument Cluster .................... 187,188
Instrument Panel and Controls .............. 186
Instrument Panel Cover ................... 426
Instrument Panel Lens Cleaning ............. 427Integrated Power Module (Fuses)
............ 428
Interior Appearance Care .................. 426
Interior Lights .......................... 151
Intermittent Wipers (Delay Wipers) ........... 154
Introduction ............................. 4
Jack Location ........................... 374
Jack Operation ....................... 374,376
Jacking Instructions ...................... 376
Jump Starting .......................... 381
Key-In Reminder ......................... 14
Key, Programming ........................ 16
Key, Replacement ........................ 16
Key, Sentry (Immobilizer) ................... 15
Keyless Entry System ...................... 20
Keyless Entry System (Sedan) ................ 20
Keys ................................. 12
Knee Bolster ............................ 57
476 INDEX

Lane Change and Turn Signals...........196,436
Lane Change Assist ...................... 149
Lap/Shoulder Belts ....................... 43
LATCH
(Lower Anchors and Tether for CHildren) ....... 78
Latches ................................ 87
Hood ............................. 145
Lead Free Gasoline ...................... 346
Leaks, Fluid ............................ 87
Life of Tires ............................ 333
Light Bulbs .......................... 87,434
Lights .............................. 87,146
Airbag .................... 65,66,70,85,189
Back-Up ........................... 436
Brake Assist Warning .................. 315
Brake Warning ...................... 190
Bulb Replacement .................... 434
Daytime Running .................... 150
Electronic Stability Program (ESP) Indicator . . 315 Engine Temperature Warning
............ 190
Exterior ............................ 87
Fog ......................... 150,196,435
Headlight Switch ..................... 147
Headlights ...................... 147,434
Headlights On With Wipers ............. 156
High Beam Indicator .................. 201
Illuminated Entry ..................... 20
Instrument Cluster ................... 147
Interior ............................ 151
License ............................ 437
Lights On Reminder .................. 150
Low Fuel .......................... 189
Malfunction Indicator (Check Engine) ...... 199
Map Reading ....................... 151
Oil Pressure ........................ 190
Passing ............................ 149
Seat Belt Reminder ................... 189
Security Alarm (Theft Alarm) ............. 18
10
INDEX 477
