INSTRUMENT CLUSTER
Warning Lights
- Low Fuel Warning Light
- Charging System Light**
- Oil Pressure Warning Light**
- Anti-Lock Brake (ABS) Light**
- Air Bag Warning Light**
- Electronic Throttle Control (ETC) Light
- Tire Pressure Monitoring System (TPMS) Light
- Engine Temperature Warning Light
- Transmission Temperature Warning Light
- Seat Belt Reminder Light
BRAKE- Brake Warning Light**
- Malfunction Indicator Light (MIL)**
- Electronic Stability Control (ESC) Activation/Malfunction Indicator Light**
(See page 66 for more information.)
CONTROLS AT A GLANCE
06

Indicators
- Turn Signal Indicators
- High Beam Indicator
- Front Fog Light Indicator
- Vehicle Security Indicator*
- Cruise Indicator
- Electronic Stability Control (ESC) Off Indicator
- Park/Headlight ON Indicator
Odometer Messages
door - Door AjarCHANgE OIL* - Change Engine Oil
dECK - Trunk Ajar gASCAP - Fuel Cap Fault
HOTOIL* - Engine Oil is over temperature LoW tirE - Low Tire Pressure
* If equipped
** Bulb Check with Key On
CONTROLS AT A GLANCE
07

Replay Option Option Description
Play/Pause Touch to Pause content playback. Touch Pause/Play again to resumeplayback.
Rewind/RW Rewinds the channel content in steps of 5 seconds. Touch and hold to rewind continuously, then release to begin playing content at that point.
Fast Forward/FW Forwards the content, and works similarly to Rewind/RW. However, Fast Forward/FW can only be used when content has been previously rewound.
Replay Time Displays the amount of time in the upper center of the screen by which your content lags the Live channel.
Live Resumes playback of Live content at any time while replaying rewound content.
Sirius Travel Link (Media Center 730N (RHR) & Media Center 430N (RHB)
Only)
NOTE:
• Sirius Travel Link requires a subscription, sold separately after the 1 year trial subscription
included with your vehicle purchase.
• Sirius Travel Link is only available in the United States.
• Sirius Travel Link brings a wealth of useful information into your vehicle and right to yourfingertips.
• To access Travel Link, press the MENU hard-key, then the Travel Link soft-key.
1 – Favorites View and store your favorite location, theater and sport teams for
quick access.
2 – Forecast View detailed weather conditions, forecasts and ski/snowboarding
conditions at local resorts.
3 – Ski Info View ski and snowboarding conditions at local ski resorts.
4 – Fuel Prices View detailed price information for fuel stations near your current
location.
5 – Movies View information on movies that are playing at theaters near your
current location.
6 – Sports View sports scores and upcoming events for all major sports.
ELECTRONICS
51

24-HOUR TOWING ASSISTANCE
• Dial toll-free 1-800-521-2779 or 1-800-363-4869 for Canadian residents.
• Provide your name, vehicle identification number and license plate number.
• Provide your location, including telephone number, from which you are calling.
• Briefly describe the nature of the problem and answer a few simple questions.
• You will be given the name of the service provider and an estimated time of arrival. If youfeel you are in an “unsafe situation”, please let us know. With your consent, we will contact
local police or safety authorities.
INSTRUMENT CLUSTER WARNING LIGHTS
- Electronic Stability Control (ESC) Activation/Malfunction Indicator
Light
• If the “ESC Activation/Malfunction Indicator Light” comes on continuously with the engine running, a malfunction has been detected in the ESC system. If this light remains
on after several ignition cycles, and the vehicle has been driven several miles (kilometers)
at speeds greater than 30 mph (48 km/h), we recommend you do not operate the vehicle.
Have the vehicle serviced immediately.
• The “ESC Activation/Malfunction Indicator Light” starts to flash as soon as the tires lose traction and the ESC system becomes active. If the light begins to flash during
acceleration, ease up on the accelerator and apply as little throttle as possible. Be sure to
adapt your speed and driving to the prevailing road conditions. The light also flashes
when TCS is active. To improve the vehicle's traction when starting off in deep snow, sand
or gravel, it may be desirable to switch the ESC system to Partial Off mode by
momentarily pressing the ESC Off
switch.
- Tire Pressure Monitoring System (TPMS) Light
• Each tire, including the spare (if provided), should be checked monthly, when cold andinflated to the inflation pressure recommended by the vehicle manufacturer on the
vehicle placard or tire inflation pressure label. (If your vehicle has tires of a different size
than the size indicated on the vehicle placard or tire inflation pressure label, you should
determine the proper tire inflation pressure for those tires.)
• As an added safety feature, your vehicle has been equipped with a Tire Pressure Monitoring System (TPMS) that illuminates a low tire pressure telltale when one or more
of your tires is significantly under-inflated. Accordingly, when the low tire pressure telltale
illuminates, you should stop and check your tires as soon as possible, and inflate them to
the proper pressure. Driving on a significantly under-inflated tire causes the tire to
overheat and can lead to tire failure. Under-inflation also reduces fuel efficiency and tire
tread life, and may affect the vehicle’s handling and stopping ability.
WHAT TO DO IN EMERGENCIES
66

WARNING!
A hot engine cooling system is dangerous. You or others could be badly burned by steam
or boiling coolant. You may want to call an authorized service center for service if your
vehicle overheats.
BRAKE- Brake Warning Light
• The Brake Warning light illuminates when there is either a system malfunction or theparking brake is applied. If the light is on and the parking brake is not applied, it indicates
a possible brake hydraulic malfunction, brake booster problem or an Anti-Lock Brake
System problem.
• Please have your vehicle serviced immediately.
WARNING!
Driving a vehicle with the red brake light on is dangerous. Part of the brake system may
have failed. It will take longer to stop the vehicle. You could have a collision. Have the
vehicle checked immediately.
- Malfunction Indicator Light (MIL)
• Certain conditions, such as a loose or missing gas cap, poor fuel quality, etc., may illuminate the MIL after engine start. The vehicle should be serviced if the light stays on
through several typical driving cycles. In most situations, the vehicle will drive normally
and not require towing.
• If the MIL flashes when the engine is running, serious conditions may exist that could lead to immediate loss of power or severe catalytic converter damage. We recommend you do
not operate the vehicle. Have the vehicle serviced immediately.
- Charging System Light
• This light shows the status of the electrical charging system. If the charging system lightremains on, it means that the vehicle is experiencing a problem with the charging system.
• We recommend you do not continue driving if the charging system light is on. Have the vehicle serviced immediately.
- Oil Pressure Warning Light
• This light indicates low engine oil pressure. If the light turns on while driving, stop thevehicle and shut off the engine as soon as possible. A chime will sound for four minutes
when this light turns on.
• We recommend you do not operate the vehicle or engine damage will occur. Have the vehicle serviced immediately.
WHAT TO DO IN EMERGENCIES
68

- Anti-Lock Brake (ABS) Light
• This light monitors the Anti-Lock Brake System (ABS).
• If the light is not on during starting, stays on, or turns on while driving, we recommendyou drive to the nearest service center and have the vehicle serviced immediately.
- Electronic Throttle Control (ETC) Light
• This light informs you of a problem with the Electronic Throttle Control (ETC) system.
• If a problem is detected, the light will come on while the engine is running. Cycle theignition when the vehicle has completely stopped and the shift lever is placed in the
PARK position; the light should turn off.
• If the light remains lit with the engine running, your vehicle will usually be drivable; however, see an authorized service center immediately. If the light is flashing when the
engine is running, immediate service is required and you may experience reduced
performance, an elevated/rough idle or engine stall and your vehicle may require towing.
- Transmission Temperature Warning Light
• This light indicates that there is excessive transmission fluid temperature that might occurwith severe usage such as trailer towing. If this light turns on, stop the vehicle and run the
engine at idle, with the transmission in NEUTRAL, until the light turns off. Once the light
turns off, you may continue to drive normally.
- Air Bag Warning Light
• If the light is not on during starting, stays on, or turns on while driving, have the vehicleserviced by an authorized service center immediately.
Fuel Cap/Loose Gas Cap Message
• If a “gas cap” message (shown as gASCAP) appears, tighten the gas cap until a “clicking”sound is heard.
• Press the odometer reset button to turn the message off.
• If the message continues to appear for more than three days after tightening the gas cap, see your authorized service center.
Oil Change Indicator
Message
• If an “oil change” message (shown as CHANgE OIL) appears and a single chime sounds,it is time for your next required oil change.
Resetting The Light After Servicing
• Turn the ignition switch to the ON/RUN position (do not start engine).
• Fully depress the accelerator pedal three times within 10 seconds.
• Turn the ignition switch to the OFF/LOCK position.
WHAT TO DO IN EMERGENCIES
69

FLUIDS AND CAPACITIES
ComponentFluid, Lubricant, or Genuine Part Capacities
Engine Coolant 2.4L MOPAR® Antifreeze/Coolant Five Year/100,000 Mile Formula HOAT
(Hybrid Organic Additive
Technology) or equivalent. 7.7 Quarts (7.3 Liters)
Includes heater and coolant
recovery bottle filled to
MAX level.
Engine Coolant 3.6L MOPAR® Antifreeze/Coolant Five Year/100,000 Mile Formula HOAT
(Hybrid Organic Additive
Technology) or equivalent. 11.6 Quarts (11 Liters)
Includes heater and coolant
recovery bottle filled to
MAX level.
Engine Oil with Filter 2.4L API Certified SAE 5W-20 engine oil, meeting the requirements of
Chrysler Material Standard
MS-6395. Refer to the engine oil
filler cap for correct SAE grade. 4.5 Quarts (4.4 Liters)
Engine Oil with Filter 3.6L API Certified SAE 5W-30 engine oil, meeting Chrysler Material Standard
MS-6395. Refer to your engine oil
filler cap for correct SAE grade. 6 Quarts (5.6 Liters)
Engine Oil Filter 2.4L &
3.6L MOPAR® Engine Oil Filter or
equivalent.
—
Spark Plugs 2.4L except
PZEV ZFR5F-11 (Gap 0.043 in [1.11 mm])
—
Spark Plugs 2.4L with PZEV ZFR5AP (Gap 0.031 in [0.8 mm]) —
Spark Plugs 3.6L RER8ZWYCB4 (Gap 0.043 in
[1.1 mm]) —
Automatic Transmission –
Four-Speed MOPAR® ATF+4® Automatic
Transmission Fluid or equivalent
licensed ATF+4® product. —
Automatic Transmission –
Six-Speed (62TE Only) MOPAR® ATF+4® Automatic
Transmission Fluid or equivalent
licensed ATF+4® product. —
Brake Master Cylinder MOPAR® DOT 3 and SAE J1703 should be used or equivalent. If
DOT 3 is not available, then DOT 4
is acceptable. Use only
recommended brake fluids. —
Power Steering Reservoir MOPAR® Power Steering Fluid + 4 or MOPAR® ATF+4® Automatic
Transmission Fluid or equivalent
licensed ATF+4® product. —
Fuel Selection – All Engines
(except 2.4L PZEV) 87 Octane
16.9 Gallons (64 Liters)
(Approximate)
Fuel Selection 2.4L PZEV 87 Octane 18.5 Gallons (70 Liters)
(Approximate)
MAINTAINING YOUR VEHICLE
85

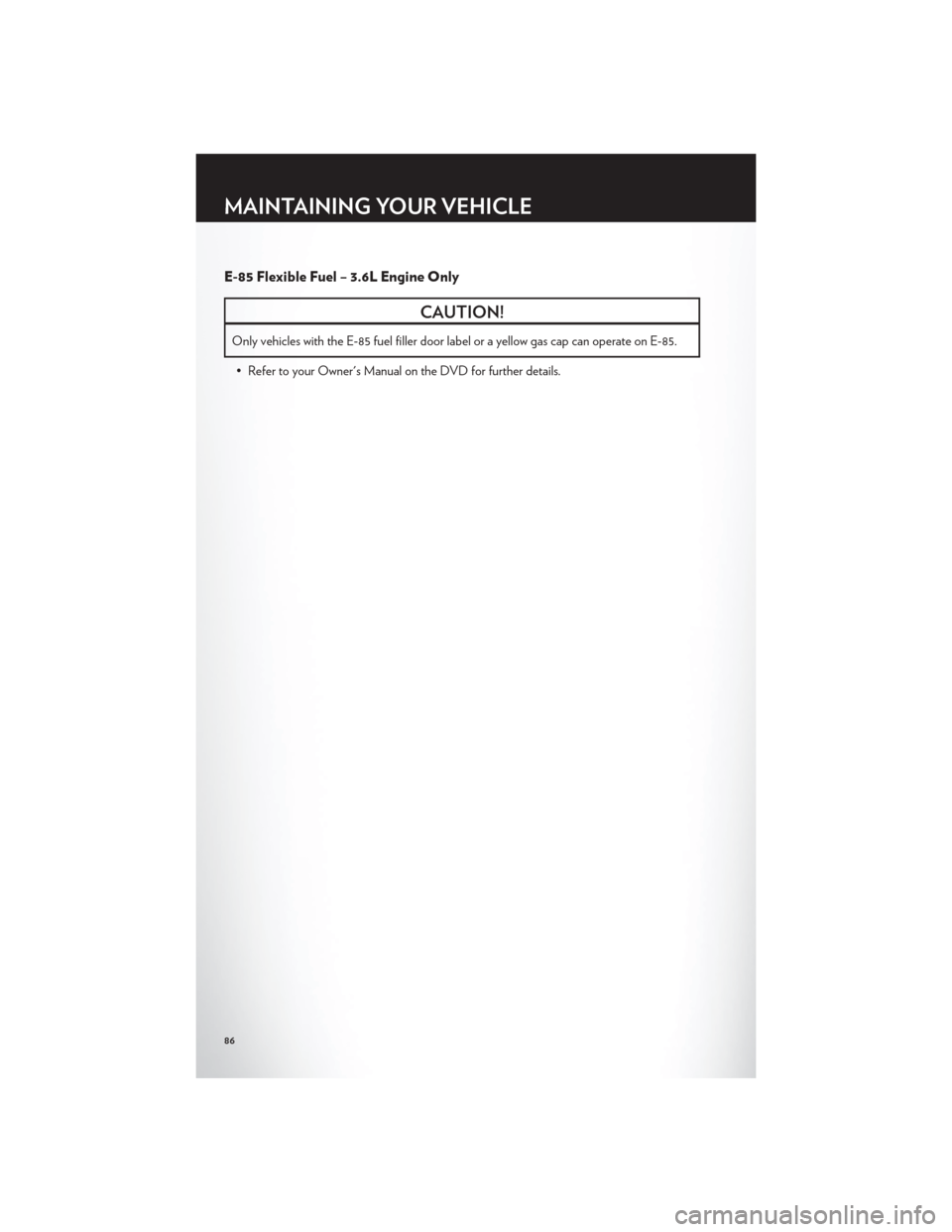

E-85 Flexible Fuel – 3.6L Engine Only
CAUTION!
Only vehicles with the E-85 fuel filler door label or a yellow gas cap can operate on E-85.• Refer to your Owner's Manual on the DVD for further details.
MAINTAINING YOUR VEHICLE
86

AUTHENTIC ACCESSORIES BY MOPAR®
• The following highlights just some of the many Authentic Chrysler Accessories by Moparfeaturing a fit, finish, and functionality specifically for your Chrysler 200.
• In choosing Authentic Accessories you gain far more than expressive style, premium protection, or extreme entertainment, you also benefit from enhancing your vehicle with
accessories that have been thoroughly tested and factory-approved.
• For the full line of Authentic Chrysler Accessories by Mopar, visit your local Chrysler dealership or online at mopar.com.
CHROME:
• Exhaust Tips
EXTERIOR:
• Flat Splash Guards • Sunroof Air Deflector • Vehicle Cover
• Hitch Receiver • Front End Cover • Molded Splash Guards
• Trailer Accessories • Locking Fuel Cap • Wheel Locks
INTERIOR:
• Premium Carpet Floor Mats • Door Sill Guards • Heated Seats
• Slush Mats • Ambient Light Kit • Roadside Safety Kit
• Katzkin Leather Interiors • Molded Cargo Tray
ELECTRONICS:
• Portable Navigation Systems • Uconnect™ Web (WiFi) • Uconnect™ Phone
• iPod® Adapter • Electronic Vehicle Tracking System• Park Distance Sensors
• Kicker® Sound System • Radio Upgrades • Remote Start
• Ecometer • Rearview Mirror with Back-up
Camera and Bluetooth®
Hands Free Phone
CARRIERS:
• Hitch-mount Bike Carrier • Roof-mount Bike Carrier • Roof Box Cargo Carrier
• Roof-mount Ski and Snowboard Carrier • Roof-mount Water Sports
Carrier • Roof-mount Canoe Carrier
• Roof-mount Cargo Bag
• iPod® is a registered trademark of Apple, Inc.
• Kicker® is a registered trademark of Stillwater Designs and Audio, Inc.
MOPAR ACCESSORIES
95

Air Conditioning..............22
Airbag ...................10
Alarm, Panic ................8
Arming Theft System (Security Alarm) . . . 9
Audio Settings .......26,27,28,30,33,42
Automatic Headlights ...........17
Automatic Temperature Control (ATC) . . 21 Air Recirculation ............22
Automatic Operation ..........21
Rear Temperature Control ........21
Automatic Transmission Fluid Type ...............85
Axle Fluid .................85
Belts, Seat .................9
Brake Fluid ................85
Brake System Master Cylinder .............85
Break-In Recommendations,
New Vehicle ................17
Bulb Replacement .............92
Bulbs,Light ................92
Calibration, Compass ...........58
Change Oil Indicator ...........69
Changing A Flat Tire ............71
Child Restraint ...............11
Child Restraint Tether Anchors .......11
Climate Control ..............21
Clock Setting ........... 26,28,31,39
Compass Calibration ...........58
Cooling System Coolant Capacity ............85
Cruise Control (Speed Control) ......19
Cruise Light ................19
Customer Assistance ...........93
Defects, Reporting ............94
Dimmer Control ..............18
Dimmer Switch, Headlight .........18
Disarming, Theft System ..........9
E-85Fuel .................86
Electronic Speed Control
(Cruise Control) ..............19
Electronic Stability Control (ESC) .....66Electronic Vehicle Information Center
(EVIC) .................
58,59
Electronics Your Vehicle's Sound System ......24
Emergency, In Case of Jacking .................71
Jump Starting ..............76
Engine Break-In Recommendations .......17
Compartment ..............83
Coolant (Antifreeze) ..........85
Jump Starting ..............76
Oil ...................85
Oil Filter ................85
Oil Selection ..............85
Overheating ..............70
Event Data Recorder ............81
Flash-To-Pass ...............18
Flexible

Fuel Vehicles ...........86
Fluid Capacities ..............85
Fluid, Brake ................85
Fluids ...................85
Fog Lights ................ 17,18
Folding Rear Seat .............14
Freeing A Stuck Vehicle ..........80
Front Heated Seats ............15
Fuel Filler Cap (Gas Cap) ..........69
Gasoline ................85
Specifications ..............85
Fuses ...................89
Garage Door Opener (HomeLink®) ....60
Gas Cap (Fuel Filler Cap) .........69
Headlights Automatic ................17
Dimmer Switch .............18
HighBeam ...............18
Heated Mirrors ............. 21,22
Heated Seats ................15
High Beam/Low Beam Select (Dimmer)
Switch ...................18
HomeLink® (Garage Door Opener)
Transmitter ................60
Hood Release ...............82
INDEX
96
