BULB REPLACEMENT
NOTE:Lens fogging can occur under certain atmo-
spheric conditions. This will usually clear as atmospheric
conditions change to allow the condensation to change
back into a vapor. Turning the lamps on will usually
accelerate the clearing process.
Low Beam And High Beam Headlamps
Bi-Xenon High Intensity Discharge (HID)
Headlamps — If Equipped
The headlamps contain a type of high voltage discharge
light source. High voltage can remain in the circuit even
with the headlamp switch off. Because of this, you should
not attempt to service a HID headlamp light source
yourself. If an HID headlamp light source fails, take your
vehicle to an authorized dealer for service. NOTE:
On vehicles equipped with HID headlamps,
when the headlamps are turned on, there is a blue hue to
the lights. This diminishes and becomes more white after
approximately 10 seconds, as the system charges.
WARNING!
A transient high voltage occurs at the bulb sockets of
HID headlamps when the headlamp switch is turned
ON. It may cause serious electrical shock or electro-
cution if not serviced properly. See your authorized
dealer for service.
Bi-Halogen Headlamps
1. Rotate the screw on the headlamp access door in the wheel liner to access headlamp assembly.
7
MAINTAINING YOUR VEHICLE 639

2. Reach behind the headlamp housing to access theheadlamp bulb cap.
3. Firmly grasp the headlamp bulb cap and rotate it counterclockwise to unlock it. 4. Firmly grasp the headlamp bulb socket assembly and
rotate counterclockwise to remove from the housing.
Access DoorHeadlamp Bulb Cap
640 MAINTAINING YOUR VEHICLE

5. Disconnect the bulb from the electrical connector andthen connect the replacement bulb.CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
Headlamp Bulb SocketHeadlamp Bulb
7
MAINTAINING YOUR VEHICLE 641

6. Install the bulb and connector assembly into theheadlamp housing and rotate clockwise to lock it in
place.
7. Install the headlamp bulb cap in the headlamp hous- ing and rotate clockwise to lock it in place.
8. Lock headlamp access door in wheel liner.
Front Turn Signal Lamp
1. Open the hood.
NOTE: Removal of the air cleaner filter housing may be
necessary prior to replacing bulbs in the lamp assembly
on the passenger side of the vehicle.
2. Remove the beauty cover, by removing the 10 push pins. 3. Remove the brace by removing the four fasteners and
loosening the 5th inboard fastener.
4. Twist the front turn signal lamp socket assembly counterclockwise, and then remove the front turn
signal lamp assembly from the lamp housing.
Beauty Cover
642 MAINTAINING YOUR VEHICLE

5. Pull the bulb out of the socket and insert the replace-ment bulb.
6. Install the front turn signal lamp socket assembly into the housing, and rotate the front turn signal lamp
socket clockwise to lock it in place. 7. Install air cleaner filter housing, if removed.
8. Install brace, brace bolts and tighten as shown.
9. Install beauty cover.
Front Turn Signal Lamp Socket
Brace Bolt Tightening Sequence
7
MAINTAINING YOUR VEHICLE 643

Front Side Marker Lamps
1. Remove the three fasteners from the inner wheel linerand carefully peel back liner for access.
2. Firmly grasp the front side marker lamp socket and rotate 1/4 turn counterclockwise to remove it from the
lamp assembly. 3. Remove bulb from the front side marker lamp socket
and replace with a new bulb.
4. Install front side marker lamp socket in lamp assembly and rotate 1/4 turn clockwise to lock into place.
5. Position the inner wheel liner in place and install the three fasteners.
Inner Wheel Liner Fasteners
Front Side Marker Lamp Bulb Removal
644 MAINTAINING YOUR VEHICLE

Front Fog Lamp
1. Remove the three fasteners from the lower closeout,and peel down the lower closeout.
2. Reach behind the fog lamp housing to access the bulb. 3. Rotate the front fog lamp socket counterclockwise,
and remove the bulb and socket assembly from the
front fog lamp housing.
4. Pull the bulb out of the socket and insert the replace- ment bulb.
Lower CloseoutFront Fog Lamp Socket
7
MAINTAINING YOUR VEHICLE 645

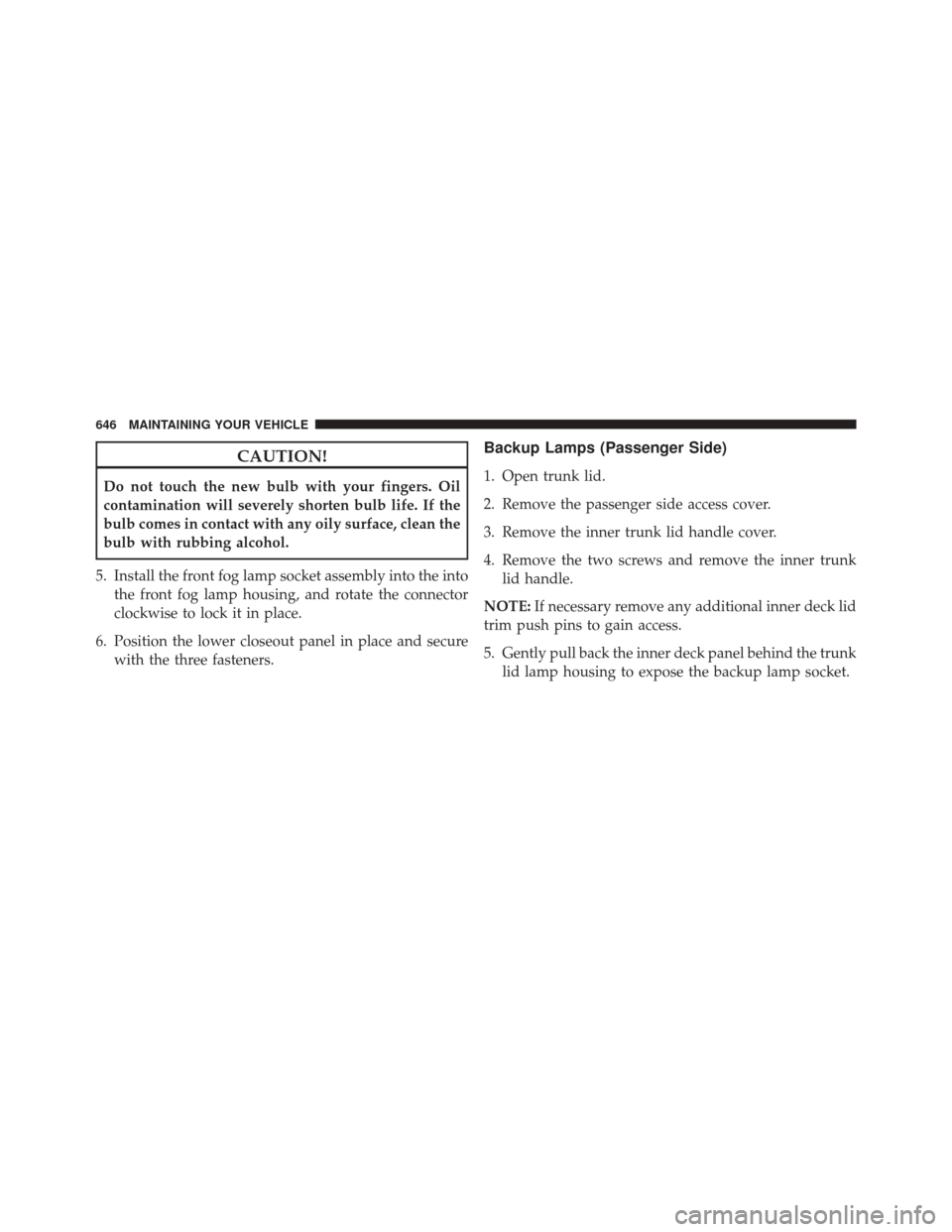

CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
5. Install the front fog lamp socket assembly into the into the front fog lamp housing, and rotate the connector
clockwise to lock it in place.
6. Position the lower closeout panel in place and secure with the three fasteners.
Backup Lamps (Passenger Side)
1. Open trunk lid.
2. Remove the passenger side access cover.
3. Remove the inner trunk lid handle cover.
4. Remove the two screws and remove the inner trunklid handle.
NOTE: If necessary remove any additional inner deck lid
trim push pins to gain access.
5. Gently pull back the inner deck panel behind the trunk lid lamp housing to expose the backup lamp socket.
646 MAINTAINING YOUR VEHICLE

6. Rotate the backup lamp socket counter clockwise 1/4turn to remove the backup lamp socket from the trunk
lid lamp housing.
Backup Lamp Socket
7. Remove the bulb from the socket and install thereplacement bulb.
8. Install the backup lamp socket into the trunk lid lamp housing.
Inner Deck Panel
7
MAINTAINING YOUR VEHICLE 647

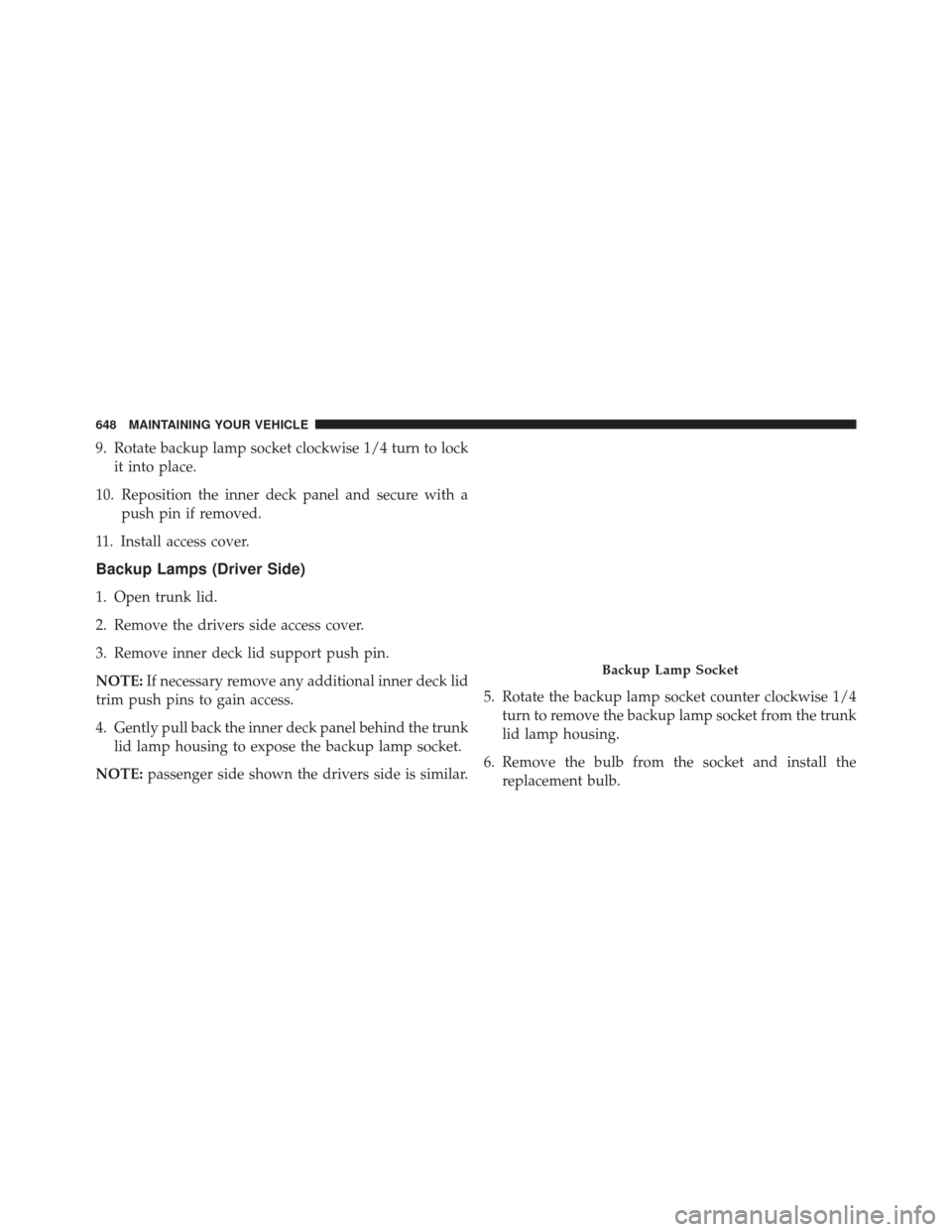

9. Rotate backup lamp socket clockwise 1/4 turn to lockit into place.
10. Reposition the inner deck panel and secure with a push pin if removed.
11. Install access cover.
Backup Lamps (Driver Side)
1. Open trunk lid.
2. Remove the drivers side access cover.
3. Remove inner deck lid support push pin.
NOTE: If necessary remove any additional inner deck lid
trim push pins to gain access.
4. Gently pull back the inner deck panel behind the trunk lid lamp housing to expose the backup lamp socket.
NOTE: passenger side shown the drivers side is similar.
Backup Lamp Socket
5. Rotate the backup lamp socket counter clockwise 1/4
turn to remove the backup lamp socket from the trunk
lid lamp housing.
6. Remove the bulb from the socket and install the replacement bulb.
