octane CHRYSLER 200 2015 2.G Owners Manual

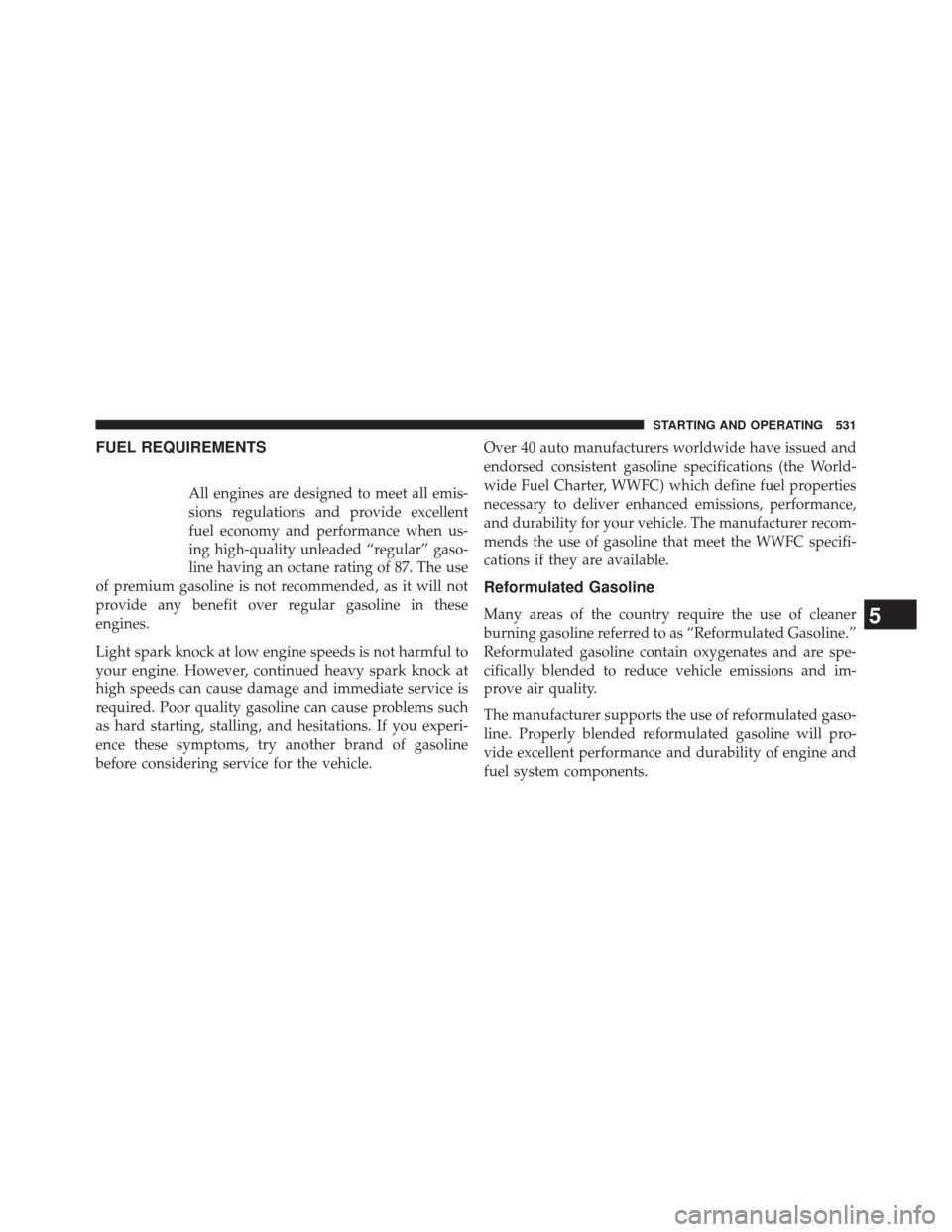

FUEL REQUIREMENTS
All engines are designed to meet all emis-
sions regulations and provide excellent
fuel economy and performance when us-
ing high-quality unleaded “regular” gaso-
line having an octane rating of 87. The use
of premium gasoline is not recommended, as it will not
provide any benefit over regular gasoline in these
engines.
Light spark knock at low engine speeds is not harmful to
your engine. However, continued heavy spark knock at
high speeds can cause damage and immediate service is
required. Poor quality gasoline can cause problems such
as hard starting, stalling, and hesitations. If you experi-
ence these symptoms, try another brand of gasoline
before considering service for the vehicle. Over 40 auto manufacturers worldwide have issued and
endorsed consistent gasoline specifications (the World-
wide Fuel Charter, WWFC) which define fuel properties
necessary to deliver enhanced emissions, performance,
and durability for your vehicle. The manufacturer recom-
mends the use of gasoline that meet the WWFC specifi-
cations if they are available.
Reformulated Gasoline
Many areas of the country require the use of cleaner
burning gasoline referred to as “Reformulated Gasoline.”
Reformulated gasoline contain oxygenates and are spe-
cifically blended to reduce vehicle emissions and im-
prove air quality.
The manufacturer supports the use of reformulated gaso-
line. Properly blended reformulated gasoline will pro-
vide excellent performance and durability of engine and
fuel system components.5
STARTING AND OPERATING 531

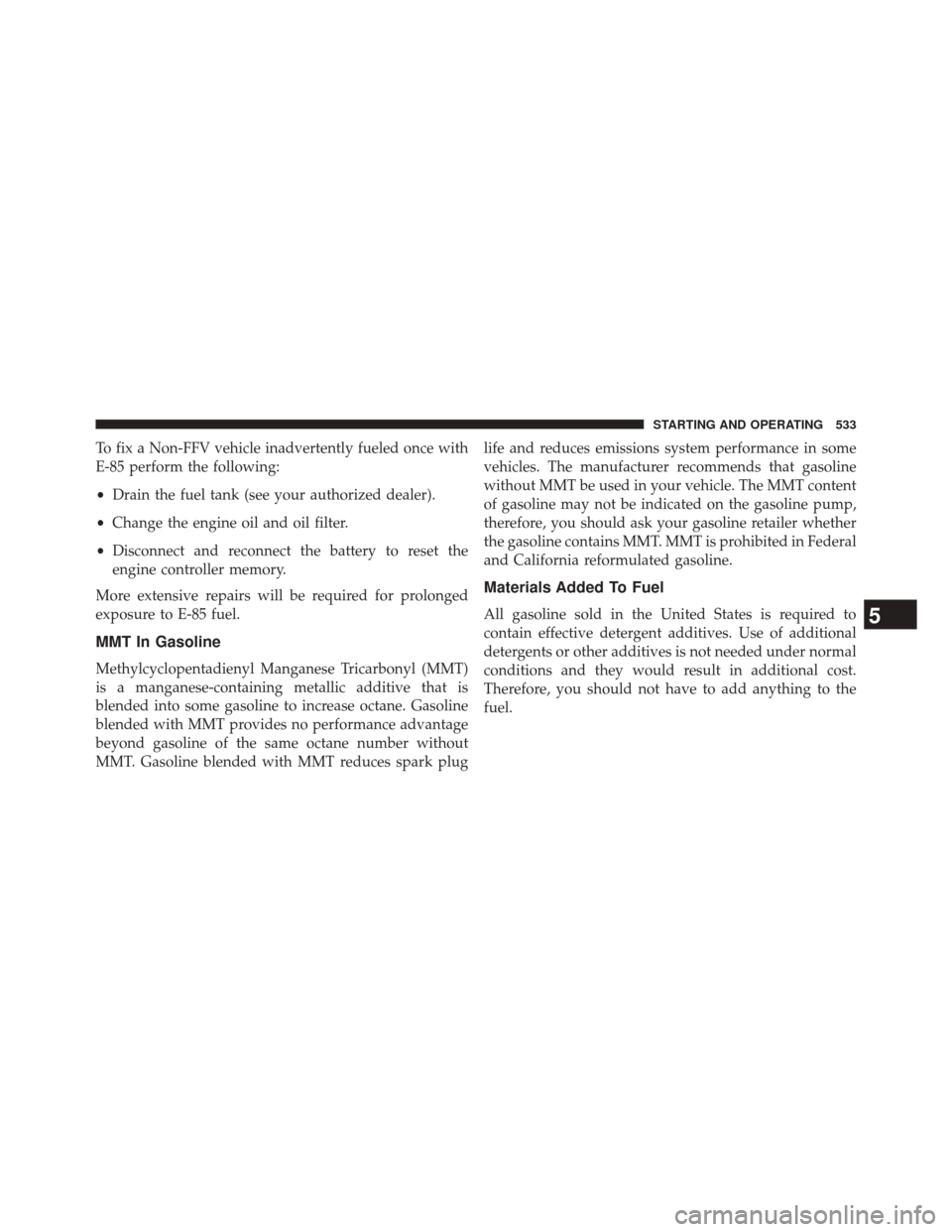

To fix a Non-FFV vehicle inadvertently fueled once with
E-85 perform the following:
•Drain the fuel tank (see your authorized dealer).
• Change the engine oil and oil filter.
• Disconnect and reconnect the battery to reset the
engine controller memory.
More extensive repairs will be required for prolonged
exposure to E-85 fuel.
MMT In Gasoline
Methylcyclopentadienyl Manganese Tricarbonyl (MMT)
is a manganese-containing metallic additive that is
blended into some gasoline to increase octane. Gasoline
blended with MMT provides no performance advantage
beyond gasoline of the same octane number without
MMT. Gasoline blended with MMT reduces spark plug life and reduces emissions system performance in some
vehicles. The manufacturer recommends that gasoline
without MMT be used in your vehicle. The MMT content
of gasoline may not be indicated on the gasoline pump,
therefore, you should ask your gasoline retailer whether
the gasoline contains MMT. MMT is prohibited in Federal
and California reformulated gasoline.
Materials Added To Fuel
All gasoline sold in the United States is required to
contain effective detergent additives. Use of additional
detergents or other additives is not needed under normal
conditions and they would result in additional cost.
Therefore, you should not have to add anything to the
fuel.5
STARTING AND OPERATING 533

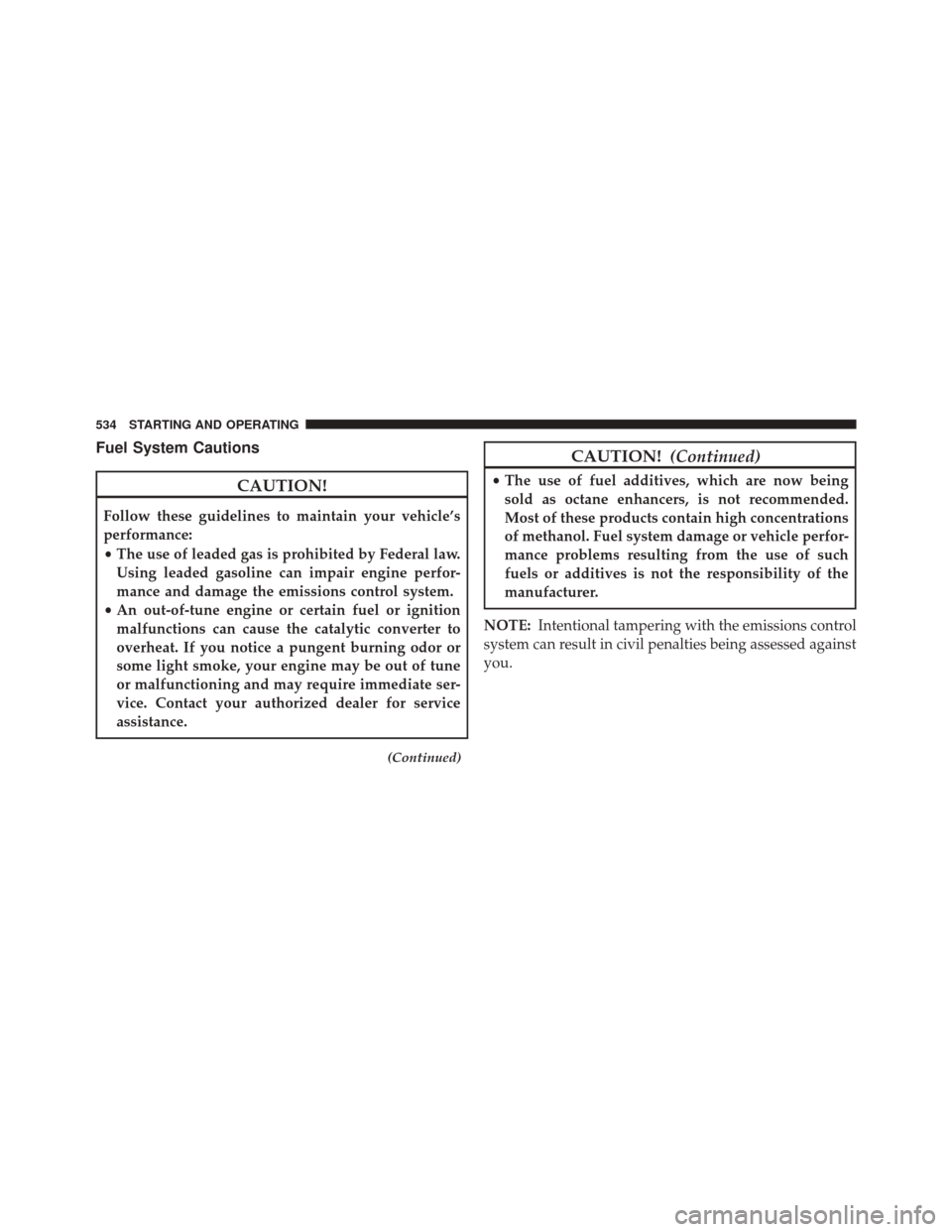

Fuel System Cautions
CAUTION!
Follow these guidelines to maintain your vehicle’s
performance:
•The use of leaded gas is prohibited by Federal law.
Using leaded gasoline can impair engine perfor-
mance and damage the emissions control system.
• An out-of-tune engine or certain fuel or ignition
malfunctions can cause the catalytic converter to
overheat. If you notice a pungent burning odor or
some light smoke, your engine may be out of tune
or malfunctioning and may require immediate ser-
vice. Contact your authorized dealer for service
assistance.
(Continued)
CAUTION! (Continued)
•The use of fuel additives, which are now being
sold as octane enhancers, is not recommended.
Most of these products contain high concentrations
of methanol. Fuel system damage or vehicle perfor-
mance problems resulting from the use of such
fuels or additives is not the responsibility of the
manufacturer.
NOTE: Intentional tampering with the emissions control
system can result in civil penalties being assessed against
you.
534 STARTING AND OPERATING

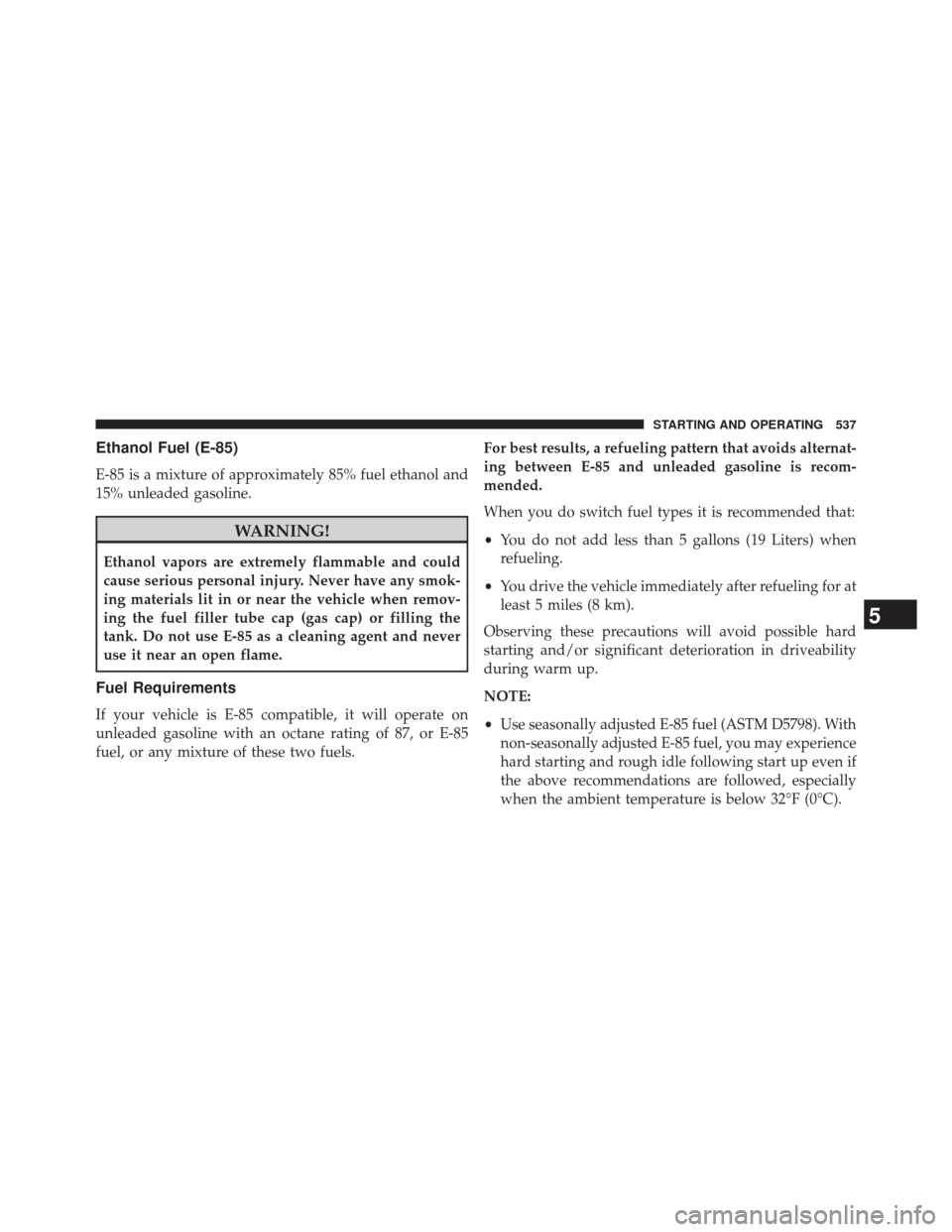

Ethanol Fuel (E-85)
E-85 is a mixture of approximately 85% fuel ethanol and
15% unleaded gasoline.
WARNING!
Ethanol vapors are extremely flammable and could
cause serious personal injury. Never have any smok-
ing materials lit in or near the vehicle when remov-
ing the fuel filler tube cap (gas cap) or filling the
tank. Do not use E-85 as a cleaning agent and never
use it near an open flame.
Fuel Requirements
If your vehicle is E-85 compatible, it will operate on
unleaded gasoline with an octane rating of 87, or E-85
fuel, or any mixture of these two fuels.For best results, a refueling pattern that avoids alternat-
ing between E-85 and unleaded gasoline is recom-
mended.
When you do switch fuel types it is recommended that:
•
You do not add less than 5 gallons (19 Liters) when
refueling.
• You drive the vehicle immediately after refueling for at
least 5 miles (8 km).
Observing these precautions will avoid possible hard
starting and/or significant deterioration in driveability
during warm up.
NOTE:
• Use seasonally adjusted E-85 fuel (ASTM D5798). With
non-seasonally adjusted E-85 fuel, you may experience
hard starting and rough idle following start up even if
the above recommendations are followed, especially
when the ambient temperature is below 32°F (0°C).
5
STARTING AND OPERATING 537

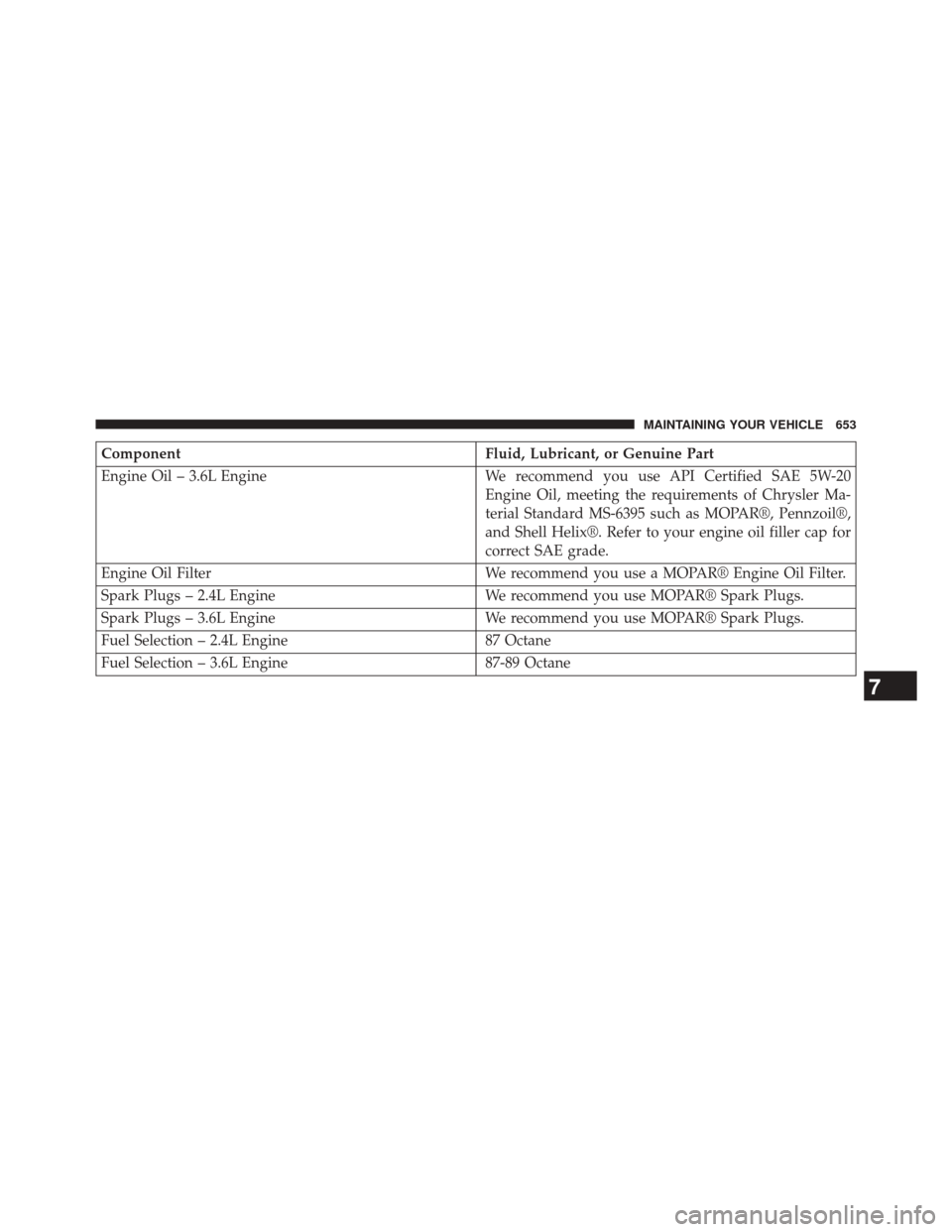

ComponentFluid, Lubricant, or Genuine Part
Engine Oil – 3.6L Engine We recommend you use API Certified SAE 5W-20
Engine Oil, meeting the requirements of Chrysler Ma-
terial Standard MS-6395 such as MOPAR®, Pennzoil®,
and Shell Helix®. Refer to your engine oil filler cap for
correct SAE grade.
Engine Oil Filter We recommend you use a MOPAR® Engine Oil Filter.
Spark Plugs – 2.4L Engine We recommend you use MOPAR® Spark Plugs.
Spark Plugs – 3.6L Engine We recommend you use MOPAR® Spark Plugs.
Fuel Selection – 2.4L Engine 87 Octane
Fuel Selection – 3.6L Engine 87-89 Octane
7
MAINTAINING YOUR VEHICLE 653

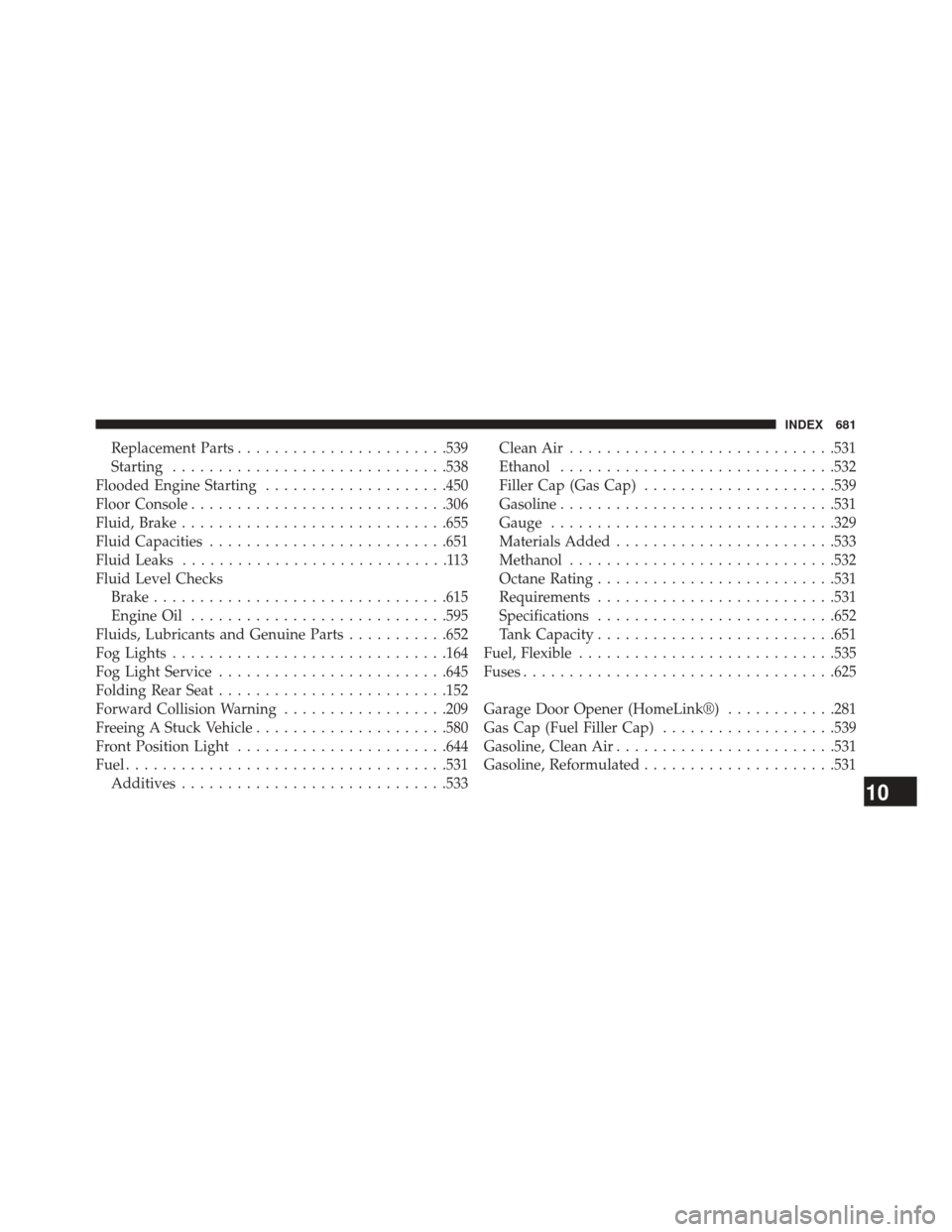

Replacement Parts...................... .539
Starting ............................. .538
Flooded Engine Starting ....................450
Floor Console ........................... .306
Fluid, Brake ............................ .655
Fluid Capacities ......................... .651
Fluid Leaks .............................113
Fluid Level Checks Brake ............................... .615
Engine Oil ........................... .595
Fluids, Lubricants and Genuine Parts ...........652
Fog Lights ............................. .164
Fog Light Service ........................ .645
Folding Rear Seat ........................ .152
Forward Collision Warning ..................209
Freeing A Stuck Vehicle .....................580
Front Position Light ...................... .644
Fuel .................................. .531
Additives ............................ .533Clean Air
............................ .531
Ethanol ............................. .532
Filler Cap (Gas Cap) .....................539
Gasoline ............................. .531
Gauge .............................. .329
Materials Added ....................... .533
Methanol ............................ .532
Octane Rating ......................... .531
Requirements ......................... .531
Specifications ......................... .652
Tank Capacity ......................... .651
Fuel, Flexible ........................... .535
Fuses ................................. .625
Garage Door Opener (HomeLink®) ............281
Gas Cap (Fuel Filler Cap) ...................539
Gasoline, Clean Air ....................... .531
Gasoline,

Reformulated .....................531
10
INDEX 681

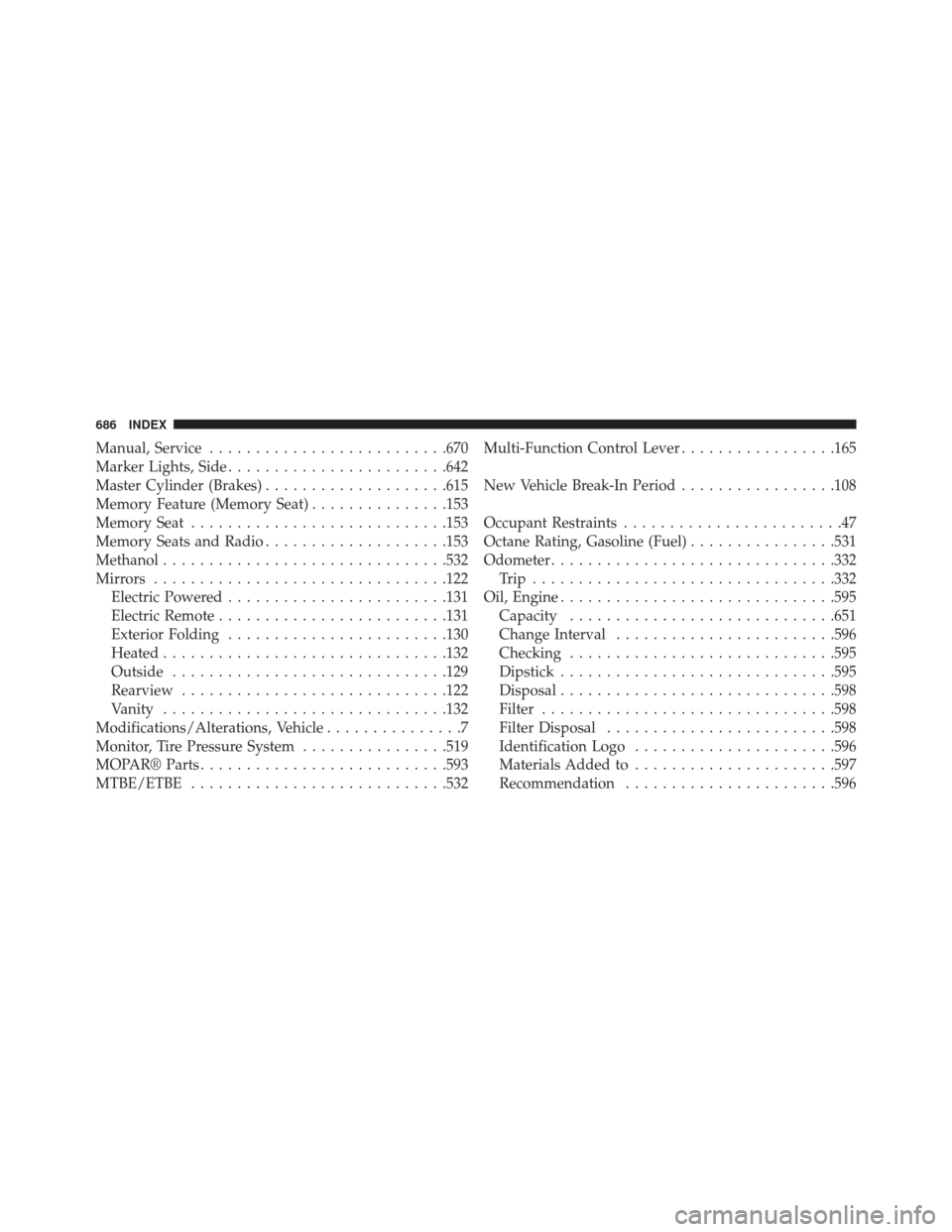

Manual, Service......................... .670
Marker Lights, Side ....................... .642
Master Cylinder (Brakes) ....................615
Memory Feature (Memory Seat) ...............153
Memory Seat ........................... .153
Memory Seats and Radio ....................153
Methanol .............................. .532
Mirrors ............................... .122
Electric Powered ....................... .131
Electric Remote ........................ .131
Exterior Folding ....................... .130
Heated .............................. .132
Outside ............................. .129
Rearview ............................ .122
Vanity .............................. .132
Modifications/Alterations, Vehicle ...............7
Monitor, Tire Pressure System ................519
MOPAR® Parts .......................... .593
MTBE/ETBE ........................... .532Multi-Function Control Lever
.................165
New Vehicle Break-In Period .................108
Occupant Restraints ........................47
Octane Rating, Gasoline (Fuel) ................531
Odometer .............................. .332
Trip ................................ .332
Oil, Engine ............................. .595
Capacity ............................ .651
Change Interval ....................... .596
Checking ............................ .595
Dipstick ............................. .595
Disposal ............................. .598
Filter ............................... .598
Filter Disposal ........................ .598
Identification Logo ..................... .596
Materials Added to ..................... .597
Recommendation ...................... .596
686 INDEX
