CHRYSLER 200 2017 2.G Owners Manual

Safety & Driving Assistance
After pressing the “Safety/Assistance” button on the
touchscreen the following settings will be available:
Setting NameSelectable Options
ParkView Backup Camera Delay — If Equipped On
Off
NOTE:
The “ParkView Backup Camera Delay” setting determines whether or not the screen will display the rear view image
with dynamic grid lines for up to 10 seconds after the vehicle is shifted out of REVERSE. This delay will be canceled
if the vehicle’s speed exceeds 8 mph (13 km/h), the transmission is shifted into PARK, or the ignition is switched to
the OFF position. ParkView Backup Camera Active Guidelines — If Equipped
NOTE:
The “ParkView Backup Camera Active Guide Lines” feature overlays the Rear Backup Camera image with active, or
dynamic, grid lines to help illustrate the width of the vehicle and its project back up path, based on the steering
wheel position when the option is checked. A dashed center line overlay indicates the center of the vehicle to assist
with parking or aligning to a hitch/receiver.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 289

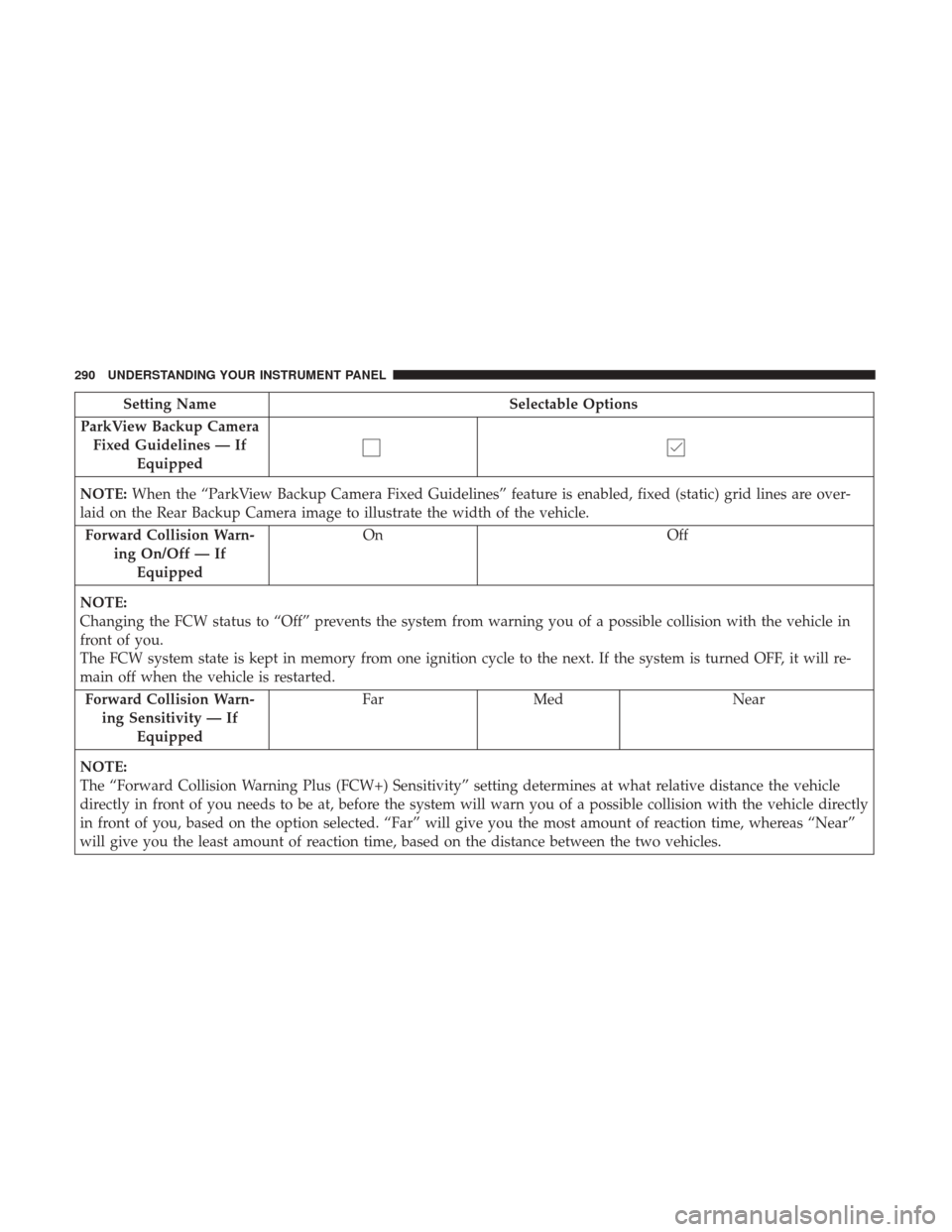

Setting NameSelectable Options
ParkView Backup Camera Fixed Guidelines — If Equipped
NOTE: When the “ParkView Backup Camera Fixed Guidelines” feature is enabled, fixed (static) grid lines are over-
laid on the Rear Backup Camera image to illustrate the width of the vehicle.
Forward Collision Warn- ing On/Off — IfEquipped On
Off
NOTE:
Changing the FCW status to “Off” prevents the system from warning you of a possible collision with the vehicle in
front of you.
The FCW system state is kept in memory from one ignition cycle to the next. If the system is turned OFF, it will re-
main off when the vehicle is restarted. Forward Collision Warn- ing Sensitivity — If Equipped Far
Med Near
NOTE:
The “Forward Collision Warning Plus (FCW+) Sensitivity” setting determines at what relative distance the vehicle
directly in front of you needs to be at, before the system will warn you of a possible collision with the vehicle directly
in front of you, based on the option selected. “Far” will give you the most amount of reaction time, whereas “Near”
will give you the least amount of reaction time, based on the distance between the two vehicles.
290 UNDERSTANDING YOUR INSTRUMENT PANEL

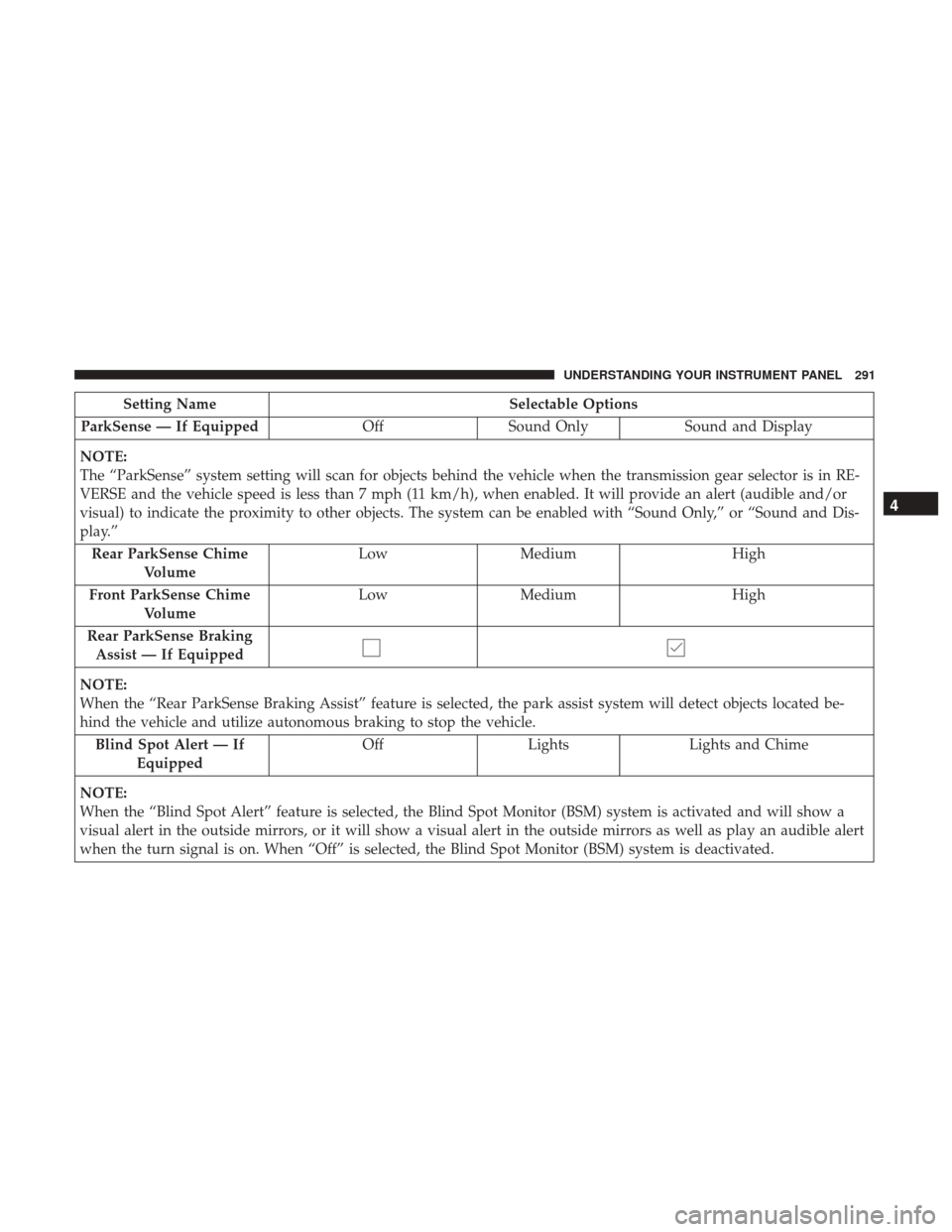

Setting NameSelectable Options
ParkSense — If Equipped OffSound Only Sound and Display
NOTE:
The “ParkSense” system setting will scan for objects behind the vehicle when the transmission gear selector is in RE-
VERSE and the vehicle speed is less than 7 mph (11 km/h), when enabled. It will provide an alert (audible and/or
visual) to indicate the proximity to other objects. The system can be enabled with “Sound Only,” or “Sound and Dis-
play.” Rear ParkSense Chime Volume Low
Medium High
Front ParkSense Chime Volume Low
Medium High
Rear ParkSense Braking Assist — If Equipped
NOTE:
When the “Rear ParkSense Braking Assist” feature is selected, the park assist system will detect objects located be-
hind the vehicle and utilize autonomous braking to stop the vehicle. Blind Spot Alert — If Equipped Off
LightsLights and Chime
NOTE:
When the “Blind Spot Alert” feature is selected, the Blind Spot Monitor (BSM) system is activated and will show a
visual alert in the outside mirrors, or it will show a visual alert in the outside mirrors as well as play an audible alert
when the turn signal is on. When “Off” is selected, the Blind Spot Monitor (BSM) system is deactivated.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 291

Setting NameSelectable Options
If your vehicle has experienced any damage in the area where the sensor is located, even if the fascia is not damaged,
the sensor may have become misaligned. Take your vehicle to an authorized dealer to verify sensor alignment. A sen-
sor that is misaligned will result in the BSM not operating to specification. Rain Sensing Auto Wip- ers
Hill Start Assist — If Equipped
Tilt Mirrors in Reverse
LaneSense Warning — If Equipped Early
Medium Late
NOTE: The “LaneSense Warning” setting determines at what distance the LaneSense system will warn you, through
steering wheel feedback, of a possible lane departure.
LaneSense Strength — If Equipped Low
Medium High
Electric Park Brake Ser-
vice Mode — If Equipped
NOTE: The “Electric Park Brake Service Mode” feature provides a means for a technician or vehicle owner to utilize
a vehicle integrated, menu driven system, to command the electric park brake retraction, to service the rear founda-
tion brakes (brake pads, calipers, rotors, etc.).
292 UNDERSTANDING YOUR INSTRUMENT PANEL

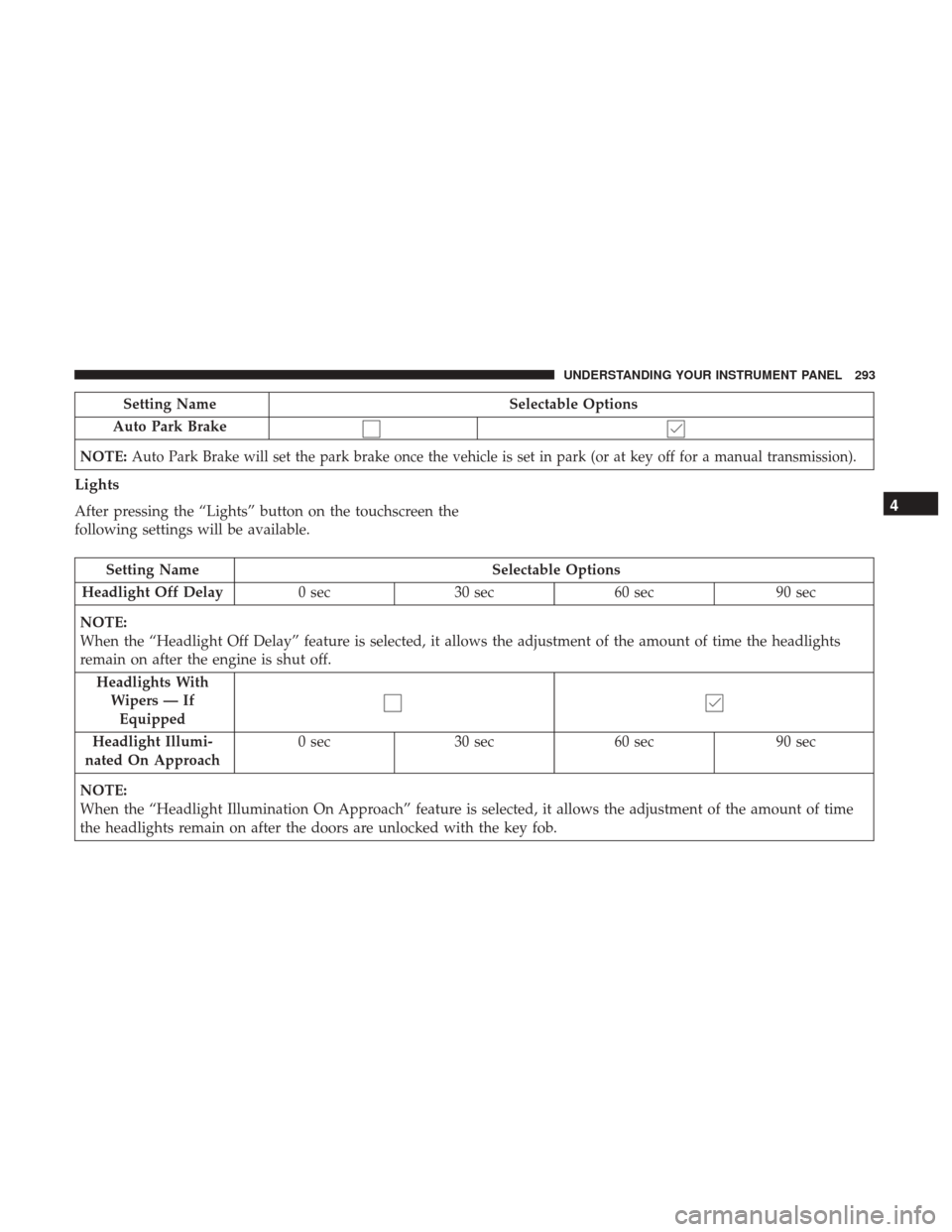

Setting NameSelectable Options
Auto Park Brake
NOTE:
Auto Park Brake will set the park brake once the vehicle is set in park (or at key off for a manual transmission).
Lights
After pressing the “Lights” button on the touchscreen the
following settings will be available.
Setting Name Selectable Options
Headlight Off Delay 0 sec30 sec 60 sec 90 sec
NOTE:
When the “Headlight Off Delay” feature is selected, it allows the adjustment of the amount of time the headlights
remain on after the engine is shut off. Headlights WithWipers — IfEquipped
Headlight Illumi-
nated On Approach 0 sec
30 sec 60 sec 90 sec
NOTE:
When the “Headlight Illumination On Approach” feature is selected, it allows the adjustment of the amount of time
the headlights remain on after the doors are unlocked with the key fob.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 293

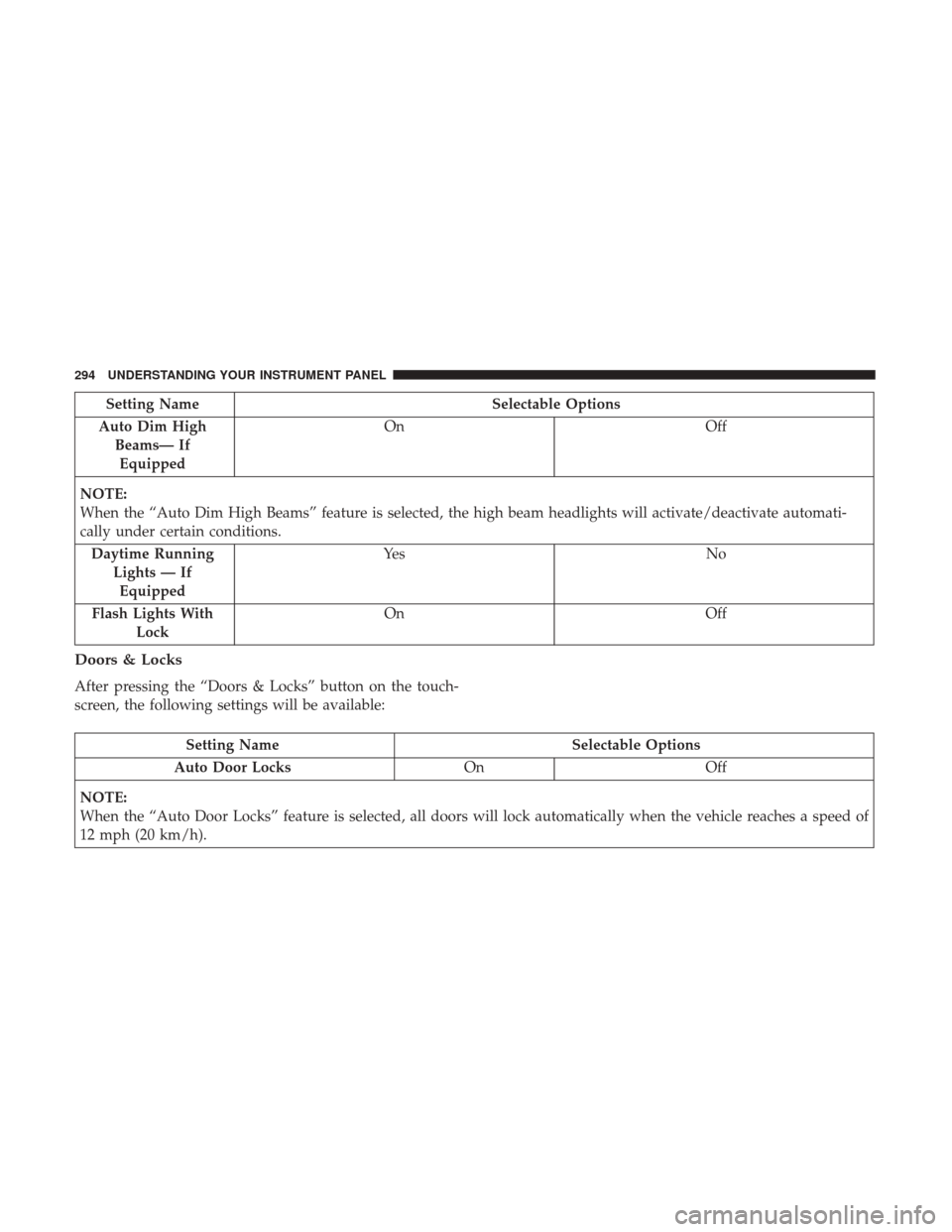

Setting NameSelectable Options
Auto Dim High Beams— IfEquipped On
Off
NOTE:
When the “Auto Dim High Beams” feature is selected, the high beam headlights will activate/deactivate automati-
cally under certain conditions. Daytime Running Lights — IfEquipped Ye s
N o
Flash Lights With Lock On
Off
Doors & Locks
After pressing the “Doors & Locks” button on the touch-
screen, the following settings will be available:
Setting Name Selectable Options
Auto Door Locks OnOff
NOTE:
When the “Auto Door Locks” feature is selected, all doors will lock automatically when the vehicle reaches a speed of
12 mph (20 km/h).
294 UNDERSTANDING YOUR INSTRUMENT PANEL

Setting NameSelectable Options
Auto Unlock On Exit
NOTE:
When the “Auto Unlock On Exit” feature is selected, all doors will unlock when the vehicle is stopped, the transmis-
sion is in the PARK or NEUTRAL position and the driver’s door is opened. Flash Lights With Lock
Sound Horn With Lock Off1st Press 2nd Press
Sound Horn With Remote Start 1st Press Of Key Fob Unlocks Driver DoorAll Doors
NOTE:
When Driver Door is selected with 1st Press Of Key Fob Unlocks, only the driver’s door will unlock with the first press of
the key fob UNLOCK button. You must press the key fob UNLOCK button twice to unlock the passenger’s doors. When
All Doors is selected for 1st Press Of Key Fob Unlocks, all doors will unlock on the first press of the key fob UNLOCK
button. If the vehicle is programmed 1st Press Of Key Fob Unlocks “All Doors,” all doors will unlock no matter which Pas-
sive Entry equipped door handle is grasped. If 1st Press Of Key Fob Unlocks “Driver Door” is programmed, only the driv-
er ’s door will unlock when the driver ’s door is grasped. With Passive Entry, if 1st Press Of Key Fob Unlocks “Driver Door”
is programmed, touching the handle more than once will result in only the driver ’s door opening. If “Driver Door” is se-
lected, once the driver door is opened, the interior door lock/unlock switch can be used to unlock all doors (or use key fob).
Passive Entry — If Equipped
NOTE:
The “Passive Entry” feature allows you to lock and unlock the vehicles door(s) without having to push the key fob
LOCK or UNLOCK buttons.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 295

Setting NameSelectable Options
Personal Settings Linked To Key Fob — If Equipped
NOTE:
The “Settings Linked To Key Fob” feature provides automatic recall of all settings stored to a memory location (driv-
er ’s seat, exterior mirrors, steering column position and radio station pre-sets) to enhance driver mobility when enter-
ing and exiting the vehicle.
Auto-On Comfort — If Equipped
After pressing the “Auto-On Comfort & Remote Start”
button on the touchscreen the following settings will be
available:
Setting Name Selectable Options
Auto-On Driver Heated/
Ventilated Seat & Steering Wheel With Vehicle Start — If Equipped Off
Remote Start All Starts
NOTE:
When this feature is selected the driver ’s heated seat and heated steering wheel will automatically turn ON when
temperatures are below 40° F (4.4° C). When temperatures are above 80° F (26.7° C), the driver vented seat will turn
ON.
296 UNDERSTANDING YOUR INSTRUMENT PANEL

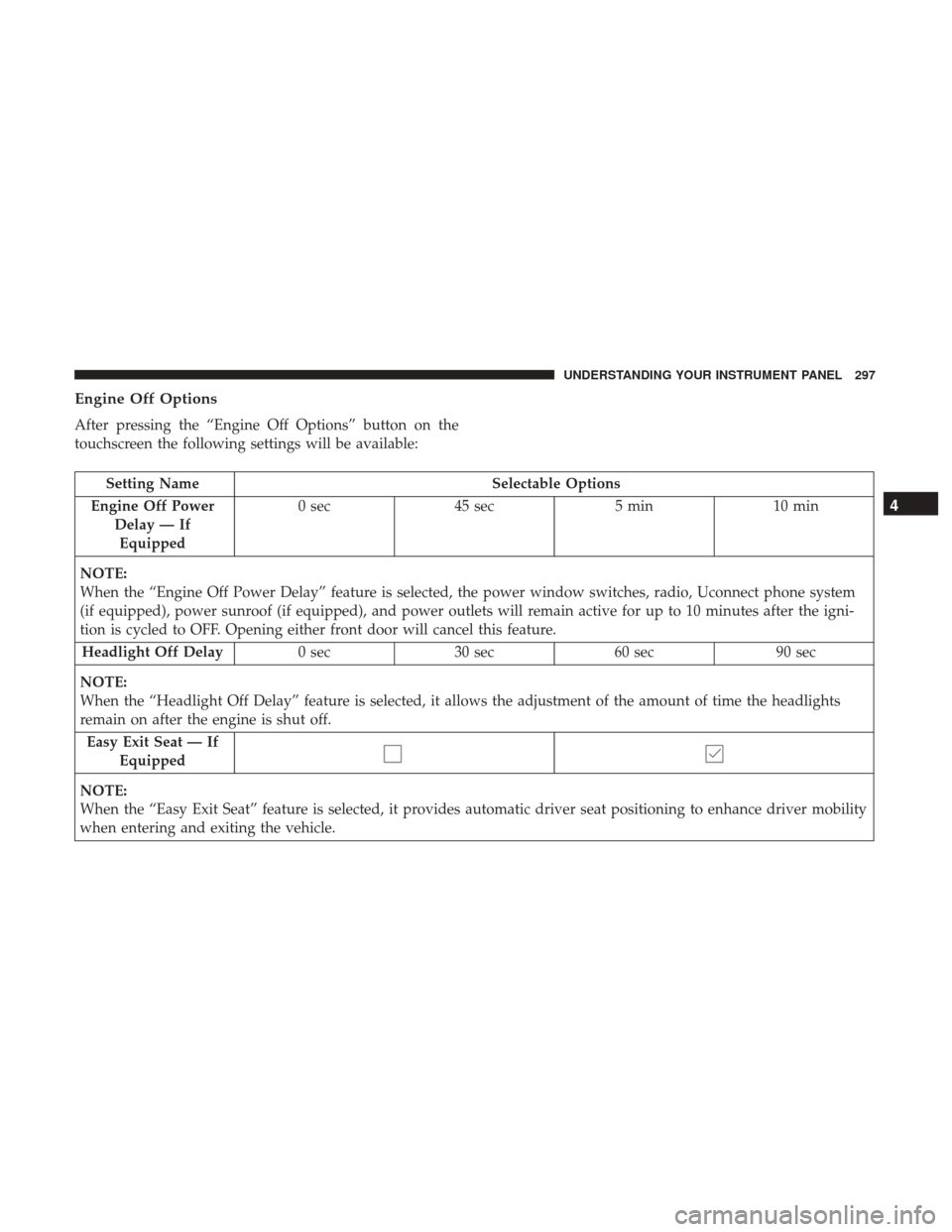

Engine Off Options
After pressing the “Engine Off Options” button on the
touchscreen the following settings will be available:
Setting NameSelectable Options
Engine Off Power Delay — IfEquipped 0 sec
45 sec 5 min10 min
NOTE:
When the “Engine Off Power Delay” feature is selected, the power window switches, radio, Uconnect phone system
(if equipped), power sunroof (if equipped), and power outlets will remain active for up to 10 minutes after the igni-
tion is cycled to OFF. Opening either front door will cancel this feature. Headlight Off Delay 0 sec30 sec 60 sec 90 sec
NOTE:
When the “Headlight Off Delay” feature is selected, it allows the adjustment of the amount of time the headlights
remain on after the engine is shut off. Easy Exit Seat — If Equipped
NOTE:
When the “Easy Exit Seat” feature is selected, it provides automatic driver seat positioning to enhance driver mobility
when entering and exiting the vehicle.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 297

Audio
After pressing the “Audio” button on the touchscreen, the
following settings will be available:
Setting NameSelectable Options
Balance/Fade Speaker Icon
NOTE:
When in this display you may adjust the “Balance/Fade” of the audio by pressing and dragging the “Speaker Icon”
toward any location in the box. Equalizer BassMid Treble
NOTE:
When in this display you may adjust the “Bass”, “Mid” and “Treble” settings. Adjust the settings with the “+” and
“–” setting buttons on the touchscreen or by selecting any point on the scale between the “+” and “–” buttons on the
touchscreen. Bass/Mid/Treble also allow you to simply slide your finger up or down to change the setting as well as
press directly on the desired setting. Speed Adjusted Volume Off12 3
NOTE:
The “Speed Adjusted Volume” feature slightly increases or decreases volume relative to vehicle speed. To change the
Speed Adjusted Volume press the “Speed Adjusted Volume” button on the touchscreen and select from “Off,” “1,”
“2” or “3” buttons on the touchscreen.
298 UNDERSTANDING YOUR INSTRUMENT PANEL
