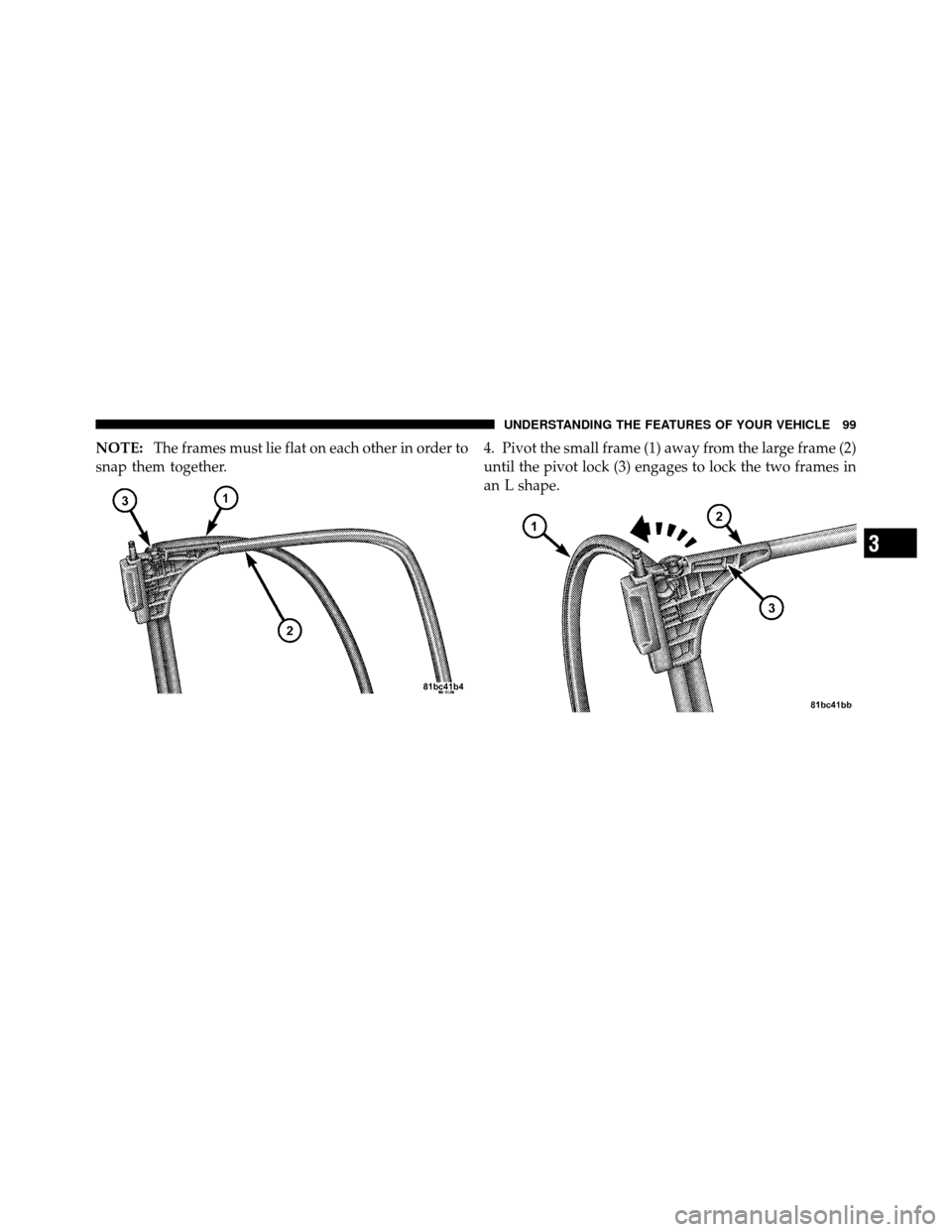

NOTE:The frames must lie flat on each other in order to
snap them together. 4. Pivot the small frame (1) away from the large frame (2)
until the pivot lock (3) engages to lock the two frames in
an L shape.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 99

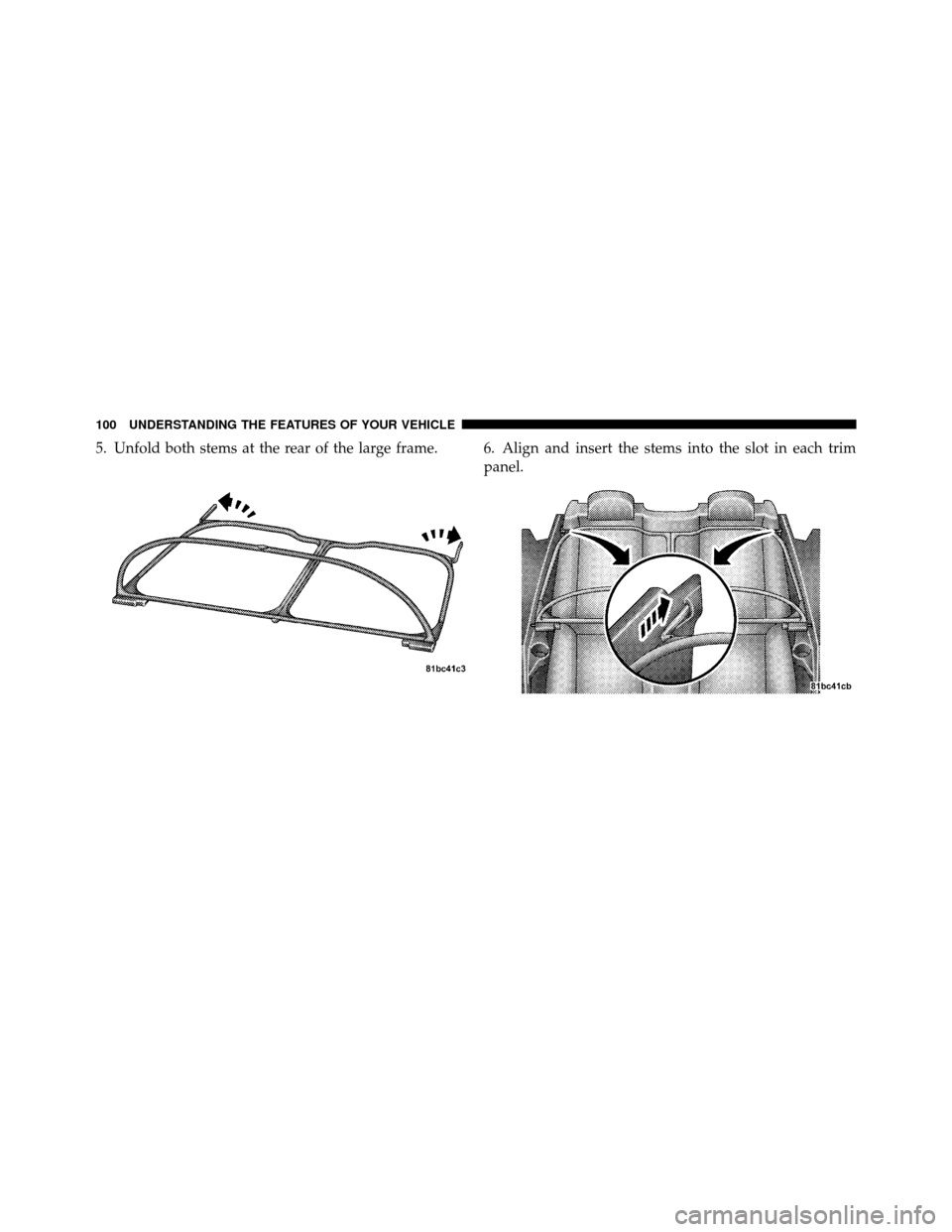

5. Unfold both stems at the rear of the large frame. 6. Align and insert the stems into the slot in each trimpanel.
100 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

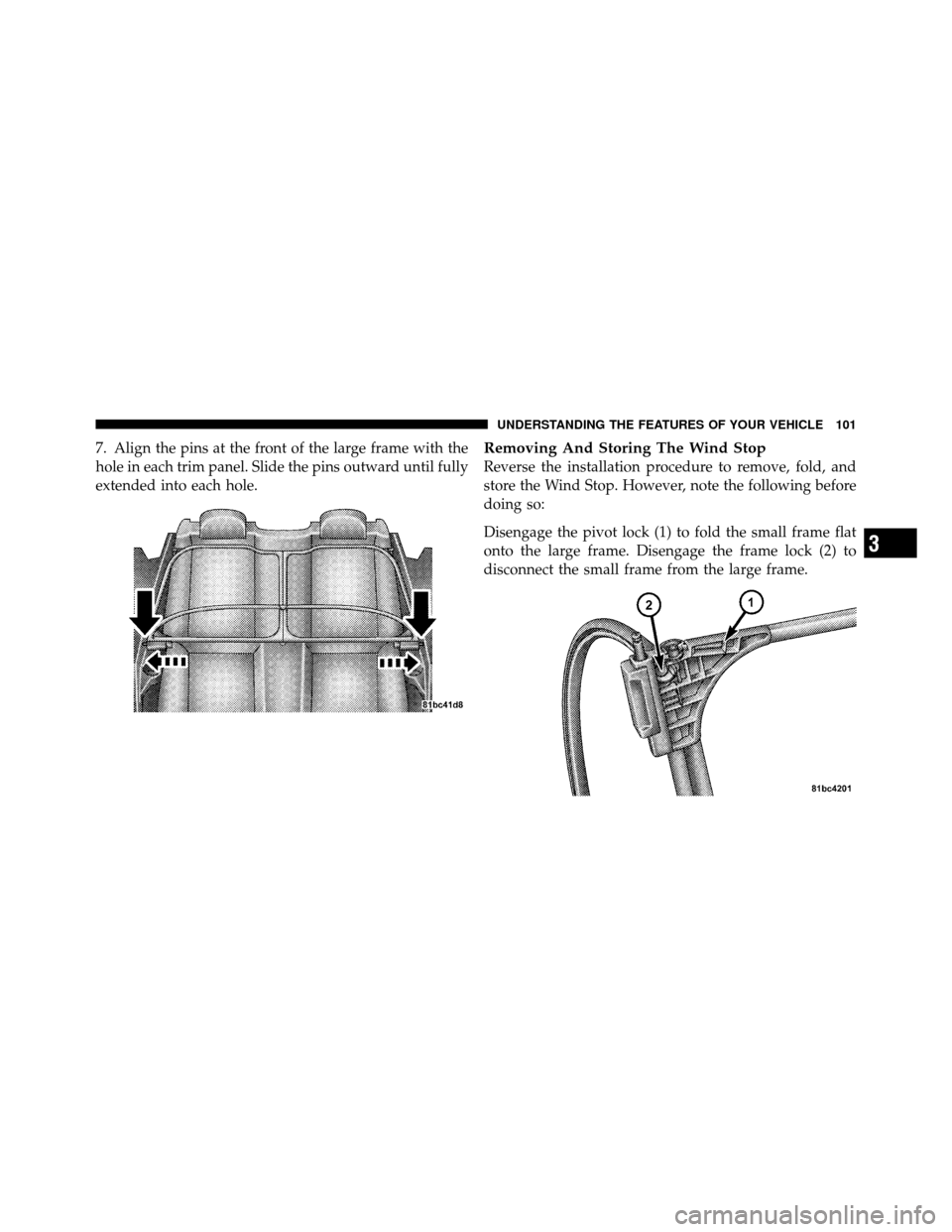

7. Align the pins at the front of the large frame with the
hole in each trim panel. Slide the pins outward until fully
extended into each hole.Removing And Storing The Wind Stop
Reverse the installation procedure to remove, fold, and
store the Wind Stop. However, note the following before
doing so:
Disengage the pivot lock (1) to fold the small frame flat
onto the large frame. Disengage the frame lock (2) to
disconnect the small frame from the large frame.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 101

Power Convertible Top Operation And Warning Messages
When the appropriate conditions exist, the PTCM displays various power convertible top operation and warning
messages in the Electronic Vehicle Information Center (EVIC) – if equipped, or in the Odometer for vehicles not
equipped with the EVIC. Refer to the following chart for message related information:
EVIC
Message\bEVIC
Message
Display
Time\bOdometer
Message
(< 5 mph
[8 km/h])
\b\bOdometer
Message
Display
Time\b\b
Odometer
Message
(> 5 mph
[8 km/h])
\b\bOdometer
Message
Display
Time\b\b
Chime Condition Operator
Action
Required
CONVERT-
IBLE TOP
NOT SE-
CURED Until Op-
eration is
Complete
TOP nOT
SECUrE
Until Op-
eration is
Complete— — — The System is
Lowering or
Raising the
To p—
CONVERT-
IBLE TOP
COM-
PLETE 9 sec. TOP
DONEDisplay
Scrolls for
6 sec.— — Single
ChimeThe System
Completes
Operation of
Lowering or
Raising the
To p —
102 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

EVIC
Message\bEVIC
Message
Display
Time\bOdometer
Message
(< 5 mph
[8 km/h])
\b\bOdometer
Message
Display
Time\b\b
Odometer
Message
(> 5 mph
[8 km/h])
\b\bOdometer
Message
Display
Time\b\b
Chime Condition Operator
Action
Required

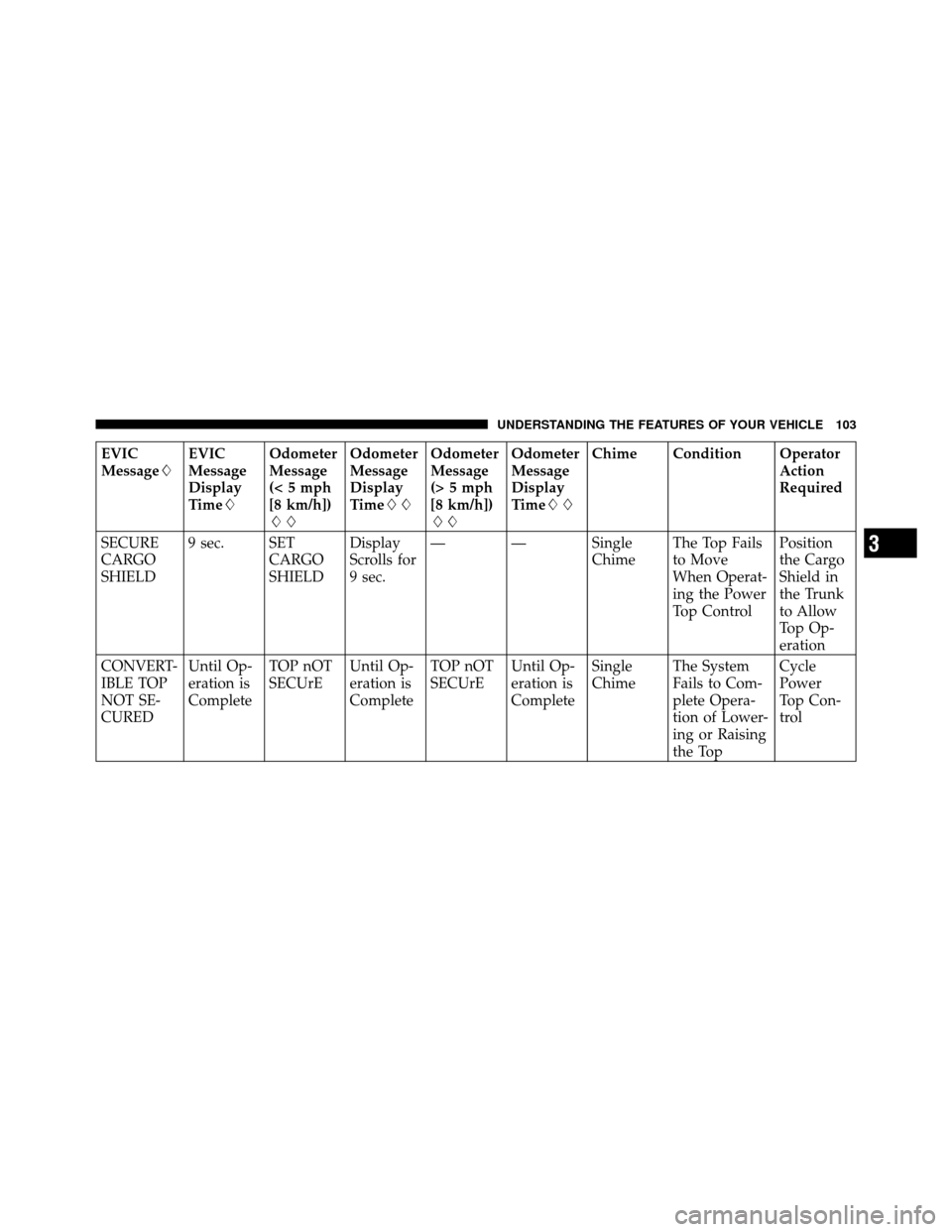

SECURE
CARGO
SHIELD 9 sec. SET
CARGO
SHIELDDisplay
Scrolls for
9 sec.— — Single
ChimeThe Top Fails
to Move
When Operat-
ing the Power
Top Control Position
the Cargo
Shield in
the Trunk
to Allow
Top Op-
eration
CONVERT-
IBLE TOP
NOT SE-
CURED Until Op-
eration is
Complete
TOP nOT
SECUrE
Until Op-
eration is
CompleteTOP nOT
SECUrE
Until Op-
eration is
CompleteSingle
Chime
The System
Fails to Com-
plete Opera-
tion of Lower-
ing or Raising
the Top Cycle
Power
Top Con-
trol
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 103

EVIC
Message\bEVIC
Message
Display
Time\bOdometer
Message
(< 5 mph
[8 km/h])
\b\bOdometer
Message
Display
Time\b\b
Odometer
Message
(> 5 mph
[8 km/h])
\b\bOdometer
Message
Display
Time\b\b
Chime Condition Operator
Action
Required

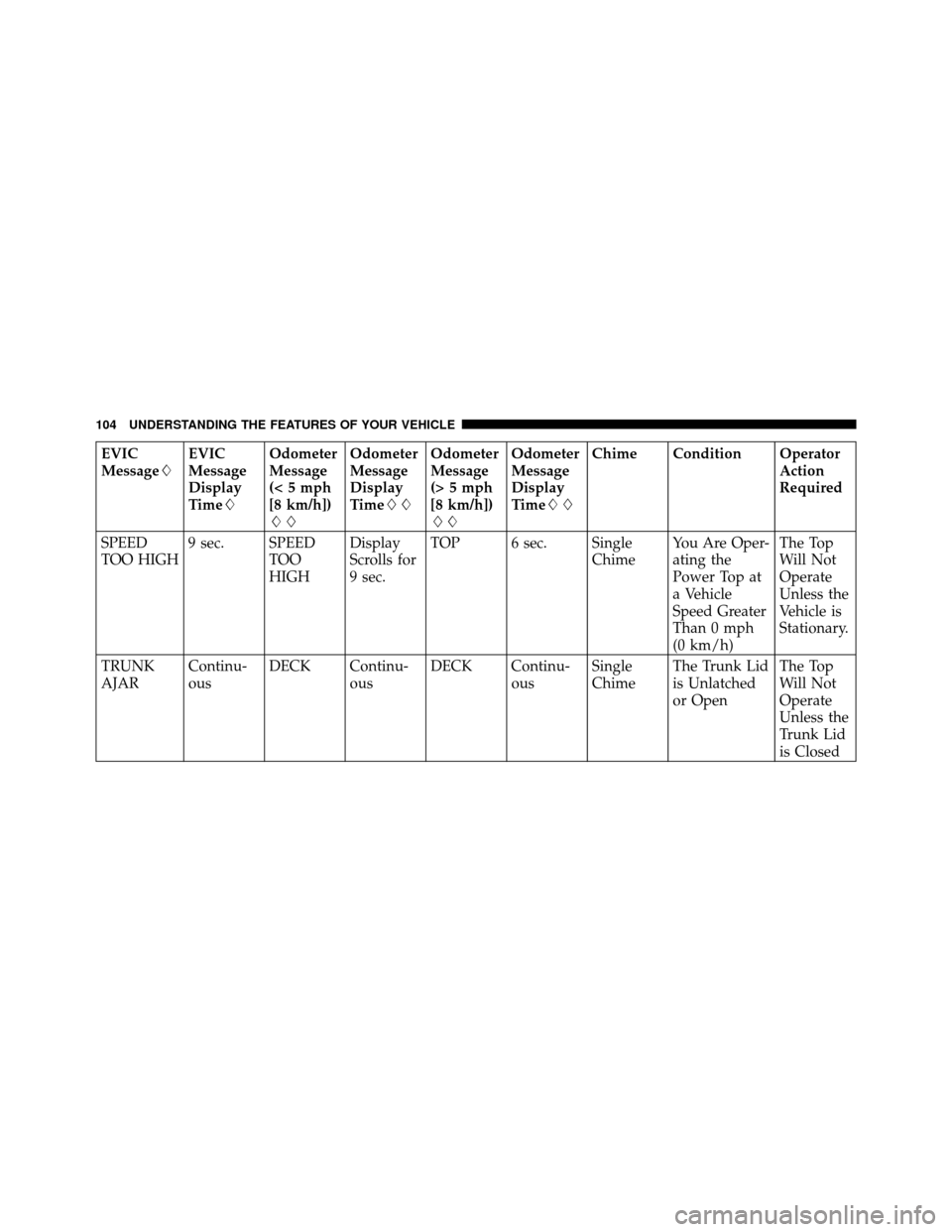

SPEED
TOO HIGH 9 sec. SPEED
TOO
HIGHDisplay
Scrolls for
9 sec.TOP 6 sec. Single
ChimeYou Are Oper-
ating the
Power Top at
a Vehicle
Speed Greater
Than 0 mph
(0 km/h) The Top
Will Not
Operate
Unless the
Vehicle is
Stationary.
TRUNK
AJAR Continu-
ousDECK Continu-
ousDECK Continu-
ousSingle
ChimeThe Trunk Lid
is Unlatched
or Open The Top
Will Not
Operate
Unless the
Trunk Lid
is Closed
104 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

EVIC
Message\bEVIC
Message
Display
Time\bOdometer
Message
(< 5 mph
[8 km/h])
\b\bOdometer
Message
Display
Time\b\b
Odometer
Message
(> 5 mph
[8 km/h])
\b\bOdometer
Message
Display
Time\b\b
Chime Condition Operator
Action
Required

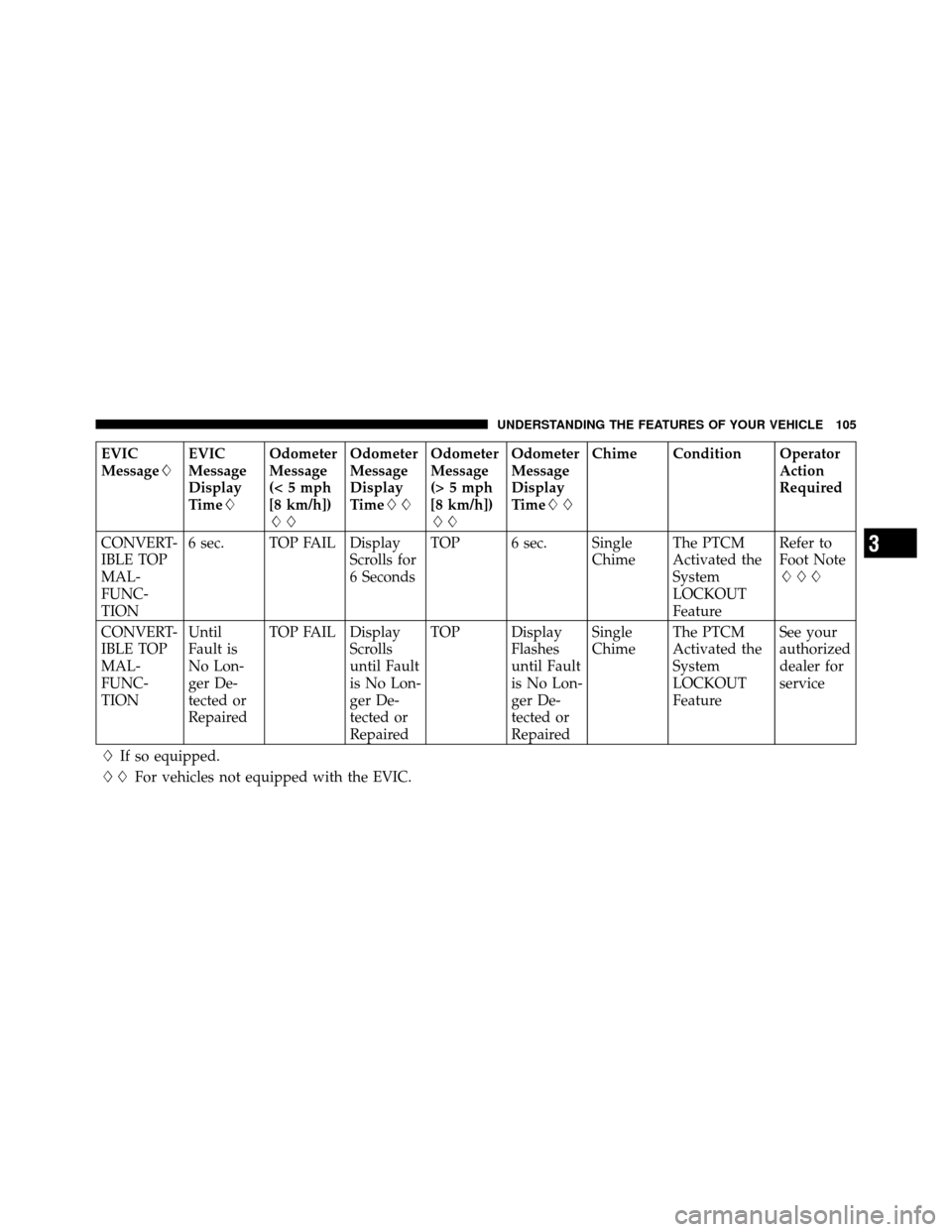

CONVERT-
IBLE TOP
MAL-
FUNC-
TION 6 sec. TOP FAIL Display
Scrolls for
6 SecondsTOP 6 sec. Single
ChimeThe PTCM
Activated the
System
LOCKOUT
Feature Refer to
Foot Note
\b\b\b
CONVERT-
IBLE TOP
MAL-
FUNC-
TION Until
Fault is
No Lon-
ger De-
tected or
RepairedTOP FAIL Display
Scrolls
until Fault
is No Lon-
ger De-
tected or
RepairedTOP Display
Flashes
until Fault
is No Lon-
ger De-
tected or
RepairedSingle
Chime
The PTCM
Activated the
System
LOCKOUT
Feature See your
authorized
dealer for
service
\b If so equipped.
\b\b For vehicles not equipped with the EVIC.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 105

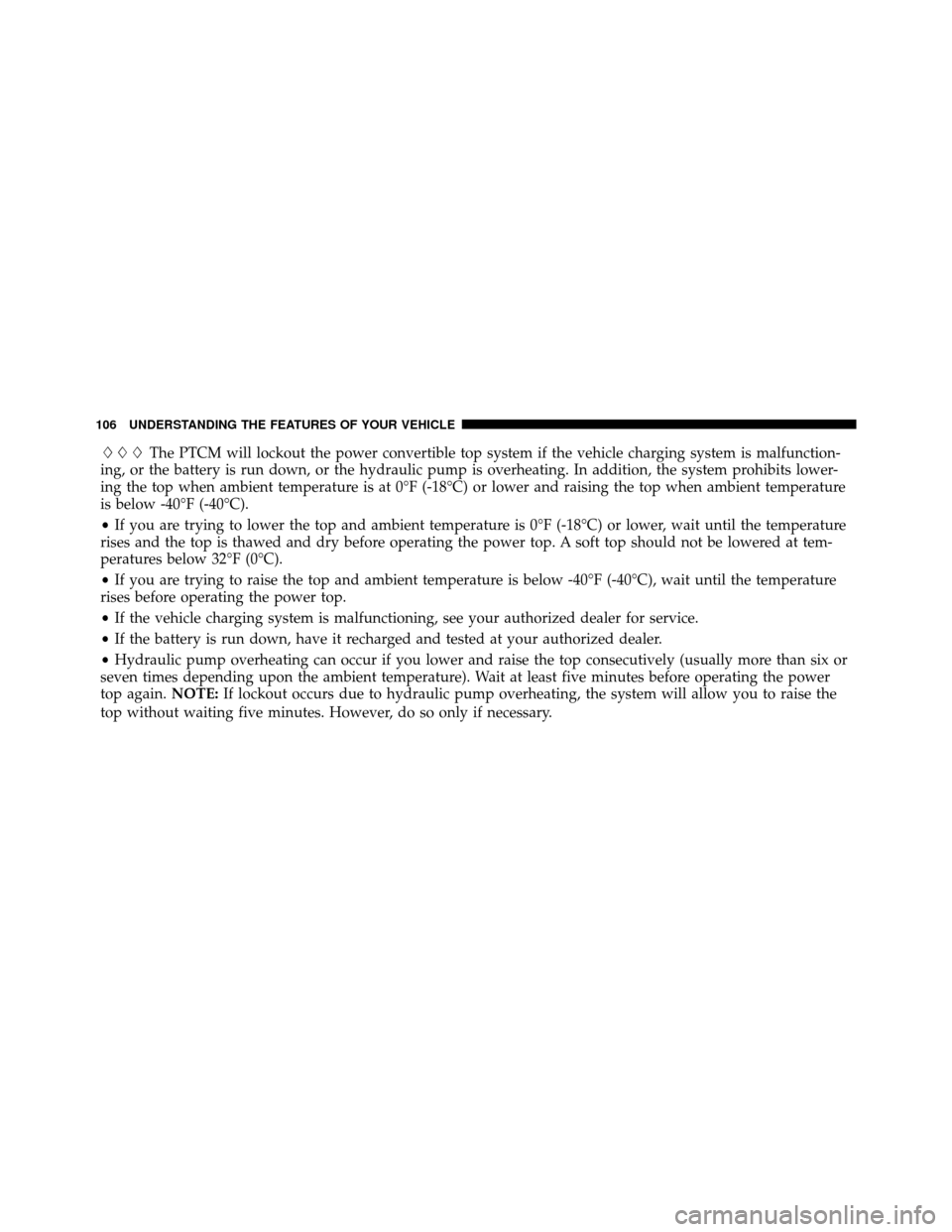

\b\b\bThe PTCM will lockout the power convertible top system if the vehicle charging system is malfunction-
ing, or the battery is run down, or the hydraulic pump is overheating. In addition, the system prohibits lower-
ing the top when ambient temperature is at 0°F (-18°C) or lower and raising the top when ambient temperature
is below -40°F (-40°C).
• If you are trying to lower the top and ambient temperature is 0°F (-18°C) or lower, wait until the temperature
rises and the top is thawed and dry before operating the power top. A soft top should not be lowered at tem-
peratures below 32°F (0°C).
• If you are trying to raise the top and ambient temperature is below -40°F (-40°C), wait until the temperature
rises before operating the power top.
• If the vehicle charging system is malfunctioning, see your authorized dealer for service.
• If the battery is run down, have it recharged and tested at your authorized dealer.
• Hydraulic pump overheating can occur if you lower and raise the top consecutively (usually more than six or
seven times depending upon the ambient temperature). Wait at least five minutes before operating the power
top again. NOTE:If lockout occurs due to hydraulic pump overheating, the system will allow you to raise the
top without waiting five minutes. However, do so only if necessary.
106 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

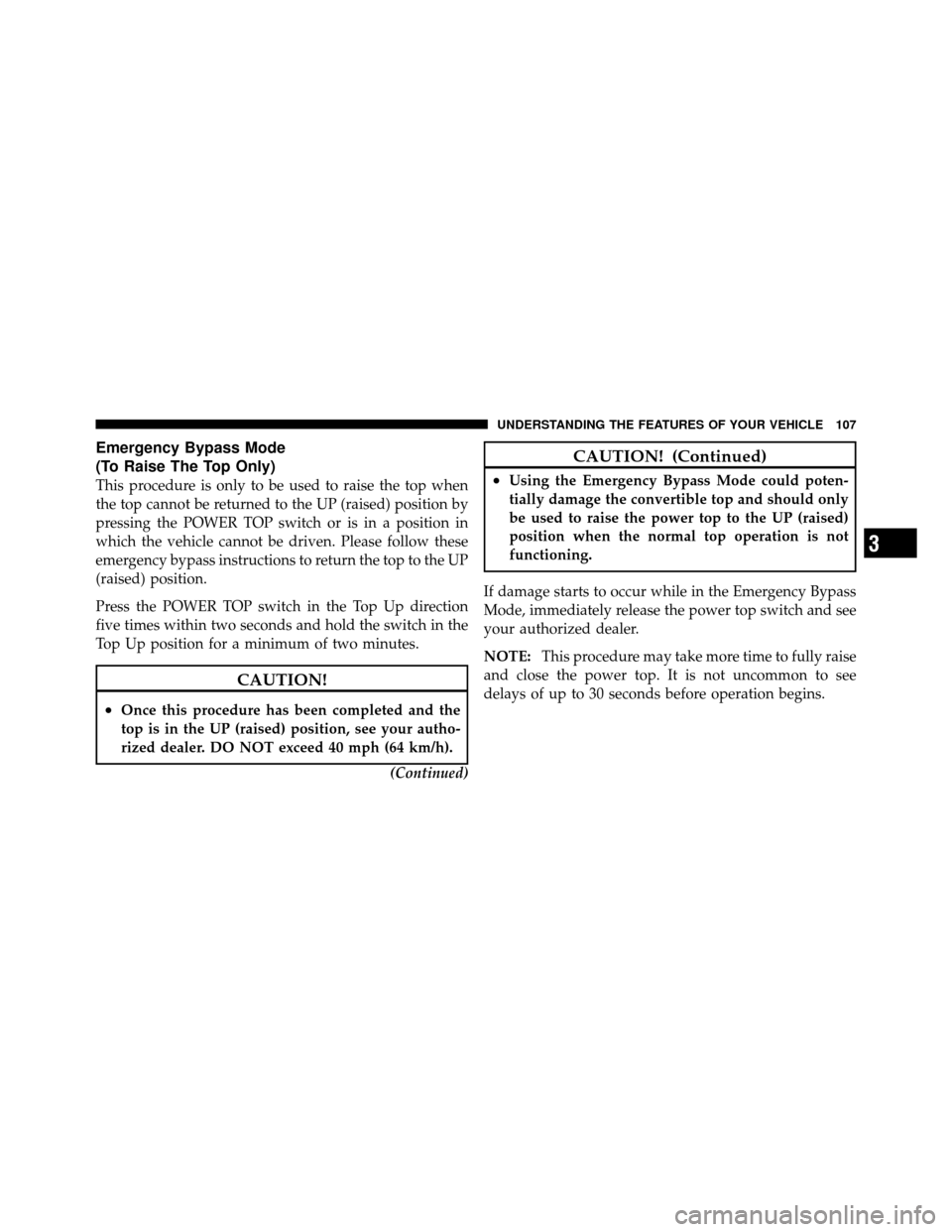

Emergency Bypass Mode
(To Raise The Top Only)
This procedure is only to be used to raise the top when
the top cannot be returned to the UP (raised) position by
pressing the POWER TOP switch or is in a position in
which the vehicle cannot be driven. Please follow these
emergency bypass instructions to return the top to the UP
(raised) position.
Press the POWER TOP switch in the Top Up direction
five times within two seconds and hold the switch in the
Top Up position for a minimum of two minutes.
CAUTION!
•Once this procedure has been completed and the
top is in the UP (raised) position, see your autho-
rized dealer. DO NOT exceed 40 mph (64 km/h).(Continued)
CAUTION! (Continued)
•Using the Emergency Bypass Mode could poten-
tially damage the convertible top and should only
be used to raise the power top to the UP (raised)
position when the normal top operation is not
functioning.
If damage starts to occur while in the Emergency Bypass
Mode, immediately release the power top switch and see
your authorized dealer.
NOTE: This procedure may take more time to fully raise
and close the power top. It is not uncommon to see
delays of up to 30 seconds before operation begins.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 107

MIRRORS
Inside Day/Night Mirror
A two-point pivot system allows for horizontal and
vertical adjustment of the mirror. Adjust the mirror to
center on the view through the rear window.
Headlight glare can be reduced by moving the small
control under the mirror to the night position (toward the
rear of the vehicle). The mirror should be adjusted while
set in the day position (toward the windshield).
Automatic Dimming Mirror — If Equipped
This mirror automatically adjusts for headlight glare
from vehicles behind you. You can turn the feature on or
off by pressing the button at the base of the mirror. A light
to the left of the button will illuminate to indicate when
the dimming feature is activated. The sensor to the right
of the button does not illuminate.
CAUTION!
To avoid damage to the mirror during cleaning, never
spray any cleaning solution directly onto the mirror.
Apply the solution onto a clean cloth and wipe the
mirror clean.
Auto Dimming Mirror
