fuel filter CHRYSLER 200 CONVERTIBLE 2011 1.G Owners Manual

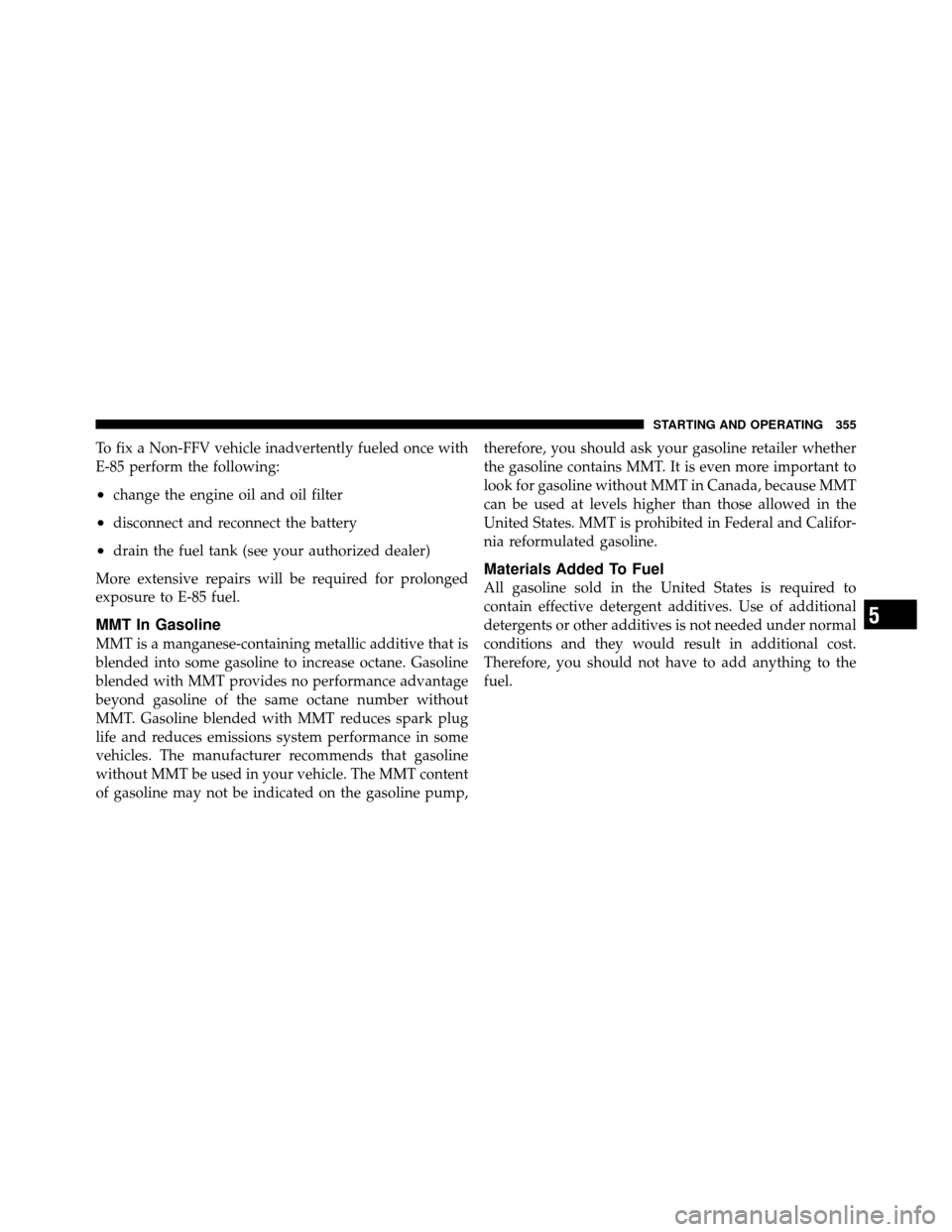

To fix a Non-FFV vehicle inadvertently fueled once with
E-85 perform the following:
•change the engine oil and oil filter
•disconnect and reconnect the battery
•drain the fuel tank (see your authorized dealer)
More extensive repairs will be required for prolonged
exposure to E-85 fuel.
MMT In Gasoline
MMT is a manganese-containing metallic additive that is
blended into some gasoline to increase octane. Gasoline
blended with MMT provides no performance advantage
beyond gasoline of the same octane number without
MMT. Gasoline blended with MMT reduces spark plug
life and reduces emissions system performance in some
vehicles. The manufacturer recommends that gasoline
without MMT be used in your vehicle. The MMT content
of gasoline may not be indicated on the gasoline pump, therefore, you should ask your gasoline retailer whether
the gasoline contains MMT. It is even more important to
look for gasoline without MMT in Canada, because MMT
can be used at levels higher than those allowed in the
United States. MMT is prohibited in Federal and Califor-
nia reformulated gasoline.
Materials Added To Fuel
All gasoline sold in the United States is required to
contain effective detergent additives. Use of additional
detergents or other additives is not needed under normal
conditions and they would result in additional cost.
Therefore, you should not have to add anything to the
fuel.
5
STARTING AND OPERATING 355

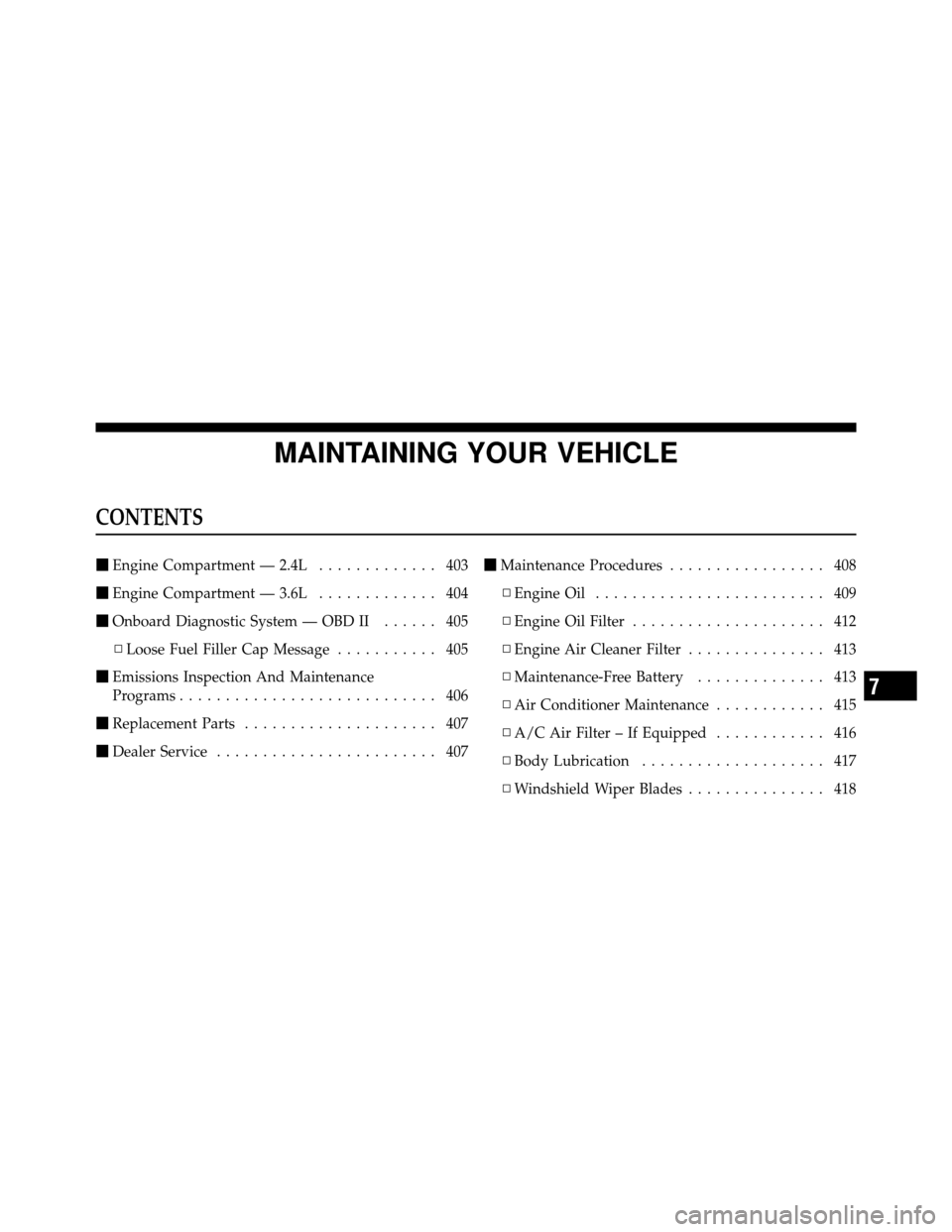

MAINTAINING YOUR VEHICLE
CONTENTS
Engine Compartment — 2.4L ............. 403
 Engine Compartment — 3.6L ............. 404
 Onboard Diagnostic System — OBD II ...... 405
▫ Loose Fuel Filler Cap Message ........... 405
 Emissions Inspection And Maintenance
Programs ............................ 406
 Replacement Parts ..................... 407
 Dealer Service ........................ 407
Maintenance Procedures ................. 408
▫ Engine Oil ......................... 409
▫ Engine Oil Filter ..................... 412
▫ Engine Air Cleaner Filter ............... 413
▫ Maintenance-Free Battery .............. 413
▫ Air Conditioner Maintenance ............ 415
▫ A/C Air Filter – If Equipped ............ 416
▫ Body Lubrication .................... 417
▫ Windshield Wiper Blades ............... 418
7

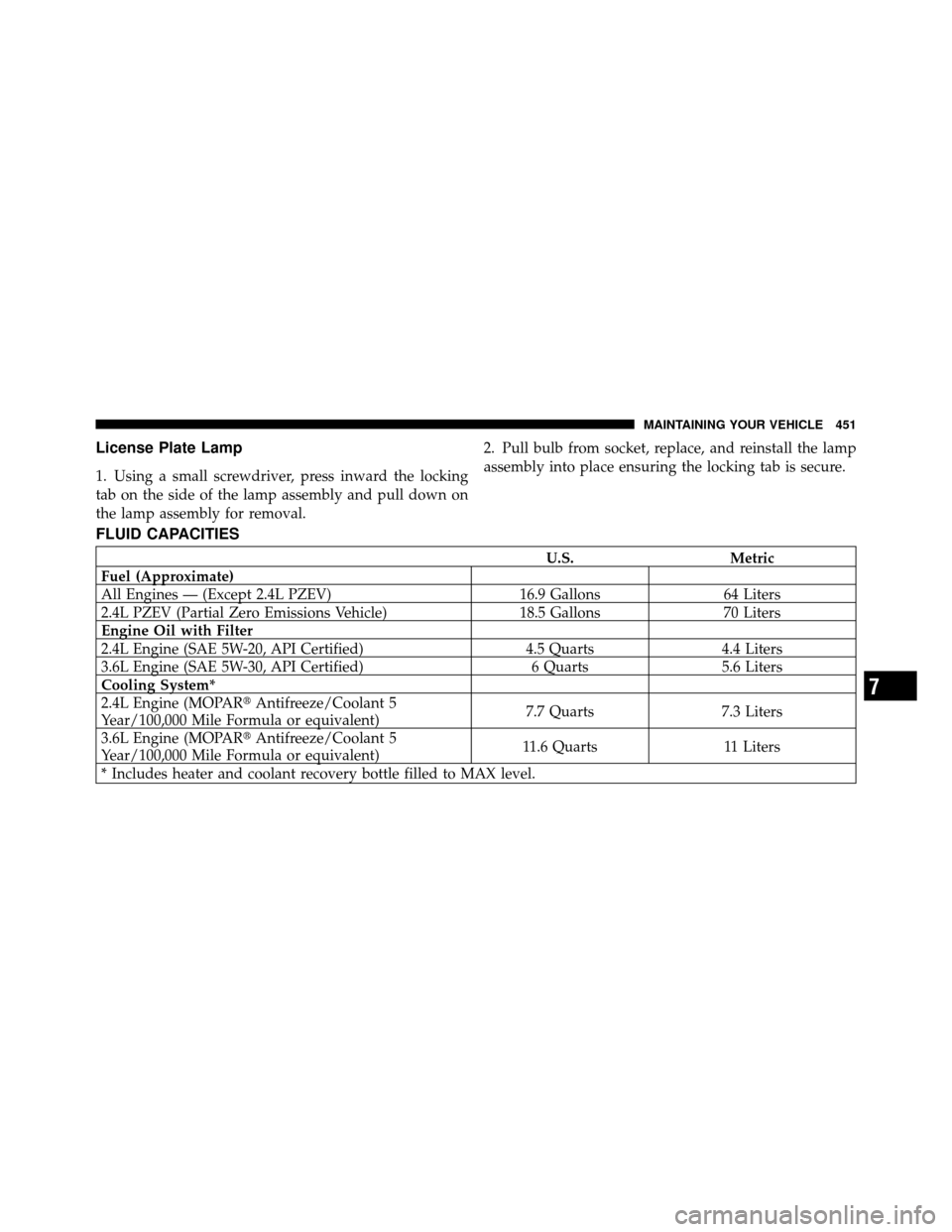

License Plate Lamp
1. Using a small screwdriver, press inward the locking
tab on the side of the lamp assembly and pull down on
the lamp assembly for removal.2. Pull bulb from socket, replace, and reinstall the lamp
assembly into place ensuring the locking tab is secure.
FLUID CAPACITIES
U.S.
Metric
Fuel (Approximate)
All Engines — (Except 2.4L PZEV) 16.9 Gallons64 Liters
2.4L PZEV (Partial Zero Emissions Vehicle) 18.5 Gallons70 Liters
Engine Oil with Filter
2.4L Engine (SAE 5W-20, API Certified) 4.5 Quarts4.4 Liters
3.6L Engine (SAE 5W-30, API Certified) 6 Quarts5.6 Liters
Cooling System*
2.4L Engine (MOPAR Antifreeze/Coolant 5
Year/100,000 Mile Formula or equivalent) 7.7 Quarts
7.3 Liters
3.6L Engine (MOPAR Antifreeze/Coolant 5
Year/100,000 Mile Formula or equivalent) 11.6 Quarts
11 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
7
MAINTAINING YOUR VEHICLE 451

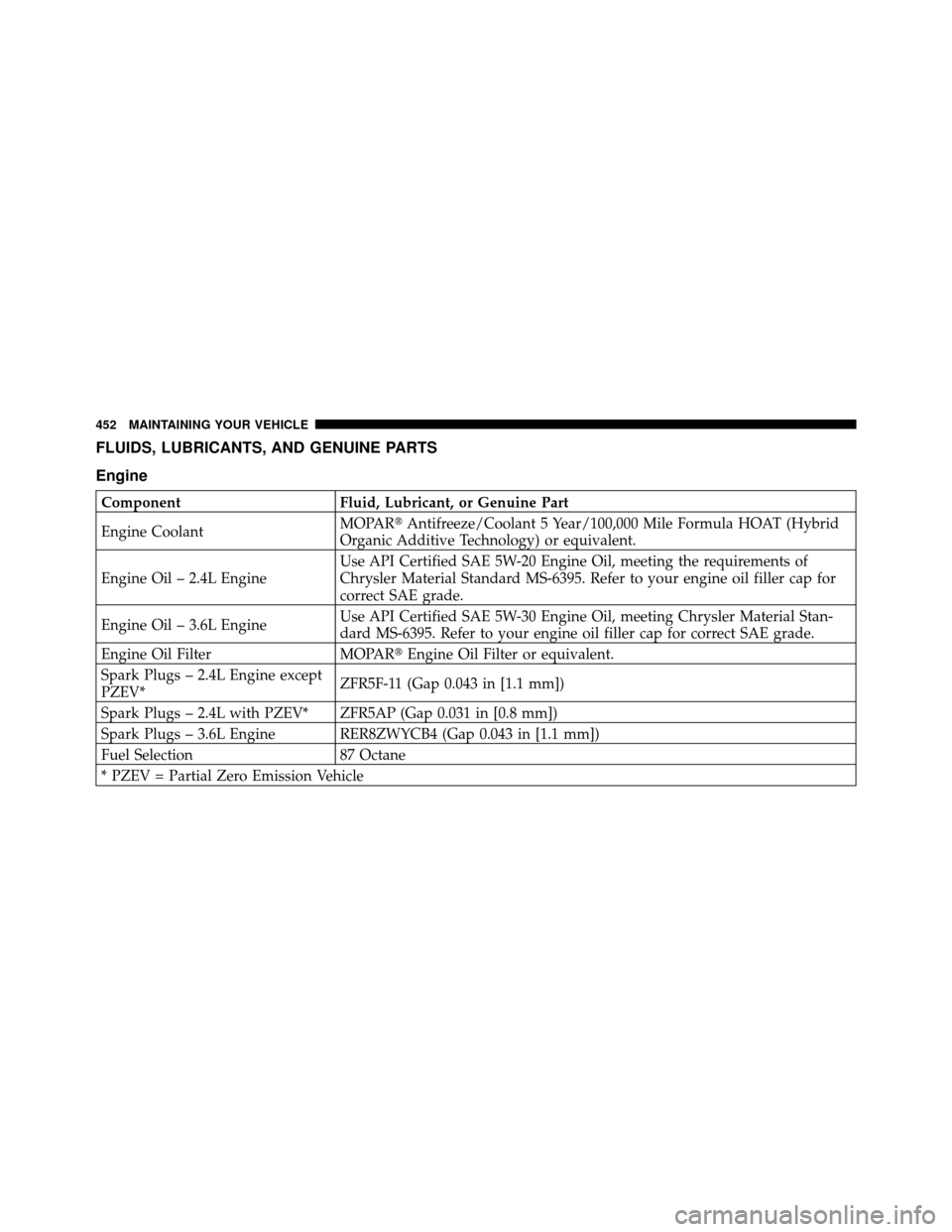

FLUIDS, LUBRICANTS, AND GENUINE PARTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine Coolant MOPAR
Antifreeze/Coolant 5 Year/100,000 Mile Formula HOAT (Hybrid
Organic Additive Technology) or equivalent.
Engine Oil – 2.4L Engine Use API Certified SAE 5W-20 Engine Oil, meeting the requirements of
Chrysler Material Standard MS-6395. Refer to your engine oil filler cap for
correct SAE grade.
Engine Oil – 3.6L Engine Use API Certified SAE 5W-30 Engine Oil, meeting Chrysler Material Stan-
dard MS-6395. Refer to your engine oil filler cap for correct SAE grade.
Engine Oil Filter MOPAREngine Oil Filter or equivalent.
Spark Plugs – 2.4L Engine except
PZEV* ZFR5F-11 (Gap 0.043 in [1.1 mm])
Spark Plugs – 2.4L with PZEV* ZFR5AP (Gap 0.031 in [0.8 mm])
Spark Plugs – 3.6L Engine RER8ZWYCB4 (Gap 0.043 in [1.1 mm])
Fuel Selection 87 Octane
* PZEV = Partial Zero Emission Vehicle
452 MAINTAINING YOUR VEHICLE

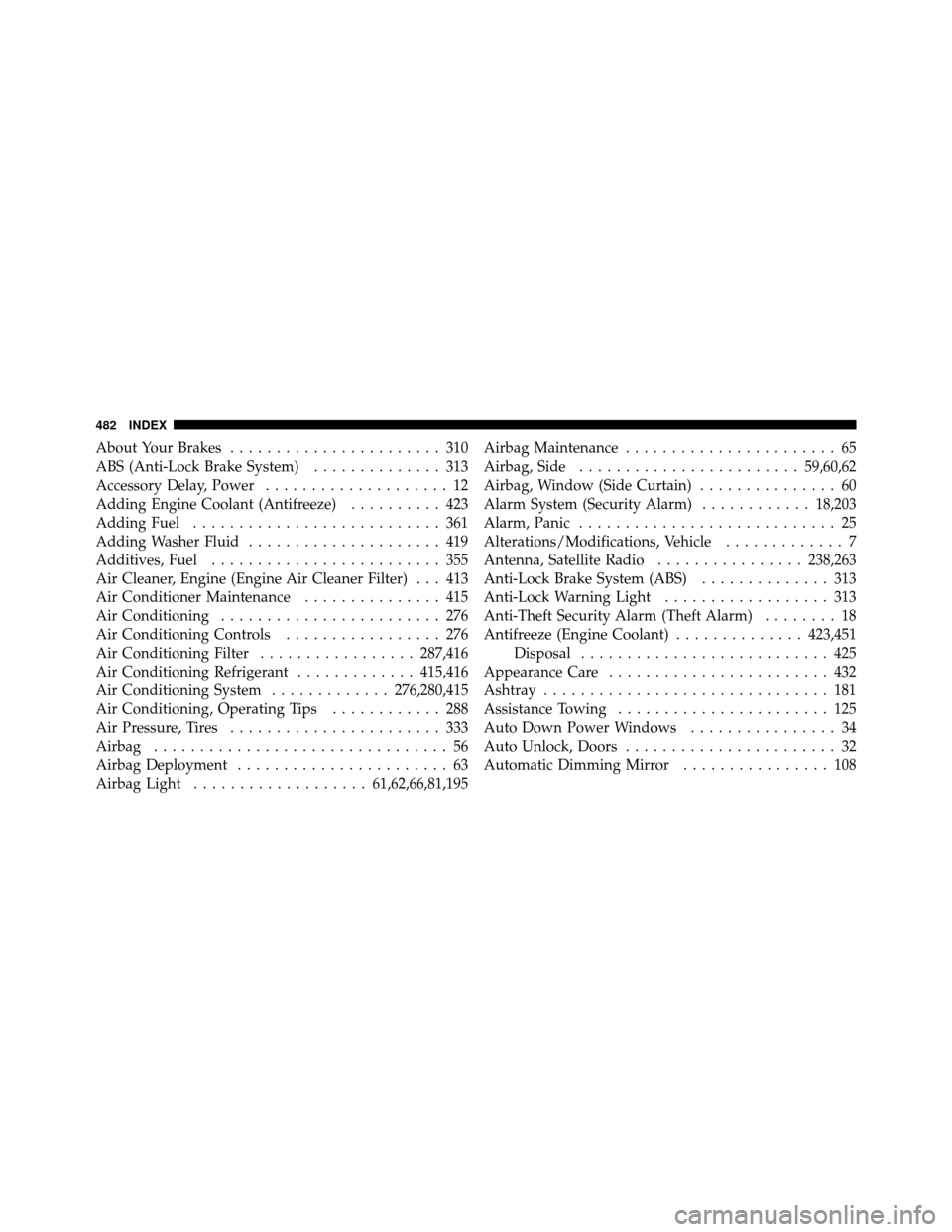

About Your Brakes....................... 310
ABS (Anti-Lock Brake System) .............. 313
Accessory Delay, Power .................... 12
Adding Engine Coolant (Antifreeze) .......... 423
Adding Fuel ........................... 361
Adding Washer Fluid ..................... 419
Additives, Fuel ......................... 355
Air Cleaner, Engine (Engine Air Cleaner Filter) . . . 413
Air Conditioner Maintenance ............... 415
Air Conditioning ........................ 276
Air Conditioning Controls ................. 276
Air Conditioning Filter .................287,416
Air Conditioning Refrigerant .............415,416
Air Conditioning System .............276,280,415
Air Conditioning, Operating Tips ............ 288
Air Pressure, Tires ....................... 333
Airbag ................................ 56
Airbag Deployment ....................... 63
Airbag Light ................... 61,62,66,81,195Airbag Maintenance
....................... 65
Airbag, Side ........................ 59,60,62
Airbag, Window (Side Curtain) ............... 60
Alarm System (Security Alarm) ............18,203
Alarm, Panic ............................ 25
Alterations/Modifications, Vehicle ............. 7
Antenna, Satellite Radio ................238,263
Anti-Lock Brake System (ABS) .............. 313
Anti-Lock Warning Light .................. 313
Anti-Theft Security Alarm (Theft Alarm) ........ 18
Antifreeze (Engine Coolant) ..............423,451
Disposal ........................... 425
Appearance Care ........................ 432
Ashtray ............................... 181
Assistance Towing ....................... 125
Auto Down Power Windows ................ 34
Auto Unlock, Doors ....................... 32
Automatic Dimming Mirror ................ 108
482 INDEX

Flooded, Starting..................... 295
Fuel Requirements ................. 353,451
Jump Starting ....................... 390
Oil ......................... 409,451,452
Oil Change Interval .............201,213,410
Oil Filler Cap .................... 403,411
Oil Filter ........................... 412
Oil Filter Disposal .................... 412
Oil Selection ..................... 410,451
Oil Synthetic ........................ 412
Overheating ........................ 378
Starting ........................... 294
Temperature Gauge ................... 194
Engine Oil Viscosity ...................... 411
Enhanced Accident Response Feature .......... 63
Entry System, Illuminated .................. 20
Ethanol ............................... 354
Event Data Recorder ...................... 66
Exhaust Gas Caution ................... 80,357Exhaust System
....................... 80,419
Extender, Seat Belt ........................ 55
Exterior Lights .......................... 83
Fabric Care ............................ 436
Filler Location Fuel .................... 194,361
Filters Air Cleaner ......................... 413
Air Conditioning .................. 287,416
Automatic Transaxle .................. 432
Engine Oil ....................... 412,452
Engine Oil Disposal ................... 412
Flash-To-Pass ........................... 162
Flashers .............................. 378
Hazard Warning ..................... 378
Turn Signal .................... 83,162,450
Flexible Fuel Vehicles Cruising Range ...................... 360
Engine Oil ......................... 359
10
INDEX 487

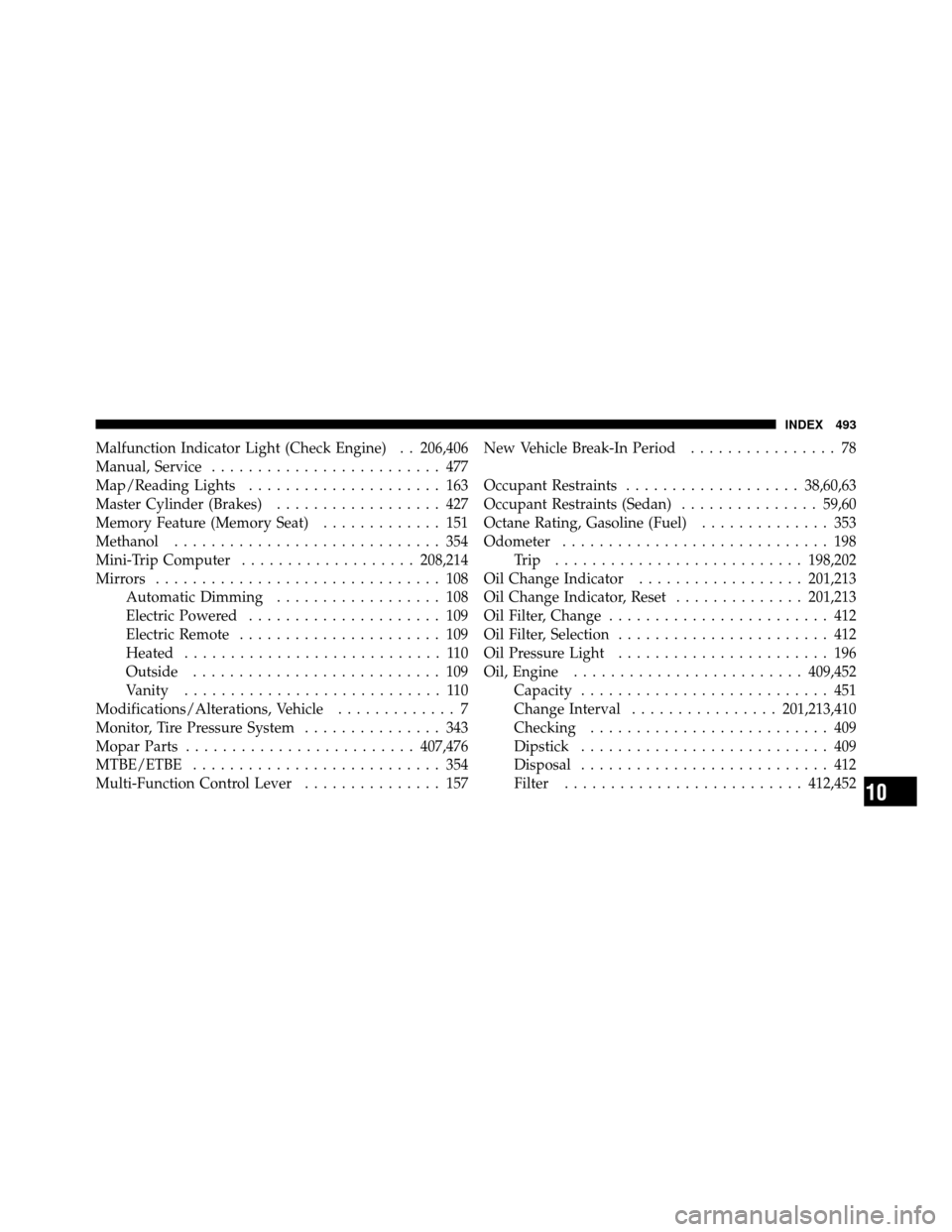

Malfunction Indicator Light (Check Engine) . . 206,406
Manual, Service......................... 477
Map/Reading Lights ..................... 163
Master Cylinder (Brakes) .................. 427
Memory Feature (Memory Seat) ............. 151
Methanol ............................. 354
Mini-Trip Computer ................... 208,214
Mirrors ............................... 108
Automatic Dimming .................. 108
Electric Powered ..................... 109
Electric Remote ...................... 109
Heated ............................ 110
Outside ........................... 109
Vanity ............................ 110
Modifications/Alterations, Vehicle ............. 7
Monitor, Tire Pressure System ............... 343
Mopar Parts ......................... 407,476
MTBE/ETBE ........................... 354
Multi-Function Control Lever ............... 157New Vehicle Break-In Period
................ 78
Occupant Restraints ................... 38,60,63
Occupant Restraints (Sedan) ...............59,60
Octane Rating, Gasoline (Fuel) .............. 353
Odometer ............................. 198
Trip ........................... 198,202
Oil Change Indicator .................. 201,213
Oil Change Indicator, Reset ..............201,213
Oil Filter, Change ........................ 412
Oil Filter, Selection ....................... 412
Oil Pressure Light ....................... 196
Oil, Engine ......................... 409,452
Capacity ........................... 451
Change Interval ................ 201,213,410
Checking .......................... 409
Dipstick ........................... 409
Disposal ........................... 412
Filter .......................... 412,452
10
INDEX 493
