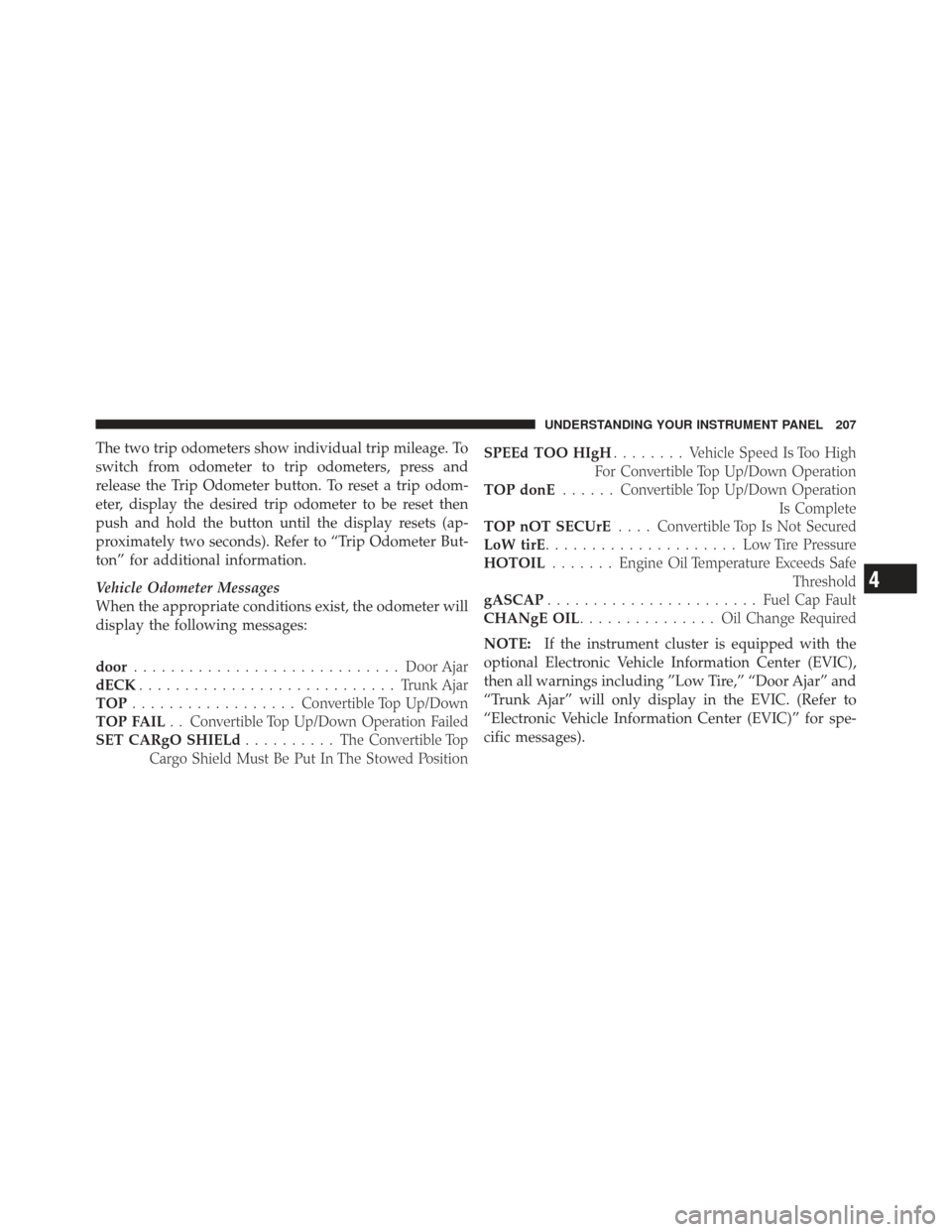

The two trip odometers show individual trip mileage. To
switch from odometer to trip odometers, press and
release the Trip Odometer button. To reset a trip odom-
eter, display the desired trip odometer to be reset then
push and hold the button until the display resets (ap-
proximately two seconds). Refer to “Trip Odometer But-
ton” for additional information.
Vehicle Odometer Messages
When the appropriate conditions exist, the odometer will
display the following messages:
door............................. Door Ajar
dECK ............................ T runk Ajar
TOP .................. Con vertible Top Up/Down
TOP FAIL . . Convertible Top Up/Down Operation Failed
SET CARgO SHIELd .......... TheCon vertible Top
Cargo Shield Must Be Put In The Stowed Position SPEEd TOO HIgH
........ Vehicle Speed Is Too High
For Convertible Top Up/Down Operation
TOP donE ...... Con vertible Top Up/Down Operation
Is Complete
TOP nOT SECUrE .... Convertible Top Is Not Secured
LoW tirE ..................... LowTirePr essure
HOTOIL .......Engine Oil Temperature Exceeds Safe
Threshold
gASCAP ....................... Fuel Cap Fault
CHANgE OIL ............... Oil Change Required
NOTE: If the instrument cluster is equipped with the
optional Electronic Vehicle Information Center (EVIC),
then all warnings including ”Low Tire,” “Door Ajar” and
“Trunk Ajar” will only display in the EVIC. (Refer to
“Electronic Vehicle Information Center (EVIC)” for spe-
cific messages).
4
UNDERSTANDING YOUR INSTRUMENT PANEL 207

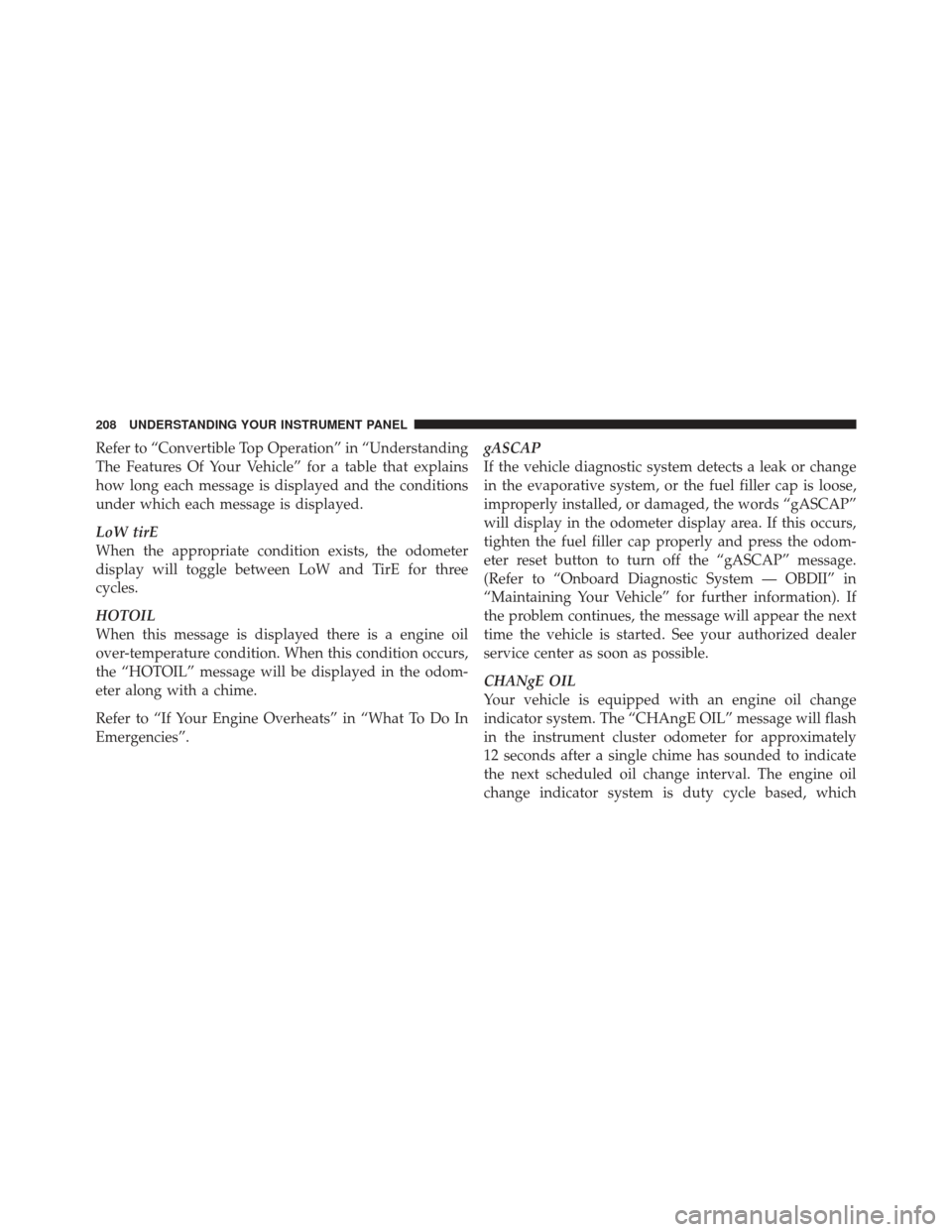

Refer to “Convertible Top Operation” in “Understanding
The Features Of Your Vehicle” for a table that explains
how long each message is displayed and the conditions
under which each message is displayed.
LoW tirE
When the appropriate condition exists, the odometer
display will toggle between LoW and TirE for three
cycles.
HOTOIL
When this message is displayed there is a engine oil
over-temperature condition. When this condition occurs,
the “HOTOIL” message will be displayed in the odom-
eter along with a chime.
Refer to “If Your Engine Overheats” in “What To Do In
Emergencies”.gASCAP
If the vehicle diagnostic system detects a leak or change
in the evaporative system, or the fuel filler cap is loose,
improperly installed, or damaged, the words “gASCAP”
will display in the odometer display area. If this occurs,
tighten the fuel filler cap properly and press the odom-
eter reset button to turn off the “gASCAP” message.
(Refer to “Onboard Diagnostic System — OBDII” in
“Maintaining Your Vehicle” for further information). If
the problem continues, the message will appear the next
time the vehicle is started. See your authorized dealer
service center as soon as possible.
CHANgE OIL
Your vehicle is equipped with an engine oil change
indicator system. The “CHAngE OIL” message will flash
in the instrument cluster odometer for approximately
12 seconds after a single chime has sounded to indicate
the next scheduled oil change interval. The engine oil
change indicator system is duty cycle based, which
208 UNDERSTANDING YOUR INSTRUMENT PANEL

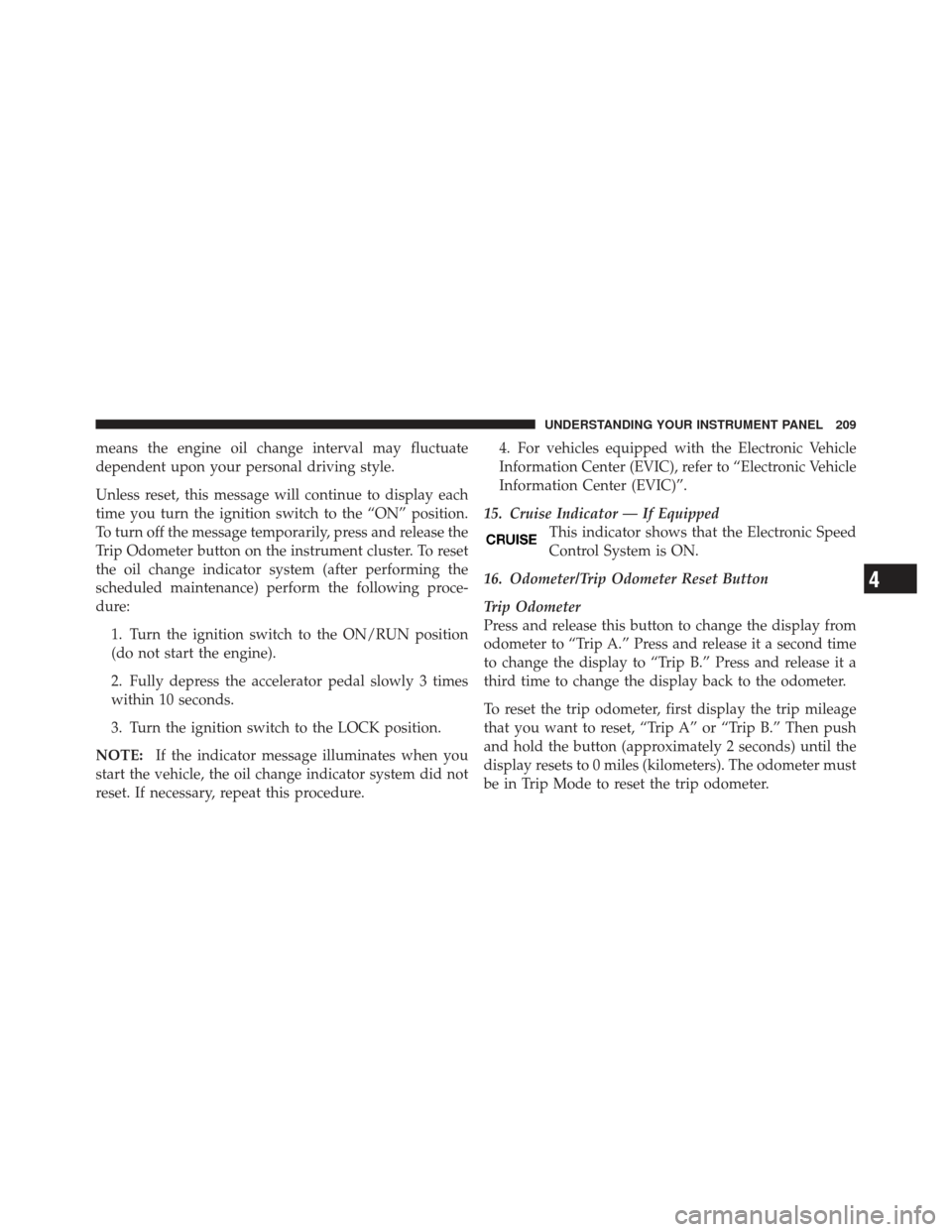

means the engine oil change interval may fluctuate
dependent upon your personal driving style.
Unless reset, this message will continue to display each
time you turn the ignition switch to the “ON” position.
To turn off the message temporarily, press and release the
Trip Odometer button on the instrument cluster. To reset
the oil change indicator system (after performing the
scheduled maintenance) perform the following proce-
dure:1. Turn the ignition switch to the ON/RUN position
(do not start the engine).
2. Fully depress the accelerator pedal slowly 3 times
within 10 seconds.
3. Turn the ignition switch to the LOCK position.
NOTE: If the indicator message illuminates when you
start the vehicle, the oil change indicator system did not
reset. If necessary, repeat this procedure. 4. For vehicles equipped with the Electronic Vehicle
Information Center (EVIC), refer to “Electronic Vehicle
Information Center (EVIC)”.
15. Cruise Indicator — If Equipped This indicator shows that the Electronic Speed
Control System is ON.
16. Odometer/Trip Odometer Reset Button
Trip Odometer
Press and release this button to change the display from
odometer to “Trip A.” Press and release it a second time
to change the display to “Trip B.” Press and release it a
third time to change the display back to the odometer.
To reset the trip odometer, first display the trip mileage
that you want to reset, “Trip A” or “Trip B.” Then push
and hold the button (approximately 2 seconds) until the
display resets to 0 miles (kilometers). The odometer must
be in Trip Mode to reset the trip odometer.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 209

•Key In Ignition
•Remote start aborted — Door ajar
•Remote start aborted — Hood ajar
•Remote start aborted — Trunk ajar
•Remote start aborted — Fuel low
•Remote start disabled — System fault
•Convertible Top Not Secured (with a single chime)
•Convertible Top Complete (with a single chime)
•Secure Cargo Shield (with a single chime)
•Speed Too High (with a single chime)
•Convertible Top Malfunction (with a single chime)
•Oil Change Required (with a single chime)
•Low Tire (with a graphic of the car showing which
tire(s) is/are low - with a single chime). Refer toTi re
Pressure Monitoring System inStarting and Operat-
ing.
•Check TPM System (with a single chime) Refer to Ti re
Pressure Monitoring System inStarting and
Operating.
Oil Change Required — If Equipped
Your vehicle is equipped with an engine oil change
indicator system. The “Oil Change Required” message
will flash in the EVIC display for approximately five
seconds after a single chime has sounded to indicate the
next scheduled oil change interval. The engine oil change
indicator system is duty cycle based, which means the
engine oil change interval may fluctuate dependent upon
your personal driving style.
Unless reset, this message will continue to display each
time you turn the ignition switch to the ON/RUN
4
UNDERSTANDING YOUR INSTRUMENT PANEL 221

position. To turn off the message temporarily, press and
release the Menu button. To reset the oil change indicator
system (after performing the scheduled maintenance),
perform the following procedure:
1. Turn the ignition switch to the ON position (Do not
start the engine.)
2. Fully depress the accelerator pedal slowly three times
within 10 seconds.
3. Turn the ignition switch to the LOCK position.
NOTE:If the indicator message illuminates when you
start the vehicle, the oil change indicator system did not
reset. If necessary repeat this procedure.
EVIC Main Menu
To step to each main menu feature press and release the
MENU button once for each step. A step from the last item in the list will cause the first item in the feature list
to be displayed. The following features are in the Main
menu:
•Compass, Outside Temperature, Audio Information (if
radio is on) display
•Average Fuel Economy
•Distance to Empty
•Tire Pressure Status display
•Elapsed Time
•EVIC Units Selection
•System Status
•Personal Settings
222 UNDERSTANDING YOUR INSTRUMENT PANEL

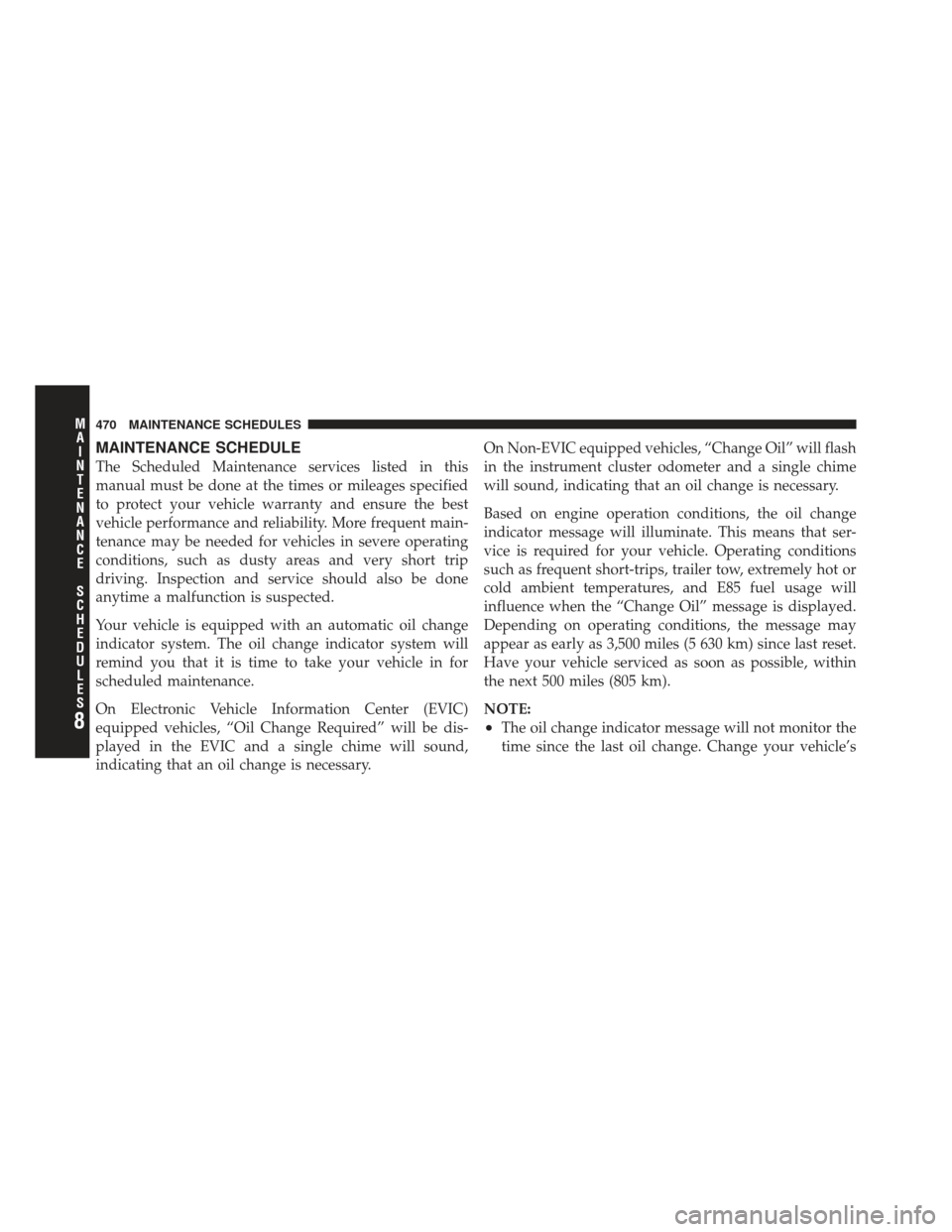

MAINTENANCE SCHEDULE
The Scheduled Maintenance services listed in this
manual must be done at the times or mileages specified
to protect your vehicle warranty and ensure the best
vehicle performance and reliability. More frequent main-
tenance may be needed for vehicles in severe operating
conditions, such as dusty areas and very short trip
driving. Inspection and service should also be done
anytime a malfunction is suspected.
Your vehicle is equipped with an automatic oil change
indicator system. The oil change indicator system will
remind you that it is time to take your vehicle in for
scheduled maintenance.
On Electronic Vehicle Information Center (EVIC)
equipped vehicles, “Oil Change Required” will be dis-
played in the EVIC and a single chime will sound,
indicating that an oil change is necessary.On Non-EVIC equipped vehicles, “Change Oil” will flash
in the instrument cluster odometer and a single chime
will sound, indicating that an oil change is necessary.
Based on engine operation conditions, the oil change
indicator message will illuminate. This means that ser-
vice is required for your vehicle. Operating conditions
such as frequent short-trips, trailer tow, extremely hot or
cold ambient temperatures, and E85 fuel usage will
influence when the “Change Oil” message is displayed.
Depending on operating conditions, the message may
appear as early as 3,500 miles (5 630 km) since last reset.
Have your vehicle serviced as soon as possible, within
the next 500 miles (805 km).
NOTE:
•The oil change indicator message will not monitor the
time since the last oil change. Change your vehicle’s8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S470 MAINTENANCE SCHEDULES

oil if it has been six months since your last oil change,
even if the oil change indicator message is NOT
illuminated.
•Change your engine oil more often if you drive your
vehicle off-road for an extended period of time.
•Under no circumstances should oil change intervals
exceed 8,000 miles (13,000 km) or six months, which-
ever comes first.
Your authorized dealer will reset the oil change indicator
message after completing the scheduled oil change. If a
scheduled oil change is performed by someone other
than your authorized dealer, the message can be reset by
referring to the steps described under “Electronic Vehicle
Information Center (EVIC)/Oil Change Required” in
“Understanding Your Instrument Panel” or under “In-
strument Cluster Description/Odometer/Trip Odom-
eter” in “Understanding Your Instrument Panel” for
further information. At Each Stop For Fuel
•Check the engine oil level about five minutes after a
fully warmed engine is shut off. Checking the oil level
while the vehicle is on level ground will improve the
accuracy of the oil level reading. Add oil only when
the level is at or below the ADD or MIN mark.
•Check the windshield washer solvent and add if
required.
Once A Month
•Check tire pressure and look for unusual wear or
damage.
•Inspect the battery and clean and tighten the terminals
as required.
•Check the fluid levels of coolant reservoir, brake
master cylinder, and transmission and add as needed.
8
M A I
N T
E
N A
N CE
S
C
H E
D
U L
E
SMAINTENANCE SCHEDULES 471

Methanol............................. 365
Mini-Trip Computer ................... 216,222
Mirrors ............................... 111
Automatic Dimming .................. 111
Electric Powered ..................... 112
Electric Remote ...................... 112
Heated ............................ 113
Outside ........................... 112
Vanity ............................ 114
Modifications/Alterations, Vehicle ............. 7
Monitor, Tire Pressure System ............... 355
Mopar Parts ......................... 421,488
MTBE/ETBE ........................... 365
Multi-Function Control Lever ............... 161
New Vehicle Break-In Period ................ 80
Occupant Restraints ................... 39,61,65
Occupant Restraints (Sedan) ...............60,61Octane Rating, Gasoline (Fuel)
.............. 364
Odometer ............................. 206
Trip ........................... 206,209
Oil Change Indicator .................. 208,221
Oil Change Indicator, Reset ..............208,221
Oil Filter, Change ........................ 426
Oil Filter, Selection ....................... 426
Oil Pressure Light ....................... 204
Oil, Engine ......................... 423,466
Capacity ........................... 465
Change Interval ................ 208,221,424
Checking .......................... 423
Dipstick ........................... 423
Disposal ........................... 426
Filter .......................... 426,466
Filter Disposal ....................... 426
Identification Logo ................... 424
Materials Added to ................... 426
Recommendation .................. 424,465
10
INDEX 505

Radio Operation........................ 285
Radio Remote Controls .................... 283
Rear Cupholder ......................... 189
Rear Window Defroster ................... 194
Rear Window Features .................... 194
Recorder, Event Data ...................... 68
Recreational Towing ...................... 388
Reformulated Gasoline .................... 364
Refrigerant ............................ 430
Release, Hood .......................... 159
Reminder, Lights On ..................... 162
Reminder, Seat Belt ....................... 55
Remote Control Security Alarm ....................... 18
Starting System ....................... 27
Remote Keyless Entry (RKE) ................. 21
Remote Sound System (Radio) Controls ........ 283
Remote Starting System .................... 27
Remote Trunk Release ..................... 37 Replacement Bulbs
....................... 459
Replacement Keys ........................ 16
Replacement Parts ....................... 421
Replacement Tires ....................... 352
Reporting Safety Defects ................... 488
Resetting Oil Change Indicator ...........208,221
Restraint, Head ......................... 155
Restraints, Child ......................... 69
Restraints, Occupant ...................... 39
Rotation, Tires .......................... 354
Safety Checks Inside Vehicle ................. 83
Safety Checks Outside Vehicle ............... 85
Safety Defects, Reporting .................. 488
Safety Information, Tire ................... 334
Safety Tips ............................. 81
Safety, Exhaust Gas ....................... 82
Satellite Radio Antenna .................247,273
Schedule, Maintenance .................... 470
10
INDEX 507
