remote control CHRYSLER 200 CONVERTIBLE 2012 1.G Owners Manual
[x] Cancel search | Manufacturer: CHRYSLER, Model Year: 2012, Model line: 200 CONVERTIBLE, Model: CHRYSLER 200 CONVERTIBLE 2012 1.GPages: 517, PDF Size: 3.17 MB
Page 23 of 517

The interior lights will fade to off after approximately
30 seconds or they will immediately fade to off once the
ignition switch is turned to ON/RUN from the OFF
position..
NOTE:
•The front courtesy overhead console and door cour-
tesy lights will turn on if the dimmer control is in the
Dome ONposition (extreme top position).
•The Illuminated Entry system will not operate if the
dimmer control is in the “Dome defeat” position
(extreme bottom position).
REMOTE KEYLESS ENTRY (RKE)
This system allows you to lock or unlock the doors, open
the trunk, open the convertible top (if equipped), or
activate the Panic Alarm from distances up to 66 ft (20 m)
using a hand-held Remote Keyless Entry (RKE) transmit-
ter. The RKE transmitter does not need to be pointed at
the vehicle to activate the system. NOTE:
•The line of transmission must not be blocked with
metal objects when using the RKE transmitter.
•Inserting the key into the ignition switch disables all
buttons on the RKE transmitter.
RKE Transmitter With Integrated Key
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21
Page 30 of 517

How To Use Remote Start
All of the following conditions must be met before the
engine will remote start:
•Shift lever in PARK
•Doors closed
•Hood closed
•Trunk closed
•Hazard switch off
•Brake switch inactive (brake pedal not pressed)
•Ignition key removed from ignition switch
•Battery at an acceptable charge level, and
•RKE PANIC button not pressed
•System not disabled from previous remote start event
•Vehicle theft alarm not active
WARNING!
•Do not start or run an engine in a closed garage or
confined area. Exhaust gas contains Carbon Mon-
oxide (CO) which is odorless and colorless. Car-
bon Monoxide is poisonous and can cause serious
injury or death when inhaled.
•Keep Remote Keyless Entry (RKE) transmitters
away from children. Operation of the Remote Start
System, windows, door locks or other controls
could cause serious injury or death.
Remote Start Abort Message On Electronic Vehicle
Information Center (EVIC) — If Equipped
The following messages will display in the EVIC if the
vehicle fails to remote start or exits remote start prema-
turely:
•Remote Start Aborted — Door Ajar
28 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 238 of 517

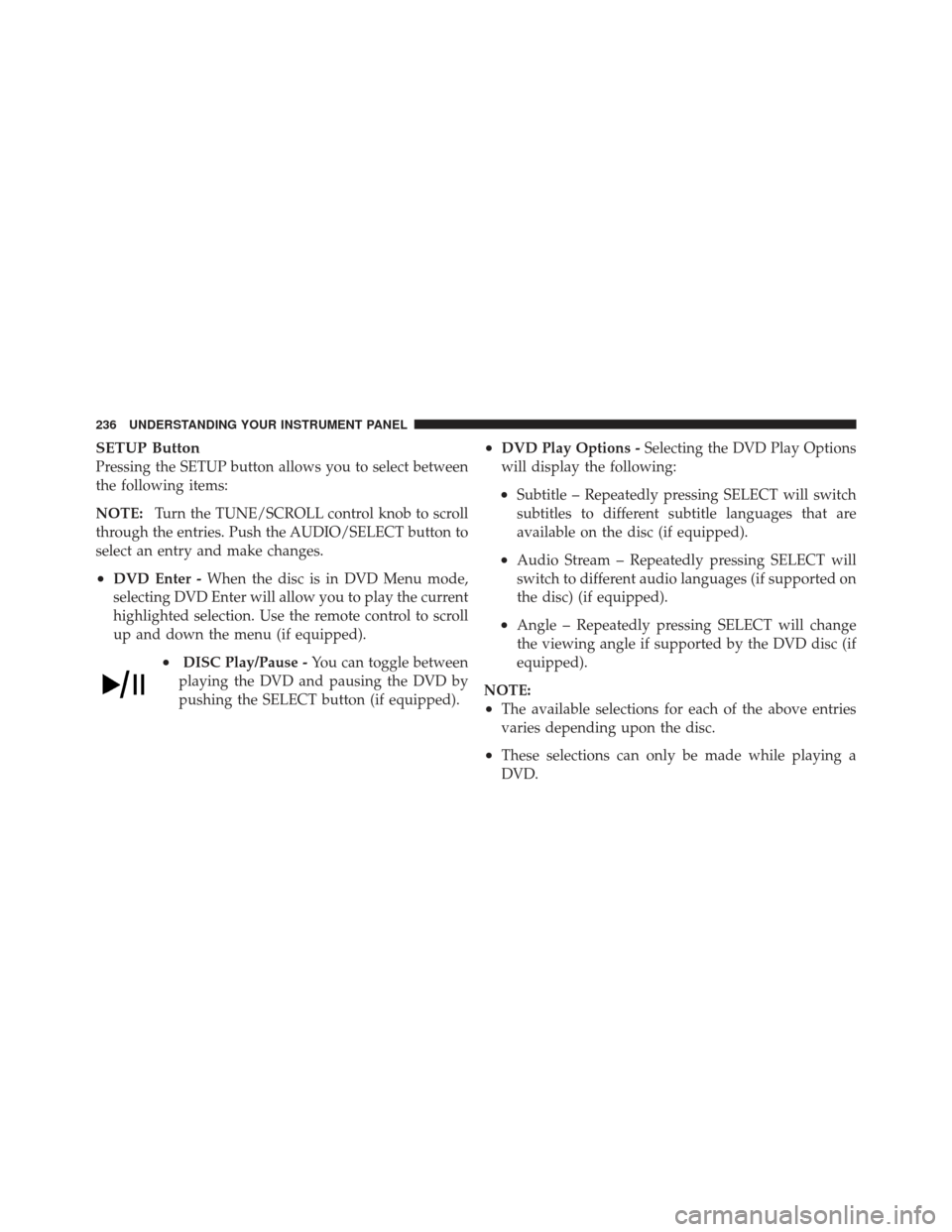

SETUP Button
Pressing the SETUP button allows you to select between
the following items:
NOTE:Turn the TUNE/SCROLL control knob to scroll
through the entries. Push the AUDIO/SELECT button to
select an entry and make changes.
•DVD Enter - When the disc is in DVD Menu mode,
selecting DVD Enter will allow you to play the current
highlighted selection. Use the remote control to scroll
up and down the menu (if equipped).
•DISC Play/Pause - You can toggle between
playing the DVD and pausing the DVD by
pushing the SELECT button (if equipped).
•DVD Play Options - Selecting the DVD Play Options
will display the following:
•Subtitle – Repeatedly pressing SELECT will switch
subtitles to different subtitle languages that are
available on the disc (if equipped).
•Audio Stream – Repeatedly pressing SELECT will
switch to different audio languages (if supported on
the disc) (if equipped).
•Angle – Repeatedly pressing SELECT will change
the viewing angle if supported by the DVD disc (if
equipped).
NOTE:
•The available selections for each of the above entries
varies depending upon the disc.
•These selections can only be made while playing a
DVD.
236 UNDERSTANDING YOUR INSTRUMENT PANEL
Page 239 of 517

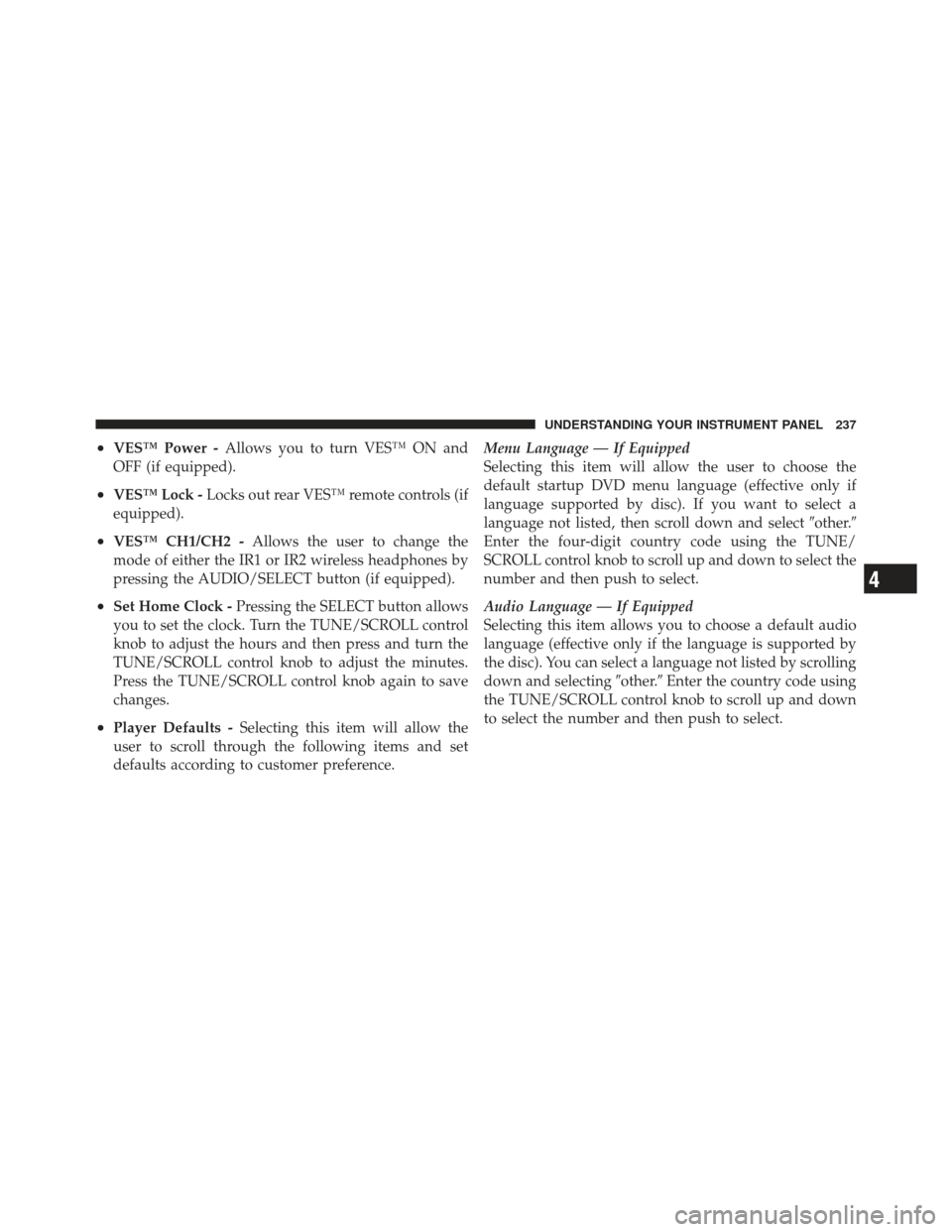

•VES™ Power -Allows you to turn VES™ ON and
OFF (if equipped).
•VES™ Lock - Locks out rear VES™ remote controls (if
equipped).
•VES™ CH1/CH2 - Allows the user to change the
mode of either the IR1 or IR2 wireless headphones by
pressing the AUDIO/SELECT button (if equipped).
•Set Home Clock - Pressing the SELECT button allows
you to set the clock. Turn the TUNE/SCROLL control
knob to adjust the hours and then press and turn the
TUNE/SCROLL control knob to adjust the minutes.
Press the TUNE/SCROLL control knob again to save
changes.
•Player Defaults - Selecting this item will allow the
user to scroll through the following items and set
defaults according to customer preference. Menu Language — If Equipped
Selecting this item will allow the user to choose the
default startup DVD menu language (effective only if
language supported by disc). If you want to select a
language not listed, then scroll down and select
other.
Enter the four-digit country code using the TUNE/
SCROLL control knob to scroll up and down to select the
number and then push to select.
Audio Language — If Equipped
Selecting this item allows you to choose a default audio
language (effective only if the language is supported by
the disc). You can select a language not listed by scrolling
down and selecting other.Enter the country code using
the TUNE/SCROLL control knob to scroll up and down
to select the number and then push to select.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 237
Page 240 of 517

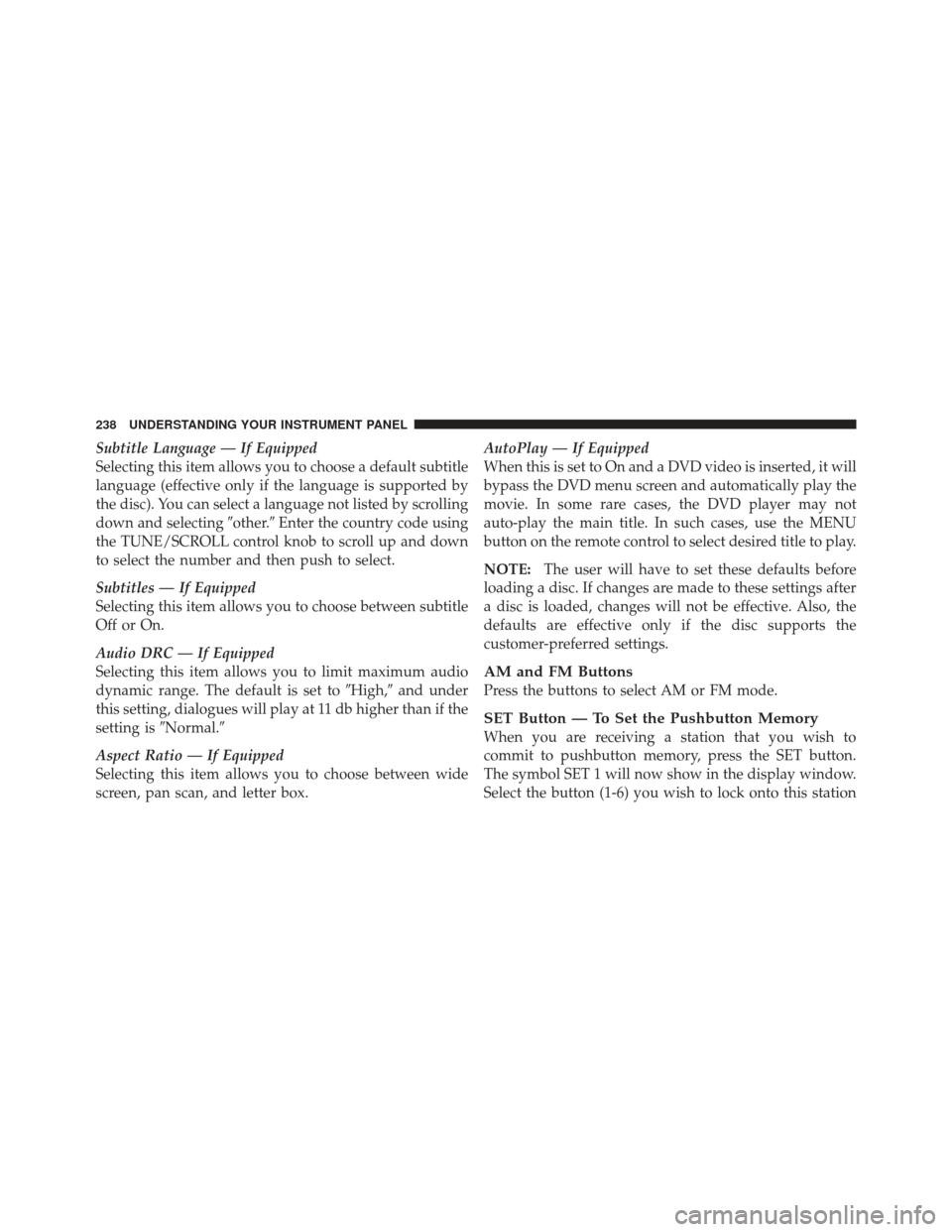

Subtitle Language — If Equipped
Selecting this item allows you to choose a default subtitle
language (effective only if the language is supported by
the disc). You can select a language not listed by scrolling
down and selectingother.Enter the country code using
the TUNE/SCROLL control knob to scroll up and down
to select the number and then push to select.
Subtitles — If Equipped
Selecting this item allows you to choose between subtitle
Off or On.
Audio DRC — If Equipped
Selecting this item allows you to limit maximum audio
dynamic range. The default is set to High,and under
this setting, dialogues will play at 11 db higher than if the
setting is Normal.
Aspect Ratio — If Equipped
Selecting this item allows you to choose between wide
screen, pan scan, and letter box. AutoPlay — If Equipped
When this is set to On and a DVD video is inserted, it will
bypass the DVD menu screen and automatically play the
movie. In some rare cases, the DVD player may not
auto-play the main title. In such cases, use the MENU
button on the remote control to select desired title to play.
NOTE:
The user will have to set these defaults before
loading a disc. If changes are made to these settings after
a disc is loaded, changes will not be effective. Also, the
defaults are effective only if the disc supports the
customer-preferred settings.
AM and FM Buttons
Press the buttons to select AM or FM mode.
SET Button — To Set the Pushbutton Memory
When you are receiving a station that you wish to
commit to pushbutton memory, press the SET button.
The symbol SET 1 will now show in the display window.
Select the button (1-6) you wish to lock onto this station
238 UNDERSTANDING YOUR INSTRUMENT PANEL
Page 285 of 517

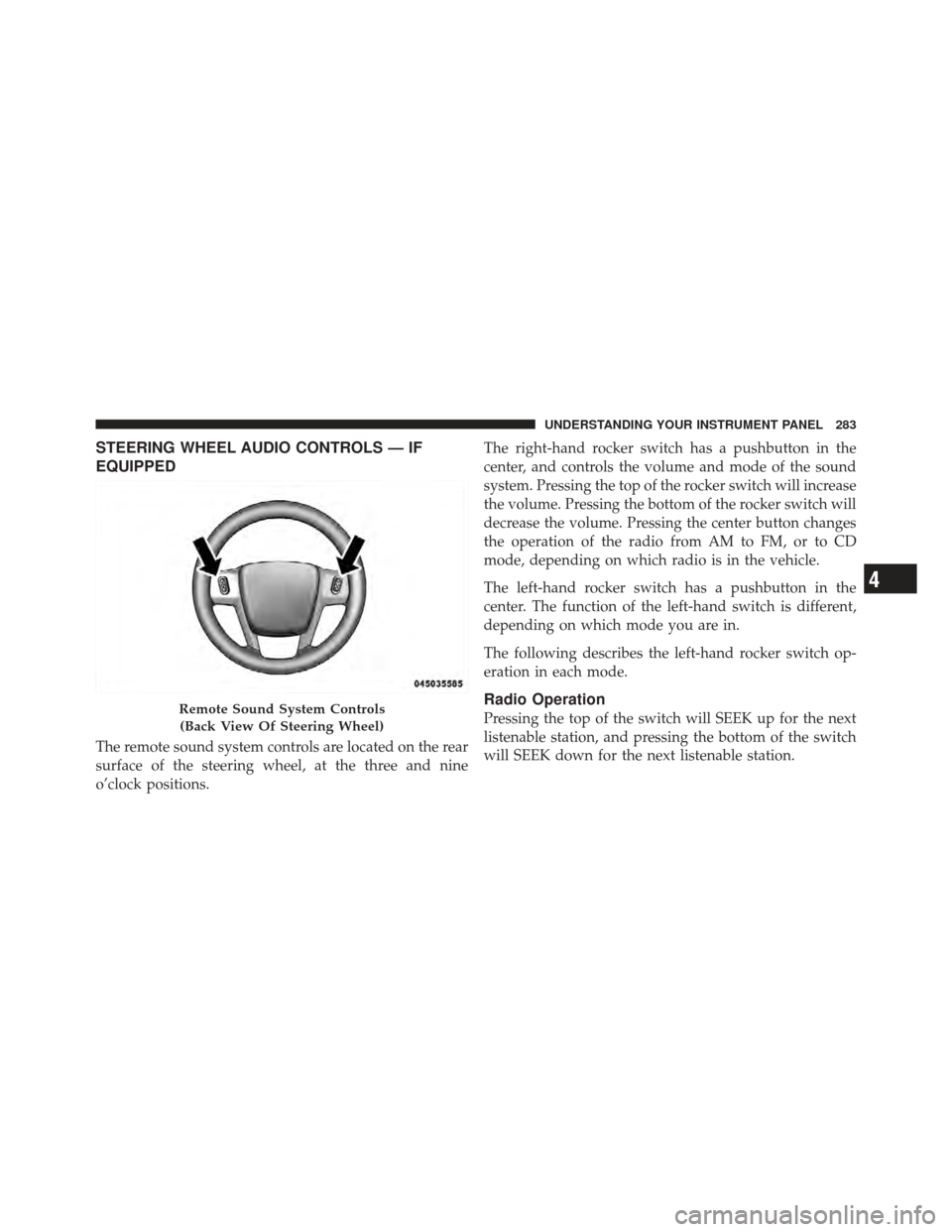

STEERING WHEEL AUDIO CONTROLS — IF
EQUIPPED
The remote sound system controls are located on the rear
surface of the steering wheel, at the three and nine
o’clock positions.The right-hand rocker switch has a pushbutton in the
center, and controls the volume and mode of the sound
system. Pressing the top of the rocker switch will increase
the volume. Pressing the bottom of the rocker switch will
decrease the volume. Pressing the center button changes
the operation of the radio from AM to FM, or to CD
mode, depending on which radio is in the vehicle.
The left-hand rocker switch has a pushbutton in the
center. The function of the left-hand switch is different,
depending on which mode you are in.
The following describes the left-hand rocker switch op-
eration in each mode.
Radio Operation
Pressing the top of the switch will SEEK up for the next
listenable station, and pressing the bottom of the switch
will SEEK down for the next listenable station.Remote Sound System Controls
(Back View Of Steering Wheel)
4
UNDERSTANDING YOUR INSTRUMENT PANEL 283
Page 288 of 517

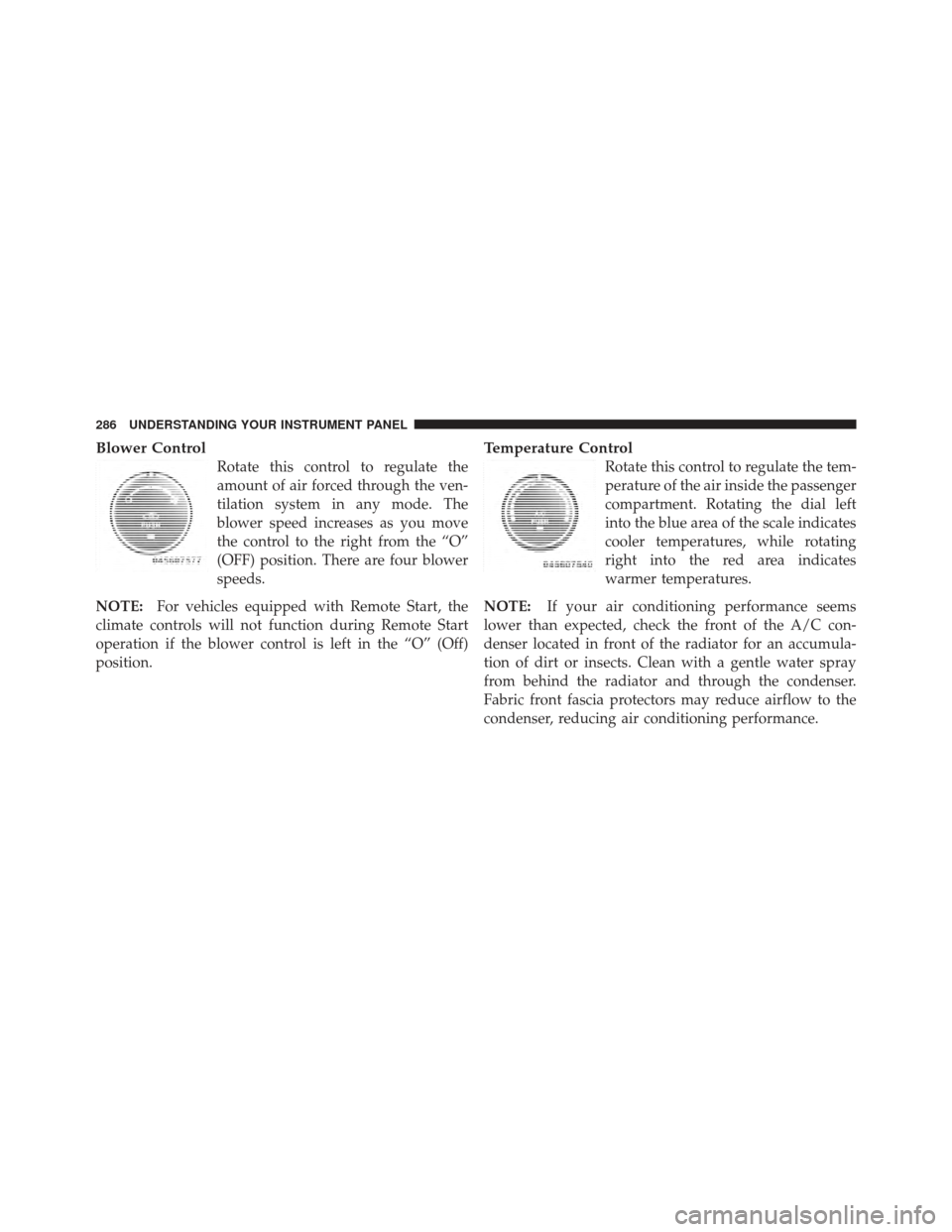

Blower Control
Rotate this control to regulate the
amount of air forced through the ven-
tilation system in any mode. The
blower speed increases as you move
the control to the right from the “O”
(OFF) position. There are four blower
speeds.
NOTE: For vehicles equipped with Remote Start, the
climate controls will not function during Remote Start
operation if the blower control is left in the “O” (Off)
position.
Temperature Control
Rotate this control to regulate the tem-
perature of the air inside the passenger
compartment. Rotating the dial left
into the blue area of the scale indicates
cooler temperatures, while rotating
right into the red area indicates
warmer temperatures.
NOTE: If your air conditioning performance seems
lower than expected, check the front of the A/C con-
denser located in front of the radiator for an accumula-
tion of dirt or insects. Clean with a gentle water spray
from behind the radiator and through the condenser.
Fabric front fascia protectors may reduce airflow to the
condenser, reducing air conditioning performance.
286 UNDERSTANDING YOUR INSTRUMENT PANEL
Page 500 of 517

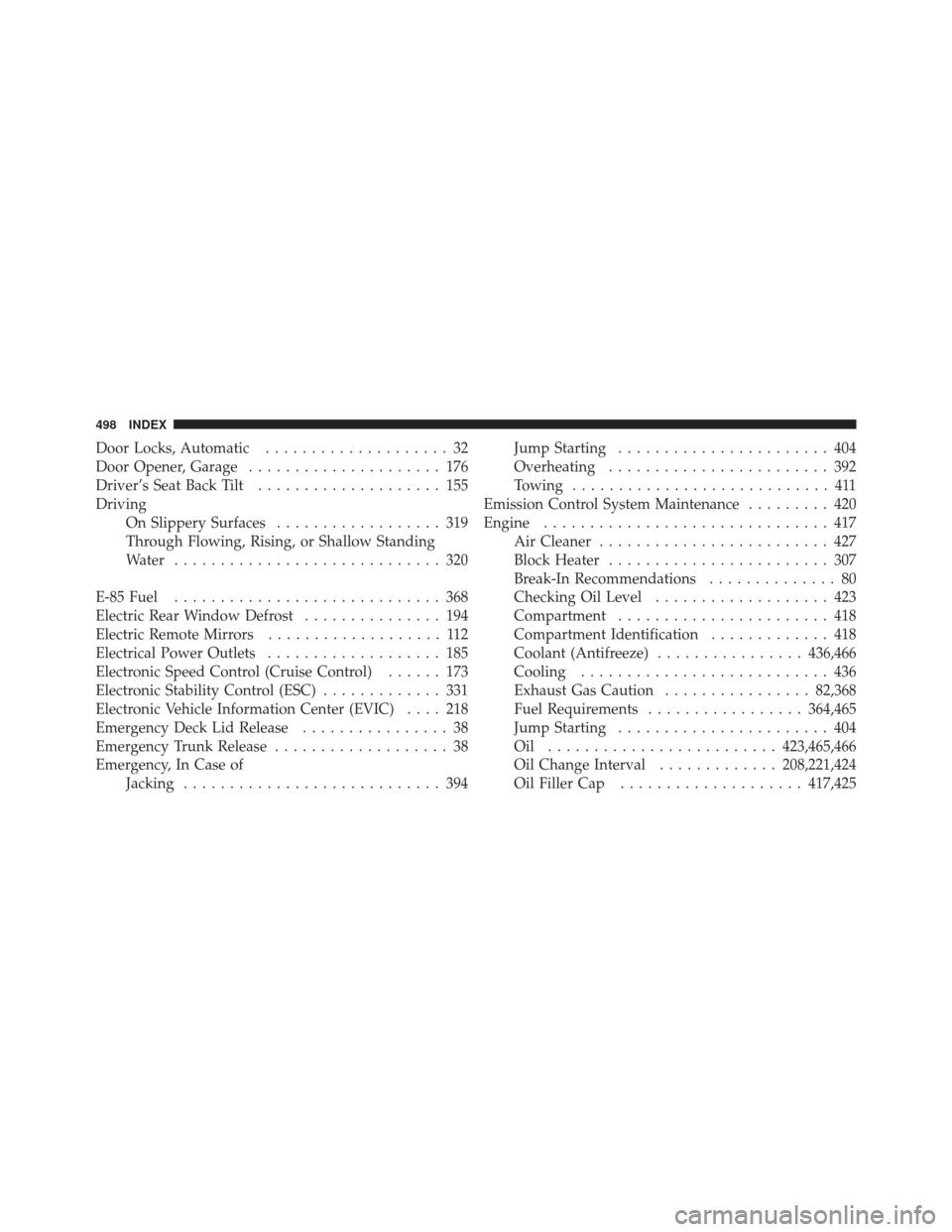

Door Locks, Automatic.................... 32
Door Opener, Garage ..................... 176
Driver’s Seat Back Tilt .................... 155
Driving On Slippery Surfaces .................. 319
Through Flowing, Rising, or Shallow Standing
Water ............................. 320
E-85 Fuel ............................. 368
Electric Rear Window Defrost ............... 194
Electric Remote Mirrors ................... 112
Electrical Power Outlets ................... 185
Electronic Speed Control (Cruise Control) ...... 173
Electronic Stability Control (ESC) ............. 331
Electronic Vehicle Information Center (EVIC) .... 218
Emergency Deck Lid Release ................ 38
Emergency Trunk Release ................... 38
Emergency, In Case of Jacking ............................ 394 Jump Starting
....................... 404
Overheating ........................ 392
Towing ............................ 411
Emission Control System Maintenance ......... 420
Engine ............................... 417
Air Cleaner ......................... 427
Block Heater ........................ 307
Break-In Recommendations .............. 80
Checking Oil Level ................... 423
Compartment ....................... 418
Compartment Identification ............. 418
Coolant (Antifreeze) ................ 436,466
Cooling ........................... 436
Exhaust Gas Caution ................82,368
Fuel Requirements ................. 364,465
Jump Starting ....................... 404
Oil ......................... 423,465,466
Oil Change Interval .............208,221,424
Oil Filler Cap .................... 417,425
498 INDEX
Page 507 of 517

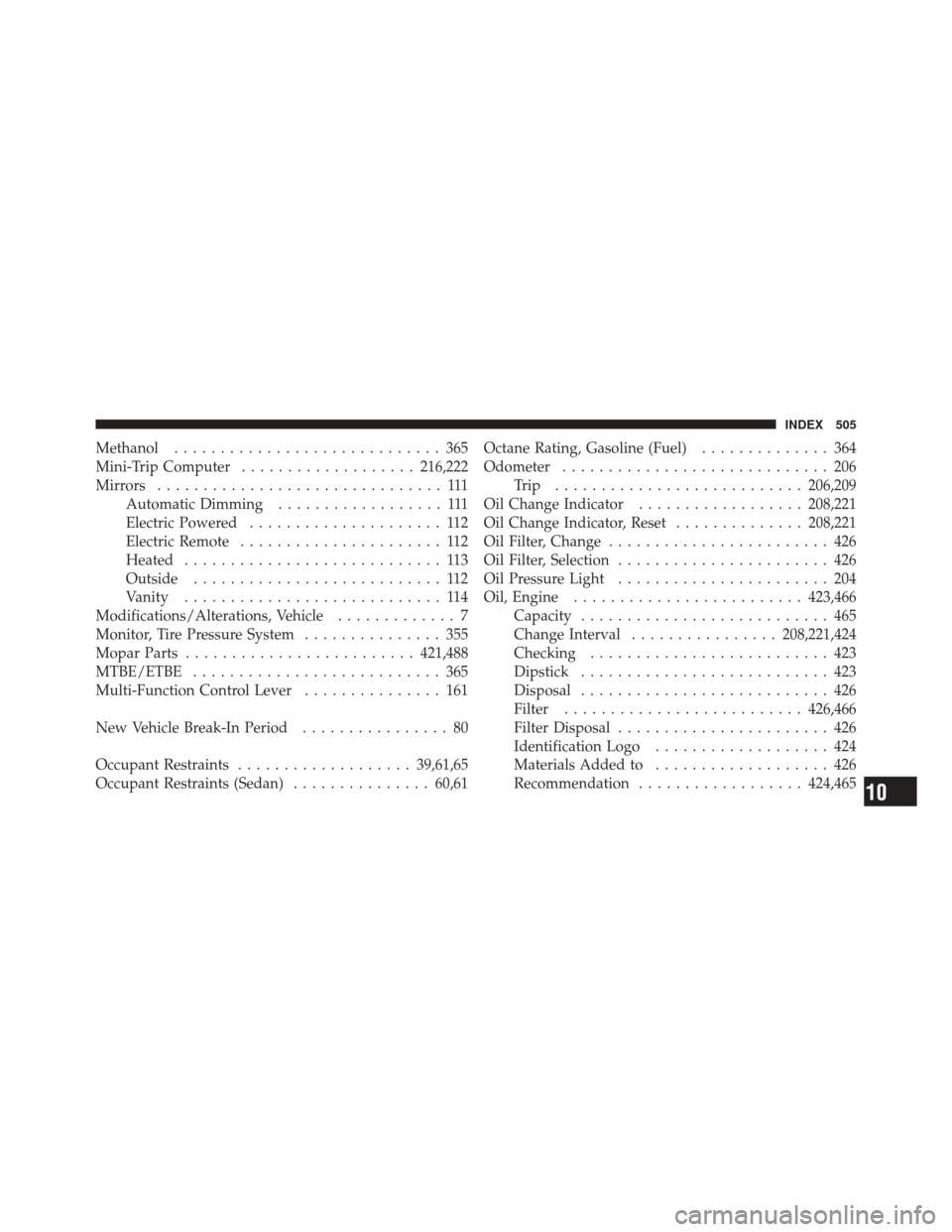

Methanol............................. 365
Mini-Trip Computer ................... 216,222
Mirrors ............................... 111
Automatic Dimming .................. 111
Electric Powered ..................... 112
Electric Remote ...................... 112
Heated ............................ 113
Outside ........................... 112
Vanity ............................ 114
Modifications/Alterations, Vehicle ............. 7
Monitor, Tire Pressure System ............... 355
Mopar Parts ......................... 421,488
MTBE/ETBE ........................... 365
Multi-Function Control Lever ............... 161
New Vehicle Break-In Period ................ 80
Occupant Restraints ................... 39,61,65
Occupant Restraints (Sedan) ...............60,61Octane Rating, Gasoline (Fuel)
.............. 364
Odometer ............................. 206
Trip ........................... 206,209
Oil Change Indicator .................. 208,221
Oil Change Indicator, Reset ..............208,221
Oil Filter, Change ........................ 426
Oil Filter, Selection ....................... 426
Oil Pressure Light ....................... 204
Oil, Engine ......................... 423,466
Capacity ........................... 465
Change Interval ................ 208,221,424
Checking .......................... 423
Dipstick ........................... 423
Disposal ........................... 426
Filter .......................... 426,466
Filter Disposal ....................... 426
Identification Logo ................... 424
Materials Added to ................... 426
Recommendation .................. 424,465
10
INDEX 505
Page 509 of 517

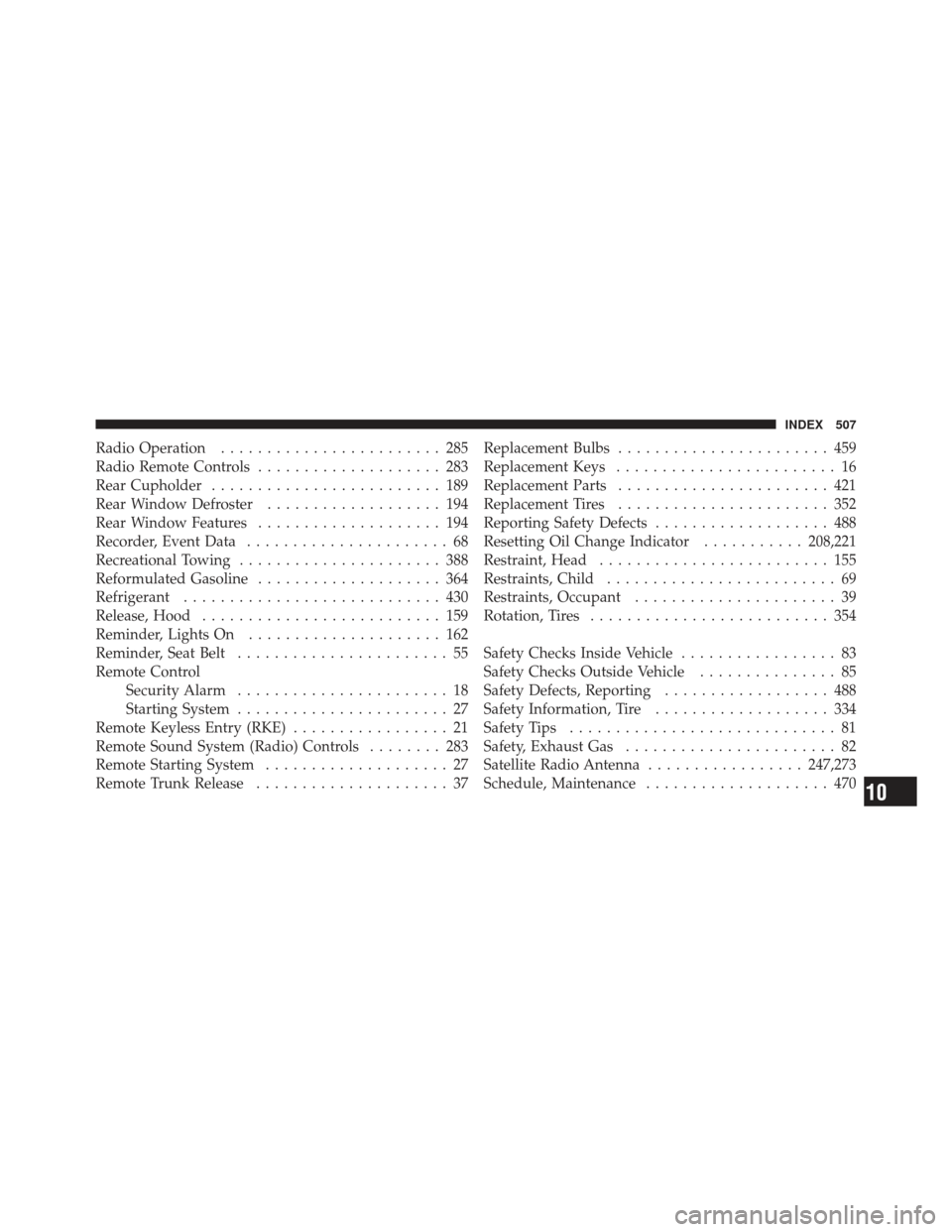

Radio Operation........................ 285
Radio Remote Controls .................... 283
Rear Cupholder ......................... 189
Rear Window Defroster ................... 194
Rear Window Features .................... 194
Recorder, Event Data ...................... 68
Recreational Towing ...................... 388
Reformulated Gasoline .................... 364
Refrigerant ............................ 430
Release, Hood .......................... 159
Reminder, Lights On ..................... 162
Reminder, Seat Belt ....................... 55
Remote Control Security Alarm ....................... 18
Starting System ....................... 27
Remote Keyless Entry (RKE) ................. 21
Remote Sound System (Radio) Controls ........ 283
Remote Starting System .................... 27
Remote Trunk Release ..................... 37 Replacement Bulbs
....................... 459
Replacement Keys ........................ 16
Replacement Parts ....................... 421
Replacement Tires ....................... 352
Reporting Safety Defects ................... 488
Resetting Oil Change Indicator ...........208,221
Restraint, Head ......................... 155
Restraints, Child ......................... 69
Restraints, Occupant ...................... 39
Rotation, Tires .......................... 354
Safety Checks Inside Vehicle ................. 83
Safety Checks Outside Vehicle ............... 85
Safety Defects, Reporting .................. 488
Safety Information, Tire ................... 334
Safety Tips ............................. 81
Safety, Exhaust Gas ....................... 82
Satellite Radio Antenna .................247,273
Schedule, Maintenance .................... 470
10
INDEX 507
