CHRYSLER 200 CONVERTIBLE 2013 1.G Owners Manual

EVIC
Mes-
sageEVIC
Message
Display
TimeOdometer
Message
(< 5 mph
[8 km/h])
Odometer
Message
Display
TimeOdometer
Message
(> 5 mph
[8 km/h])
Odometer
Message
Display
TimeChime Condi-
tionOperator
Action
Required

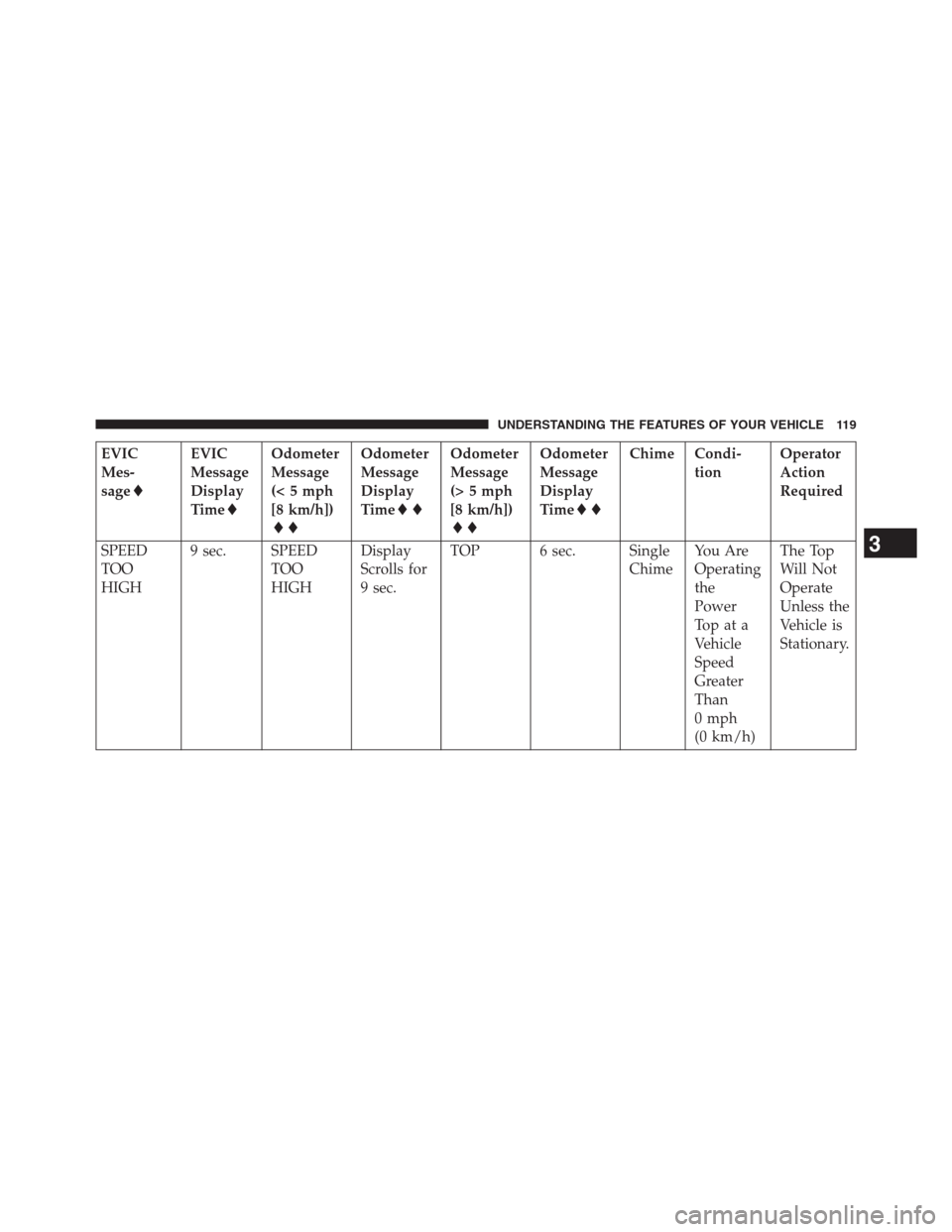

SPEED
TOO
HIGH9 sec. SPEED
TOO
HIGHDisplay
Scrolls for
9 sec.TOP 6 sec. Single
ChimeYo u A r e
Operating
the
Power
To p a t a
Vehicle
Speed
Greater
Than
0 mph
(0 km/h)The Top
Will Not
Operate
Unless the
Vehicle is
Stationary.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 119

EVIC
Mes-
sageEVIC
Message
Display
TimeOdometer
Message
(< 5 mph
[8 km/h])
Odometer
Message
Display
TimeOdometer
Message
(> 5 mph
[8 km/h])
Odometer
Message
Display
TimeChime Condi-
tionOperator
Action
Required

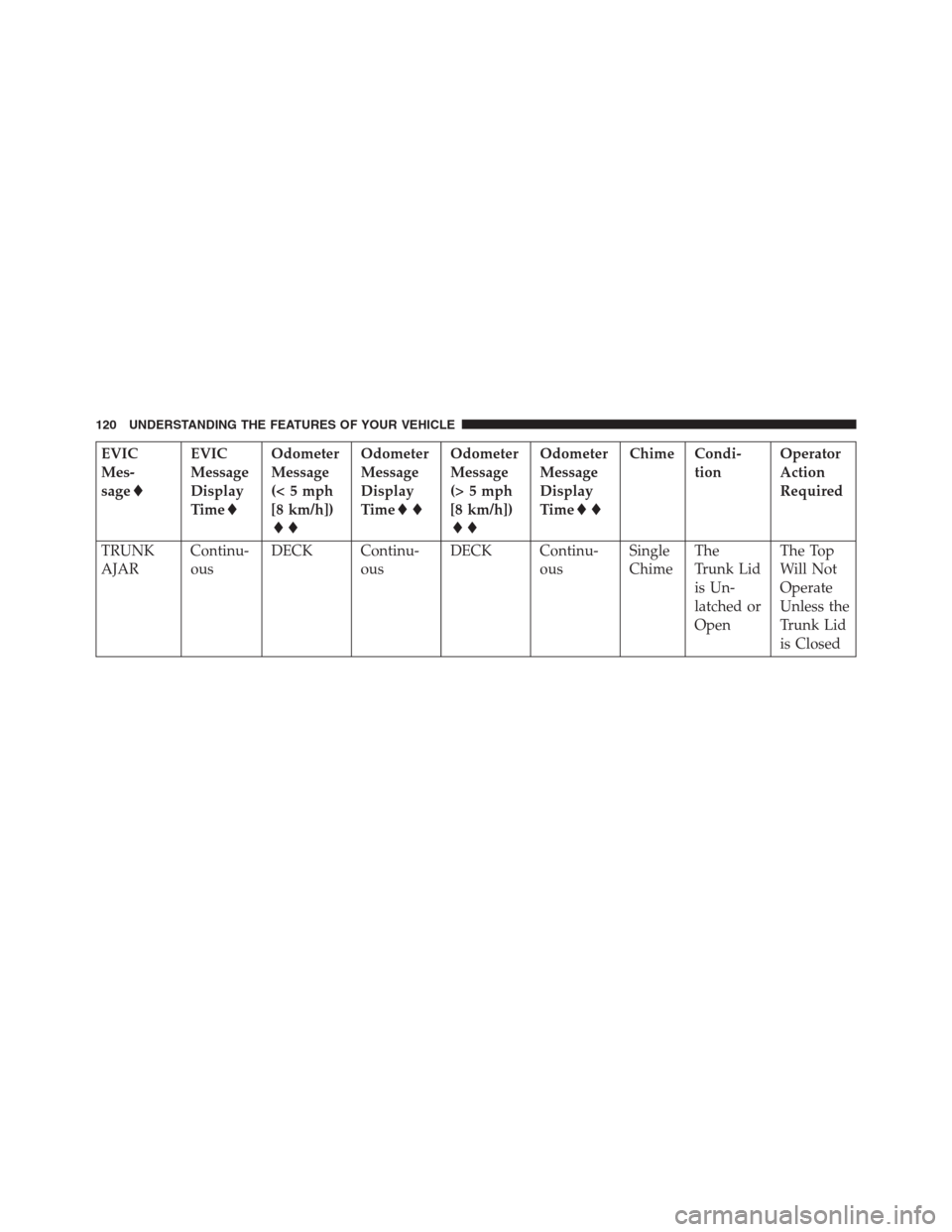

TRUNK
AJARContinu-
ousDECK Continu-
ousDECK Continu-
ousSingle
ChimeThe
Trunk Lid
is Un-
latched or
OpenThe Top
Will Not
Operate
Unless the
Trunk Lid
is Closed
120 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

EVIC
Mes-
sageEVIC
Message
Display
TimeOdometer
Message
(< 5 mph
[8 km/h])
Odometer
Message
Display
TimeOdometer
Message
(> 5 mph
[8 km/h])
Odometer
Message
Display
TimeChime Condi-
tionOperator
Action
Required
CON-
VERTIBLE
TOP
MAL-
FUNC-
TION6 sec. TOP FAIL Display
Scrolls for
6 SecondsTOP 6 sec. Single
ChimeThe
PTCM
Activated
the Sys-
tem
LOCK-
OUT Fea-
tureRefer to
Foot Note

3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 121

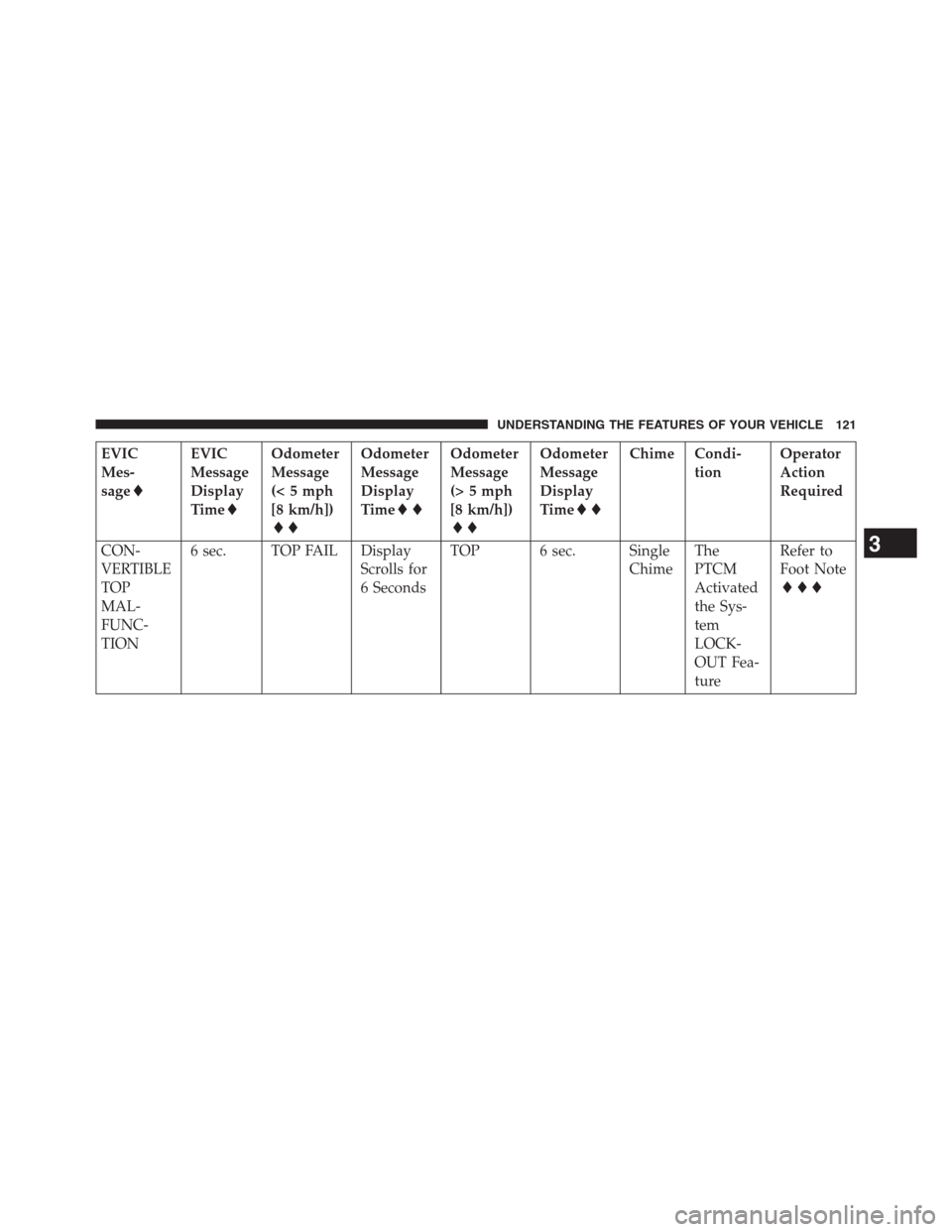

EVIC
Mes-
sageEVIC
Message
Display
TimeOdometer
Message
(< 5 mph
[8 km/h])
Odometer
Message
Display
TimeOdometer
Message
(> 5 mph
[8 km/h])
Odometer
Message
Display
TimeChime Condi-
tionOperator
Action
Required

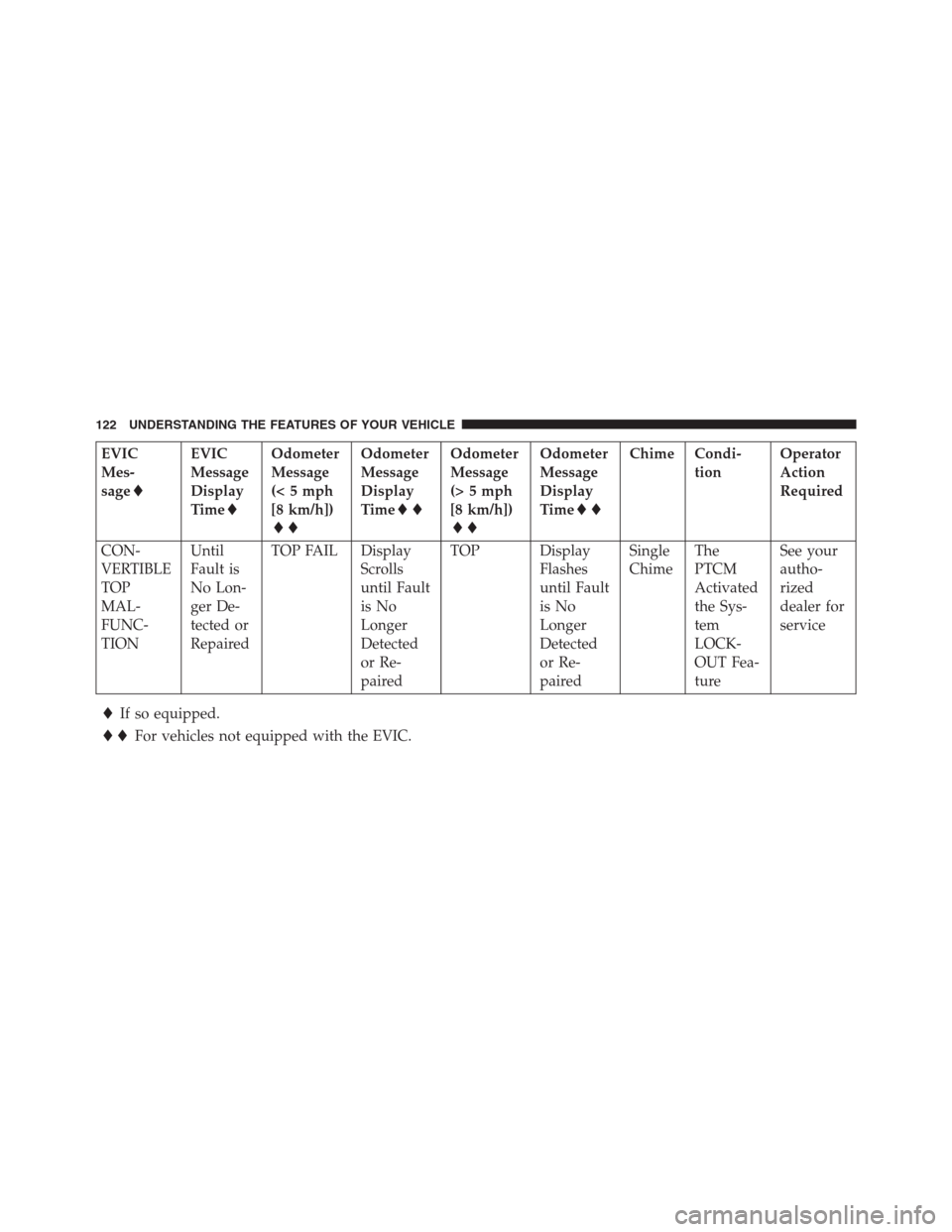

CON-
VERTIBLE
TOP
MAL-
FUNC-
TIONUntil
Fault is
No Lon-
ger De-
tected or
RepairedTOP FAIL Display
Scrolls
until Fault
is No
Longer
Detected
or Re-
pairedTOP Display
Flashes
until Fault
is No
Longer
Detected
or Re-
pairedSingle
ChimeThe
PTCM
Activated
the Sys-
tem
LOCK-
OUT Fea-
tureSee your
autho-
rized
dealer for
service
If so equipped.
For vehicles not equipped with the EVIC.
122 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

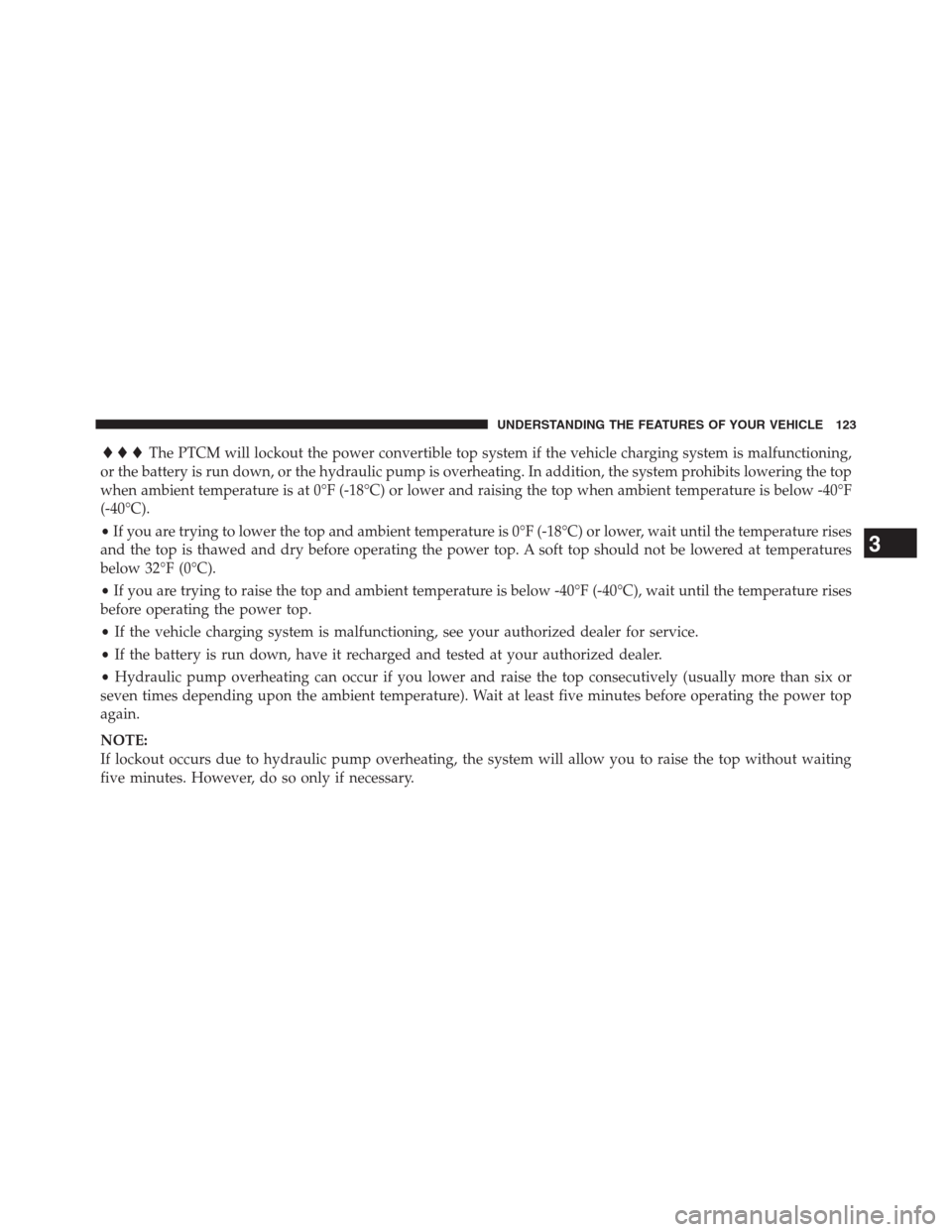

The PTCM will lockout the power convertible top system if the vehicle charging system is malfunctioning,
or the battery is run down, or the hydraulic pump is overheating. In addition, the system prohibits lowering the top
when ambient temperature is at 0°F (-18°C) or lower and raising the top when ambient temperature is below -40°F
(-40°C).
•If you are trying to lower the top and ambient temperature is 0°F (-18°C) or lower, wait until the temperature rises
and the top is thawed and dry before operating the power top. A soft top should not be lowered at temperatures
below 32°F (0°C).
•If you are trying to raise the top and ambient temperature is below -40°F (-40°C), wait until the temperature rises
before operating the power top.
•If the vehicle charging system is malfunctioning, see your authorized dealer for service.
•If the battery is run down, have it recharged and tested at your authorized dealer.
•Hydraulic pump overheating can occur if you lower and raise the top consecutively (usually more than six or
seven times depending upon the ambient temperature). Wait at least five minutes before operating the power top
again.
NOTE:
If lockout occurs due to hydraulic pump overheating, the system will allow you to raise the top without waiting
five minutes. However, do so only if necessary.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 123

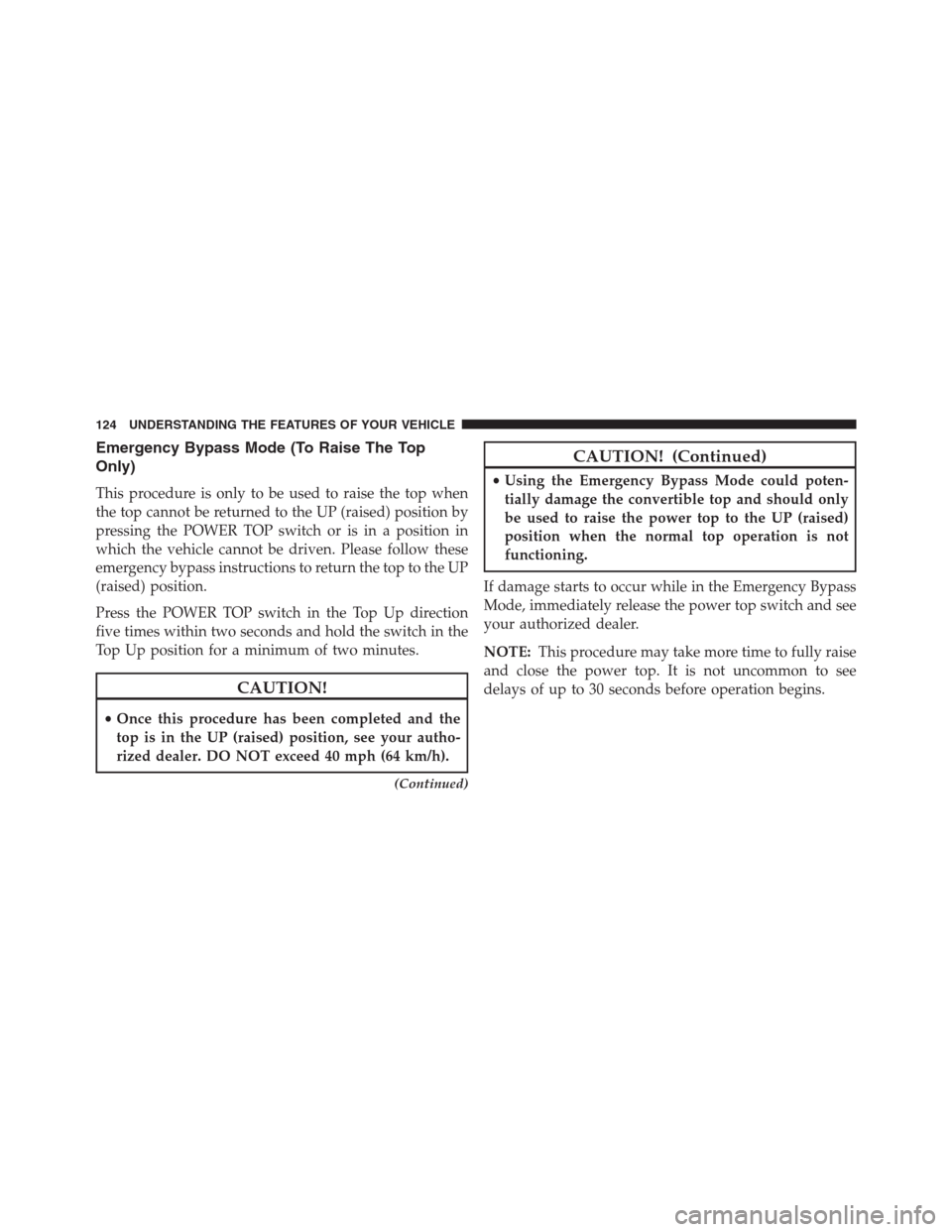

Emergency Bypass Mode (To Raise The Top
Only)
This procedure is only to be used to raise the top when
the top cannot be returned to the UP (raised) position by
pressing the POWER TOP switch or is in a position in
which the vehicle cannot be driven. Please follow these
emergency bypass instructions to return the top to the UP
(raised) position.
Press the POWER TOP switch in the Top Up direction
five times within two seconds and hold the switch in the
Top Up position for a minimum of two minutes.
CAUTION!
•Once this procedure has been completed and the
top is in the UP (raised) position, see your autho-
rized dealer. DO NOT exceed 40 mph (64 km/h).
(Continued)
CAUTION! (Continued)
•Using the Emergency Bypass Mode could poten-
tially damage the convertible top and should only
be used to raise the power top to the UP (raised)
position when the normal top operation is not
functioning.
If damage starts to occur while in the Emergency Bypass
Mode, immediately release the power top switch and see
your authorized dealer.
NOTE:This procedure may take more time to fully raise
and close the power top. It is not uncommon to see
delays of up to 30 seconds before operation begins.
124 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

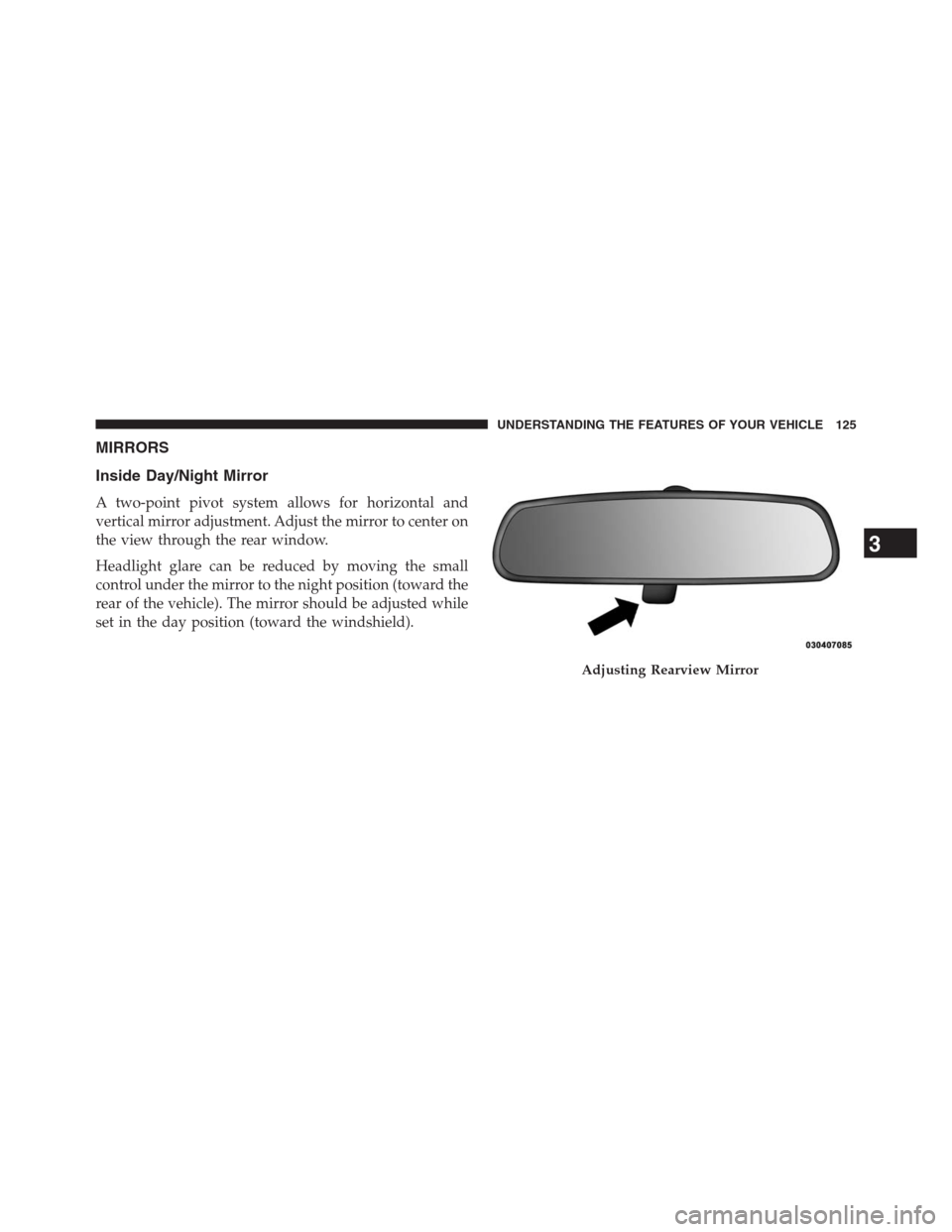

MIRRORS
Inside Day/Night Mirror
A two-point pivot system allows for horizontal and
vertical mirror adjustment. Adjust the mirror to center on
the view through the rear window.
Headlight glare can be reduced by moving the small
control under the mirror to the night position (toward the
rear of the vehicle). The mirror should be adjusted while
set in the day position (toward the windshield).
Adjusting Rearview Mirror
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 125

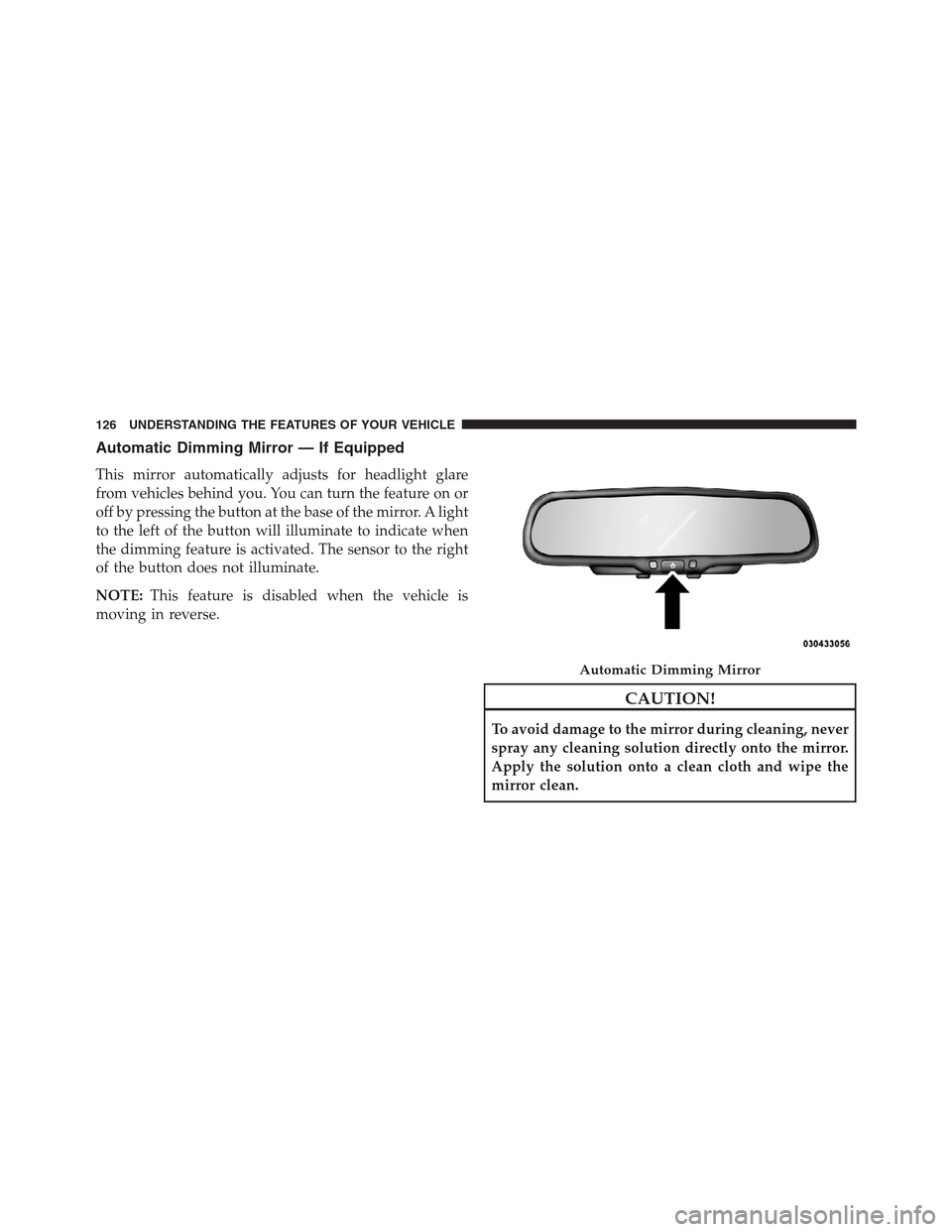

Automatic Dimming Mirror — If Equipped
This mirror automatically adjusts for headlight glare
from vehicles behind you. You can turn the feature on or
off by pressing the button at the base of the mirror. A light
to the left of the button will illuminate to indicate when
the dimming feature is activated. The sensor to the right
of the button does not illuminate.
NOTE:This feature is disabled when the vehicle is
moving in reverse.
CAUTION!
To avoid damage to the mirror during cleaning, never
spray any cleaning solution directly onto the mirror.
Apply the solution onto a clean cloth and wipe the
mirror clean.
Automatic Dimming Mirror
126 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

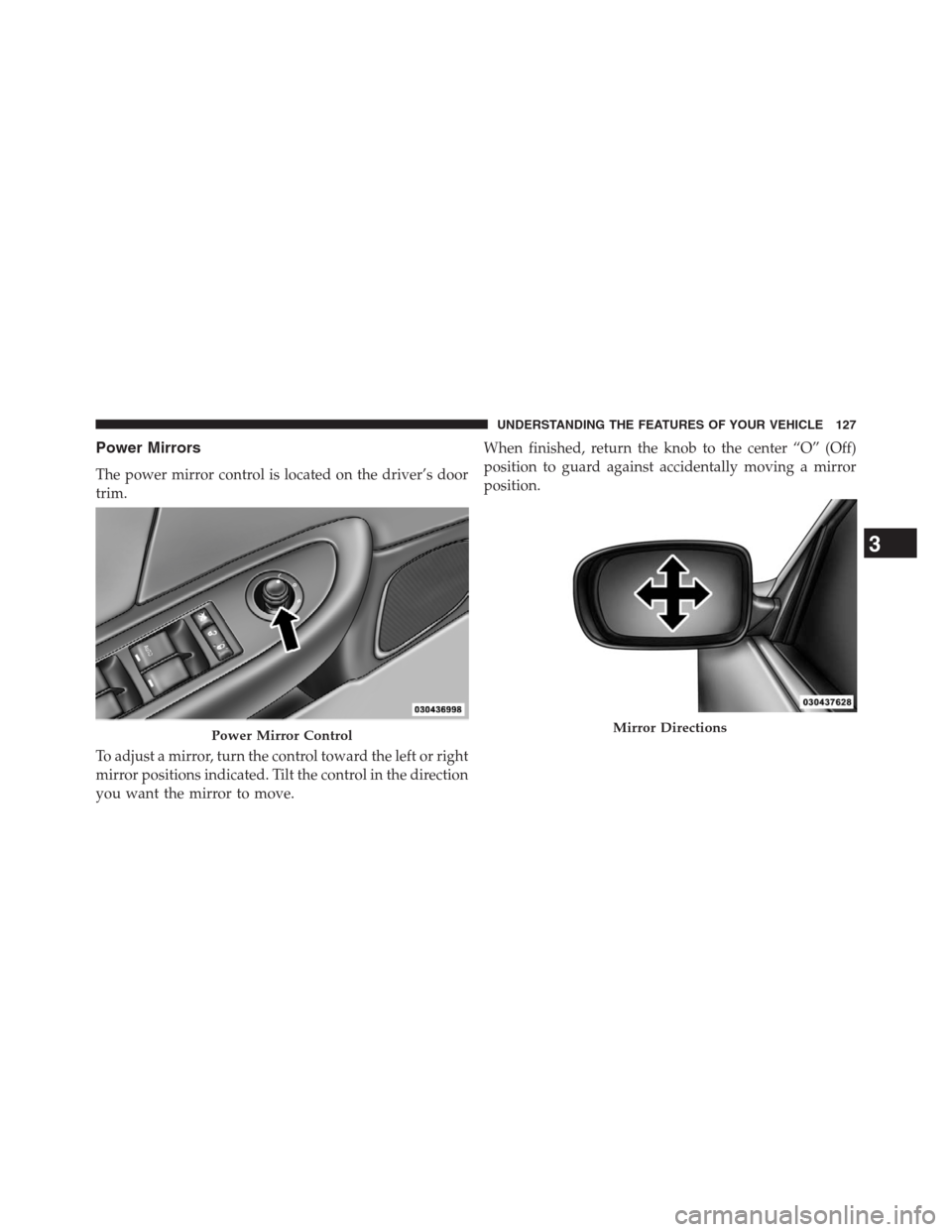

Power Mirrors
The power mirror control is located on the driver’s door
trim.When finished, return the knob to the center “O” (Off)
position to guard against accidentally moving a mirror
position.
Power Mirror Control
To adjust a mirror, turn the control toward the left or right
mirror positions indicated. Tilt the control in the direction
you want the mirror to move.
Mirror Directions
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 127

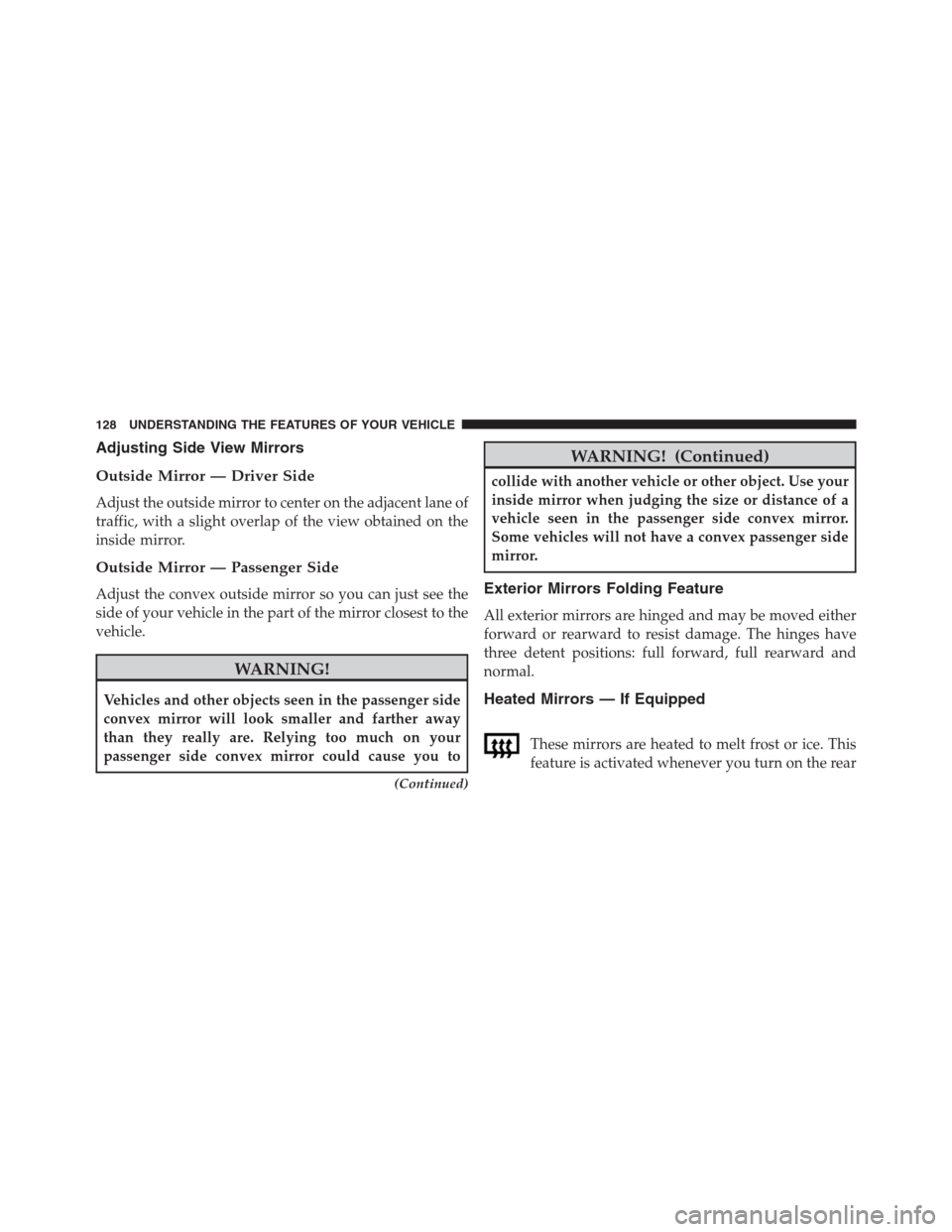

Adjusting Side View Mirrors
Outside Mirror — Driver Side
Adjust the outside mirror to center on the adjacent lane of
traffic, with a slight overlap of the view obtained on the
inside mirror.
Outside Mirror — Passenger Side
Adjust the convex outside mirror so you can just see the
side of your vehicle in the part of the mirror closest to the
vehicle.
WARNING!
Vehicles and other objects seen in the passenger side
convex mirror will look smaller and farther away
than they really are. Relying too much on your
passenger side convex mirror could cause you to
(Continued)
WARNING! (Continued)
collide with another vehicle or other object. Use your
inside mirror when judging the size or distance of a
vehicle seen in the passenger side convex mirror.
Some vehicles will not have a convex passenger side
mirror.
Exterior Mirrors Folding Feature
All exterior mirrors are hinged and may be moved either
forward or rearward to resist damage. The hinges have
three detent positions: full forward, full rearward and
normal.
Heated Mirrors — If Equipped
These mirrors are heated to melt frost or ice. This
feature is activated whenever you turn on the rear
128 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
