Tread Wear Indicators
Tread wear indicators are in the original equipment tires
to help you in determining when your tires should be
replaced.These indicators are molded into the bottom of the tread
grooves. They will appear as bands when the tread depth
becomes 1/16 in (2 mm). When the tread is worn to the
tread wear indicators, the tire should be replaced. Refer
to “Replacement Tires” in this section for further infor-
mation.
Life Of Tire
The service life of a tire is dependent upon varying
factors including, but not limited to:
•
Driving style
• Tire pressure
• Distance driven
• Performance tires, tires with a speed rating of V or
higher, and summer tires typically have a reduced
tread life. Rotation of these tires per the vehicle main-
tenance schedule is highly recommended.
1—WornTire
2—NewTire 358 STARTING AND OPERATING

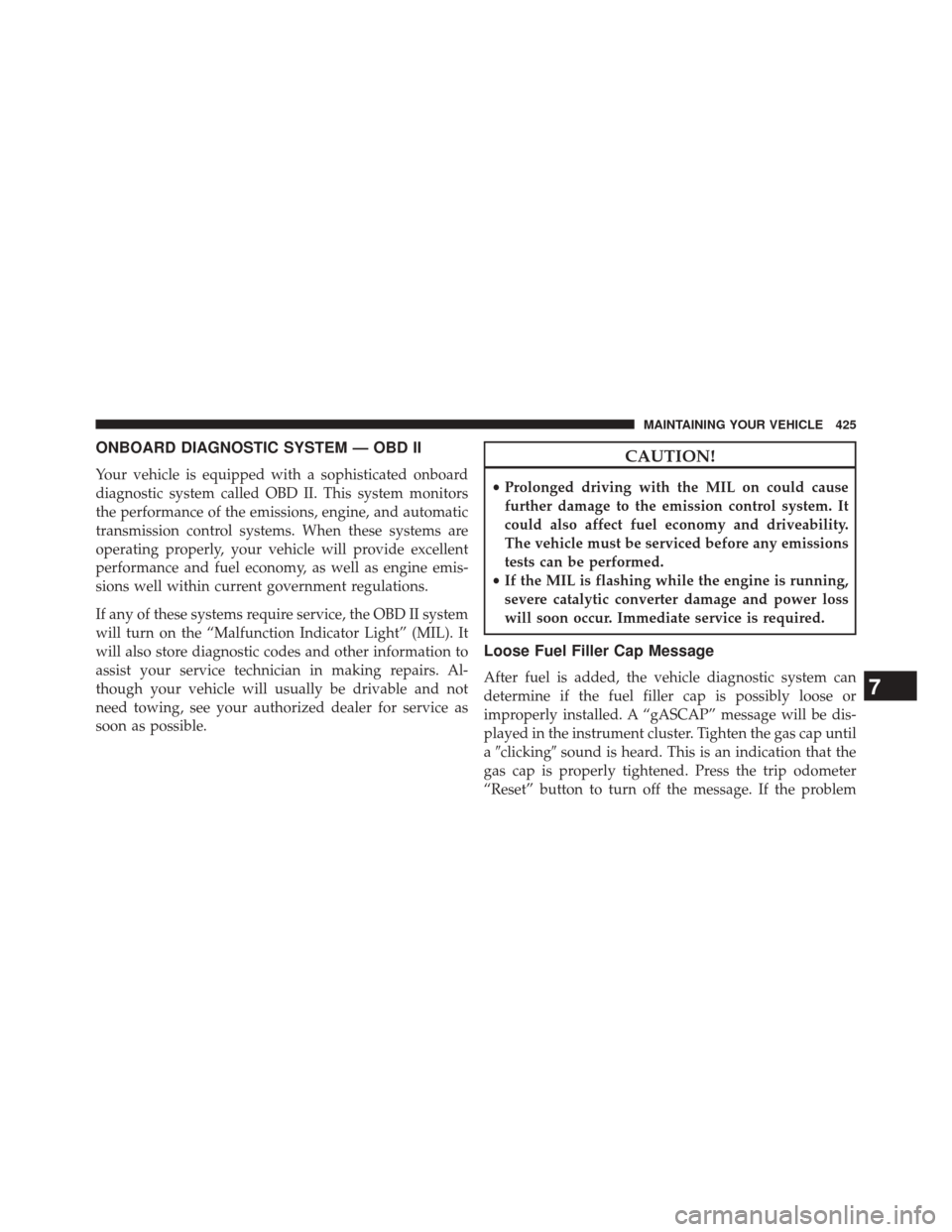

ONBOARD DIAGNOSTIC SYSTEM — OBD II
Your vehicle is equipped with a sophisticated onboard
diagnostic system called OBD II. This system monitors
the performance of the emissions, engine, and automatic
transmission control systems. When these systems are
operating properly, your vehicle will provide excellent
performance and fuel economy, as well as engine emis-
sions well within current government regulations.
If any of these systems require service, the OBD II system
will turn on the “Malfunction Indicator Light” (MIL). It
will also store diagnostic codes and other information to
assist your service technician in making repairs. Al-
though your vehicle will usually be drivable and not
need towing, see your authorized dealer for service as
soon as possible.
CAUTION!
•Prolonged driving with the MIL on could cause
further damage to the emission control system. It
could also affect fuel economy and driveability.
The vehicle must be serviced before any emissions
tests can be performed.
• If the MIL is flashing while the engine is running,
severe catalytic converter damage and power loss
will soon occur. Immediate service is required.
Loose Fuel Filler Cap Message
After fuel is added, the vehicle diagnostic system can
determine if the fuel filler cap is possibly loose or
improperly installed. A “gASCAP” message will be dis-
played in the instrument cluster. Tighten the gas cap until
a clicking sound is heard. This is an indication that the
gas cap is properly tightened. Press the trip odometer
“Reset” button to turn off the message. If the problem7
MAINTAINING YOUR VEHICLE 425

persists, the message will appear the next time the
vehicle is started. This might indicate a damaged cap. If
the problem is detected twice in a row, the system will
turn on the “Malfunction Indicator Light (MIL).” Resolv-
ing the problem will turn the MIL light off.
EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS
In some localities, it may be a legal requirement to pass
an inspection of your vehicle’s emissions control system.
Failure to pass could prevent vehicle registration.For states that require an Inspection and Mainte-
nance (I/M), this check verifies the “Malfunction
Indicator Light (MIL)” is functioning and is not
on when the engine is running, and that the OBD II
system is ready for testing.
Normally, the OBD II system will be ready. The OBD II
system may notbe ready if your vehicle was recently serviced, recently had a dead battery or a battery replace-
ment. If the OBD II system should be determined not
ready for the I/M test, your vehicle may fail the test.
Your vehicle has a simple ignition key-actuated test,
which you can use prior to going to the test station. To
check if your vehicle’s OBD II system is ready, you must
do the following:
1. Cycle the ignition switch to the ON position, but do
not crank or start the engine.
NOTE: If you crank or start the engine, you will have to
start this test over.
2. As soon as you cycle the ignition switch to the ON position, you will see the MIL symbol come on as part
of a normal bulb check.
426 MAINTAINING YOUR VEHICLE

VEHICLE STORAGE
If you will not be using your vehicle for more than 21
days, you may want to take steps to preserve your
battery.
•Disengage the mini-fuse in the Power Distribution
Center labeled IOD (Ignition Off-Draw).
• Or disconnect the negative cable from the battery.
• Anytime you store your vehicle, or keep it out of
service (i.e., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
REPLACEMENT BULBS
Interior Bulbs
Bulb Number
Front Courtesy/Reading
Lamp 578/W5W
Center Courtesy/Reading
Lamp 578/W5W
Visor Vanity Lamp A6220
Glove Box Lamp A6220
Shift Indicator Lamp IKLE14140
Rear Compartment
(Trunk) Lamp 579
NOTE: For lighted switches, see your authorized
dealer for replacement.
470 MAINTAINING YOUR VEHICLE

MAINTENANCE SCHEDULE
Your vehicle is equipped with an automatic oil change
indicator system. The oil change indicator system will
remind you that it is time to take your vehicle in for
scheduled maintenance.
Based on engine operation conditions, the oil change
indicator message will illuminate. This means that ser-
vice is required for your vehicle. Operating conditions
such as frequent short-trips, trailer tow, extremely hot or
cold ambient temperatures, and E85 fuel usage will
influence when the “Oil Change Required” message is
displayed. Severe Operating Conditions can cause the
change oil message to illuminate as early as 3,500 miles
(5,600 km) since last reset. Have your vehicle serviced as
soon as possible, within the next 500 miles (805 km).
Your authorized dealer will reset the oil change indicator
message after completing the scheduled oil change. If a
scheduled oil change is performed by someone other thanyour authorized dealer, the message can be reset by refer-
ring to the steps described under “Electronic Vehicle Infor-
mation Center (EVIC)/Oil Change Required” in “Under-
standing Your Instrument Panel” for further information.
NOTE:
Under no circumstances should oil change inter-
vals exceed 10,000 miles (16,000 km) or twelve months,
whichever comes first.
Once A Month Or Before A Long Trip:
• Check engine oil level
• Check windshield washer fluid level
• Check the tire inflation pressures and look for unusual
wear or damage
• Check the fluid levels of the coolant reservoir, brake
master cylinder, power steering and transmission
(four-speed only) and fill as needed
• Check function of all interior and exterior lights
8
M
A I
N T
E
N
A
N
C E
S
C
H E
D
U L
E
S482 MAINTENANCE SCHEDULES

Certification Label........................ .382
Chains, Tire ............................ .360
Changing A Flat Tire ...................... .400
Chart, Tire Sizing ........................ .339
Check Engine Light (Malfunction Indicator Light) . .426
Checking Your Vehicle For Safety ...............92
Checks, Safety ............................92
Child Restraint ............................70
Cigar Lighter ........................... .204
Clean Air Gasoline ....................... .371
Cleaning Wheels .............................. .456
Climate Control ......................... .283
Clock ................................. .247
Cold Weather Operation ....................302
Compact Disc (CD) Maintenance ..............282
Compact Spare Tire ....................... .355
Compass .............................. .233
Compass Calibration ...................... .240Compass Variance
........................ .241
Computer, Trip/Travel ..................... .239
Connector UCI................................ .273
Universal Consumer Interface (UCI) ..........273
Console ............................... .206
Console, Floor .......................... .206
Contract, Service ......................... .493
Convertible ............................ .101
Convertible Top ......................... .101
Coolant Pressure Cap (Radiator Cap) ...........445
Cooling System .......................... .442
Adding Coolant (Antifreeze) ...............444
Coolant Capacity ...................... .477
Coolant Level ......................... .442
Disposal of Used Coolant .................446
Drain, Flush, and Refill ...................443
Inspection ........................... .446
Points to Remember .....................447
502 INDEX

Fog .................................181
Headlights ........................... .178
Headlights On With Wipers ................179
Headlight Switch ...................... .178
High Beam ........................... .180
High Beam Indicator .....................232
High Beam/Low Beam Select ...............180
Illuminated Entry ........................21
Instrument Cluster ..................... .178
Interior ............................. .183
License ............................. .477
Lights On Reminder .....................179
Low Fuel ............................ .219
Malfunction Indicator (Check Engine) .........230
Map Reading ......................... .183
Oil Pressure .......................... .220
Passing ............................. .181
Seat Belt Reminder ..................... .219
Security Alarm (Theft Alarm) ................19Service
.............................. .471
Theft Alarm (Security Alarm) ...............227
Tire Pressure Monitoring (TPMS) ............229
Traction Control ....................... .336
Turn Signal ............................96
Voltage ............................. .219
Warning (Instrument Cluster Description) ......218
Loading Vehicle ......................... .382
Capacities ........................... .383
Tires ............................... .344
Locks ..................................32
Automatic Door .........................33
Auto Unlock ...........................34
Door .................................32
Power Door ............................33
Low Tire Pressure System ...................362
Lubrication, Body ........................ .437
Lumbar Support ......................... .170
10
INDEX 509

Maintenance Free Battery....................433
Maintenance Procedures ....................428
Maintenance Schedule ..................... .482
Malfunction Indicator Light (Check Engine) .......230
Manual, Service ......................... .496
Map/Reading Lights ...................... .183
Master Cylinder (Brakes) ....................448
Memory Feature (Memory Seat) ...............171
Methanol .............................. .371
Mini-Trip Computer ...................... .233
Mirrors ............................... .124
Automatic Dimming .....................125
Electric Powered ....................... .126
Electric Remote ........................ .126
Heated .............................. .127
Outside ............................. .127
Rearview ............................ .124
Vanity .............................. .128
Modifications/Alterations, Vehicle ...............7Monitor, Tire Pressure System
................362
Mopar Parts ............................ .427
MTBE/ETBE ........................... .371
New Vehicle Break-In Period ..................91
Occupant Restraints ........................40
Occupant Restraints (Sedan) ..................60
Octane Rating, Gasoline (Fuel) ................370
Odometer .............................. .222
Trip ................................ .222
Oil Change Indicator ...................... .225
Oil Change Indicator, Reset ..................225
Oil, Engine ............................. .429
Capacity ............................ .477
Change Interval ....................... .225
Checking ............................ .429
Dipstick ............................. .429
Disposal ............................. .432

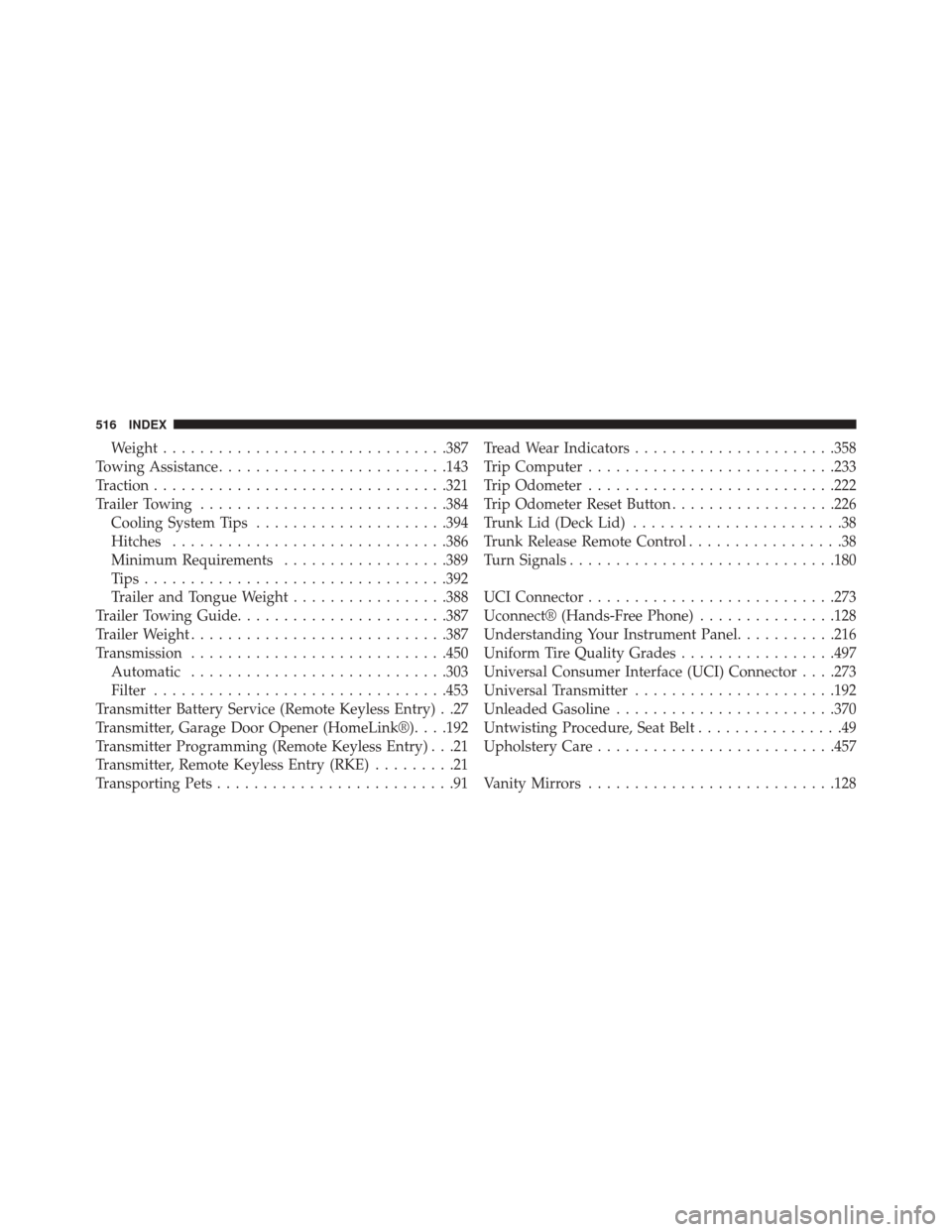

510 INDEX

Weight.............................. .387
Towing Assistance ........................ .143
Traction ............................... .321
Trailer Towing .......................... .384
Cooling System Tips .....................394
Hitches ............................. .386
Minimum Requirements ..................389
Tips................................ .392
Trailer and Tongue Weight .................388
Trailer Towing Guide ...................... .387
Trailer Weight ........................... .387
Transmission ........................... .450
Automatic ........................... .303
Filter ............................... .453
Transmitter Battery Service (Remote Keyless Entry) . .27
Transmitter, Garage Door Opener (HomeLink®). . . .192
Transmitter Programming (Remote Keyless Entry) . . .21
Transmitter, Remote Keyless Entry (RKE) .........21
Transporting Pets ..........................91 Tread Wear Indicators
..................... .358
Trip Computer .......................... .233
Trip Odometer .......................... .222
Trip Odometer Reset Button ..................226
Trunk Lid (Deck Lid) .......................38
Trunk Release Remote Control .................38
Turn Signals ............................ .180
UCI Connector .......................... .273
Uconnect® (Hands-Free Phone) ...............128
Understanding Your Instrument Panel ...........216
Uniform Tire Quality Grades .................497
Universal Consumer Interface (UCI) Connector . . . .273
Universal Transmitter ..................... .192
Unleaded Gasoline ....................... .370
Untwisting Procedure, Seat Belt ................49
Upholstery Care ......................... .457
Vanity Mirrors .......................... .128
516 INDEX
