CavityCar-
tridge Fuse Mini
Fuse Description
36 30 Amp Pink — Passenger Door
Module (PDM)/
Driver Door Mod-
ule (DDM)
37 — 25 Amp NaturalPower Top Module
– If EquippedCAUTION!
•
When installing the Integrated Power Module
cover, it is important to ensure the cover is properly
positioned and fully latched. Failure to do so may
allow water to get into the Integrated Power Mod-
ule, and possibly result in an electrical system
failure.
• When replacing a blown fuse, it is important to use
only a fuse having the correct amperage rating. The
use of a fuse with a rating other than indicated may
result in a dangerous electrical system overload. If
a properly rated fuse continues to blow, it indicates
a problem in the circuit that must be corrected.
7
MAINTAINING YOUR VEHICLE 469

VEHICLE STORAGE
If you will not be using your vehicle for more than 21
days, you may want to take steps to preserve your
battery.
•Disengage the mini-fuse in the Power Distribution
Center labeled IOD (Ignition Off-Draw).
• Or disconnect the negative cable from the battery.
• Anytime you store your vehicle, or keep it out of
service (i.e., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
REPLACEMENT BULBS
Interior Bulbs
Bulb Number
Front Courtesy/Reading
Lamp 578/W5W
Center Courtesy/Reading
Lamp 578/W5W
Visor Vanity Lamp A6220
Glove Box Lamp A6220
Shift Indicator Lamp IKLE14140
Rear Compartment
(Trunk) Lamp 579
NOTE: For lighted switches, see your authorized
dealer for replacement.
470 MAINTAINING YOUR VEHICLE

Exterior Bulbs
Bulb Number
Bi-Halogen Headlamp HIR2
Front Turn Signal Lamp 3157NAK
Front Park Lamp LED (Serviced at Autho-
rized Dealer)
Front Fog Lamp H11
Center High Mounted
Stop (CHMSL) Lamp LED (Serviced at Autho-
rized Dealer)
Rear Tail/Stop/Turn Sig-
nal Lamp LED (Serviced at Autho-
rized Dealer)
Backup Lamp 921
License Lamp W5W
BULB REPLACEMENT
NOTE:Lens fogging can occur under certain atmo-
spheric conditions. This will usually clear as atmospheric
conditions change to allow the condensation to change
back into a vapor. Turning the lamps on will usually
accelerate the clearing process.
Headlamp
1. Raise and prop open the hood. Locate the connector behind the headlamp.
NOTE: To service the driver ’s or passenger side head-
lamp, it is necessary turn the steering wheel to access the
inner fender headlamp access door.
7
MAINTAINING YOUR VEHICLE 471

2. To begin removal of the driver side headlamp, reach inthrough the inner fender headlamp access door and
grasp the bulb cover.
1 — Headlamp
2 — Turn Signal To begin removal of the passenger side headlamp, reach
in through the inner fender headlamp access door and
grasp the bulb cover.
472 MAINTAINING YOUR VEHICLE

3. Rotate bulb cover and one-quarter turn and pulloutward from assembly. 4. Rotate bulb and connector one-quarter turn and pull
outward from assembly.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life.
7
MAINTAINING YOUR VEHICLE 473

5. Pull the bulb out of the socket and replace the bulb.
6. If the bulb comes in contact with any oily surface,wipe the bulb with a clean cloth and rubbing alcohol.
7. Reinsert the bulb and socket assembly and rotate clockwise one-quarter turn to secure. 8. Place bulb cover back and rotate one-quarter turn
clockwise to secure.
Front Turn Signal
1. Raise and prop open the hood.
2. Rotate the bulb’s electrical connector one-quarter turncounterclockwise and remove it from the headlamp
housing.
3. Remove the bulb from the connector socket and install the replacement bulb.
4. Install the bulb and connector assembly into the headlamp housing and rotate the connector one-
quarter turn clockwise to lock it in place.
474 MAINTAINING YOUR VEHICLE

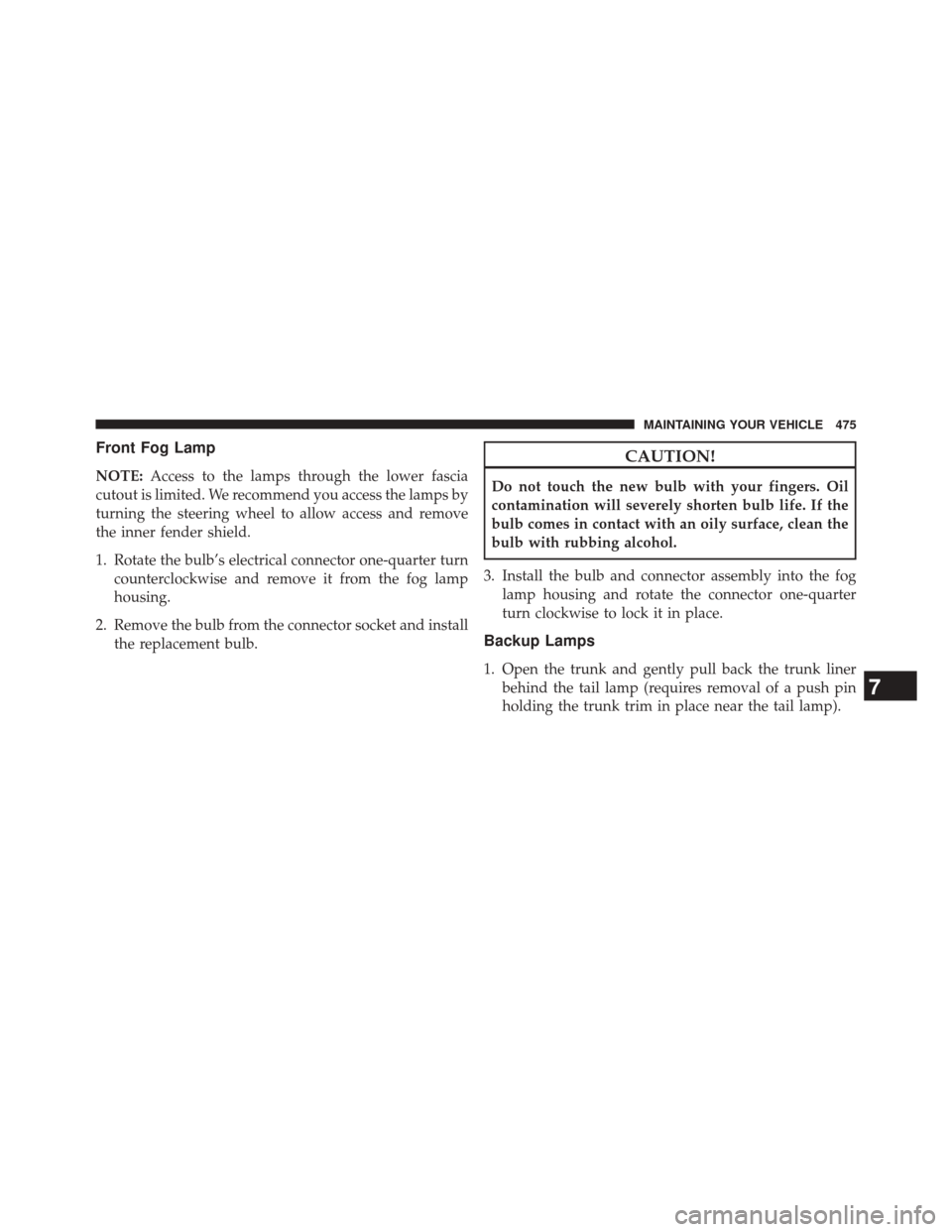

Front Fog Lamp
NOTE:Access to the lamps through the lower fascia
cutout is limited. We recommend you access the lamps by
turning the steering wheel to allow access and remove
the inner fender shield.
1. Rotate the bulb’s electrical connector one-quarter turn counterclockwise and remove it from the fog lamp
housing.
2. Remove the bulb from the connector socket and install the replacement bulb.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with an oily surface, clean the
bulb with rubbing alcohol.
3. Install the bulb and connector assembly into the fog lamp housing and rotate the connector one-quarter
turn clockwise to lock it in place.
Backup Lamps
1. Open the trunk and gently pull back the trunk linerbehind the tail lamp (requires removal of a push pin
holding the trunk trim in place near the tail lamp).
7
MAINTAINING YOUR VEHICLE 475

2. Remove the two plastic wing nuts from the tail lamphousing.
NOTE: Placing a small flat head screwdriver or similar
tool between the lamp outboard ball stud and plastic
grommet from inside the trunk can help to disengage the
outboard edge of the tail lamp. 3. Grasp the tail lamp by both the outboard and inboard
sides, and pull firmly to disengage the tail lamp from
the vehicle.
NOTE: It is normal to hear a loud sound when the lower
tail lamp area unsnaps from the vehicle mounting
bracket during tail lamp removal.
476 MAINTAINING YOUR VEHICLE

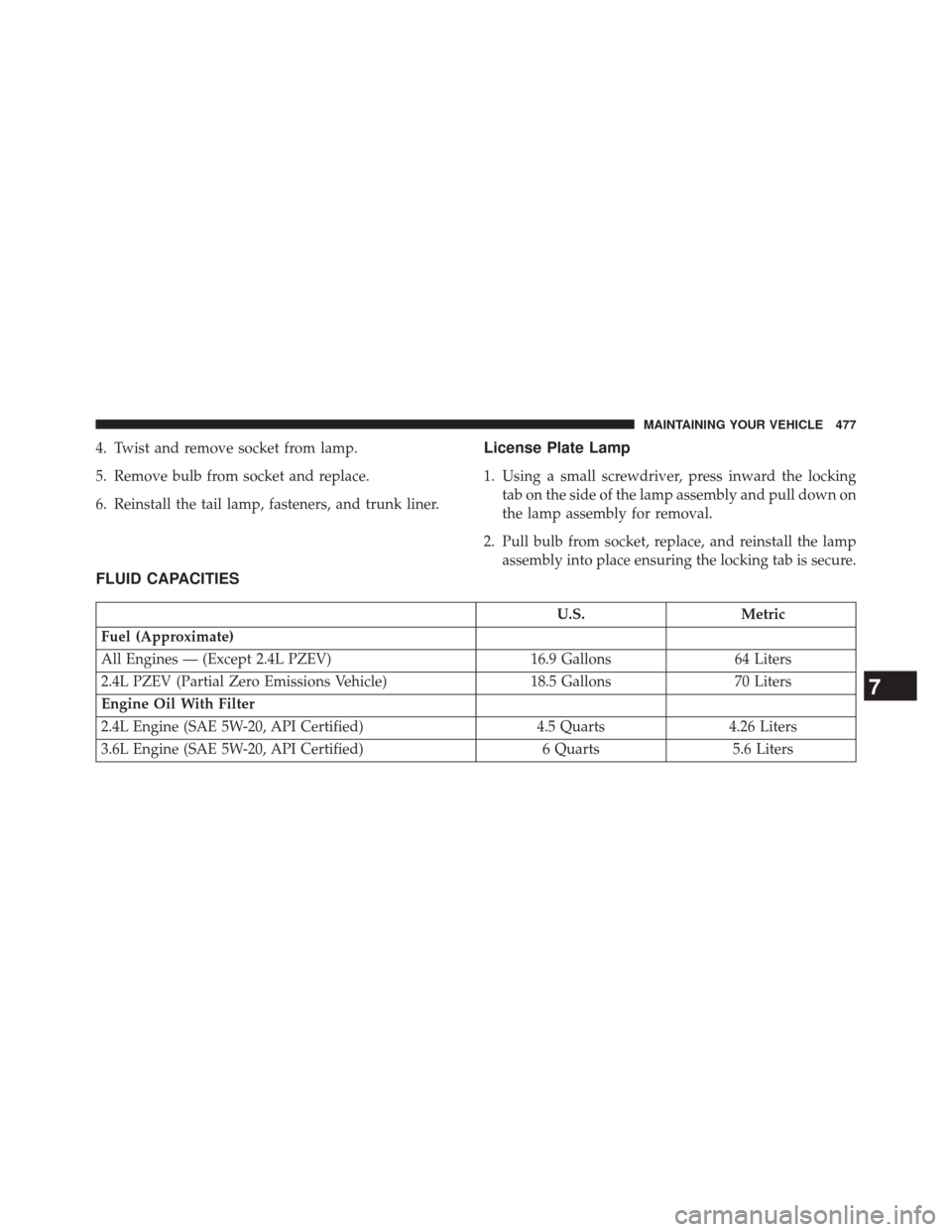

4. Twist and remove socket from lamp.
5. Remove bulb from socket and replace.
6. Reinstall the tail lamp, fasteners, and trunk liner.License Plate Lamp
1. Using a small screwdriver, press inward the lockingtab on the side of the lamp assembly and pull down on
the lamp assembly for removal.
2. Pull bulb from socket, replace, and reinstall the lamp assembly into place ensuring the locking tab is secure.
FLUID CAPACITIES
U.S. Metric
Fuel (Approximate)
All Engines — (Except 2.4L PZEV) 16.9 Gallons64 Liters
2.4L PZEV (Partial Zero Emissions Vehicle) 18.5 Gallons70 Liters
Engine Oil With Filter
2.4L Engine (SAE 5W-20, API Certified) 4.5 Quarts4.26 Liters
3.6L Engine (SAE 5W-20, API Certified) 6 Quarts5.6 Liters
7
MAINTAINING YOUR VEHICLE 477

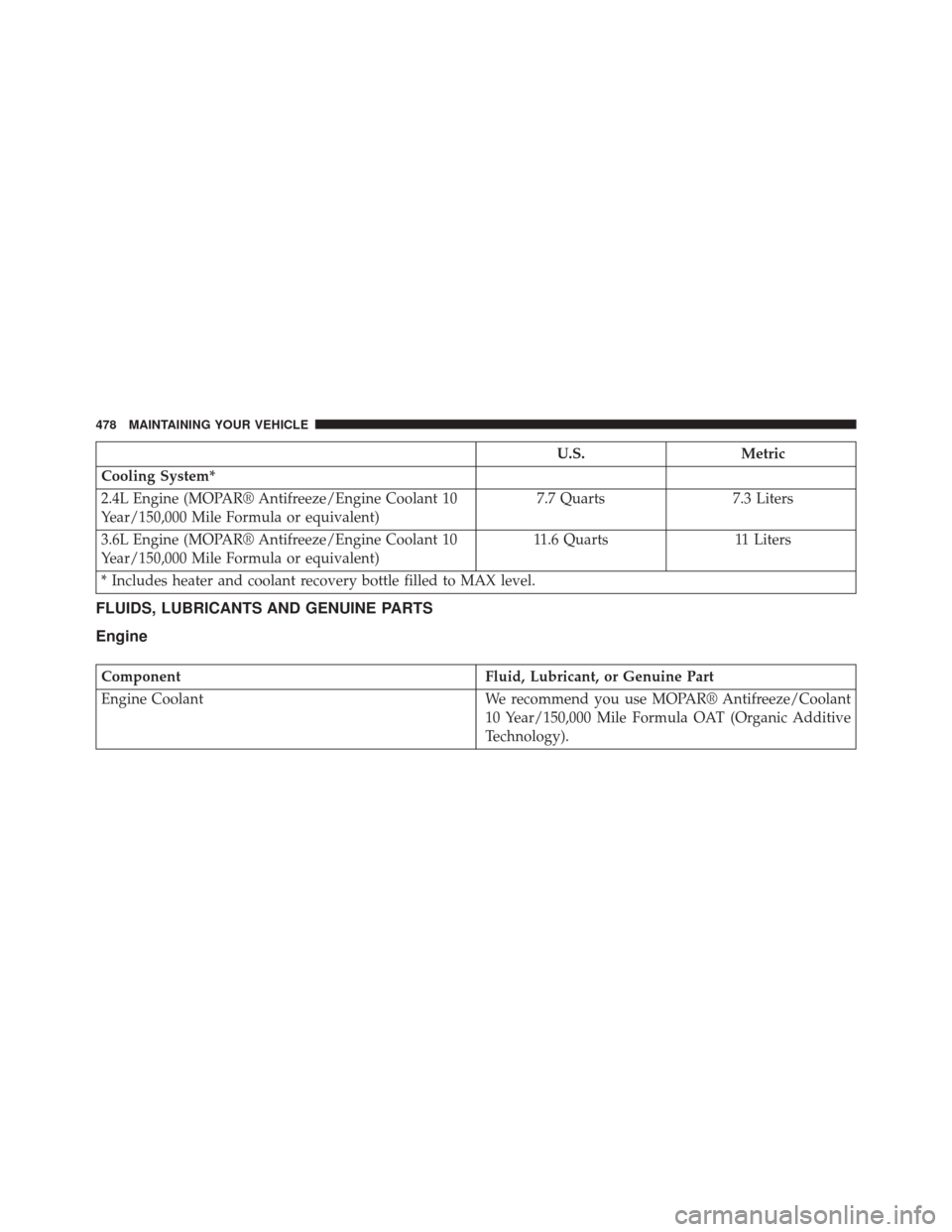

U.S.Metric
Cooling System*
2.4L Engine (MOPAR® Antifreeze/Engine Coolant 10
Year/150,000 Mile Formula or equivalent) 7.7 Quarts
7.3 Liters
3.6L Engine (MOPAR® Antifreeze/Engine Coolant 10
Year/150,000 Mile Formula or equivalent) 11.6 Quarts
11 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
FLUIDS, LUBRICANTS AND GENUINE PARTS
Engine
Component Fluid, Lubricant, or Genuine Part
Engine Coolant We recommend you use MOPAR® Antifreeze/Coolant
10 Year/150,000 Mile Formula OAT (Organic Additive
Technology).
