Page 49 of 110
2006 Chrysler 300C/300 • Dodge Magnum/Charger
Maintenance Service
Schedule “B”
Odometer Reading
Date
50,000 km
Retailer copy.
Remove and attach to Repair Order
26-92-10-01 3N.
Maintenance Service Schedule “B”
50,000 km
Change engine oil and engine oil filter (or every 3 months).
Inspect and lubricate, as required, all steering and suspension components.
Replace the air cleaner filter.
Replace the spark plugs (5.7L only).
Check and replace, if necessary, the PCV valve.*
Rotate tires and check tire pressure.
INSPECT THE FOLLOWING:
Inspect the brake hoses.
Check the automatic transmission fluid level.
Inspect the CV joints.
Check the coolant level, hoses and clamps.
Inspect the exhaust system.
*This maintenance is recommended by the manufacturer, but not required to maintain
the emissions warranty.
Page 50 of 110
2006 Chrysler 300C/300 • Dodge Magnum/Charger
Odometer Reading
Date
Repair Order No.
DAIMLERCHRYSLER
RETAILERSTA M P
Signature of authorized DaimlerChrysler Canada Retailer
Change engine oil and engine oil filter
(or every 3 months).
Inspect and lubricate, as required, all steering
and suspension components.
Replace the air cleaner filter.
Replace the spark plugs (5.7L
only).
Check and replace, if necessary, the PCV valve.*
Rotate tires and check tire pressure.
INSPECT THE FOLLOWING:
Inspect the brake hoses.
Check the automatic transmission fluid level.
Inspect the CV joints.
Check the coolant level, hoses and clamps.
Inspect the exhaust system.
*This maintenance is recommended by the manufacturer,
but not required to maintain the emissions warranty.
Maintenance Service Schedule “B”
50,000 km
Page 69 of 110
2006 Chrysler 300C/300 • Dodge Magnum/Charger
Maintenance Service
Schedule “B”
Odometer Reading
Date
100,000 km
Retailer copy.
Remove and attach to Repair Order
26-92-20-01 3N.
Maintenance Service Schedule “B”
100,000 km
Change engine oil and engine oil filter (or every 3 months).
Inspect and lubricate, as required, all steering and suspension components.
Replace the air cleaner filter.
Replace the spark plugs (5.7L only).
Check and replace, if necessary, the PCV valve.
†
Change the automatic transmission fluid and filter.
Flush and replace engine coolant at 60 months or 170,000 km, whichever comes first.
Replace air conditioning filter.
Rotate tires and check tire pressure.
INSPECT THE FOLLOWING:
Inspect the front-and-rear brake linings and rotors.
Inspect the brake hoses.
Inspect the CV joints.
Check the coolant level, hoses, and clamps.
Inspect the exhaust system.
†This maintenance is not required if previously replaced.
Page 70 of 110
2006 Chrysler 300C/300 • Dodge Magnum/Charger
Odometer Reading
Date
Repair Order No.
DAIMLERCHRYSLER
RETAILERSTA M P
Signature of authorized DaimlerChrysler Canada Retailer
Maintenance Service Schedule “B”
100,000 kmChange engine oil and engine oil filter (or every 3 months).
Inspect and lubricate, as required, all steering
and suspension components.
Replace the air cleaner filter.
Replace the spark plugs (5.7L only).
Check and replace, if necessary, the PCV valve.
†
Change the automatic transmission fluid and filter.
Flush and replace engine coolant at 60 months or
170,000 km, whichever comes first.
Replace air conditioning filter.
Rotate tires and check tire pressure.
INSPECT THE FOLLOWING:
Inspect the front-and-rear brake linings and rotors.
Inspect the brake hoses.
Inspect the CV joints.
Check the coolant level, hoses, and clamps.
Inspect the exhaust system.
†This maintenance is not required if previously replaced.
Page 89 of 110
2006 Chrysler 300C/300 • Dodge Magnum/Charger
Maintenance Service
Schedule “B”
Odometer Reading
Date
150,000 km
Retailer copy.
Remove and attach to Repair Order
26-92-30-01 3N.
Maintenance Service Schedule “B”
150,000 km
Change engine oil and engine oil filter (or every 3 months).
Inspect and lubricate, as required, all steering and suspension components.
Replace the air cleaner filter.
Replace the spark plugs (5.7L only).
Check and replace, if necessary, the PCV valve.
†
Rotate tires and check tire pressure.
INSPECT THE FOLLOWING:
Inspect the brake hoses.
Check the automatic transmission fluid level.
Inspect the CV joints.
Check the coolant level, hoses, and clamps.
Inspect the exhaust system.
†This maintenance is not required if previously replaced.
Page 90 of 110
2006 Chrysler 300C/300 • Dodge Magnum/Charger
Odometer Reading
Date
Repair Order No.
DAIMLERCHRYSLER
RETAILERSTA M P
Signature of authorized DaimlerChrysler Canada Retailer
Change engine oil and engine oil filter (or every 3 months).
Inspect and lubricate, as required, all steering and
suspension components.
Replace the air cleaner filter.
Replace the spark plugs (5.7L only).
Check and replace, if necessary, the PCV valve.
†
Rotate tires and check tire pressure.
INSPECT THE FOLLOWING:
Inspect the brake hoses.
Check the automatic transmission fluid level.
Inspect the CV joints.
Check the coolant level, hoses, and clamps.
Inspect the exhaust system.
†This maintenance is not required if previously replaced.
Maintenance Service Schedule “B”
150,000 km

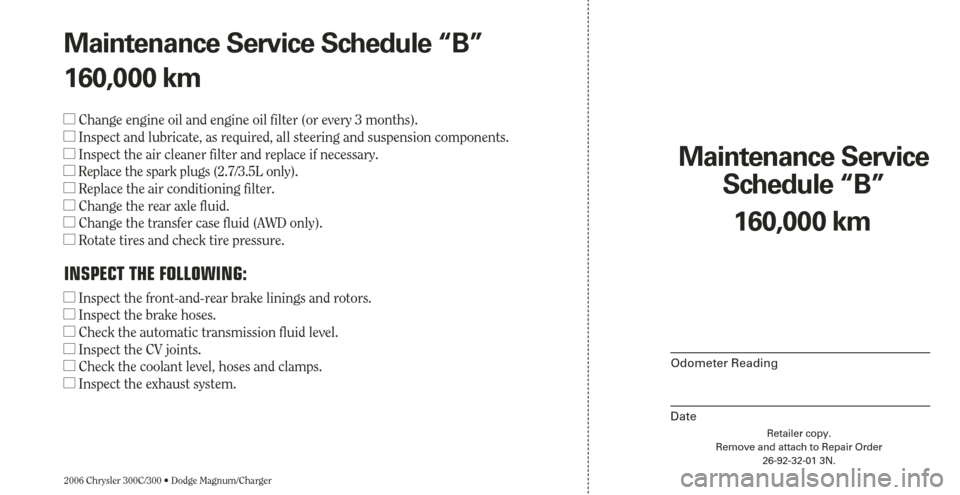

Page 93 of 110
2006 Chrysler 300C/300 • Dodge Magnum/Charger
Maintenance Service
Schedule “B”
Odometer Reading
Date
160,000 km
Retailer copy.
Remove and attach to Repair Order
26-92-32-01 3N.
Maintenance Service Schedule “B”
160,000 km
Change engine oil and engine oil filter (or every 3 months).
Inspect and lubricate, as required, all steering and suspension components.
Inspect the air cleaner filter and replace if necessary.
Replace the spark plugs (2.7/3.5L only).
Replace the air conditioning filter.
Change the rear axle fluid.
Change the transfer case fluid (AWD only).
Rotate tires and check tire pressure.
INSPECT THE FOLLOWING:
Inspect the front-and-rear brake linings and rotors.
Inspect the brake hoses.
Check the automatic transmission fluid level.
Inspect the CV joints.
Check the coolant level, hoses and clamps.
Inspect the exhaust system.
Page 94 of 110
2006 Chrysler 300C/300 • Dodge Magnum/Charger
Odometer Reading
Date
Repair Order No.
DAIMLERCHRYSLER
RETAILERSTA M P
Signature of authorized DaimlerChrysler Canada Retailer
Change engine oil and engine oil filter (or every 3 months).
Inspect and lubricate, as required, all steering
and suspension components.
Inspect the air cleaner filter and replace if necessary.
Replace the spark plugs (2.7/3.5L only).
Replace the air conditioning filter.
Change the rear axle fluid.
Change the transfer case fluid (AWD only).
Rotate tires and check tire pressure.
INSPECT THE FOLLOWING:
Inspect the front-and-rear brake linings and rotors.
Inspect the brake hoses.
Check the automatic transmission fluid level.
Inspect the CV joints.
Check the coolant level, hoses and clamps.
Inspect the exhaust system.Maintenance Service Schedule “B”
160,000 km
Page 109 of 110
2006 Chrysler 300C/300 • Dodge Magnum/Charger
Maintenance Service
Schedule “B”
Odometer Reading
Date
200,000 km
Retailer copy.
Remove and attach to Repair Order
26-92-40-01 3N.
Maintenance Service Schedule “B”
200,000 km
Change engine oil and engine oil filter (or every 3 months).
Inspect and lubricate, as required, all steering and suspension components.
Replace the air cleaner filter.
Replace the spark plugs (5.7L only).
Check and replace, if necessary, the PCV valve.
*
Change the automatic transmission fluid and filter.
Flush and replace engine coolant at 120 months if not done at 170,000 km.
Replace the air conditioning filter.
Rotate tires and ch
eck tire pressure.
INSPECT THE FOLLOWING:
Inspect the front-and-rear brake linings and rotors.
Inspect the brake hoses.
Inspect the CV joints.
Check the coolant level, hoses and clamps.
Inspect the exhaust system.
*This maintenance is recommended by the manufacturer, but not required to maintain
the emissions warranty.
Page 110 of 110
2006 Chrysler 300C/300 • Dodge Magnum/Charger
Odometer Reading
Date
Repair Order No.
DAIMLERCHRYSLER
RETAILERSTA M P
Signature of authorized DaimlerChrysler Canada Retailer
Change engine oil and engine oil filter (or every 3 months).
Inspect and lubricate, as required, all steering and
suspension components.
Replace the air cleaner filter.
Replace the spark plugs (5.7L only).
Check and replace, if necessary, the PCV valve.
*
Change the automatic transmission fluid and filter.
Flush and replace engine coolant at 120 months if not
done at 170,000 km.
Replace the air conditioning filter.
Rotate tires and ch
eck tire pressure.
INSPECT THE FOLLOWING:
Inspect the front-and-rear brake linings and rotors.
Inspect the brake hoses.
Inspect the CV joints.
Check the coolant level, hoses and clamps.
Inspect the exhaust system.
*This maintenance is recommended by the manufacturer, but not required to
maintain the emissions warranty.
Maintenance Service Schedule “B”
200,000 km
