CHRYSLER 300 2007 1.G Owners Manual

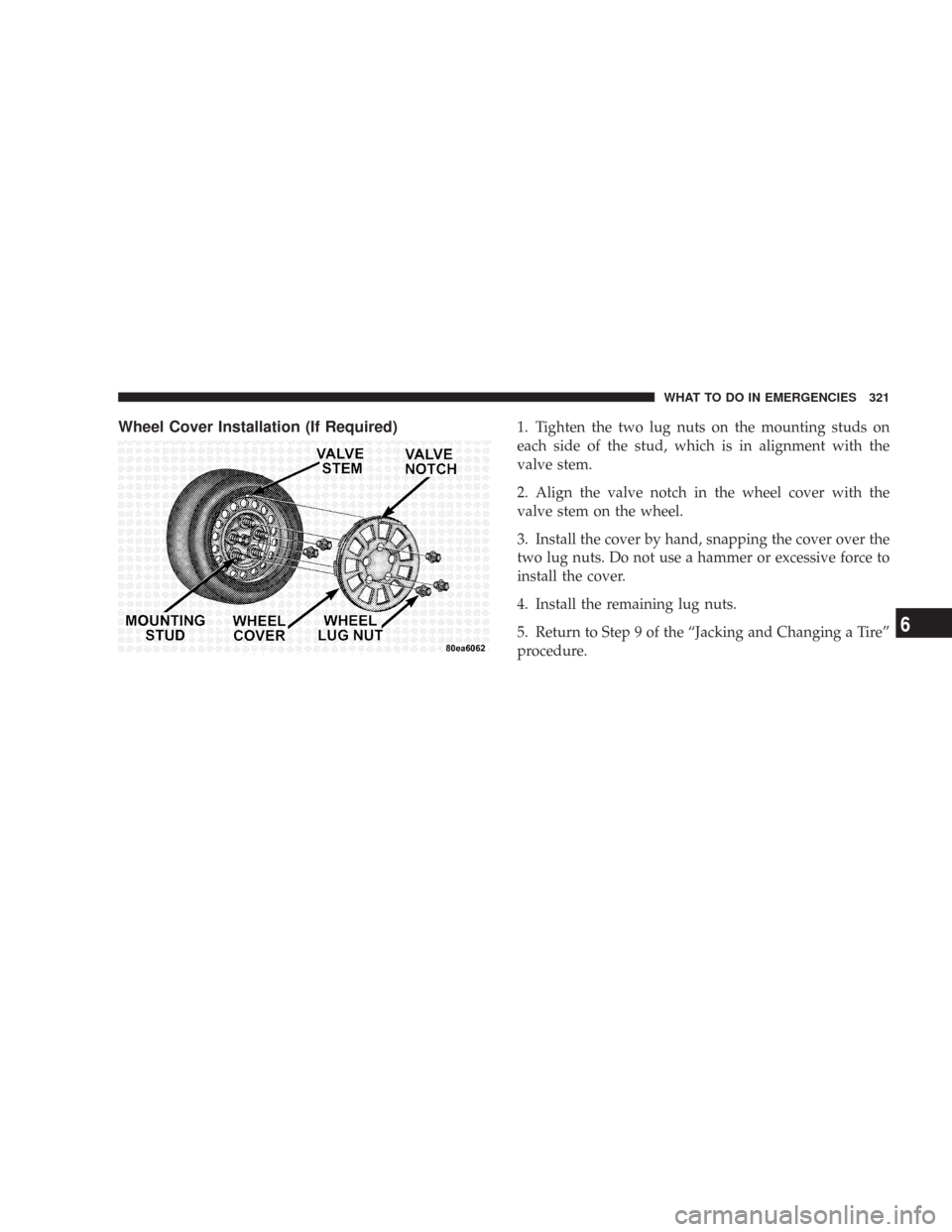

Wheel Cover Installation (If Required)1. Tighten the two lug nuts on the mounting studs on
each side of the stud, which is in alignment with the
valve stem.
2. Align the valve notch in the wheel cover with the
valve stem on the wheel.
3. Install the cover by hand, snapping the cover over the
two lug nuts. Do not use a hammer or excessive force to
install the cover.
4. Install the remaining lug nuts.
5. Return to Step 9 of the “Jacking and Changing a Tire”
procedure.
WHAT TO DO IN EMERGENCIES 321
6

JUMP-STARTING PROCEDURES
WARNING!
•Take care to avoid the radiator cooling fan whenever the
hood is raised. It can start anytime the ignition switch is on.
You can be hurt by the fan.
•Do not attempt to push or tow your vehicle to get it started.
Vehicles equipped with an automatic transmission cannot
be started this way. Unburned fuel could enter the catalytic
converter and once the engine has started, ignite and
damage the converter and vehicle. If the vehicle has a
discharged battery, booster cables may be used to obtain a
start from another vehicle. This type of start can be danger-
ous if done improperly, so follow this procedure carefully.
•Battery fluid is a corrosive acid solution; do not allow
battery fluid to contact eyes, skin, or clothing. Don’t lean
over battery when attaching clamps or allow the clamps to
touch each other. If acid splashes in eyes or on skin, flush
contaminated area immediately with large quantities of
water.
•A battery generates hydrogen gas, which is flammable and
explosive. Keep flame or spark away from the vent holes.
•Do not use a booster battery or any other booster source
with an output that exceeds 12 volts.
•The battery in this vehicle has a vent hose that should not
be disconnected and should only be replaced with a battery
of the same type (vented).
NOTE:The battery is stored under an access cover in
the trunk. Remote battery terminals are located in the
engine compartment for jump-starting.
1. Wear eye protection and remove any metal jewelry
such as watchbands or bracelets that might make an
inadvertent electrical contact.
2. When boost is provided by a battery in another
vehicle, park that vehicle within booster cable reach, but
do not allow the vehicles to touch one another.
WARNING!
Do not permit vehicles to touch each other as this
could establish a ground connection and personal
injury could result.
3. Set the parking brake, place the automatic transmis-
sion in PARK, and turn the ignition switch to the OFF (or
LOCK) position on both vehicles.
4. Turn off the heater, radio, and all unnecessary electri-
cal loads.
322 WHAT TO DO IN EMERGENCIES

5. Connect one end of the jumper cable to the remote
jump-start positive battery post(+)in the engine com-
partment. Connect the other end of the same cable to the
positive terminal of the booster battery. Refer to the
following illustration for jump-starting connections.
6. Connect the other cable, first to the negative terminal
of the booster battery andthen to the engine ground (-)
of the vehicle with the discharged battery.Make sure
you have a good contact on the engine ground. Refer to
the following illustration for jump-starting connections.WARNING!
•You should not try to start your vehicle by push-
ing or towing.
•Do not connect the cable to the negative post of
the discharge battery. The resulting electrical
spark could cause the battery to explode.
•During cold weather when temperatures are be-
low freezing point, electrolyte in a discharged
battery may freeze. Do not attempt jump-starting
because the battery could rupture or explode. The
battery temperature must be brought up above
freezing point before attempting jump-start.
7. Start the engine in the vehicle that has the booster
battery. Let the engine idle a few minutes. Then, start the
engine in the vehicle with the discharged battery.
NOTE:For vehicles equipped with ESP, refer toSyn-
chronizing ESPunderElectronic Stability Programin
Section 5 of this manual if the ESP/BAS light (in the
instrument cluster) remains on continuously after start-
ing the engine of the vehicle with the discharged battery.
Jump-Starting
WHAT TO DO IN EMERGENCIES 323
6

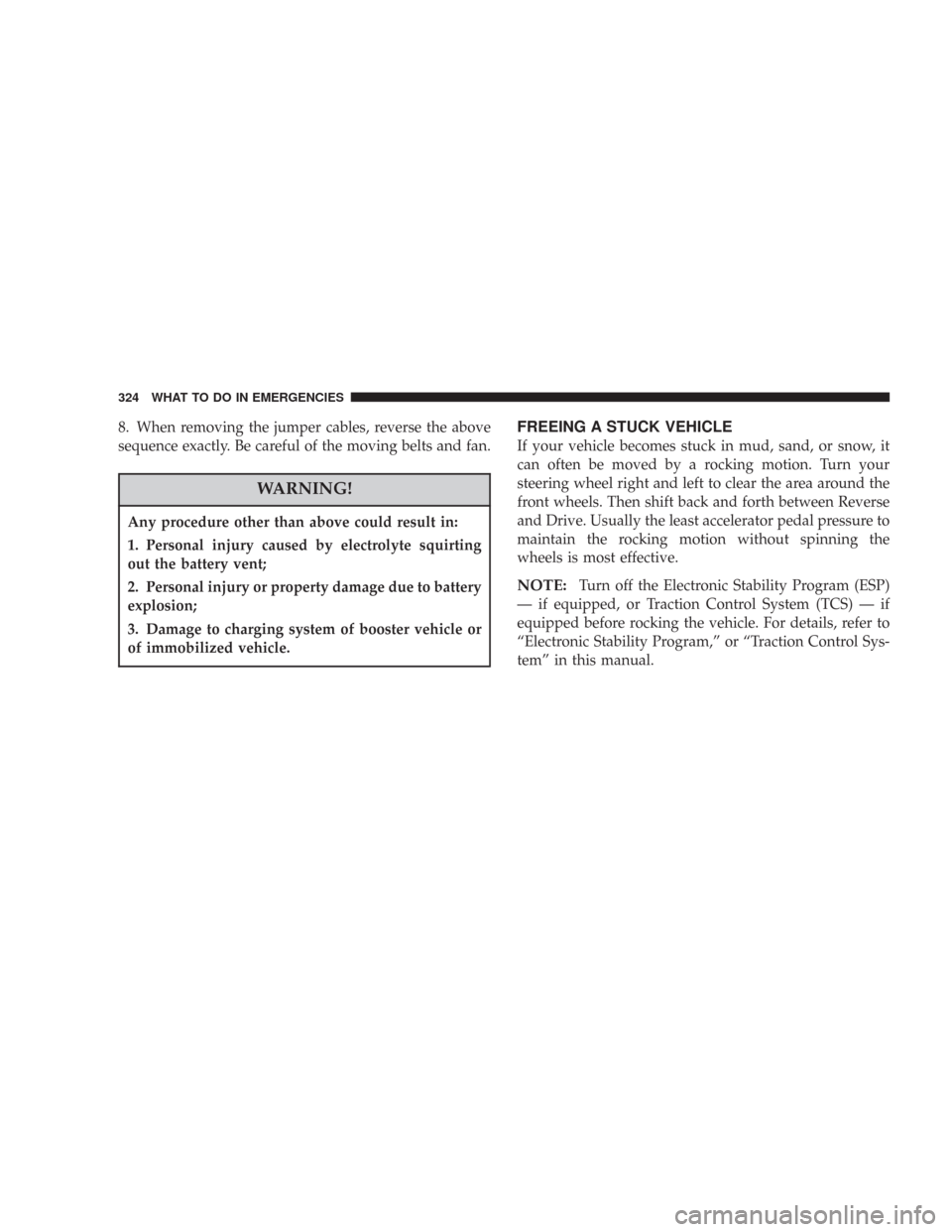

8. When removing the jumper cables, reverse the above
sequence exactly. Be careful of the moving belts and fan.
WARNING!
Any procedure other than above could result in:
1. Personal injury caused by electrolyte squirting
out the battery vent;
2. Personal injury or property damage due to battery
explosion;
3. Damage to charging system of booster vehicle or
of immobilized vehicle.
FREEING A STUCK VEHICLE
If your vehicle becomes stuck in mud, sand, or snow, it
can often be moved by a rocking motion. Turn your
steering wheel right and left to clear the area around the
front wheels. Then shift back and forth between Reverse
and Drive. Usually the least accelerator pedal pressure to
maintain the rocking motion without spinning the
wheels is most effective.
NOTE:Turn off the Electronic Stability Program (ESP)
— if equipped, or Traction Control System (TCS) — if
equipped before rocking the vehicle. For details, refer to
“Electronic Stability Program,” or “Traction Control Sys-
tem” in this manual.
324 WHAT TO DO IN EMERGENCIES

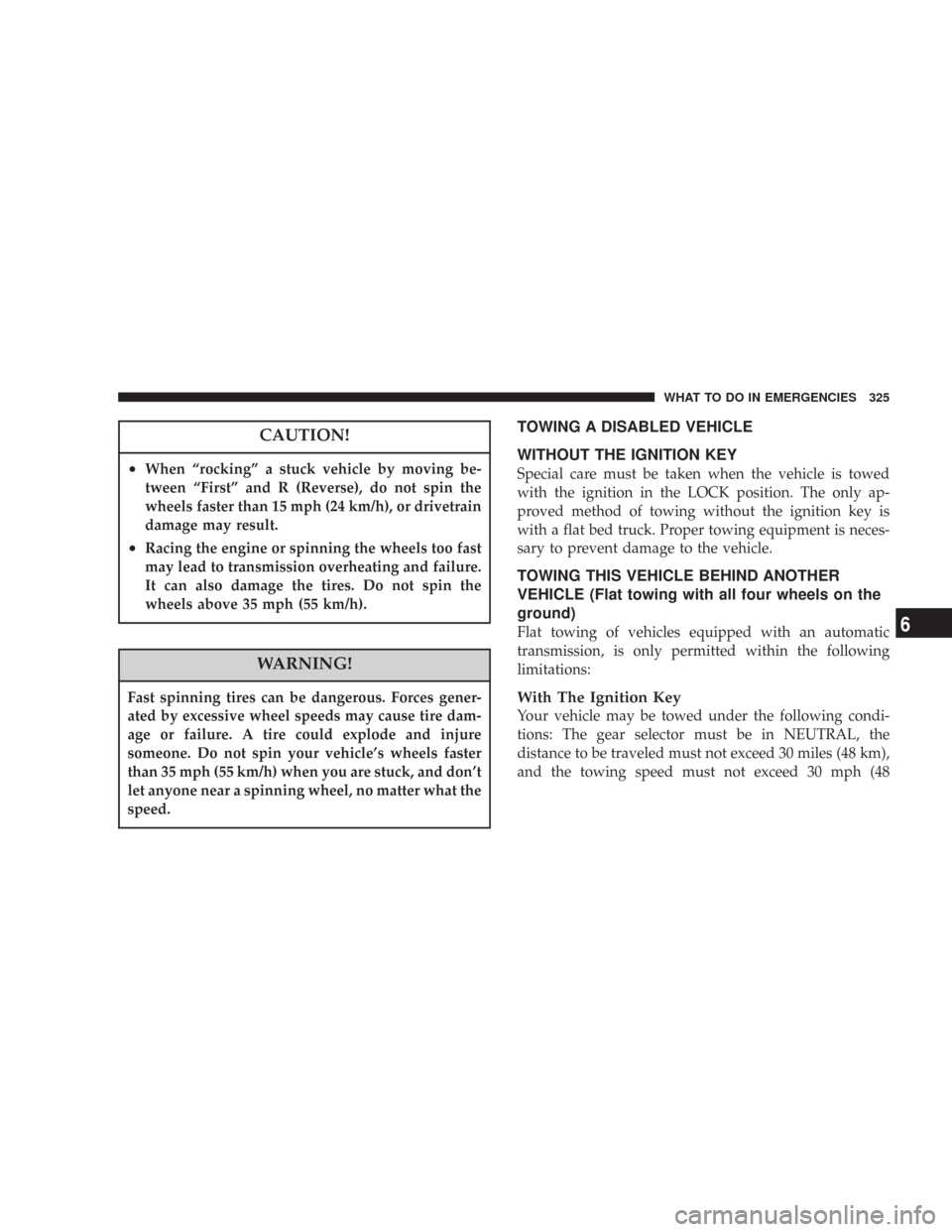

CAUTION!
•When “rocking” a stuck vehicle by moving be-
tween “First” and R (Reverse), do not spin the
wheels faster than 15 mph (24 km/h), or drivetrain
damage may result.
•Racing the engine or spinning the wheels too fast
may lead to transmission overheating and failure.
It can also damage the tires. Do not spin the
wheels above 35 mph (55 km/h).
WARNING!
Fast spinning tires can be dangerous. Forces gener-
ated by excessive wheel speeds may cause tire dam-
age or failure. A tire could explode and injure
someone. Do not spin your vehicle’s wheels faster
than 35 mph (55 km/h) when you are stuck, and don’t
let anyone near a spinning wheel, no matter what the
speed.
TOWING A DISABLED VEHICLE
WITHOUT THE IGNITION KEY
Special care must be taken when the vehicle is towed
with the ignition in the LOCK position. The only ap-
proved method of towing without the ignition key is
with a flat bed truck. Proper towing equipment is neces-
sary to prevent damage to the vehicle.
TOWING THIS VEHICLE BEHIND ANOTHER
VEHICLE (Flat towing with all four wheels on the
ground)
Flat towing of vehicles equipped with an automatic
transmission, is only permitted within the following
limitations:
With The Ignition Key
Your vehicle may be towed under the following condi-
tions: The gear selector must be in NEUTRAL, the
distance to be traveled must not exceed 30 miles (48 km),
and the towing speed must not exceed 30 mph (48
WHAT TO DO IN EMERGENCIES 325
6

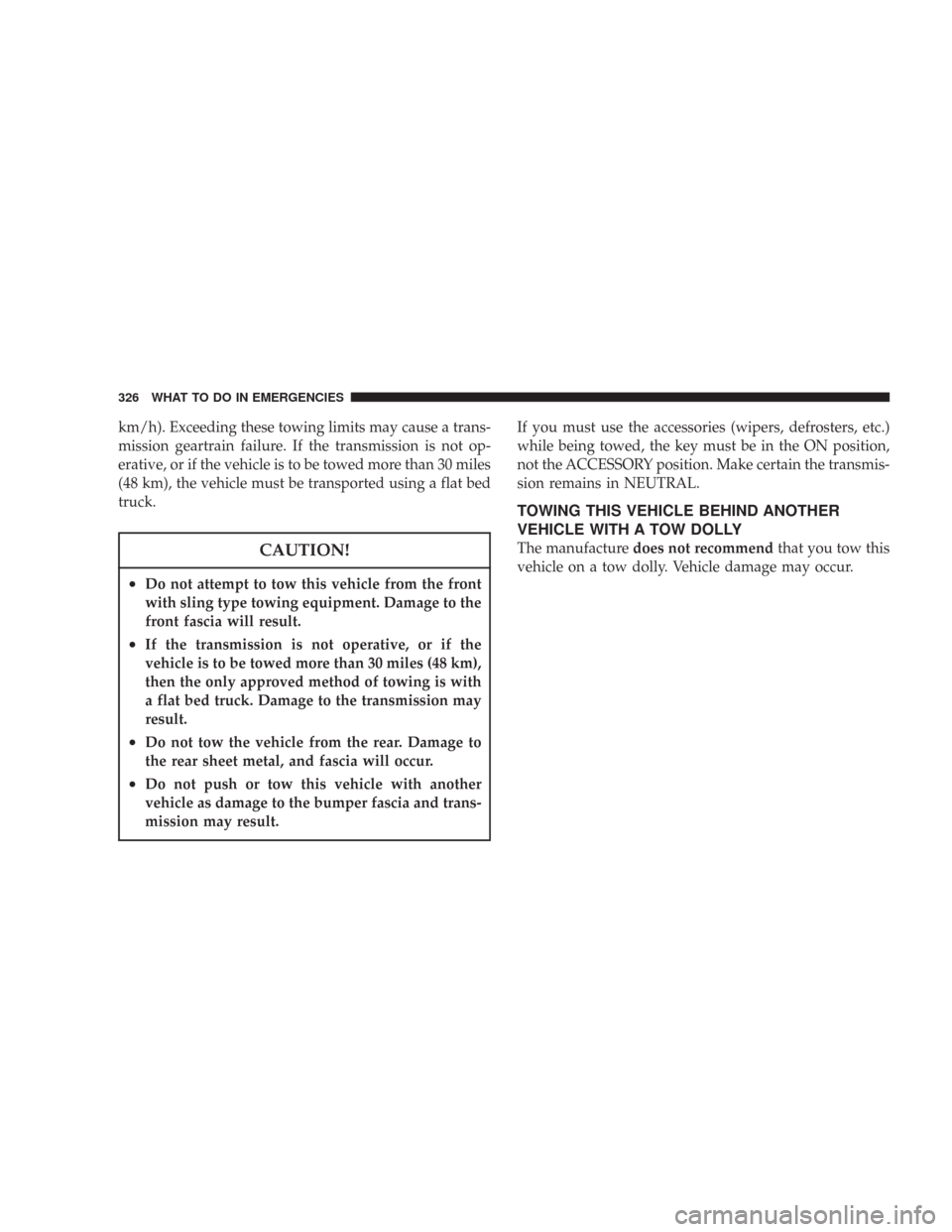

km/h). Exceeding these towing limits may cause a trans-
mission geartrain failure. If the transmission is not op-
erative, or if the vehicle is to be towed more than 30 miles
(48 km), the vehicle must be transported using a flat bed
truck.
CAUTION!
•Do not attempt to tow this vehicle from the front
with sling type towing equipment. Damage to the
front fascia will result.
•If the transmission is not operative, or if the
vehicle is to be towed more than 30 miles (48 km),
then the only approved method of towing is with
a flat bed truck. Damage to the transmission may
result.
•Do not tow the vehicle from the rear. Damage to
the rear sheet metal, and fascia will occur.
•Do not push or tow this vehicle with another
vehicle as damage to the bumper fascia and trans-
mission may result.
If you must use the accessories (wipers, defrosters, etc.)
while being towed, the key must be in the ON position,
not the ACCESSORY position. Make certain the transmis-
sion remains in NEUTRAL.
TOWING THIS VEHICLE BEHIND ANOTHER
VEHICLE WITH A TOW DOLLY
The manufacturedoes not recommendthat you tow this
vehicle on a tow dolly. Vehicle damage may occur.
326 WHAT TO DO IN EMERGENCIES

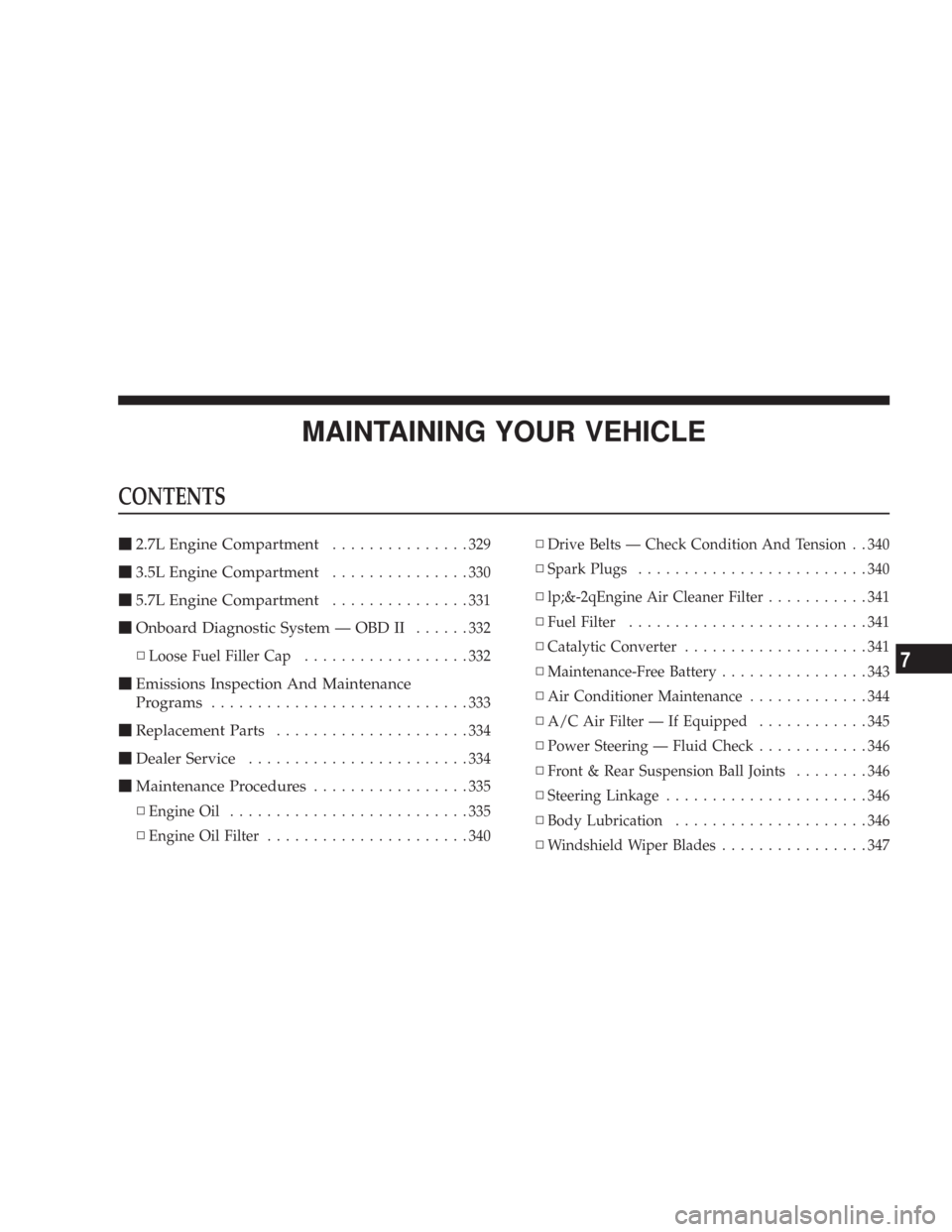

MAINTAINING YOUR VEHICLE
CONTENTS
2.7L Engine Compartment...............329
3.5L Engine Compartment...............330
5.7L Engine Compartment...............331
Onboard Diagnostic System — OBD II......332
▫Loose Fuel Filler Cap..................332
Emissions Inspection And Maintenance
Programs
............................333
Replacement Parts.....................334
Dealer Service........................334
Maintenance Procedures.................335
▫Engine Oil..........................335
▫Engine Oil Filter......................340▫Drive Belts — Check Condition And Tension . . 340
▫Spark Plugs.........................340
▫lp;&-2qEngine Air Cleaner Filter...........341
▫Fuel Filter..........................341
▫Catalytic Converter....................341
▫Maintenance-Free Battery................343
▫Air Conditioner Maintenance.............344
▫A/C Air Filter — If Equipped............345
▫Power Steering — Fluid Check............346
▫Front & Rear Suspension Ball Joints........346
▫Steering Linkage......................346
▫Body Lubrication.....................346
▫Windshield Wiper Blades................347
7

▫Windshield Washers/Headlight Washers — If
Equipped...........................347
▫Exhaust System......................348
▫Cooling System.......................349
▫Hoses And Vacuum/Vapor Harnesses.......353
▫Fuel System.........................354
▫Brake System........................354
▫Automatic Transmission................356
▫All Wheel Drive (AWD) — If Equipped.....358
▫Front And Rear Wheel Bearings...........358
▫Appearance Care And Protection From
Corrosion...........................359
▫Cleaning The Center Console Cup Holders —
300 Models..........................362
▫Cleaning The Center Console Cup Holders —
300C And 300 Touring Models............363
Fuses (Power Distribution Centers).........363
▫Fuses (Front Power Distribution Center).....363▫Fuses (Rear Power Distribution Center)......366
Vehicle Storage........................370
Replacement Bulbs.....................371
Bulb Replacement......................372
▫Low Beam Headlight, High Beam Headlight,
Park/Turn Light, Inner Park Light, And Outer
Park Light – 300 Models................372
▫Low Beam Headlight, High Beam Headlight,
And Park/Turn Light – 300C.............374
▫Backup Light, Side Marker Light, And Tail/Stop
Turn Light — 300 Models...............376
▫Tail/Stop, Tail, Turn Signal Light, And Backup
Light — 300C Models..................378
▫License Light........................381
Fluids And Capacities...................382
Fluids, Lubricants, And Genuine Parts......383
▫Engine.............................383
▫Chassis............................384
328 MAINTAINING YOUR VEHICLE

2.7L ENGINE COMPARTMENT
MAINTAINING YOUR VEHICLE 329
7

3.5L ENGINE COMPARTMENT
330 MAINTAINING YOUR VEHICLE
