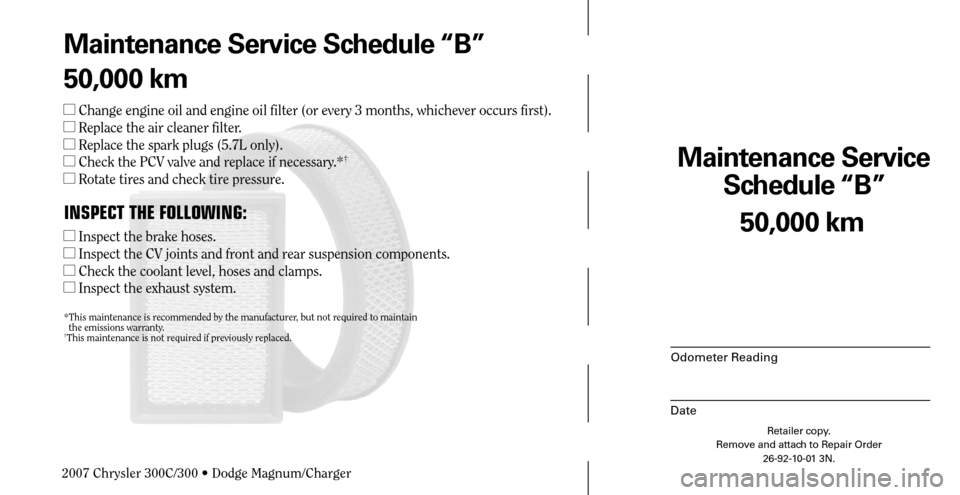

Page 49 of 130
Maintenance Service
Schedule “B”
Odometer Reading
Date
50,000 km
Retailer copy.
Remove and attach to Repair Order
26-92-10-01 3N.
Maintenance Service Schedule “B”
50,000 km
Change engine oil and engine oil filter (or every 3 months, whichever occurs first).
Replace the air cleaner filter.
Replace the spark plugs (5.7L only).
Check the PCV valve and replace if necessary.*
†
Rotate tires and check tire pressure.
INSPECT THE FOLLOWING:
Inspect the brake hoses.
Inspect the CV joints and front and rear suspension components.
Check the coolant level, hoses and clamps.
Inspect the exhaust system.
* This maintenance is recommended by the manufacturer, but not required to maintain
the emissions warranty.
†This maintenance is not required if previously replaced.
2007 Chrysler 300C/300
Page 50 of 130
Odometer Reading
Date
Repair Order No.
DAIMLERCHRYSLER
R
ETAILER STAMP
Signature of authorized DaimlerChrysler Canada Retailer
Change engine oil and engine oil filter (or every 3 months,
whichever occurs first).
Replace the air cleaner filter.
Replace the spark plugs (5.7L
only).
Check the PCV valve and replace if necessary.*†
Rotate tires and check tire pressure.
INSPECT THE FOLLOWING:
Inspect the brake hoses.
Inspect the CV joints and front and rear suspension
components.
Check the coolant level, hoses and clamps.
Inspect the exhaust system.
* This maintenance is recommended by the manufacturer,
but not required to maintain the emissions warranty.
†This maintenance is not required if previously replaced.
Maintenance Service Schedule “B”
50,000 km
2007 Chrysler 300C/300
Page 69 of 130
Maintenance Service
Schedule “B”
Odometer Reading
Date
100,000 km
Retailer copy.
Remove and attach to Repair Order
26-92-20-01 3N.
Maintenance Service Schedule “B”
100,000 km
Change engine oil and engine oil filter (or every 3 months, whichever occurs first).
Replace the air cleaner filter.
Inspect the front and rear brake linings and rotors.
Replace the air conditioning filter.
Replace the spark plugs (5.7L only).
Check the PCV valve and replace if necessary.*
†
Change the automatic transmission fluid and filter.
Flush and replace engine coolant at 60 months or 170,000 kilometres,
whichever occurs first.
Rotate tires and check tire pressure.
INSPECT THE FOLLOWING:
Inspect the brake hoses.
Inspect the CV joints and front and rear suspension components.
Check the coolant level, hoses, and clamps.
Inspect the exhaust system.
*
This maintenance is recommended by the manufacturer, but not required to maintain the emissions warranty.†This maintenance is not required if previously replaced.
2007 Chrysler 300C/300
Page 70 of 130
Odometer Reading
Date
Repair Order No.
DAIMLERCHRYSLER
R
ETAILER STAMP
Signature of authorized DaimlerChrysler Canada Retailer
Maintenance Service Schedule “B”
100,000 km Change engine oil and engine oil filter (or every 3 months,
whichever occurs first).
Replace the air cleaner filter.
Inspect the front and rear brake linings and rotors.
Replace the air conditioning filter.
Replace the spark plugs (5.7L only).
Check the PCV valve and replace if necessary.*
†
Change the automatic transmission fluid and filter.
Flush and replace engine coolant at 60 months or
170,000 kilometres, whichever occurs first.
Rotate tires and check tire pressure.
INSPECT THE FOLLOWING:
Inspect the brake hoses.
Inspect the CV joints and front and rear suspension
components.
Check the coolant level, hoses, and clamps.
Inspect the exhaust system.
* This maintenance is recommended by the manufacturer, but not required to
maintain the emissions warranty.
†This maintenance is not required if previously replaced.
2007 Chrysler 300C/300

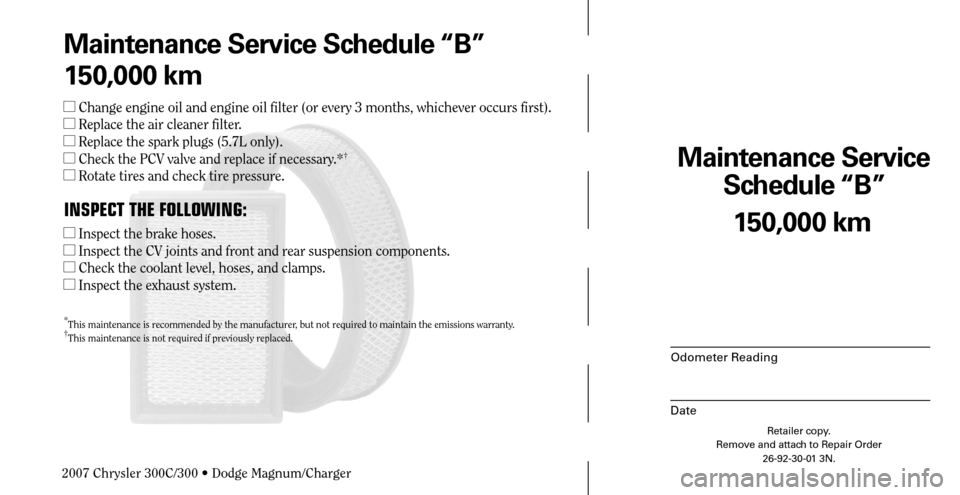

Page 89 of 130
Maintenance Service
Schedule “B”
Odometer Reading
Date
150,000 km
Retailer copy.
Remove and attach to Repair Order
26-92-30-01 3N.
Maintenance Service Schedule “B”
150,000 km
Change engine oil and engine oil filter (or every 3 months, whichever occurs first).
Replace the air cleaner filter.
Replace the spark plugs (5.7L only).
Check the PCV valve and replace if necessary.*
†
Rotate tires and check tire pressure.
INSPECT THE FOLLOWING:
Inspect the brake hoses.
Inspect the CV joints and front and rear suspension components.
Check the coolant level, hoses, and clamps.
Inspect the exhaust system.
*This maintenance is recommended by the manufacturer, but not required to maintain the emissions warranty.†This maintenance is not required if previously replaced.
2007 Chrysler 300C/300

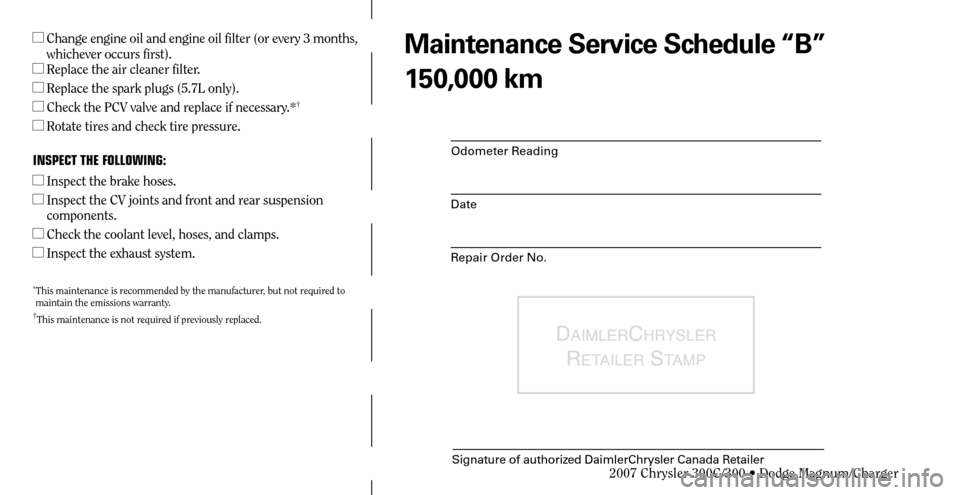

Page 90 of 130
Odometer Reading
Date
Repair Order No.
DAIMLERCHRYSLER
R
ETAILER STAMP
Signature of authorized DaimlerChrysler Canada Retailer
Change engine oil and engine oil filter (or every 3 months,
whichever occurs first).
Replace the air cleaner filter.
Replace the spark plugs (5.7L only).
Check the PCV valve and replace if necessary.*
†
Rotate tires and check tire pressure.
INSPECT THE FOLLOWING:
Inspect the brake hoses.
Inspect the CV joints and front and rear suspension
components.
Check the coolant level, hoses, and clamps.
Inspect the exhaust system.
* This maintenance is recommended by the manufacturer, but not required to
maintain the emissions warranty.
†This maintenance is not required if previously replaced.
Maintenance Service Schedule “B”
150,000 km
2007 Chrysler 300C/300

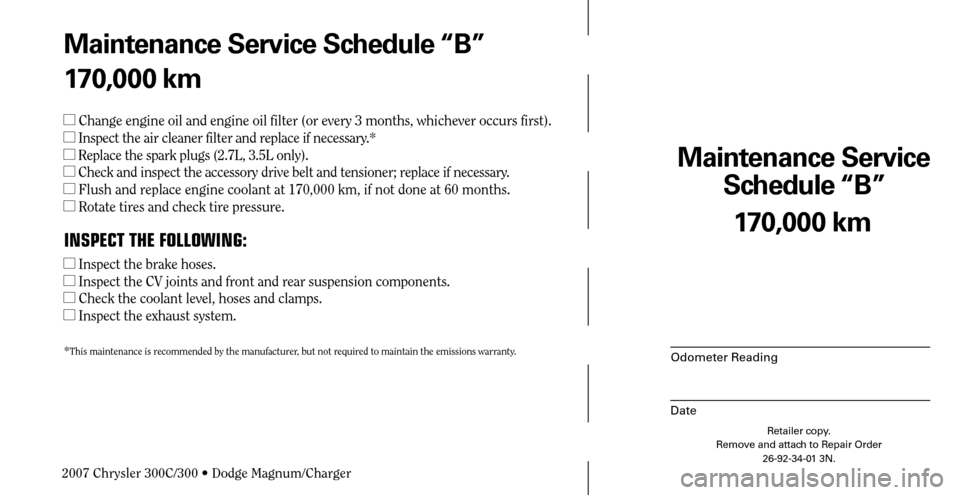

Page 97 of 130
Maintenance Service
Schedule “B”
Odometer Reading
Date
170,000 km Maintenance Service Schedule “B”
170,000 km
Change engine oil and engine oil filter (or every 3 months, whichever occurs first).
Inspect the air cleaner filter and replace if necessary.*
Replace the spark plugs (2.7L, 3.5L only).
Check and inspect the accessory drive belt and tensioner; replace if necessary.
Flush and replace engine coolant at 170,000 km, if not done at 60 months.
Rotate tires and check tire pressure.
INSPECT THE FOLLOWING:
Inspect the brake hoses.
Inspect the CV joints and front and rear suspension components.
Check the coolant level, hoses and clamps.
Inspect the exhaust system.
* This maintenance is recommended by the manufacturer, but not required to maintain the emissions warranty.
Retailer copy.
Remove and attach to Repair Order
26-92-34-01 3N.
2007 Chrysler 300C/300

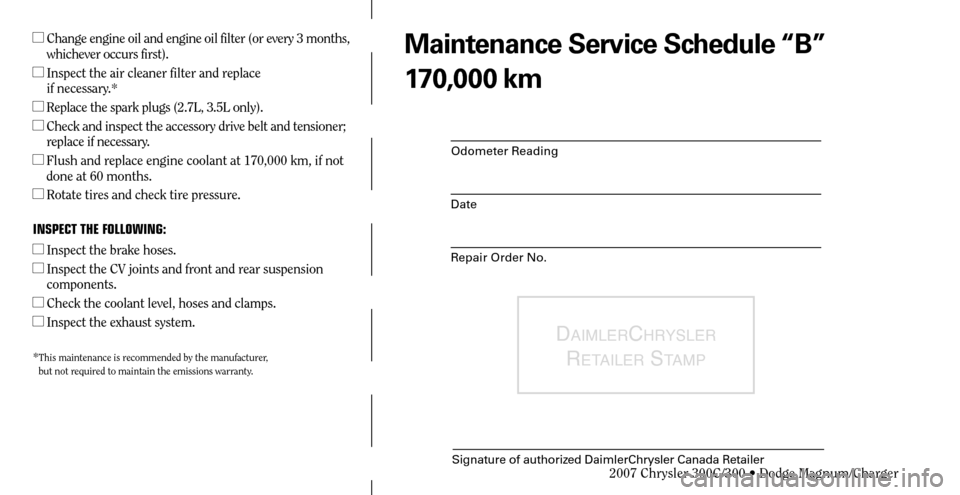

Page 98 of 130
Odometer Reading
Date
Repair Order No.
DAIMLERCHRYSLER
R
ETAILER STAMP
Signature of authorized DaimlerChrysler Canada Retailer
Change engine oil and engine oil filter (or every 3 months,
whichever occurs first).
Inspect the air cleaner filter and replace
if necessary.*
Replace the spark plugs (2.7L, 3.5L only).
Check and inspect the accessory drive belt and tensioner;
replace if necessary.
Flush and replace engine coolant at 170,000 km, if not
done at 60 months.
Rotate tires and check tire pressure.
INSPECT THE FOLLOWING:
Inspect the brake hoses.
Inspect the CV joints and front and rear suspension
components.
Check the coolant level, hoses and clamps.
Inspect the exhaust system.
* This maintenance is recommended by the manufacturer,
but not required to maintain the emissions warranty.
Maintenance Service Schedule “B”
170,000 km
2007 Chrysler 300C/300
Page 109 of 130
Maintenance Service
Schedule “B”
Odometer Reading
Date
200,000 km
Retailer copy.
Remove and attach to Repair Order
26-92-40-01 3N.
Maintenance Service Schedule “B”
200,000 km
Change engine oil and engine oil filter (or every 3 months, whichever occurs first).
Replace the air cleaner filter.
Inspect the front and rear brake linings and rotors.
Replace the air conditioning filter.
Replace the spark plugs (5.7L only).
Check the PCV valve and replace if necessary.
†*
Change the automatic transmission fluid and filter.
Flush and replace engine coolant at 120 months if not done at 170,000 km.
Rotate tires and ch
eck tire pressure.
INSPECT THE FOLLOWING:
Inspect the brake hoses.
Inspect the CV joints and front and rear suspension components.
Check the coolant level, hoses and clamps.
Inspect the exhaust system.
* This maintenance is recommended by the manufacturer, but not required to maintain
the emissions warranty.
†This maintenance is not required if previously replaced.
2007 Chrysler 300C/300
Page 110 of 130
Odometer Reading
Date
Repair Order No.
DAIMLERCHRYSLER
R
ETAILER STAMP
Signature of authorized DaimlerChrysler Canada Retailer
Change engine oil and engine oil filter (or every 3 months,
whichever occurs first).
Replace the air cleaner filter.
Inspect the front and rear brake linings and rotors.
Replace the air conditioning filter.
Replace the spark plugs (5.7L only).
Check the PCV valve and replace if necessary.
*†
Change the automatic transmission fluid and filter.
Flush and replace engine coolant at 120 months if not
done at 170,000 km.
Rotate tires and ch
eck tire pressure.
INSPECT THE FOLLOWING:
Inspect the brake hoses.
Inspect the CV joints and front and rear suspension
components.
Check the coolant level, hoses and clamps.
Inspect the exhaust system.
* This maintenance is recommended by the manufacturer, but not required to
maintain the emissions warranty.
†This maintenance is not required if previously replaced.
Maintenance Service Schedule “B”
200,000 km
2007 Chrysler 300C/300
