TRUNK LOCK AND RELEASE
The trunk lid can be released from inside the vehicle by
pressing the Trunk Release Button located on the instru-
ment panel to the left of the steering wheel.
NOTE:The transmission must be in “P” (Park) before
the switch will operate.The trunk lid can be released from outside the vehicle by
pressing the trunk button on the Remote Keyless Entry
(RKE) transmitter twice within 5 seconds.
With the ignition switch in the ON position, the trunk
open symbol will display in the instrument cluster indi-
cating that the trunk is open. The odometer display will
reappear once the trunk is closed.
With the ignition switch in the LOCK position or the key
removed from the ignition switch, the trunk open symbol
will display until the trunk is closed.
Trunk Release Button
40 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

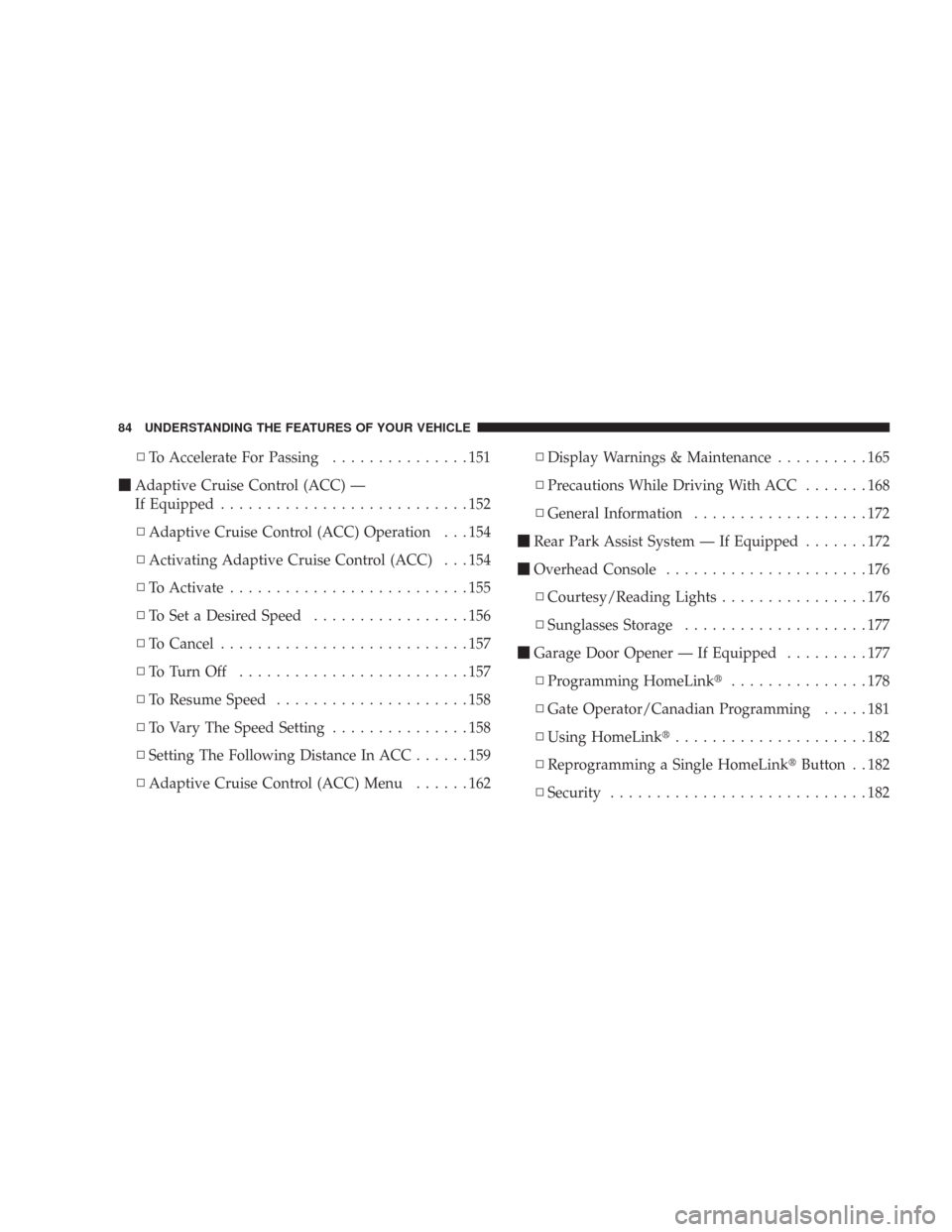

▫To Accelerate For Passing...............151

Adaptive Cruise Control (ACC) —
If Equipped...........................152
▫Adaptive Cruise Control (ACC) Operation . . . 154
▫Activating Adaptive Cruise Control (ACC) . . . 154
▫To Activate..........................155
▫To Set a Desired Speed.................156
▫To Cancel...........................157
▫ToTurnOff .........................157
▫To Resume Speed.....................158
▫To Vary The Speed Setting...............158
▫Setting The Following Distance In ACC......159
▫Adaptive Cruise Control (ACC) Menu......162▫Display Warnings & Maintenance..........165
▫Precautions While Driving With ACC.......168
▫General Information...................172

Rear Park Assist System — If Equipped.......172

Overhead Console......................176
▫Courtesy/Reading Lights................176
▫Sunglasses Storage....................177

Garage Door Opener — If Equipped.........177
▫Programming HomeLink...............178
▫Gate Operator/Canadian Programming.....181
▫Using HomeLink.....................182
▫Reprogramming a Single HomeLinkButton . . 182
▫Security............................182
84 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

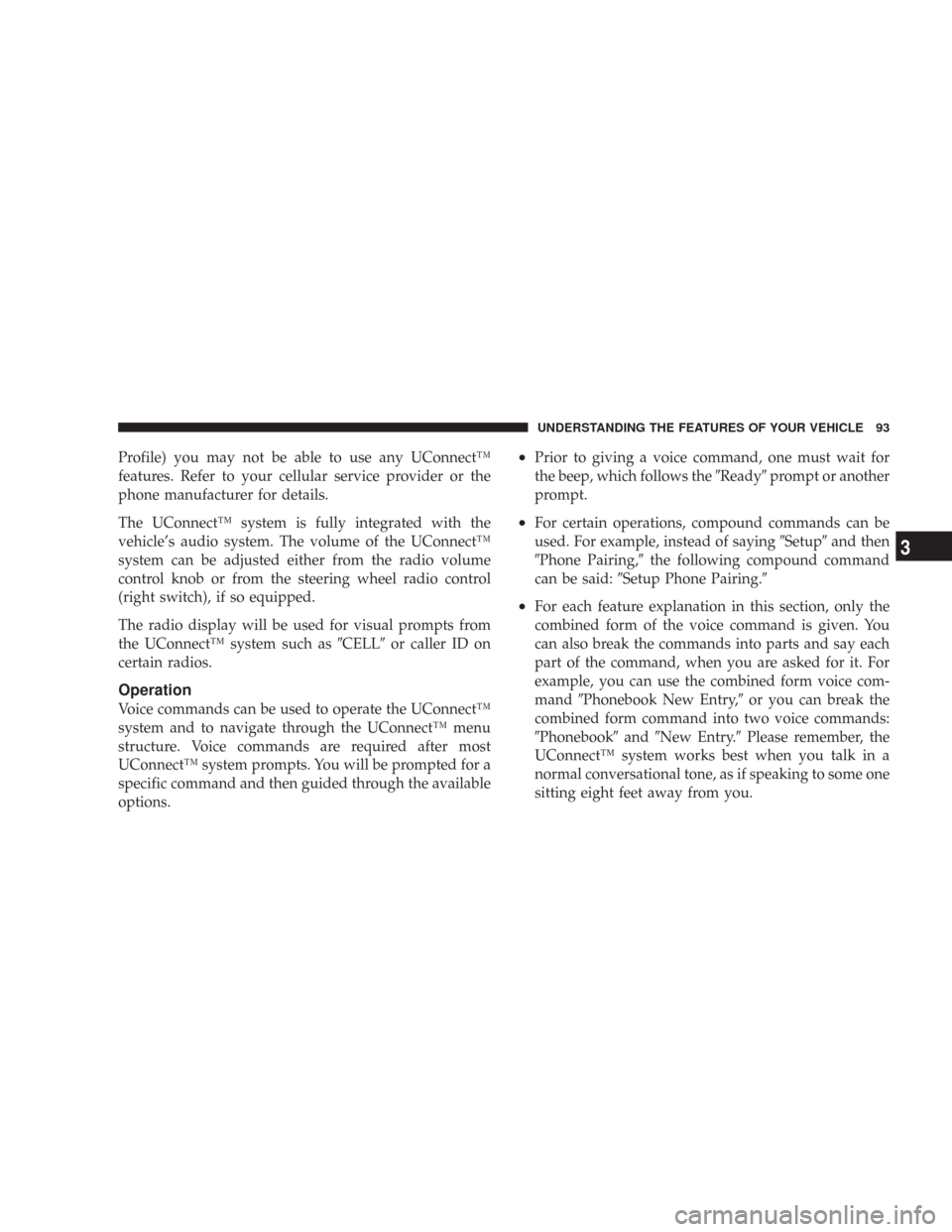

Profile) you may not be able to use any UConnect™
features. Refer to your cellular service provider or the
phone manufacturer for details.
The UConnect™ system is fully integrated with the
vehicle’s audio system. The volume of the UConnect™
system can be adjusted either from the radio volume
control knob or from the steering wheel radio control
(right switch), if so equipped.
The radio display will be used for visual prompts from
the UConnect™ system such asCELLor caller ID on
certain radios.
Operation
Voice commands can be used to operate the UConnect™
system and to navigate through the UConnect™ menu
structure. Voice commands are required after most
UConnect™ system prompts. You will be prompted for a
specific command and then guided through the available
options.
•Prior to giving a voice command, one must wait for
the beep, which follows theReadyprompt or another
prompt.
•For certain operations, compound commands can be
used. For example, instead of sayingSetupand then
Phone Pairing,the following compound command
can be said:Setup Phone Pairing.
•For each feature explanation in this section, only the
combined form of the voice command is given. You
can also break the commands into parts and say each
part of the command, when you are asked for it. For
example, you can use the combined form voice com-
mandPhonebook New Entry,or you can break the
combined form command into two voice commands:
PhonebookandNew Entry.Please remember, the
UConnect™ system works best when you talk in a
normal conversational tone, as if speaking to some one
sitting eight feet away from you.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 93
3

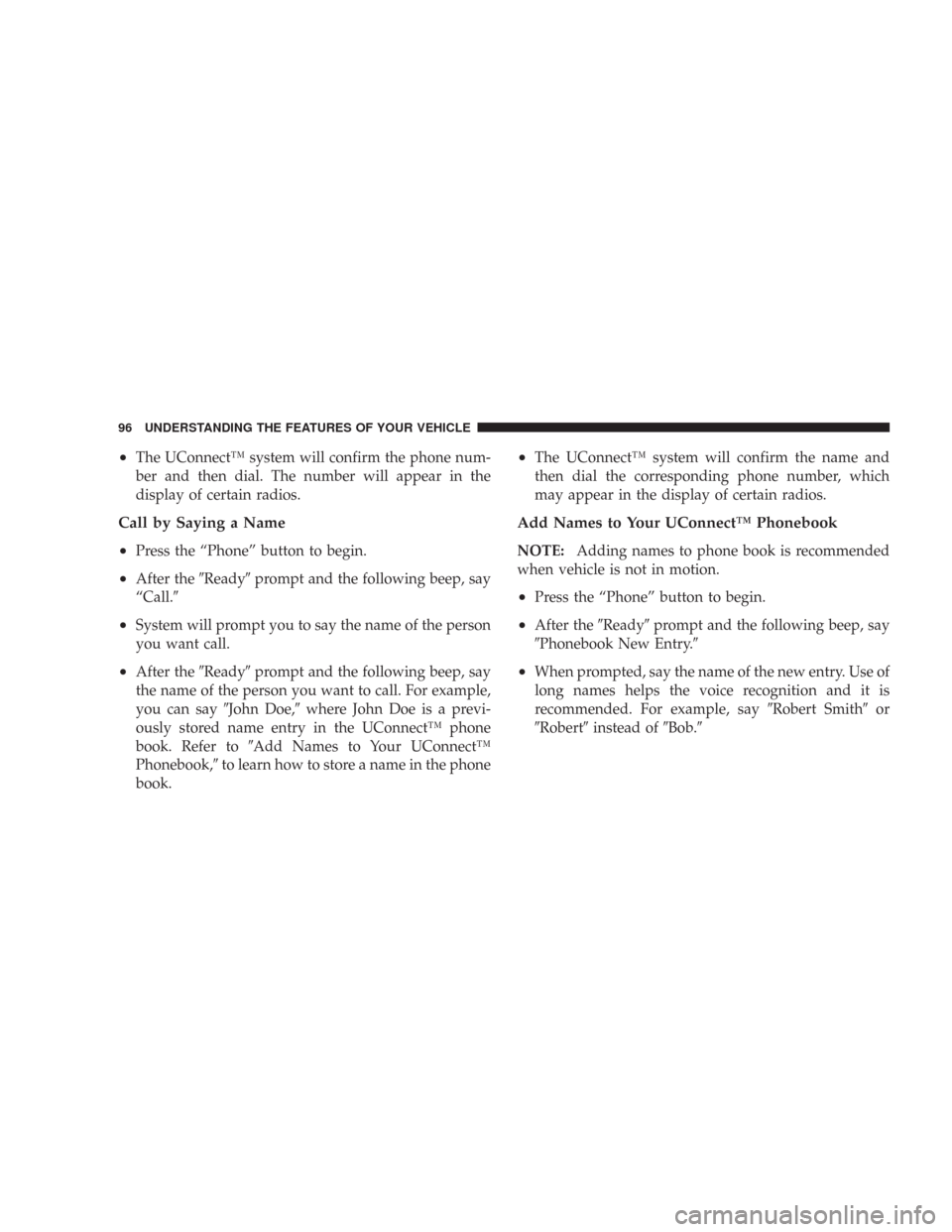

•The UConnect™ system will confirm the phone num-
ber and then dial. The number will appear in the
display of certain radios.
Call by Saying a Name
•
Press the “Phone” button to begin.
•After theReadyprompt and the following beep, say
“Call.
•System will prompt you to say the name of the person
you want call.
•After theReadyprompt and the following beep, say
the name of the person you want to call. For example,
you can sayJohn Doe,where John Doe is a previ-
ously stored name entry in the UConnect™ phone
book. Refer toAdd Names to Your UConnect™
Phonebook,to learn how to store a name in the phone
book.
•The UConnect™ system will confirm the name and
then dial the corresponding phone number, which
may appear in the display of certain radios.
Add Names to Your UConnect™ Phonebook
NOTE:Adding names to phone book is recommended
when vehicle is not in motion.
•Press the “Phone” button to begin.
•After theReadyprompt and the following beep, say
Phonebook New Entry.
•When prompted, say the name of the new entry. Use of
long names helps the voice recognition and it is
recommended. For example, sayRobert Smithor
Robertinstead ofBob.
96 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

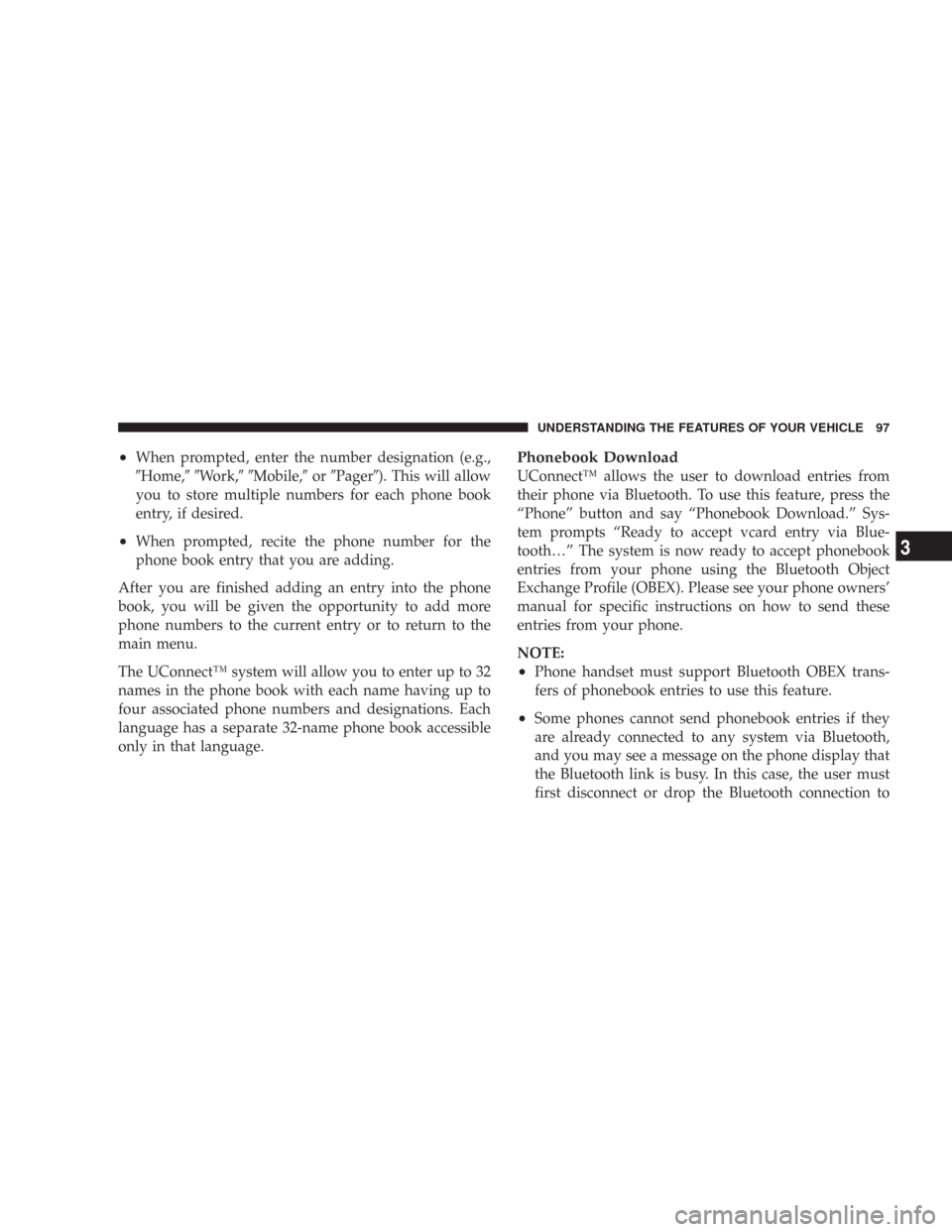

•When prompted, enter the number designation (e.g.,
Home,Work,Mobile,orPager). This will allow
you to store multiple numbers for each phone book
entry, if desired.
•When prompted, recite the phone number for the
phone book entry that you are adding.
After you are finished adding an entry into the phone
book, you will be given the opportunity to add more
phone numbers to the current entry or to return to the
main menu.
The UConnect™ system will allow you to enter up to 32
names in the phone book with each name having up to
four associated phone numbers and designations. Each
language has a separate 32-name phone book accessible
only in that language.
Phonebook Download
UConnect™ allows the user to download entries from
their phone via Bluetooth. To use this feature, press the
“Phone” button and say “Phonebook Download.” Sys-
tem prompts “Ready to accept vcard entry via Blue-
tooth…” The system is now ready to accept phonebook
entries from your phone using the Bluetooth Object
Exchange Profile (OBEX). Please see your phone owners’
manual for specific instructions on how to send these
entries from your phone.
NOTE:
•Phone handset must support Bluetooth OBEX trans-
fers of phonebook entries to use this feature.
•Some phones cannot send phonebook entries if they
are already connected to any system via Bluetooth,
and you may see a message on the phone display that
the Bluetooth link is busy. In this case, the user must
first disconnect or drop the Bluetooth connection to
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 97
3

Barge In - Overriding Prompts
The “Voice Recognition” button can be used when you
wish to skip part of a prompt and issue your voice
recognition command immediately. For example, if a
prompt is playingWould you like to pair a phone, clear
a,you could press the “Voice Recognition” button and
sayPair a Phoneto select that option without having to
listen to the rest of the voice prompt.
Turning Confirmation Prompts On/Off
Turning confirmation prompts off will stop the system
from confirming your choices (e.g., the UConnect™
system will not repeat a phone number before you dial
it).
•Press the “Phone” button to begin.
•After theReadyprompt and the following beep, say
Setup Confirmations.The UConnect™ system will
play the current confirmation prompt status and you
will be given the choice to change it.
Phone and Network Status Indicators
If available on the radio and/or on a premium display
such as the instrument panel cluster, and supported by
your cell phone, the UConnect™ system will provide
notification to inform you of your phone and network
status when you are attempting to make a phone call
using UConnect™. The status is given for roaming,
network signal strength, phone battery strength, etc.
Dialing Using the Cellular Phone Keypad
You can dial a phone number with your cellular phone
keypad and still use the UConnect™ system (while
dialing via the cell phone keypad, the user must exercise
caution and take precautionary safety measures). By
dialing a number with your paired Bluetooth™ cellular
phone, the audio will be played through your vehicle’s
audio system. The UConnect™ system will work the
same as if you dial the number using voice recognition.
106 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

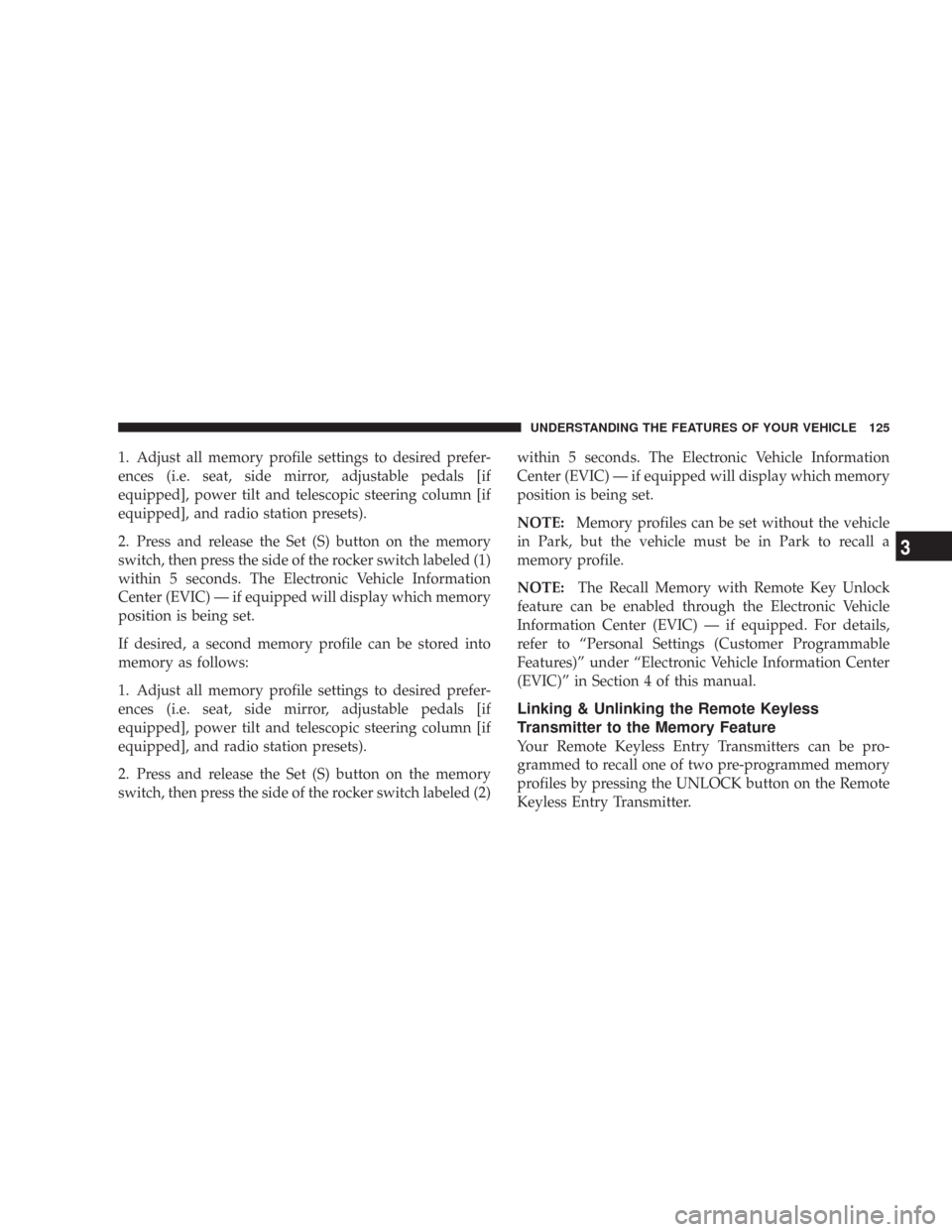

1. Adjust all memory profile settings to desired prefer-
ences (i.e. seat, side mirror, adjustable pedals [if
equipped], power tilt and telescopic steering column [if
equipped], and radio station presets).
2. Press and release the Set (S) button on the memory
switch, then press the side of the rocker switch labeled (1)
within 5 seconds. The Electronic Vehicle Information
Center (EVIC) — if equipped will display which memory
position is being set.
If desired, a second memory profile can be stored into
memory as follows:
1. Adjust all memory profile settings to desired prefer-
ences (i.e. seat, side mirror, adjustable pedals [if
equipped], power tilt and telescopic steering column [if
equipped], and radio station presets).
2. Press and release the Set (S) button on the memory
switch, then press the side of the rocker switch labeled (2)within 5 seconds. The Electronic Vehicle Information
Center (EVIC) — if equipped will display which memory
position is being set.
NOTE:Memory profiles can be set without the vehicle
in Park, but the vehicle must be in Park to recall a
memory profile.
NOTE:The Recall Memory with Remote Key Unlock
feature can be enabled through the Electronic Vehicle
Information Center (EVIC) — if equipped. For details,
refer to “Personal Settings (Customer Programmable
Features)” under “Electronic Vehicle Information Center
(EVIC)” in Section 4 of this manual.
Linking & Unlinking the Remote Keyless
Transmitter to the Memory Feature
Your Remote Keyless Entry Transmitters can be pro-
grammed to recall one of two pre-programmed memory
profiles by pressing the UNLOCK button on the Remote
Keyless Entry Transmitter.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 125
3

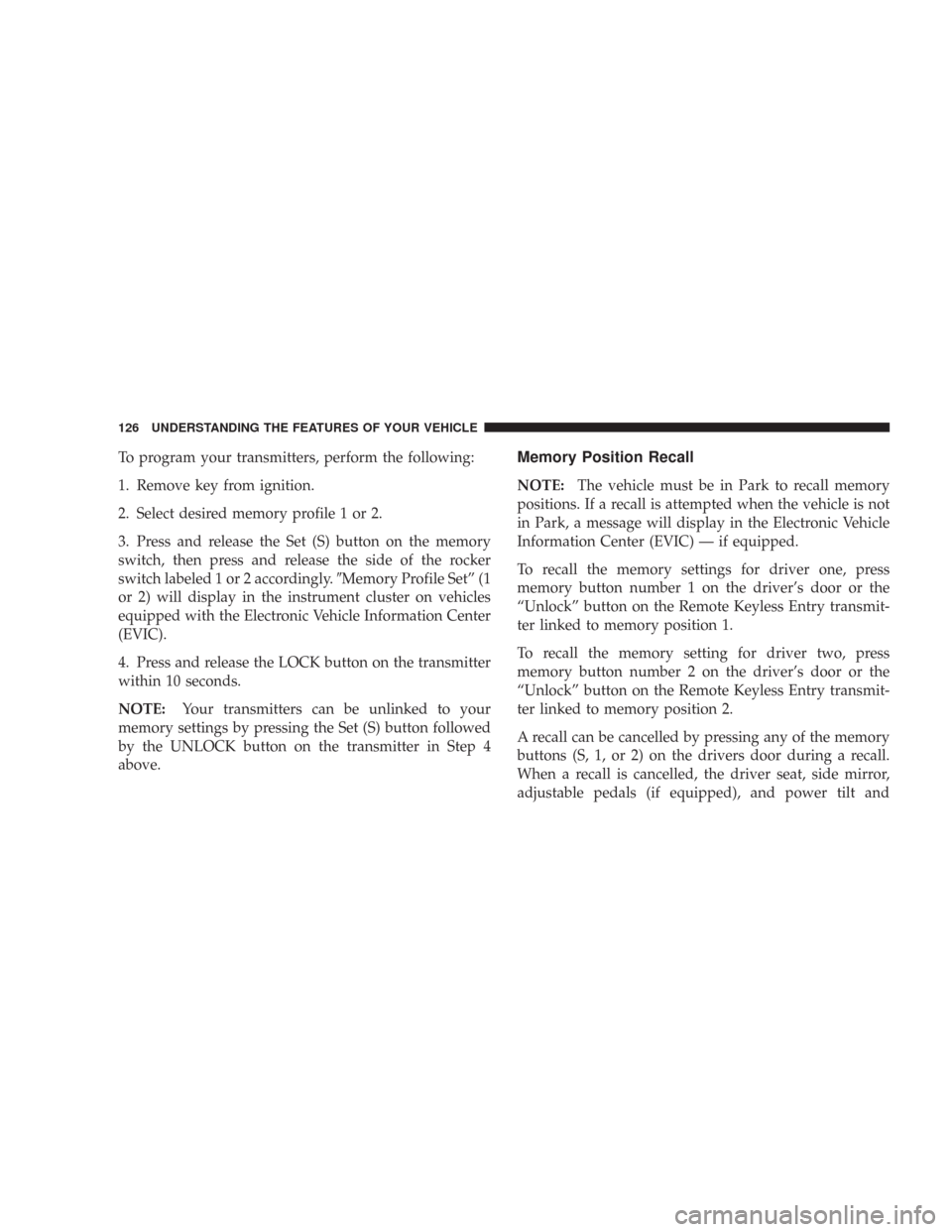

To program your transmitters, perform the following:
1. Remove key from ignition.
2. Select desired memory profile 1 or 2.
3. Press and release the Set (S) button on the memory
switch, then press and release the side of the rocker
switch labeled 1 or 2 accordingly.Memory Profile Set” (1
or 2) will display in the instrument cluster on vehicles
equipped with the Electronic Vehicle Information Center
(EVIC).
4. Press and release the LOCK button on the transmitter
within 10 seconds.
NOTE:Your transmitters can be unlinked to your
memory settings by pressing the Set (S) button followed
by the UNLOCK button on the transmitter in Step 4
above.Memory Position Recall
NOTE:The vehicle must be in Park to recall memory
positions. If a recall is attempted when the vehicle is not
in Park, a message will display in the Electronic Vehicle
Information Center (EVIC) — if equipped.
To recall the memory settings for driver one, press
memory button number 1 on the driver’s door or the
“Unlock” button on the Remote Keyless Entry transmit-
ter linked to memory position 1.
To recall the memory setting for driver two, press
memory button number 2 on the driver’s door or the
“Unlock” button on the Remote Keyless Entry transmit-
ter linked to memory position 2.
A recall can be cancelled by pressing any of the memory
buttons (S, 1, or 2) on the drivers door during a recall.
When a recall is cancelled, the driver seat, side mirror,
adjustable pedals (if equipped), and power tilt and
126 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

because a door is open. This includes the glove box light,
but not the trunk light. To restore interior light operation,
either turn the ignition switch ON or cycle the light
switch.
Dimmer Control
The dimmer control is part of the
headlight switch, and is located on the
left side of the instrument panel. With
the parking lights or headlights on,
rotating the dimmer control upward
will increase the brightness of the in-
strument panel lights and, if so
equipped, the lighting in the door map pockets and cup
holders.
Dome Light Position
Rotate the dimmer control completely upward to the
second detent to turn on the interior lights. The interior
lights will remain on when the dimmer control is in this
position.
Interior light Defeat (OFF)
Rotate the dimmer control to the extreme bottom “OFF”
position. The interior lights will remain off when the
doors are open.
Parade Mode (Daytime Brightness Feature)
Rotate the dimmer control upward to the first detent.
This feature brightens all text displays such as the
odometer, Electronic Vehicle Information Center (EVIC)
— if equipped, and radio when the parking lights or
headlights are on.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 137
3

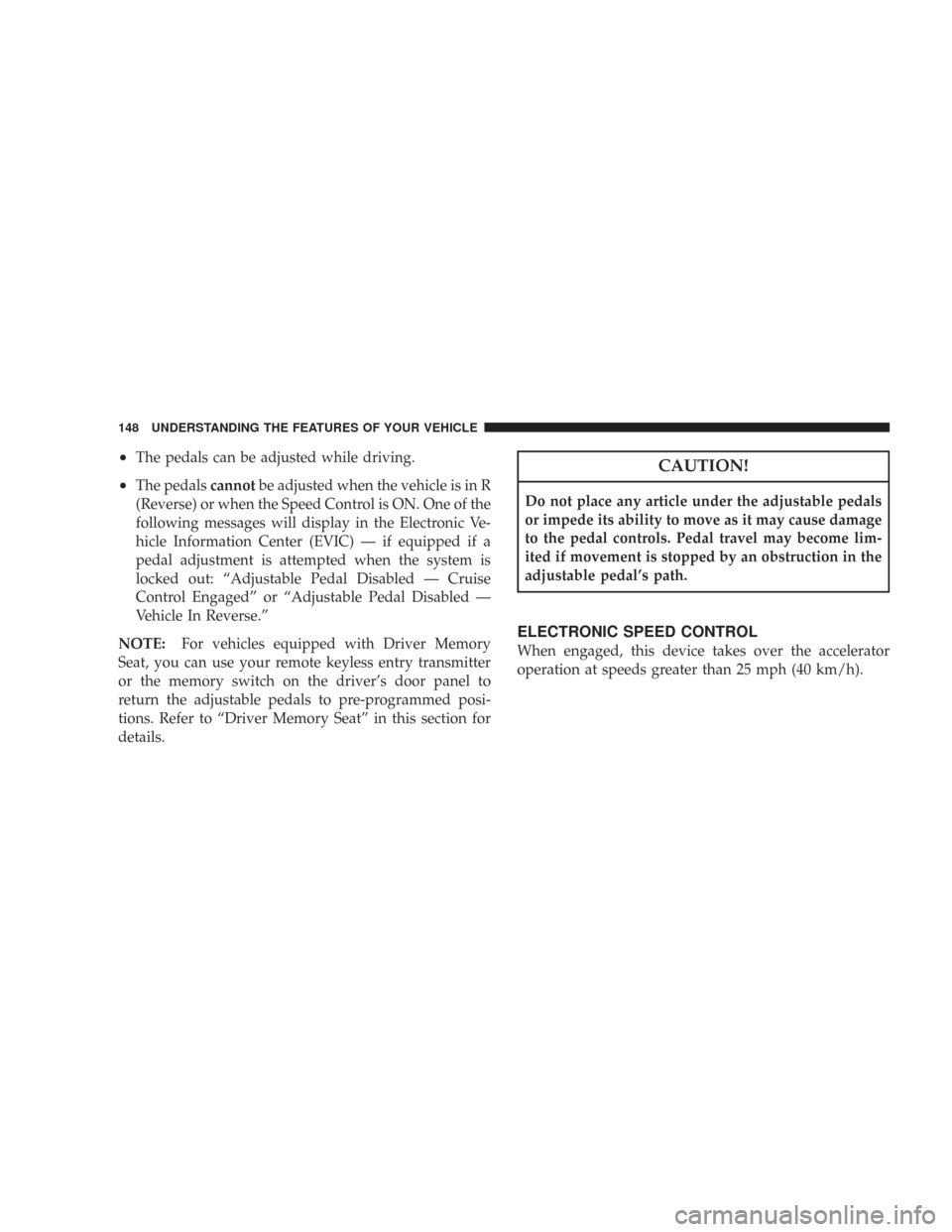

•The pedals can be adjusted while driving.
•The pedalscannotbe adjusted when the vehicle is in R
(Reverse) or when the Speed Control is ON. One of the
following messages will display in the Electronic Ve-
hicle Information Center (EVIC) — if equipped if a
pedal adjustment is attempted when the system is
locked out: “Adjustable Pedal Disabled — Cruise
Control Engaged” or “Adjustable Pedal Disabled —
Vehicle In Reverse.”
NOTE:For vehicles equipped with Driver Memory
Seat, you can use your remote keyless entry transmitter
or the memory switch on the driver’s door panel to
return the adjustable pedals to pre-programmed posi-
tions. Refer to “Driver Memory Seat” in this section for
details.
CAUTION!
Do not place any article under the adjustable pedals
or impede its ability to move as it may cause damage
to the pedal controls. Pedal travel may become lim-
ited if movement is stopped by an obstruction in the
adjustable pedal’s path.
ELECTRONIC SPEED CONTROL
When engaged, this device takes over the accelerator
operation at speeds greater than 25 mph (40 km/h).
148 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
