CHRYSLER 300 2009 1.G User Guide

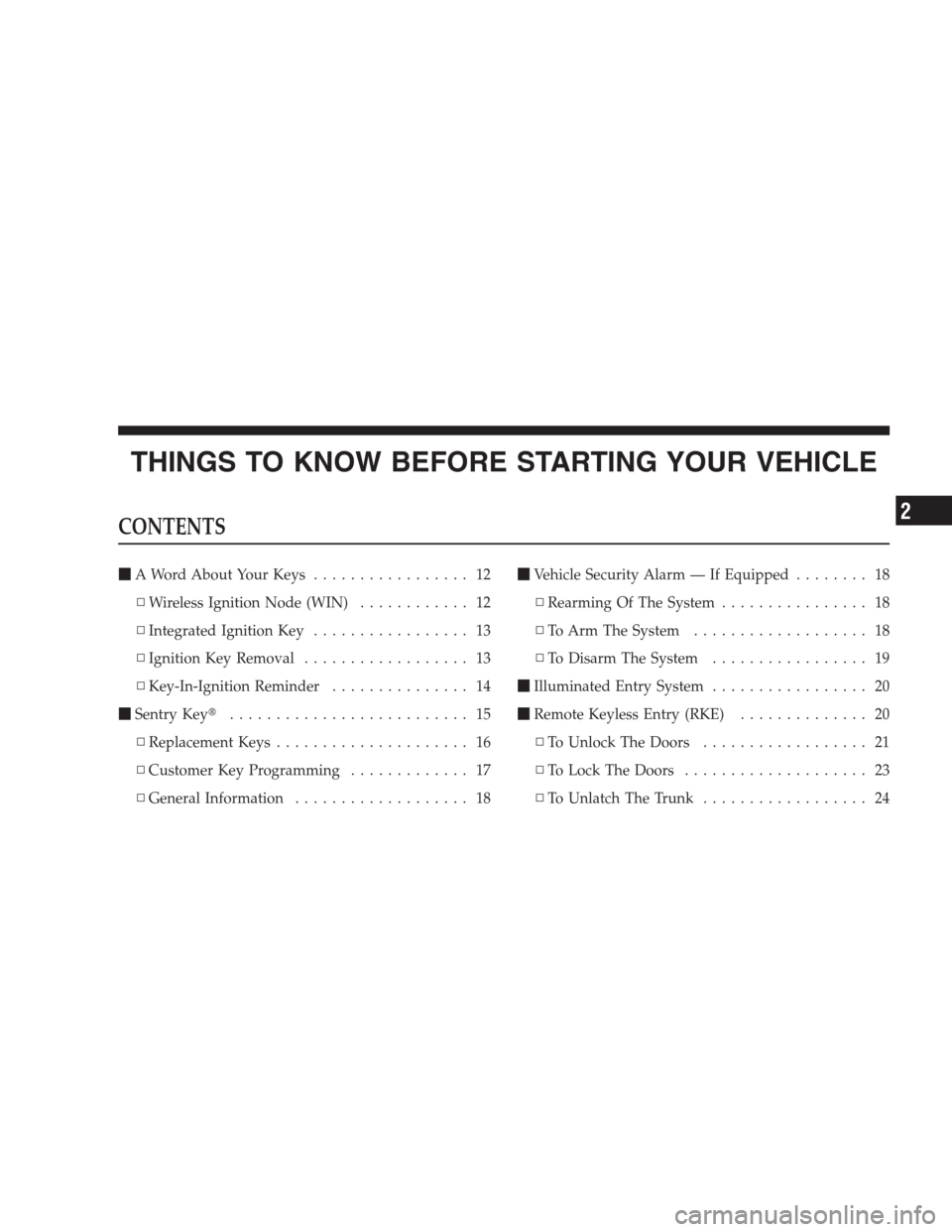

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
A Word About Your Keys................. 12
▫Wireless Ignition Node (WIN)............ 12
▫Integrated Ignition Key................. 13
▫Ignition Key Removal.................. 13
▫Key-In-Ignition Reminder............... 14
Sentry Key.......................... 15
▫Replacement Keys..................... 16
▫Customer Key Programming............. 17
▫General Information................... 18Vehicle Security Alarm — If Equipped........ 18
▫Rearming Of The System................ 18
▫To Arm The System................... 18
▫To Disarm The System................. 19
Illuminated Entry System................. 20
Remote Keyless Entry (RKE).............. 20
▫To Unlock The Doors.................. 21
▫To Lock The Doors.................... 23
▫To Unlatch The Trunk.................. 24
2

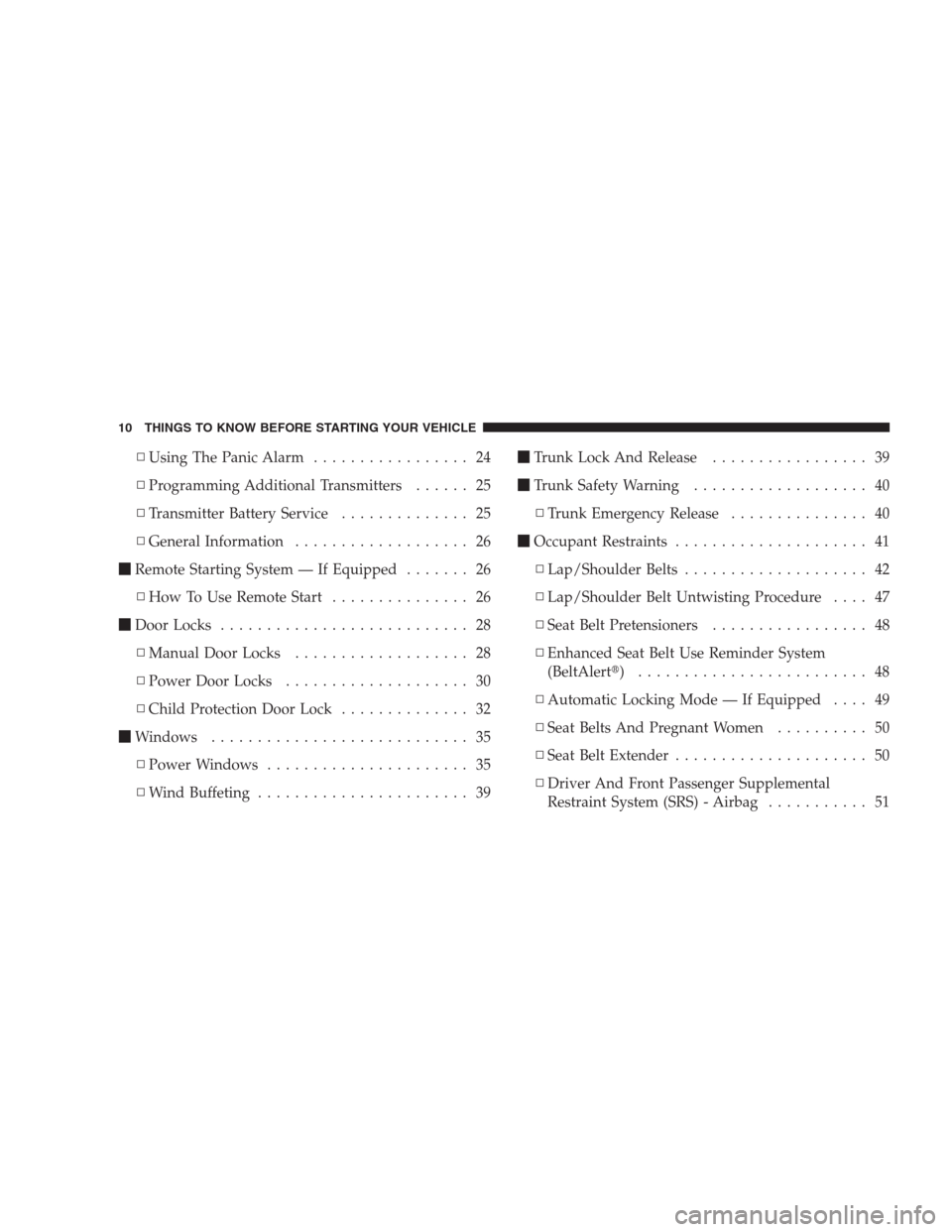

▫Using The Panic Alarm................. 24
▫Programming Additional Transmitters...... 25
▫Transmitter Battery Service.............. 25
▫General Information................... 26
Remote Starting System — If Equipped....... 26
▫How To Use Remote Start............... 26
Door Locks........................... 28
▫Manual Door Locks................... 28
▫Power Door Locks.................... 30
▫Child Protection Door Lock.............. 32
Windows............................ 35
▫Power Windows...................... 35
▫Wind Buffeting....................... 39Trunk Lock And Release................. 39
Trunk Safety Warning................... 40
▫Trunk Emergency Release............... 40
Occupant Restraints..................... 41
▫Lap/Shoulder Belts.................... 42
▫Lap/Shoulder Belt Untwisting Procedure.... 47
▫Seat Belt Pretensioners................. 48
▫Enhanced Seat Belt Use Reminder System
(BeltAlert) ......................... 48
▫Automatic Locking Mode — If Equipped.... 49
▫Seat Belts And Pregnant Women.......... 50
▫Seat Belt Extender..................... 50
▫Driver And Front Passenger Supplemental
Restraint System (SRS) - Airbag........... 51

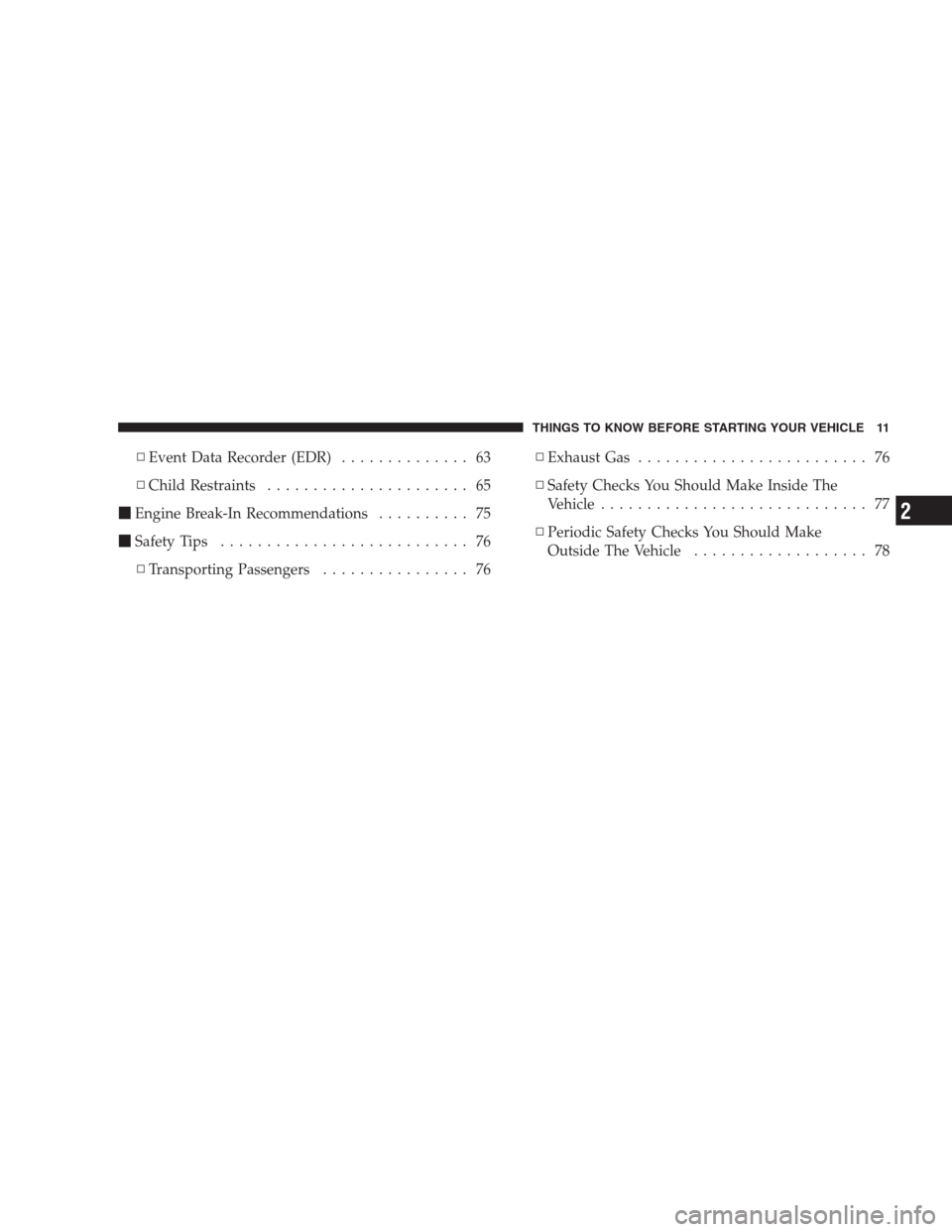

10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

▫Event Data Recorder (EDR).............. 63
▫Child Restraints...................... 65
Engine Break-In Recommendations.......... 75
Safety Tips........................... 76
▫Transporting Passengers................ 76▫Exhaust Gas......................... 76
▫Safety Checks You Should Make Inside The
Vehicle............................. 77
▫Periodic Safety Checks You Should Make
Outside The Vehicle................... 78
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11
2

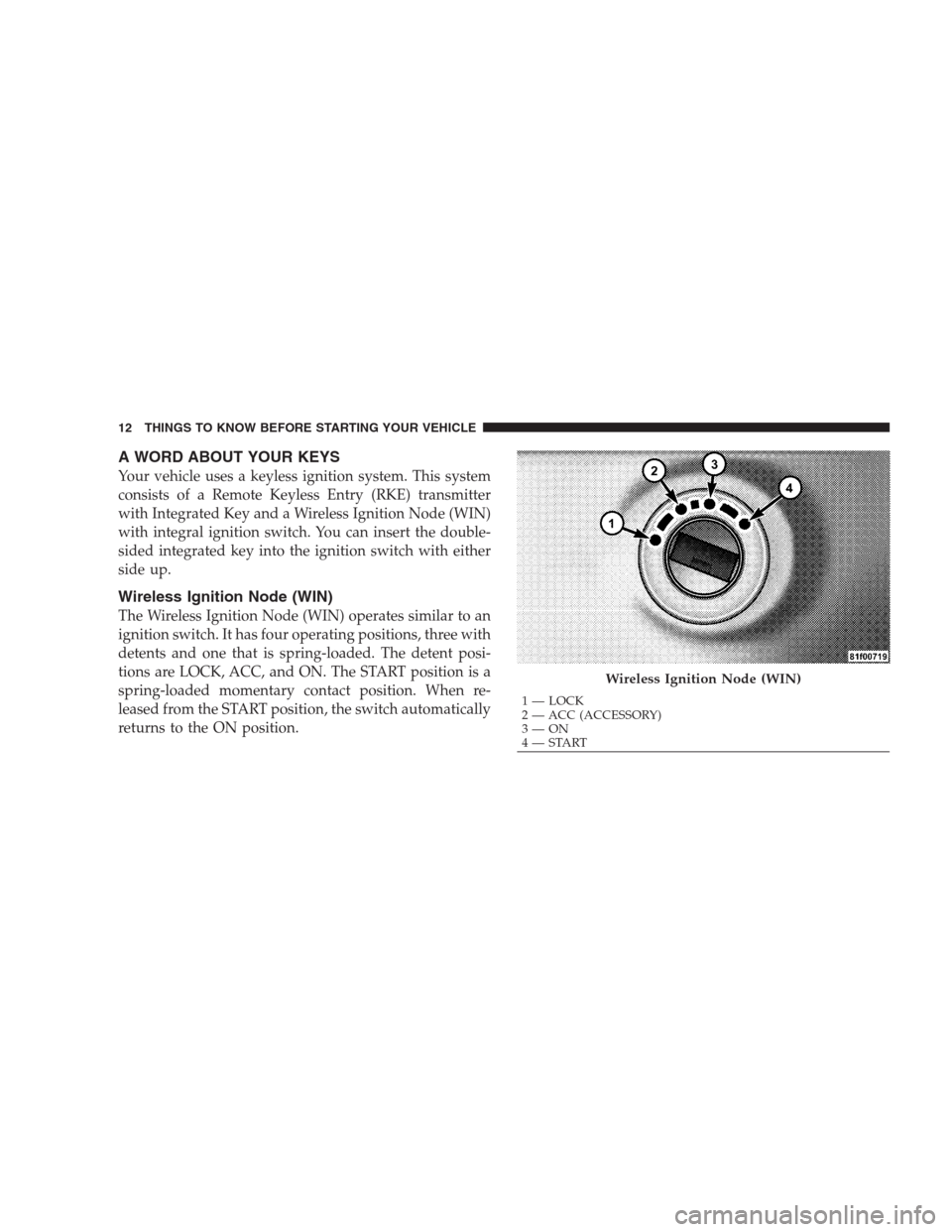

A WORD ABOUT YOUR KEYS
Your vehicle uses a keyless ignition system. This system
consists of a Remote Keyless Entry (RKE) transmitter
with Integrated Key and a Wireless Ignition Node (WIN)
with integral ignition switch. You can insert the double-
sided integrated key into the ignition switch with either
side up.
Wireless Ignition Node (WIN)
The Wireless Ignition Node (WIN) operates similar to an
ignition switch. It has four operating positions, three with
detents and one that is spring-loaded. The detent posi-
tions are LOCK, ACC, and ON. The START position is a
spring-loaded momentary contact position. When re-
leased from the START position, the switch automatically
returns to the ON position.
Wireless Ignition Node (WIN)
1 — LOCK
2 — ACC (ACCESSORY)
3—ON
4 — START 12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

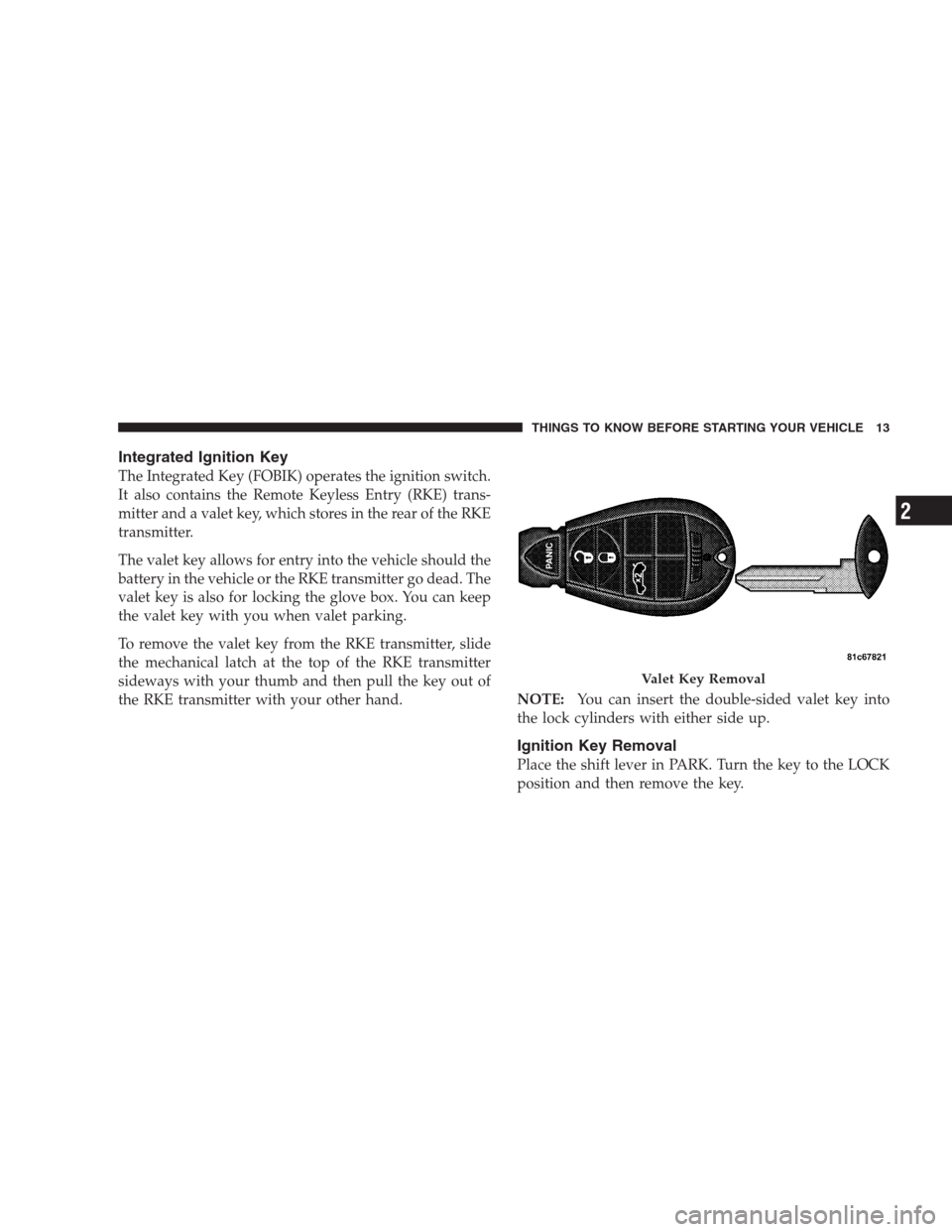

Integrated Ignition Key
The Integrated Key (FOBIK) operates the ignition switch.
It also contains the Remote Keyless Entry (RKE) trans-
mitter and a valet key, which stores in the rear of the RKE
transmitter.
The valet key allows for entry into the vehicle should the
battery in the vehicle or the RKE transmitter go dead. The
valet key is also for locking the glove box. You can keep
the valet key with you when valet parking.
To remove the valet key from the RKE transmitter, slide
the mechanical latch at the top of the RKE transmitter
sideways with your thumb and then pull the key out of
the RKE transmitter with your other hand.NOTE:You can insert the double-sided valet key into
the lock cylinders with either side up.
Ignition Key Removal
Place the shift lever in PARK. Turn the key to the LOCK
position and then remove the key.
Valet Key Removal
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13
2

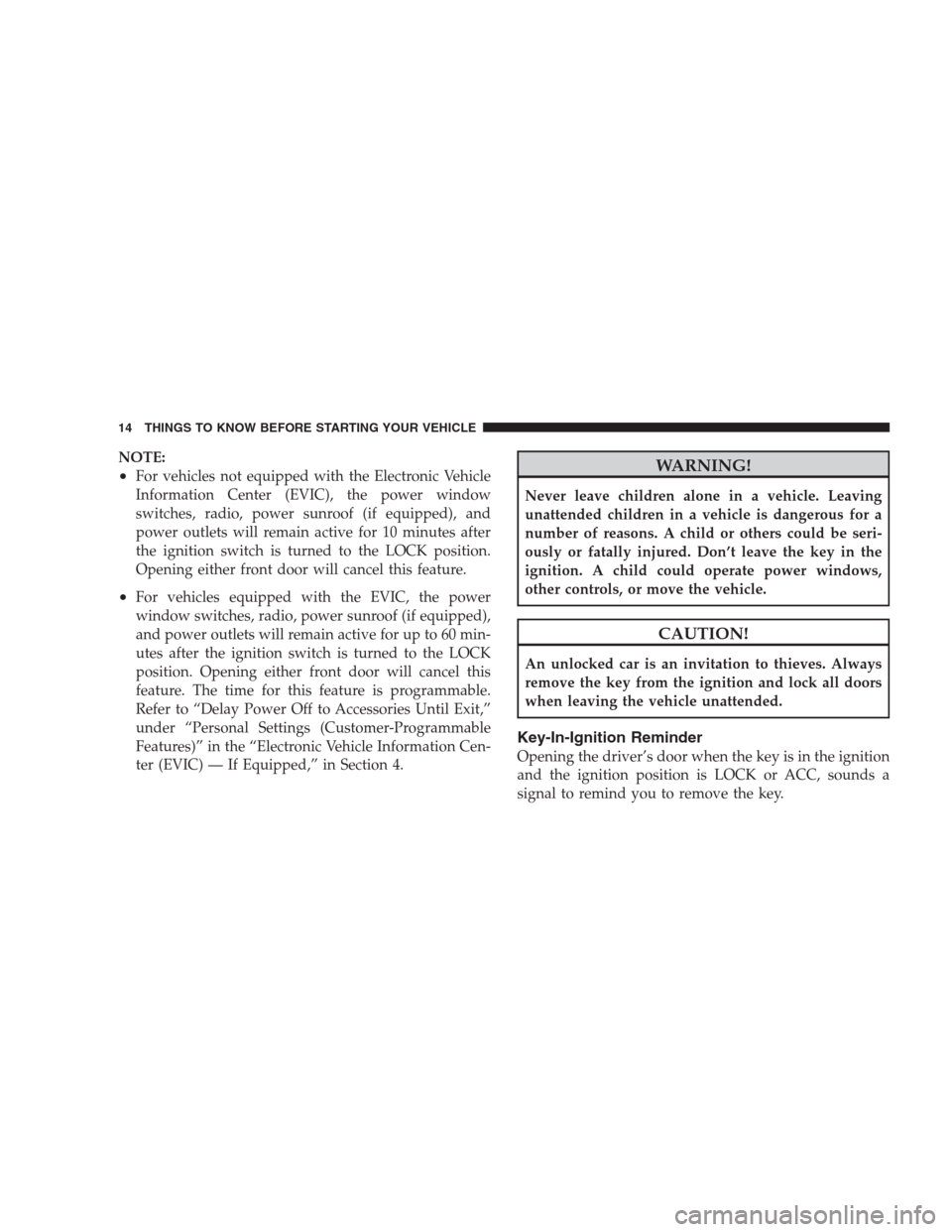

NOTE:
•For vehicles not equipped with the Electronic Vehicle
Information Center (EVIC), the power window
switches, radio, power sunroof (if equipped), and
power outlets will remain active for 10 minutes after
the ignition switch is turned to the LOCK position.
Opening either front door will cancel this feature.
•For vehicles equipped with the EVIC, the power
window switches, radio, power sunroof (if equipped),
and power outlets will remain active for up to 60 min-
utes after the ignition switch is turned to the LOCK
position. Opening either front door will cancel this
feature. The time for this feature is programmable.
Refer to “Delay Power Off to Accessories Until Exit,”
under “Personal Settings (Customer-Programmable
Features)” in the “Electronic Vehicle Information Cen-
ter (EVIC) — If Equipped,” in Section 4.
WARNING!
Never leave children alone in a vehicle. Leaving
unattended children in a vehicle is dangerous for a
number of reasons. A child or others could be seri-
ously or fatally injured. Don’t leave the key in the
ignition. A child could operate power windows,
other controls, or move the vehicle.
CAUTION!
An unlocked car is an invitation to thieves. Always
remove the key from the ignition and lock all doors
when leaving the vehicle unattended.
Key-In-Ignition Reminder
Opening the driver’s door when the key is in the ignition
and the ignition position is LOCK or ACC, sounds a
signal to remind you to remove the key.
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:The Key-In-Ignition reminder only sounds
when the ignition key is placed in the LOCK or ACC
position.
SENTRY KEY
The Sentry KeyImmobilizer system prevents unautho-
rized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
The system uses the factory-mated Remote Keyless Entry
(RKE) transmitter with integrated key and Wireless Igni-
tion Node (WIN) to prevent unauthorized vehicle opera-
tion. Therefore, only RKE transmitters that are pro-
grammed to the vehicle can be used to start and operate
the vehicle. The system will shut the engine off in two
seconds if an invalid RKE transmitter is used to start the
engine.After turning the ignition switch to the ON position, the
Vehicle Security Light will turn on for three seconds for a
bulb check. If the light remains on after the bulb check, it
indicates that there is a problem with the electronics. In
addition, if the light begins to flash after the bulb check,
it indicates that someone used an invalid RKE transmitter
to start the engine. Either of these conditions will result in
the engine being shut off after two seconds.
If the Vehicle Security Light turns on during normal
vehicle operation (vehicle running for longer than 10 sec-
onds), it indicates that there is a fault in the electronics.
Should this occur, have the vehicle serviced as soon as
possible.
NOTE:
•The Sentry KeyImmobilizer system is not compatible
with aftermarket remote starting systems. Use of these
systems may result in vehicle starting problems and
loss of security protection.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15
2

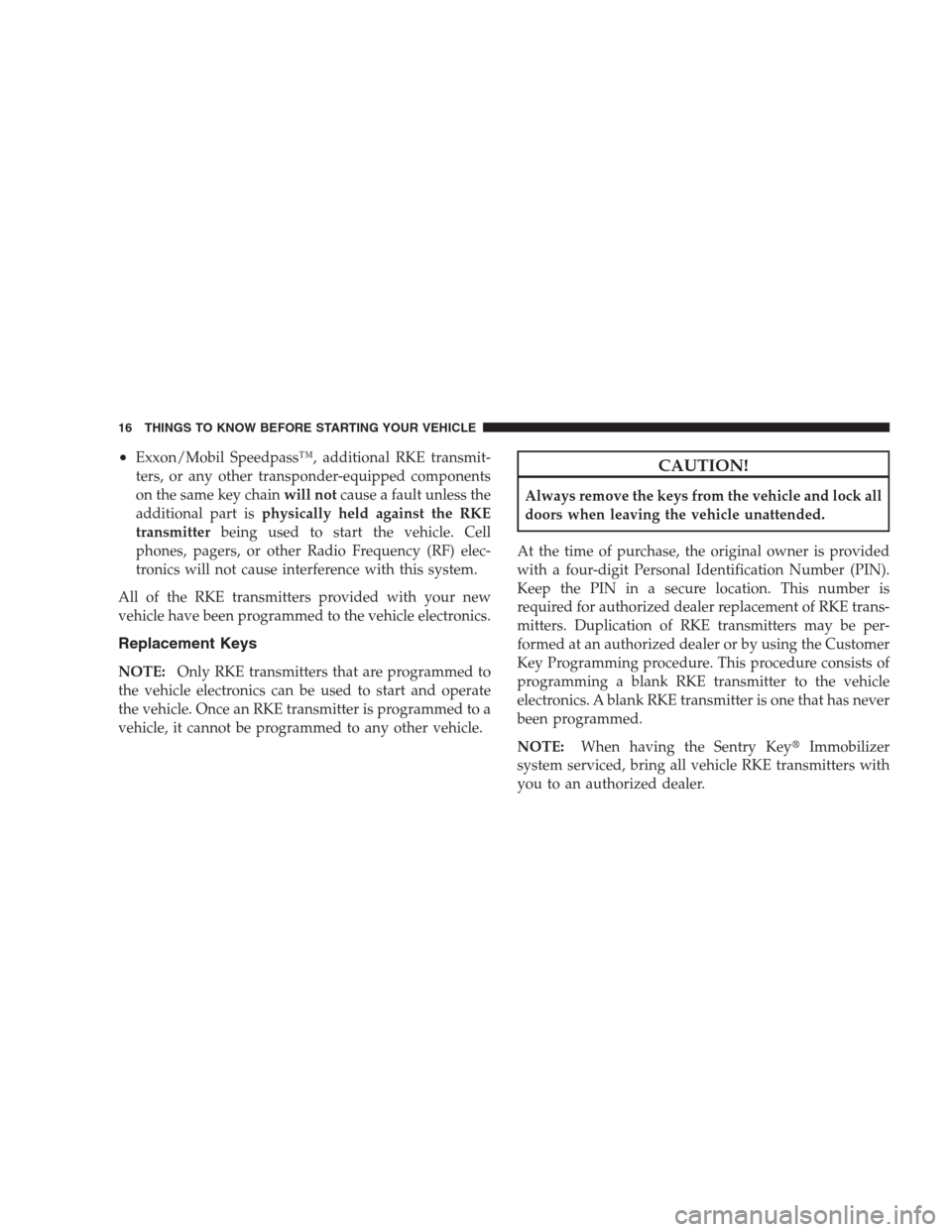

•Exxon/Mobil Speedpass™, additional RKE transmit-
ters, or any other transponder-equipped components
on the same key chainwill notcause a fault unless the
additional part isphysically held against the RKE
transmitterbeing used to start the vehicle. Cell
phones, pagers, or other Radio Frequency (RF) elec-
tronics will not cause interference with this system.
All of the RKE transmitters provided with your new
vehicle have been programmed to the vehicle electronics.
Replacement Keys
NOTE:Only RKE transmitters that are programmed to
the vehicle electronics can be used to start and operate
the vehicle. Once an RKE transmitter is programmed to a
vehicle, it cannot be programmed to any other vehicle.
CAUTION!
Always remove the keys from the vehicle and lock all
doors when leaving the vehicle unattended.
At the time of purchase, the original owner is provided
with a four-digit Personal Identification Number (PIN).
Keep the PIN in a secure location. This number is
required for authorized dealer replacement of RKE trans-
mitters. Duplication of RKE transmitters may be per-
formed at an authorized dealer or by using the Customer
Key Programming procedure. This procedure consists of
programming a blank RKE transmitter to the vehicle
electronics. A blank RKE transmitter is one that has never
been programmed.
NOTE:When having the Sentry KeyImmobilizer
system serviced, bring all vehicle RKE transmitters with
you to an authorized dealer.
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

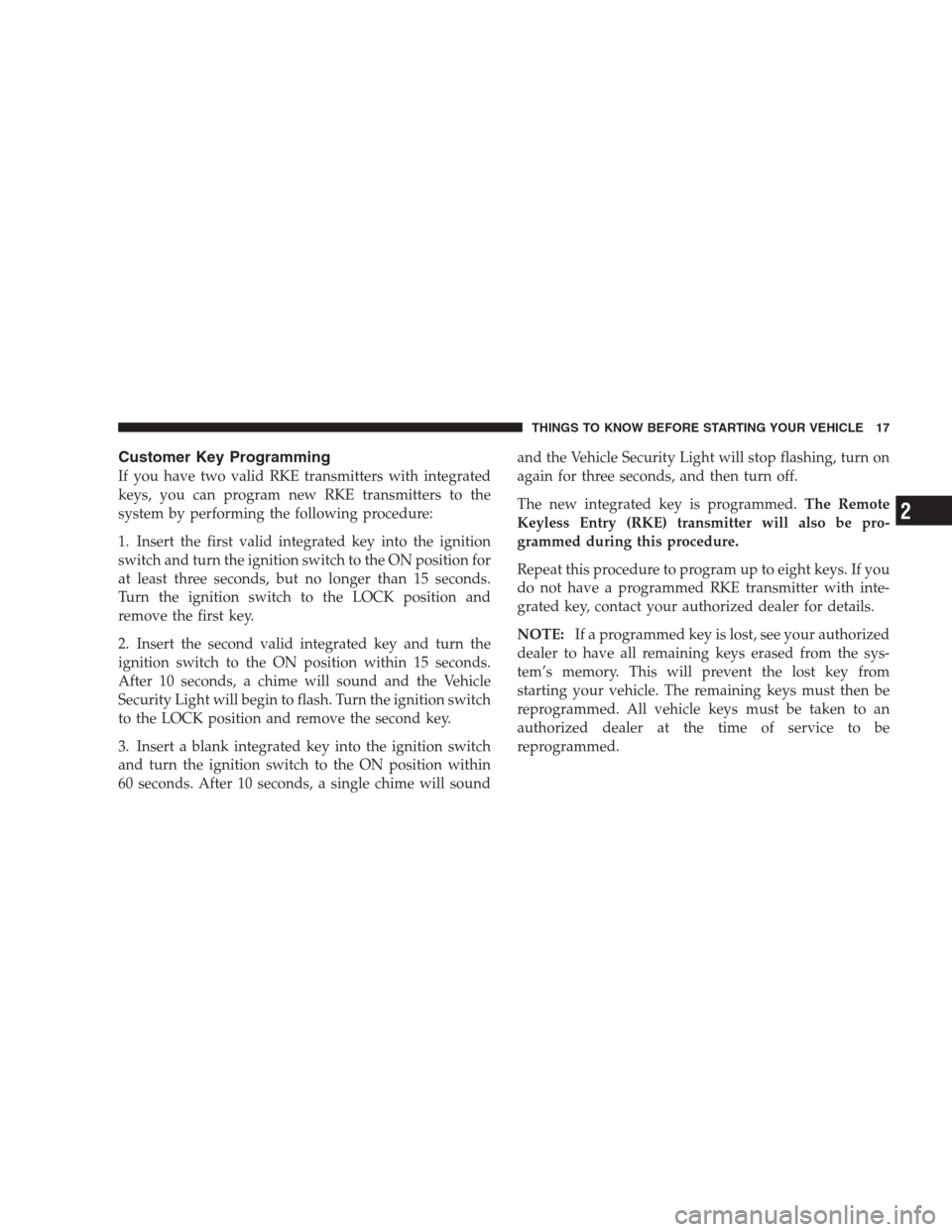

Customer Key Programming
If you have two valid RKE transmitters with integrated
keys, you can program new RKE transmitters to the
system by performing the following procedure:
1. Insert the first valid integrated key into the ignition
switch and turn the ignition switch to the ON position for
at least three seconds, but no longer than 15 seconds.
Turn the ignition switch to the LOCK position and
remove the first key.
2. Insert the second valid integrated key and turn the
ignition switch to the ON position within 15 seconds.
After 10 seconds, a chime will sound and the Vehicle
Security Light will begin to flash. Turn the ignition switch
to the LOCK position and remove the second key.
3. Insert a blank integrated key into the ignition switch
and turn the ignition switch to the ON position within
60 seconds. After 10 seconds, a single chime will soundand the Vehicle Security Light will stop flashing, turn on
again for three seconds, and then turn off.
The new integrated key is programmed.The Remote
Keyless Entry (RKE) transmitter will also be pro-
grammed during this procedure.
Repeat this procedure to program up to eight keys. If you
do not have a programmed RKE transmitter with inte-
grated key, contact your authorized dealer for details.
NOTE:If a programmed key is lost, see your authorized
dealer to have all remaining keys erased from the sys-
tem’s memory. This will prevent the lost key from
starting your vehicle. The remaining keys must then be
reprogrammed. All vehicle keys must be taken to an
authorized dealer at the time of service to be
reprogrammed.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17
2

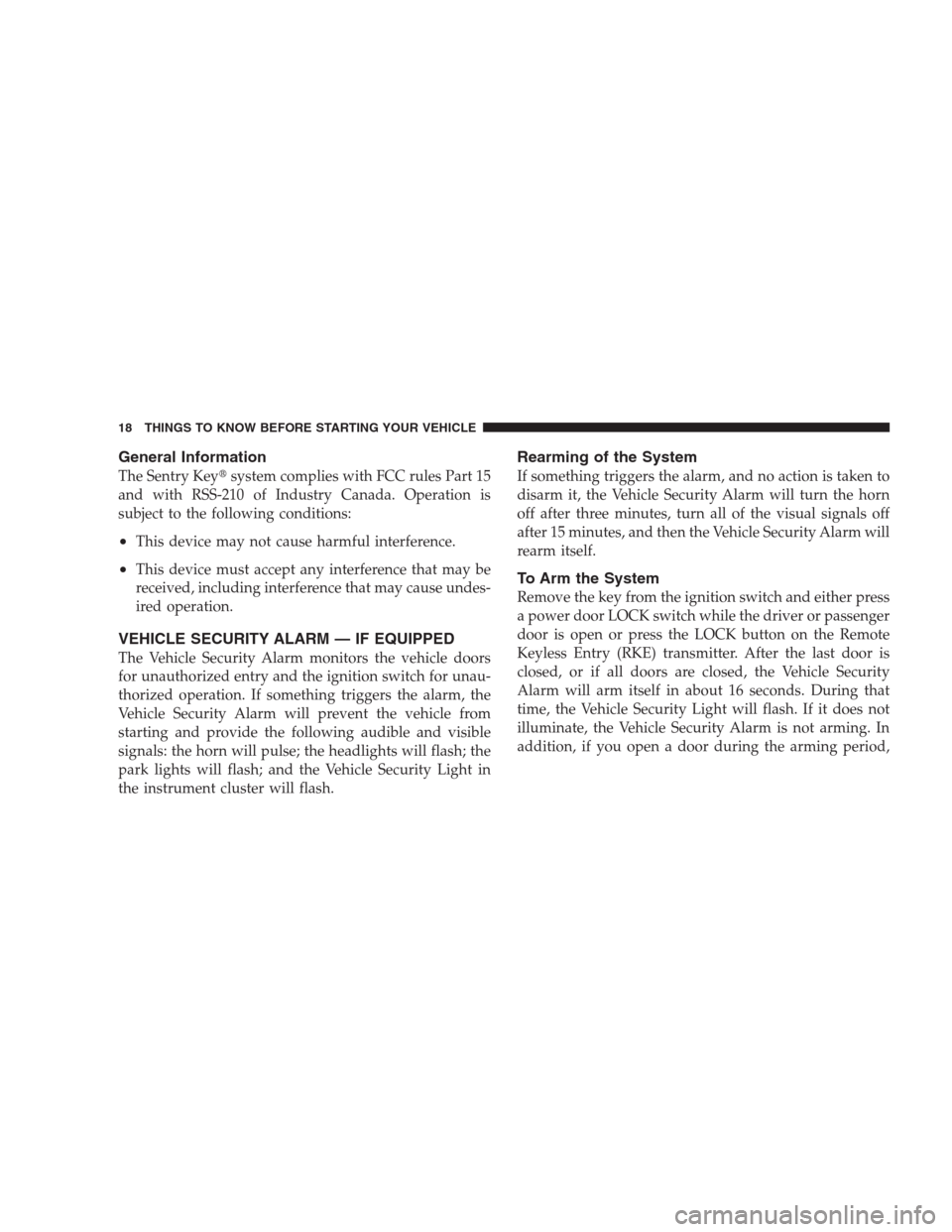

General Information
The Sentry Keysystem complies with FCC rules Part 15
and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:
•This device may not cause harmful interference.
•This device must accept any interference that may be
received, including interference that may cause undes-
ired operation.
VEHICLE SECURITY ALARM — IF EQUIPPED
The Vehicle Security Alarm monitors the vehicle doors
for unauthorized entry and the ignition switch for unau-
thorized operation. If something triggers the alarm, the
Vehicle Security Alarm will prevent the vehicle from
starting and provide the following audible and visible
signals: the horn will pulse; the headlights will flash; the
park lights will flash; and the Vehicle Security Light in
the instrument cluster will flash.
Rearming of the System
If something triggers the alarm, and no action is taken to
disarm it, the Vehicle Security Alarm will turn the horn
off after three minutes, turn all of the visual signals off
after 15 minutes, and then the Vehicle Security Alarm will
rearm itself.
To Arm the System
Remove the key from the ignition switch and either press
a power door LOCK switch while the driver or passenger
door is open or press the LOCK button on the Remote
Keyless Entry (RKE) transmitter. After the last door is
closed, or if all doors are closed, the Vehicle Security
Alarm will arm itself in about 16 seconds. During that
time, the Vehicle Security Light will flash. If it does not
illuminate, the Vehicle Security Alarm is not arming. In
addition, if you open a door during the arming period,
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
