CHRYSLER 300 2009 1.G Owners Manual

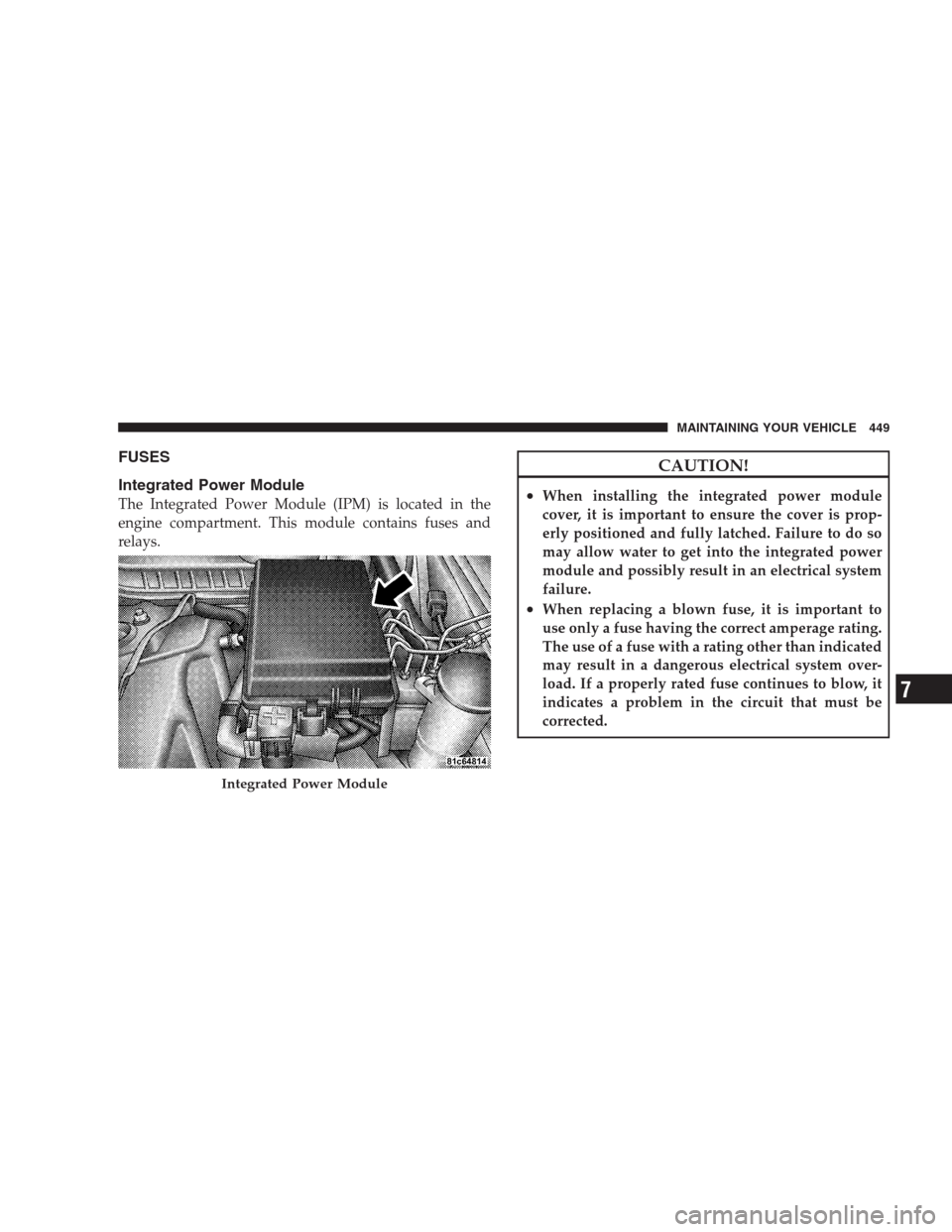

FUSES
Integrated Power Module
The Integrated Power Module (IPM) is located in the
engine compartment. This module contains fuses and
relays.
CAUTION!
•When installing the integrated power module
cover, it is important to ensure the cover is prop-
erly positioned and fully latched. Failure to do so
may allow water to get into the integrated power
module and possibly result in an electrical system
failure.
•When replacing a blown fuse, it is important to
use only a fuse having the correct amperage rating.
The use of a fuse with a rating other than indicated
may result in a dangerous electrical system over-
load. If a properly rated fuse continues to blow, it
indicates a problem in the circuit that must be
corrected.
Integrated Power Module
MAINTAINING YOUR VEHICLE 449
7

Cav-
ityCartridge
FuseMini-
FuseDescription
1 — 15 Amp
BlueWasher Motor
2 — 25 Amp
NeutralPowertrain Control Mod-
ule (PCM)
3 — 25 Amp
NeutralIgnition Run/Start
4 — 25 Amp
NeutralAlternator/EGR Solenoid
5— — —
6 — 25 Amp
NeutralIgnition Coils/Injectors/
Short Runner Valve
7— — —
8 — 25 Amp
NeutralStarter
9— — —Cav-
ityCartridge
FuseMini-
FuseDescription
10 30 Amp
Pink— Windshield Wiper
11 30 Amp
Pink— Anti-Lock Brake System
(ABS) Valves - If
Equipped
12 40 Amp
Green— Radiator Fan
13 50 Amp
Red— Anti-Lock Brake System
(ABS) Pump Motor - If
Equipped
14 — — —
15 50 Amp
Red— Radiator Fan
16 — — —
17 — — —
18 — — —
450 MAINTAINING YOUR VEHICLE

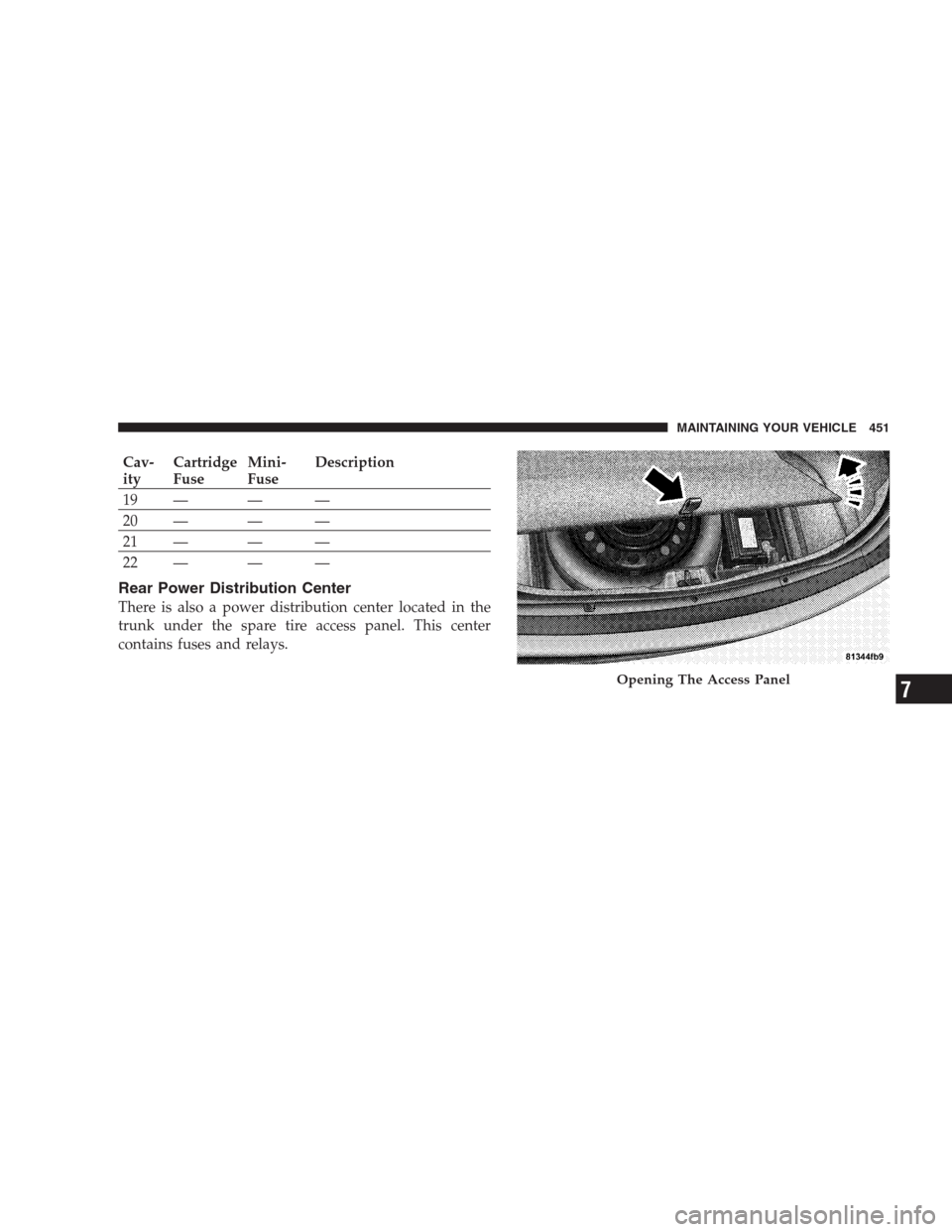

Cav-
ityCartridge
FuseMini-
FuseDescription
19 — — —
20 — — —
21 — — —
22 — — —
Rear Power Distribution Center
There is also a power distribution center located in the
trunk under the spare tire access panel. This center
contains fuses and relays.
Opening The Access Panel
MAINTAINING YOUR VEHICLE 451
7

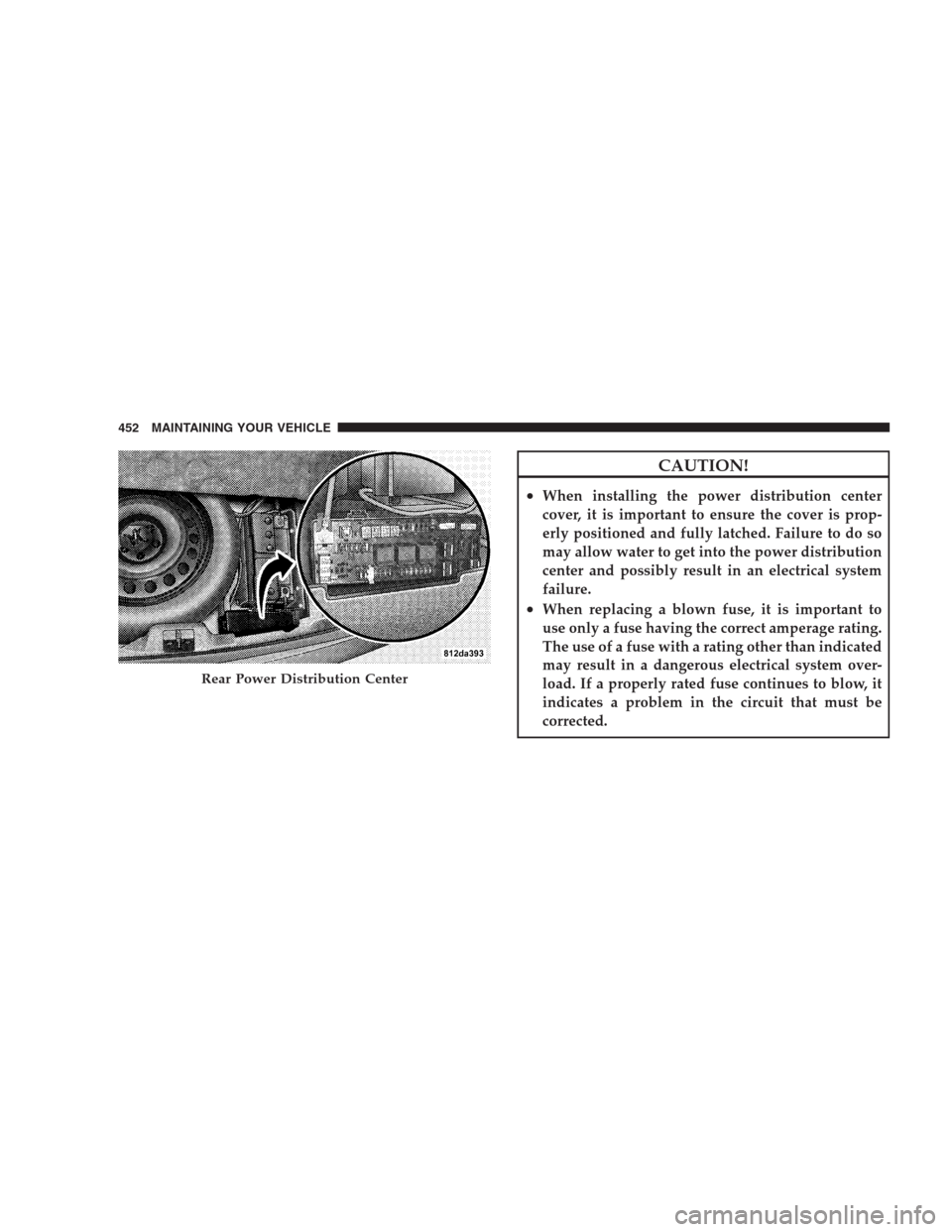

CAUTION!
•When installing the power distribution center
cover, it is important to ensure the cover is prop-
erly positioned and fully latched. Failure to do so
may allow water to get into the power distribution
center and possibly result in an electrical system
failure.
•When replacing a blown fuse, it is important to
use only a fuse having the correct amperage rating.
The use of a fuse with a rating other than indicated
may result in a dangerous electrical system over-
load. If a properly rated fuse continues to blow, it
indicates a problem in the circuit that must be
corrected.
Rear Power Distribution Center
452 MAINTAINING YOUR VEHICLE

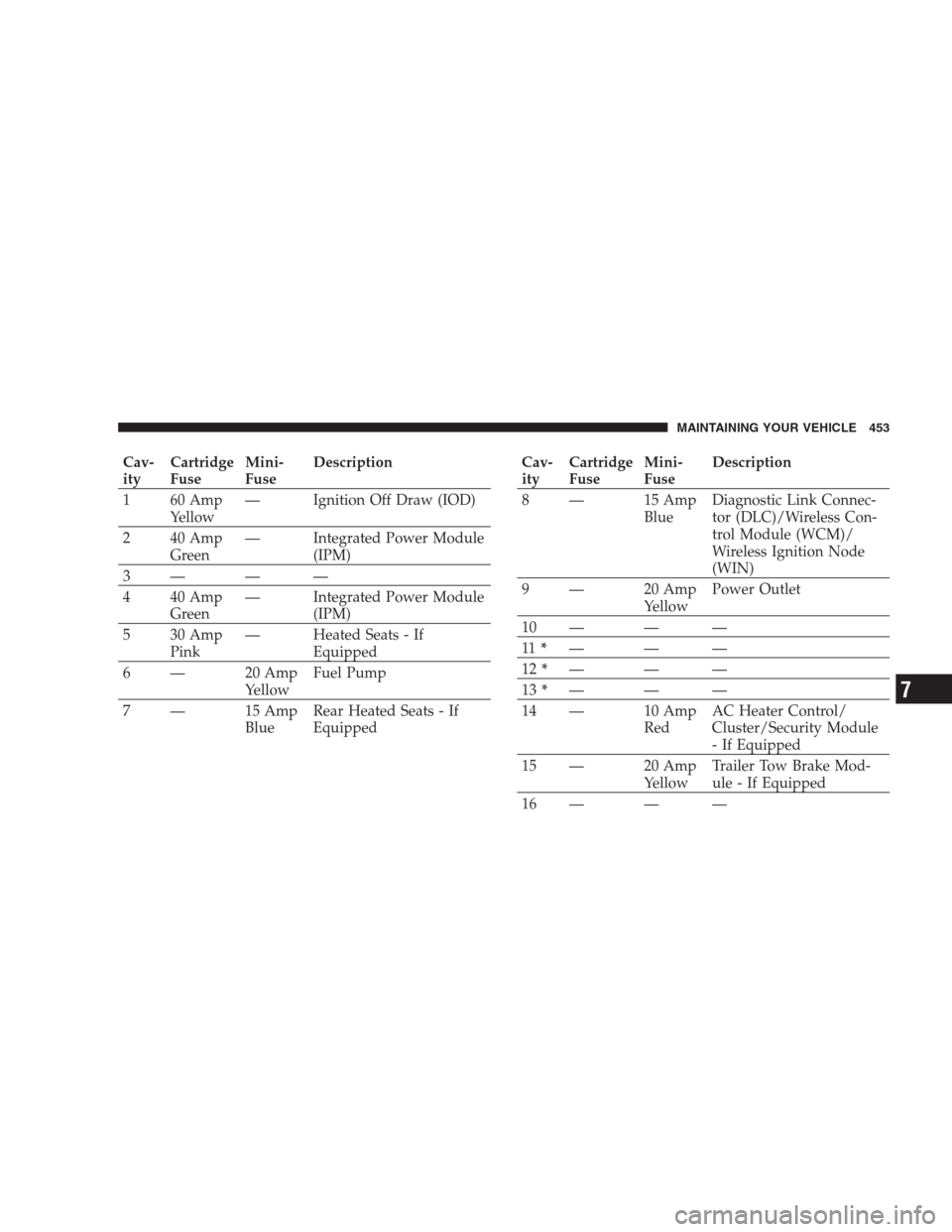

Cav-
ityCartridge
FuseMini-
FuseDescription
1 60 Amp
Yellow— Ignition Off Draw (IOD)
2 40 Amp
Green— Integrated Power Module
(IPM)
3— — —
4 40 Amp
Green— Integrated Power Module
(IPM)
5 30 Amp
Pink— Heated Seats - If
Equipped
6 — 20 Amp
YellowFuel Pump
7 — 15 Amp
BlueRear Heated Seats - If
EquippedCav-
ityCartridge
FuseMini-
FuseDescription
8 — 15 Amp
BlueDiagnostic Link Connec-
tor (DLC)/Wireless Con-
trol Module (WCM)/
Wireless Ignition Node
(WIN)
9 — 20 Amp
YellowPower Outlet
10 — — —
11*———
12*———
13*———
14 — 10 Amp
RedAC Heater Control/
Cluster/Security Module
- If Equipped
15 — 20 Amp
YellowTrailer Tow Brake Mod-
ule - If Equipped
16 — — —
MAINTAINING YOUR VEHICLE 453
7

Cav-
ityCartridge
FuseMini-
FuseDescription
17 — 20 Amp
YellowCluster
18 — 20 Amp
YellowSelectable Power Outlet
19 — 10 Amp
RedStop Lights
20 — — —
21 — — —
22 — — —
23 — — —
24 — — —
25 — — —
26 — — —
27 — 10 Amp
RedOccupant Restraint Con-
troller (ORC)Cav-
ityCartridge
FuseMini-
FuseDescription
28 — 10 Amp
RedIgnition Run
29 — 5 Amp
OrangeAdaptive Cruise Control
(ACC) - If Equipped/
Cluster/Electronic Stabil-
ity Program (ESP) - If
Equipped/Powertrain
Control Module (PCM)/
STOP LIGHT Switch
30 — 10 Amp
RedDoor Modules/Power
Mirrors/Steering Control
Module (SCM)
31 — — —
32 — — —
33 — — —
34 — — —
454 MAINTAINING YOUR VEHICLE

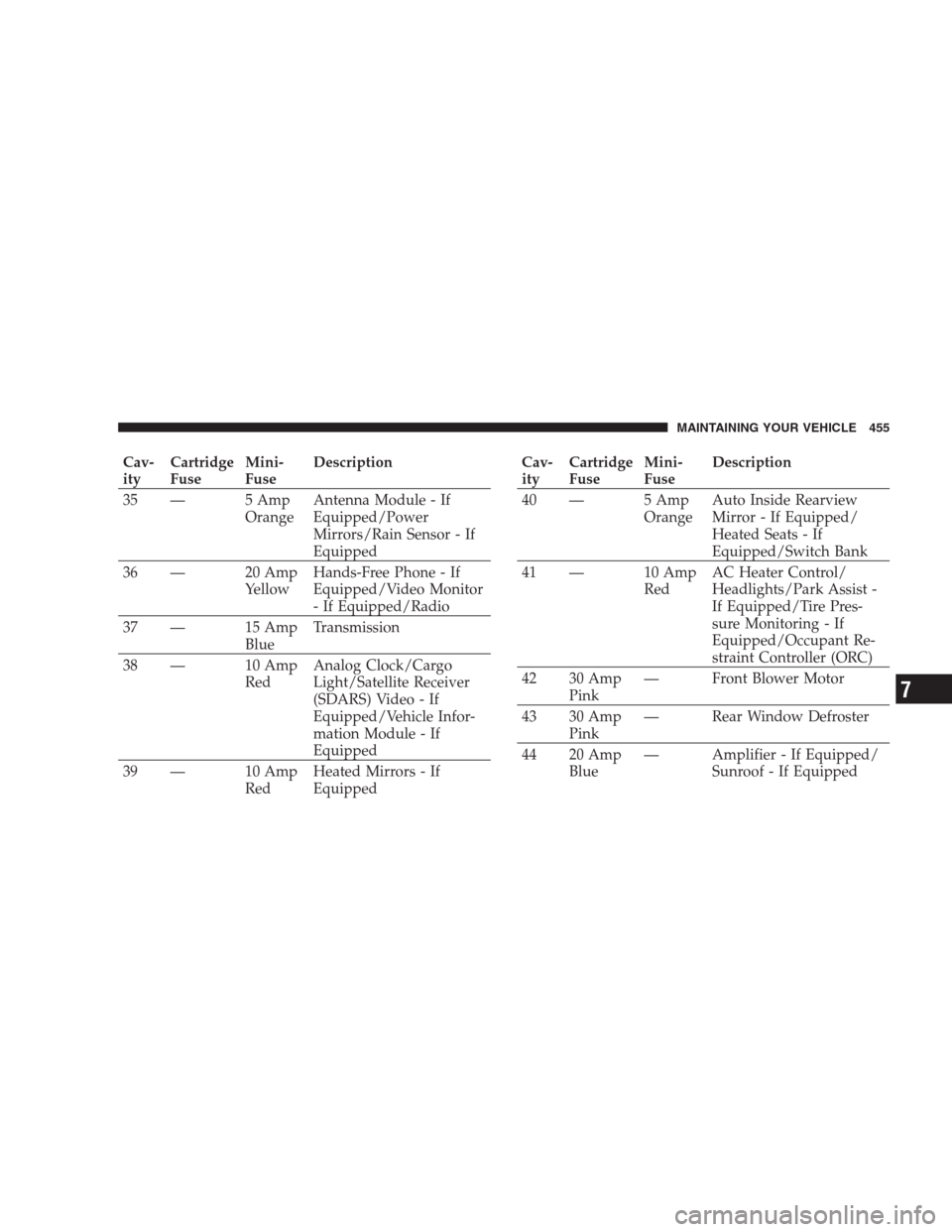

Cav-
ityCartridge
FuseMini-
FuseDescription
35 — 5 Amp
OrangeAntenna Module - If
Equipped/Power
Mirrors/Rain Sensor - If
Equipped
36 — 20 Amp
YellowHands-Free Phone - If
Equipped/Video Monitor
- If Equipped/Radio
37 — 15 Amp
BlueTransmission
38 — 10 Amp
RedAnalog Clock/Cargo
Light/Satellite Receiver
(SDARS) Video - If
Equipped/Vehicle Infor-
mation Module - If
Equipped
39 — 10 Amp
RedHeated Mirrors - If
EquippedCav-
ityCartridge
FuseMini-
FuseDescription
40 — 5 Amp
OrangeAuto Inside Rearview
Mirror - If Equipped/
Heated Seats - If
Equipped/Switch Bank
41 — 10 Amp
RedAC Heater Control/
Headlights/Park Assist -
If Equipped/Tire Pres-
sure Monitoring - If
Equipped/Occupant Re-
straint Controller (ORC)
42 30 Amp
Pink— Front Blower Motor
43 30 Amp
Pink— Rear Window Defroster
44 20 Amp
Blue— Amplifier - If Equipped/
Sunroof - If Equipped
MAINTAINING YOUR VEHICLE 455
7

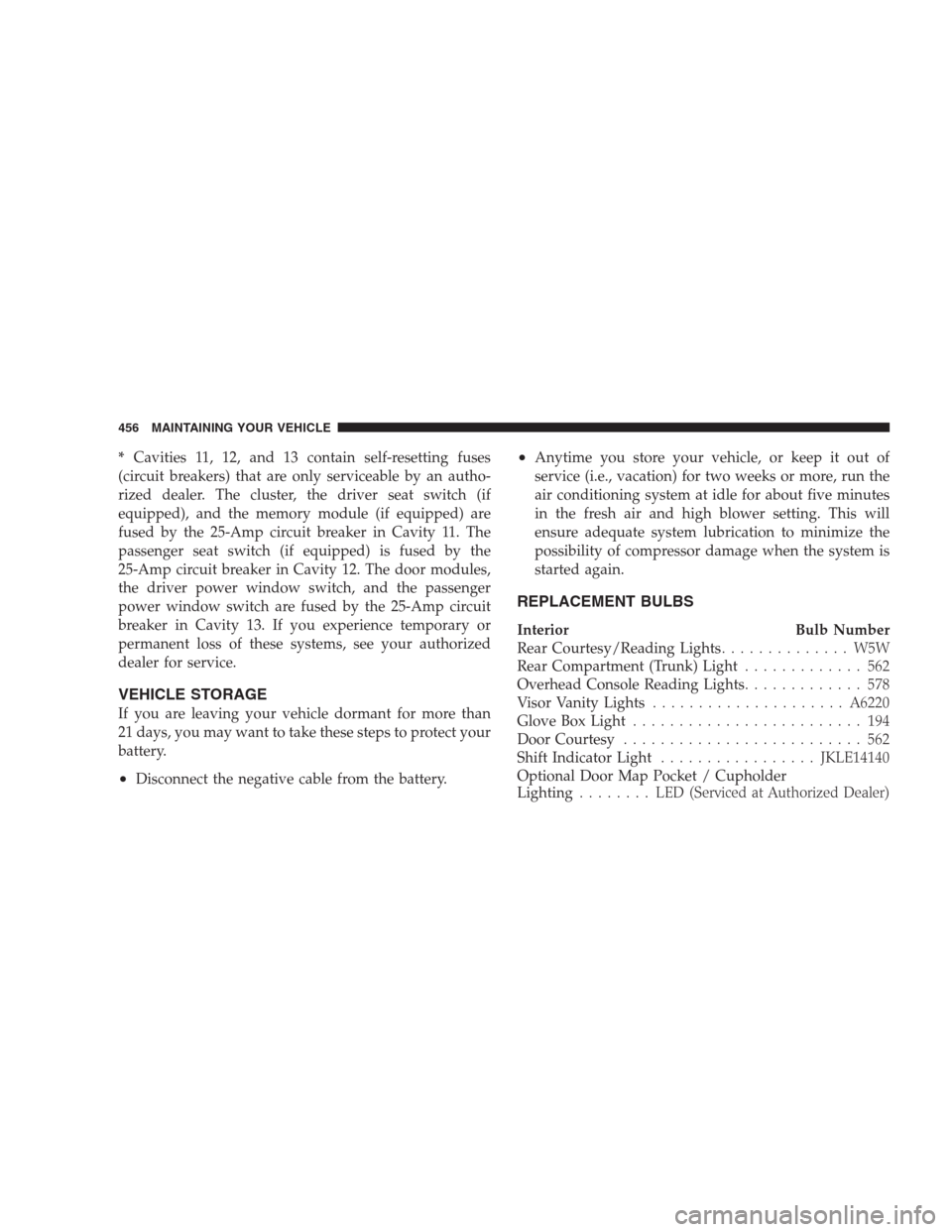

*Cavities 11, 12, and 13 contain self-resetting fuses
(circuit breakers) that are only serviceable by an autho-
rized dealer. The cluster, the driver seat switch (if
equipped), and the memory module (if equipped) are
fused by the 25-Amp circuit breaker in Cavity 11. The
passenger seat switch (if equipped) is fused by the
25-Amp circuit breaker in Cavity 12. The door modules,
the driver power window switch, and the passenger
power window switch are fused by the 25-Amp circuit
breaker in Cavity 13. If you experience temporary or
permanent loss of these systems, see your authorized
dealer for service.
VEHICLE STORAGE
If you are leaving your vehicle dormant for more than
21 days, you may want to take these steps to protect your
battery.
•Disconnect the negative cable from the battery.
•Anytime you store your vehicle, or keep it out of
service (i.e., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
REPLACEMENT BULBS
Interior Bulb Number
Rear Courtesy/Reading Lights.............. W5W
Rear Compartment (Trunk) Light............. 562
Overhead Console Reading Lights............. 578
Visor Vanity Lights.....................A6220
Glove Box Light......................... 194
Door Courtesy.......................... 562
Shift Indicator Light.................JKLE14140
Optional Door Map Pocket / Cupholder
Lighting........ LED(Serviced at Authorized Dealer)
456 MAINTAINING YOUR VEHICLE

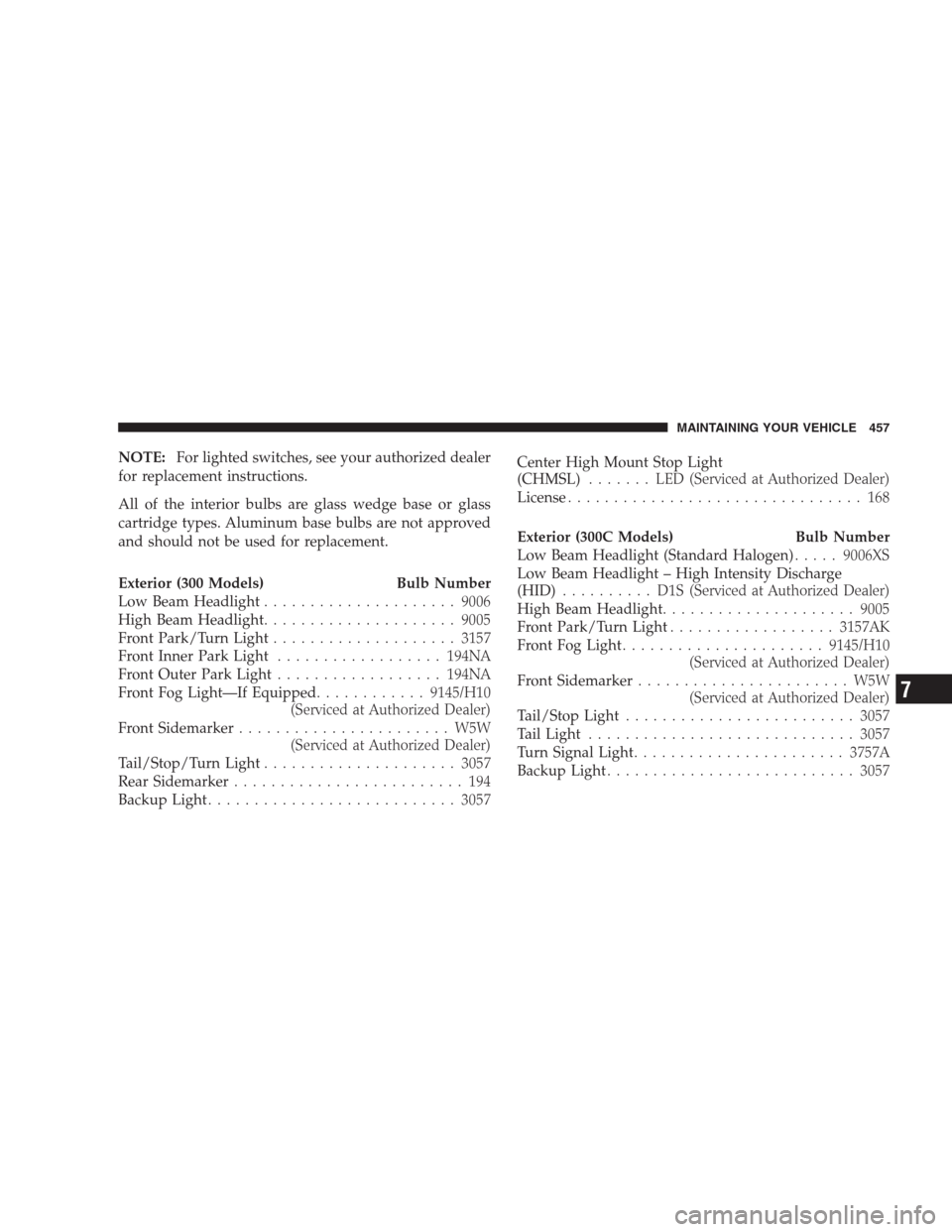

NOTE:For lighted switches, see your authorized dealer
for replacement instructions.
All of the interior bulbs are glass wedge base or glass
cartridge types. Aluminum base bulbs are not approved
and should not be used for replacement.
Exterior (300 Models) Bulb Number
Low Beam Headlight.....................9006
High Beam Headlight.....................9005
Front Park/Turn Light....................3157
Front Inner Park Light..................194NA
Front Outer Park Light..................194NA
Front Fog Light—If Equipped............9145/H10
(Serviced at Authorized Dealer)
Front Sidemarker....................... W5W
(Serviced at Authorized Dealer)
Tail/Stop/Turn Light.....................3057
Rear Sidemarker......................... 194
Backup Light...........................3057Center High Mount Stop Light
(CHMSL)....... LED(Serviced at Authorized Dealer)
License................................ 168
Exterior (300C Models) Bulb Number
Low Beam Headlight (Standard Halogen).....9006XS
Low Beam Headlight – High Intensity Discharge
(HID).......... D1S(Serviced at Authorized Dealer)
High Beam Headlight.....................9005
Front Park/Turn Light..................3157AK
Front Fog Light......................9145/H10
(Serviced at Authorized Dealer)
Front Sidemarker....................... W5W
(Serviced at Authorized Dealer)
Tail/Stop Light.........................3057
Tail Light.............................3057
Turn Signal Light.......................3757A
Backup Light...........................3057
MAINTAINING YOUR VEHICLE 457
7

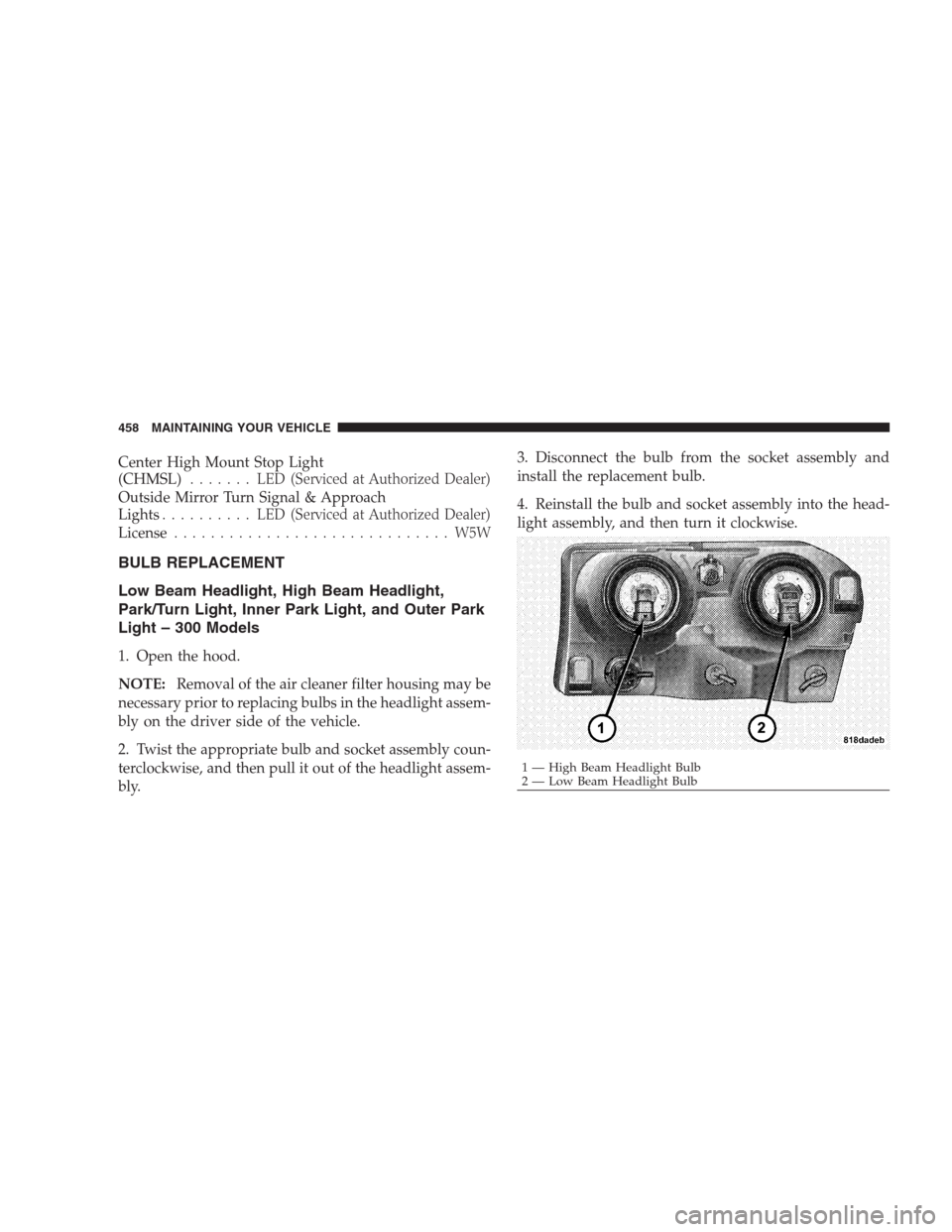

Center High Mount Stop Light
(CHMSL)....... LED(Serviced at Authorized Dealer)
Outside Mirror Turn Signal & Approach
Lights.......... LED(Serviced at Authorized Dealer)
License.............................. W5W
BULB REPLACEMENT
Low Beam Headlight, High Beam Headlight,
Park/Turn Light, Inner Park Light, and Outer Park
Light – 300 Models
1. Open the hood.
NOTE:Removal of the air cleaner filter housing may be
necessary prior to replacing bulbs in the headlight assem-
bly on the driver side of the vehicle.
2. Twist the appropriate bulb and socket assembly coun-
terclockwise, and then pull it out of the headlight assem-
bly.3. Disconnect the bulb from the socket assembly and
install the replacement bulb.
4. Reinstall the bulb and socket assembly into the head-
light assembly, and then turn it clockwise.
1 — High Beam Headlight Bulb
2 — Low Beam Headlight Bulb 458 MAINTAINING YOUR VEHICLE
