coolant level CHRYSLER 300 2009 1.G Owners Manual

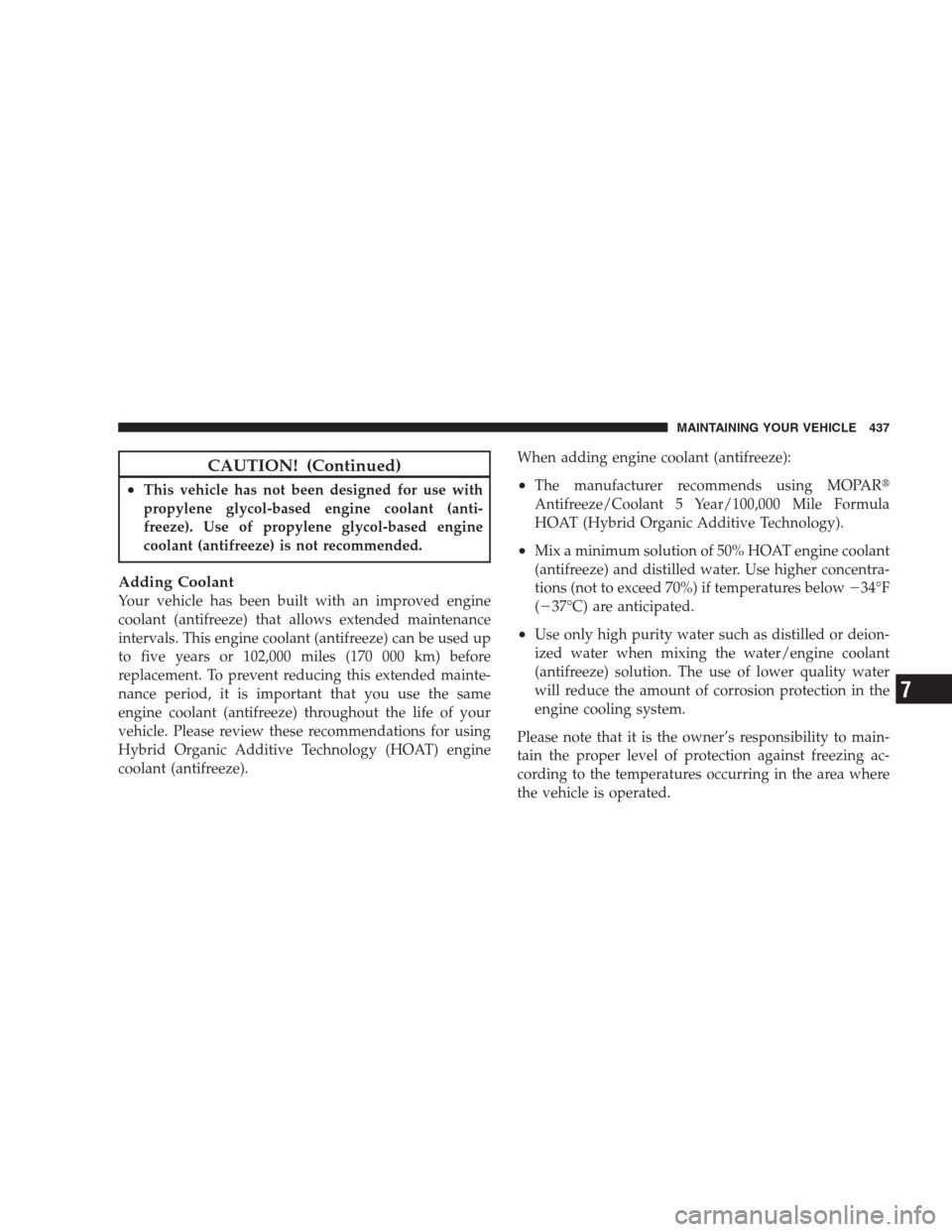

CAUTION! (Continued)
•This vehicle has not been designed for use with
propylene glycol-based engine coolant (anti-
freeze). Use of propylene glycol-based engine
coolant (antifreeze) is not recommended.
Adding Coolant
Your vehicle has been built with an improved engine
coolant (antifreeze) that allows extended maintenance
intervals. This engine coolant (antifreeze) can be used up
to five years or 102,000 miles (170 000 km) before
replacement. To prevent reducing this extended mainte-
nance period, it is important that you use the same
engine coolant (antifreeze) throughout the life of your
vehicle. Please review these recommendations for using
Hybrid Organic Additive Technology (HOAT) engine
coolant (antifreeze).When adding engine coolant (antifreeze):
•The manufacturer recommends using MOPAR
Antifreeze/Coolant 5 Year/100,000 Mile Formula
HOAT (Hybrid Organic Additive Technology).
•Mix a minimum solution of 50% HOAT engine coolant
(antifreeze) and distilled water. Use higher concentra-
tions (not to exceed 70%) if temperatures below34°F
(37°C) are anticipated.
•Use only high purity water such as distilled or deion-
ized water when mixing the water/engine coolant
(antifreeze) solution. The use of lower quality water
will reduce the amount of corrosion protection in the
engine cooling system.
Please note that it is the owner’s responsibility to main-
tain the proper level of protection against freezing ac-
cording to the temperatures occurring in the area where
the vehicle is operated.
MAINTAINING YOUR VEHICLE 437
7

Disposal of Used Coolant
Used ethylene glycol-based engine coolant (antifreeze) is
a regulated substance requiring proper disposal. Check
with your local authorities to determine the disposal
rules for your community. To prevent ingestion by ani-
mals or children, do not store ethylene glycol-based
engine coolant (antifreeze) in open containers or allow it
to remain in puddles on the ground. If ingested by a
child, contact a physician immediately. Clean up any
ground spills immediately.
Coolant Level
The coolant bottle provides a quick visual method for
determining that the coolant level is adequate. With the
engine OFF and cold, the level of the coolant in the bottle
should be between the ranges indicated on the bottle.
The radiator normally remains completely full, so there is
no need to remove the radiator cap unless checking forengine coolant (antifreeze) freeze point or replacing en-
gine coolant (antifreeze). Advise your service attendant
of this. As long as the engine operating temperature is
satisfactory, the coolant bottle need only be checked once
a month.
When additional engine coolant (antifreeze) is needed to
maintain the proper level, it should be added to the
coolant bottle. Do not overfill.
Points to Remember
NOTE:When the vehicle is stopped after a few miles
(kilometers) of operation, you may observe vapor coming
from the front of the engine compartment. This is nor-
mally a result of moisture from rain, snow, or high
humidity accumulating on the radiator and being vapor-
ized when the thermostat opens, allowing hot engine
coolant (antifreeze) to enter the radiator.
MAINTAINING YOUR VEHICLE 439
7

If an examination of your engine compartment shows no
evidence of radiator or hose leaks, the vehicle may be
safely driven. The vapor will soon dissipate.
•Do not overfill the coolant recovery bottle.
•Check engine coolant (antifreeze) freeze point in the
radiator and in the coolant recovery bottle. If engine
coolant (antifreeze) needs to be added, contents of
coolant recovery bottle must also be protected against
freezing.
•If frequent engine coolant (antifreeze) additions are
required, or if the level in the coolant recovery bottle
does not drop when the engine cools, the cooling
system should be pressure tested for leaks.
•Maintain engine coolant (antifreeze) concentration at
50% HOAT engine coolant (antifreeze) (minimum)
and distilled water for proper corrosion protection of
your engine, which contains aluminum components.
•Make sure that the radiator and coolant recovery
bottle overflow hoses are not kinked or obstructed.
•Keep the front of the radiator clean. If your vehicle is
equipped with air conditioning, keep the front of the
condenser clean, also.
•Do not change the thermostat for Summer or Winter
operation. If replacement is ever necessary, install
ONLY the correct type thermostat. Other designs may
result in unsatisfactory engine coolant (antifreeze)
performance, poor gas mileage, and increased
emissions.
Brake System
In order to assure brake system performance, all brake
system components should be inspected periodically.
Refer to the “Maintenance Schedule” in Section 8 for
proper maintenance intervals.
440 MAINTAINING YOUR VEHICLE

Cooling System *
2.7 Liter Engine (MOPARAntifreeze/Coolant 5 Year/100,000 Mile
Formula)9.9 Quarts 9.4 Liters
3.5 Liter Engine without All Wheel Drive (MOPARAntifreeze/
Coolant 5 Year/100,000 Mile Formula)11.1 Quarts 10.5 Liters
3.5 Liter Engine with All Wheel Drive (MOPARAntifreeze/Coolant 5
Year/100,000 Mile Formula)11.4 Quarts 10.8 Liters
5.7 Liter Engine without Severe Duty II Cooling System (MOPAR
Antifreeze/Coolant 5 Year/100,000 Mile Formula)14.7 Quarts 13.9 Liters
5.7 Liter Engine with Severe Duty II Cooling System (MOPAR
Antifreeze/Coolant 5 Year/100,000 Mile Formula)15.1 Quarts 14.3 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
MAINTAINING YOUR VEHICLE 469
7

•Check the fluid levels of coolant reservoir, brake
master cylinder, power steering, and transmission,
and add as needed.
•Check all lights and other electrical items for correct
operation.
At Each Oil Change
•Change the engine oil filter.
•Inspect the brake hoses and lines.
CAUTION!
Failure to perform the required maintenance items
may result in damage to the vehicle.
Required Maintenance Intervals
Refer to the Maintenance Schedules on the following
pages for the required maintenance intervals.
476 MAINTENANCE SCHEDULES
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

Cleaning
Wheels............................. 446
Windshield Wiper Blades................ 431
Climate Control......................... 294
Clock.....................237,239,253,257,266
Coin Holder........................... 195
Compact Disc (CD) Maintenance............. 292
Compact Spare Tire...................... 353
Compass.............................. 229
Compass Calibration..................... 230
Compass Variance....................... 230
Computer, Trip/Travel.................... 226
Connector
UCI ................................ 276
Universal Consumer Interface (UCI)......... 276
Console, Floor.......................... 195
Console, Overhead....................... 180
Contract, Service........................ 495
Coolant Pressure Cap (Radiator Cap).......... 438Cooling System......................... 435
Adding Coolant (Antifreeze).............. 437
Coolant Capacity...................... 468
Coolant Level......................435,439
Disposal of Used Coolant................ 439
Drain, Flush, and Refill.................. 436
Inspection........................... 439
Points to Remember.................... 439
Pressure Cap......................... 438
Radiator Cap......................... 438
Selection of Coolant (Antifreeze)......436,468,470
Corrosion Protection..................... 444
Cruise Control (Speed Control)...........150,154
Cruise Light........................... 208
Cupholders.........................194,448
Customer Assistance..................... 493
Customer Programmable Features............ 232
Data Recorder, Event...................... 63
INDEX 505
10

Electronic Vehicle Information Center (EVIC).... 220
Emergency Deck Lid Release................ 40
Emergency, In Case of
Freeing Vehicle When Stuck............... 411
Hazard Warning Flasher................. 396
Jacking............................. 397
Jump Starting......................... 408
Overheating.......................... 396
Towing............................. 412
Emergency Trunk Release................... 40
Emission Control System Maintenance......421,474
Engine..........................417,418,419
Air Cleaner.......................... 427
Block Heater......................... 312
Break-In Recommendations................ 75
Checking Oil Level..................423,424
Compartment...................417,418,419
Coolant (Antifreeze).................435,470
Cooling............................. 435Exhaust Gas Caution..................76,374
Fails to Start.......................... 311
Flooded, Starting...................... 311
Fuel Requirements..................... 370
Jump Starting......................... 408
Oil ...........................423,468,470
Oil Change Interval...............209,225,424
Oil Filler Cap......................... 425
Oil Filter............................ 426
Oil Filter Disposal..................... 426
Oil Selection.......................425,468
Oil Synthetic......................... 426
Overheating.......................... 396
Starting............................. 309
Temperature Gauge.................... 214
Engine Oil Viscosity...................... 425
Enhanced Accident Response Feature.......... 62
Entry System, Illuminated.................. 20
Ethanol............................... 371
INDEX 507
10
