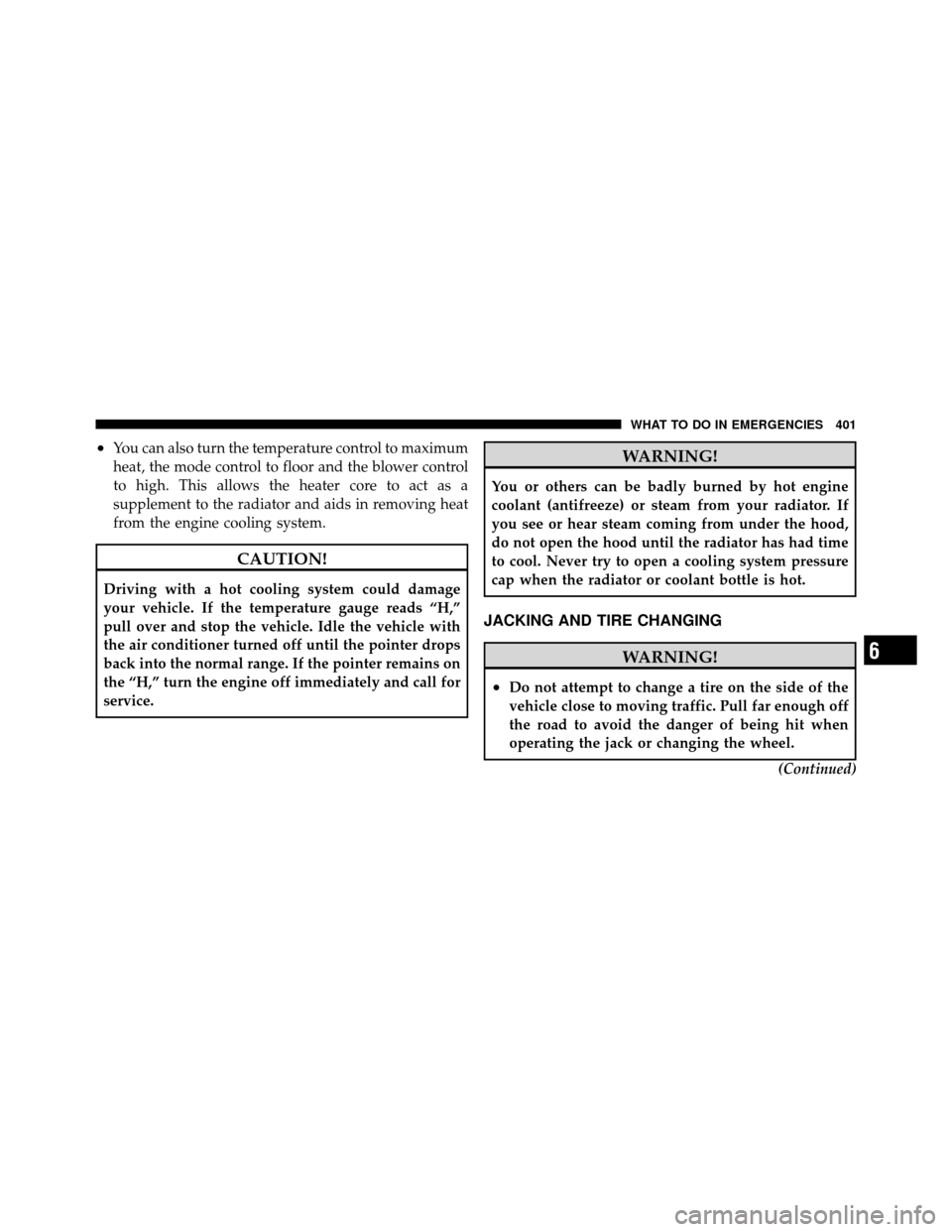

•You can also turn the temperature control to maximum
heat, the mode control to floor and the blower control
to high. This allows the heater core to act as a
supplement to the radiator and aids in removing heat
from the engine cooling system.
CAUTION!
Driving with a hot cooling system could damage
your vehicle. If the temperature gauge reads “H,”
pull over and stop the vehicle. Idle the vehicle with
the air conditioner turned off until the pointer drops
back into the normal range. If the pointer remains on
the “H,” turn the engine off immediately and call for
service.
WARNING!
You or others can be badly burned by hot engine
coolant (antifreeze) or steam from your radiator. If
you see or hear steam coming from under the hood,
do not open the hood until the radiator has had time
to cool. Never try to open a cooling system pressure
cap when the radiator or coolant bottle is hot.
JACKING AND TIRE CHANGING
WARNING!
•Do not attempt to change a tire on the side of the
vehicle close to moving traffic. Pull far enough off
the road to avoid the danger of being hit when
operating the jack or changing the wheel.(Continued)
6
WHAT TO DO IN EMERGENCIES 401

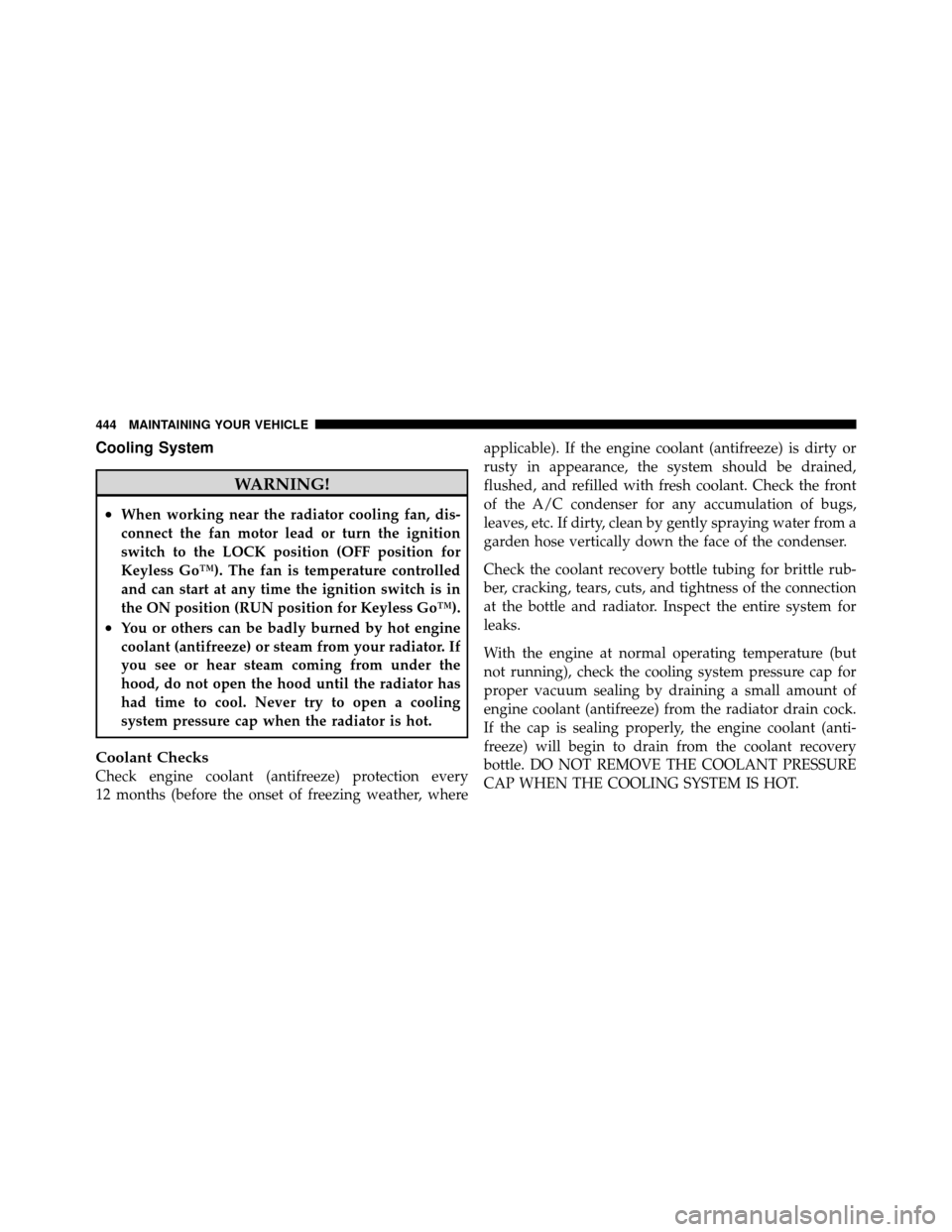

Cooling System
WARNING!
•When working near the radiator cooling fan, dis-
connect the fan motor lead or turn the ignition
switch to the LOCK position (OFF position for
Keyless Go™). The fan is temperature controlled
and can start at any time the ignition switch is in
the ON position (RUN position for Keyless Go™).
•You or others can be badly burned by hot engine
coolant (antifreeze) or steam from your radiator. If
you see or hear steam coming from under the
hood, do not open the hood until the radiator has
had time to cool. Never try to open a cooling
system pressure cap when the radiator is hot.
Coolant Checks
Check engine coolant (antifreeze) protection every
12 months (before the onset of freezing weather, whereapplicable). If the engine coolant (antifreeze) is dirty or
rusty in appearance, the system should be drained,
flushed, and refilled with fresh coolant. Check the front
of the A/C condenser for any accumulation of bugs,
leaves, etc. If dirty, clean by gently spraying water from a
garden hose vertically down the face of the condenser.
Check the coolant recovery bottle tubing for brittle rub-
ber, cracking, tears, cuts, and tightness of the connection
at the bottle and radiator. Inspect the entire system for
leaks.
With the engine at normal operating temperature (but
not running), check the cooling system pressure cap for
proper vacuum sealing by draining a small amount of
engine coolant (antifreeze) from the radiator drain cock.
If the cap is sealing properly, the engine coolant (anti-
freeze) will begin to drain from the coolant recovery
bottle. DO NOT REMOVE THE COOLANT PRESSURE
CAP WHEN THE COOLING SYSTEM IS HOT.
444 MAINTAINING YOUR VEHICLE

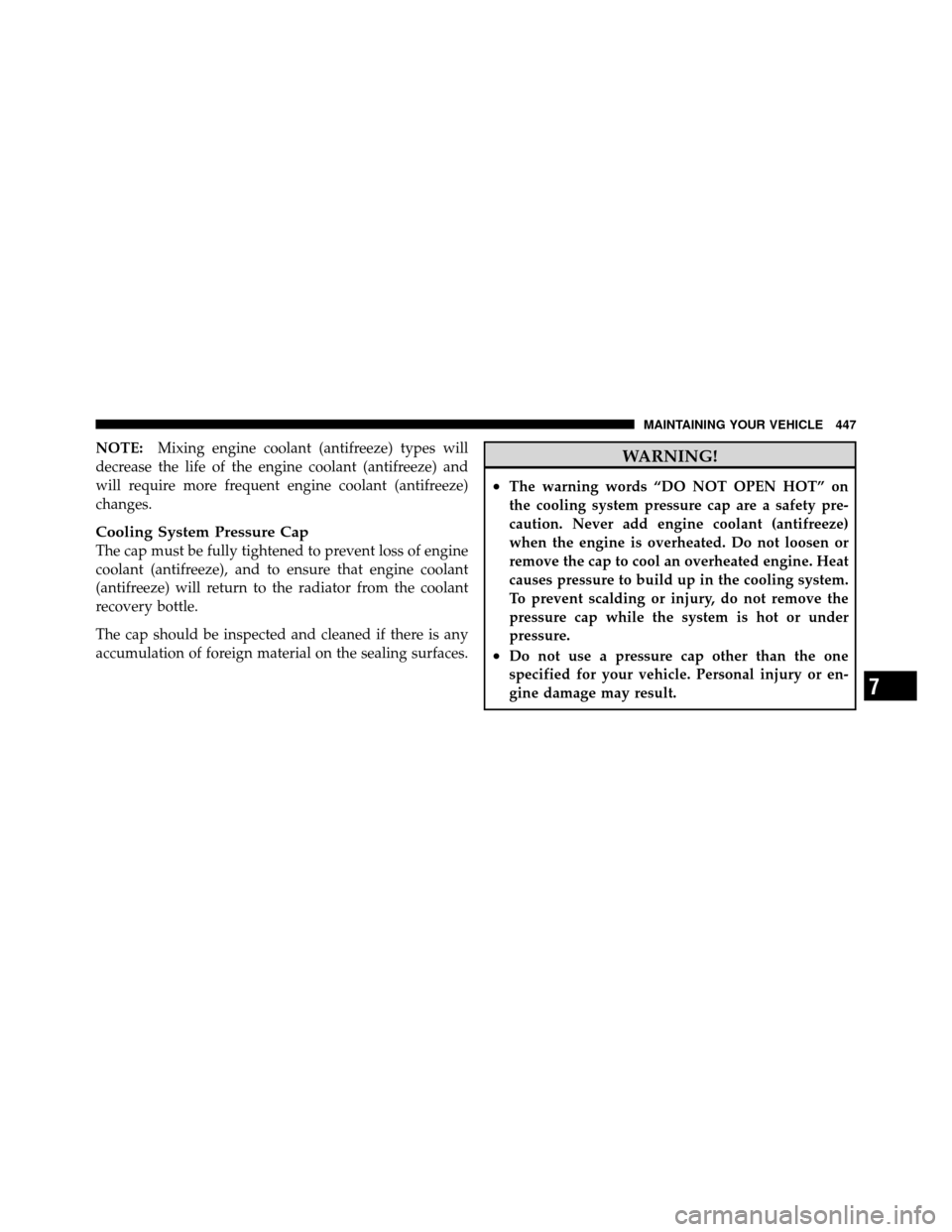

NOTE:Mixing engine coolant (antifreeze) types will
decrease the life of the engine coolant (antifreeze) and
will require more frequent engine coolant (antifreeze)
changes.
Cooling System Pressure Cap
The cap must be fully tightened to prevent loss of engine
coolant (antifreeze), and to ensure that engine coolant
(antifreeze) will return to the radiator from the coolant
recovery bottle.
The cap should be inspected and cleaned if there is any
accumulation of foreign material on the sealing surfaces.
WARNING!
•The warning words “DO NOT OPEN HOT” on
the cooling system pressure cap are a safety pre-
caution. Never add engine coolant (antifreeze)
when the engine is overheated. Do not loosen or
remove the cap to cool an overheated engine. Heat
causes pressure to build up in the cooling system.
To prevent scalding or injury, do not remove the
pressure cap while the system is hot or under
pressure.
•Do not use a pressure cap other than the one
specified for your vehicle. Personal injury or en-
gine damage may result.
7
MAINTAINING YOUR VEHICLE 447

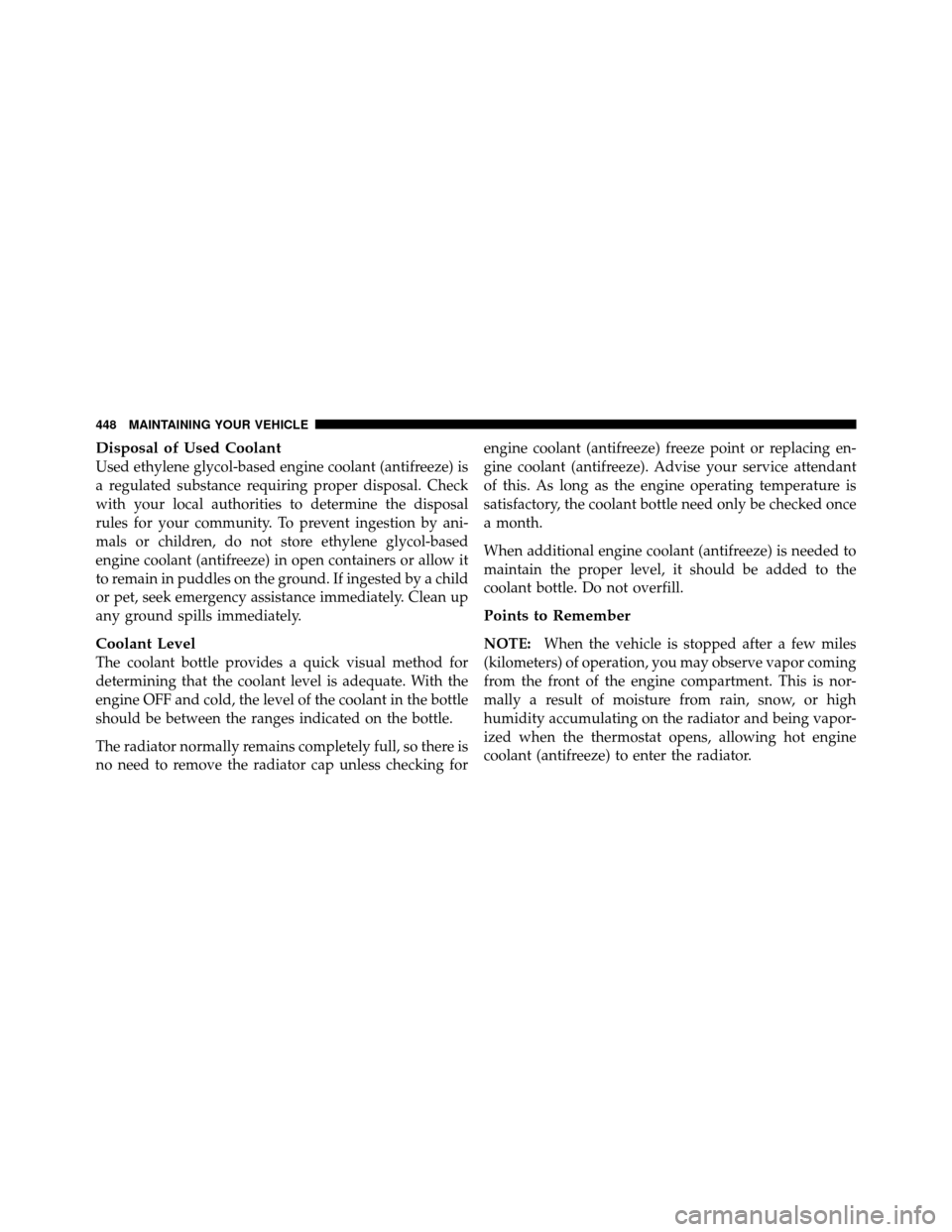

Disposal of Used Coolant
Used ethylene glycol-based engine coolant (antifreeze) is
a regulated substance requiring proper disposal. Check
with your local authorities to determine the disposal
rules for your community. To prevent ingestion by ani-
mals or children, do not store ethylene glycol-based
engine coolant (antifreeze) in open containers or allow it
to remain in puddles on the ground. If ingested by a child
or pet, seek emergency assistance immediately. Clean up
any ground spills immediately.
Coolant Level
The coolant bottle provides a quick visual method for
determining that the coolant level is adequate. With the
engine OFF and cold, the level of the coolant in the bottle
should be between the ranges indicated on the bottle.
The radiator normally remains completely full, so there is
no need to remove the radiator cap unless checking forengine coolant (antifreeze) freeze point or replacing en-
gine coolant (antifreeze). Advise your service attendant
of this. As long as the engine operating temperature is
satisfactory, the coolant bottle need only be checked once
a month.
When additional engine coolant (antifreeze) is needed to
maintain the proper level, it should be added to the
coolant bottle. Do not overfill.
Points to Remember
NOTE:
When the vehicle is stopped after a few miles
(kilometers) of operation, you may observe vapor coming
from the front of the engine compartment. This is nor-
mally a result of moisture from rain, snow, or high
humidity accumulating on the radiator and being vapor-
ized when the thermostat opens, allowing hot engine
coolant (antifreeze) to enter the radiator.
448 MAINTAINING YOUR VEHICLE

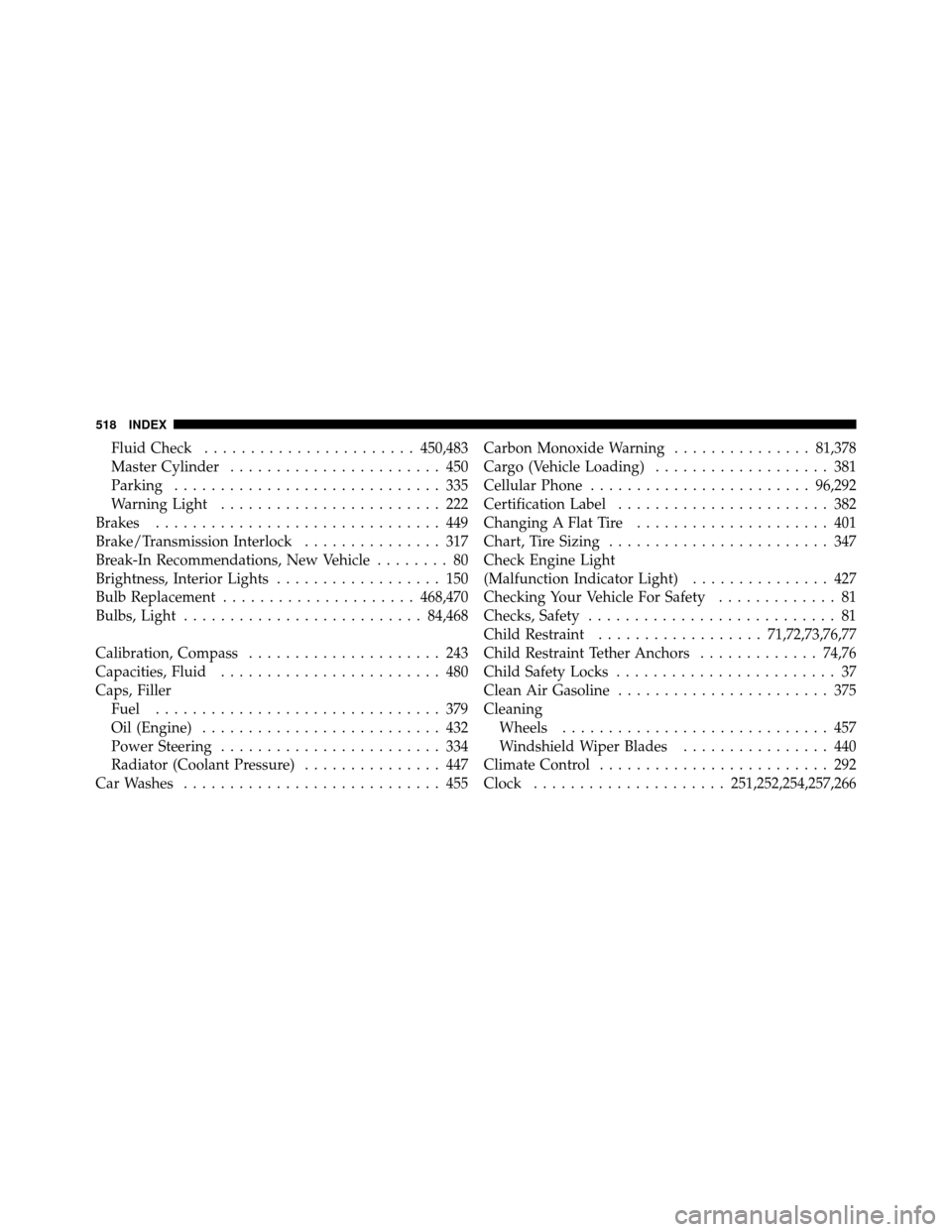

Fluid Check....................... 450,483
Master Cylinder ....................... 450
Parking ............................. 335
Warning Light ........................ 222
Brakes ............................... 449
Brake/Transmission Interlock ............... 317
Break-In Recommendations, New Vehicle ........ 80
Brightness, Interior Lights .................. 150
Bulb Replacement ..................... 468,470
Bulbs, Light .......................... 84,468
Calibration, Compass ..................... 243
Capacities, Fluid ........................ 480
Caps, Filler Fuel ............................... 379
Oil (Engine) .......................... 432
Power Steering ........................ 334
Radiator (Coolant Pressure) ............... 447
Car Washes ............................ 455 Carbon Monoxide Warning
...............81,378
Cargo (Vehicle Loading) ................... 381
Cellular Phone ........................ 96,292
Certification Label ....................... 382
Changing A Flat Tire ..................... 401
Chart, Tire Sizing ........................ 347
Check Engine Light
(Malfunction Indicator Light) ............... 427
Checking Your Vehicle For Safety ............. 81
Checks, Safety ........................... 81
Child Restraint .................. 71,72,73,76,77
Child Restraint Tether Anchors .............74,76
Child Safety Locks ........................ 37
Clean Air Gasoline ....................... 375
Cleaning Wheels ............................. 457
Windshield Wiper Blades ................ 440
Climate Control ......................... 292
Clock ..................... 251,252,254,257,266
518 INDEX

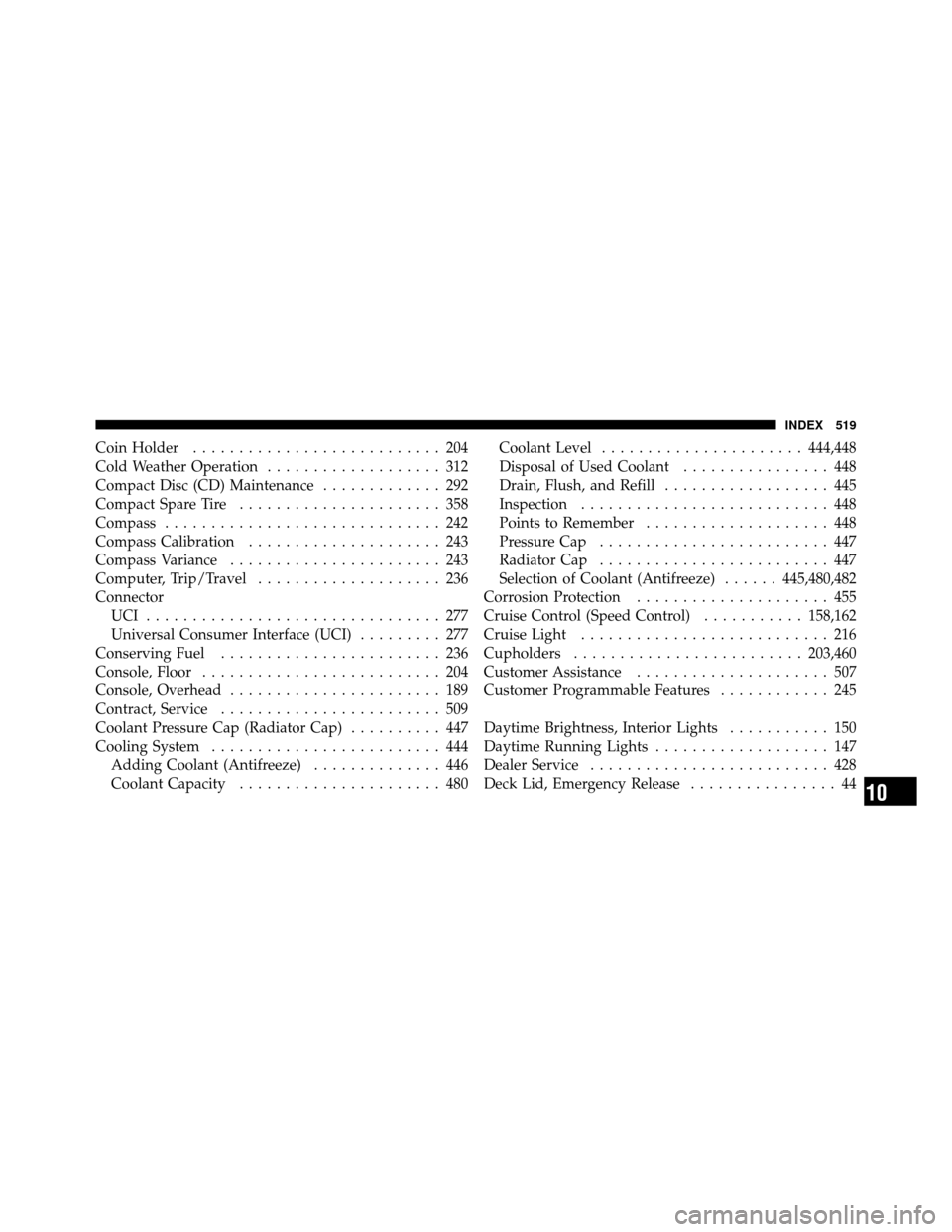

Coin Holder........................... 204
Cold Weather Operation ................... 312
Compact Disc (CD) Maintenance ............. 292
Compact Spare Tire ...................... 358
Compass .............................. 242
Compass Calibration ..................... 243
Compass Variance ....................... 243
Computer, Trip/Travel .................... 236
Connector UCI ................................ 277
Universal Consumer Interface (UCI) ......... 277
Conserving Fuel ........................ 236
Console, Floor .......................... 204
Console, Overhead ....................... 189
Contract, Service ........................ 509
Coolant Pressure Cap (Radiator Cap) .......... 447
Cooling System ......................... 444
Adding Coolant (Antifreeze) .............. 446
Coolant Capacity ...................... 480 Coolant Level
...................... 444,448
Disposal of Used Coolant ................ 448
Drain, Flush, and Refill .................. 445
Inspection ........................... 448
Points to Remember .................... 448
Pressure Cap ......................... 447
Radiator Cap ......................... 447
Selection of Coolant (Antifreeze) ......445,480,482
Corrosion Protection ..................... 455
Cruise Control (Speed Control) ...........158,162
Cruise Light ........................... 216
Cupholders ......................... 203,460
Customer Assistance ..................... 507
Customer Programmable Features ............ 245
Daytime Brightness, Interior Lights ........... 150
Daytime Running Lights ................... 147
Dealer Service .......................... 428
Deck Lid, Emergency Release ................ 44
10
INDEX 519

Power Steering Fluid..................... 483
Pregnant Women and Seat Belts .............. 55
Preparation for Jacking .................... 404
Pretensioners Seat Belts ............................ 53
Programmable Electronic Features ............ 245
Programming Transmitters
(Remote Keyless Entry) .................... 20
Radial Ply Tires ......................... 358
Radiator Cap (Coolant Pressure Cap) .......... 447
Radio Operation ........................ 292
Radio Remote Controls .................... 290
Radio, Satellite (Uconnect studios)........... 282
Rain Sensitive Wiper System ................ 153
Rear Cupholder ......................... 203
Rear Park Sense System ................... 184
Rear Seat, Folding ....................... 136
Rear Window Defroster ................... 206 Rear Window Features
.................... 206
Rearview Mirrors ........................ 91
Reclining Front Seats ..................... 131
Recreational Towing ...................... 396
Reformulated Gasoline .................... 375
Refrigerant ............................ 437
Release, Hood .......................... 142
Reminder, Lights On ..................... 147
Reminder, Seat Belt ....................... 53
Remote Control Starting System ........................ 27
Remote Keyless Entry (RKE) ................. 20
Remote Sound System (Radio) Controls ........ 290
Remote Starting System .................... 27
Remote Trunk Release ..................... 43
Replacement Bulbs ....................... 468
Replacement Keys ........................ 17
Replacement Parts ....................... 428
Replacement Tires ....................... 362
530 INDEX
