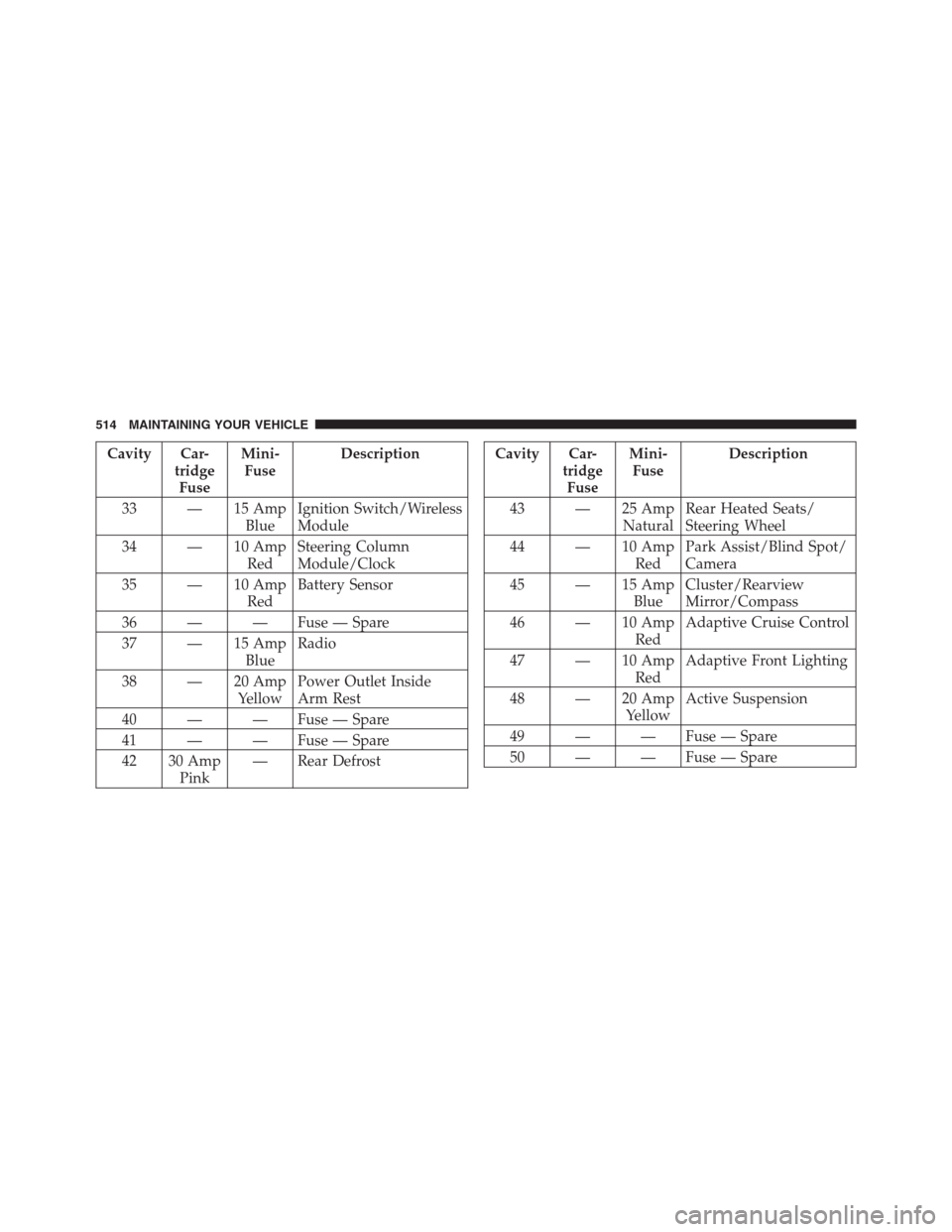

Cavity Car-
tridge
FuseMini-
FuseDescription
33 — 15 Amp
BlueIgnition Switch/Wireless
Module
34 — 10 Amp
RedSteering Column
Module/Clock
35 — 10 Amp
RedBattery Sensor
36 — — Fuse — Spare
37 — 15 Amp
BlueRadio
38 — 20 Amp
YellowPower Outlet Inside
Arm Rest
40 — — Fuse — Spare
41 — — Fuse — Spare
42 30 Amp
Pink— Rear DefrostCavity Car-
tridge
FuseMini-
FuseDescription
43 — 25 Amp
NaturalRear Heated Seats/
Steering Wheel
44 — 10 Amp
RedPark Assist/Blind Spot/
Camera
45 — 15 Amp
BlueCluster/Rearview
Mirror/Compass
46 — 10 Amp
RedAdaptive Cruise Control
47 — 10 Amp
RedAdaptive Front Lighting
48 — 20 Amp
YellowActive Suspension
49 — — Fuse — Spare
50 — — Fuse — Spare
514 MAINTAINING YOUR VEHICLE

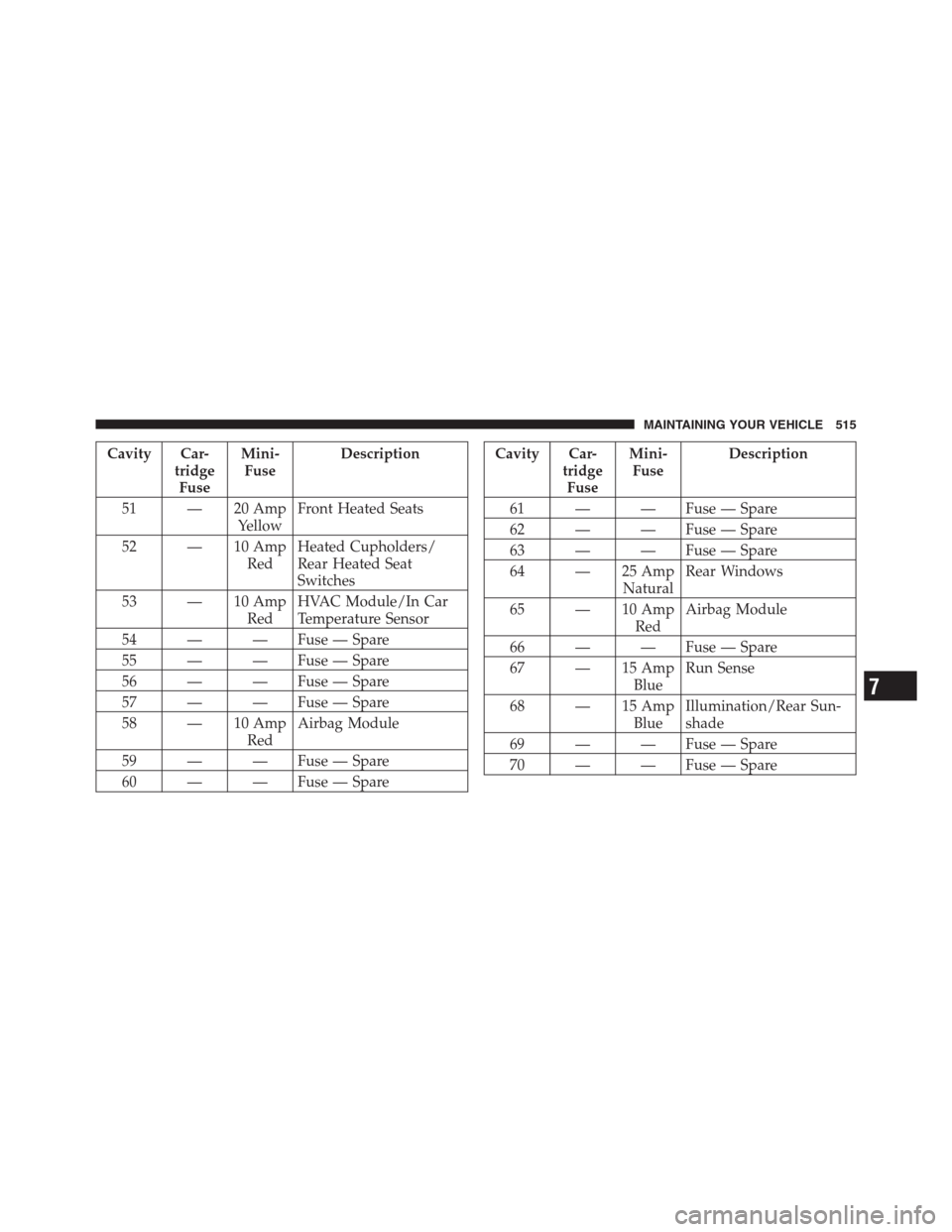

Cavity Car-
tridge
FuseMini-
FuseDescription
51 — 20 Amp
YellowFront Heated Seats
52 — 10 Amp
RedHeated Cupholders/
Rear Heated Seat
Switches
53 — 10 Amp
RedHVAC Module/In Car
Temperature Sensor
54 — — Fuse — Spare
55 — — Fuse — Spare
56 — — Fuse — Spare
57 — — Fuse — Spare
58 — 10 Amp
RedAirbag Module
59 — — Fuse — Spare
60 — — Fuse — SpareCavity Car-
tridge
FuseMini-
FuseDescription
61 — — Fuse — Spare
62 — — Fuse — Spare
63 — — Fuse — Spare
64 — 25 Amp
NaturalRear Windows
65 — 10 Amp
RedAirbag Module
66 — — Fuse — Spare
67 — 15 Amp
BlueRun Sense
68 — 15 Amp
BlueIllumination/Rear Sun-
shade
69 — — Fuse — Spare
70 — — Fuse — Spare
