CHRYSLER 300 2013 2.G Owners Manual

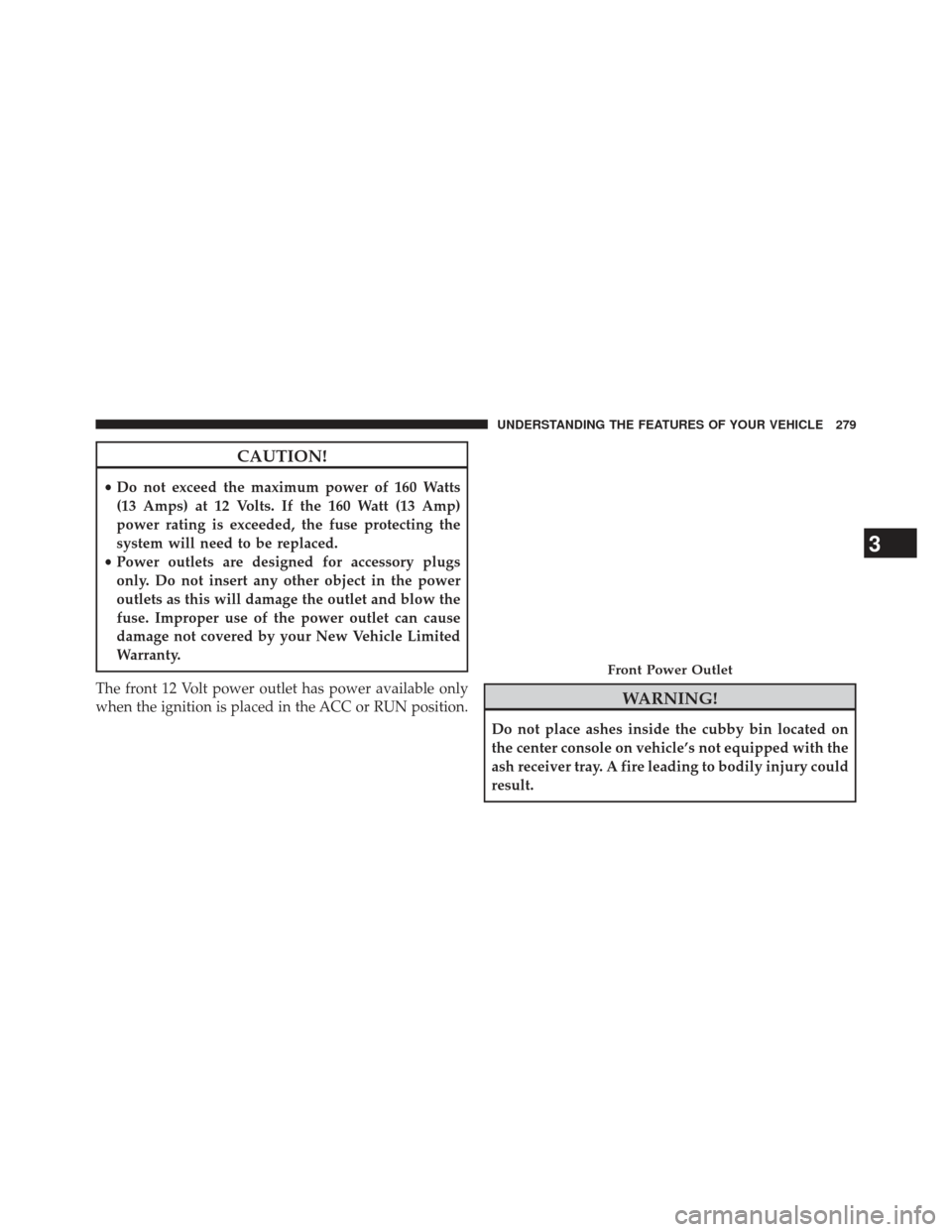

CAUTION!
•Do not exceed the maximum power of 160 Watts
(13 Amps) at 12 Volts. If the 160 Watt (13 Amp)
power rating is exceeded, the fuse protecting the
system will need to be replaced.
• Power outlets are designed for accessory plugs
only. Do not insert any other object in the power
outlets as this will damage the outlet and blow the
fuse. Improper use of the power outlet can cause
damage not covered by your New Vehicle Limited
Warranty.
The front 12 Volt power outlet has power available only
when the ignition is placed in the ACC or RUN position.
WARNING!
Do not place ashes inside the cubby bin located on
the center console on vehicle’s not equipped with the
ash receiver tray. A fire leading to bodily injury could
result.
Front Power Outlet
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 279

The center console outlet is powered directly from the
battery (power available at all times). Items plugged into
this outlet may discharge the battery and/or prevent the
engine from starting.There is also a 12 volt power outlet located on the back of
the center console for rear passengers. This power outlet
has power available only when the ignition is placed in
the ACC or RUN position.
Center Console Power OutletRear Center Console Power Outlet
280 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

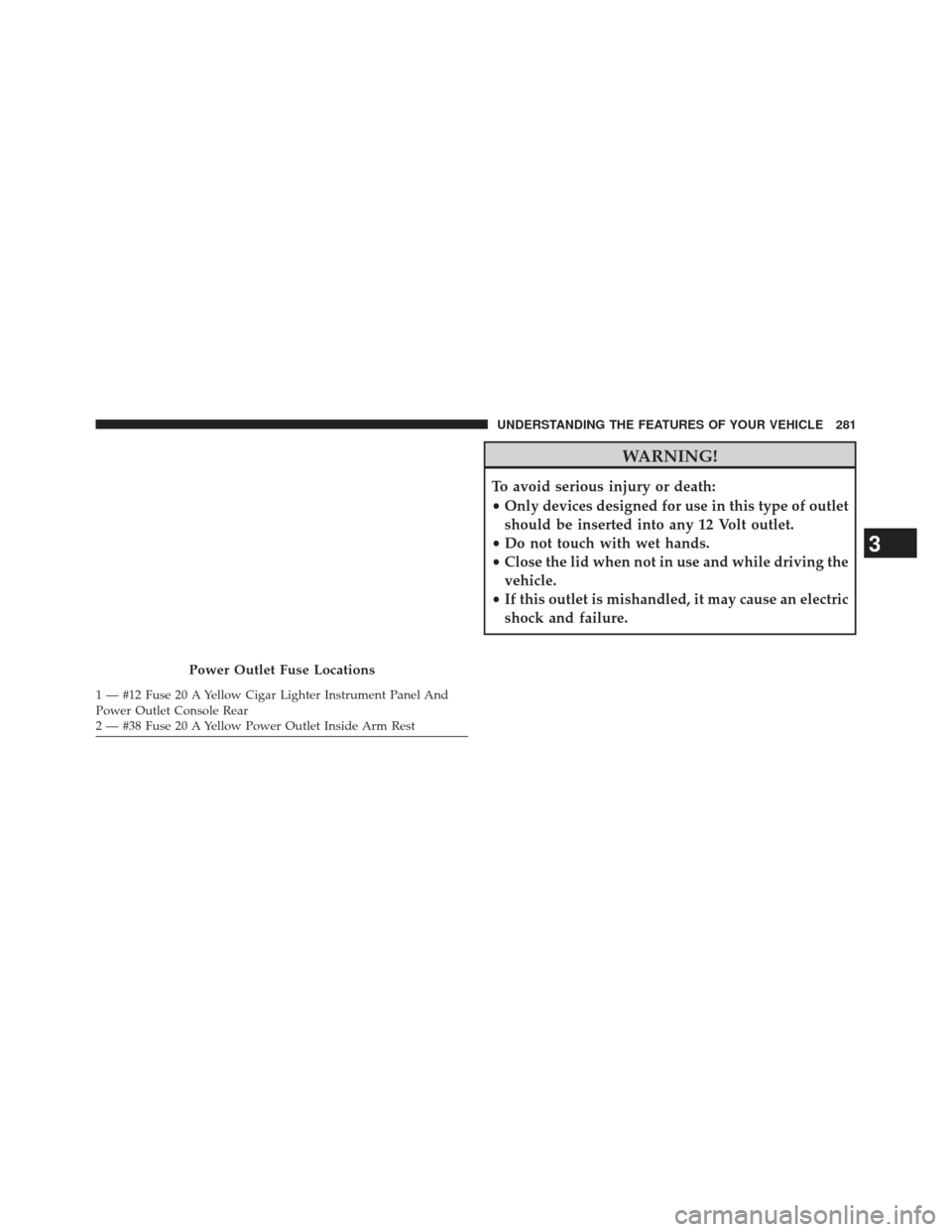

WARNING!
To avoid serious injury or death:
•Only devices designed for use in this type of outlet
should be inserted into any 12 Volt outlet.
• Do not touch with wet hands.
• Close the lid when not in use and while driving the
vehicle.
• If this outlet is mishandled, it may cause an electric
shock and failure.
Power Outlet Fuse Locations
1 — #12 Fuse 20 A Yellow Cigar Lighter Instrument Panel And
Power Outlet Console Rear
2 — #38 Fuse 20 A Yellow Power Outlet Inside Arm Rest
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 281

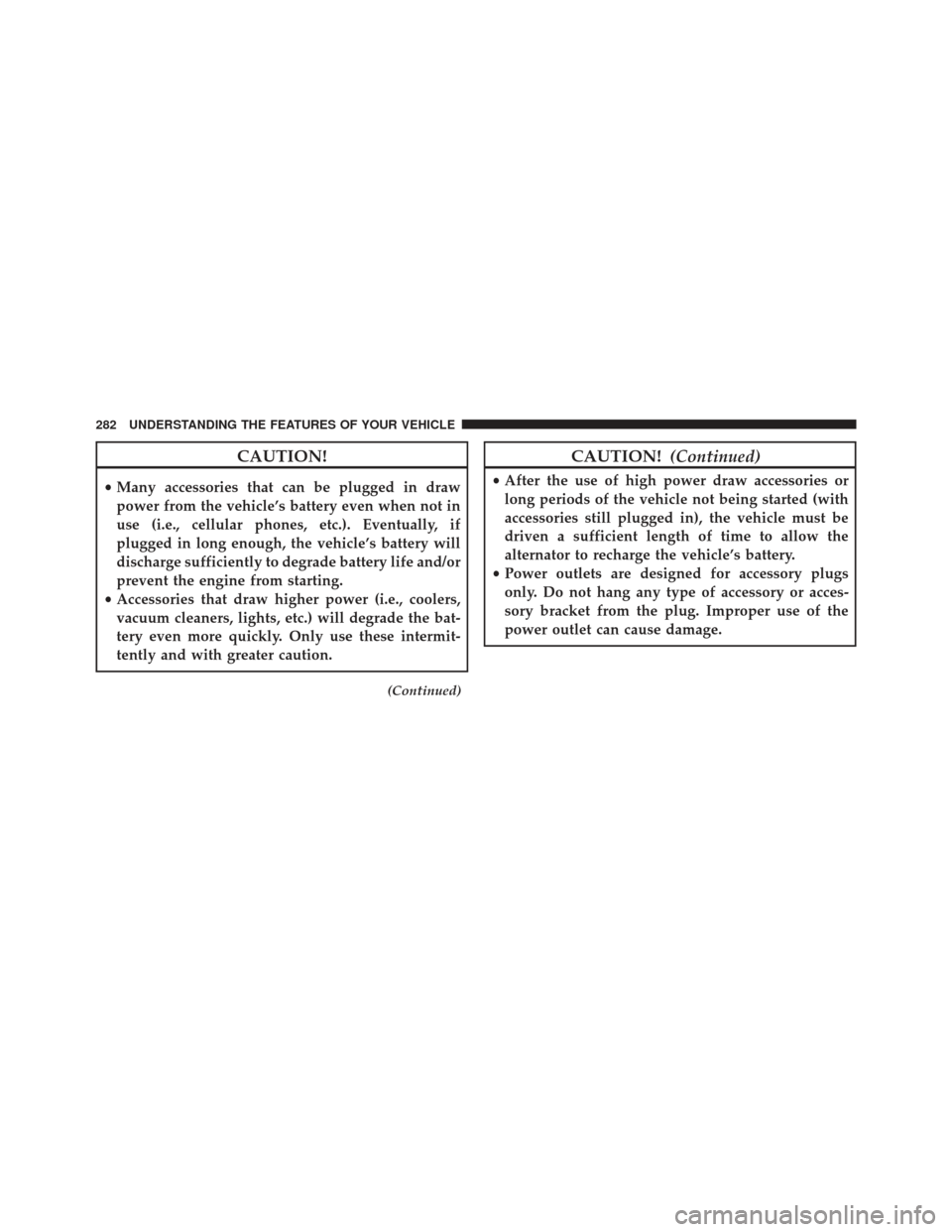

CAUTION!
•Many accessories that can be plugged in draw
power from the vehicle’s battery even when not in
use (i.e., cellular phones, etc.). Eventually, if
plugged in long enough, the vehicle’s battery will
discharge sufficiently to degrade battery life and/or
prevent the engine from starting.
• Accessories that draw higher power (i.e., coolers,
vacuum cleaners, lights, etc.) will degrade the bat-
tery even more quickly. Only use these intermit-
tently and with greater caution.
(Continued)
CAUTION! (Continued)
•After the use of high power draw accessories or
long periods of the vehicle not being started (with
accessories still plugged in), the vehicle must be
driven a sufficient length of time to allow the
alternator to recharge the vehicle’s battery.
• Power outlets are designed for accessory plugs
only. Do not hang any type of accessory or acces-
sory bracket from the plug. Improper use of the
power outlet can cause damage.
282 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

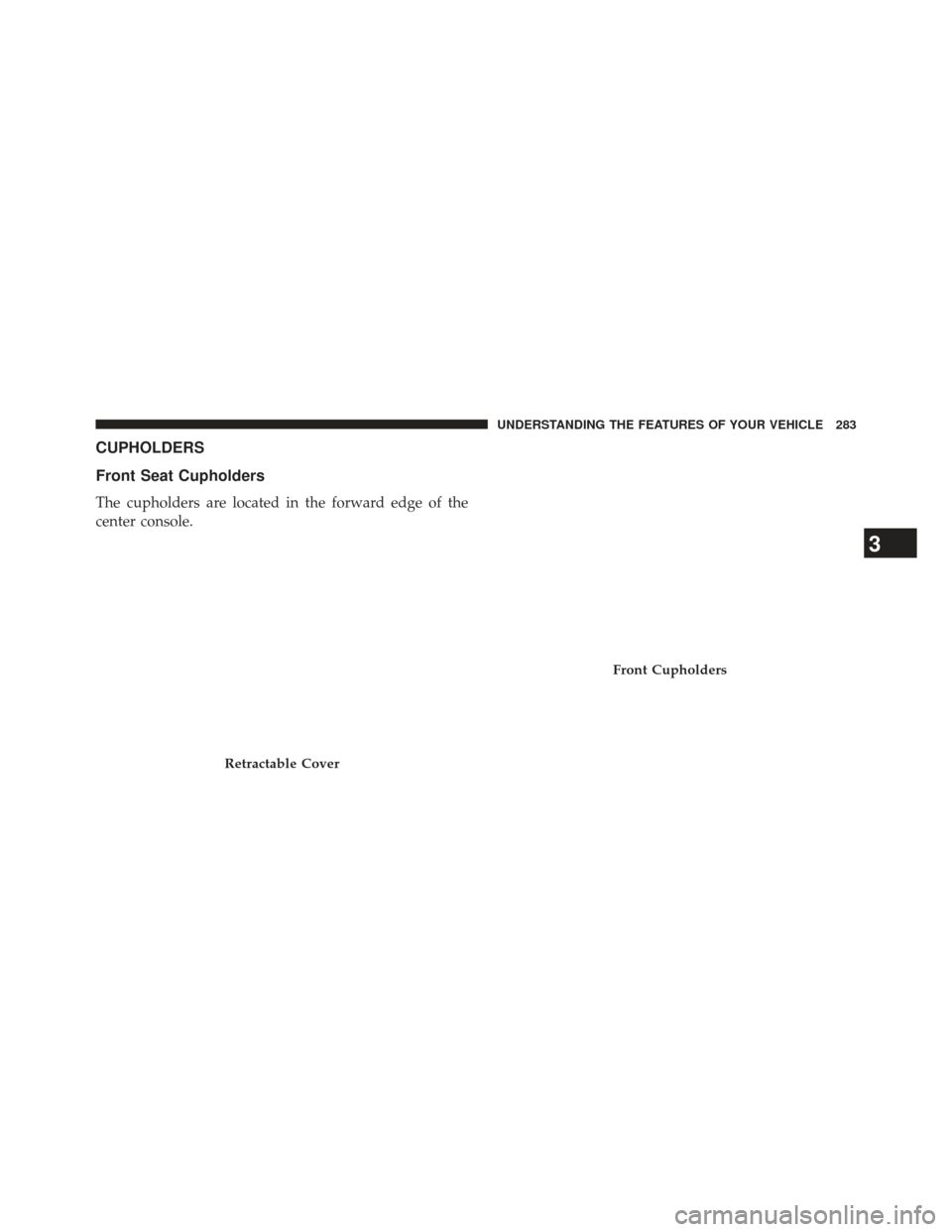

CUPHOLDERS
Front Seat Cupholders
The cupholders are located in the forward edge of the
center console.
Retractable Cover
Front Cupholders
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 283

Heated and Cooled Cupholders — If Equipped
Your vehicle may be equipped with heated and cooled
cupholders. The cupholders are designed to help keep
warm beverages warm and cold beverages cool.
Press the “Cold” symbol once to turn on the cupholder;
press the symbol a second time to turn the cupholder off.Press the “Hot” symbol once to activate the cupholder;
press the symbol a second time to turn off the cupholder.
WARNING!
When using the cupholder in the “Hot” position,
avoid contact with the heated portion of the cup-
holder in order to reduce the possibility of burns.
Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabetes,
spinal cord injuries, medication, alcohol use, exhaus-
tion or other physical condition must exercise par-
ticular care in order to prevent serious burn injury.
Keep the cupholder free of debris or stray objects
when operated in the Heat position.
Rear Seat Cupholders
The rear seat cupholders are located in the center armrest
between the rear seats. The cupholders are positioned
forward in the armrest and side-by-side to provideHeated And Cooled Cupholder Switches
284 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

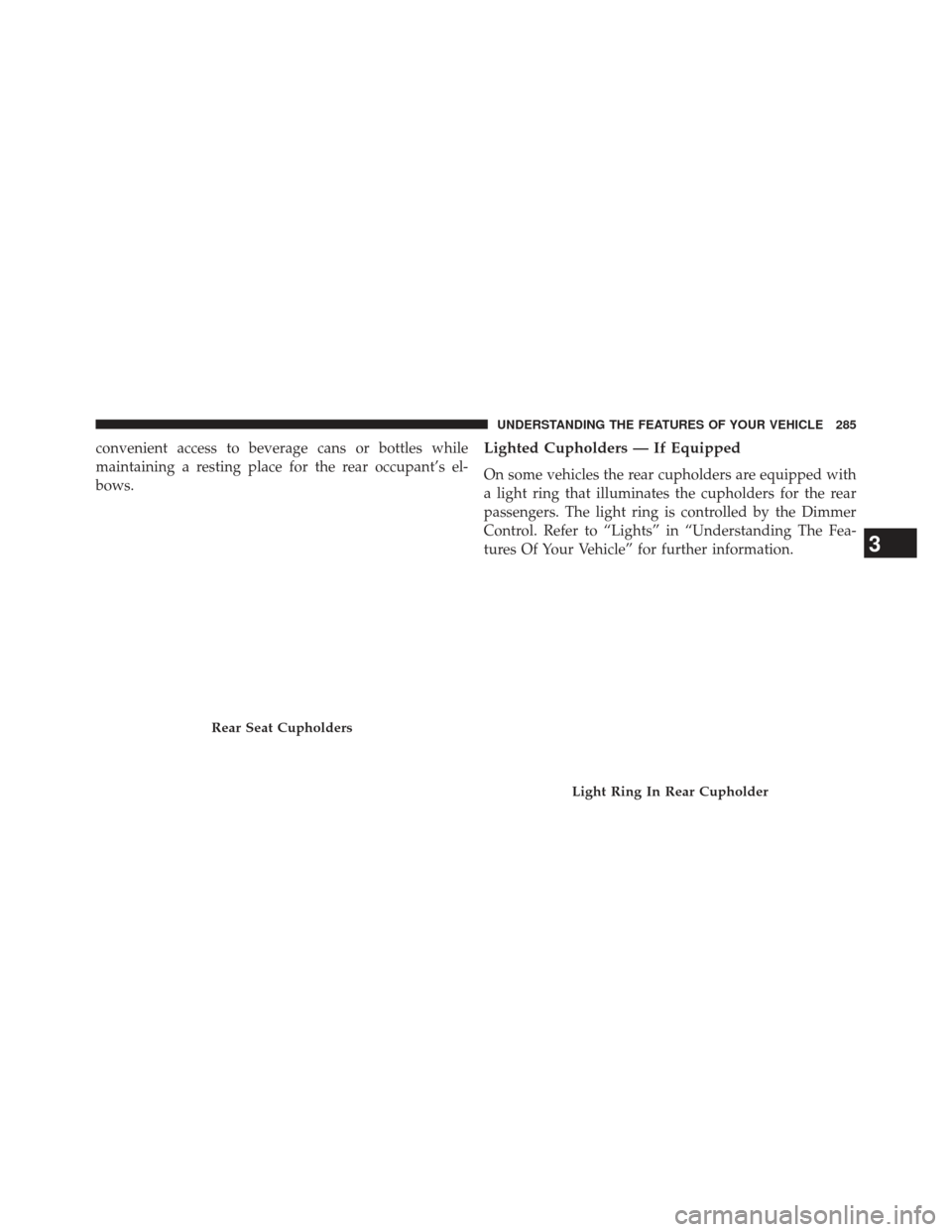

convenient access to beverage cans or bottles while
maintaining a resting place for the rear occupant’s el-
bows.Lighted Cupholders — If Equipped
On some vehicles the rear cupholders are equipped with
a light ring that illuminates the cupholders for the rear
passengers. The light ring is controlled by the Dimmer
Control. Refer to “Lights” in “Understanding The Fea-
tures Of Your Vehicle” for further information.
Rear Seat Cupholders
Light Ring In Rear Cupholder
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 285

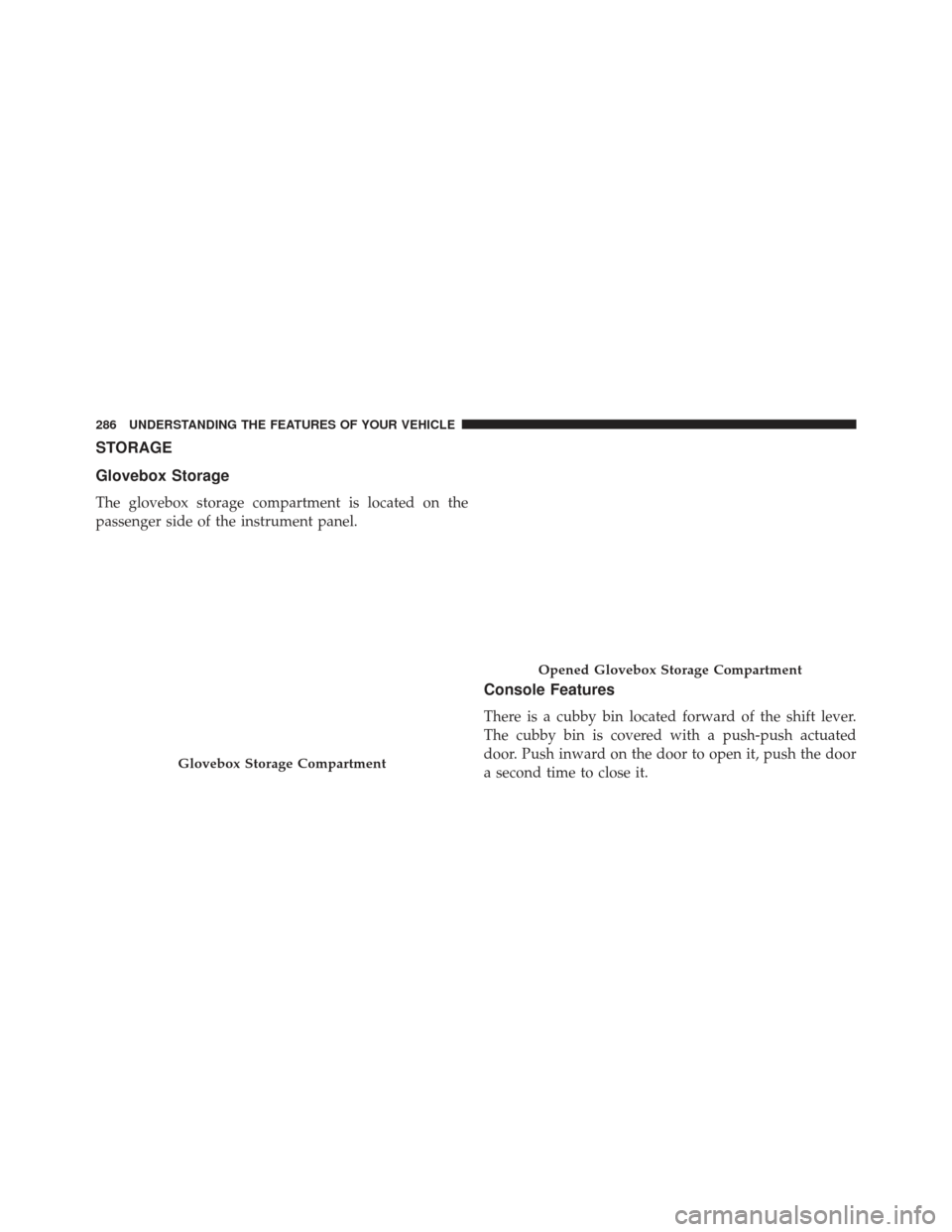

STORAGE
Glovebox Storage
The glovebox storage compartment is located on the
passenger side of the instrument panel.
Console Features
There is a cubby bin located forward of the shift lever.
The cubby bin is covered with a push-push actuated
door. Push inward on the door to open it, push the door
a second time to close it.
Glovebox Storage Compartment
Opened Glovebox Storage Compartment
286 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

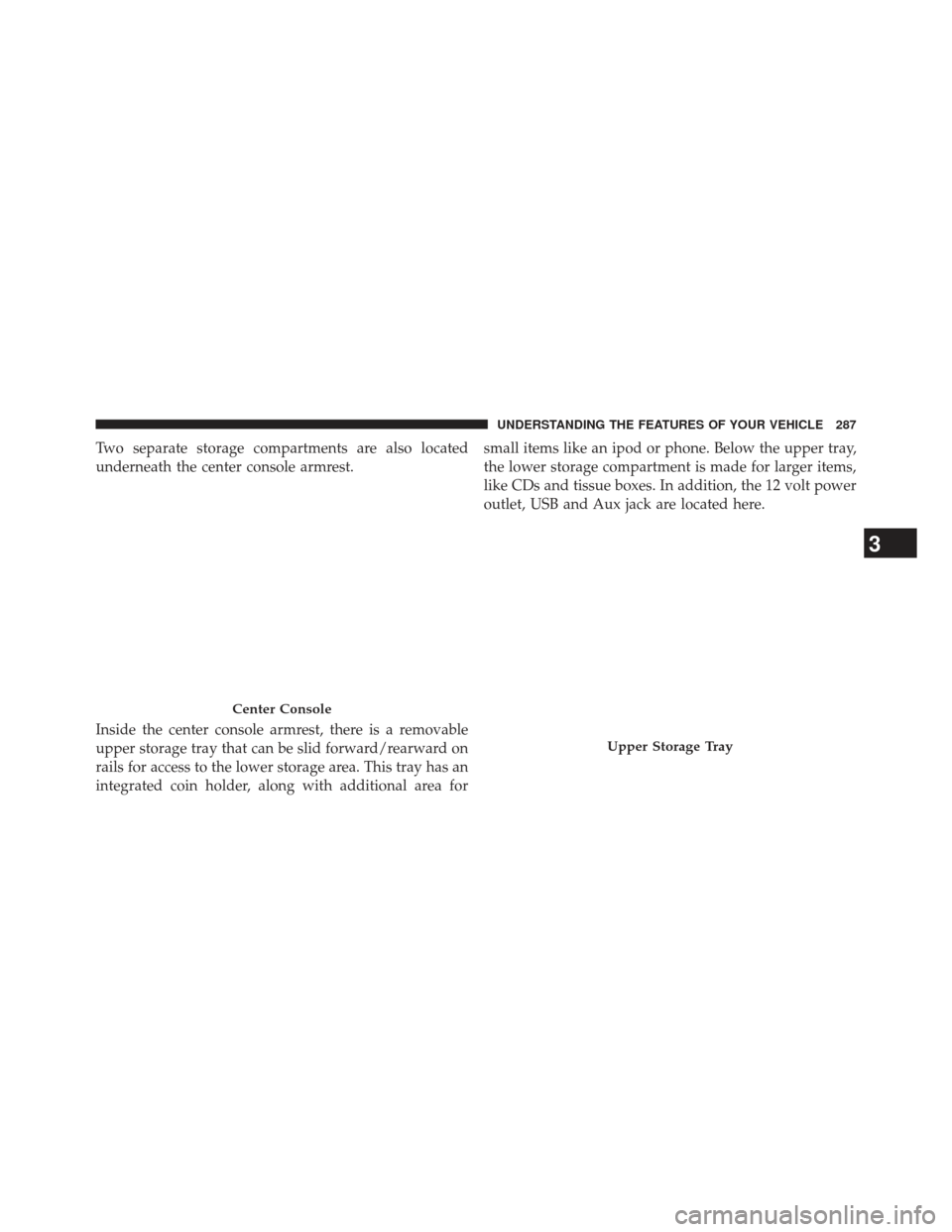

Two separate storage compartments are also located
underneath the center console armrest.
Inside the center console armrest, there is a removable
upper storage tray that can be slid forward/rearward on
rails for access to the lower storage area. This tray has an
integrated coin holder, along with additional area forsmall items like an ipod or phone. Below the upper tray,
the lower storage compartment is made for larger items,
like CDs and tissue boxes. In addition, the 12 volt power
outlet, USB and Aux jack are located here.
Center Console
Upper Storage Tray
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 287

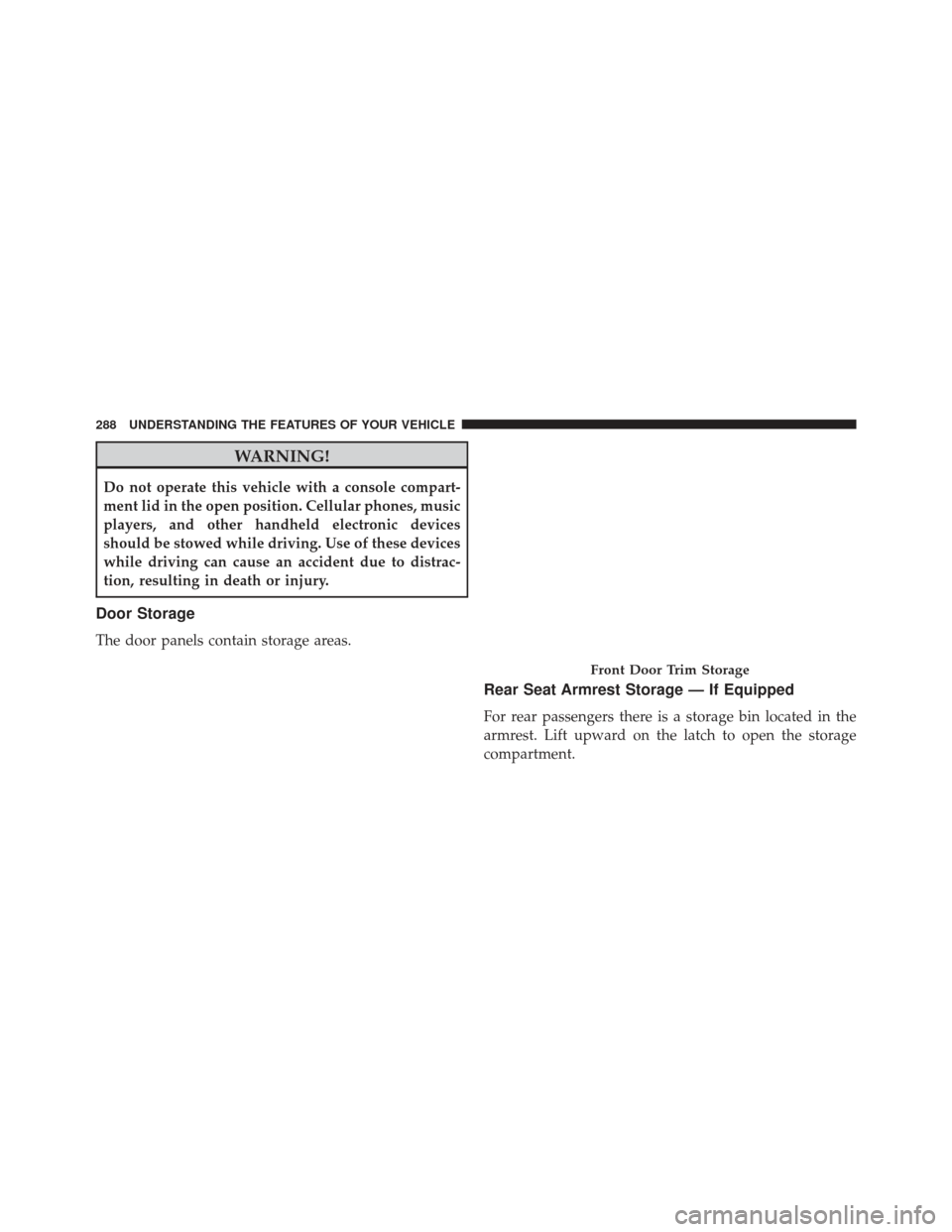

WARNING!
Do not operate this vehicle with a console compart-
ment lid in the open position. Cellular phones, music
players, and other handheld electronic devices
should be stowed while driving. Use of these devices
while driving can cause an accident due to distrac-
tion, resulting in death or injury.
Door Storage
The door panels contain storage areas.
Rear Seat Armrest Storage — If Equipped
For rear passengers there is a storage bin located in the
armrest. Lift upward on the latch to open the storage
compartment.
Front Door Trim Storage
