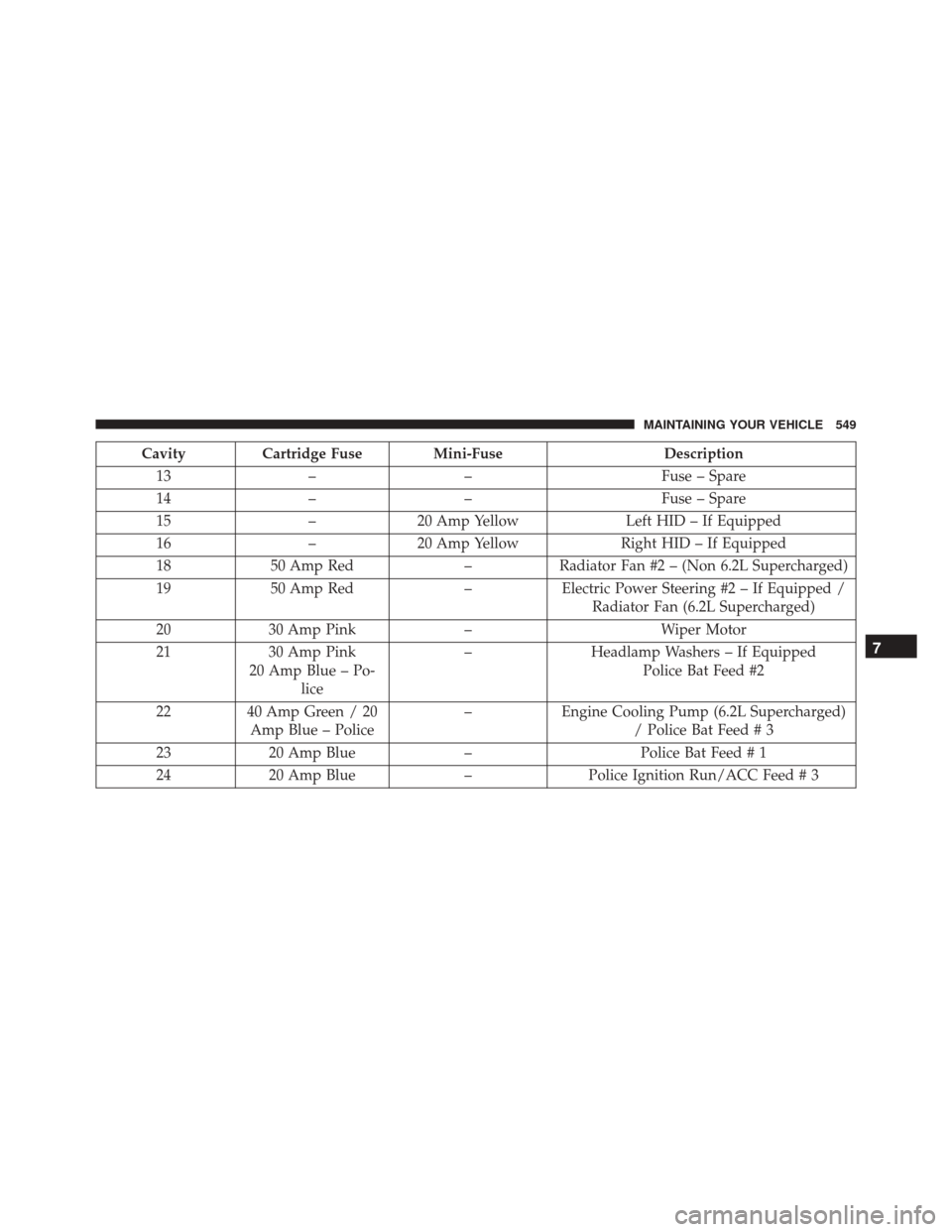

CavityCartridge Fuse Mini-Fuse Description
13 – – Fuse – Spare
14 – – Fuse – Spare
15 –20 Amp Yellow Left HID – If Equipped
16 –20 Amp Yellow Right HID – If Equipped
18 50 Amp Red –Radiator Fan #2 – (Non 6.2L Supercharged)
19 50 Amp Red –Electric Power Steering #2 – If Equipped /
Radiator Fan (6.2L Supercharged)
20 30 Amp Pink – Wiper Motor
21 30 Amp Pink
20 Amp Blue – Po- lice –
Headlamp Washers – If Equipped
Police Bat Feed #2
22 40 Amp Green / 20
Amp Blue – Police –
Engine Cooling Pump (6.2L Supercharged)
/ Police Bat Feed # 3
23 20 Amp Blue –Police Bat Feed # 1
24 20 Amp Blue –Police Ignition Run/ACC Feed # 3
7
MAINTAINING YOUR VEHICLE 549

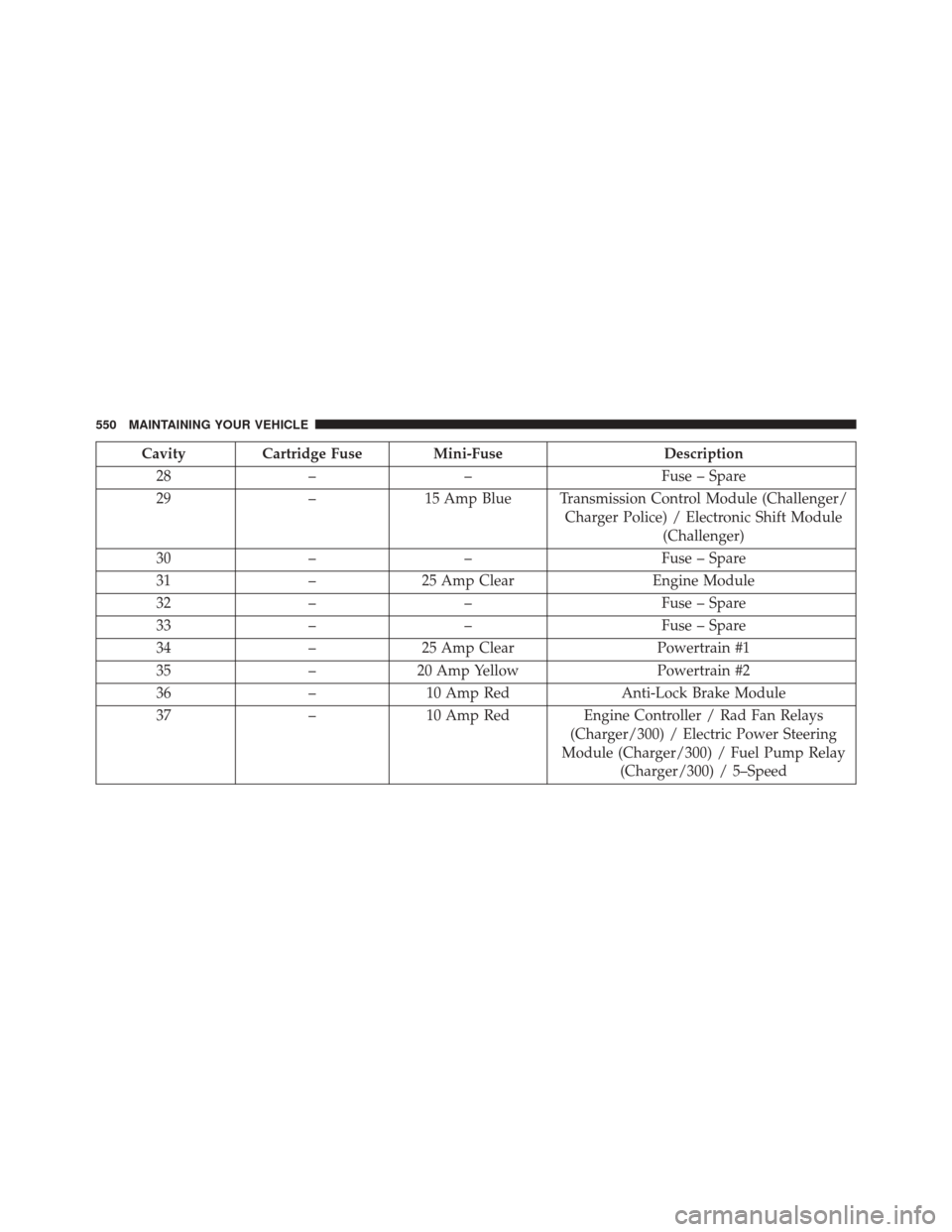

CavityCartridge Fuse Mini-Fuse Description
28 – – Fuse – Spare
29 –15 Amp Blue Transmission Control Module (Challenger/
Charger Police) / Electronic Shift Module(Challenger)
30 – – Fuse – Spare
31 –25 Amp Clear Engine Module
32 – – Fuse – Spare
33 – – Fuse – Spare
34 –25 Amp Clear Powertrain #1
35 –20 Amp Yellow Powertrain #2
36 –10 Amp Red Anti-Lock Brake Module
37 –10 Amp Red Engine Controller / Rad Fan Relays
(Charger/300) / Electric Power Steering
Module (Charger/300) / Fuel Pump Relay (Charger/300) / 5–Speed
550 MAINTAINING YOUR VEHICLE

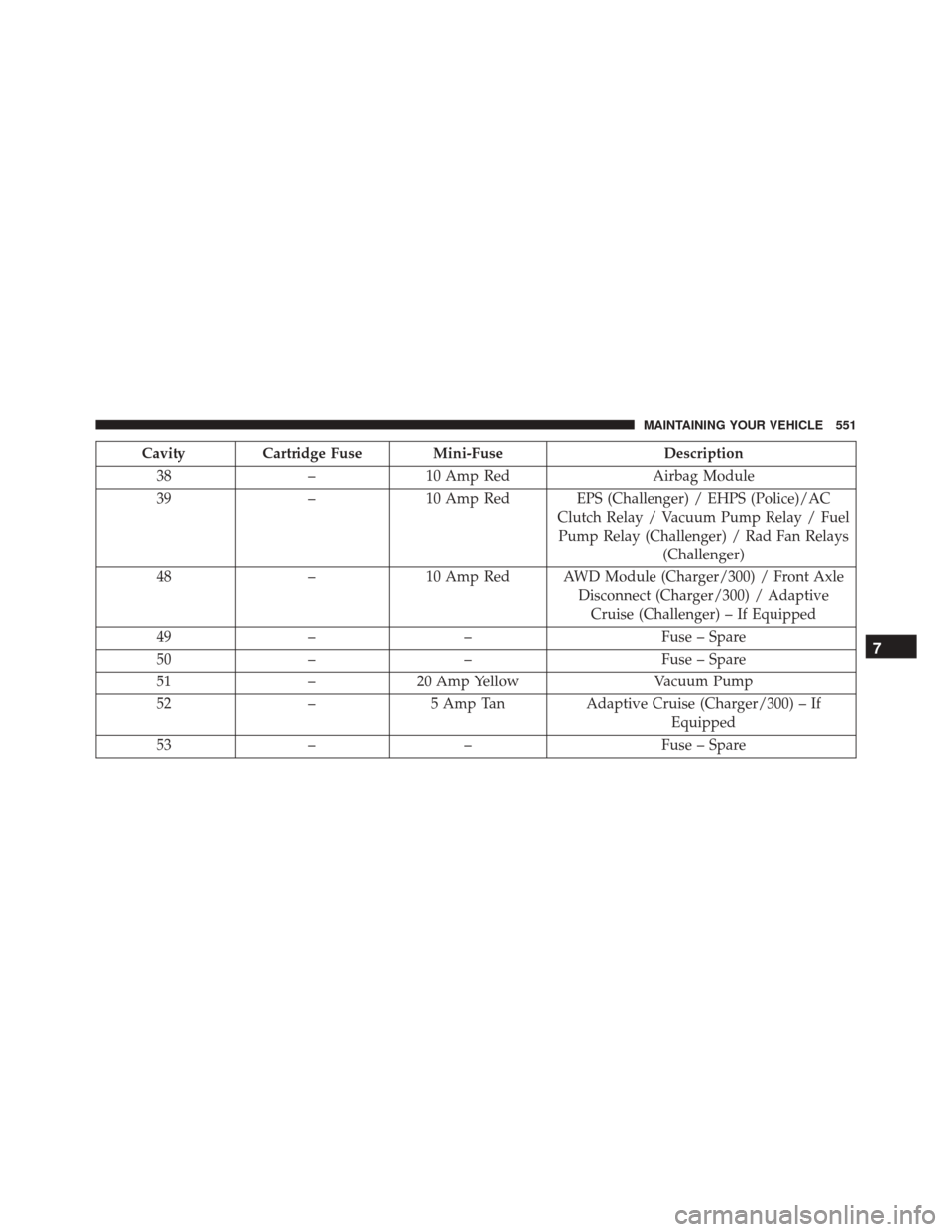

CavityCartridge Fuse Mini-Fuse Description
38 –10 Amp Red Airbag Module
39 –10 Amp Red EPS (Challenger) / EHPS (Police)/AC
Clutch Relay / Vacuum Pump Relay / FuelPump Relay (Challenger) / Rad Fan Relays (Challenger)
48 –10 Amp Red AWD Module (Charger/300) / Front Axle
Disconnect (Charger/300) / AdaptiveCruise (Challenger) – If Equipped
49 – – Fuse – Spare
50 – – Fuse – Spare
51 –20 Amp Yellow Vacuum Pump
52 –5 Amp Tan Adaptive Cruise (Charger/300) – If
Equipped
53 – – Fuse – Spare
7
MAINTAINING YOUR VEHICLE 551

Rear Power Distribution Center (Fuses)
There is also a power distribution center located in the
trunk under the spare tire access panel. This center
contains fuses and relays. Fuse cavity location and de-
scriptions are printed on the inside of the power distri-
bution center cover.
Opening The Access Cover
Rear Power Distribution Center
552 MAINTAINING YOUR VEHICLE

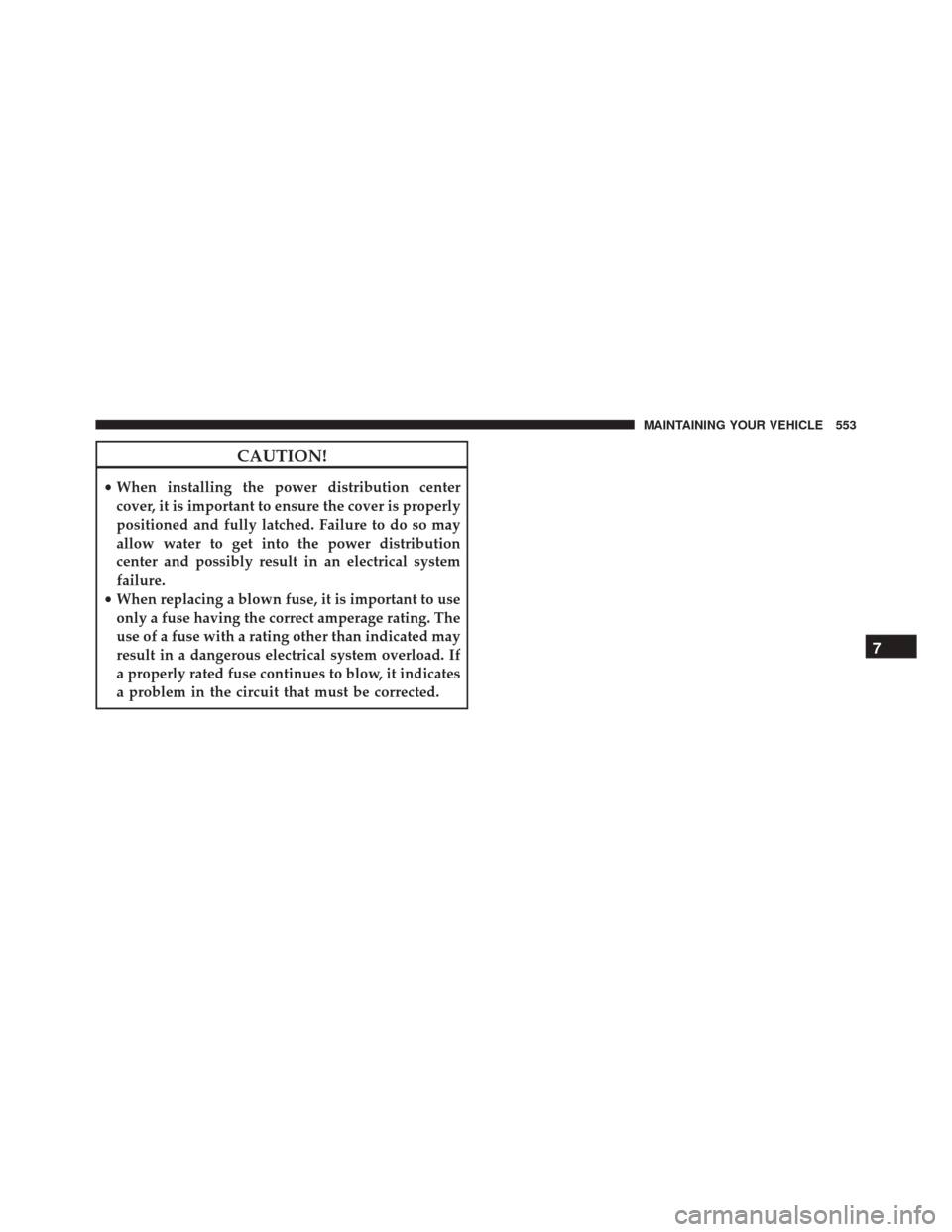

CAUTION!
•When installing the power distribution center
cover, it is important to ensure the cover is properly
positioned and fully latched. Failure to do so may
allow water to get into the power distribution
center and possibly result in an electrical system
failure.
• When replacing a blown fuse, it is important to use
only a fuse having the correct amperage rating. The
use of a fuse with a rating other than indicated may
result in a dangerous electrical system overload. If
a properly rated fuse continues to blow, it indicates
a problem in the circuit that must be corrected.
7
MAINTAINING YOUR VEHICLE 553

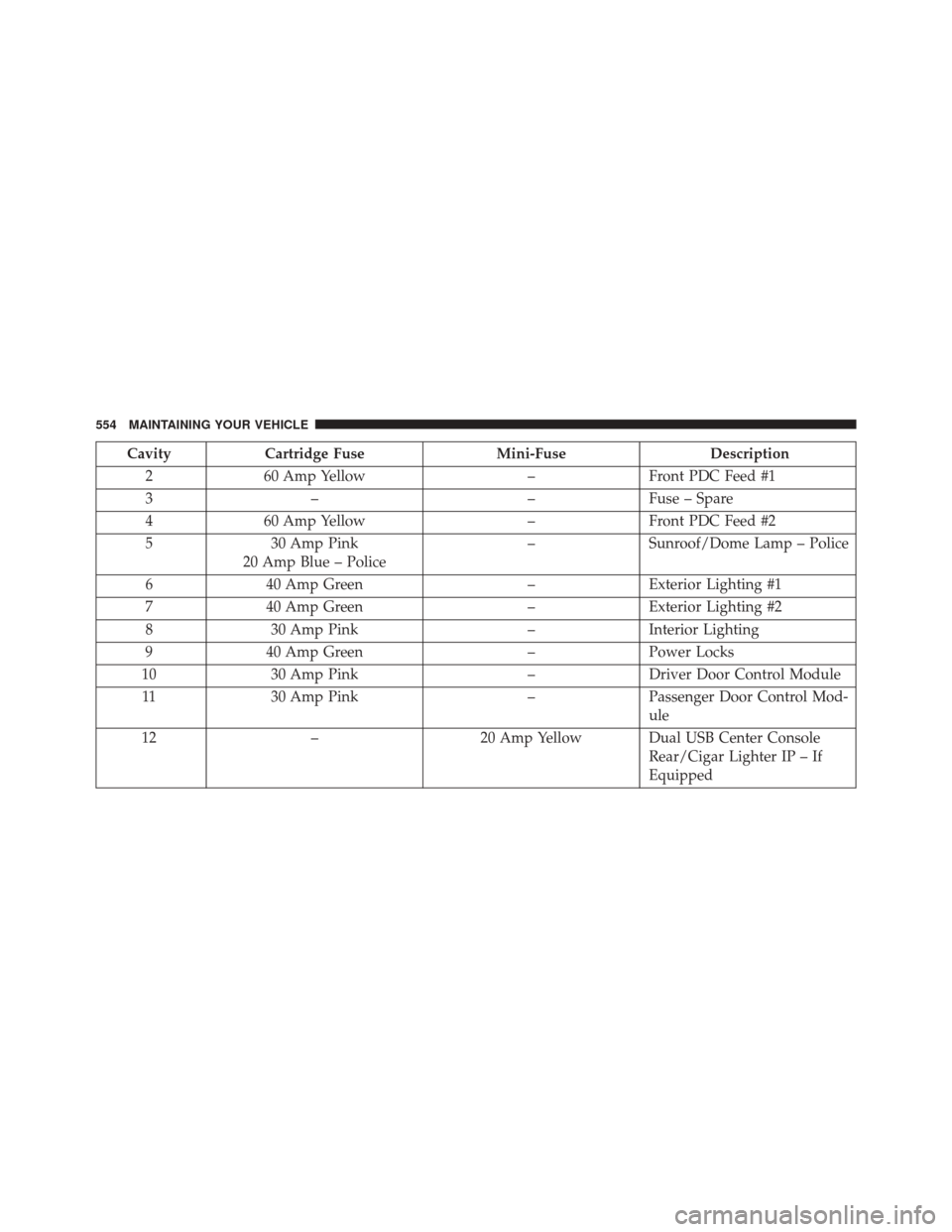

CavityCartridge Fuse Mini-FuseDescription
2 60 Amp Yellow –Front PDC Feed #1
3 – –Fuse – Spare
4 60 Amp Yellow –Front PDC Feed #2
5 30 Amp Pink
20 Amp Blue – Police –
Sunroof/Dome Lamp – Police
6 40 Amp Green –Exterior Lighting #1
7 40 Amp Green –Exterior Lighting #2
8 30 Amp Pink –Interior Lighting
9 40 Amp Green –Power Locks
10 30 Amp Pink –Driver Door Control Module
11 30 Amp Pink –Passenger Door Control Mod-
ule
12 – 20 Amp Yellow Dual USB Center Console
Rear/Cigar Lighter IP – If
Equipped
554 MAINTAINING YOUR VEHICLE

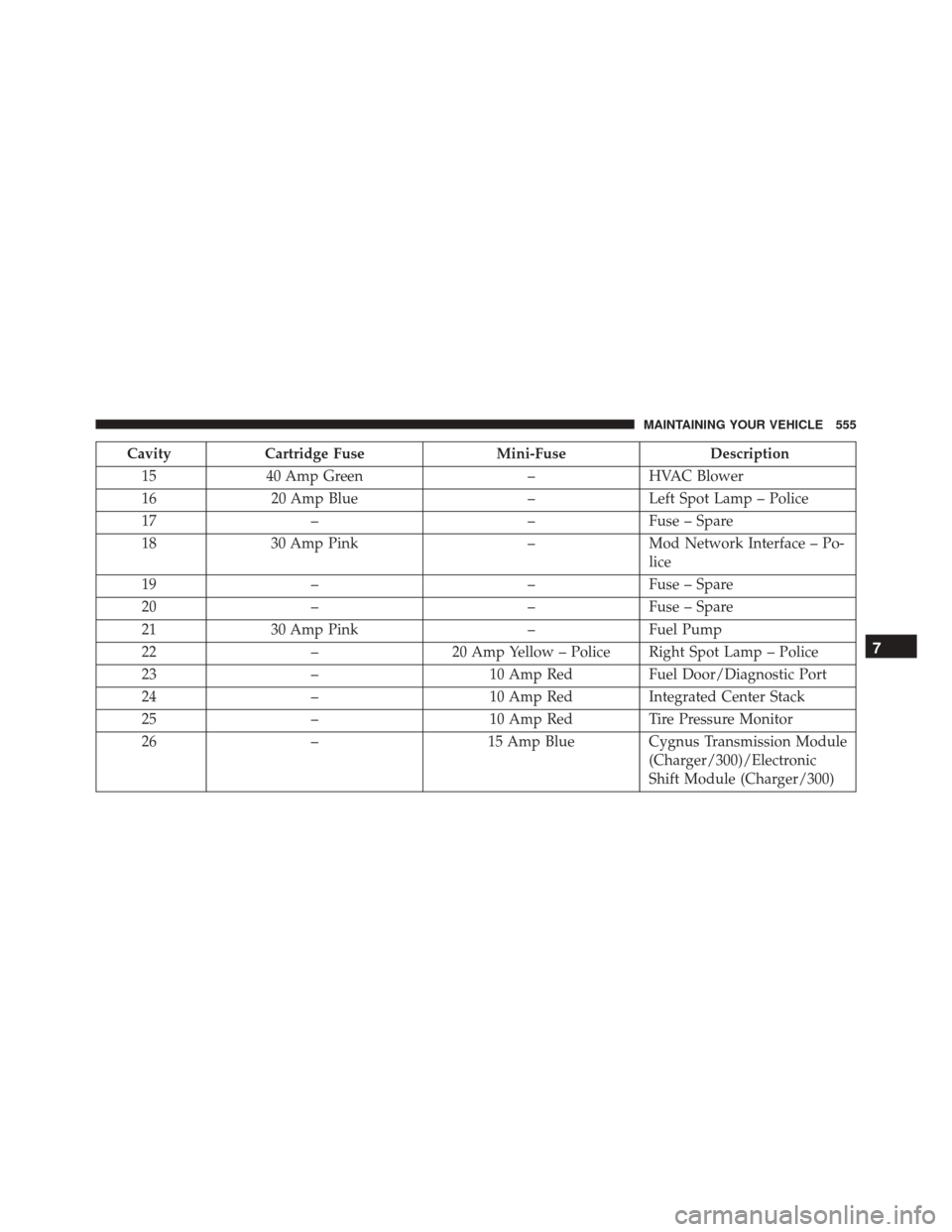

CavityCartridge Fuse Mini-FuseDescription
15 40 Amp Green –HVAC Blower
16 20 Amp Blue –Left Spot Lamp – Police
17 – –Fuse – Spare
18 30 Amp Pink –Mod Network Interface – Po-
lice
19 – –Fuse – Spare
20 – –Fuse – Spare
21 30 Amp Pink –Fuel Pump
22 –20 Amp Yellow – Police Right Spot Lamp – Police
23 – 10 Amp RedFuel Door/Diagnostic Port
24 – 10 Amp RedIntegrated Center Stack
25 – 10 Amp RedTire Pressure Monitor
26 – 15 Amp BlueCygnus Transmission Module
(Charger/300)/Electronic
Shift Module (Charger/300)
7
MAINTAINING YOUR VEHICLE 555

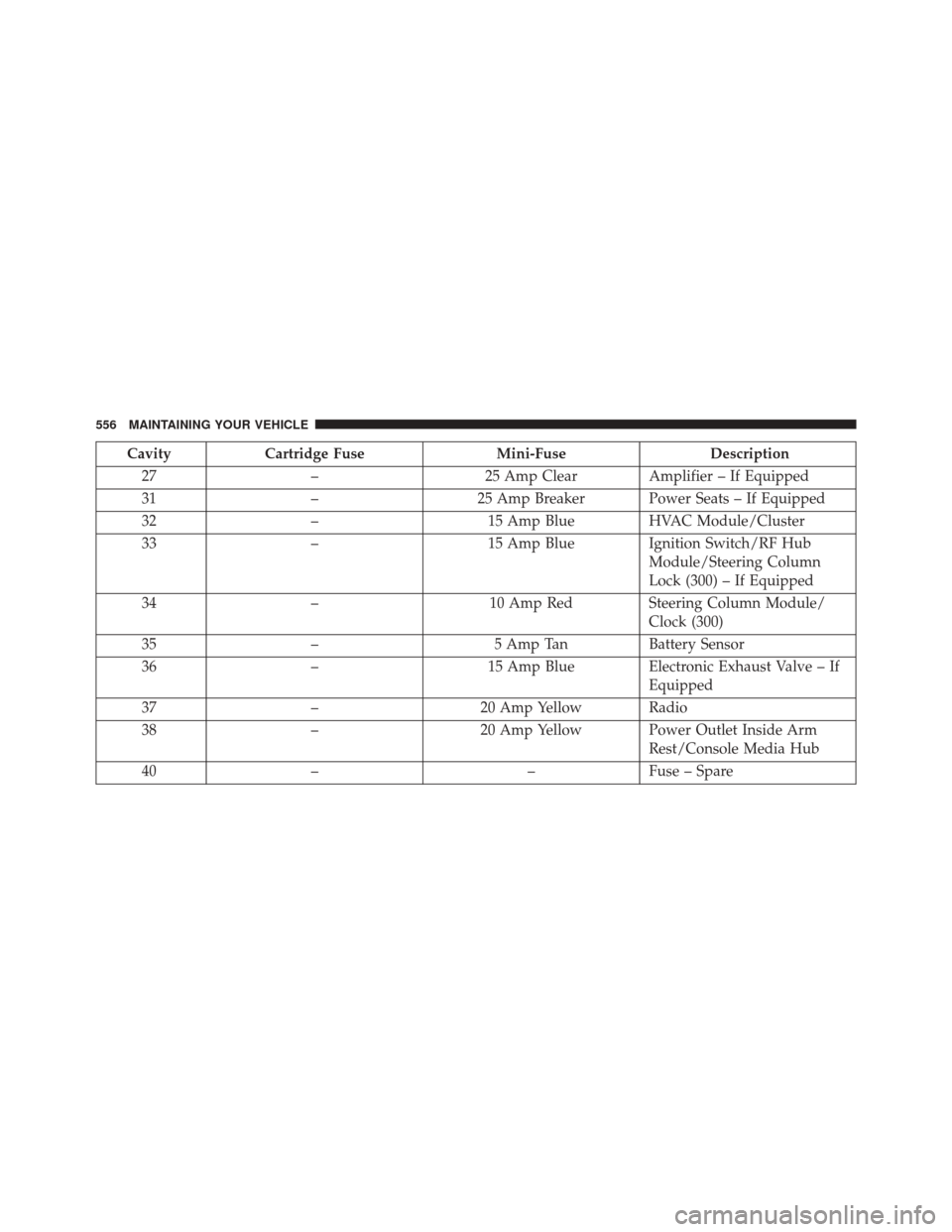

CavityCartridge Fuse Mini-FuseDescription
27 – 25 Amp Clear Amplifier – If Equipped
31 –25 Amp Breaker Power Seats – If Equipped
32 – 15 Amp BlueHVAC Module/Cluster
33 – 15 Amp BlueIgnition Switch/RF Hub
Module/Steering Column
Lock (300) – If Equipped
34 – 10 Amp RedSteering Column Module/
Clock (300)
35 – 5 Amp TanBattery Sensor
36 – 15 Amp BlueElectronic Exhaust Valve – If
Equipped
37 – 20 Amp Yellow Radio
38 – 20 Amp Yellow Power Outlet Inside Arm
Rest/Console Media Hub
40 – –Fuse – Spare
556 MAINTAINING YOUR VEHICLE

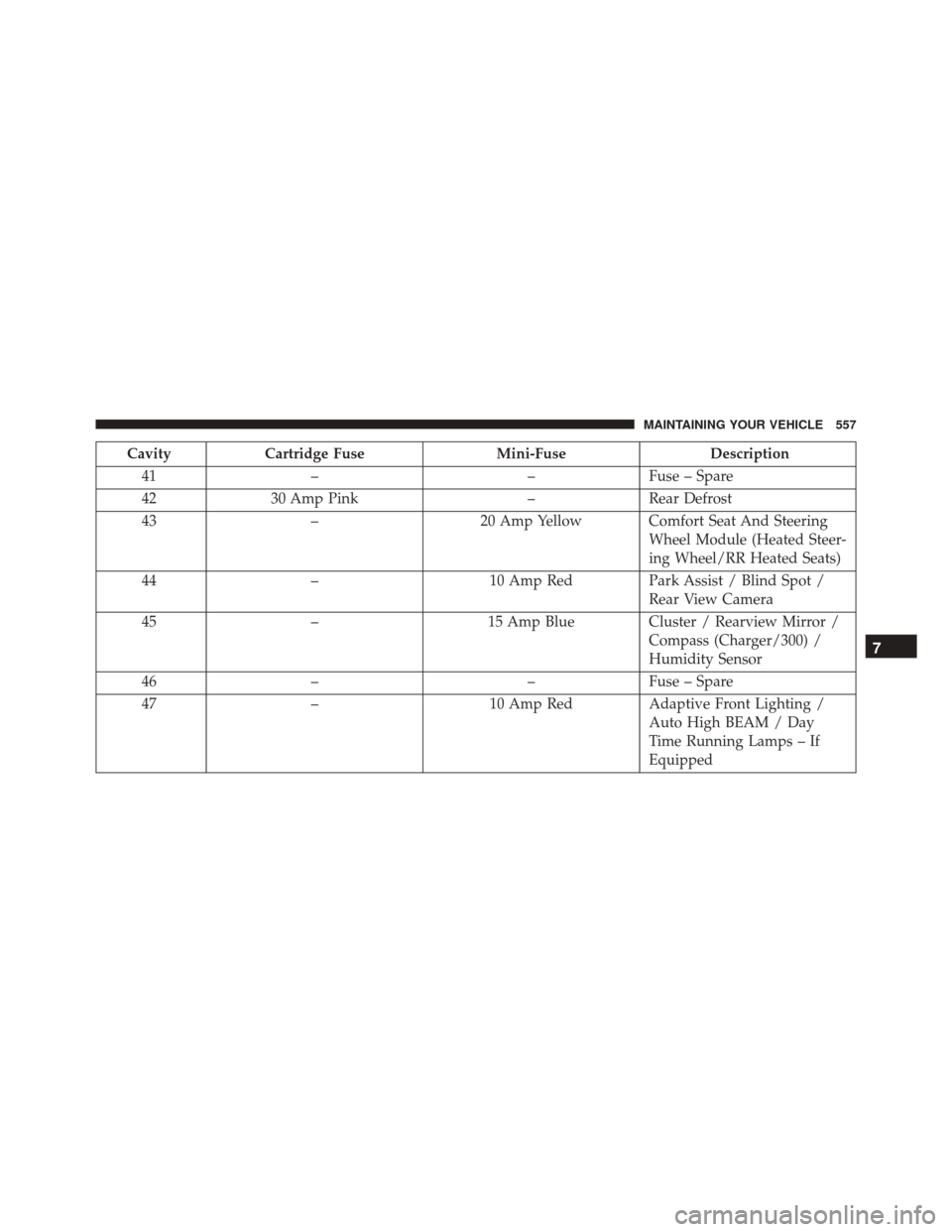

CavityCartridge Fuse Mini-FuseDescription
41 – –Fuse – Spare
42 30 Amp Pink –Rear Defrost
43 – 20 Amp Yellow Comfort Seat And Steering
Wheel Module (Heated Steer-
ing Wheel/RR Heated Seats)
44 – 10 Amp RedPark Assist / Blind Spot /
Rear View Camera
45 – 15 Amp BlueCluster / Rearview Mirror /
Compass (Charger/300) /
Humidity Sensor
46 – –Fuse – Spare
47 – 10 Amp RedAdaptive Front Lighting /
Auto High BEAM / Day
Time Running Lamps – If
Equipped
7
MAINTAINING YOUR VEHICLE 557

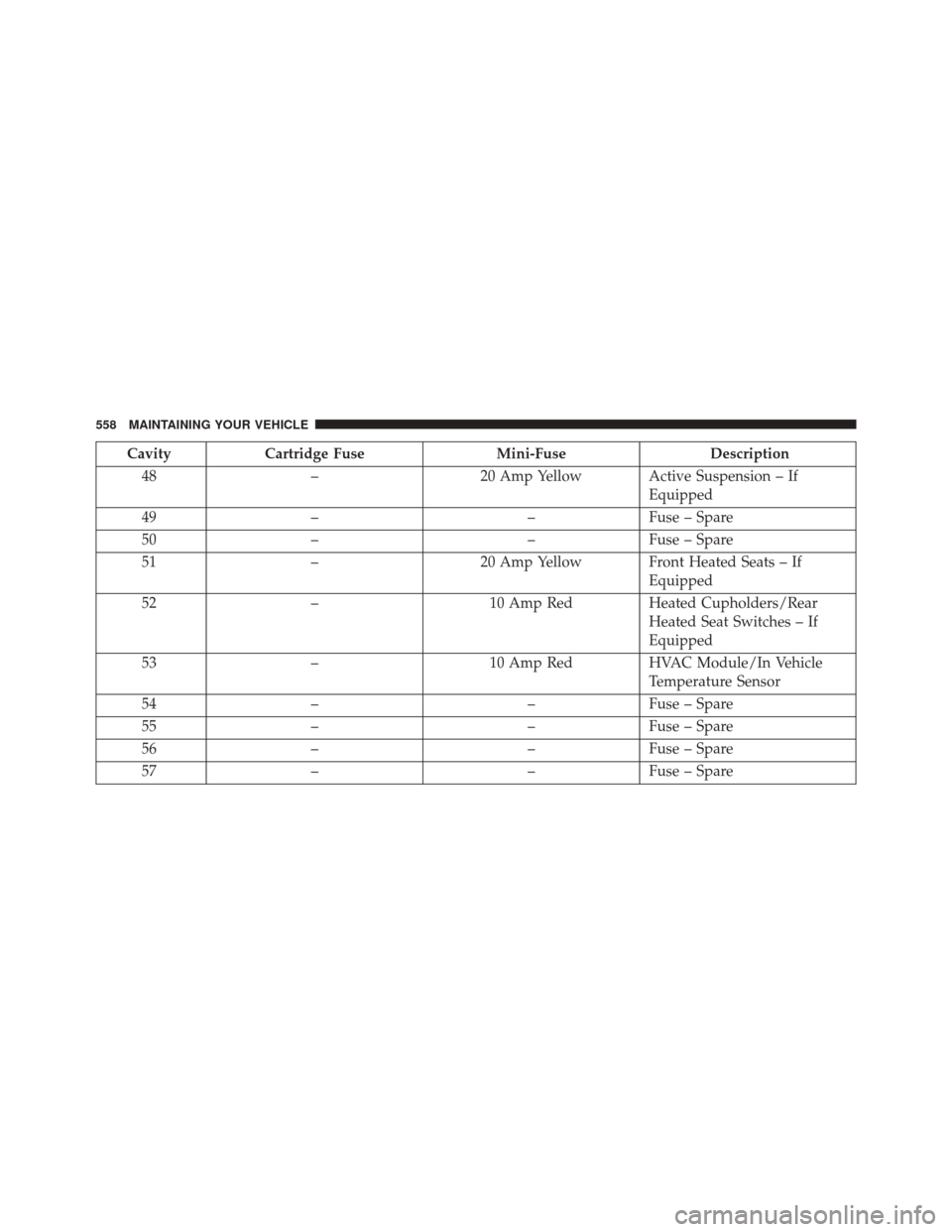

CavityCartridge Fuse Mini-FuseDescription
48 – 20 Amp Yellow Active Suspension – If
Equipped
49 – –Fuse – Spare
50 – –Fuse – Spare
51 – 20 Amp Yellow Front Heated Seats – If
Equipped
52 – 10 Amp RedHeated Cupholders/Rear
Heated Seat Switches – If
Equipped
53 – 10 Amp RedHVAC Module/In Vehicle
Temperature Sensor
54 – –Fuse – Spare
55 – –Fuse – Spare
56 – –Fuse – Spare
57 – –Fuse – Spare
